MaskRCNN
MaskRCNN supports the following tasks:
train
evaluate
inference
export
These tasks may be invoked from the TAO Toolkit Launcher using the following convention on the command line:
tao mask_rcnn <sub_task> <args_per_subtask>
where args_per_subtask
are the command-line arguments required for a given subtask. Each of
these subtasks are explained in detail below.
Below is a sample MaskRCNN spec file. It has three major components: top level experiment
configs, data_config
, and maskrcnn_config
, explained below in detail. The format of
the spec file is a protobuf text (prototxt) message and each of its fields can be either a
basic data type or a nested message. The top level structure of the spec file is summarized in
the table below.
Here’s a sample of the MaskRCNN spec file:
seed: 123
use_amp: False
warmup_steps: 0
checkpoint: "/workspace/tao-experiments/maskrcnn/pretrained_resnet50/tlt_instance_segmentation_vresnet50/resnet50.hdf5"
learning_rate_steps: "[60000, 80000, 100000]"
learning_rate_decay_levels: "[0.1, 0.02, 0.002]"
total_steps: 120000
train_batch_size: 2
eval_batch_size: 4
num_steps_per_eval: 10000
momentum: 0.9
l2_weight_decay: 0.0001
l1_weight_decay: 0.0
warmup_learning_rate: 0.0001
init_learning_rate: 0.02
# pruned_model_path: "/workspace/tao-experiments/maskrcnn/pruned_model/model.tlt"
data_config{
image_size: "(832, 1344)"
augment_input_data: True
eval_samples: 500
training_file_pattern: "/workspace/tao-experiments/data/train*.tfrecord"
validation_file_pattern: "/workspace/tao-experiments/data/val*.tfrecord"
val_json_file: "/workspace/tao-experiments/data/annotations/instances_val2017.json"
# dataset specific parameters
num_classes: 91
skip_crowd_during_training: True
max_num_instances: 200
}
maskrcnn_config {
nlayers: 50
arch: "resnet"
freeze_bn: True
freeze_blocks: "[0,1]"
gt_mask_size: 112
# Region Proposal Network
rpn_positive_overlap: 0.7
rpn_negative_overlap: 0.3
rpn_batch_size_per_im: 256
rpn_fg_fraction: 0.5
rpn_min_size: 0.
# Proposal layer.
batch_size_per_im: 512
fg_fraction: 0.25
fg_thresh: 0.5
bg_thresh_hi: 0.5
bg_thresh_lo: 0.
# Faster-RCNN heads.
fast_rcnn_mlp_head_dim: 1024
bbox_reg_weights: "(10., 10., 5., 5.)"
# Mask-RCNN heads.
include_mask: True
mrcnn_resolution: 28
# training
train_rpn_pre_nms_topn: 2000
train_rpn_post_nms_topn: 1000
train_rpn_nms_threshold: 0.7
# evaluation
test_detections_per_image: 100
test_nms: 0.5
test_rpn_pre_nms_topn: 1000
test_rpn_post_nms_topn: 1000
test_rpn_nms_thresh: 0.7
# model architecture
min_level: 2
max_level: 6
num_scales: 1
aspect_ratios: "[(1.0, 1.0), (1.4, 0.7), (0.7, 1.4)]"
anchor_scale: 8
# localization loss
rpn_box_loss_weight: 1.0
fast_rcnn_box_loss_weight: 1.0
mrcnn_weight_loss_mask: 1.0
}
Field |
Description |
Data Type and Constraints |
Recommended/Typical Value |
seed |
The random seed for the experiment |
Unsigned int |
123 |
warmup_steps |
The steps taken for learning rate to ramp up to the init_learning_rate |
Unsigned int |
– |
warmup_learning_rate |
The initial learning rate during the warmup phase |
float |
– |
learning_rate_steps |
A list of steps at which the learning rate decays by the factor specified in learning_rate_decay_levels |
string |
– |
learning_rate_decay_levels |
A list of decay factors. The length should match the length of learning_rate_steps. |
string |
– |
total_steps |
The total number of training iterations |
Unsigned int |
– |
train_batch_size |
The batch size during training |
Unsigned int |
4 |
eval_batch_size |
The batch size during validation or evaluation |
Unsigned int |
8 |
num_steps_per_eval |
Save a checkpoint and run evaluation every N steps. |
Unsigned int |
– |
momentum |
Momentum of the SGD optimizer |
float |
0.9 |
l1_weight_decay |
L1 weight decay |
float |
0.0001 |
l2_weight_decay |
L2 weight decay |
float |
0.0001 |
use_amp |
Specifies whether to use Automatic Mixed Precision training |
boolean |
False |
checkpoint |
The path to a pretrained model |
string |
– |
maskrcnn_config |
The architecture of the model |
message |
– |
data_config |
The input data configuration |
message |
– |
skip_checkpoint_variables |
If specified, the weights of the layers with matching regular expressions will not be loaded. This is especially helpful for transfer learning. |
string |
– |
pruned_model_path |
The path to a pruned MaskRCNN model |
string |
– |
When using skip_checkpoint_variables
, you can first find the model structure in the
training log (Part of the MaskRCNN+ResNet50 model structure is shown below). If, for example,
you want to retrain all prediction heads, you can set skip_checkpoint_variables
to
“head”. TAO Toolkit uses the Python re library to check whether “head” matches any layer name or
re.search($skip_checkpoint_variables, $layer_name)
.
[MaskRCNN] INFO : ================ TRAINABLE VARIABLES ==================
[MaskRCNN] INFO : [#0001] conv1/kernel:0 => (7, 7, 3, 64)
[MaskRCNN] INFO : [#0002] bn_conv1/gamma:0 => (64,)
[MaskRCNN] INFO : [#0003] bn_conv1/beta:0 => (64,)
[MaskRCNN] INFO : [#0004] block_1a_conv_1/kernel:0 => (1, 1, 64, 64)
[MaskRCNN] INFO : [#0005] block_1a_bn_1/gamma:0 => (64,)
[MaskRCNN] INFO : [#0006] block_1a_bn_1/beta:0 => (64,)
[MaskRCNN] INFO : [#0007] block_1a_conv_2/kernel:0 => (3, 3, 64, 64)
[MaskRCNN] INFO : [#0008] block_1a_bn_2/gamma:0 => (64,)
[MaskRCNN] INFO : [#0009] block_1a_bn_2/beta:0 => (64,)
[MaskRCNN] INFO : [#0010] block_1a_conv_3/kernel:0 => (1, 1, 64, 256)
[MaskRCNN] INFO : [#0011] block_1a_bn_3/gamma:0 => (256,)
[MaskRCNN] INFO : [#0012] block_1a_bn_3/beta:0 => (256,)
[MaskRCNN] INFO : [#0110] block_3d_bn_3/gamma:0 => (1024,)
[MaskRCNN] INFO : [#0111] block_3d_bn_3/beta:0 => (1024,)
[MaskRCNN] INFO : [#0112] block_3e_conv_1/kernel:0 => (1, 1, 1024, [MaskRCNN] INFO : [#0144] block_4b_bn_1/beta:0 => (512,)
… … … … ...
[MaskRCNN] INFO : [#0174] post_hoc_d5/kernel:0 => (3, 3, 256, 256)
[MaskRCNN] INFO : [#0175] post_hoc_d5/bias:0 => (256,)
[MaskRCNN] INFO : [#0176] rpn/kernel:0 => (3, 3, 256, 256)
[MaskRCNN] INFO : [#0177] rpn/bias:0 => (256,)
[MaskRCNN] INFO : [#0178] rpn-class/kernel:0 => (1, 1, 256, 3)
[MaskRCNN] INFO : [#0179] rpn-class/bias:0 => (3,)
[MaskRCNN] INFO : [#0180] rpn-box/kernel:0 => (1, 1, 256, 12)
[MaskRCNN] INFO : [#0181] rpn-box/bias:0 => (12,)
[MaskRCNN] INFO : [#0182] fc6/kernel:0 => (12544, 1024)
[MaskRCNN] INFO : [#0183] fc6/bias:0 => (1024,)
[MaskRCNN] INFO : [#0184] fc7/kernel:0 => (1024, 1024)
[MaskRCNN] INFO : [#0185] fc7/bias:0 => (1024,)
[MaskRCNN] INFO : [#0186] class-predict/kernel:0 => (1024, 91)
[MaskRCNN] INFO : [#0187] class-predict/bias:0 => (91,)
[MaskRCNN] INFO : [#0188] box-predict/kernel:0 => (1024, 364)
[MaskRCNN] INFO : [#0189] box-predict/bias:0 => (364,)
[MaskRCNN] INFO : [#0190] mask-conv-l0/kernel:0 => (3, 3, 256, 256)
[MaskRCNN] INFO : [#0191] mask-conv-l0/bias:0 => (256,)
[MaskRCNN] INFO : [#0192] mask-conv-l1/kernel:0 => (3, 3, 256, 256)
[MaskRCNN] INFO : [#0193] mask-conv-l1/bias:0 => (256,)
[MaskRCNN] INFO : [#0194] mask-conv-l2/kernel:0 => (3, 3, 256, 256)
[MaskRCNN] INFO : [#0195] mask-conv-l2/bias:0 => (256,)
[MaskRCNN] INFO : [#0196] mask-conv-l3/kernel:0 => (3, 3, 256, 256)
[MaskRCNN] INFO : [#0197] mask-conv-l3/bias:0 => (256,)
[MaskRCNN] INFO : [#0198] conv5-mask/kernel:0 => (2, 2, 256, 256)
[MaskRCNN] INFO : [#0199] conv5-mask/bias:0 => (256,)
[MaskRCNN] INFO : [#0200] mask_fcn_logits/kernel:0 => (1, 1, 256, 91)
[MaskRCNN] INFO : [#0201] mask_fcn_logits/bias:0 => (91,)
MaskRCNN Config
The MaskRCNN configuration (maskrcnn_config
) defines the model structure. This model
is used for training, evaluation, and inference. A detailed description is included in the
table below. Currently, MaskRCNN only supports ResNet10/18/34/50/101 as its backbone.
Field |
Description |
Data Type and Constraints |
Recommended/Typical Value |
nlayers |
The number of layers in ResNet arch |
message |
50 |
arch |
The backbone feature extractor name |
string |
resnet |
freeze_bn |
Whether to freeze all BatchNorm layers in the backbone |
boolean |
False |
freeze_blocks |
A list of conv blocks in the backbone to freeze |
string ResNet: For the ResNet series, the block IDs valid for freezing are any subset of [0, 1, 2, 3] (inclusive) |
– |
gt_mask_size |
The groundtruth mask size |
Unsigned int |
112 |
rpn_positive_overlap |
The lower-bound threshold to assign positive labels for anchors |
float |
0.7 |
rpn_negative_overlap |
The upper-bound threshold to assign negative labels for anchors |
float |
0.3 |
rpn_batch_size_per_im |
The number of sampled anchors per image in RPN |
Unsigned int |
256 |
rpn_fg_fraction |
The desired fraction of positive anchors in a batch |
Unsigned int |
0.5 |
rpn_min_size |
The minimum proposal height and width |
0 |
|
batch_size_per_im |
The RoI minibatch size per image |
Unsigned int |
512 |
fg_fraction |
The target fraction of RoI minibatch that is labeled as foreground |
float |
0.25 |
fast_rcnn_mlp_head_dim |
The Fast-RCNN classification head dimension |
Unsigned int |
1024 |
bbox_reg_weights |
The bounding-box regularization weights |
string |
“(10, 10, 5, 5)” |
include_mask |
Specifies whether to include a mask head |
boolean |
True (currently only True is supported) |
mrcnn_resolution |
The mask-head resolution |
Unsigned int |
28 |
train_rpn_pre_nms_topn |
The number of top-scoring RPN proposals to keep before applying NMS (per FPN level) during training |
Unsigned int |
2000 |
train_rpn_post_nms_topn |
The number of top-scoring RPN proposals to keep after applying NMS (total number produced) during training |
Unsigned int |
1000 |
train_rpn_nms_threshold |
The NMS IOU threshold in RPN during training |
float |
0.7 |
test_detections_per_image |
The number of bounding box candidates after NMS |
Unsigned int |
100 |
test_nms |
The NMS IOU threshold during test |
float |
0.5 |
test_rpn_pre_nms_topn |
The number of top-scoring RPN proposals to keep before applying NMS (per FPN level) during test |
Unsigned int |
1000 |
test_rpn_post_nms_topn |
The number of top scoring RPN proposals to keep after applying NMS (total number produced) during test |
Unsigned int |
1000 |
test_rpn_nms_threshold |
The NMS IOU threshold in RPN during test |
float |
0.7 |
min_level |
The minimum level of the output feature pyramid |
Unsigned int |
2 |
max_level |
The maximum level of the output feature pyramid |
Unsigned int |
6 |
num_scales |
The number of anchor octave scales on each pyramid level (e.g. if set to 3, the anchor scales are [2^0, 2^(1/3), 2^(2/3)]) |
Unsigned int |
1 |
aspect_ratios |
A list of tuples representing the aspect ratios of anchors on each pyramid level |
string |
“[(1.0, 1.0), (1.4, 0.7), (0.7, 1.4)]” |
anchor_scale |
Scale of the base-anchor size to the feature-pyramid stride |
Unsigned int |
8 |
rpn_box_loss_weight |
The weight for adjusting RPN box loss in the total loss |
float |
1.0 |
fast_rcnn_box_loss_weight |
The weight for adjusting FastRCNN box regression loss in the total loss |
float |
1.0 |
mrcnn_weight_loss_mask |
The weight for adjusting mask loss in the total loss |
float |
1.0 |
The min_level
, max_level
, num_scales
, aspect_ratios
,
and anchor_scale
are used to determine anchor generation for MaskRCNN.
anchor_scale
is the base anchor scale, while min_level
and
max_level
set the range of the scales on different feature maps. For example,
the actual anchor scale for the feature map at min_level
will be anchor_scale * 2^min_level
and the actual anchor scale for the feature map at max_level
will be
anchor_scale * 2^max_level. And it will generate anchors of different
aspect_ratios
based on the actual anchor scale.
Data Config
The data configuration (data_config
) specifies the input data source and format. This is
used for training, evaluation, and inference. A detailed description is summarized in the table
below.
Field |
Description |
Data Type and Constraints |
Recommended/Typical Value |
image_size |
The image dimension as a tuple within quote marks. “(height, width)” indicates the dimension of the resized and padded input. |
string |
“(832, 1344)” |
augment_input_data |
Specifies whether to augment the data |
boolean |
True |
eval_samples |
The number of samples for evaluation |
Unsigned int |
– |
training_file_pattern |
The TFRecord path for training |
string |
– |
validation_file_pattern |
The TFRecord path for validation |
string |
– |
val_json_file |
The annotation file path for validation |
string |
– |
num_classes |
The number of classes. If there are N categories in the annotation, num_classes should be N+1 (background class) |
Unsigned int |
– |
skip_crowd_during_training |
Specifies whether to skip crowd during training |
boolean |
True |
prefetch_buffer_size |
The prefetch buffer size used by tf.data.Dataset (default: AUTOTUNE) |
Unsigned int |
– |
shuffle_buffer_size |
The shuffle buffer size used by tf.data.Dataset (default: 4096) |
Unsigned int |
4096 |
n_workers |
The number of workers to parse and preprocess data (default: 16) |
Unsigned int |
16 |
max_num_instances |
The maximum number of object instances to parse (default: 200) |
Unsigned int |
200 |
If an out-of-memory error occurs during training, try to set a smaller image_size
or batch_size
first. If the error persists, try reducing
the n_workers
, shuffle_buffer_size
, and prefetch_buffer_size
values. Lastly, if the original images have a very large resolution,
resize the images offline and create new tfrecords to avoid loading large images to GPU memory.
Train the MaskRCNN model using this command:
tao mask_rcnn train [-h] -e <experiment_spec>
-d <output_dir>
-k <key>
[--gpus <num_gpus>]
[--gpu_index <gpu_index>]
[--log_file <log_file_path>]
Required Arguments
-d, --model_dir
: The path to the folder where the experiment output is written.-k, --key
: The encryption key to decrypt the model.-e, --experiment_spec_file
: The experiment specification file to set up the evaluation. experiment. This should be the same as the training specification file.
Optional Arguments
--gpus num_gpus
: The number of GPUs to use and processes to launch for training. The default value is 1.--gpu_index
: The index of the (descrete) GPU for exporting the model if the machine has multiple GPUs installed. Note that export can only run on a single GPU.--log_file
: The path to the log file. The default path isstdout
.-h, --help
: Show this help message and exit.
Input Requirement
Input size: C * W * H (where C = 3, W >= 128, H >= 128 and W, H are multiples of 2^
max_level
)Image format: JPG
Label format: COCO detection
Sample Usage
Here’s an example of using the train
command on a MaskRCNN model:
tao mask_rcnn train --gpus 2 -e /path/to/spec.txt -d /path/to/result -k $KEY
To run evaluation for a MaskRCNN model, use this command:
tao mask_rcnn evaluate [-h] -e <experiment_spec_file>
-m <model_file>
-k <key>
[--gpu_index <gpu_index>]
[--log_file <log_file_path>]
Required Arguments
-e, --experiment_spec_file
: The experiment spec file to set up the evaluation experiment. This should be the same as the training spec file.-m, --model
: The path to the model file to use for evaluation-k, --key
: The key to load the model. This argument is not required if-m
is followed by a TensorRT engine.
Optional Arguments
--gpu_index
: The index of the (descrete) GPU for exporting the model if the machine has multiple GPUs installed. Note that export can only run on a single GPU.--log_file
: The path to the log file. The default path isstdout
.-h, --help
: Show this help message and exit.
Pruning removes parameters from the model to reduce the model size. Retraining is necessary to regain the performance of the unpruned model.
The prune
command includes these parameters:
tao mask_rcnn prune [-h] -m <pretrained_model>
-o <output_dir>
-k <key>
[-n <normalizer>]
[-eq <equalization_criterion>]
[-pg <pruning_granularity>]
[-pth <pruning threshold>]
[-nf <min_num_filters>]
[-el [<excluded_list>]
[--gpu_index <gpu_index>]
[--log_file <log_file>]
Required Arguments
-m, --pretrained_model
: The path to the pretrained model.-o, --output_dir
: The output directory which contains the pruned model, named asmodel.tlt
.-k, --key
: The key to load a.tlt
model.
Optional Arguments
-h, --help
: Show this help message and exit.-n, --normalizer
:max
to normalize by dividing each norm by the maximum norm within a layer;L2
to normalize by dividing by the L2 norm of the vector comprising all kernel norms. (default: max)-eq, --equalization_criterion
: Criteria to equalize the stats of inputs to an element wise op layer, or depth-wise convolutional layer. This parameter is useful for resnets and mobilenets. Options arearithmetic_mean
,geometric_mean
,union
, andintersection
. (default:union
)-pg, --pruning_granularity
: Number of filters to remove at a time. (default:8)-pth
: Threshold to compare normalized norm against. (default:0.1)-nf, --min_num_filters
: Minimum number of filters to keep per layer (default:16)-el, --excluded_layers
: List of excluded_layers. Examples: -i item1 item2 (default: [])--gpu_index
: The index of the GPU to run evaluation (useful when the machine has multiple GPUs installed). Note that evaluation can only run on a single GPU.--log_file
: The path to the log file. Defaults tostdout
.
Here’s an example of using the prune
command:
tao mask_rcnn prune -m /workspace/model.step-100.tlt
-o /workspace/output
-eq union
-pth 0.7 -k $KEY
After pruning, the model needs to be retrained first before it can be used for inference or evaluation.
Once the model has been pruned, there might be a decrease in accuracy. This happens
because some previously useful weights may have been removed. To regain accuracy,
NVIDIA recommends that you retrain this pruned model over the same dataset. To do this, run
the tao mask_rcnn train
command with an updated spec file that points to the newly pruned model
by setting pruned_model_path
.
Users are advised to turn off the regularizer during retraining. You may do this by setting the regularizer
weights to 0 for both l1_weight_decay
and l2_weight_decay
. The other parameters may be
retained in the spec file from the previous training. train_batch_size
and eval_batch_size
must be kept unchanged.
The inference
tool for MaskRCNN networks can be used to visualize bboxes or generate
frame-by-frame COCO-format labels on a directory of images. Here’s an example of using this tool:
tao mask_rcnn inference [-h] -i <input directory>
-o <output annotated image directory>
-e <experiment spec file>
-m <model file>
-k <key>
[-l <label file>]
[-t <bbox confidence threshold>]
[--include_mask]
[--gpu_index <gpu_index>]
[--log_file <log_file_path>]
Required Arguments
-m, --model_path
: The path to the trained MaskRCNN model (either a.tlt
model or a converted TensorRT engine).-i, --image_dir
: The directory of input images for inference. Supported image formats include PNG, JPG and JPEG.-e, --config_path
: The path to an experiment spec file for training.-o, --out_image_path
: The directory path to output annotated images.-k, --key
: The key to load a.tlt
model (not needed if TensorRT engine is used).
Optional Arguments
-t, --threshold
: The threshold for drawing a bbox (default: 0.6)-l, --out_label_path
: The directory of predicted labels in COCO format (https://cocodataset.org/#format-results). This argument is only supported with the TensorRT engine.--include_mask
: Specifies whether to draw masks on the annotated output.--gpu_index
: The index of the (discrete) GPU for exporting the model if the machine has multiple GPUs installed. Note that export can only run on a single GPU.--log_file
: The path to the log file. The default path isstdout
.-h, --help
: Show this help message and exit.
Exporting the model decouples the training process from inference and allows conversion to TensorRT engines outside the TAO environment. TensorRT engines are specific to each hardware configuration and should be generated for each unique inference environment. The exported model may be used universally across training and deployment hardware.
The exported model format is referred to as .etlt
. Like the .tlt
model format,
.etlt
is an encrypted model format, and it uses the same key as the .tlt
model
that it is exported from. This key is required when deploying this model.
INT8 Mode Overview
TensorRT engines can be generated in INT8 mode to improve performance, but require a calibration
cache at engine creation-time. The calibration cache is generated using a calibration tensor
file, if export
is run with the --data_type
flag set to int8
.
Pre-generating the calibration information and caching it removes the need for calibrating the
model on the inference machine. Moving the calibration cache is usually much more convenient than
moving the calibration tensorfile, since it is a much smaller file and can be moved with the
exported model. Using the calibration cache also speeds up engine creation as building the
cache can take several minutes to generate depending on the size of the Tensorfile and the model
itself.
The export tool can generate the INT8 calibration cache by ingesting training data using one of these options:
Option 1: Use the training data loader to load the training images for INT8 calibration. This option is now the recommended approach to support multiple image directories by leveraging the training dataset loader. This also ensures two important aspects of data during calibration:
Data pre-processing in the INT8 calibration step is the same as in the training process.
The data batches are sampled randomly across the entire training dataset, thereby improving the accuracy of the INT8 model.
Option 2: Point the tool to a directory of images that you want to use to calibrate the model. For this option, make sure to create a sub-sampled directory of random images that best represent your training dataset.
FP16/FP32 Model
The calibration.bin
is only required if you need to run inference at INT8 precision. For
FP16/FP32-based inference, the export step is much simpler: All you need to do is provide
a .tlt
model from the training/retraining step to be converted into .etlt
format.
Exporting the MaskRCNN Model
Here’s an example of the command line arguments of the tao mask_rcnn export
command:
tao mask_rcnn export [-h] -m <path to the .tlt model file generated by tao train>
-k <key>
[-o <path to output file>]
[--cal_data_file <path to tensor file>]
[--cal_image_dir <path to the directory images to calibrate the model]
[--cal_cache_file <path to output calibration file>]
[--data_type <Data type for the TensorRT backend during export>]
[--batches <Number of batches to calibrate over>]
[--max_batch_size <maximum trt batch size>]
[--max_workspace_size <maximum workspace size]
[--batch_size <batch size to TensorRT engine>]
[--experiment_spec <path to experiment spec file>]
[--engine_file <path to the TensorRT engine file>]
[--gen_ds_config <Flag to generate ds config and label file>]
[--verbose <Verbosity of the logger>]
[--force_ptq <Flag to force PTQ>]
[--strict_type_constraints <Flag to apply strict type constraints>]
[--gpu_index <gpu_index>]
[--log_file <log_file_path>]
Required Arguments
-m, --model
: The path to the.tlt
model file to be exported usingexport
.-k, --key
: The key used to save the.tlt
model file.-e, --experiment_spec
: The path to the spec file.
Optional Arguments
-o, --output_file
: The path to save the exported model to. The default path is./<input_file>.etlt
.--data_type
: The desired engine data type. The options arefp32
,fp16
, andint8
. The default value isfp32
. A calibration cache will be generated in INT8 mode. If using INT8, the following INT8 arguments are required.-s, --strict_type_constraints
: A Boolean flag indicating whether to apply the TensorRT strict type constraints when building the TensorRT engine.--gen_ds_config
: A Boolean flag indicating whether to generate the template DeepStream related configuration (“nvinfer_config.txt”) as well as a label file (“labels.txt”) in the same directory as theoutput_file
. Note that the config file is NOT a complete configuration file and requires the user to update the sample config files in DeepStream with the parameters generated.--gpu_index
: The index of the (descrete) GPU for exporting the model if the machine has multiple GPUs installed. Note that export can only run on a single GPU.--log_file
: The path to the log file. The default path isstdout
.-h, --help
: Show this help message and exit.
INT8 Export Mode Required Arguments
--cal_data_file
: The tensorfile generated for calibrating the engine. This can also be an output file if used with--cal_image_dir
.--cal_image_dir
: A directory of images to use for calibration.
The --cal_image_dir
parameter applies the necessary preprocessing
to generate a tensorfile at the path mentioned in the --cal_data_file
parameter, which is in turn used for calibration. The number of batches in the
tensorfile generated is obtained from the value set to the --batches
parameter,
and the batch_size
is obtained from the value set to the --batch_size
parameter. Ensure that the directory mentioned in --cal_image_dir
has at least
batch_size * batches
number of images in it. The valid image extensions are .jpg,
.jpeg, and .png. In this case, the input_dimensions
of the calibration tensors
are derived from the input layer of the .tlt
model.
INT8 Export Optional Arguments
--cal_cache_file
: The path to save the calibration cache file to. The default value is./cal.bin
.--batches
: The number of batches to use for calibration and inference testing. The default value is 10.--batch_size
: The batch size to use for calibration. The default value is 8.--max_batch_size
: The maximum batch size of the TensorRT engine. The default value is 16.--max_workspace_size
: Maximum workspace size of the TensorRT engine. The default value is 1073741824 = 1<<30--engine_file
: The path to the serialized TensorRT engine file. Note that this file is hardware specific and cannot be generalized across GPUs. It is useful to quickly test your model accuracy using TensorRT on the host. As the TensorRT engine file is hardware specific, you cannot use this engine file for deployment unless the deployment GPU is identical to the training GPU.--force_ptq
: A Boolean flag to force post training quantization on the exported etlt model
MaskRCNN does not support QAT.
Sample usage
Here’s a sample command to export a MaskRCNN model in INT8 mode:
tao mask_rcnn export -m /ws/model.step-25000.tlt \
-k nvidia_tlt \
-e /ws/maskrcnn_train_resnet50.txt \
--batch_size 1 \
--data_type int8 \
--cal_image_dir /raw-data/val2017 \
--batches 10 \
--cal_cache_file /export/maskrcnn.cal \
--cal_data_file /export/maskrcnn.tensorfile
The deep learning and computer vision models that you’ve trained can be deployed on edge devices, such as a Jetson Xavier or Jetson Nano, a discrete GPU, or in the cloud with NVIDIA GPUs. TAO Toolkit has been designed to integrate with DeepStream SDK, so models trained with TAO Toolkit will work out of the box with DeepStream SDK.
DeepStream SDK is a streaming analytic toolkit to accelerate building AI-based video analytic applications. This section will describe how to deploy your trained model to DeepStream SDK.
To deploy a model trained by TAO Toolkit to DeepStream we have two options:
Option 1: Integrate the
.etlt
model directly in the DeepStream app. The model file is generated by export.Option 2: Generate a device specific optimized TensorRT engine using
tao-converter
. The generated TensorRT engine file can also be ingested by DeepStream.
Machine-specific optimizations are done as part of the engine creation process, so a distinct engine should be generated for each environment and hardware configuration. If the TensorRT or CUDA libraries of the inference environment are updated (including minor version updates), or if a new model is generated, new engines need to be generated. Running an engine that was generated with a different version of TensorRT and CUDA is not supported and will cause unknown behavior that affects inference speed, accuracy, and stability, or it may fail to run altogether.
Option 1 is very straightforward. The .etlt
file and calibration cache are directly
used by DeepStream. DeepStream will automatically generate the TensorRT engine file and then run
inference. TensorRT engine generation can take some time depending on size of the model
and type of hardware. Engine generation can be done ahead of time with Option 2.
With option 2, the tao-converter
is used to convert the .etlt
file to TensorRT; this
file is then provided directly to DeepStream.
See the Exporting the Model section for more details on how to export a TAO model.
TensorRT Open Source Software (OSS)
For MaskRCNN, we need the generateDetectionPlugin
, multilevelCropAndResizePlugin
,
resizeNearestPlugin
and multilevelProposeROI
plugins from the
TensorRT OSS build.
If the deployment platform is x86 with an NVIDIA GPU, follow the TensorRT OSS on x86 instructions. On the other hand, if your deployment is on NVIDIA Jetson platform, follow the TensorRT OSS on Jetson (ARM64) instructions.
TensorRT OSS on x86
Building TensorRT OSS on x86:
Install Cmake (>=3.13).
NoteTensorRT OSS requires cmake >= v3.13, so install cmake 3.13 if your cmake version is lower than 3.13c
sudo apt remove --purge --auto-remove cmake wget https://github.com/Kitware/CMake/releases/download/v3.13.5/cmake-3.13.5.tar.gz tar xvf cmake-3.13.5.tar.gz cd cmake-3.13.5/ ./configure make -j$(nproc) sudo make install sudo ln -s /usr/local/bin/cmake /usr/bin/cmake
Get GPU architecture. The
GPU_ARCHS
value can be retrieved by thedeviceQuery
CUDA sample:cd /usr/local/cuda/samples/1_Utilities/deviceQuery sudo make ./deviceQuery
If the
/usr/local/cuda/samples
doesn’t exist in your system, you could downloaddeviceQuery.cpp
from this GitHub repo. Compile and rundeviceQuery
.nvcc deviceQuery.cpp -o deviceQuery ./deviceQuery
This command will output something like this, which indicates the
GPU_ARCHS
is75
based on CUDA Capability major/minor version.Detected 2 CUDA Capable device(s) Device 0: "Tesla T4" CUDA Driver Version / Runtime Version 10.2 / 10.2 CUDA Capability Major/Minor version number: 7.5
Build TensorRT OSS:
git clone -b 21.03 https://github.com/nvidia/TensorRT cd TensorRT/ git submodule update --init --recursive export TRT_SOURCE=`pwd` cd $TRT_SOURCE mkdir -p build && cd build
NoteMake sure your
GPU_ARCHS
from step 2 is in TensorRT OSSCMakeLists.txt
. If GPU_ARCHS is not in TensorRT OSSCMakeLists.txt
, add-DGPU_ARCHS=<VER>
as below, where<VER>
representsGPU_ARCHS
from step 2./usr/local/bin/cmake .. -DGPU_ARCHS=xy -DTRT_LIB_DIR=/usr/lib/aarch64-linux-gnu/ -DCMAKE_C_COMPILER=/usr/bin/gcc -DTRT_BIN_DIR=`pwd`/out make nvinfer_plugin -j$(nproc)
After building ends successfully,
libnvinfer_plugin.so*
will be generated under\`pwd\`/out/.
Replace the original
libnvinfer_plugin.so*
:sudo mv /usr/lib/x86_64-linux-gnu/libnvinfer_plugin.so.7.x.y ${HOME}/libnvinfer_plugin.so.7.x.y.bak // backup original libnvinfer_plugin.so.x.y sudo cp $TRT_SOURCE/`pwd`/out/libnvinfer_plugin.so.7.m.n /usr/lib/x86_64-linux-gnu/libnvinfer_plugin.so.7.x.y sudo ldconfig
TensorRT OSS on Jetson (ARM64)
Install Cmake (>=3.13)
NoteTensorRT OSS requires cmake >= v3.13, while the default cmake on Jetson/Ubuntu 18.04 is cmake 3.10.2.
Upgrade TensorRT OSS using:
sudo apt remove --purge --auto-remove cmake wget https://github.com/Kitware/CMake/releases/download/v3.13.5/cmake-3.13.5.tar.gz tar xvf cmake-3.13.5.tar.gz cd cmake-3.13.5/ ./configure make -j$(nproc) sudo make install sudo ln -s /usr/local/bin/cmake /usr/bin/cmake
Get GPU architecture based on your platform. The
GPU_ARCHS
for different Jetson platform are given in the following table.Jetson Platform
GPU_ARCHS
Nano/Tx1
53
Tx2
62
AGX Xavier/Xavier NX
72
Build TensorRT OSS:
git clone -b 21.03 https://github.com/nvidia/TensorRT cd TensorRT/ git submodule update --init --recursive export TRT_SOURCE=`pwd` cd $TRT_SOURCE mkdir -p build && cd build
NoteThe
-DGPU_ARCHS=72
below is for Xavier or NX, for other Jetson platform, change72
referring toGPU_ARCHS
from step 2./usr/local/bin/cmake .. -DGPU_ARCHS=72 -DTRT_LIB_DIR=/usr/lib/aarch64-linux-gnu/ -DCMAKE_C_COMPILER=/usr/bin/gcc -DTRT_BIN_DIR=`pwd`/out make nvinfer_plugin -j$(nproc)
After building ends successfully,
libnvinfer_plugin.so*
will be generated under‘pwd’/out/.
Replace
"libnvinfer_plugin.so*"
with the newly generated.sudo mv /usr/lib/aarch64-linux-gnu/libnvinfer_plugin.so.7.x.y ${HOME}/libnvinfer_plugin.so.7.x.y.bak // backup original libnvinfer_plugin.so.x.y sudo cp `pwd`/out/libnvinfer_plugin.so.7.m.n /usr/lib/aarch64-linux-gnu/libnvinfer_plugin.so.7.x.y sudo ldconfig
Generating an Engine Using tao-converter
The tao-converter
tool is provided with the TAO Toolkit
to facilitate the deployment of TAO trained models on TensorRT and/or Deepstream.
This section elaborates on how to generate a TensorRT engine using tao-converter
.
For deployment platforms with an x86-based CPU and discrete GPUs, the tao-converter
is distributed within the TAO docker. Therefore, we suggest using the docker to generate
the engine. However, this requires that the user adhere to the same minor version of
TensorRT as distributed with the docker. The TAO docker includes TensorRT version 7.2.
Instructions for x86
For an x86 platform with discrete GPUs, the default TAO package includes the tao-converter
built for TensorRT 7.2 with CUDA 11.1 and CUDNN 8.0. However, for any other version of CUDA and
TensorRT, please refer to the overview section for download. Once the
tao-converter
is downloaded, follow the instructions below to generate a TensorRT engine.
Unzip the zip file on the target machine.
Install the OpenSSL package using the command:
sudo apt-get install libssl-dev
Export the following environment variables:
$ export TRT_LIB_PATH=”/usr/lib/x86_64-linux-gnu”
$ export TRT_INC_PATH=”/usr/include/x86_64-linux-gnu”
Run the
tao-converter
using the sample command below and generate the engine.Instructions to build TensorRT OSS on Jetson can be found in the TensorRT OSS on x86 section above or in this GitHub repo.
Make sure to follow the output node names as mentioned in Exporting the Model
section of the respective model.
Instructions for Jetson
For the Jetson platform, the tao-converter
is available to download in the NVIDIA developer zone. You may choose
the version you wish to download as listed in the overview section.
Once the tao-converter
is downloaded, please follow the instructions below to generate a
TensorRT engine.
Unzip the zip file on the target machine.
Install the OpenSSL package using the command:
sudo apt-get install libssl-dev
Export the following environment variables:
$ export TRT_LIB_PATH=”/usr/lib/aarch64-linux-gnu”
$ export TRT_INC_PATH=”/usr/include/aarch64-linux-gnu”
For Jetson devices, TensorRT 7.1 comes pre-installed with Jetpack. If you are using older JetPack, upgrade to JetPack 4.4 or JetPack 4.5.
Instructions to build TensorRT OSS on Jetson can be found in the TensorRT OSS on Jetson (ARM64) section above or in this GitHub repo.
Run the
tao-converter
using the sample command below and generate the engine.
Make sure to follow the output node names as mentioned in Exporting the Model
section of the respective model.
Using the tao-converter
tao-converter [-h] -k <encryption_key>
-d <input_dimensions>
-o <comma separated output nodes>
[-c <path to calibration cache file>]
[-e <path to output engine>]
[-b <calibration batch size>]
[-m <maximum batch size of the TRT engine>]
[-t <engine datatype>]
[-w <maximum workspace size of the TRT Engine>]
[-i <input dimension ordering>]
[-p <optimization_profiles>]
[-s]
[-u <DLA_core>]
input_file
Required Arguments
input_file
: The path to the.etlt
model exported usingtao mask_rcnn export
.-k
: The key used to encode the.tlt
model when training.-d
: A comma-separated list of input dimensions that should match the dimensions used forexport
. Unlikeexport
, this cannot be inferred from calibration data. This parameter is not required for new models introduced in TAO Toolkit 3.21.08 (e.g., LPRNet, UNet, GazeNet, etc).-o
: A comma-separated list of output blob names that should match the output configuration used fortao mask_rcnn export
. For MaskRCNN, these should begenerate_detections
,mask_fcn_logits
/BiasAdd
.
The output node names have been changed since Developer Preview.
The node names in Developer Preview are generate_detections
,
mask_head
/mask_fcn_logits
/BiasAdd
.
Optional Arguments
-e
: The path to save the engine to. The default path is./saved.engine
.-t
: The desired engine data type. The options arefp32
,fp16
, orint8
. Selecting INT8 mode will generate a calibration cache.-w
: The maximum workspace size for the TensorRT engine. The default value is1073741824(1<<30)
.-i
: The input-dimension ordering. All other TAO commands use NCHW. The options arenchw
,nhwc
, andnc
. The default value isnchw
, so you can omit this argument for MaskRCNN.-p
: Optimization profiles for.etlt
models with dynamic shape. Use a comma-separated list of optimization-profile shapes in the format<input_name>,<min_shape>,<opt_shape>,<max_shape>
, where each shape has the format<n>x<c>x<h>x<w>
. This can be specified multiple times if there are multiple input tensors for the model. This is only useful for new models introduced in TAO Toolkit 3.0. This parameter is not required for models that already exist in version 2.0.-s
: A Boolean value specifying wheter to apply TensorRT strict-type constraints when building the TensorRT engine.-u
: (only needed if using DLA core) Specify the DLA core index when building the TensorRT engine on Jetson devices.
INT8 Mode Arguments
-c
: The path to the calibration cache file (only used in INT8 mode). The default value is./cal.bin
.-b
: The batch size used during the export step for INT8 calibration cache generation (default:8
)-m
: The maximum batch size for the TensorRT engine. The default value is16
. If out-of-memory issues occur, decrease the batch size accordingly. This parameter is not required for.etlt
models generated with dynamic shape, which is only possible for new models introduced in TAO Toolkit 3.21.08.
Sample Output Log
Here is a sample log for exporting a MaskRCNN model:
tao-converter -d 3,576,960 \
-k nvidia_tlt \
-o generate_detections,mask_fcn_logits/BiasAdd \
/workspace/tao-experiments/mask_rcnn/model.step-25000.etlt
[INFO] Some tactics do not have sufficient workspace memory to run. Increasing workspace size may increase performance, please check verbose output.
[INFO] Detected 1 inputs and 2 output network tensors.
Integrating the model with DeepStream
There are two options for integrating TAO models with DeepStream:
Option 1: Integrate the model (.etlt) with the encrypted key directly in the DeepStream app. The model file is generated by export.
Option 2: Generate a device-specific optimized TensorRT engine using tao-converter. The TensorRT engine file can also be ingested by DeepStream.
For MaskRCNN, you will need to build the TensorRT open source plugins and custom bounding-box parser. The instructions are provided in the TensorRT OSS section above, and the required code can be found in this GitHub repo.
To integrate the models with DeepStream, you will need the following:
The DeepStream SDK (download from the DeepStream SDK Download Page). The installation instructions for DeepStream are provided in the DeepStream Development Guide.
An exported
.etlt
model file and optional calibration cache for INT8 precision.A
labels.txt
file containing the labels for classes in the order in which the networks produce outputs.A sample
config_infer_*.txt
file to configure the nvinfer element in DeepStream. The nvinfer element handles everything related to TensorRT optimization and engine creation in DeepStream.
DeepStream SDK ships with an end-to-end reference application that is fully configurable. Users
can configure input sources, the inference model, and output sinks. The app requires a primary
object-detection model, followed by an optional secondary classification model. The reference
application is installed as deepstream-app

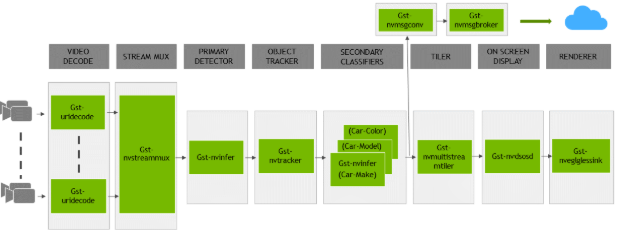

. The graphic below shows the architecture of the
reference application:
![arch_ref_appl1.png](https://docscontent.nvidia.com/dims4/default/76e1259/2147483647/strip/true/crop/617x231+0+0/resize/617x231!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fsphinx%2F00000187-15a5-da68-af97-d7a5bb8e0000%2Ftao%2Ftao-toolkit-archive%2Ftao-30-2108%2F_images%2Farch_ref_appl1.png)
Typically, two or more configuration files are used with this app. In the install
directory, the config files are located in samples/configs/deepstream-app
or
sample/configs/tlt_pretrained_models
. The main config file configures all the high-level
parameters in the pipeline above. This will set the input source and resolution, number of
inferences, tracker, and output sinks. The other supporting config files are for each individual
inference engine. The inference-specific configuration files are used to specify the models,
inference resolution, batch size, number of classes, and other customizations. The main
configuration file will call all the supporting configuration files.
Here are some configuration files in samples/configs/deepstream-app
for reference:
source4_1080p_dec_infer-resnet_tracker_sgie_tiled_display_int8.txt
: The main configuration fileconfig_infer_primary.txt
: The supporting configuration file for the primary detector in the pipeline aboveconfig_infer_secondary_*.txt
: The supporting configuration file for the secondary classifier in the pipeline above
The deepstream-app
will only work with the main configuration file. This file will most
likely remain the same for all models and can be used directly from DeepStream SDK with
little to no change. You will only need to modify or create config_infer_primary.txt
and
config_infer_secondary_*.txt
.
Integrating a MaskRCNN Model
To run a MaskRCNN model in DeepStream, you need a label file and a DeepStream configuration file. In addition, you need to compile the TensorRT 7+ open source software and MaskRCNN output parser for DeepStream.
See here for a GitHub page containing a DeepStream sample with documentation on how to run inference using the trained MaskRCNN models from TAO Toolkit.
Prerequisites for MaskRCNN Model
MaskRCNN requires the
generateDetectionPlugin
,multilevelCropAndResizePlugin
,resizeNearestPlugin
andmultilevelProposeROI
plugins, which are available in the TensorRT open source repo, but not in TensorRT 7.0. Detailed instructions to build TensorRT OSS can be found in the TensorRT Open Source Software (OSS) section.MaskRCNN requires custom output parsers that are not built-in inside the DeepStream SDK. The source code to build custom bounding box parsers for MaskRCNN is available here. The following instructions can be used to build bounding box parser:
Install git-lfs (git >= 1.8.2):
curl -s https://packagecloud.io/install/repositories/github/git-lfs/ script.deb.sh | sudo bash sudo apt-get install git-lfs git lfs install
Download Source Code with SSH or HTTPS:
git clone -b release/tlt3.0 https://github.com/NVIDIA-AI-IOT/deepstream_tlt_apps
Build the parser:
// or Path for DS installation export CUDA_VER=10.2 // CUDA version, e.g. 10.2 make
This generates
libnvds_infercustomparser_tlt.so
in the directorypost_processor
.
Label File
If the COCO annotation file has the following in “categories”:
[{'supercategory': 'person', 'id': 1, 'name': 'person'},
{'supercategory': 'car', 'id': 2, 'name': 'car'}]
Then the corresponding maskrcnn_labels.txt
file will be as follows:
BG
person
car
Run deepstream-app
as follows:
deepstream-app -c <deepstream-app config file>
Also, you can use deepstream-mrcnn-test
to run the MaskRCNN model. See the README under
$DS_TOP/source/apps/sample_apps/deepstream-mrcnn-test/
.
DeepStream Configuration File
The configuration file is used by deepstream-app (see the
Deepstream Configuration Guide for more details). You need to enable the display-mask
under the osd
group to see the mask visual view:
[osd]
enable=1
gpu-id=0
border-width=3
text-size=15
text-color=1;1;1;1;
text-bg-color=0.3;0.3;0.3;1
font=Serif
display-mask=1
display-bbox=0
display-text=0
Nvinfer config file
The Nvinfer configuration file is used in the nvinfer plugin; see the Deepstream plugin manual for more details. The following are key parameters for running the MaskRCNN model:
tlt-model-key=<tlt_encode or TLT Key used during model export>
tlt-encoded-model=<Path to TLT model>
parse-bbox-instance-mask-func-name=<post process parser name>
custom-lib-path=<path to post process parser lib>
network-type=3 ## 3 is for instance segmentation network
output-instance-mask=1
labelfile-path=<Path to label file>
int8-calib-file=<Path to optional INT8 calibration cache>
infer-dims=<Inference resolution if different than provided>
num-detected-classes=<# of classes if different than default>
Here’s an example:
[property]
gpu-id=0
net-scale-factor=0.017507
offsets=123.675;116.280;103.53
model-color-format=0
tlt-model-key=<tlt_encode or TLT Key used during model export>
tlt-encoded-model=<Path to TLT model>
parse-bbox-instance-mask-func-name=NvDsInferParseCustomMrcnnTLT
custom-lib-path=<path to post process parser lib>
network-type=3 ## 3 is for instance segmentation network
labelfile-path=<Path to MaskRCNN label file>
int8-calib-file=<Path to optional INT8 calibration cache>
infer-dims=<Inference resolution if different than provided>
num-detected-classes=3
uff-input-blob-name=Input
output-blob-names=generate_detections;mask_fcn_logits/BiasAdd
batch-size=1
## 0=FP32, 1=INT8, 2=FP16 mode
network-mode=2
interval=0
gie-unique-id=1
#no cluster
## 0=Group Rectangles, 1=DBSCAN, 2=NMS, 3= DBSCAN+NMS Hybrid, 4 = None(No clustering)
## MRCNN supports only cluster-mode=4; Clustering is done by the model itself
cluster-mode=4
output-instance-mask=1
[class-attrs-all]
pre-cluster-threshold=0.8
