GRID Licensing User Guide

Version 4.9 Download PDF

GRID Licensing User Guide

Documentation for system administrators that describes NVIDIA GRID licensed products and how to configure licensing for them on supported hardware.

The following NVIDIA GRID™ products are available as licensed products on NVIDIA Tesla™ GPUs:

  • Virtual Workstation
  • Virtual PC
  • Virtual Applications

This guide describes these licensed products and how to enable and use them on supported hardware.

1.1. How GRID licensing works

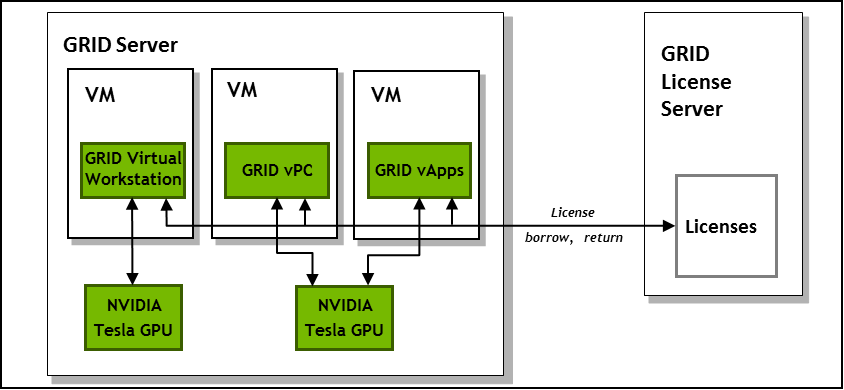

Figure 1 provides an overview of GRID licensing:

Figure 1. GRID licensing architecture


When enabled on Tesla GPUs, licensed editions of GRID Virtual Workstation or Virtual PC are activated by obtaining a license over the network from an NVIDIA GRID License Server. The license is “checked out” or “borrowed” at the time the Virtual Machine (VM) is booted, and returned when the VM is shut down.

Note:

Information on setting up and running the GRID License Server is provided in GRID License Server User Guide.

1.2. NVIDIA GRID license editions

GRID licenses come in three editions that enable different classes of GRID features. The GRID software automatically selects the right license edition based on the features being used:

Table 1. GRID license editions
GRID License Edition GRID Features
GRID Virtual Application
  • Virtual GPUs for virtual application computing
GRID Virtual PC
  • Virtual GPUs for business desktop computing
GRID Virtual Workstation
  • Virtual GPUs for midrange and high-end workstation computing
  • Workstation graphics on GPU passthrough

1.3. How this guide is organized

The remainder of this guide is organized as follows:

GRID vGPU is a licensed feature on Tesla M6, Tesla M10, and Tesla M60 GPUs. When booted on these GPUs, a vGPU runs at full capability even without a license. However, until a license is acquired, users are warned each time a vGPU tries and fails to obtain a license. You may optionally configure a license server to provide licenses to a vGPU. After you license GRID vGPU, the warnings cease.

If licensing is configured, the virtual machine (VM) obtains a license from the license server when a vGPU is booted on these GPUs. The VM retains the license until it is shut down. It then releases the license back to the license server. Licensing settings persist across reboots and need only be modified if the license server address changes, or the VM is switched to running GPU passthrough.

NVIDIA GRID K1 and K2 GPUs do not require a license to run vGPU.

2.1. vGPU license requirements

The license edition that you require to use NVIDIA GRID vGPU depends on the vGPU type. The following tables list the license edition required by each vGPU type available on the GPU boards that support NVIDIA GRID vGPU.

Table 2. Virtual GPUs licensed on Tesla M60
GRID Virtual GPU Frame Buffer (Mbytes) Virtual Display Heads Maximum Resolution per Display Head Minimum GRID License Edition Required
M60-8Q 8192 4 4096×2160 GRID Virtual Workstation
M60-4Q 4096 4 4096×2160 GRID Virtual Workstation
M60-2Q 2048 4 4096×2160 GRID Virtual Workstation
M60-1Q 1024 2 4096×2160 GRID Virtual Workstation
M60-0Q 512 21 2560×1600 GRID Virtual Workstation
M60-1B 1024 4 2560×1600 GRID Virtual PC
M60-0B 512 21 2560×1600 GRID Virtual PC
M60-8A 8192 1 1280×10242 GRID Virtual Application
M60-4A 4096 1 1280×10242 GRID Virtual Application
M60-2A 2048 1 1280×10242 GRID Virtual Application
M60-1A 1024 1 1280×10242 GRID Virtual Application

Table 3. Virtual GPUs licensed on Tesla M10
GRID Virtual GPU Frame Buffer (Mbytes) Virtual Display Heads Maximum Resolution per Display Head Minimum GRID License Edition Required
M10-8Q 8192 4 4096×2160 GRID Virtual Workstation
M10-4Q 4096 4 4096×2160 GRID Virtual Workstation
M10-2Q 2048 4 4096×2160 GRID Virtual Workstation
M10-1Q 1024 2 4096×2160 GRID Virtual Workstation
M10-0Q 512 21 2560×1600 GRID Virtual Workstation
M10-1B 1024 4 2560×1600 GRID Virtual PC
M10-0B 512 21 2560×1600 GRID Virtual PC
M10-8A 8192 1 1280×10242 GRID Virtual Application
M10-4A 4096 1 1280×10242 GRID Virtual Application
M10-2A 2048 1 1280×10242 GRID Virtual Application
M10-1A 1024 1 1280×10242 GRID Virtual Application

Table 4. Virtual GPUs licensed on Tesla M6
GRID Virtual GPU Frame Buffer (Mbytes) Virtual Display Heads Maximum Resolution per Display Head Minimum GRID License Edition Required
M6-8Q 8192 4 4096×2160 GRID Virtual Workstation
M6-4Q 4096 4 4096×2160 GRID Virtual Workstation
M6-2Q 2048 4 4096×2160 GRID Virtual Workstation
M6-1Q 1024 2 4096×2160 GRID Virtual Workstation
M6-0Q 512 21 2560×1600 GRID Virtual Workstation
M6-1B 1024 4 2560×1600 GRID Virtual PC
M6-0B 512 21 2560×1600 GRID Virtual PC
M6-8A 8192 1 1280×10242 GRID Virtual Application
M6-4A 4096 1 1280×10242 GRID Virtual Application
M6-2A 2048 1 1280×10242 GRID Virtual Application
M6-1A 1024 1 1280×10242 GRID Virtual Application

The higher-end GRID license editions are inclusive of lower editions: for example virtual GPUs that require a GRID Virtual PC license are also usable with a GRID Virtual Workstation license.

Note:

For more information on the virtual GPU types listed in Table 2 and Table 4, consult GRID Software User Guide.

2.2. Licensing GRID vGPU on Windows

  1. Open NVIDIA Control Panel:
    • Right-click on the Windows desktop and select NVIDIA Control Panel from the menu.
    • Open Windows Control Panel and double-click the NVIDIA Control Panel icon.
  2. In NVIDIA Control Panel, select the Manage License task in the Licensing section of the navigation pane.
    Note:

    If the Licensing section and Manage License task are not displayed in NVIDIA Control Panel, the vGPU you are running on does not require a license, or the system has been configured to hide licensing controls in NVIDIA Control Panel. For information about registry settings, see Applying Windows license settings via registry.

    The Manage License task pane shows that GRID vGPU is currently unlicensed.

    Figure 2. Managing vGPU licensing in NVIDIA Control Panel


  3. Enter the address of your local GRID License Server in the License Server field. The address can be a fully-qualified domain name such as gridlicense.example.com, or an IP address such as 10.31.20.45.
  4. Leave the Port Number field unset. The port defaults to 7070, which is the default port number used by NVIDIA GRID License Server.
  5. Click Apply to assign the settings. The system requests the appropriate license for the current vGPU from the configured license server.

If the system fails to obtain a license, see Troubleshooting for guidance on troubleshooting.

2.3. Licensing GRID vGPU on Linux

  1. As root, open the file /etc/nvidia/gridd.conf in a plain-text editor, such as vi.
    Copy
    Copied!


    [nvidia@localhost ~]$ sudo vi /etc/nvidia/gridd.conf

    Note:

    You can create the /etc/nvidia/gridd.conf file by copying the supplied template file /etc/nvidia/gridd.conf.template.

  2. Set ServerAddress to the address of your local NVIDIA GRID License Server. The address can be a fully-qualified domain name such as gridlicense.example.com, or an IP address such as 10.31.20.45.
  3. Optional: Set ServerPort to the port number of your local NVIDIA GRID License Server. If you do not set ServerPort, it will default to 7070, which is the default port number that is used by the NVIDIA GRID License Server.
  4. Set FeatureType to 1, to license vGPU.
  5. Save your changes to the /etc/nvidia/gridd.conf file.
  6. Restart the nvidia-gridd service:
    Copy
    Copied!


    [nvidia@localhost ~]$ sudo service nvidia-gridd restart

    The nvidia-gridd service requests the appropriate license for the current vGPU from the configured license server.
  7. Optional: Confirm that the service has obtained a license by examining the log messages written to /var/log/messages:
    Copy
    Copied!


    [nvidia@localhost ~]$ sudo grep gridd /var/log/messages … Aug 5 15:40:06 localhost nvidia-gridd: Started (4293) Aug 5 15:40:24 localhost nvidia-gridd: License acquired successfully.

gridd.conf file for GRID vGPU

The following example shows a gridd.conf file for GRID vGPU in which ServerAddress is set to gridlicense.example.com, ServerPort is set to 7070, and FeatureType is set to 1.

Copy
Copied!


# /etc/nvidia/gridd.conf - Configuration file for NVIDIA Grid Daemon # This is a template for the configuration file for NVIDIA Grid Daemon. # For details on the file format, please refer to the nvidia-gridd(1) # man page. # Description: Set License Server Address # Data type: string # Format: "<address>" ServerAddress=gridlicense.example.com # Description: Set License Server port number # Data type: integer # Format: <port>, default is 7070 ServerPort=7070 # Description: Set Feature to be enabled # Data type: integer # Possible values: # 1 => for GRID vGPU # 2 => for GRID Virtual Workstation FeatureType=1 # Description: Parameter to enable or disable Grid Licensing tab in nvidia-settings # Data type: boolean # Possible values: TRUE or FALSE, default is TRUE #EnableUI=TRUE # Description: Set license borrow period in minutes # Data type: integer # Possible values: 10 to 10080 mins(7 days), default is 10080 #Licenselnterval=10080


If the system fails to obtain a license, see Troubleshooting for guidance on troubleshooting.

This chapter describes how to enable GRID Virtual Workstation with passthrough on supported Tesla GPUs.

3.1. GRID Virtual Workstation features

GRID Virtual Workstation is available on Tesla GPUs running in GPU passthrough mode to Windows and Linux VMs. Virtual Workstation requires a GRID Virtual Workstation edition, and provides these features:

  • Up to four virtual display heads at 4k resolution (unlicensed Tesla GPUs support a single virtual display head with maximum resolution of 2560×1600)
  • Workstation-specific graphics features and accelerations
  • Certified drivers for professional applications

3.2. Licensing GRID Virtual Workstation on Windows

To enable GRID Virtual Workstation on Windows, follow these steps:

  1. Open NVIDIA Control Panel:
    • Right-click on the Windows desktop and select NVIDIA Control Panel from the menu.
    • Open Windows Control Panel and double-click the NVIDIA Control Panel icon.
  2. In NVIDIA Control Panel, select the Manage License task in the Licensing section of the navigation pane, as shown in Figure 3.
    Note:

    If the Licensing section and Manage License task are not displayed in NVIDIA Control Panel, the GPU or driver you are using do not support NVIDIA GRID licensed features.

    The Manage License task pane shows the current License Edition being used, and defaults to unlicensed.

    Figure 3. Managing Virtual Workstation Licensing in NVIDIA Control Panel


  3. Select GRID Virtual Workstation, and enter the address of your local GRID License Server in the License Server field (see Figure 4). The address can be a fully-qualified domain name such as gridlicense.example.com, or an IP address such as 10.31.20.45.

    Figure 4. Applying a GRID Virtual Workstation license


  4. Leave the Port Number field unset. It will default to 7070, which is the default port number used by NVIDIA GRID License Server.
  5. Click Apply to assign the settings. The License Edition section will indicate that your system is running in GRID Virtual Workstation mode. The system will also request the appropriate license for the current GPU from the configured license server. If unsuccessful, the system warns you that it could not obtain a license. If necessary, refer to Troubleshooting for guidance on troubleshooting.

Once configured in NVIDIA Control Panel, licensing settings persist across reboots.

3.3. Disabling GRID Virtual Workstation on Windows

To disable the GRID Virtual Workstation licensed feature on Windows, follow these steps:

  1. Open NVIDIA Control Panel.
  2. In the Manage License task, select Tesla (unlicensed), as shown in Figure 5.

    Figure 5. Disabling GRID Virtual Workstation


  3. Click Apply.

The setting does not take effect until the next time the system is shutdown or rebooted; GRID Virtual Workstation features remain available until then.

3.4. Licensing GRID Virtual Workstation on Linux

To license GRID Virtual Workstation on Linux, follow these steps:

  1. As root, open the file /etc/nvidia/gridd.conf in a plain-text editor, such as vi.
    Copy
    Copied!


    [nvidia@localhost ~]$ sudo vi /etc/nvidia/gridd.conf

    Note:

    You can create the /etc/nvidia/gridd.conf file by copying the supplied template file /etc/nvidia/gridd.conf.template.

  2. Set ServerAddress to the address of your local NVIDIA GRID License Server. The address can be a fully-qualified domain name such as gridlicense.example.com, or an IP address such as 10.31.20.45.
  3. Optional: Set ServerPort to the port number of your local NVIDIA GRID License Server. If you do not set ServerPort, it will default to 7070, which is the default port number that is used by the NVIDIA GRID License Server.
  4. Set FeatureType to 2, to license GRID Virtual Workstation.
  5. Save your changes to the /etc/nvidia/gridd.conf file.
  6. Restart the nvidia-gridd service:
    Copy
    Copied!


    [nvidia@localhost ~]$ sudo service nvidia-gridd restart

    The service should automatically obtain a license.
  7. Optional: Confirm that the service has obtained a license by examining the log messages written to /var/log/messages:
    Copy
    Copied!


    [nvidia@localhost ~]$ sudo grep gridd /var/log/messages … Aug 5 17:12:15 localhost nvidia-gridd: Started (10430) Aug 5 17:12:34 localhost nvidia-gridd: License acquired successfully.

Once configured in gridd.conf, licensing settings persist across reboots and need only be modified if the license server address changes, or the VM is switched to running GRID vGPU.

gridd.conf file for GRID Virtual Workstation

The following example shows a gridd.conf file for GRID Virtual Workstation in which ServerAddress is set to gridlicense.example.com, ServerPort is set to 7070, and FeatureType is set to 2.

Copy
Copied!


# /etc/nvidia/gridd.conf - Configuration file for NVIDIA Grid Daemon # This is a template for the configuration file for NVIDIA Grid Daemon. # For details on the file format, please refer to the nvidia-gridd(1) # man page. # Description: Set License Server Address # Data type: string # Format: "<address>" ServerAddress=gridlicense.example.com # Description: Set License Server port number # Data type: integer # Format: <port>, default is 7070 ServerPort=7070 # Description: Set Feature to be enabled # Data type: integer # Possible values: # 1 => for GRID vGPU # 2 => for GRID Virtual Workstation FeatureType=2 # Description: Parameter to enable or disable Grid Licensing tab in nvidia-settings # Data type: boolean # Possible values: TRUE or FALSE, default is TRUE #EnableUI=TRUE # Description: Set license borrow period in minutes # Data type: integer # Possible values: 10 to 10080 mins(7 days), default is 10080 #Licenselnterval=10080

This chapter discusses advanced topics and settings for GRID licensing.

4.1. Licenses obtained after boot

Under normal operation, a GRID license is obtained by a platform during boot, prior to user login and launch of applications. If a license is not available, as indicated by the license status on the Licensing tab of the NVIDIA Control Panel on Windows or log messages on Linux, the system will periodically retry its license request to the license server. During this time, GRID vGPU runs at full capability as described in vGPU license requirements.

When a license is obtained, users are no longer warned that the vGPU has failed to obtain a license.

4.2. Operating with intermittent connectivity to the license server

GRID vGPU and Virtual Workstation clients require connectivity to a license server when booting, in order to check out a license. Once booted, clients may operate without connectivity to the license server for a period of up to 7 days, after which time the client will be warned of license expiration.

4.3. Applying Windows license settings via registry

GRID licensing settings can be controlled via the Windows Registry, removing the need for manual interaction with NVIDIA Control Panel. Settings are stored in this registry key:

Copy
Copied!


HKEY_LOCAL_MACHINE\SOFTWARE\NVIDIA Corporation\Global\GridLicensing

Registry values are summarized in Table 5.

Table 5. Licensing registry settings
Name Type Description
ServerAddress

String (REG_SZ)

License server address

ServerPort

String (REG_SZ)

License server port number

(Optional: defaults to 7070)

FeatureType

DWord (REG_DWORD)

0: Unlicensed (Tesla edition)

1: GRID vGPU

2: GRID Virtual Workstation

All other values reserved.

NvCplDisableManageLicensePage

DWord (REG_DWORD)

If this regkey is absent, licensing controls are shown in NVIDIA Control Panel for GPUs supporting licensing.When present:

0: Show licensing controls in NVIDIA Control Panel

1: Hide licensing controls in NVIDIA Control Panel

All other values reserved.

LicenseInterval

DWord (REG_DWORD)

An integer in the range 10-10080 that specifies the period of time in minutes for which a license can be borrowed after it is checked out

After this period has elapsed, the client must obtain a new license from the server.

The default is 10080 minutes, which corresponds to a period of 7 days.

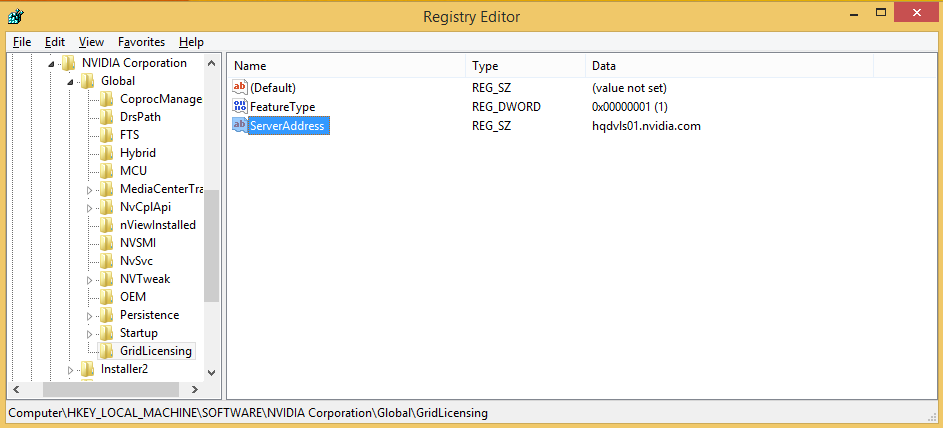

Figure 6 shows an example of configuring virtual GPU licensing settings in the registry. Note it is sufficient to simply configure FeatureType = 1 (GRID vGPU) and set the license server address in ServerAddress.

Figure 6. Configuring vGPU licensing via registry settings


This chapter describes basic troubleshooting steps.

5.1. Known issues

Before troubleshooting or filing a bug report, review the release notes that accompany each driver release, for information about known issues with the current release, and potential workarounds.

5.2. Troubleshooting steps

If a GRID system fails to obtain a license, investigate the following as potential causes for the failure:

  • Check that the license server address and port number are correctly configured.
  • Run a network ping test from the GRID system to the license server address to verify that the system has network connectivity to the license server.
  • Verify that the date and time are configured correctly on the GRID system. If the time is set inaccurately or is adjusted backwards by a large amount, the system may fail to obtain a license.
  • Verify that the license server in use has available licenses of the type required by the GRID feature the GRID system is configured to use.
