License Server Release Notes

NVIDIA Virtual GPU Software License Server Documentation v2019.11 Revision 02 Download PDF

Virtual GPU License Server Release Notes

Release information for all users of NVIDIA virtual GPU License Server.

These Release Notes summarize current status, information on supported platforms, and known issues with NVIDIA vGPU software License Server, version 2019.11.

Note:

If the version of your current license server software is 2015.12 or earlier, you must uninstall any previous version of NVIDIA vGPU software License Server before installing this release. For details, see Upgrade installation does not operate correctly.

Installed NVIDIA vGPU software licenses are not retained across an uninstallation followed by reinstallation. You must reinstall your licenses after reinstalling the license server software.

All releases of the License Server are compatible with all releases of NVIDIA vGPU software.

1.1. Supported Platforms

1.1.1. Operating Systems Supported

This release of NVIDIA vGPU software License Server has been tested on several releases of the Windows and Linux operating systems.

Note:

Support for installation in console mode on Windows and Linux was introduced in license server release 2018.06. It is not supported in earlier license server releases. The license server installer for earlier releases must be run in a graphical desktop environment. Installation in silent mode is not supported in any release.


1.1.1.1. Windows Operating Systems Supported

  • Windows 10 64-bit
  • Windows Server 2019
  • Windows Server 2016
  • Windows Server 2012 R2

Note:

On Windows, the license server supports only the English locale.

1.1.1.2. Linux Operating Systems Supported

  • Red Hat Enterprise Linux 7.6 64-bit
  • Red Hat Enterprise Linux 7.3 64-bit
  • CentOS 7.6 64-bit
  • CentOS 7.3 64-bit
  • Ubuntu 18.04 64-bit
  • Ubuntu 16.04 64-bit

1.1.2. Java Runtime Environment Requirements

NVIDIA vGPU software License Server requires one of the following Java Runtime Environment (JRE) versions:

  • Oracle Java SE JRE version 1.8 or 11
  • OpenJDK JRE version 1.8 or 11

For information about the licenses under which these JRE releases are provided, see Oracle Java SE Licensing FAQ.

JRE should be installed before the License Server installer package is run, as described in the Virtual GPU License Server User Guide.

1.1.3. .NET Framework Requirements

On Windows platforms, NVIDIA vGPU software License Server requires .NET Framework 4.5 or later.

1.1.4. Apache Tomcat Server Requirements

The License Server’s management interface requires Apache Tomcat version 8.5.x or 9.x. An Apache Tomcat package is included with the License Server installer package for Windows. For Linux, Tomcat should be installed before running the License Server installer package, as described in Virtual GPU License Server User Guide.

1.1.5. Web Browser Requirements

The license server’s web browser–based management interface supports the following browsers:

  • Mozilla Firefox versions 17 and later
  • Google Chrome versions 27 and later
  • Microsoft Internet Explorer version 9 and later

1.2. Changes in this Release

  • The bug in NVIDIA vGPU software license server 2019.05 that prevents VMs from obtaining or renewing licenses has been fixed.
  • Oracle Java SE Java Runtime Environment (JRE) version 11 and OpenJDK JRE 11 are now supported.
  • Windows Server 2019 is now supported.
  • The version of the Apache Struts library included in the license server to has been updated version to 2.5.20.
  • An updated Apache Tomcat version (8.5.47) is included with the license server installer package for Windows.
  • Apache Tomcat version 9.x is now supported.
  • The minimum required Apache Tomcat version is now 8.5. Versions earlier than 8.5, for example, 8.0, are no longer supported.
  • Apache Tomcat version 7.x is no longer supported.
  • On Windows, only 64-bit license server software is available. 32-bit license server software is no longer available.
    Note:

    If you want to upgrade from a 32-bit license server to a 64-bit license server on Windows, you must uninstall and reinstall the license server and associated software as explained in Virtual GPU License Server User Guide.

1.3. Security Updates

A new version of Apache Tomcat (8.5.40) is included with the license server installer package for Windows.

This version contains security updates for CVE-2018-11776, which affects the Apache Tomcat version that was previously included with the license server installer package for Windows.

Only resolved issues that have been previously noted as known issues or had a noticeable user impact are listed. The summary and description for each resolved issue indicate the effect of the issue on the NVIDIA vGPU software license server before the issue was resolved.

Bug ID Summary and Description
-

VMs cannot obtain or renew licenses

An issue with NVIDIA vGPU software license server 2019.05 prevents VMs from obtaining or renewing licenses.

When this issue occurs, the log files for the flexnetls service report one or both of the following errors:

  • Trust break detected
  • Unable to read anchor status
2670518

nvidialsadmin -clients does not show all clients

The nvidialsadmin -clients command shows fewer clients than the nvidialsadmin -licenses -verbose command. Both commands should show the same number of clients.


3.1. The license server installation path name cannot contain white spaces

Description

The path name to the folder where the NVIDIA vGPU software license server is installed must not contain white space. The license server installer prevents you from installing the license server in a folder whose path name contains white space as follows:

  • For a new license server installation, the license server installer proposes a default installation location with no white space in its path name.
  • For an upgrade to a license server that was installed at a location with white spaces in its path name, the license server installer prompts you to exit.
    Note:

    If the license server was installed at a location without spaces in its path name, the installer overwrites the existing version in its current location with the new version. The installer does not warn you to install the license server at a location with no white space in its path name.

Version

NVIDIA vGPU software license server 2019.11.

Workaround

For a new license server installation, click Yes when prompted to continue with the installation at the the default installation location without white space in its path name that the license server proposes. For an upgrade, follow these steps:

  1. When prompted, click Yes to exit the installation.

  2. Uninstall your existing license server.

  3. If you were using a 32-bit license server, uninstall the Apache Tomcat software and replace the existing 32-bit JRE with a 64-bit JRE.

    Note:

    The processor architecture for the JRE, Apache Tomcat, and the license server must match. Only 64-bit license server 2019.11 software is available. Therefore, you must use a 64-bit JRE.

  4. Install the license server 2019.11 and Apache Tomcat software.

For more information, see Virtual GPU License Server User Guide.

Status

Open

3.2. License server installer unexpectedly quits during upgrade on Windows

Description

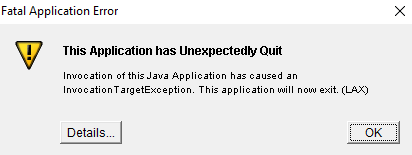

During an upgrade of an existing license server installation, the installer might quit unexpectedly, throwing an InvocationTargetException.


The application exception details are as follows:

Copy
Copied!


C:\Users\lsuser\AppData\Local\Temp\I1559058258\Windows_Pure_64_Bit\resource\iawin32.dll not found at Flexeraaw7.af(Unknown Source) at Flexeraaw7.aa(Unknown Source) at com.zerog.ia.installer.LifeCycleManager.init(Unknown Source) at com.zerog.ia.installer.LifeCycleManager.executeApplication(Unknown Source) at com.zerog.ia.installer.Main.main(Unknown Source) at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source) at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source) at java.lang.reflect.Method.invoke(Unknown Source) at com.zerog.lax.LAX.launch(Unknown Source) at com.zerog.lax.LAX.main(Unknown Source)

This error occurs if you attempt to install the 64-bit license server software for Windows on a host where a 32-bit license server with 32-bit JRE is installed. Because the 64-bit license server installer requires a 64-bit JRE, the installer fails if a 32-bit JRE is installed.

Workaround

Uninstall and reinstall the license server and associated software as explained in Virtual GPU License Server User Guide.

Note:

Installed NVIDIA vGPU software licenses are not retained across an uninstallation followed by reinstallation. You must reinstall your licenses after reinstalling the license server software.


Status

Not a bug

Ref. #

2609471

3.3. Occasional errors in loading the Configuration page

Description

Sometimes, the Configuration page fails to load and the license server management interface reports the following error:

Copy
Copied!


Error occurred: Please contact the administrator with the detailed steps to reproduce this issue.


The following error messages are written to the license server log file:

Copy
Copied!


14:44:00,964 ERROR Trust startup failure:Unable to read anchor, status:FATAL. 14:44:00,964 ERROR Trust break detected at startup time:Unable to read anchor, status:FATAL.

When this issue occurs, any attempt by a license server client to acquire a license fails.

On Linux clients, error messages similar to the following example are logged in the standard activity log (/var/log/messages for distributions based on Red Hat or /var/log/syslog for distributions based on Debian):

Copy
Copied!


Jun 19 14:04:43 localhost nvidia-gridd: Error: Error processing capability response. Server URL : http://10.31.20.45:7070/request - #012[1,7E2,2,0[7000001C,7100002E,250137]]#012Server was not able to process request correctly.#012Server status: (Back office server error.)

On Windows clients, no error messages are logged.

Workaround

On Linux, this workaround requires system administrator privileges.

  1. Restart the license server service.

    • On Windows, in the Services application, context-click the FlexNet License Server - nvidia service and choose Restart.

    • On Linux, restart the flexnetls-nvidia.service service from the command line.

      Copy
      Copied!


      [nvidia@localhost ~]$ systemctl restart flexnetls-nvidia.service

  2. Confirm that the Configuration page now loads by accessing the license server management interface and clicking Configuration.

    Note:

    This error occurs when the license server service is started or restarted. Therefore, the error might persist after the license server service is restarted. If the error persists, restart the license server service again.

Status

Open

Ref. #

200463359

3.4. On Windows, upgrading the License Server removes HTTPS configuration

Description

If you are upgrading from a 64-bit license server and your earlier version of the license server was configured to use HTTPS, the HTTPS configuration is removed during the upgrade.

  • Files for configuring HTTPS for connections between the management interface are stored in a subfolder of the license server installation folder. The installer deletes the entire contents of any existing license server installation folder, including files that were added after the license server software was installed, such as the SSL certificate that the license server was configured with.
  • The HTTPS connector for connections from a web browser to the license server management interface is defined in the Tomcat configuration file server.xml. The installer overwrites the existing server.xml file and any custom configuration specified in the file is lost.

Workaround

  1. Before installing the new version of the license server software, copy the files that are necessary to re-instate the configuration after the upgrade.
    • If HTTPS is configured for connections between the management interface and the license server, copy the SSL certificate that the license server was configured with.

      Note:

      Copying an SSL certificate might corrupt it. To determine if the certificate is corrupted, run this command:

      Copy
      Copied!


      $JAVA_HOME/bin/keytool -list -keystore certificate-file-name.jks -storepass certificate-password

      If the certificate is corrupted, contact the CA that issued your certificate to obtain a new certificate.

    • If HTTPS is specified for connections from a web browser to the license server management interface, copy the Tomcat configuration file server.xml.

  2. After installing the new version of the license server software, re-create the HTTPS configuration as explained in Virtual GPU License Server User Guide.

Status

Not a bug

Ref. #

  • 200500532
  • 200521319

3.5. Apache Tomcat Servlet/JSP Container Default Files Vulnerability (Nessus ID: 12085)

Description

The License Server requires an Apache Tomcat server. On Windows, Apache Tomcat is included with the License Server installer package. On Linux, Apache Tomcat must be installed separately.

By default, files such as documentation, the default index page, example JSP files, and example servlets are installed on the host where the Apache Tomcat software is installed. These files may help an attacker uncover information about the Apache Tomcat installation or the host where the Apache Tomcat software is installed. Furthermore, the files may themselves contain vulnerabilities that might allow attacks such as cross-site scripting attacks.

Mitigations

  • Review the files and delete the files that are not needed.
  • Provide a custom error page for common HTTP errors such as error 404 or 500.

See Also

3.6. Time stamps in the License Server Management Interface and log files are inconsistent

Description

The time shown in the Client Expiry field on the Client Details page is inconsistent with the time stamps in the license server log files.

For example, the log files might show these time stamps:

  • License acquired time is - Wed May 30 16:18:23 2018
  • Borrow interval is 1440 mins

From these time stamps, the expected client expiry time is 2018-05-31 16:18:23. However, on the Client Details page, the Client Expiry field shows 2018-05-31T10:48:59.999Z.

This inconsistency occurs because the time of day in the license management interface is given in Coordinated Universal Time (UTC), not the local time of the license server host.

Status

Not an NVIDIA bug

Ref. #

200418046

3.7. Deleting a license reservation deletes the entire reservation group

Description

When the management UI is used to delete a single entry from the Reservation page, all entries on the page are deleted because the management UI supports operations only on reservation groups, not individual reservations, specifically:

  • Deleting an existing reservation group. Deleting individual reservations within a reservation group is not supported.
  • Adding reservations to a new reservation group. Adding reservations to an existing reservation group is not supported.

Workaround

To add or delete reservations in an existing group:

  1. Delete the existing group.

  2. Re-create the group with the set of reservations that you want:

    • Include the existing reservations that you want to keep and any new reservations that you want to add.
    • Exclude any reservations that you want to remove.

    You can re-create the group by using the Add Reservation page or by importing reservations from a JSON file. For instructions, see Virtual GPU License Server User Guide.

    Note:

    If you are importing reservations from a JSON file, ensure that the name attribute of each array of reservations is set to a non-null value. Although the name attribute is optional, any imported reservation groups for which the name attribute is not set cannot be deleted through the management UI.

Status

Not a bug

Ref. #

200418787

3.8. Sudden shutdown of the license server can cause database corruption

Description

If the license server is shut down suddenly and cannot be shut down cleanly, the trusted storage database may become corrupted. If the database is corrupted, it cannot be read and the flexnetls-nvidia service cannot start.

When the flexnetls-nvidia service cannot start because the database is corrupted, messages similar to the following examples for each platform are written to the license server log file:

  • On Windows:

    Copy
    Copied!


    org.h2.message.DbException: General error: "java.lang.IllegalStateException: File corrupted in chunk ${chunk_number}, expected page length ${page_length}, got ${actual_page_length}" [50000-193] org.h2.message.DbException: General error: "java.lang.IllegalStateException: Reading from nio:C:/Windows/ServiceProfiles/NetworkService/flexnetls/nvidia/flexnetls_licenses.mv.db failed; file length ${file_length} read length ${read_length} at ${index}"

  • On Linux:

    Copy
    Copied!


    org.h2.message.DbException: General error: "java.lang.IllegalStateException: Reading from nio:/var/opt/flexnetls/nvidia/flexnetls_licenses.mv.db failed; file length ${file_length} read length ${read_length} at ${index}"

On Windows, event 6008 may be written to the event viewer log indicating that the license server was shut down abruptly and could not be shut down cleanly.

Workaround

Restore the database from a backup as explained in Virtual GPU License Server User Guide.

If the database remains corrupted after it is restored, the backup that you restored it from may also be corrupt. In this situation, delete the trusted storage files, start the flexnetls-nvidia service, and reinstall your licenses. For instructions for performing these tasks, see Virtual GPU License Server User Guide.

Status

Not an NVIDIA bug

Ref. #

2104881

3.9. License server MAC address cannot be changed in the management interface

Description

The management interface of the license server enables the MAC address of the license server to be changed and the change to be saved. However, when the license server host is restarted, the MAC address reverts to its previous setting.

Workaround

Change the MAC address by editing the license server settings file, updating the license server settings from the edited file, and restarting the license server.

Before attempting this workaround, ensure that the JAVA_HOME or JRE_HOME environment variable is set to the directory where the Java runtime environment is installed on the license server host.

This workaround requires system administrator privileges. On Windows:

  1. Open the file license-server-installation-folder\server\flexnetls.settings in a plain text editor such as WordPad.

    license-server-installation-folder
    The folder in which the license server software is installed. The default license server installation folder is %SystemDrive%:\NVIDIA\LicenseServer.
  2. Uncomment the #ACTIVE_HOSTID= line and append the MAC address to the line followed by /Ethernet.

    For example:

    Copy
    Copied!


    ... ACTIVE_HOSTID=4E7DBF3A250A/Ethernet ...

  3. Save your changes and exit the editor.

  4. As an Administrator user, open a Command Prompt window and change to the license-server-installation-folder\server folder.

    For example:

    Copy
    Copied!


    C:\>cd C:\NVIDIA\LicenseServer\server C:\NVIDIA\LicenseServer\server>

  5. In the Command Prompt window, run the command to update the license server settings from the edited file.

    Copy
    Copied!


    C:\NVIDIA\LicenseServer\server>flexnetls.bat -update Updating service FNLS-nvidia Service FNLS-nvidia successfully stopped Uninstalling service FNLS-nvidia Installing service FNLS-nvidia C:\NVIDIA\LicenseServer\server>

  6. In the Command Prompt window, run the command to restart the license server.

    Copy
    Copied!


    C:\NVIDIA\LicenseServer\server>flexnetls.bat -start Service FNLS-nvidia successfully started C:\NVIDIA\LicenseServer\server>

On Linux:

  1. As root, open the file /opt/flexnetls/nvidia/local-configuration.yaml in a plain text editor.

  2. Uncomment the #ACTIVE_HOSTID= line and append the MAC address to the line followed by /Ethernet.

    For example:

    Copy
    Copied!


    ... ACTIVE_HOSTID=4E7DBF3A250A/Ethernet ...

  3. Save your changes and exit the editor.

  4. As root, restart the flexnetls-nvidia service.

    Copy
    Copied!


    # sudo systemctl restart flexnetls-nvidia.service

Status

Open

Ref. #

200397697

3.10. The logging threshold can only be uppercase

Description

The logging threshold under Logging properties on the Configuration page accepts input only in uppercase. When a valid logging threshold value in lowercase is entered, an error message similar to the following message is displayed:

Copy
Copied!


The value "error" for "Logging Threshold" is not valid. [Logging Threshold, error]


Workaround

Enter logging threshold values in all uppercase.

Status

Not an NVIDIA bug

Ref. #

200334630

3.11. License Server upgrade fails

Description

An attempt to upgrade from License Server version 2015.12-0001 to the current version fails with the following error:

Copy
Copied!


One or more newer versions of the product are installed. An update is not available.


Version

2019.11

Workaround

  1. When the error dialog box opens, click Abort to abandon the upgrade.
  2. Cleanly uninstall License Server version 2015.12-0001.
  3. Install the current version of the License Server software.

Status

Open

Ref. #

200301811

3.12. Log files can exhaust local disk space

Description

A long-running license server may fail because the license server log files flexnetls.log and access.log have exhausted the disk space on the server. Although the license server rotates log files by opening a new log file each day, it does not automatically delete old log files.

Workaround

Delete old log files when they are no longer required. On Linux, you can use a cron job to delete files that are more than a specific number of days old.

Status

Open

Ref. #

1932568

3.13. Client in time zone ahead of license server may fail to check out a license close to its expiry time

Description

A client located in a time zone that is ahead of the license server’s time zone may fail to check out a license, if the license expiration time has passed in the client’s time zone.

Platform

All

Workaround

Locate the license server in a time zone proximate to the clients it will serve.

Status

Open

Ref. #

1685774

3.14. Upgrade installation does not operate correctly

Description

If the license server is installed on a platform on which license server software version 2015.12 or earlier is installed, the license server installer is incorrectly executed. The upgrade installation is not indicated to the user and, on Windows, the Apache Tomcat installer is erroneously rerun.

Platform

All

Version

This issue affects upgrades from version 2015.12 or earlier.

Workaround

Before installing this release of the license server, uninstall the previous license server software and, on Windows, uninstall the Apache Tomcat software.

Note:

Installed NVIDIA vGPU software licenses are not retained across an uninstallation followed by reinstallation. You must reinstall your licenses after reinstalling the license server software.


Status

Open

Ref. #

1713544, 1713532

Notice

ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE.

Information furnished is believed to be accurate and reliable. However, NVIDIA Corporation assumes no responsibility for the consequences of use of such information or for any infringement of patents or other rights of third parties that may result from its use. No license is granted by implication of otherwise under any patent rights of NVIDIA Corporation. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all other information previously supplied. NVIDIA Corporation products are not authorized as critical components in life support devices or systems without express written approval of NVIDIA Corporation.

HDMI

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

OpenCL

OpenCL is a trademark of Apple Inc. used under license to the Khronos Group Inc.

Trademarks

NVIDIA, the NVIDIA logo, NVIDIA GRID, vGPU, Pascal, Quadro, and Tesla are trademarks or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.

Third-Party Software

This NVIDIA product contains third party software that is made available under their respective software licenses. Apache Tomcat (https://tomcat.apache.org/download-80.cgi) is provided under the following terms: Copyright 2015 NVIDIA Corporation Licensed under the Apache License, Version 2.0 (the “License”); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0 Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an “AS IS” BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

© 2013-2020 NVIDIA Corporation. All rights reserved. Last updated on Mar 10, 2020.
