![arc_overview.png](https://docscontent.nvidia.com/dims4/default/9d21e4f/2147483647/strip/true/crop/667x252+0+0/resize/667x252!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fsphinx%2F0000018e-686d-dda8-a78f-f96faae10000%2Faerial%2Faerial-ran-colab-ota%2Farchive%2F1.1%2F_images%2Farc_overview.png)

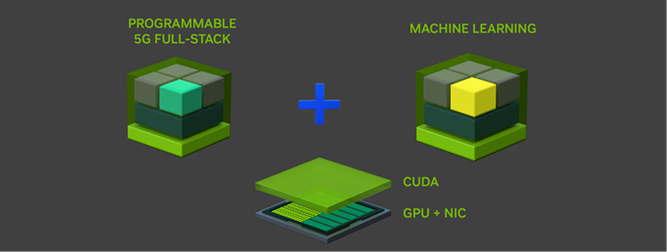

The Aerial RAN CoLab Over-the-Air (ARC-OTA) is full featured platform targeted for next generation wireless evolution that eases developer onboarding and algorithm development in real time networks. The Aerial RAN CoLab Over-the-Air equips developers, researchers, operators, and network equipment providers with all requisite components necessary to deploy a campus network for research.
Here is a ten minute video introducing ARC-OTA:
Software Release Manifest
Component | Version |
Aerial SDK (ASDK) PHY | 23-2 |
OAI gNB | OAI_Aerial_v2.2.1 |
OAI CN | OAI_Aerial_v2.2.1 |
The Aerial RAN CoLab Over-the-Air alpha release (ARC-OTA-A1.1) delivers the following:
A 3GPP Release 15 compliant and Over-The-Air(OTA) operational O-RAN 7.2 split campus 5G SA 4T4R wireless stack with all network elements from Radio Access Network and 5G Core. Aerial SDK Layer 1 (https://developer.nvidia.com/aerial-sdk) is integrated with Open Air Alliance(OAI) (https://openairinterface.org/) Distributed Unit (DU), Centralized Unit(CU) or a 5G NR gNB and 5G Core Node(CN) network elements.
A blueprint to ease onboarding, staging, and integrating the Advanced 5G network components and verification steps through bi-directional UDP traffic. This blueprint topology is illustrated below and along with the comprehensive Bill of Materials(BOM), a step-by-step staging and setup recipe, tutorials, troubleshooting tips are provided to configure all the network components for a quick turnaround live network.
Complete access to source code in C/C++ is available from Layer 1 through 5GC to jump start customizations and NG algorithm research.
![image5a.png](https://docscontent.nvidia.com/dims4/default/11cf7c3/2147483647/strip/true/crop/477x186+0+0/resize/477x186!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fsphinx%2F0000018e-686d-dda8-a78f-f96faae10000%2Faerial%2Faerial-ran-colab-ota%2Farchive%2F1.1%2F_images%2Fimage5a.png)
![image5b.png](https://docscontent.nvidia.com/dims4/default/35b3757/2147483647/strip/true/crop/742x421+0+0/resize/742x421!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fsphinx%2F0000018e-686d-dda8-a78f-f96faae10000%2Faerial%2Faerial-ran-colab-ota%2Farchive%2F1.1%2F_images%2Fimage5b.png)
