On-Boarding Help

Aerial Research Cloud Version A1.0
  1. Where is the HW BOM?

    The complete qualified Aerial Research Cloud BOM is located in the Procure the Hardware chapter of the Installation Guide.

  2. Does the platform support MU-MIMO?

    Aerial Research Cloud does not offer MU-MIMO integrated interop, however the same platform is capable of adding software features for MU-MIMO. MU-MIMO support is targeted in Y2023.

  3. Which frequency bands does the platform support?

    Aerial Research Cloud offers tested solution in n78 band, however with access to source, it can be qualified to interoperate in other sub-6 frequency bands.

  4. How can I apply for an experimental license in United States?

    Review the application located at https://apps2.fcc.gov/ELSExperiments/pages/login.htm. If you have a program experimental license (https://apps.fcc.gov/oetcf/els/index.cfm), you can also use it for the Innovation Zone areas (Boston and the PAWR platforms) by submitting a request on that website.

  5. Where can I find utility RF tools and calculators?

    Please see the following site https://5g-tools.com/

  6. Is GPS needed?

    Yes a GPS signal is necessary to drive precision timing for 5G networks. Incase GPS signal is in-accessible, the date command can be used as a workaround. This command is useful for those deployments where there is no timing reference (like GNSS) but needs Qg 2 to act as a Grandmaster to propagate time and synchronization over PTP to slave units.

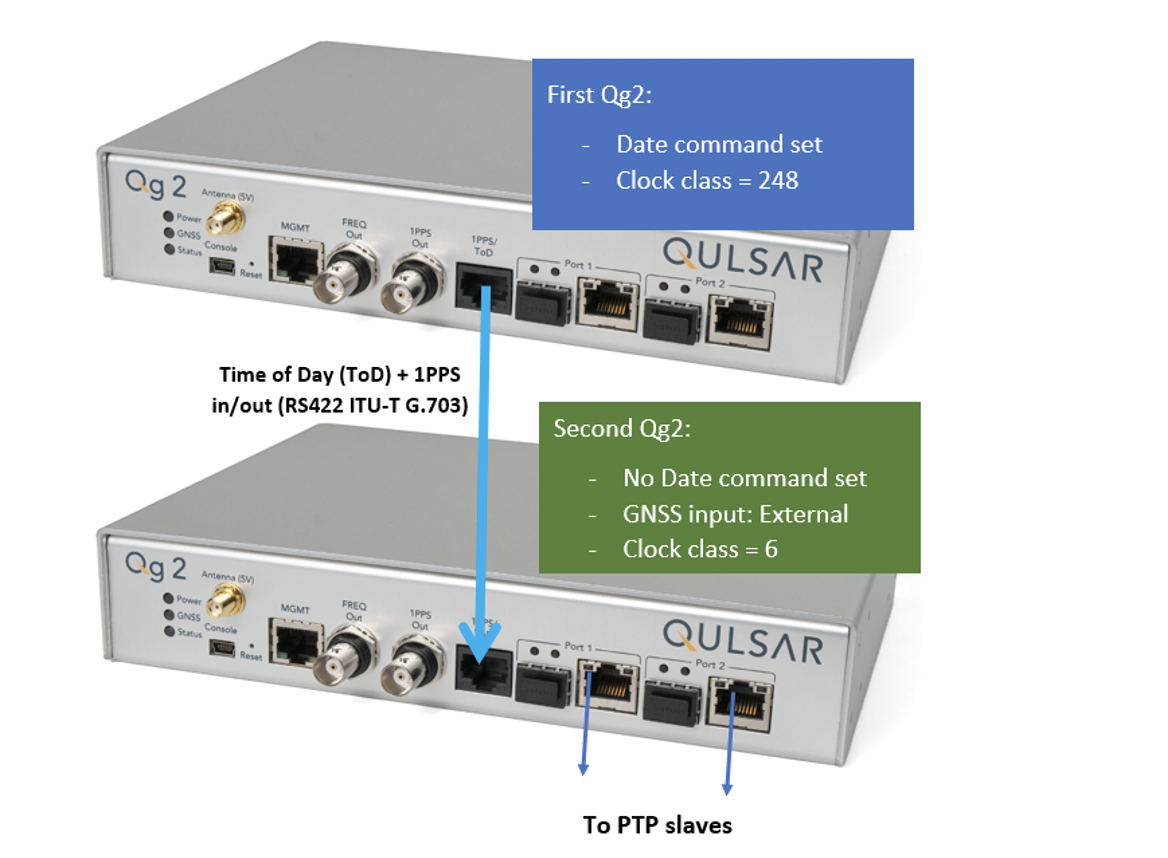

    When using two GMs, you can manually set the date and time on the first one and connect it’s 1PPS/ToD output to the 1PPS/ToD port (configured as input) of the second GM. The second GM then outputs PTP messages with a clock class=6.


  1. Check OS and kernel version and configuration:


aerial@devkit01:~$ cat /proc/cmdline BOOT_IMAGE=/boot/vmlinuz-5.4.0-65-lowlatency root=UUID=d0bc583b-6922-4e70-af14-92b624fe1bbe ro default_hugepagesz=1G hugepagesz=1G hugepages=16 tsc=reliable clocksource=tsc intel_idle.max_cstate=0 mce=ignore_ce processor.max_cstate=0 intel_pstate=disable audit=0 idle=poll isolcpus=2-21 nohz_full=2-21 rcu_nocbs=2-21 rcu_nocb_poll nosoftlockup iommu=off intel_iommu=off irqaffinity=0-1,22-23 aerial@devkit01:~$ uname -a Linux devkit01 5.4.0-65-lowlatency #73-Ubuntu SMP PREEMPT Mon Jan 18 18:17:38 UTC 2021 x86_64 x86_64 x86_64 GNU/Linux

  1. For your convenience, shell script to build Aerial SDK, create the script in /opt/nvidia/cuBB:


#!/bin/bash SCRIPT=$(readlink -f $0) SCRIPT_DIR=$(dirname $SCRIPT) echo running $SCRIPT echo running $SCRIPT_DIR export cuBB_SDK=${SCRIPT_DIR} insModScript=${SCRIPT_DIR}/cuPHY-CP/external/gdrcopy/ echo $insModScript cd $insModScript && make && ./insmod.sh && cd - export LD_LIBRARY_PATH=$cuBB_SDK/gpu-dpdk/build/install/lib/x86_64-linux-gnu echo $LD_LIBRARY_PATH | sudo tee /etc/ld.so.conf.d/aerial-dpdk.conf sudo ldconfig echo "perhaps you want to: " echo "mkdir build && cd build && cmake .. " mkdir -p build && cd $_ && cmake .. && time chrt -r 1 taskset -c 2-20 make -j

  1. For your convenience, shell script to start cuphycontroller, create the script in /opt/nvidia/cuBB:


#!/bin/bash sudo nvidia-smi -pm 1 sudo nvidia-smi -i 0 -lgc $(sudo nvidia-smi -i 0 --query-supported-clocks=graphics --format=csv,noheader,nounits | sort -h | tail -n 1) SCRIPT=$(readlink -f $0) SCRIPT_DIR=$(dirname $SCRIPT) echo running $SCRIPT echo running $SCRIPT_DIR export cuBB_SDK=${SCRIPT_DIR} insModScript=${SCRIPT_DIR}/cuPHY-CP/external/gdrcopy/ echo $insModScript cd $insModScript && ./insmod.sh && cd - export LD_LIBRARY_PATH=$cuBB_SDK/gpu-dpdk/build/install/lib/x86_64-linux-gnu:$cuBB_SDK/build/cuPHY-CP/cuphydriver/src export LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:/opt/mellanox/gdrcopy/src export LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:/opt/mellanox/dpdk/lib/x86_64-linux-gnu:/opt/mellanox/doca/lib/x86_64-linux-gnu echo $LD_LIBRARY_PATH | sed 's/:/\n/g' | sudo tee /etc/ld.so.conf.d/aerial-dpdk.conf sudo ldconfig export GDRCOPY_PATH_L=$cuBB_SDK/cuPHY-CP/external/gdrcopy/src export CUDA_MPS_PIPE_DIRECTORY=/var export CUDA_MPS_LOG_DIRECTORY=/var sudo -E nvidia-cuda-mps-control -d sudo -E echo start_server -uid 0 | sudo -E nvidia-cuda-mps-control sleep 5 echo "perhaps you want to: " echo "sudo -E LD_LIBRARY_PATH=$cuBB_SDK/gpu-dpdk/build/install/lib/x86_64-linux-gnu/ ./build/cuPHY-CP/cuphycontroller/examples/cuphycontroller_scf P5G_SCF_FXN" sudo -E ./build/cuPHY-CP/cuphycontroller/examples/cuphycontroller_scf P5G_SCF_FXN sudo ./build/cuPHY-CP/gt_common_libs/nvIPC/tests/pcap/pcap_collect

Logfiles generated while installing tools, OS and NVIDIA SW/FW can be found below:

Below page is a reference to the syllabus from NVIDIA/UIUC Accelerated Computing Teaching Kit and outlines each module’s organization in the downloaded Teaching Kit http://gputeachingkit.hwu.crhc.illinois.edu/.
