Abstract
This cuDNN 8.6.0 Developer Guide provides an overview of the NVIDIA cuDNN features such as customizable data layouts, supporting flexible dimension ordering, striding, and subregions for the 4D tensors used as inputs and outputs to all of its routines. This flexibility allows easy integration into any neural network implementation.
To access the API, refer to the NVIDIA cuDNN API Reference.
For previously released developer documentation, refer to the NVIDIA cuDNN Archives.
1. Introduction
cuDNN convolution routines aim for a performance that is competitive with the fastest GEMM (matrix multiply)-based implementations of such routines while using significantly less memory.
cuDNN features include customizable data layouts, supporting flexible dimension ordering, striding, and subregions for the 4D tensors used as inputs and outputs to all of its routines. This flexibility allows easy integration into any neural network implementation and avoids the input/output transposition steps sometimes necessary with GEMM-based convolutions.
cuDNN offers a context-based API that allows for easy multithreading and (optional) interoperability with NVIDIA® CUDA® streams.
1.1. Programming Model
An application using cuDNN must initialize a handle to the library context by calling cudnnCreate(). This handle is explicitly passed to every subsequent library function that operates on GPU data. Once the application finishes using cuDNN, it can release the resources associated with the library handle using cudnnDestroy(). This approach allows the user to explicitly control the library's functioning when using multiple host threads, GPUs and CUDA streams.
For example, an application can use cudaSetDevice (prior to creating a cuDNN handle) to associate different devices with different host threads, and in each of those host threads, create a unique cuDNN handle that directs the subsequent library calls to the device associated with it. Therefore, the cuDNN library calls made with different handles will automatically run on different devices.
The device associated with a particular cuDNN context is assumed to remain unchanged between the corresponding cudnnCreate() and cudnnDestroy() calls. In order for the cuDNN library to use a different device within the same host thread, the application must set the new device to be used by calling cudaSetDevice() and then create another cuDNN context, which will be associated with the new device, by calling cudnnCreate().
cuDNN API Compatibility
-
Any patch release x.y.z is forward or backward-compatible with applications built against another cuDNN patch release x.y.w (meaning, of the same major and minor version number, but having w!=z).
-
cuDNN minor releases beginning with cuDNN 7 are binary backward-compatible with applications built against the same or earlier patch release (meaning, an application built against cuDNN 7.x is binary compatible with cuDNN library 7.y, where y>=x).
-
Applications compiled with a cuDNN version 7.y are not guaranteed to work with 7.x release when y > x.
1.2. GPU And Driver Requirements
1.3. Backward Compatibility And Deprecation Policy
The old deprecation policy required three major library releases to complete an API update. During this process, the original function name was first assigned to the legacy API, and then to the revised API, depending on the library version. The user wishing to migrate to the new API version had to update his or her code twice. In the first update, the original call foo() had to be changed to foo_vN(), where N is the new major cuDNN version. After the next major cuDNN release, the foo_vN() function had to be renamed back as foo(). Clearly, the above process could be difficult for code maintenance, especially when many functions are upgraded.
cuDNN version | Explanation |
---|---|
Major release 8 | The updated API is introduced as foo_v8(). The deprecated API foo() is kept unchanged to maintain backward compatibility until the next major release. |
Major release 9 | The deprecated API foo() is permanently removed and its name is not reused. The foo_v8() function supersedes the retired call foo(). |
If the existing API needs to be updated, a new function flavor is introduced with the _v tag followed by the current, major cuDNN version. In the next major release, the deprecated function is removed, and its name is never reused. A brand-new API is first introduced without the _v tag.
The revised depreciation scheme allows us to retire the legacy API in just one major release. Similarly to the previous API deprecation policy, the user is able to compile the legacy code without any changes using the next major release of the cuDNN library. The backward compatibility ends when another major cuDNN release is introduced.
The updated function name embeds the information in which the cuDNN version of the API call was modified. As a result, the API changes will be easier to track and document.
The new deprecation policy is applied also to pending API changes from previous cuDNN releases. For example, according to the old deprecation policy, cudnnSetRNNDescriptor_v6() should be removed in cuDNN version 8 and the upgraded call cudnnSetRNNDescriptor() with the same arguments and behavior should be kept. Instead, the new deprecation policy is applied to this case and the tagged function is kept.
warning: ‘cudnnStatus_t cudnnSetRNNMatrixMathType(cudnnRNNDescriptor_t, cudnnMathType_t)’ is deprecated [-Wdeprecated-declarations]Or
warning C4996: 'cudnnSetRNNMatrixMathType': was declared deprecated
The above warnings are disabled by default to avoid potential build breaks in software setups where compiler warnings are treated as errors.
Note that the simple swapping of older cuDNN version 7 shared library files will not work with the cuDNN version 8 release. The user source code needs to be recompiled from scratch with the cuDNN version 8 headers and linked with the version 8 libraries.
1.4. Thread Safety
When creating a per-thread cuDNN handle, it is recommended that a single synchronous call of cudnnCreate() be made first before each thread creates its own handle asynchronously.
Per cudnnCreate(), for multi-threaded applications that use the same device from different threads, the recommended programming model is to create one (or a few, as is convenient) cuDNN handles per thread and use that cuDNN handle for the entire life of the thread.
2. Tensor Descriptor
The first dimension of the tensor defines the batch size n, and the second dimension defines the number of features maps c. This tensor definition allows, for example, to have some dimensions overlapping each other within the same tensor by having the stride of one dimension smaller than the product of the dimension and the stride of the next dimension. In cuDNN, unless specified otherwise, all routines will support tensors with overlapping dimensions for forward-pass input tensors, however, dimensions of the output tensors cannot overlap. Even though this tensor format supports negative strides (which can be useful for data mirroring), cuDNN routines do not support tensors with negative strides unless specified otherwise.
2.1. WXYZ Tensor Descriptor
-
all the strides are strictly positive
-
the dimensions referenced by the letters are sorted in decreasing order of their respective strides
2.2. 3-D Tensor Descriptor
2.3. 4-D Tensor Descriptor
- NCHW
- NHWC
- CHWN
2.4. 5-D Tensor Descriptor
- NCDHW
- NDHWC
- CDHWN
2.5. Fully-packed Tensors
-
the number of tensor dimensions is equal to the number of letters preceding the fully-packed suffix.
-
the stride of the i-th dimension is equal to the product of the (i+1)-th dimension by the (i+1)-th stride.
-
the stride of the last dimension is 1.
2.6. Partially-packed Tensors
-
The strides of all dimensions NOT referenced in the -packed suffix are greater or equal to the product of the next dimension by the next stride.
-
The stride of each dimension referenced in the -packed suffix in position i is equal to the product of the (i+1)-st dimension by the (i+1)-st stride.
-
If the last tensor's dimension is present in the -packed suffix, its stride is 1.
For example, an NHWC tensor WC-packed means that the c_stride is equal to 1 and w_stride is equal to c_dim x c_stride. In practice, the -packed suffix is usually applied to the minor dimensions of a tensor but can be applied to only the major dimensions; for example, an NCHW tensor that is only N-packed.
2.7. Spatially Packed Tensors
2.8. Overlapping Tensors
3. Data Layout Formats
The recommended way to specify the layout format of a tensor is by setting its strides accordingly. For compatibility with the v7 API, a subset of the layout formats can also be configured through the cudnnTensorFormat_t enum in the cuDNN API Reference. The enum is only supplied for legacy reasons and is deprecated.
3.1. Example Tensor
- N is the batch size; 1.
- C is the number of feature maps (i.e., number of channels); 64.
- H is the image height; 5.
- W is the image width; 4.
To keep the example simple, the image pixel elements are expressed as a sequence of integers, 0, 1, 2, 3, and so on. See Figure 1.
In the following subsections, we’ll use the above example to demonstrate the different layout formats.
3.2. Convolution Layouts
3.2.1. NCHW Memory Layout
- Beginning with the first channel (c=0), the elements are arranged contiguously in row-major order.
- Continue with second and subsequent channels until the elements of all the channels are laid out. Refer to Figure 2.
- Proceed to the next batch (if N is > 1).
3.2.2. NHWC Memory Layout
- Begin with the first element of channel 0, then proceed to the first element of channel 1, and so on, until the first elements of all the C channels are laid out.
- Next, select the second element of channel 0, then proceed to the second element of channel 1, and so on, until the second element of all the channels are laid out.
- Follow the row-major order of channel 0 and complete all the elements. Refer to Figure 3.
- Proceed to the next batch (if N is > 1).
3.2.3. NC/32HW32 Memory Layout
3.3. MatMul Layouts
- Packed Row-major: dim [B,M,N] with stride [MN, N, 1], or
- Packed Column-major: dim [B,M,N] with stride [MN, 1, M]
Unpacked layouts for 3-D tensors are supported as well, but their support surface is more ragged.
4. Reproducibility (determinism)
Across different architectures, no cuDNN routines guarantee bit-wise reproducibility. For example, there is no guarantee of bit-wise reproducibility when comparing the same routine run on NVIDIA Volta™ and NVIDIA Turing™, or NVIDIA Turing and NVIDIA Ampere Architecture.
5. Scaling Parameters
dstValue = alpha*computedValue + beta*priorDstValue
When beta is zero, the output is not read and may contain uninitialized data (including NaN).
- float for HALF and FLOAT tensors, and
- double for DOUBLE tensors.
Type Conversion
When the data input x, the filter input w and the output y are all in INT8 data type, the function cudnnConvolutionBiasActivationForward() will perform the type conversion as shown in Figure 6:
6. Tensor Core Operations
6.1. Basics
The default math mode is CUDNN_DEFAULT_MATH, which indicates that the Tensor Core operations will be avoided by the library. Because the CUDNN_TENSOR_OP_MATH mode uses the Tensor Cores, it is possible that these two modes generate slightly different numerical results due to different sequencing of the floating-point operations.
For example, the result of multiplying two matrices using Tensor Core operations is very close, but not always identical, to the result achieved using a sequence of scalar floating-point operations. For this reason, the cuDNN library requires an explicit user opt-in before enabling the use of Tensor Core operations.
However, experiments with training common deep learning models show negligible differences between using Tensor Core operations and scalar floating point paths, as measured by both the final network accuracy and the iteration count to convergence. Consequently, the cuDNN library treats both modes of operation as functionally indistinguishable and allows for the scalar paths to serve as legitimate fallbacks for cases in which the use of Tensor Core operations is unsuitable.
See also Training with Mixed Precision.
6.2. Convolution Functions
6.2.1. Prerequisites
6.2.2. Supported Algorithms
Supported Convolution Function | Supported Algos |
---|---|
cudnnConvolutionForward |
CUDNN_CONVOLUTION_FWD_ALGO_IMPLICIT_PRECOMP_GEMM CUDNN_CONVOLUTION_FWD_ALGO_WINOGRAD_NONFUSED |
cudnnConvolutionBackwardData |
CUDNN_CONVOLUTION_BWD_DATA_ALGO_1 CUDNN_CONVOLUTION_BWD_DATA_ALGO_WINOGRAD_NONFUSED |
cudnnConvolutionBackwardFilter |
CUDNN_CONVOLUTION_BWD_FILTER_ALGO_1 CUDNN_CONVOLUTION_BWD_FILTER_ALGO_WINOGRAD_NONFUSED |
6.2.3. Data And Filter Formats
6.3. RNN Functions
6.3.1. Prerequisites
6.3.2. Supported Algorithms
6.3.3. Data And Filter Formats
See also Features Of RNN Functions.
6.4. Tensor Transformations
6.4.1. FP32-to-FP16 Conversion
For Convolutions
// Set the math type to allow cuDNN to use Tensor Cores: checkCudnnErr(cudnnSetConvolutionMathType(cudnnConvDesc, CUDNN_TENSOR_OP_MATH_ALLOW_CONVERSION));
For RNNs
// Set the math type to allow cuDNN to use Tensor Cores: checkCudnnErr(cudnnSetRNNMatrixMathType(cudnnRnnDesc, CUDNN_TENSOR_OP_MATH_ALLOW_CONVERSION));
6.4.2. Padding
6.4.3. Folding
With folding or channel-folding, cuDNN can implicitly format the input tensors within an internal workspace to accelerate the overall calculation. Performing this transformation for the user often allows cuDNN to use kernels with restrictions on convolution stride to support a strided convolution problem.
6.4.4. Conversion Between NCHW And NHWC
If your input (and output) are NCHW, then expect a layout change.
Non-Tensor Op convolutions will not perform conversions between NCHW and NHWC.
In very rare and difficult-to-qualify cases that are a complex function of padding and filter sizes, it is possible that Tensor Ops is not enabled. In such cases, users can pre-pad to enable the Tensor Ops path.
6.5. Data Transformations
6.5.1. FP16 Data
For an FP32 accumulation, with FP16 output, the output of the accumulator is down-converted to FP16. Generally, the accumulation type is of greater or equal precision to the output type.
6.6. Guidelines For Good Performance On Tensor Cores
- Make sure that the convolution operation is eligible for Tensor Cores by avoiding any combinations of large padding and large filters.
- Transform the inputs and filters to NHWC, pre-pad channel and batch size to be a multiple of 8.
- Make sure that all user-provided tensors, workspace, and reserve space are aligned to 128-bit boundaries. Note that 1024-bit alignment may deliver better performance.
7. Convolutions
7.1. Convolution Formulas
Term | Description |
---|---|
Input (image) Tensor | |
Weight Tensor | |
Output Tensor | |
Current Batch Size | |
Current Input Channel | |
Total Input Channels | |
Input Image Height | |
Input Image Width | |
Current Output Channel | |
Total Output Channels | |
Current Output Height Position | |
Current Output Width Position | |
Group Count | |
Padding Value | |
Vertical Subsample Stride (along Height) | |
Horizontal Subsample Stride (along Width) | |
Vertical Dilation (along Height) | |
Horizontal Dilation (along Width) | |
Current Filter Height | |
Total Filter Height | |
Current Filter Width | |
Total Filter Width | |
Convolution (convolution mode set to CUDNN_CROSS_CORRELATION)
Convolution with Padding
Convolution with Subsample-Striding
Convolution with Dilation
Convolution (convolution mode set to CUDNN_CONVOLUTION)
Convolution using Grouped Convolution
7.2. Grouped Convolutions
Basic Idea
Conceptually, in grouped convolutions, the input channels and the filter channels are split into a groupCount number of independent groups, with each group having a reduced number of channels. The convolution operation is then performed separately on these input and filter groups.
For example, consider the following: if the number of input channels is 4, and the number of filter channels of 12. For a normal, ungrouped convolution, the number of computation operations performed are 12*4.
If the groupCount is set to 2, then there are now two input channel groups of two input channels each, and two filter channel groups of six filter channels each.
As a result, each grouped convolution will now perform 2*6 computation operations, and two such grouped convolutions are performed. Hence the computation savings are 2x: (12*4)/(2*(2*6)) .
Best Practices For 3D Convolutions
The following guidelines are for setting the cuDNN library parameters to enhance the performance of 3D convolutions. Specifically, these guidelines are focused on settings such as filter sizes, padding and dilation settings. Additionally, an application-specific use-case, namely, medical imaging, is presented to demonstrate the performance enhancement of 3D convolutions with these recommended settings.
For more information, refer to the NVIDIA cuDNN Developer Guide and the NVIDIA cuDNN API Reference.
7.3.1. Recommended Settings
cuDNN 8.6.0 | ||
---|---|---|
Platform |
NVIDIA Hopper Architecture NVIDIA Ampere Architecture NVIDIA Turing Architecture NVIDIA Volta Architecture |
|
Convolution (3D or 2D) | 3D and 2D | |
Convolution or deconvolution (fprop, dgrad, or wgrad) |
fprop dgrad wgrad |
|
Grouped convolution size |
C_per_group == K_per_group == {1,4,8,16,32,64,128,256} Not supported for INT8 |
|
Data layout format (NHWC/NCHW)1 | NDHWC | |
Input/output precision (FP16, FP32, INT8, or FP64) | FP16, FP322, INT83 | |
Accumulator (compute) precision (FP16, FP32, INT32 or FP64) | FP32, INT32 | |
Filter (kernel) sizes | No limitation | |
Padding | No limitation | |
Image sizes | 2 GB limitation for a tensor | |
Number of channels | C |
0 mod 8 0 mod 16 (for INT8) |
K |
0 mod 8 0 mod 16 (for INT8) |
|
Convolution mode | Cross-correlation and convolution | |
Strides | No limitation | |
Dilation | No limitation | |
Data pointer alignment | All data pointers are 16-bytes aligned. |
7.3.2. Limitations
If the above is in the network, use cuDNNFind to get the best option.
8. Features Of RNN Functions
For each of these terms, the short-form versions shown in the parenthesis are used in the tables below for brevity: CUDNN_RNN_ALGO_STANDARD (_ALGO_STANDARD), CUDNN_RNN_ALGO_PERSIST_STATIC (_ALGO_PERSIST_STATIC), CUDNN_RNN_ALGO_PERSIST_DYNAMIC (_ALGO_PERSIST_DYNAMIC), and CUDNN_TENSOR_OP_MATH_ALLOW_CONVERSION (_ALLOW_CONVERSION).
Functions | Input/output layout supported | Supports variable sequence length in batch | Commonly supported |
---|---|---|---|
cudnnRNNForwardInference() | Only Sequence major, packed (non-padded) |
Only with _ALGO_STANDARD Require input sequences descending sorted according to length. |
Mode (cell type) supported:CUDNN_RNN_RELU, CUDNN_RNN_TANH, CUDNN_LSTM, CUDNN_GRU Algo supported4 (see the table below for an elaboration on these algorithms):_ALGO_STANDARD, _ALGO_PERSIST_STATIC, _ALGO_PERSIST_DYNAMIC Math mode supported: CUDNN_DEFAULT_MATH,CUDNN_TENSOR_OP_MATH (will automatically fall back if run on pre-Volta or if algo doesn’t support Tensor Cores) _ALLOW_CONVERSION (may do down conversion to utilize Tensor Cores) Direction mode supported: CUDNN_UNIDIRECTIONAL, CUDNN_BIDIRECTIONAL RNN input mode: CUDNN_LINEAR_INPUT, CUDNN_SKIP_INPUT |
cudnnRNNForwardTraining() | |||
cudnnRNNBackwardData() | |||
cudnnRNNBackwardWeights() | |||
cudnnRNNForwardInferenceEx() |
Sequence major unpacked Batch major unpacked5 Sequence major packed6 |
Only with _ALGO_STANDARD For unpacked layout, no input sorting required. 7 For packed layout, require input sequences descending sorted according to length. |
|
cudnnRNNForwardTrainingEx() | |||
cudnnRNNBackwardDataEx() | |||
cudnnRNNBackwardWeightsEx() |
Features | _ALGO_STANDARD | _ALGO_PERSIST_STATIC | CUDNN_RNN_ALGO_PERSIST_STATIC_SMALL_H | _ALGO_PERSIST_DYNAMIC |
---|---|---|---|---|
Half input
Single accumulation Half output |
Supported
Half intermediate storage Single accumulation |
|||
Single input
Single accumulation Single output |
Supported
If running on Volta, with CUDNN_TENSOR_OP_MATH_ALLOW_CONVERSION*, will down-convert and use half intermediate storage. Otherwise: Single intermediate storage Single accumulation |
|||
Double input
Double accumulation Double output |
Supported
Double intermediate storage Double accumulation |
Not Supported | Not Supported | Supported
Double intermediate storage Double accumulation |
LSTM recurrent projection | Supported | Not Supported | Not Supported | Not Supported |
LSTM cell clipping | Supported | |||
Variable sequence length in batch | Supported | Not Supported | Not Supported | Not Supported |
Tensor Cores |
Supported For half input/output, acceleration requires setting CUDNN_TENSOR_OP_MATH8 or CUDNN_TENSOR_OP_MATH_ALLOW_CONVERSION 9 Acceleration requires inputSize and hiddenSize to be a multiple of 8 For single input/output on NVIDIA Volta, NVIDIA Xavier, and NVIDIA Turing, acceleration requires setting CUDNN_TENSOR_OP_MATH_ALLOW_CONVERSION10 Acceleration requires inputSize and hiddenSize to be a multiple of 8 For single input/output on NVIDIA Ampere Architecture, acceleration requires setting CUDNN_DEFAULT_MATH,CUDNN_TENSOR_OP_MATH,Or CUDNN_TENSOR_OP_MATH_ALLOW_CONVERSION* Acceleration requires inputSize and hiddenSize to be a multiple of 4 |
Not Supported, will execute normally ignoring CUDNN_TENSOR_OP_MATH11 or _ALLOW_CONVERSION12 | ||
Other limitations | Max problem size is limited by GPU specifications. | Requires real time compilation through NVRTC |
9. Mixed Precision Numerical Accuracy
For example, when the computation is performed in FP32 and the output is in FP16, the CUDNN_CONVOLUTION_BWD_FILTER_ALGO_0 (ALGO_0) has lower accuracy compared to the CUDNN_CONVOLUTION_BWD_FILTER_ALGO_1 (ALGO_1). This is because ALGO_0 does not use extra workspace, and is forced to accumulate the intermediate results in FP16, i.e., half precision float, and this reduces the accuracy. The ALGO_1, on the other hand, uses additional workspace to accumulate the intermediate values in FP32, i.e., full precision float.
10. The cuDNN Graph API
The user starts by building a graph of operations, like the one pictured in index.html#finalize-op-graph__fig_w12_btl_vlb.
At a high level, the user is describing a dataflow graph of operations on tensors. Given a finalized graph, the user then selects and configures an engine that can execute that graph. There are several methods for selecting and configuring engines, which have tradeoffs with respect to ease-of-use, runtime overhead, and engine performance. The next subsection walks through an example operation graph, covering the process in more detail.
- C backend API (lowest level entry point into the graph API)
- C++ frontend API (convenience layer on top of the C backend API)
- It is less verbose without loss of control - all functionality accessible through the backend API is also accessible through the frontend API.
- It adds functionality on top of the backend API, like errata filters and autotuning.
- It is open source.
In either case (i.e. the backend or frontend API), the high level concepts are the same.
10.1. Graph API Example with Operation Fusion
10.1.1. Creating Operation and Tensor Descriptors to Specify the Graph Dataflow
As can be seen in Figure 9, the user specified one forward convolution operation (using CUDNN_BACKEND_OPERATION_CONVOLUTION_FORWARD_DESCRIPTOR), a pointwise operation for the bias addition (using CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_ADD), and a pointwise operation for the ReLU activation (using CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_RELU_FWD). Refer to the backend API for more details on setting the attributes of these descriptors. For an example of how a forward convolution can be set up, refer to the use case in the backend API.
- Note that graphs with more than one operation node do not support in-place operations (that is, where any of the input UIDs matches any of the output UIDs). Such in-place operations are considered cyclic in later graph analysis and deemed unsupported. In-place operations are supported for single-node graphs.
- Also note that the operation descriptors can be created and passed into cuDNN in any order, as the tensor UIDs are enough to determine the dependencies in the graph.
10.1.2. Finalizing The Operation Graph
10.1.4. Executing The Engine
10.2. Supported Graph Patterns
Since these engines have some overlap in the patterns they support, a given pattern may result in zero, one, or more engines.
10.2.1. Pre-compiled Single Operation Engines
10.2.1.1. ConvolutionFwd
10.2.1.2. ConvolutionBwFilter
10.2.1.3. ConvolutionBwData
10.2.2. Runtime Fusion Engine
- CUDNN_BACKEND_OPERATION_CONCAT_DESCRIPTOR
- CUDNN_BACKEND_OPERATION_SIGNAL_DESCRIPTOR
- CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR
- CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR
- CUDNN_BACKEND_OPERATION_RESAMPLE_FWD_DESCRIPTOR
- CUDNN_BACKEND_OPERATION_RESAMPLE_BWD_DESCRIPTOR
- CUDNN_BACKEND_OPERATION_GEN_STATS_DESCRIPTOR
- CUDNN_BACKEND_OPERATION_REDUCTION_DESCRIPTOR
- CUDNN_BACKEND_OPERATION_SIGNAL_DESCRIPTOR
- The arrow going into g2 can go into any of g2’s nodes and does not necessarily need to feed into a root node.
- The abbreviated notations for operations are used in the diagrams and throughout the text for visualization purposes. The exact mapping with backend descriptors can be found in the Mapping with Backend Descriptors.
10.2.2.1. Limitations
Limitations per Generic Pattern
Tensor Layout Requirements
Lastly, there are some layout requirements to the I/O tensors involved in fusion graphs. For more information, refer to the Tensor Descriptor and Data Layout Formats sections. The following table describes the requirements per fusion pattern:
10.2.2.2. Examples of Supported Patterns
For illustration purposes, we abbreviated the operations used. For a full mapping to the actual backend descriptors, refer to the Mapping with Backend Descriptors.
10.2.2.2.5. Convolution Producer Node in Middle of DAG
10.2.2.3. Operation specific Constraints for the Runtime Fusion Engine
Note that these constraints are in addition to (1) any constraints mentioned in the Backend API, and (2) limitations in relation to other operations in the directed acyclic graph (DAG), as mentioned in the Limitations section.
10.2.2.3.1. Convolutions
- ConvolutionFwd
- This operation represents forward convolution, that is, computing the response tensor of image tensor convoluted with filter tensor. For complete details on the interface, as well as general constraints, refer to the CUDNN_BACKEND_OPERATION_CONVOLUTION_FORWARD_DESCRIPTOR section.
- ConvolutionBwFilter
- This operation represents convolution backward filters, that is, computing filter gradients from a response and an image tensor. For complete details on the interface, as well as general constraints, refer to the CUDNN_BACKEND_OPERATION_CONVOLUTION_BACKWARD_FILTER_DESCRIPTOR section.
- ConvolutionBwData
- This operation represents convolution backward data, that is, computing input data gradients from a response and a filter tensor. For complete details on the interface, as well as general constraints, refer to the CUDNN_BACKEND_OPERATION_CONVOLUTION_BACKWARD_DATA_DESCRIPTOR section.
Input Tensor Attribute Name | Output Tensor Attribute Name | |
---|---|---|
ConvolutionFwd |
CUDNN_ATTR_OPERATION_CONVOLUTION_FORWARD_X CUDNN_ATTR_OPERATION_CONVOLUTION_FORWARD_W |
CUDNN_ATTR_OPERATION_CONVOLUTION_FORWARD_Y |
ConvolutionBwFilter |
CUDNN_ATTR_OPERATION_CONVOLUTION_BWD_DATA_DX CUDNN_ATTR_OPERATION_CONVOLUTION_BWD_DATA_DY |
CUDNN_ATTR_OPERATION_CONVOLUTION_BWD_DATA_W |
ConvolutionBwData |
CUDNN_ATTR_OPERATION_CONVOLUTION_BWD_FILTER_DW CUDNN_ATTR_OPERATION_CONVOLUTION_BWD_FILTER_DY |
CUDNN_ATTR_OPERATION_CONVOLUTION_BWD_FILTER_X |
Tensor Data Type | Number of input and output channels for NVIDIA Hopper Architecture and later | Number of input and output channels for NVIDIA Ampere Architecture and later | Number of input and output channels for NVIDIA Volta/Turing Architecture |
---|---|---|---|
INT8 | Multiple of 4 | Multiple of 4 | Multiple of 16 |
FP8 | Multiple of 16 | N/A | N/A |
FP16/BF16 | Multiple of 2 | Multiple of 2 | Multiple of 8 |
FP32(TF32) | Any value | Any value | Multiple of 4 |
10.2.2.3.2. MatMul
The following two tables list the constraints for MatMul operations, in addition to any general constraints as listed in the Backend API, and any constraints listed in the Limitations section, in relation to other operations. Note that these additional constraints only apply when MatMul is used in the runtime fusion engine.
10.2.2.3.3. Pointwise
The following table lists the constraints for pointwise operations, in addition to the general constraints listed above, and any constraints listed in the Limitations section, in relation to other operations. Note that these additional constraints only apply when these operations are used in the runtime fusion engine.
10.2.2.3.4. GenStats
The following table lists the constraints for GenStats operations, in addition to the general constraints listed above, and any constraints listed in the Limitations section, in relation to other operations. Note that these additional constraints only apply when GenStats operations are used in the runtime fusion engine.
10.2.2.3.5. Reduction
The following two tables are constraints for Reduction forward operations, in addition to the general constraints listed above, and any constraints listed in the Limitations section, in relation to other operations. Note that these additional constraints only apply when Reduction operations are used in the runtime fusion engine.
Attribute | Requirement |
---|---|
Tensor data type for CUDNN_ATTR_OPERATION_REDUCTION_YDESC | CUDNN_DATA_FLOAT |
CUDNN_ATTR_REDUCTION_COMP_TYPE | CUDNN_DATA_FLOAT |
Tensor layout for CUDNN_ATTR_OPERATION_REDUCTION_XDESC and CUDNN_ATTR_OPERATION_REDUCTION_YDESC | NHWC/NDHWC/BMN fully packed |
CUDNN_ATTR_REDUCTION_OPERATOR | CUDNN_REDUCE_TENSOR_ADD, CUDNN_REDUCE_TENSOR_MIN, and CUDNN_REDUCE_TENSOR_MAX |
Reduction Operation | Reduction Pattern | |
---|---|---|
Input | Output | |
Standalone reduction operation | [N, C, H, W] | [N, 1, H, W] |
[1, C, 1, 1] | ||
[1, 1, 1, 1] | ||
Reduction fused after convolution backward filter gradient | [N, K, P, Q] | [N, 1, P, Q] |
[1, K, 1, 1] | ||
[1, 1, 1, 1] | ||
Reduction fused after convolution backward data gradient | [N, C, H, W] | [N, 1, H, W] |
[1, C, 1, 1] | ||
[1, 1, 1, 1] | ||
Reduction fused after convolution backward filter gradient | [K, C, R, S] | [K, 1, 1, 1] |
[1, C, R, S] | ||
[1, 1, 1, 1] | ||
Reduction fused after matrix multiplication operation | [B, M, N] | [B, M, 1] |
[B, 1, N] |
10.2.2.3.6. ResampleFwd
The following are constraints for Resample operations, in addition to the general constraints listed above, and any constraints listed in the Limitations section, in relation to other operations. Note that these additional constraints only apply when Resample forward operations are used in the runtime fusion engine.
- Supported layout: NHWC or NDHWC
- Spatial dimensions supported: 2 or 3
- Input dimensions supported: 4 or 5
- If specified, the index tensor dimension should be equal to the response tensor dimension.
There are some mode specific restrictions also. The following tables list the values that are allowed for particular parameters. For the parameters not listed, we allow any value which is mathematically correct.
- CUDNN_RESAMPLE_AVGPOOL_INCLUDE_PADDING
- CUDNN_RESAMPLE_AVGPOOL_EXCLUDE_PADDING
- CUDNN_RESAMPLE_MAXPOOL
Attribute | Average Pooling | Max Pooling |
---|---|---|
CUDNN_ATTR_RESAMPLE_PADDING_MODE | CUDNN_ZERO_PAD | CUDNN_NEG_INF_PAD |
CUDNN_ATTR_OPERATION_RESAMPLE_FWD_ALPHA | 1.0 | 1.0 |
CUDNN_ATTR_OPERATION_RESAMPLE_FWD_BETA | 0.0 | 0.0 |
CUDNN_ATTR_RESAMPLE_COMP_TYPE | CUDNN_DATA_FLOAT | CUDNN_DATA_FLOAT |
For the upsampling modes, CUDNN_RESAMPLE_NEAREST is not supported for any combination of parameters. CUDNN_RESAMPLE_BILINEAR has the following support specifications.
Attribute | Bilinear |
---|---|
Input dimensions | Equal to 0.5 x output dimensions |
CUDNN_ATTR_RESAMPLE_PRE_PADDINGS | 0.5 |
CUDNN_ATTR_RESAMPLE_POST_PADDINGS | 1 |
CUDNN_ATTR_RESAMPLE_STRIDES | 0.5 |
CUDNN_ATTR_RESAMPLE_WINDOW_DIMS | 2 |
Data type for CUDNN_ATTR_OPERATION_RESAMPLE_FWD_XDESC and CUDNN_ATTR_OPERATION_RESAMPLE_FWD_YDESC | CUDNN_DATA_FLOAT |
CUDNN_ATTR_RESAMPLE_COMP_TYPE | CUDNN_DATA_FLOAT |
CUDNN_ATTR_OPERATION_RESAMPLE_FWD_ALPHA | 1.0 |
CUDNN_ATTR_OPERATION_RESAMPLE_FWD_BETA | 0.0 |
CUDNN_ATTR_RESAMPLE_PADDING_MODE | CUDNN_EDGE_VAL_PAD |

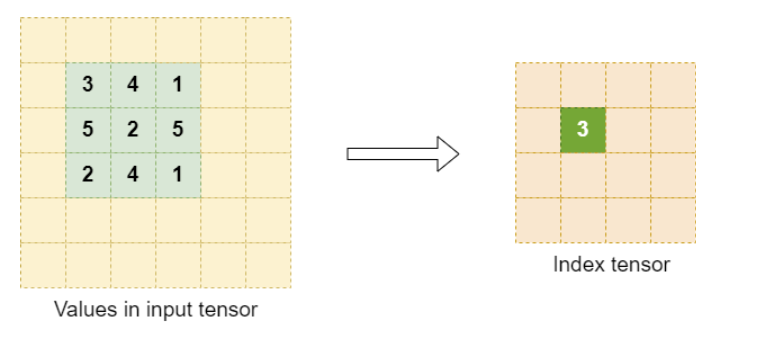

10.2.2.3.6.1. Resampling Index Tensor Dump for Training
- Zero-indexed row-major position of maximum value of input tensor in the resampling window.
- In case of multiple input pixels with maximum value, the first index in a left-to-right top-to-bottom scan is selected.
Select an appropriate element size for the index tensor. As a reference, any element size such that the maximum zero-indexed window position fits should be sufficient.
10.2.2.3.7. ResampleBwd
The following are constraints for Resample backward operations, in addition to the general constraints listed above, and any constraints listed in the Limitations section, in relation to other operations. Note that these additional constraints only apply when Resample backward operations are used in the runtime fusion engine.
- Supported layout: NHWC or NDHWC
- Spatial dimensions supported: 2 or 3
- Input dimensions supported: 4 or 5
- The index tensor dimensions should be equal to the input gradient tensor dimensions.
Index tensor should be provided for only max pooling mode, and should adhere to the format described in the resampling forward index dump section.
There are some mode specific restrictions also. The following tables list the values that are allowed for particular parameters. For the parameters not listed, we allow any value which is mathematically correct.
- CUDNN_RESAMPLE_AVGPOOL_INCLUDE_PADDING
- CUDNN_RESAMPLE_AVGPOOL_EXCLUDE_PADDING
- CUDNN_RESAMPLE_MAXPOOL
Attribute | Average Pooling | Max Pooling |
---|---|---|
CUDNN_ATTR_RESAMPLE_PADDING_MODE | CUDNN_ZERO_PAD | CUDNN_NEG_INF_PAD |
CUDNN_ATTR_OPERATION_RESAMPLE_BWD_ALPHA | 1.0 | 1.0 |
CUDNN_ATTR_OPERATION_RESAMPLE_BWD_BETA | 0.0 | 0.0 |
CUDNN_ATTR_RESAMPLE_COMP_TYPE | CUDNN_DATA_FLOAT | CUDNN_DATA_FLOAT |
Backward upsampling modes are currently not supported.
10.2.3. Pre-compiled Specialized Engines
In most cases, the specialized patterns are just special cases of the generic patterns used in the runtime fusion engine, but there are some cases where the specialized pattern does not fit any of the generic patterns. If your graph pattern matches a specialized pattern, you will get at least a pattern matching engine, and you might also get a runtime fusion engine as another option.
Currently, the following patterns are supported by the pattern matching engines. Some nodes are optional. Optional nodes are indicated by dashed outlines.
10.2.3.1. ConvBNfprop
- The three pointwise nodes scale, bias, and ReLU are optional.
- X, Z, W, s1, b1 must all be of FP16 data type.
- Z needs to be of shape [N, C, H, W] with NHWC packed layout.
- W needs to be of shape [K, C, R, S] with KRSC packed layout.
- s1, b1 need to be of shape [1, C, 1, 1] with NHWC packed layout.
- Only ReLU activation is supported.
- All of the intermediate tensors need to be virtual, except, Y needs to be non-virtual.
- I/O pointers should be 16 bytes aligned.
10.2.3.2. ConvBNwgrad
10.2.3.3. ConvBiasAct
- and need to be scalars.
- The activation node is optional.
- The size of the bias tensor should be [1, K, 1, 1].
- Internal conversions are not supported. That is, the virtual output between nodes need to have the same data type as the node’s compute type, which should be the same as the epilog type of the convolution node.
- There are some restrictions on the supported combination of data types, which can be found in the API Reference (refer to cudnnConvolutionBiasActivationForward()).
10.2.3.4. ConvScaleBiasAct
- and and should have the same data type/layout and can only be FP32.
- X, W, and Z can only be int8x4 or int8x32.
- The size of the bias tensor should be [1, K, 1, 1].
- Internal conversions are not supported. Meaning, "virtual output" between nodes needs to be the same as their compute type.
- Currently, Pointwise:ReLU is the only optional pointwise node.
This pattern is very similar as ConvBiasAct. The difference is that here, the scales and are tensors, not scalars. If they are scalars, this pattern becomes a normal ConvBiasAct.
10.2.3.5. dBNapply
- One of the inputs to the mul nodes and the input to the final add node must be of FP32 datatype (A, B, C).
- The other inputs to the mul nodes (X and Y) must be of FP16 data type.
- X, Y and Z are 4D tensors – [N,C,H,W] with NHWC packed layout.
- A, B, C are 1D tensors - [1,C,1,1] with NHWC packed layout.
- Channel C should be a multiple of 16 for all the tensors.
- Tensors A and B should be attached to the B port of the mul nodes; tensors X and Y should be attached to the X port.
10.2.3.6. DualdBNapply
- One tensor X is shared between the two linear combinations.
- Five tensors, X, Y1, Y2, Z1, Z2 are 4D tensors [N,C,H,W] with NHWC packed layout.
- Six tensors A1, A2, B1, B2 ,C1,C2 are 1D tensors [1,C,1,1].
- Channel C should be a multiple of 16 for all the tensors.
In essence, DualdBNapply runs the previous pattern, dBNapply twice, as two subgraphs. However, both subgraphs share one input tensor, X.
Note that for visibility purposes, the Inputs block is split into Inputs_1 and Inputs_2. This has no semantic meaning.
10.2.3.7. DgradDreluBNBwdWeight
- Dgrad input dY_bn and W are of FP16 datatypes.
- Batch norm fwd inputs, X_bn is of FP16 datatype while the other tensors mean_bn, invstd_dev_bn, scale_bn, and bias_bn are FP32.
- Outputs: dScale, dBias, A,B,C are of FP32 data type.
- All pointers are 16 byte aligned.
- Only supported on NVIDIA Ampere Architecture GPUs.
The BNBwdWeight operation takes in five inputs: X_bn, mean_bn, invstddev_bn, scale_bn, and dy_bn, and output from the ReLUBwd node.
It produces five outputs: gradients of the batch norm scale and bias params, dScale, dBias, and coefficients A,B,C. Note that for illustration purposes, the inputs are duplicated. The inputs on the left and right are however exactly the same.
This pattern is typically used in the computation of the Batch Norm Backward Pass.
When computing the backward pass of batch norm, dScale, dBias, and dX_bn are needed. The DgradDreluBnBwdWeight pattern computes the former two. Using the generated A, B, and C we can use the dBNApply pattern above to compute dX, the input gradient, as follows dx_bn = A*dy_bn + B*X_bn +C.
Note that this pattern is used in combination with the forward pass, the ConvBNfprop pattern. Because of performance reasons, the output of Batch Norm Y_bn, which was calculated in ConvBNfprop (output of scale-bias), needs to be recalculated by DgradDreluBnBwdWeight. The pointwise add node subtracts mean_bn from X_bn, hence the alpha2 parameter for that node should be set to -1.
10.2.4. Mapping with Backend Descriptors
Notation used in this section | Backend descriptor |
---|---|
Pointwise:scale | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_MUL and with operand B broadcasting into operand X |
Pointwise:bias | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_ADD and with operand B broadcasting into operand X |
Pointwise:add | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_ADD and with operand B with same dimensions as X |
Pointwise:mul | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_MUL and with operand B with same dimensions as X |
Pointwise:ReLU | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_RELU_FWD |
Pointwise:ReLUBwd | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_RELU_BWD |
Pointwise:tanh | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_TANH_FWD |
Pointwise:sigmoid | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_SIGMOID_FWD |
Pointwise:ELU | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR with mode CUDNN_POINTWISE_ELU_FWD |
Pointwise:{ReLU,tanh,sigmoid,ELU} | CUDNN_BACKEND_OPERATION_POINTWISE_DESCRIPTOR
with one of the following modes:
CUDNN_POINTWISE_RELU_FWD, CUDNN_POINTWISE_TANH_FWD, CUDNN_POINTWISE_SIGMOID_FWD, CUDNN_POINTWISE_ELU_FWD |
MatMul | CUDNN_BACKEND_OPERATION_MATMUL_DESCRIPTOR |
ConvolutionFwd | CUDNN_BACKEND_OPERATION_CONVOLUTION_FORWARD_DESCRIPTOR |
ConvolutionBwFilter | CUDNN_BACKEND_OPERATION_CONVOLUTION_BACKWARD_FILTER_DESCRIPTOR |
ConvolutionBwData | CUDNN_BACKEND_OPERATION_CONVOLUTION_BACKWARD_DATA_DESCRIPTOR |
GenStats | CUDNN_BACKEND_OPERATION_GEN_STATS_DESCRIPTOR |
ResampleFwd | CUDNN_BACKEND_OPERATION_RESAMPLE_FWD_DESCRIPTOR |
GenStats | CUDNN_BACKEND_OPERATION_GEN_STATS_DESCRIPTOR |
Reduction | CUDNN_BACKEND_OPERATION_REDUCTION_DESCRIPTOR |
BnBwdWeight | CUDNN_BACKEND_OPERATION_BN_BWD_WEIGHTS_DESCRIPTOR |
BOOLEAN/packed-BOOLEAN |
CUDNN_DATA_BOOLEAN: As described in the API Reference, this type implies that eight boolean values are packed in a single byte, with the lowest index on the right (that is, least significant bit). packed-BOOLEAN and BOOLEAN are used interchangeably, where the former is used to emphasize and remind the user about the semantics. |
INT8 | CUDNN_DATA_INT8 |
FP8 | CUDNN_DATA_FP8_E4M3 or CUDNN_DATA_FP8_E5M2 |
FP16 | CUDNN_DATA_HALF |
BF16 | CUDNN_DATA_BFLOAT16 |
FP32 | CUDNN_DATA_FLOAT |
TF32 | A tensor core operation mode used to accelerate floating point convolutions or matmuls. This can be used for an operation with compute type CUDNN_DATA_FLOAT, on Ampere or later and be disabled with NVIDIA_TF32_OVERRIDE=1. |
11. Troubleshooting
11.1. Error Reporting And API Logging
The log output contains variable names, data types, parameter values, device pointers, process ID, thread ID, cuDNN handle, CUDA stream ID, and metadata such as time of the function call in microseconds.
For example, when the severity level CUDNN_LOGINFO_DBG is enabled, the user will receive the API loggings, such as:
cuDNN (v8300) function cudnnSetActivationDescriptor() called:
mode: type=cudnnActivationMode_t; val=CUDNN_ACTIVATION_RELU (1);
reluNanOpt: type=cudnnNanPropagation_t; val=CUDNN_NOT_PROPAGATE_NAN (0);
coef: type=double; val=1000.000000;
Time: 2017-11-21T14:14:21.366171 (0d+0h+1m+5s since start)
Process: 21264, Thread: 21264, cudnn_handle: NULL, cudnn_stream: NULL.
cuDNN (v8300) function cudnnBackendFinalize() called: Info: Traceback contains 5 message(s) Error: CUDNN_STATUS_BAD_PARAM; reason: out <= 0 Error: CUDNN_STATUS_BAD_PARAM; reason: is_valid_spacial_dim(xSpatialDimA[dim], wSpatialDimA[dim], ySpatialDimA[dim], cDesc.getPadLowerA()[dim], cDesc.getPadUpperA()[dim], cDesc.getStrideA()[dim], cDesc.getDilationA()[dim]) Error: CUDNN_STATUS_BAD_PARAM; reason: is_valid_convolution(xDesc, wDesc, cDesc, yDesc) Error: CUDNN_STATUS_BAD_PARAM; reason: convolution.init(xDesc, wDesc, cDesc, yDesc) Error: CUDNN_STATUS_BAD_PARAM; reason: finalize_internal() Time: 2021-10-05T17:11:07.935640 (0d+0h+0m+15s since start) Process=87720; Thread=87720; GPU=NULL; Handle=NULL; StreamId=NULL.
There are two methods, as described below, to enable the error/warning reporting and API logging. For convenience, the log output can be handled by the built-in default callback function, which will direct the output to a log file or the standard I/O as designated by the user. The user may also write their own callback function to handle this information programmably, and use the cudnnSetCallback() to pass in the function pointer of their own callback function.
Method 1: Using Environment Variables
Refer to Table 19 for the impact on the performance of API logging using environment variables. The CUDNN_LOG{INFO,WARN,ERR}_DBG notation in the table header means the conclusion is applicable to either one of the environment variables.
Environment variables | CUDNN_LOG{INFO,WARN,ERR}_DBG=0 | CUDNN_LOG{INFO,WARN,ERR}_DBG=1 |
---|---|---|
CUDNN_LOGDEST_DBG not set |
No logging output No performance loss |
No logging output No performance loss |
CUDNN_LOGDEST_DBG=NULL |
No logging output No performance loss |
No logging output No performance loss |
CUDNN_LOGDEST_DBG=stdout or stderr |
No logging output No performance loss |
Logging to stdout or stderr Some performance loss |
CUDNN_LOGDEST_DBG=filename.txt |
No logging output No performance loss |
Logging to filename.txt Some performance loss |
Method 2: Using the API
Method 2: To use API function calls to enable API logging, refer to the API description of cudnnSetCallback() and cudnnGetCallback().
11.2. FAQs
Q: Where in the software stack does cuDNN sit? What is the interaction between CUDA, cuDNN, and TensorRT?
Q: I’m not sure if I should use cuDNN for inference or training. How does it compare with TensorRT?
A: cuDNN provides the building blocks for common routines such as convolution, pooling, activation and RNN/LSTMs. You can use cuDNN for both training and inference. However, where it differs from TensorRT is that the latter (TensorRT) is a programmable inference accelerator; just like a framework. TensorRT sees the whole graph and optimizes the network by fusing/combining layers and optimizing kernel selection for improved latency, throughout, power efficiency and for reducing memory requirements.
A rule of thumb you can apply is to check out TensorRT, see if it meets your inference needs, if it doesn't, then look at cuDNN for a closer, more in-depth perspective.
Q: How does heuristics in cuDNN work? How does it know what is the optimal solution for a given problem?
A: NVIDIA actively monitors the Deep Learning space for important problem specifications such as commonly used models. The heuristics are produced by sampling a portion of these problem specifications with available computational choices. Over time, more models are discovered and incorporated into the heuristics.
Q: Is cuDNN going to support running arbitrary graphs?
A: No, we don’t plan to become a framework and execute the whole graph one op at a time. At this time, we are focused on a subgraph given by the user, where we try to produce an optimized fusion kernel. We will document the rules regarding what can be fused and what cannot. The goal is to support general and flexible fusion, however, it will take time and there will be limits in what it can do in the cuDNN version 8.0.0 launch.
Q: What’s the difference between TensorRT, TensorFlow/XLA’s fusion, and cuDNN’s fusion?
A: TensorRT and TensorFlow are frameworks; they see the whole graph and can do global optimization, however, they generally only fuse pointwise ops together or pattern match to a limited set of pre-compiled fixed fusion patterns like conv-bias-relu. On the other hand, cuDNN targets a subgraph, but can fuse convolutions with pointwise ops, thus providing potentially better performance. CuDNN fusion kernels can be utilized by TensorRT and TensorFlow/XLA as part of their global graph optimization.
Q: Can I write an application calling cuDNN directly?
A: Yes, you can call the C/C++ API directly. Usually, data scientists would wait for framework integration and use the Python API which is more convenient. However, if your use case requires better performance, you can target the cuDNN API directly.
Q: How does mixed precision training work?
A: Several components need to work together to make mixed precision training possible. CuDNN needs to support the layers with the required datatype config and have optimized kernels that run very fast. In addition, there is a module called automatic mixed precision (AMP) in frameworks which intelligently decides which op can run in a lower precision without affecting convergence and minimize the number of type conversions/transposes in the entire graph. These work together to give you speed up. For more information, see Mixed Precision Numerical Accuracy.
Q: How can I pick the fastest convolution kernels with cuDNN version 8.0.0?
A: In the API introduced in cuDNN v8, convolution kernels are grouped by similar computation and numerical properties into engines. Every engine has a queryable set of performance tuning knobs. A computation case such as a convolution operation graph can be computed using different valid combinations of engines and their knobs, known as an engine configuration. Users can query an array of engine configurations for any given computation case ordered by performance, from fastest to slowest according to cuDNN’s own heuristics. Alternately, users can generate all possible engine configurations by querying the engine count and available knobs for each engine. This generated list could be used for auto-tuning or the user could create their own heuristics.
Q: Why is cuDNN version 8.0 convolution API call much slower on the first call than subsequent calls?
A: Due to the library split, cuDNN version 8.0 API will only load the necessary kernels on the first API call that requires it. In previous versions, this load would have been observed in the first cuDNN API call that triggers CUDA context initialization, typically cudnnCreate(). In version 8.0, this is delayed until the first sub-library call that triggers CUDA context initialization. Users who desire to have CUDA context preloaded can call the new cudnnCnnInferVersionCheck() API (or its related cousins), which has the side effect of initializing a CUDA context. This will reduce the run time for all subsequent API calls.
Q: How do I build the cuDNN version 8.0.0 split library?
A: cuDNN v8.0 library is split into multiple sub-libraries. Each library contains a subset of the API. Users can link directly against the individual libraries or link with a dlopen layer which follows a plugin architecture.
To link against an individual library, users can directly specify it and its dependencies on the linker command line. For example, for infer libraries: -lcudnn_adv_infer, -lcudnn_cnn_infer, or -lcudnn_ops_infer.
For all libraries, -lcudnn_adv_train, -lcudnn_cnn_train, -lcudnn_ops_train, -lcudnn_adv_infer, -lcudnn_cnn_infer, and -lcudnn_ops_infer.
The dependency order is documented in the cuDNN 8.0.0 Preview Release Notes and the NVIDIA cuDNN API Reference.
Alternatively, the user can continue to link against a shim layer (-libcudnn) which can dlopen the correct library that provides the implementation of the function. When the function is called for the first time, the dynamic loading of the library takes place.
-lcudnn
Q: What are the new APIs in cuDNN version 8.0.0?
A: The new cuDNN APIs are listed in the cuDNN 8.0.0 Release Notes as well as in the API Changes For cuDNN 8.0.0.
11.3. Support
We appreciate all types of feedback. Consider posting on the forums with questions, comments, and suspected bugs that are appropriate to discuss publicly. cuDNN-related posts are reviewed by the cuDNN engineering team, and internally we will file bugs where appropriate. It’s helpful if you can paste or attach an API log to help us reproduce.
- Register for the NVIDIA Developer website.
- Log in to the developer site.
- Click on your name in the upper right corner.
- Click My account > My Bugs and select Submit a New Bug.
- Fill out the bug reporting page. Be descriptive and if possible, provide the steps that you are following to help reproduce the problem. If possible, paste or attach an API log.
- Click Submit a bug.
12. Acknowledgments
12.1. University of Tennessee
Copyright (c) 2010 The University of Tennessee. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. * Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer listed in this license in the documentation and/or other materials provided with the distribution. * Neither the name of the copyright holders nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
12.2. University of California, Berkeley
COPYRIGHT All contributions by the University of California: Copyright (c) 2014, The Regents of the University of California (Regents) All rights reserved. All other contributions: Copyright (c) 2014, the respective contributors All rights reserved. Caffe uses a shared copyright model: each contributor holds copyright over their contributions to Caffe. The project versioning records all such contribution and copyright details. If a contributor wants to further mark their specific copyright on a particular contribution, they should indicate their copyright solely in the commit message of the change when it is committed. LICENSE Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. CONTRIBUTION AGREEMENT By contributing to the BVLC/caffe repository through pull-request, comment, or otherwise, the contributor releases their content to the license and copyright terms herein.
12.3. Facebook AI Research, New York
Copyright (c) 2014, Facebook, Inc. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. * Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. * Neither the name Facebook nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Additional Grant of Patent Rights "Software" means fbcunn software distributed by Facebook, Inc. Facebook hereby grants you a perpetual, worldwide, royalty-free, non-exclusive, irrevocable (subject to the termination provision below) license under any rights in any patent claims owned by Facebook, to make, have made, use, sell, offer to sell, import, and otherwise transfer the Software. For avoidance of doubt, no license is granted under Facebook’s rights in any patent claims that are infringed by (i) modifications to the Software made by you or a third party, or (ii) the Software in combination with any software or other technology provided by you or a third party. The license granted hereunder will terminate, automatically and without notice, for anyone that makes any claim (including by filing any lawsuit, assertion or other action) alleging (a) direct, indirect, or contributory infringement or inducement to infringe any patent: (i) by Facebook or any of its subsidiaries or affiliates, whether or not such claim is related to the Software, (ii) by any party if such claim arises in whole or in part from any software, product or service of Facebook or any of its subsidiaries or affiliates, whether or not such claim is related to the Software, or (iii) by any party relating to the Software; or (b) that any right in any patent claim of Facebook is invalid or unenforceable.
Notice
Notice
This document is provided for information purposes only and shall not be regarded as a warranty of a certain functionality, condition, or quality of a product. NVIDIA Corporation (“NVIDIA”) makes no representations or warranties, expressed or implied, as to the accuracy or completeness of the information contained in this document and assumes no responsibility for any errors contained herein. NVIDIA shall have no liability for the consequences or use of such information or for any infringement of patents or other rights of third parties that may result from its use. This document is not a commitment to develop, release, or deliver any Material (defined below), code, or functionality.
NVIDIA reserves the right to make corrections, modifications, enhancements, improvements, and any other changes to this document, at any time without notice.
Customer should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
NVIDIA products are sold subject to the NVIDIA standard terms and conditions of sale supplied at the time of order acknowledgement, unless otherwise agreed in an individual sales agreement signed by authorized representatives of NVIDIA and customer (“Terms of Sale”). NVIDIA hereby expressly objects to applying any customer general terms and conditions with regards to the purchase of the NVIDIA product referenced in this document. No contractual obligations are formed either directly or indirectly by this document.
NVIDIA products are not designed, authorized, or warranted to be suitable for use in medical, military, aircraft, space, or life support equipment, nor in applications where failure or malfunction of the NVIDIA product can reasonably be expected to result in personal injury, death, or property or environmental damage. NVIDIA accepts no liability for inclusion and/or use of NVIDIA products in such equipment or applications and therefore such inclusion and/or use is at customer’s own risk.
NVIDIA makes no representation or warranty that products based on this document will be suitable for any specified use. Testing of all parameters of each product is not necessarily performed by NVIDIA. It is customer’s sole responsibility to evaluate and determine the applicability of any information contained in this document, ensure the product is suitable and fit for the application planned by customer, and perform the necessary testing for the application in order to avoid a default of the application or the product. Weaknesses in customer’s product designs may affect the quality and reliability of the NVIDIA product and may result in additional or different conditions and/or requirements beyond those contained in this document. NVIDIA accepts no liability related to any default, damage, costs, or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any manner that is contrary to this document or (ii) customer product designs.
No license, either expressed or implied, is granted under any NVIDIA patent right, copyright, or other NVIDIA intellectual property right under this document. Information published by NVIDIA regarding third-party products or services does not constitute a license from NVIDIA to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property rights of the third party, or a license from NVIDIA under the patents or other intellectual property rights of NVIDIA.
Reproduction of information in this document is permissible only if approved in advance by NVIDIA in writing, reproduced without alteration and in full compliance with all applicable export laws and regulations, and accompanied by all associated conditions, limitations, and notices.
THIS DOCUMENT AND ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL NVIDIA BE LIABLE FOR ANY DAMAGES, INCLUDING WITHOUT LIMITATION ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY, ARISING OUT OF ANY USE OF THIS DOCUMENT, EVEN IF NVIDIA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Notwithstanding any damages that customer might incur for any reason whatsoever, NVIDIA’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms of Sale for the product.
Arm
Arm, AMBA and Arm Powered are registered trademarks of Arm Limited. Cortex, MPCore and Mali are trademarks of Arm Limited. "Arm" is used to represent Arm Holdings plc; its operating company Arm Limited; and the regional subsidiaries Arm Inc.; Arm KK; Arm Korea Limited.; Arm Taiwan Limited; Arm France SAS; Arm Consulting (Shanghai) Co. Ltd.; Arm Germany GmbH; Arm Embedded Technologies Pvt. Ltd.; Arm Norway, AS and Arm Sweden AB.
Trademarks
NVIDIA, the NVIDIA logo, and CUDA, DRIVE, JetPack, Kepler, Maxwell, Pascal, Turing, Volta and Xavier are trademarks and/or registered trademarks of NVIDIA Corporation in the United States and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.
