NVIDIA DOCA Telemetry Service Guide

This guide provides instructions on how to use the DOCA Telemetry Service (DTS) container on top of NVIDIA® BlueField® DPU.

DOCA Telemetry Service (DTS) collects data from built-in providers and from external telemetry applications. The following providers are available:

  • Data providers:

    • sysfs

    • ethtool

    • tc (traffic control)

  • Aggregation providers:

    • fluent_aggr

    • prometheus_aggr

Note

Sysfs provider is enabled by default.

DTS stores collected data into binary files under the /opt/mellanox/doca/services/telemetry/data directory. Data write is disabled by default due to BlueField storage restrictions.

DTS can export the data via Prometheus Endpoint (pull) or Fluent Bit (push).

DTS allows exporting NetFlow packets when data is collected from the DOCA Telemetry NetFlow API client application. NetFlow exporter is enabled from dts_config.ini by setting NetFlow collector IP/address and port.

Available Images

Built-in DOCA Service Image

DOCA Telemetry Service is enabled by default on the DPU and is shipped as part of the BlueField image. That is, every BlueField image contains a fixed service version so as to provide out-of-the-box support for programs based on the DOCA Telemetry library.



DOCA Service on NGC

In addition to the built-in image shipped with the BlueField boot image, DTS is also available on NGC, NVIDIA's container catalog. This is useful in case a new version of the service has been released and the user wants to upgrade from the built-in image. For service-specific configuration steps and deployment instructions, refer to the service's container page .

Info

For more information about the deployment of DOCA containers on top of the BlueField DPU, refer to NVIDIA DOCA Container Deployment Guide.

DPU Deployment

As mentioned above, DTS starts automatically on BlueField boot. This is done according to the .yaml file located at /etc/kubelet.d/doca_telemetry_standalone.yaml. Removing the .yaml file from this path stops the automatic DTS boot.

DTS files can be found under the directory /opt/mellanox/doca/services/telemetry/.

  • Container folder mounts:

    • config

    • data

    • ipc_sockets

  • Backup files:

    • doca_telemetry_service_${version}_arm64.tar.gz – DTS image

    • doca_telemetry_standalone.yaml – copy of the default boot .yaml file

Host Deployment

DTS supports x86_64 hosts. The providers and exporters all run from a single docker container.

  1. Initialize and configure host DTS with the desired DTS version:

    Copy
    Copied!


    export DTS_IMAGE=nvcr.io/nvidia/doca/doca_telemetry:<desired-DTS-version> docker run -v "/opt/mellanox/doca/services/telemetry/config:/config" --rm --name doca-telemetry-init -it $DTS_IMAGE /bin/bash -c "DTS_CONFIG_DIR=host /usr/bin/telemetry-init.sh"

    Note

    Per NGC policy, the "latest" tag does not exist. This means that when deploying DTS, the user must pick the desired tag from NGC and ensure that the DTS_IMAGE variable points to the full image. Example from version 1.16.5-doca2.6.0-host:

    Copy
    Copied!


    export DTS_IMAGE=nvcr.io/nvidia/doca/doca_telemetry:1.16.5-doca2.6.0-host

  2. Run with:

    Copy
    Copied!


    docker run -d --net=host --uts=host --ipc=host \ --privileged \ --ulimit stack=67108864 --ulimit memlock=-1 \ --device=/dev/mst/ \ --device=/dev/infiniband/ \ --gpus all \ -v "/opt/mellanox/doca/services/telemetry/config:/config" \ -v "/opt/mellanox/doca/services/telemetry/ipc_sockets:/tmp/ipc_sockets" \ -v "/opt/mellanox/doca/services/telemetry/data:/data" \ -v "/usr/lib/mft:/usr/lib/mft" \ -v "/sys/kernel/debug:/sys/kernel/debug" \ --rm --name doca-telemetry -it $DTS_IMAGE /usr/bin/telemetry-run.sh

    Note

    The following mounts are required by specific services only:

    • hcaperf provider:

      • --device=/dev/mst/

      • -v "/usr/lib/mft:/usr/lib/mft"

      • -v "/sys/kernel/debug:/sys/kernel/debug"

    • UCX/RDMA export modes:

      • --device=/dev/infiniband/

    • GPU providers (nvidia-smi and dcgm):

      • --gpu all

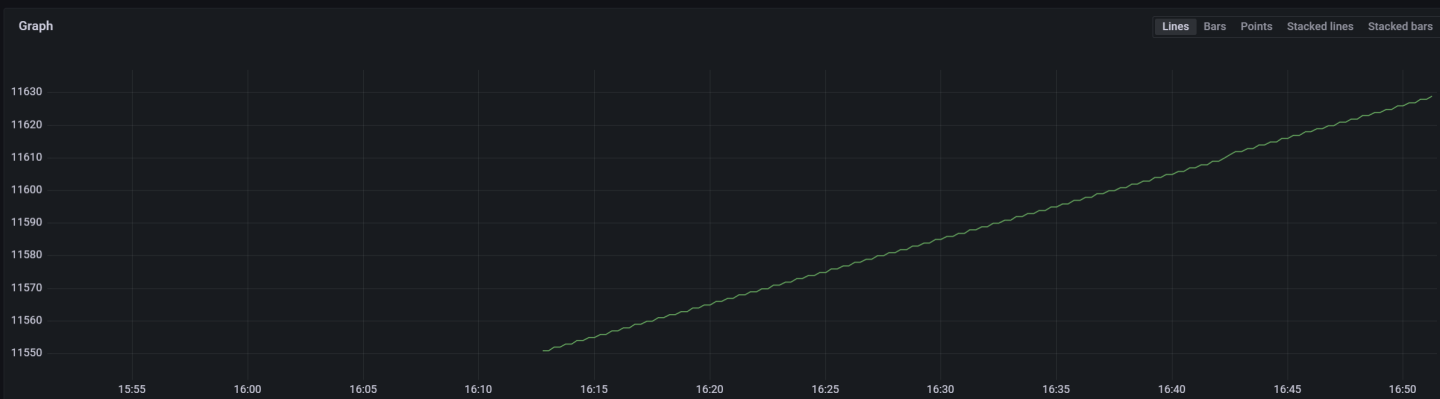

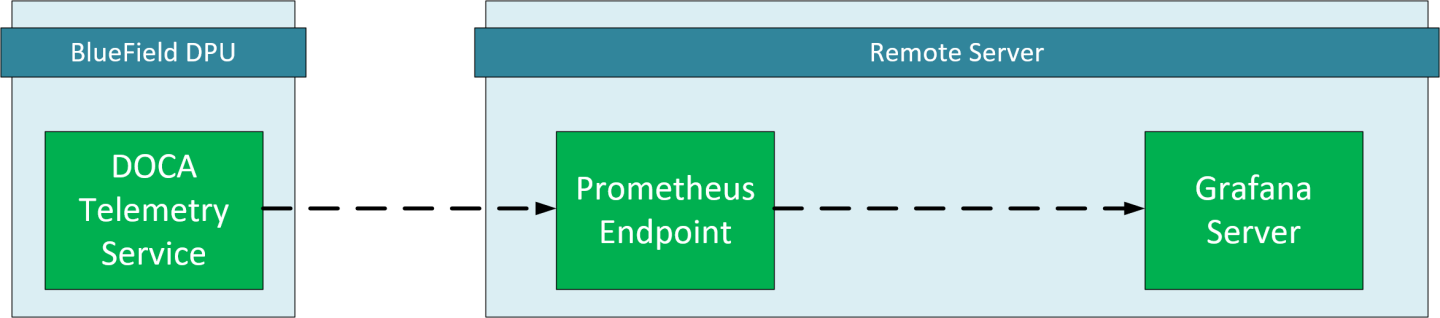

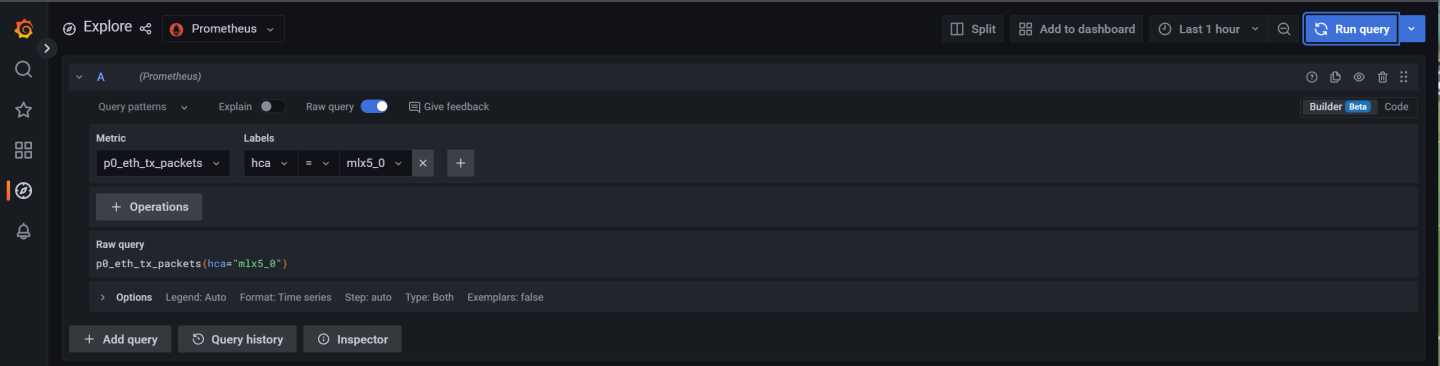

Deployment with Grafana Monitoring

Refer to section "Deploying with Grafana Monitoring".

The configuration of DTS is placed under /opt/mellanox/doca/services/telemetry/config by DTS during initialization. The user can interact with the dts_config.ini file and fluent_bit_configs folder. dts_config.ini contains the main configuration for the service and must be used to enable/disable providers, exporters, data writing. More details are provided in the corresponding sections. For every update in this file, DST must be restarted. Interaction with fluent_bit_configs folder is described in section Fluent Bit.

Init Scripts

The InitContainers section of the .yaml file has 2 scripts for config initialization:

  • /usr/bin/telemetry-init.sh – generates the default configuration files if, and only if, the /opt/mellanox/doca/services/telemetry/config folder is empty.

  • /usr/bin/enable-fluent-forward.sh – configures the destination host and port for Fluent Bit forwarding. The script requires that both the host and port are present, and only in this case it would start. The script overwrites the /opt/mellanox/doca/services/telemetry/config/fluent_bit_configs folder and configures the .exp file.

Enabling Fluent Bit Forwarding

To enable Fluent Bit forward, add the destination host and port to the command line found in the initContainers section of the .yaml file:

Copy
Copied!


command: ["/bin/bash", "-c", "/usr/bin/telemetry-init.sh && /usr/bin/enable-fluent-forward.sh -i=127.0.0.1 -p=24224"]

Note

The host and port shown above are just an example. See section Fluent Bit to learn about manual configuration.


Generating Configuration

The configuration folder /opt/mellanox/doca/services/telemetry/config starts empty by default. Once the service starts, the initial scripts run as a part of the initial container and create configuration as described in section Enabling Fluent Bit Forwarding.

Resetting Configuration

Resetting the configuration can be done by deleting the content found in the configuration folder and restarting the service to generate the default configuration.

Enabling Providers

Providers are enabled from the dts_config.ini configuration file. Uncomment the enable-provider=$provider-name line to allow data collection for this provider. For example, uncommenting the following line enables the ethtool provider:

Copy
Copied!


#enable-provider=ethtool

Note

More information about telemetry providers can be found under the Providers section.

Remote Collection

Certain providers or components are unable to execute properly within the container due to various container limitations. Therefore, they would have to perform remote collection or execution.

The following steps enable remote collection:

  1. Activate DOCA privileged executer (DPE), as DPE is how remote collection is achieved:

    Copy
    Copied!


    systemctl start dpe

  2. Add grpc before provider-name (i.e., enable-provider=grpc.$provider-name). For example, the following line configures remote collection of the hcaperf provider:

    Copy
    Copied!


    enable-provider=grpc.hcaperf

  3. If there are any configuration lines that are provider-specific, then add the grpc prefix as well. Building upon the previous example:

    Copy
    Copied!


    grpc.hcaperf.mlx5_0=sample grpc.hcaperf.mlx5_1=sample

Enabling Data Write

Uncomment the following line in dts_config.ini:

Copy
Copied!


#output=/data

Note

Changes in dts_config.ini force the main DTS process to restart in 60 seconds to apply the new settings.

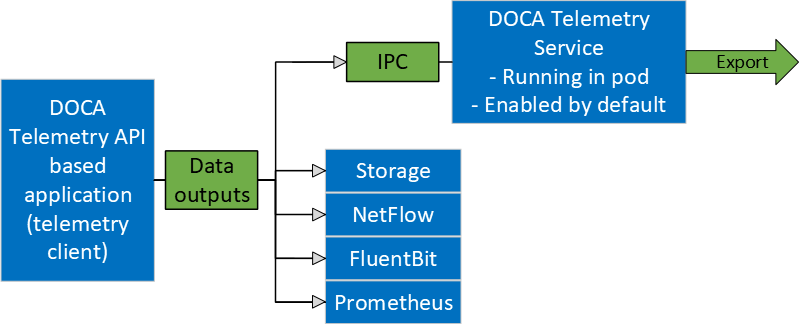

Enabling IPC with Non-container Program

For information on enabling IPC between DTS and an application that runs outside of a container, refer to section "Using IPC with Non-container Application" in the DOCA Telemetry.

Providers

DTS supports on-board data collection from sysf, ethtool, and tc providers.

Fluent and Prometheus aggregator providers can collect the data from other applications.

Sysfs Counters List

The sysfs provider has several components: ib_port, hw_port, mr_cache, eth, hwmon and bf_ptm . By default, all the components (except bf_ptm) are enabled when the provider is enabled:

Copy
Copied!


#disable-provider=sysfs

The components can be disabled separately. For instance, to disable eth:

Copy
Copied!


enable-provider=sysfs disable-provider=sysfs.eth

Note

ib_port and ib_hvw are state counters which are collected per port. These counters are only collected for ports whose state is active.

  • ib_port counters:

    Copy
    Copied!


    {hca_name}:{port_num}:ib_port_state {hca_name}:{port_num}:VL15_dropped {hca_name}:{port_num}:excessive_buffer_overrun_errors {hca_name}:{port_num}:link_downed {hca_name}:{port_num}:link_error_recovery {hca_name}:{port_num}:local_link_integrity_errors {hca_name}:{port_num}:multicast_rcv_packets {hca_name}:{port_num}:multicast_xmit_packets {hca_name}:{port_num}:port_rcv_constraint_errors {hca_name}:{port_num}:port_rcv_data {hca_name}:{port_num}:port_rcv_errors {hca_name}:{port_num}:port_rcv_packets {hca_name}:{port_num}:port_rcv_remote_physical_errors {hca_name}:{port_num}:port_rcv_switch_relay_errors {hca_name}:{port_num}:port_xmit_constraint_errors {hca_name}:{port_num}:port_xmit_data {hca_name}:{port_num}:port_xmit_discards {hca_name}:{port_num}:port_xmit_packets {hca_name}:{port_num}:port_xmit_wait {hca_name}:{port_num}:symbol_error {hca_name}:{port_num}:unicast_rcv_packets {hca_name}:{port_num}:unicast_xmit_packets

  • ib_hw counters:

    Copy
    Copied!


    {hca_name}:{port_num}:hw_state {hca_name}:{port_num}:hw_duplicate_request {hca_name}:{port_num}:hw_implied_nak_seq_err {hca_name}:{port_num}:hw_lifespan {hca_name}:{port_num}:hw_local_ack_timeout_err {hca_name}:{port_num}:hw_out_of_buffer {hca_name}:{port_num}:hw_out_of_sequence {hca_name}:{port_num}:hw_packet_seq_err {hca_name}:{port_num}:hw_req_cqe_error {hca_name}:{port_num}:hw_req_cqe_flush_error {hca_name}:{port_num}:hw_req_remote_access_errors {hca_name}:{port_num}:hw_req_remote_invalid_request {hca_name}:{port_num}:hw_resp_cqe_error {hca_name}:{port_num}:hw_resp_cqe_flush_error {hca_name}:{port_num}:hw_resp_local_length_error {hca_name}:{port_num}:hw_resp_remote_access_errors {hca_name}:{port_num}:hw_rnr_nak_retry_err {hca_name}:{port_num}:hw_rx_atomic_requests {hca_name}:{port_num}:hw_rx_dct_connect {hca_name}:{port_num}:hw_rx_icrc_encapsulated {hca_name}:{port_num}:hw_rx_read_requests {hca_name}:{port_num}:hw_rx_write_requests

  • ib_mr_cache counters:

    Copy
    Copied!


    {hca_name}:mr_cache:size_{n}:cur {hca_name}:mr_cache:size_{n}:limit {hca_name}:mr_cache:size_{n}:miss {hca_name}:mr_cache:size_{n}:size

    Note

    Where n ranges from 0 to 24.

  • eth counters:

    Copy
    Copied!


    {hca_name}:{device_name}:eth_collisions {hca_name}:{device_name}:eth_multicast {hca_name}:{device_name}:eth_rx_bytes {hca_name}:{device_name}:eth_rx_compressed {hca_name}:{device_name}:eth_rx_crc_errors {hca_name}:{device_name}:eth_rx_dropped {hca_name}:{device_name}:eth_rx_errors {hca_name}:{device_name}:eth_rx_fifo_errors {hca_name}:{device_name}:eth_rx_frame_errors {hca_name}:{device_name}:eth_rx_length_errors {hca_name}:{device_name}:eth_rx_missed_errors {hca_name}:{device_name}:eth_rx_nohandler {hca_name}:{device_name}:eth_rx_over_errors {hca_name}:{device_name}:eth_rx_packets {hca_name}:{device_name}:eth_tx_aborted_errors {hca_name}:{device_name}:eth_tx_bytes {hca_name}:{device_name}:eth_tx_carrier_errors {hca_name}:{device_name}:eth_tx_compressed {hca_name}:{device_name}:eth_tx_dropped {hca_name}:{device_name}:eth_tx_errors {hca_name}:{device_name}:eth_tx_fifo_errors {hca_name}:{device_name}:eth_tx_heartbeat_errors {hca_name}:{device_name}:eth_tx_packets {hca_name}:{device_name}:eth_tx_window_errors

  • BlueField-2 hwmon counters:

    Copy
    Copied!


    {hwmon_name}:{l3cache}:CYCLES {hwmon_name}:{l3cache}:HITS_BANK0 {hwmon_name}:{l3cache}:HITS_BANK1 {hwmon_name}:{l3cache}:MISSES_BANK0 {hwmon_name}:{l3cache}:MISSES_BANK1 {hwmon_name}:{pcie}:IN_C_BYTE_CNT {hwmon_name}:{pcie}:IN_C_PKT_CNT {hwmon_name}:{pcie}:IN_NP_BYTE_CNT {hwmon_name}:{pcie}:IN_NP_PKT_CNT {hwmon_name}:{pcie}:IN_P_BYTE_CNT {hwmon_name}:{pcie}:IN_P_PKT_CNT {hwmon_name}:{pcie}:OUT_C_BYTE_CNT {hwmon_name}:{pcie}:OUT_C_PKT_CNT {hwmon_name}:{pcie}:OUT_NP_BYTE_CNT {hwmon_name}:{pcie}:OUT_NP_PKT_CNT {hwmon_name}:{pcie}:OUT_P_PKT_CNT {hwmon_name}:{tile}:MEMORY_READS {hwmon_name}:{tile}:MEMORY_WRITES {hwmon_name}:{tile}:MSS_NO_CREDIT {hwmon_name}:{tile}:VICTIM_WRITE {hwmon_name}:{tilenet}:CDN_DIAG_C_OUT_OF_CRED {hwmon_name}:{tilenet}:CDN_REQ {hwmon_name}:{tilenet}:DDN_REQ {hwmon_name}:{tilenet}:NDN_REQ {hwmon_name}:{trio}:TDMA_DATA_BEAT {hwmon_name}:{trio}:TDMA_PBUF_MAC_AF {hwmon_name}:{trio}:TDMA_RT_AF {hwmon_name}:{trio}:TPIO_DATA_BEAT {hwmon_name}:{triogen}:TX_DAT_AF {hwmon_name}:{triogen}:TX_DAT_AF

  • BlueField-3 hwmon counters:

    Copy
    Copied!


    {hwmon_name}:{llt}:GDC_BANK0_RD_REQ {hwmon_name}:{llt}:GDC_BANK1_RD_REQ {hwmon_name}:{llt}:GDC_BANK0_WR_REQ {hwmon_name}:{llt}:GDC_BANK1_WR_REQ {hwmon_name}:{llt_miss}:GDC_MISS_MACHINE_RD_REQ {hwmon_name}:{llt_miss}:GDC_MISS_MACHINE_WR_REQ {hwmon_name}:{mss}:SKYLIB_DDN_TX_FLITS {hwmon_name}:{mss}:SKYLIB_DDN_RX_FLITS

  • BlueField-3 bf_ptm counters:

    Copy
    Copied!


    bf:ptm:active_power_profile bf:ptm:atx_power_available bf:ptm:core_temp bf:ptm:ddr_temp bf:ptm:error_state bf:ptm:power_envelope bf:ptm:power_throttling_event_count bf:ptm:power_throttling_state bf:ptm:thermal_throttling_event_count bf:ptm:thermal_throttling_state bf:ptm:throttling_state bf:ptm:total_power bf:ptm:vr0_power bf:ptm:vr1_power

Port Counters

The following parameters are located in /sys/class/infiniband/mlx5_0/ports/1/counters.

Counter

Description

InfiniBand Spec Name

Group

port_rcv_data

The total number of data octets, divided by 4, (counting in double words, 32 bits), received on all VLs from the port.

PortRcvData

Informative

port_rcv_packets

Total number of packets (this may include packets containing Errors. This is 64 bit counter.

PortRcvPkts

Informative

port_multicast_rcv_packets

Total number of multicast packets, including multicast packets containing errors.

PortMultiCastRcvPkts

Informative

port_unicast_rcv_packets

Total number of unicast packets, including unicast packets containing errors.

PortUnicastRcvPkts

Informative

port_xmit_data

The total number of data octets, divided by 4, (counting in double words, 32 bits), transmitted on all VLs from the port.

PortXmitData

Informative

port_xmit_packets

port_xmit_packets_64

Total number of packets transmitted on all VLs from this port. This may include packets with errors.

This is 64 bit counter.

PortXmitPkts

Informative

port_rcv_switch_relay_errors

Total number of packets received on the port that were discarded because they could not be forwarded by the switch relay.

PortRcvSwitchRelayErrors

Error

port_rcv_errors

Total number of packets containing an error that were received on the port.

PortRcvErrors

Informative

port_rcv_constraint_errors

Total number of packets received on the switch physical port that are discarded.

PortRcvConstraintErrors

Error

local_link_integrity_errors

The number of times that the count of local physical errors exceeded the threshold specified by LocalPhyErrors.

LocalLinkIntegrityErrors

Error

port_xmit_wait

The number of ticks during which the port had data to transmit but no data was sent during the entire tick (either because of insufficient credits or because of lack of arbitration).

PortXmitWait

Informative

port_multicast_xmit_packets

Total number of multicast packets transmitted on all VLs from the port. This may include multicast packets with errors.

PortMultiCastXmitPkts

Informative

port_unicast_xmit_packets

Total number of unicast packets transmitted on all VLs from the port. This may include unicast packets with errors.

PortUnicastXmitPkts

Informative

port_xmit_discards

Total number of outbound packets discarded by the port because the port is down or congested.

PortXmitDiscards

Error

port_xmit_constraint_errors

Total number of packets not transmitted from the switch physical port.

PortXmitConstraintErrors

Error

port_rcv_remote_physical_errors

Total number of packets marked with the EBP delimiter received on the port.

PortRcvRemotePhysicalErrors

Error

symbol_error

Total number of minor link errors detected on one or more physical lanes.

SymbolErrorCounter

Error

VL15_dropped

Number of incoming VL15 packets dropped due to resource limitations (e.g., lack of buffers) of the port.

VL15Dropped

Error

link_error_recovery

Total number of times the Port Training state machine has successfully completed the link error recovery process.

LinkErrorRecoveryCounter

Error

link_downed

Total number of times the Port Training state machine has failed the link error recovery process and downed the link.

LinkDownedCounter

Error


Hardware Counters

The hardware counters, found under /sys/class/infiniband/mlx5_0/ports/1/hw_counters/, are counted per function and exposed on the function. Some counters are not counted per function. These counters are commented with a relevant comment.

Counter

Description

Group

duplicate_request

Number of received packets. A duplicate request is a request that had been previously executed.

Error

implied_nak_seq_err

Number of time the requested decided an ACK. with a PSN larger than the expected PSN for an RDMA read or response.

Error

lifespan

The maximum period in ms which defines the aging of the counter reads. Two consecutive reads within this period might return the same values

Informative

local_ack_timeout_err

The number of times QP's ack timer expired for RC, XRC, DCT QPs at the sender side.

The QP retry limit was not exceed, therefore it is still recoverable error.

Error

np_cnp_sent

The number of CNP packets sent by the Notification Point when it noticed congestion experienced in the RoCEv2 IP header (ECN bits).

Informative

np_ecn_marked_roce_packets

The number of RoCEv2 packets received by the notification point which were marked for experiencing the congestion (ECN bits where '11' on the ingress RoCE traffic) .

Informative

out_of_buffer

The number of drops occurred due to lack of WQE for the associated QPs.

Error

out_of_sequence

The number of out of sequence packets received.

Error

packet_seq_err

The number of received NAK sequence error packets. The QP retry limit was not exceeded.

Error

req_cqe_error

The number of times requester detected CQEs completed with errors.

Error

req_cqe_flush_error

The number of times requester detected CQEs completed with flushed errors.

Error

req_remote_access_errors

The number of times requester detected remote access errors.

Error

req_remote_invalid_request

The number of times requester detected remote invalid request errors.

Error

resp_cqe_error

The number of times responder detected CQEs completed with errors.

Error

resp_cqe_flush_error

The number of times responder detected CQEs completed with flushed errors.

Error

resp_local_length_error

The number of times responder detected local length errors.

Error

resp_remote_access_errors

The number of times responder detected remote access errors.

Error

rnr_nak_retry_err

The number of received RNR NAK packets. The QP retry limit was not exceeded.

Error

rp_cnp_handled

The number of CNP packets handled by the Reaction Point HCA to throttle the transmission rate.

Informative

rp_cnp_ignored

The number of CNP packets received and ignored by the Reaction Point HCA. This counter should not raise if RoCE Congestion Control was enabled in the network. If this counter raise, verify that ECN was enabled on the adapter. See HowTo Configure DCQCN (RoCE CC) values for ConnectX-4 (Linux).

Error

rx_atomic_requests

The number of received ATOMIC request for the associated QPs.

Informative

rx_dct_connect

The number of received connection request for the associated DCTs.

Informative

rx_read_requests

The number of received READ requests for the associated QPs.

Informative

rx_write_requests

The number of received WRITE requests for the associated QPs.

Informative

rx_icrc_encapsulated

The number of RoCE packets with ICRC errors.

Error

roce_adp_retrans

Counts the number of adaptive retransmissions for RoCE traffic

Informative

roce_adp_retrans_to

Counts the number of times RoCE traffic reached timeout due to adaptive retransmission

Informative

roce_slow_restart

Counts the number of times RoCE slow restart was used

Informative

roce_slow_restart_cnps

Counts the number of times RoCE slow restart generated CNP packets

Informative

roce_slow_restart_trans

Counts the number of times RoCE slow restart changed state to slow restart

Informative

roce_adp_retrans_to

Counts the number of adaptive retransmissions for RoCE traffic

Informative

roce_slow_restart

Counts the number of times RoCE traffic reached timeout due to adaptive retransmission

Informative


Debug Status Counters

The following parameters are located in /sys/class/net/<interface>/debug.

Parameter

Description

Default

lro_timeout

Sets the LRO timer period value in usecs which will be used as LRO session expiration time. For example:

Copy
Copied!


# cat /sys/class/net/eth2/debug/lro_timeout Actual timeout: 32 Supported timeout: 8 16 32 1024

32

link_down_reason

Link down reason will allow the user to query the reason which is preventing the link from going up. For example:

Copy
Copied!


$ cat /sys/class/net/ethXX/debug/link_down_reason monitor_opcode: 0x0 status_message: The port is Active.

Refer to the adapter PRM for all possible options (PDDR register).

N/A

Power Thermal Counters

The bf_ptm component collects BlueField-3 power thermal counters using remote collection. It is disabled by default and can be enabled as follows:

  1. Load kernel module mlxbf-ptm:

    Copy
    Copied!


    modprobe -v mlxbf-ptm

  2. Enable component using remote collection:

    Copy
    Copied!


    enable-provider=grpc.sysfs.bf_ptm

    Note

    DPE server should be active before changing the dts_config.ini file. See section "Remote Collection" for details.

Ethtool Counters

Ethtool counters is the generated list of counters which corresponds to Ethtool utility. Counters are generated on a per-device basis.

There are several counter groups, depending on where the counter is counted:

  • Ring – software ring counters

  • Software port – an aggregation of software ring counters

  • vPort counters – traffic counters and drops due to steering or no buffers. May indicate BlueField issues. These counters include Ethernet traffic counters (including raw Ethernet) and RDMA/RoCE traffic counters.

  • Physical port counters – the physical port connecting BlueField to the network. May indicate device issues or link or network issues. This measuring point holds information on standardized counters like IEEE 802.3, RFC2863, RFC 2819, RFC 3635 and additional counters like flow control, FEC, and more. Physical port counters are not exposed to virtual machines.

  • Priority port counters – a set of the physical port counters, per priory per port

Each group of counters may have different counter types:

  • Traffic informative counters – counters which counts traffic. These counters can be used for load estimation of for general debug.

  • Traffic acceleration counters – counters which counts traffic accelerated by NVIDIA drivers or by hardware. The counters are an additional layer to the informative counter set and the same traffic is counted in both informative and acceleration counters. Acceleration counters are marked with [A].

  • Error counters – increment of these counters might indicate a problem

The following acceleration mechanisms have dedicated counters:

  • TCP segmentation offload (TSO) – increasing outbound throughput and reducing CPU utilization by allowing the kernel to buffer multiple packets in a single large buffer. The BlueField splits the buffer into packet and transmits it.

  • Large receive offload (LRO) – increasing inbound throughput and reducing CPU utilization by aggregation of multiple incoming packets of a single stream to a single buffer

  • CHECKSUM – calculation of TCP checksum (by the BlueField). The following checksum offloads are available ( refer to skbuff.h for detailed explanation)

    • CHECKSUM_UNNECESSARY

    • CHECKSUM_NONE – no checksum acceleration was used

    • CHECKSUM_COMPLETE – device provided checksum on the entire packet

    • CHECKSUM_PARTIAL – device provided checksum

  • CQE compress – compression of completion queue events (CQE) used for sparing bandwidth on PCIe and hence achieve better performance.

Ring/Software Port Counters

The following counters are available per ring or software port.

These counters provide information on the amount of traffic accelerated by the BlueField. The counters tally the accelerated traffic in addition to the standard counters which tally that (i.e. accelerated traffic is counted twice).

The counter names in the table below refers to both ring and port counters. the notation for ring counters includes the [i] index without the braces. the notation for port counters does not include the [i]. a counter name rx[i]_packets will be printed as rx0_packets for ring 0 and rx_packets for the software port

Counter

Description

Type

rx[i]_packets

The number of packets received on ring i.

Informative

rx[i]_bytes

The number of bytes received on ring i.

Informative

tx[i]_packets

The number of packets transmitted on ring i.

Informative

tx[i]_bytes

The number of bytes transmitted on ring i.

Informative

tx[i]_tso_packets

The number of TSO packets transmitted on ring i [A].

Acceleration

tx[i]_tso_bytes

The number of TSO bytes transmitted on ring i [A].

Acceleration

tx[i]_tso_inner_packets

The number of TSO packets which are indicated to be carry internal encapsulation transmitted on ring i [A]

Acceleration

tx[i]_tso_inner_bytes

The number of TSO bytes which are indicated to be carry internal encapsulation transmitted on ring i [A].

Acceleration

rx[i]_lro_packets

The number of LRO packets received on ring i [A].

Acceleration

rx[i]_lro_bytes

The number of LRO bytes received on ring i [A].

Acceleration

rx[i]_csum_unnecessary

Packets received with a CHECKSUM_UNNECESSARY on ring i [A].

Acceleration

rx[i]_csum_none

Packets received with CHECKSUM_NONE on ring i [A].

Acceleration

rx[i]_csum_complete

Packets received with a CHECKSUM_COMPLETE on ring i [A].

Acceleration

rx[i]_csum_unnecessary_inner

Packets received with inner encapsulation with a CHECK_SUM UNNECESSARY on ring i [A].

Acceleration

tx[i]_csum_partial

Packets transmitted with a CHECKSUM_PARTIAL on ring i [A].

Acceleration

tx[i]_csum_partial_inner

Packets transmitted with inner encapsulation with a CHECKSUM_PARTIAL on ring i [A].

Acceleration

tx[i]_csum_none

Packets transmitted with no hardware checksum acceleration on ring i.

Informative

tx[i]_stopped

tx_queue_stopped 1

Events where SQ was full on ring i. If this counter is increased, check the amount of buffers allocated for transmission.

Error

tx[i]_wake

tx_queue_wake 1

Events where SQ was full and has become not full on ring i.

Error

tx[i]_dropped

tx_queue_dropped 1

Packets transmitted that were dropped due to DMA mapping failure on ring i. If this counter is increased, check the amount of buffers allocated for transmission.

Error

rx[i]_wqe_err

The number of wrong opcodes received on ring i.

Error

tx[i]_nop

The number of no WQEs (empty WQEs) inserted to the SQ (related to ring i) due to the reach of the end of the cyclic buffer. When reaching near to the end of cyclic buffer the driver may add those empty WQEs to avoid handling a state the a WQE start in the end of the queue and ends in the beginning of the queue. This is a normal condition.

Informative

rx[i]_mpwqe_frag

The number of WQEs that failed to allocate compound page and hence fragmented MPWQE's (multipacket WQEs) were used on ring i. If this counter raise, it may suggest that there is no enough memory for large pages, the driver allocated fragmented pages. This is not abnormal condition.

Informative

rx[i]_mpwqe_filler_cqes

The number of filler CQEs events that where issued on ring i.

Informative

rx[i]_cqe_compress_blks

The number of receive blocks with CQE compression on ring i [A].

Acceleration

rx[i]_cqe_compress_pkts

The number of receive packets with CQE compression on ring i [A].

Acceleration

rx[i]_cache_reuse

The number of events of successful reuse of a page from a driver's internal page cache

Acceleration

rx[i]_cache_full

The number of events of full internal page cache where driver can't put a page back to the cache for recycling (page will be freed)

Acceleration

rx[i]_cache_empty

The number of events where cache was empty - no page to give. driver shall allocate new page

Acceleration

rx[i]_cache_busy

The number of events where cache head was busy and cannot be recycled. driver allocated new page

Acceleration

rx[i]_xmit_more

The number of packets sent with xmit_more indication set on the skbuff (no doorbell)

Acceleration

tx[i]_cqes

The number of completions received on the CQ of TX ring.

Informative

ch[i]_poll

The number of invocations of NAPI poll of channel.

Informative

ch[i]_arm

The number of times the NAPI poll function completed and armed the completion queues on channel

Informative

ch[i]_aff_change

The number of times the NAPI poll function explicitly stopped execution on a CPU due to a change in affinity, on channel.

Informative

rx[i]_congst_umr

The number of times an outstanding UMR request is delayed due to congestion, on ring

Error

ch[i]_events

The number of hard interrupt events on the completion queues of channel.

Informative

rx[i]_mpwqe_filler_strides

The number of strides consumed by filler CQEs on ring.

Informative

rx[i]_xdp_tx_xmit

The number of packets forwarded back to the port due to XDP program XDP_TX action (bouncing). these packets are not counted by other software counters. These packets are counted by physical port and vPort counters.

Informative

rx[i]_xdp_tx_full

The number of packets that should have been forwarded back to the port due to XDP_TX action but were dropped due to full tx queue. these packets are not counted by other software counters. These packets are counted by physical port and vPort counters

You may open more rx queues and spread traffic rx over all queues and/or increase rx ring size.

Error

rx[i]_xdp_tx_err

The number of times an XDP_TX error such as frame too long and frame too short occurred on XDP_TX ring of RX ring.

Error

rx[i]_xdp_tx_cqes

rx_xdp_tx_cqe 1

The number of completions received on the CQ of the XDP-TX ring.

Informative

rx[i]_xdp_drop

The number of packets dropped due to XDP program XDP_DROP action. these packets are not counted by other software counters. These packets are counted by physical port and vPort counters.

Informative

rx[i]_xdp_redirect

The number of times an XDP redirect action was triggered on ring.

Acceleration

tx[i]_xdp_xmit

The number of packets redirected to the interface(due to XDP redirect). These packets are not counted by other software counters. These packets are counted by physical port and vPort counters.

Informative

tx[i]_xdp_full

The number of packets redirected to the interface(due to XDP redirect), but were dropped due to full tx queue. these packets are not counted by other software counters. you may enlarge tx queues.

Informative

tx[i]_xdp_err

The number of packets redirected to the interface(due to XDP redirect) but were dropped due to error such as frame too long and frame too short.

Error

tx[i]_xdp_cqes

The number of completions received for packets redirected to the interface(due to XDP redirect) on the CQ .

Informative

rx[i]_cache_waive

The number of cache evacuation. This can occur due to page move to another NUMA node or page was pfmemalloc-ed and should be freed as soon as possible.

Acceleration

  1. The corresponding ring and global counters do not share the same name (i.e., do not follow the common naming scheme).

vPort Counters

Counters on the eswitch port that is connected to the vNIC.

Counter

Description

Type

rx_vport_unicast_packets

Unicast packets received, steered to a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

rx_vport_unicast_bytes

Unicast bytes received, steered to a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

tx_vport_unicast_packets

Unicast packets transmitted, steered from a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

tx_vport_unicast_bytes

Unicast bytes transmitted, steered from a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

rx_vport_multicast_packets

Multicast packets received, steered to a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

rx_vport_multicast_bytes

Multicast bytes received, steered to a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

tx_vport_multicast_packets

Multicast packets transmitted, steered from a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

tx_vport_multicast_bytes

Multicast bytes transmitted, steered from a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

rx_vport_broadcast_packets

Broadcast packets received, steered to a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

rx_vport_broadcast_bytes

Broadcast bytes received, steered to a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

tx_vport_broadcast_packets

Broadcast packets transmitted, steered from a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

tx_vport_broadcast_bytes

Broadcast packets transmitted, steered from a port including raw Ethernet QP/DPDK traffic, excluding RDMA traffic

Informative

rx_vport_rdma_unicast_packets

RDMA unicast packets received, steered to a port (counters counts RoCE/UD/RC traffic) [A]

Acceleration

rx_vport_rdma_unicast_bytes

RDMA unicast bytes received, steered to a port (counters counts RoCE/UD/RC traffic) [A]

Acceleration

tx_vport_rdma_unicast_packets

RDMA unicast packets transmitted, steered from a port (counters counts RoCE/UD/RC traffic) [A]

Acceleration

tx_vport_rdma_unicast_bytes

RDMA unicast bytes transmitted, steered from a port (counters counts RoCE/UD/RC traffic) [A]

Acceleration

rx_vport_ rdma _multicast_packets

RDMA multicast packets received, steered to a port (counters counts RoCE/UD/RC traffic) [A]

Acceleration

rx_vport_ rdma _multicast_bytes

RDMA multicast bytes received, steered to a port (counters counts RoCE/UD/RC traffic) [A]

Acceleration

tx_vport_ rdma _multicast_packets

RDMA multicast packets transmitted, steered from a port (counters counts RoCE/UD/RC traffic) [A]

Acceleration

tx_vport_ rdma _multicast_bytes

RDMA multicast bytes transmitted, steered from a port (counters counts RoCE/UD/RC traffic) [A]

Acceleration

rx_steer_missed_packets

Number of packets that was received by the NIC, however was discarded because it did not match any flow in the NIC flow table

Error

rx_packets

Representor only: packets received, that were handled by the hypervisor

Informative

rx_bytes

Representor only: bytes received, that were handled by the hypervisor

Informative

tx_packets

Representor only: packets transmitted, that were handled by the hypervisor

Informative

tx_bytes

Representor only: bytes transmitted, that were handled by the hypervisor

Informative


Physical Port Counters

The physical port counters are the counters on the external port connecting adapter to the network. This measuring point holds information on standardized counters like IEEE 802.3, RFC2863, RFC 2819, RFC 3635 and additional counters like flow control, FEC and more.

Counter

Description

Type

rx_packets_phy

The number of packets received on the physical port. This counter doesn’t include packets that were discarded due to FCS, frame size and similar errors.

Informative

tx_packets_phy

The number of packets transmitted on the physical port.

Informative

rx_bytes_phy

The number of bytes received on the physical port, including Ethernet header and FCS.

Informative

tx_bytes_phy

The number of bytes transmitted on the physical port.

Informative

rx_multicast_phy

The number of multicast packets received on the physical port.

Informative

tx_multicast_phy

The number of multicast packets transmitted on the physical port.

Informative

rx_broadcast_phy

The number of broadcast packets received on the physical port.

Informative

tx_broadcast_phy

The number of broadcast packets transmitted on the physical port.

Informative

rx_crc_errors_phy

The number of dropped received packets due to frame check sequence (FCS) error on the physical port. If this counter is increased in high rate, check the link quality using rx_symbol_error_phy and rx_corrected_bits_phy counters below.

Error

rx_in_range_len_errors_phy

The number of received packets dropped due to length/type errors on a physical port.

Error

rx_out_of_range_len_phy

The number of received packets dropped due to length greater than allowed on a physical port.

If this counter is increasing, it implies that the peer connected to the adapter has a larger MTU configured. Using same MTU configuration shall resolve this issue.

Error

rx_oversize_pkts_phy

The number of dropped received packets due to length which exceed MTU size on a physical port. If this counter is increasing, it implies that the peer connected to the adapter has a larger MTU configured. Using same MTU configuration shall resolve this issue.

Error

rx_symbol_err_phy

The number of received packets dropped due to physical coding errors (symbol errors) on a physical port.

Error

rx_mac_control_phy

The number of MAC control packets received on the physical port.

Informative

tx_mac_control_phy

The number of MAC control packets transmitted on the physical port.

Informative

rx_pause_ctrl_phy

The number of link layer pause packets received on a physical port. If this counter is increasing, it implies that the network is congested and cannot absorb the traffic coming from to the adapter.

Informative

tx_pause_ctrl_phy

The number of link layer pause packets transmitted on a physical port. If this counter is increasing, it implies that the NIC is congested and cannot absorb the traffic coming from the network.

Informative

rx_unsupported_op_phy

The number of MAC control packets received with unsupported opcode on a physical port.

Error

rx_discards_phy

The number of received packets dropped due to lack of buffers on a physical port. If this counter is increasing, it implies that the adapter is congested and cannot absorb the traffic coming from the network.

Error

tx_discards_phy

The number of packets which were discarded on transmission, even no errors were detected. the drop might occur due to link in down state, head of line drop, pause from the network, etc.

Error

tx_errors_phy

The number of transmitted packets dropped due to a length which exceed MTU size on a physical port.

Error

rx_undersize_pkts_phy

The number of received packets dropped due to length which is shorter than 64 bytes on a physical port. If this counter is increasing, it implies that the peer connected to the adapter has a non-standard MTU configured or malformed packet had arrived.

Error

rx_fragments_phy

The number of received packets dropped due to a length which is shorter than 64 bytes and has FCS error on a physical port. If this counter is increasing, it implies that the peer connected to the adapter has a non-standard MTU configured.

Error

rx_jabbers_phy

The number of received packets d due to a length which is longer than 64 bytes and had FCS error on a physical port.

Error

rx_64_bytes_phy

The number of packets received on the physical port with size of 64 bytes.

Informative

rx_65_to_127_bytes_phy

The number of packets received on the physical port with size of 65 to 127 bytes.

Informative

rx_128_to_255_bytes_phy

The number of packets received on the physical port with size of 128 to 255 bytes.

Informative

rx_256_to_511_bytes_phy

The number of packets received on the physical port with size of 256 to 512 bytes.

Informative

rx_512_to_1023_bytes_phy

The number of packets received on the physical port with size of 512 to 1023 bytes.

Informative

rx_1024_to_1518_bytes_phy

The number of packets received on the physical port with size of 1024 to 1518 bytes.

Informative

rx_1519_to_2047_bytes_phy

The number of packets received on the physical port with size of 1519 to 2047 bytes.

Informative

rx_2048_to_4095_bytes_phy

The number of packets received on the physical port with size of 2048 to 4095 bytes.

Informative

rx_4096_to_8191_bytes_phy

The number of packets received on the physical port with size of 4096 to 8191 bytes.

Informative

rx_8192_to_10239_bytes_phy

The number of packets received on the physical port with size of 8192 to 10239 bytes.

Informative

link_down_events_phy

The number of times where the link operative state changed to down. In case this counter is increasing it may imply on port flapping. You may need to replace the cable/transceiver.

Error

rx_out_of_buffer

Number of times receive queue had no software buffers allocated for the adapter's incoming traffic.

Error

module_bus_stuck

The number of times that module's I2C bus (data or clock) short-wire was detected. You may need to replace the cable/transceiver

Error

module_high_temp

The number of times that the module temperature was too high. If this issue persist, you may need to check the ambient temperature or replace the cable/transceiver module

Error

module_bad_shorted

The number of times that the module cables were shorted. You may need to replace the cable/transceiver module

Error

module_unplug

The number of times that module was ejected

Informative

rx_buffer_passed_thres_phy

The number of events where the port receive buffer was over 85% full

Informative

tx_pause_storm_warning_events

The number of times the device was sending pauses for a long period of time

Informative

tx_pause_storm_error_events

The number of times the device was sending pauses for a long period of time, reaching time out and disabling transmission of pause frames. On the period where pause frames were disabled, drop could have been occurred.

Error

rx[i]_buff_alloc_err / rx_buff_alloc_err

Failed to allocate a buffer to received packet (or SKB) on port (or per ring)

Error

rx_bits_phy

This counter provides information on the total amount of traffic that could have been received and can be used as a guideline to measure the ratio of errored traffic in rx_pcs_symbol_err_phy and rx_corrected_bits_phy.

Informative

rx_pcs_symbol_err_phy

This counter counts the number of symbol errors that wasn’t corrected by FEC correction algorithm or that FEC algorithm was not active on this interface. If this counter is increasing, it implies that the link between the NIC and the network is suffering from high BER, and that traffic is lost. You may need to replace the cable/transceiver. The error rate is the number of rx_pcs_symbol_err_phy divided by the number of rx_phy_bits on a specific time frame.

Error

rx_corrected_bits_phy

The number of corrected bits on this port according to active FEC (RS/FC). If this counter is increasing, it implies that the link between the NIC and the network is suffering from high BER. The corrected bit rate is the number of rx_corrected_bits_phy divided by the number of rx_phy_bits on a specific time frame

Error

phy_raw_errors_lane[l]

This counter counts the number of physical raw errors per lane [l] index. The counter counts errors before FEC corrections. If this counter is increasing, it implies that the link between the NIC and the network is suffering from high BER, and that traffic might be lost. You may need to replace the cable/transceiver. Please check in accordance with rx_corrected_bits_phy .

Error


Priority Port Counters

The following counters are physical port counters that being counted per L2 priority (0-7).

Info

p in the counter name represents the priority.

Counter

Description

Type

rx_prio[p]_bytes

The number of bytes received with priority p on the physical port.

Informative

rx_prio[p]_packets

The number of packets received with priority p on the physical port.

Informative

tx_prio[p]_bytes

The number of bytes transmitted on priority p on the physical port.

Informative

tx_prio[p]_packets

The number of packets transmitted on priority p on the physical port.

Informative

rx_prio[p]_pause

The number of pause packets received with priority p on a physical port. If this counter is increasing, it implies that the network is congested and cannot absorb the traffic coming from the adapter.

Note: This counter is available only if PFC was enabled on priority p. Refer to HowTo Configure PFC on ConnectX-4.

Informative

rx_prio[p]_pause_duration

The duration of pause received (in microSec) on priority p on the physical port. The counter represents the time the port did not send any traffic on this priority. If this counter is increasing, it implies that the network is congested and cannot absorb the traffic coming from the adapter.

Note: This counter is available only if PFC was enabled on priority p. Refer to HowTo Configure PFC on ConnectX-4.

Informative

rx_prio[p]_pause_transition

The number of times a transition from Xoff to Xon on priority p on the physical port has occurred.

Note: This counter is available only if PFC was enabled on priority p. Refer to HowTo Configure PFC on ConnectX-4.

Informative

tx_prio[p]_pause

The number of pause packets transmitted on priority p on a physical port. If this counter is increasing, it implies that the adapter is congested and cannot absorb the traffic coming from the network.

Note: This counter is available only if PFC was enabled on priority p. Refer to HowTo Configure PFC on ConnectX-4.

Informative

tx_prio[p]_pause_duration

The duration of pause transmitter (in microSec) on priority p on the physical port.

Note: This counter is available only if PFC was enabled on priority p. Refer to HowTo Configure PFC on ConnectX-4.

Informative

rx_prio[p]_buf_discard

The number of packets discarded by device due to lack of per host receive buffers

Informative

rx_prio[p]_cong_discard

The number of packets discarded by device due to per host congestion

Informative

rx_prio[p]_marked

The number of packets ecn marked by device due to per host congestion

Informative

rx_prio[p]_discard

The number of packets discarded by device due to lack of receive buffers

Infornative


Device Counters

Counter

Description

Type

rx_pci_signal_integrity

Counts physical layer PCIe signal integrity errors, the number of transitions to recovery due to Framing errors and CRC (dlp and tlp).

If this counter is raising, try moving the adapter card to a different slot to rule out a bad PCIe slot. Validate that you are running with the latest firmware available and latest server BIOS version.

Error

tx_pci_signal_integrity

Counts physical layer PCIe signal integrity errors, the number of transition to recovery initiated by the other side (moving to recovery due to getting TS/EIEOS).

If this counter is raising, try moving the adapter card to a different slot to rule out a bad PCI slot. Validate that you are running with the latest firmware available and latest server BIOS version.

Error

outbound_pci_buffer_overflow

The number of packets dropped due to pci buffer overflow. If this counter is raising in high rate, it might indicate that the receive traffic rate for a host is larger than the PCIe bus and therefore a congestion occurs

Informative

outbound_pci_stalled_rd

The percentage (in the range 0...100) of time within the last second that the NIC had outbound non-posted reads requests but could not perform the operation due to insufficient posted credits

Informative

outbound_pci_stalled_wr

The percentage (in the range 0...100) of time within the last second that the NIC had outbound posted writes requests but could not perform the operation due to insufficient posted credits

Informative

outbound_pci_stalled_rd_events

The number of seconds where outbound_pci_stalled_rd was above 30%

Informative

outbound_pci_stalled_wr_events

The number of seconds where outbound_pci_stalled_wr was above 30%

Informative

dev_out_of_buffer

The number of times the device owned queue had not enough buffers allocated.

Error


Full List of Counters

Copy
Copied!


# ethtool -S eth5   NIC statistics: rx_packets: 10 rx_bytes: 3420 tx_packets: 18 tx_bytes: 1296 tx_tso_packets: 0 tx_tso_bytes: 0 tx_tso_inner_packets: 0 tx_tso_inner_bytes: 0 tx_added_vlan_packets: 0 tx_nop: 0 rx_lro_packets: 0 rx_lro_bytes: 0 rx_ecn_mark: 0 rx_removed_vlan_packets: 0 rx_csum_unnecessary: 0 rx_csum_none: 0 rx_csum_complete: 10 rx_csum_unnecessary_inner: 0 rx_xdp_drop: 0 rx_xdp_redirect: 0 rx_xdp_tx_xmit: 0 rx_xdp_tx_full: 0 rx_xdp_tx_err: 0 rx_xdp_tx_cqe: 0 tx_csum_none: 18 tx_csum_partial: 0 tx_csum_partial_inner: 0 tx_queue_stopped: 0 tx_queue_dropped: 0 tx_xmit_more: 0 tx_recover: 0 tx_cqes: 18 tx_queue_wake: 0 tx_udp_seg_rem: 0 tx_cqe_err: 0 tx_xdp_xmit: 0 tx_xdp_full: 0 tx_xdp_err: 0 tx_xdp_cqes: 0 rx_wqe_err: 0 rx_mpwqe_filler_cqes: 0 rx_mpwqe_filler_strides: 0 rx_buff_alloc_err: 0 rx_cqe_compress_blks: 0 rx_cqe_compress_pkts: 0 rx_page_reuse: 0 rx_cache_reuse: 0 rx_cache_full: 0 rx_cache_empty: 2688 rx_cache_busy: 0 rx_cache_waive: 0 rx_congst_umr: 0 rx_arfs_err: 0 ch_events: 75 ch_poll: 75 ch_arm: 75 ch_aff_change: 0 ch_eq_rearm: 0 rx_out_of_buffer: 0 rx_if_down_packets: 15 rx_steer_missed_packets: 0 rx_vport_unicast_packets: 0 rx_vport_unicast_bytes: 0 tx_vport_unicast_packets: 0 tx_vport_unicast_bytes: 0 rx_vport_multicast_packets: 2 rx_vport_multicast_bytes: 172 tx_vport_multicast_packets: 12 tx_vport_multicast_bytes: 936 rx_vport_broadcast_packets: 37 rx_vport_broadcast_bytes: 9270 tx_vport_broadcast_packets: 6 tx_vport_broadcast_bytes: 360 rx_vport_rdma_unicast_packets: 0 rx_vport_rdma_unicast_bytes: 0 tx_vport_rdma_unicast_packets: 0 tx_vport_rdma_unicast_bytes: 0 rx_vport_rdma_multicast_packets: 0 rx_vport_rdma_multicast_bytes: 0 tx_vport_rdma_multicast_packets: 0 tx_vport_rdma_multicast_bytes: 0 tx_packets_phy: 0 rx_packets_phy: 0 rx_crc_errors_phy: 0 tx_bytes_phy: 0 rx_bytes_phy: 0 tx_multicast_phy: 0 tx_broadcast_phy: 0 rx_multicast_phy: 0 rx_broadcast_phy: 0 rx_in_range_len_errors_phy: 0 rx_out_of_range_len_phy: 0 rx_oversize_pkts_phy: 0 rx_symbol_err_phy: 0 tx_mac_control_phy: 0 rx_mac_control_phy: 0 rx_unsupported_op_phy: 0 rx_pause_ctrl_phy: 0 tx_pause_ctrl_phy: 0 rx_discards_phy: 0 tx_discards_phy: 0 tx_errors_phy: 0 rx_undersize_pkts_phy: 0 rx_fragments_phy: 0 rx_jabbers_phy: 0 rx_64_bytes_phy: 0 rx_65_to_127_bytes_phy: 0 rx_128_to_255_bytes_phy: 0 rx_256_to_511_bytes_phy: 0 rx_512_to_1023_bytes_phy: 0 rx_1024_to_1518_bytes_phy: 0 rx_1519_to_2047_bytes_phy: 0 rx_2048_to_4095_bytes_phy: 0 rx_4096_to_8191_bytes_phy: 0 rx_8192_to_10239_bytes_phy: 0 link_down_events_phy: 0 rx_prio0_bytes: 0 rx_prio0_packets: 0 tx_prio0_bytes: 0 tx_prio0_packets: 0 rx_prio1_bytes: 0 rx_prio1_packets: 0 tx_prio1_bytes: 0 tx_prio1_packets: 0 rx_prio2_bytes: 0 rx_prio2_packets: 0 tx_prio2_bytes: 0 tx_prio2_packets: 0 rx_prio3_bytes: 0 rx_prio3_packets: 0 tx_prio3_bytes: 0 tx_prio3_packets: 0 rx_prio4_bytes: 0 rx_prio4_packets: 0 tx_prio4_bytes: 0 tx_prio4_packets: 0 rx_prio5_bytes: 0 rx_prio5_packets: 0 tx_prio5_bytes: 0 tx_prio5_packets: 0 rx_prio6_bytes: 0 rx_prio6_packets: 0 tx_prio6_bytes: 0 tx_prio6_packets: 0 rx_prio7_bytes: 0 rx_prio7_packets: 0 tx_prio7_bytes: 0 tx_prio7_packets: 0 module_unplug: 0 module_bus_stuck: 0 module_high_temp: 0 module_bad_shorted: 0 ch0_events: 9 ch0_poll: 9 ch0_arm: 9 ch0_aff_change: 0 ch0_eq_rearm: 0 ch1_events: 23 ch1_poll: 23 ch1_arm: 23 ch1_aff_change: 0 ch1_eq_rearm: 0 ch2_events: 8 ch2_poll: 8 ch2_arm: 8 ch2_aff_change: 0 ch2_eq_rearm: 0 ch3_events: 19 ch3_poll: 19 ch3_arm: 19 ch3_aff_change: 0 ch3_eq_rearm: 0 ch4_events: 8 ch4_poll: 8 ch4_arm: 8 ch4_aff_change: 0 ch4_eq_rearm: 0 ch5_events: 8 ch5_poll: 8 ch5_arm: 8 ch5_aff_change: 0 ch5_eq_rearm: 0 rx0_packets: 0 rx0_bytes: 0 rx0_csum_complete: 0 rx0_csum_unnecessary: 0 rx0_csum_unnecessary_inner: 0 rx0_csum_none: 0 rx0_xdp_drop: 0 rx0_xdp_redirect: 0 rx0_lro_packets: 0 rx0_lro_bytes: 0 rx0_ecn_mark: 0 rx0_removed_vlan_packets: 0 rx0_wqe_err: 0 rx0_mpwqe_filler_cqes: 0 rx0_mpwqe_filler_strides: 0 rx0_buff_alloc_err: 0 rx0_cqe_compress_blks: 0 rx0_cqe_compress_pkts: 0 rx0_page_reuse: 0 rx0_cache_reuse: 0 rx0_cache_full: 0 rx0_cache_empty: 448 rx0_cache_busy: 0 rx0_cache_waive: 0 rx0_congst_umr: 0 rx0_arfs_err: 0 rx0_xdp_tx_xmit: 0 rx0_xdp_tx_full: 0 rx0_xdp_tx_err: 0 rx0_xdp_tx_cqes: 0 rx1_packets: 10 rx1_bytes: 3420 rx1_csum_complete: 10 rx1_csum_unnecessary: 0 rx1_csum_unnecessary_inner: 0 rx1_csum_none: 0 rx1_xdp_drop: 0 rx1_xdp_redirect: 0 rx1_lro_packets: 0 rx1_lro_bytes: 0 rx1_ecn_mark: 0 rx1_removed_vlan_packets: 0 rx1_wqe_err: 0 rx1_mpwqe_filler_cqes: 0 rx1_mpwqe_filler_strides: 0 rx1_buff_alloc_err: 0 rx1_cqe_compress_blks: 0 rx1_cqe_compress_pkts: 0 rx1_page_reuse: 0 rx1_cache_reuse: 0 rx1_cache_full: 0 rx1_cache_empty: 448 rx1_cache_busy: 0 rx1_cache_waive: 0 rx1_congst_umr: 0 rx1_arfs_err: 0 rx1_xdp_tx_xmit: 0 rx1_xdp_tx_full: 0 rx1_xdp_tx_err: 0 rx1_xdp_tx_cqes: 0 rx2_packets: 0 rx2_bytes: 0 rx2_csum_complete: 0 rx2_csum_unnecessary: 0 rx2_csum_unnecessary_inner: 0 rx2_csum_none: 0 rx2_xdp_drop: 0 rx2_xdp_redirect: 0 rx2_lro_packets: 0 rx2_lro_bytes: 0 rx2_ecn_mark: 0 rx2_removed_vlan_packets: 0 rx2_wqe_err: 0 rx2_mpwqe_filler_cqes: 0 rx2_mpwqe_filler_strides: 0 rx2_buff_alloc_err: 0 rx2_cqe_compress_blks: 0 rx2_cqe_compress_pkts: 0 rx2_page_reuse: 0 rx2_cache_reuse: 0 rx2_cache_full: 0 rx2_cache_empty: 448 rx2_cache_busy: 0 rx2_cache_waive: 0 rx2_congst_umr: 0 rx2_arfs_err: 0 rx2_xdp_tx_xmit: 0 rx2_xdp_tx_full: 0 rx2_xdp_tx_err: 0 rx2_xdp_tx_cqes: 0 ... tx0_packets: 1 tx0_bytes: 60 tx0_tso_packets: 0 tx0_tso_bytes: 0 tx0_tso_inner_packets: 0 tx0_tso_inner_bytes: 0 tx0_csum_partial: 0 tx0_csum_partial_inner: 0 tx0_added_vlan_packets: 0 tx0_nop: 0 tx0_csum_none: 1 tx0_stopped: 0 tx0_dropped: 0 tx0_xmit_more: 0 tx0_recover: 0 tx0_cqes: 1 tx0_wake: 0 tx0_cqe_err: 0 tx1_packets: 5 tx1_bytes: 300 tx1_tso_packets: 0 tx1_tso_bytes: 0 tx1_tso_inner_packets: 0 tx1_tso_inner_bytes: 0 tx1_csum_partial: 0 tx1_csum_partial_inner: 0 tx1_added_vlan_packets: 0 tx1_nop: 0 tx1_csum_none: 5 tx1_stopped: 0 tx1_dropped: 0 tx1_xmit_more: 0 tx1_recover: 0 tx1_cqes: 5 tx1_wake: 0 tx1_cqe_err: 0 tx2_packets: 0 tx2_bytes: 0 tx2_tso_packets: 0 tx2_tso_bytes: 0 tx2_tso_inner_packets: 0 tx2_tso_inner_bytes: 0 tx2_csum_partial: 0 tx2_csum_partial_inner: 0 tx2_added_vlan_packets: 0 tx2_nop: 0 tx2_csum_none: 0 tx2_stopped: 0 tx2_dropped: 0 tx2_xmit_more: 0 tx2_recover: 0 tx2_cqes: 0 tx2_wake: 0 tx2_cqe_err: 0 ...

Traffic Control Info

The following TC objects are supported and reported regarding the ingress filters:

The info is provided as one of the following events:

  • Basic filter event

  • Flower/IPv4 filter event

  • Flower/IPv6 filter event

  • Basic action event

  • Mirred action event

  • Tunnel_key/IPv4 action event

  • Tunnel_key/IPv6 action event

General notes:

  • Actions always belong to a filter, so action events share the filter event's ID via the event_id data member

  • Basic filter event only contains textual kind (so users can see which real life objects' support they are lacking)

  • Basic action event only contains textual kind and some basic common statistics if available

Fluent Aggregator

fluent_aggr listens on a port for Fluent Bit Forward protocol input connections. Received data can be streamed via a Fluent Bit exporter.

The default port is 42442. This can be changed by updating the following option:

Copy
Copied!


fluent-aggr-port=42442


Prometheus Aggregator

prometheus_aggr polls data from a list of Prometheus endpoints.

Each endpoint is listed in the following format:

Copy
Copied!


prometheus_aggr_endpoint.{N}={host_name},{host_port_url},{poll_inteval_msec}

Where N starts from 0.

Aggregated data can be exported via a Prometheus Aggr Exporter endpoint.

Network Interfaces

ifconfig collects network interface data. To enable, set:

Copy
Copied!


enable-provider=ifconfig

If the Prometheus endpoint is enabled, add the following configuration to cache every collected network interface and arrange the index according to their names:

Copy
Copied!


prometheus-fset-indexes=name

Metrices are collected for each network interface as follows:

Copy
Copied!


name rx_packets tx_packets rx_bytes tx_bytes rx_errors tx_errors rx_dropped tx_dropped multicast collisions rx_length_errors rx_over_errors rx_crc_errors rx_frame_errors rx_fifo_errors rx_missed_errors tx_aborted_errors tx_carrier_errors tx_fifo_errors tx_heartbeat_errors tx_window_errors rx_compressed tx_compressed rx_nohandler


HCA Performance

hcaperf collects HCA performance data. Since it requires access to an RDMA device, it must use remote collection on the DPU. On the host, the user runs the container in privileged mode and RDMA device mount.

The counter list is device dependent.

hcaperf DPU Configuration

To enable hcaperf in remote collection mode, set:

Copy
Copied!


enable-provider=grpc.hcaperf   # specify HCAs to sample grpc.hcaperf.mlx5_0=sample grpc.hcaperf.mlx5_1=sample

Note

DPE server should be active before changing the dts_config.ini file. See section "Remote Collection" for details.


hcaperf Host Configuration

To enable hcaperf in regular mode, set:

Copy
Copied!


enable-provider=hcaperf   # specify HCAs to sample hcaperf.mlx5_0=sample hcaperf.mlx5_1=sample

NVIDIA System Management Interface

The nvidia-smi provider collects GPU and GPU process information provided by the NVIDIA system management interface.

This provider is supported only on x86_64 hosts with installed GPUs. All GPU cards supported by nvidia-smi are supported by this provider.

The counter list is GPU dependent. Additionally, per-process information is collected for the first 20 (by default) nvidia_smi_max_processes processes.

Counters can be either collected as string data "as is" in nvidia-smi or converted to numbers when nvsmi_with_numeric_fields is set.

To enable nvidia-smi provider and change parameters, set:

Copy
Copied!


enable-provider=nvidia-smi   # Optional parameters: #nvidia_smi_max_processes=20 #nvsmi_with_numeric_fields=1


NVIDIA Data Center GPU Manager

The dcgm provider collects GPU information provided by the NVIDIA data center GPU manager (DCGM) API.

This provider is supported only on x86_64 hosts with installed GPUs, and requires running the nv-hostengine service (refer to DCGM documentation for details).

DCGM counters are split into several groups by context:

  • GPU – basic GPU information (always)

  • COMMON – common fields that can be collected from all devices

  • PROF – profiling fields

  • ECC – ECC errors

  • NVLINK / NVSWITCH / VGPU – fields depending on the device type

To enable DCGM provider and counter groups, set:

Copy
Copied!


enable-provider=dcgm   dcgm_events_enable_common_fields=1 #dcgm_events_enable_prof_fields=0 #dcgm_events_enable_ecc_fields=0 #dcgm_events_enable_nvlink_fields=0 #dcgm_events_enable_nvswitch_fields=0 #dcgm_events_enable_vgpu_fields=0


BlueField Performance

The bfperf provider collects calculated performance counters of BlueField Arm cores. It requires the executable bfperf_pmc, which is integrated in the DOCA BFB bundle of BlueField-3, as well as an active DPE.

To enable BlueField performance provider, set:

Copy
Copied!


enable-provider=bfperf

Note

When running, the bfperf provider is expected to recurrently reset the counters of the sysfs.hwmon component. Consider disabling it if bfperf is enabled.

Data Outputs

DTS can send the collected data to the following outputs:

  • Data writer (saves binary data to disk)

  • Fluent Bit (push-model streaming)

  • Prometheus endpoint (keeps the most recent data to be pulled)

Data Writer

The data writer is disabled by default to save space on BlueField. Steps for activating data write during debug can be found under section Enabling Data Write.

The schema folder contains JSON-formatted metadata files which allow reading the binary files containing the actual data. The binary files are written according to the naming convention shown in the following example (apt install tree):

Copy
Copied!


tree /opt/mellanox/doca/services/telemetry/data/ /opt/mellanox/doca/services/telemetry/data/ ├── {year} │ └── {mmdd} │ └── {hash} │ ├── {source_id} │ │ └── {source_tag}{timestamp}.bin │ └── {another_source_id} │ └── {another_source_tag}{timestamp}.bin └── schema └── schema_{MD5_digest}.json

New binary files appears when the service starts or when binary file age/size restriction is reached. If no schema or no data folders are present, refer to the Troubleshooting section.

Note

source_id is usually set to the machine hostname. source_tag is a line describing the collected counters, and it is often set as the provider's name or name of user-counters.

Reading the binary data can be done from within the DTS container using the following command:

Copy
Copied!


crictl exec -it <Container ID> /opt/mellanox/collectx/bin/clx_read -s /data/schema /data/path/to/datafile.bin

Note

The path to the data file must be an absolute path.

Example output:

Copy
Copied!


{ "timestamp": 1634815738799728, "event_number": 0, "iter_num": 0, "string_number": 0, "example_string": "example_str_1" } { "timestamp": 1634815738799768, "event_number": 1, "iter_num": 0, "string_number": 1, "example_string": "example_str_2" } …


Prometheus

The Prometheus endpoint keeps the most recent data to be pulled by the Prometheus server and is enabled by default.

To check that data is available, run the following command on BlueField:

Copy
Copied!


curl -s http://0.0.0.0:9100/metrics

The command dumps every counter in the following format:

Copy
Copied!


counter_name {list of meta fields} counter_value timestamp

Additionally, endpoint supports JSON and CSV formats:

Copy
Copied!


curl -s http://0.0.0.0:9100/json/metrics curl -s http://0.0.0.0:9100/csv/metrics

Note

The default port for Prometheus can be changed in dts_config.ini.


Configuration Details

Prometheus is configured as a part of dts_config.ini.

By default, the Prometheus HTTP endpoint is set to port 9100. Comment this line out to disable Prometheus export.

Copy
Copied!


prometheus=http://0.0.0.0:9100

Prometheus can use the data field as an index to keep several data records with different index values. Index fields are added to Prometheus labels.

Copy
Copied!


# Comma-separated counter set description for Prometheus indexing: #prometheus-indexes=idx1,idx2   # Comma-separated fieldset description for prometheus indexing #prometheus-fset-indexes=idx1,idx2

The default fset index is device_name. It allows Prometheus to keep ethtool data up for both the p0 and p1 devices.

Copy
Copied!


prometheus-fset-indexes=device_name

If fset index is not set, the data from p1 overwrites p0's data.

For quick name filtering, the Prometheus exporter supports being provided with a comma-separated list of counter names to be ignored:

Copy
Copied!


#prometheus-ignore-names=counter_name1,counter_name_2

For quick filtering of data by tag, the Prometheus exporter supports being provided with a comma-separated list of data source tags to be ignored.

Users should add tags for all streaming data since the Prometheus exporter cannot be used for streaming. By default, FI_metrics are disabled.

Copy
Copied!


prometheus-ignore-tags=FI_metrics


Prometheus Aggregator Exporter

Prometheus aggregator exporter is an endpoint that keeps the latest aggregated data using prometheus_aggr.

This exporter labels data according to its source.

To enable this provider, users must set 2 parameters in dts_config.ini:

Copy
Copied!


prometheus-aggr-exporter-host=0.0.0.0 prometheus-aggr-exporter-port=33333


Fluent Bit

Fluent Bit allows streaming to multiple destinations. Destinations are configured in .exp files that are documented in-place and can be found under:

Copy
Copied!


/opt/mellanox/doca/services/telemetry/config/fluent_bit_configs

Fluent Bit allows exporting data via "Forward" protocol which connects to the Fluent Bit/FluentD instance on customer side.

Export can be enabled manually:

  1. Uncomment the line with fluent_bit_configs=… in dts_config.ini.

  2. Set enable=1 in required .exp files for the desired plugins.

  3. Additional configurations can be set according to instructions in the .exp file if needed.

  4. Restart the DTS.

  5. Set up receiving instance of Fluent Bit/FluentD if needed.

  6. See the data on the receiving side.

Export file destinations are set by configuring .exp files or creating new ones. It is recommended to start by going over documented example files. Documented examples exist for the following supported plugins:

  • forward

  • file

  • stdout

  • kafka

  • es (elastic search)

  • influx

Note

All .exp files are disabled by default if not configured by initContainer entry point through .yaml file.

Note

To forward the data to several destinations, create several forward_{num}.exp files. Each of these files must have their own destination host and port.

Export File Configuration Details

Each export destination has the following fields:

  • name – configuration name

  • plugin_name – Fluent Bit plugin name

  • enable – 1 or 0 values to enable/disable this destination

  • host – the host for Fluent Bit plugin

  • port – port for Fluent Bit plugin

  • msgpack_data_layout – the msgpacked data format. Default is flb_std. The other option is custom. See section Msgpack Data Layout for details.

  • plugin_key=val – key-value pairs of Fluent Bit plugin parameter (optional)

  • counterset/fieldset – file paths (optional). See details in section Cset/Fset Filtering.

  • source_tag=source_tag1,source_tag2 – comma-separated list of data page source tags for filtering. The rest tags are filtered out during export. Event tags are event provider names. All counters can be enabled/disabled only simultaneously with a counters keyword.

Note

Use # to comment a configuration line.


Msgpack Data Layout

Data layout can be configured using .exp files by setting msgpack_data_layout=layout. There are two available layouts: Standard and Custom.

The standard flb_std data layout is an array of 2 fields:

  • timestamp double value

  • a plain dictionary (key-value pairs)

The standard layout is appropriate for all Fluent Bit plugins. For example:

Copy
Copied!


[timestamp_val, {"timestamp"->ts_val, type=>"counters/events", "source"=>"source_val", "key_1"=>val_1, "key_2"=>val_2,...}]

The custom data layout is a dictionary of meta-fields and counter fields. Values are placed into a separate plain dictionary. Custom data format can be dumped with stdout_raw output plugin of Fluent-Bit installed or can be forwarded with forward output plugin.

Counters example:

Copy
Copied!


{"timestamp"=>timestamp_val, "type"=>"counters", "source"=>"source_val", "values"=> {"key_1"=>val_1, "key_2"=>val_2,...}}

Events example:

Copy
Copied!


{"timestamp"=>timestamp_val, "type"=>"events", "type_name"=>"type_name_val", "source"=>" source_val", "values"=>{"key_1"=>val_1, "key_2"=>val_2,...}}


Cset/Fset Filtering

Each export file can optionally use one cset and one fset file to filter UFM telemetry counters and events data.

  • cset contains tokens per line to filter data with "type"="counters".

  • fset contains several blocks started with the header line [event_type_name] and tokens under that header. An Fset file is used to filter data with "type"="events".

    Note

    Event type names could be prefixed to apply the same tokens to all fitting types. For example, to filter all ethtool events, use [ethtool_event_*].

If several tokens must be matched simultaneously, use <tok1>+<tok2>+<tok3>. Exclusive tokens are available as well. For example, the line <tok1>+<tok2>-<tok3>-<tok4> filters names that match both tok1 and tok2 and do not match tok3 or tok4.

The following are the details of writing cset files:

Copy
Copied!


# Put tokens on separate lines # Tokens are the actual name 'fragments' to be matched # port$ # match names ending with token "port" # ^port # match names starting with token "port" # ^port$ # include name that is exact token "port # port+xmit # match names that contain both tokens "port" and "xmit" # port-support # match names that contain the token "port" and do not match the "-" token "support" # # Tip: To disable counter export put a single token line that fits nothing

The following are the details of writing fset files:

Copy
Copied!


# Put your events here # Usage: # # [type_name_1] # tokens # [type_name_2] # tokens # [type_name_3] # tokens # ... # Tokens are the actual name 'fragments' to be matched # port$ # match names ending with token "port" # ^port # match names starting with token "port" # ^port$ # include name that is exact token "port # port+xmit # match names that contain both tokens "port" and "xmit" # port-support # match names that contain the token "port" and do not match the "-" token "support"   # The next example will export all the "tc" events and all events with type prefix "ethtool_" "ethtool" are filtered with token "port": # [tc] # # [ethtool_*] # packet   # To know which event type names are available check export and find field "type_name"=>"ethtool_event_p0" # ... # Corner cases: # 1. Empty fset file will export all events. # 2. Tokens written above/without [event_type] will be ignored. # 3. If cannot open fset file, warning will be printed, all event types will be exported.

NetFlow Exporter

NetFlow exporter must be used when data is collected as NetFlow packets from the telemetry client applications. In this case, DOCA Telemetry NetFlow API sends NetFlow data packages to DTS via IPC. DTS uses NetFlow exporter to send data to the NetFlow collector (3rd party service).

To enable NetFlow exporter, set netflow-collector-ip and netflow-collector-port in dts_config.ini. netflow-collector-ip could be set either to IP or an address.

For additional information, refer to the dts_config.ini file.

DOCA Privileged Executer (DPE) is a daemon that allows specific DOCA services (DTS included) to access BlueField information that is otherwise inaccessible from a container due to technology limitations or permission granularity issues.

When enabled, DPE enriches the information collected by DTS. However, DTS can still be used if DPE is disabled (default).

DPE Usage

DPE is controlled by systemd, and can be used as follows:

  • To check DPE status:

    Copy
    Copied!


    sudo systemctl status dpe

  • To start DPE:

    Copy
    Copied!


    sudo systemctl start dpe

  • To stop DPE:

    Copy
    Copied!


    sudo systemctl stop dpe

DPE logs can be found in /var/log/doca/telemetry/dpe.log.

DPE Configuration File

DPE can be configured by the user. This section covers the syntax and implications of its configuration file.

Note

The DPU telemetry collected by DTS does not require for this configuration file to be used.

The DPE configuration file allows users to define the set of commands that DPE should support. This may be done by passing the -f option in the following line of /etc/systemd/system/dpe.service:

Copy
Copied!


ExecStart=/opt/mellanox/doca/services/telemetry/dpe/bin/dpeserver -vvv

To use the configuration file:

Copy
Copied!


ExecStart=/opt/mellanox/doca/services/telemetry/dpe/bin/dpeserver -vvv -f /path/to/dpe_config.ini

The configuration file supports the following sections:

  • [server] - list of key=value lines for general server configuration. Allowed keys: socket.

  • [commands] - list of bash command lines that are not using custom RegEx

  • [commands_regex] - list of bash command lines that are using custom RegEx

  • [regex_macros] - custom RegEx definitions used in the commands_regex section

Consider the following example configuration file:

Copy
Copied!


[server] socket=/tmp/dpe.sock   [commands] hostname cat /etc/os-release   [commands_regex] crictl inspect $HEXA # resolved as "crictl inspect [a-f0-9]+" lspci $BDF # resolved as "lspci ([0-9a-f]{4}\:|)[0-9a-f]{2}\:[0-9a-f]{2}\.[0-9a-f]"   [regex_macros] HEXA=[a-f0-9]+ BDF=([0-9a-f]{4}\:|)[0-9a-f]{2}\:[0-9a-f]{2}\.[0-9a-f]

Note

DPE is shipped with a preconfigured file that matches the commands used by the standalone DTS version included in the same DOCA installation. The file is located in /opt/mellanox/doca/services/telemetry/dpe/etc/dpe_config.ini.

Note

Using a DPE configuration file allows for a fine-grained control over the interface exposed by it to the rest of the DOCA services. However, even when using the pre-supplied configuration file mentioned above, one should remember that it has been configured to match a fixed DTS version. That is, replacing the standalone DTS version with a new one downloaded from NGC means that the used configuration file might not cover additional features added in the new DTS version.


This chapter provides an overview and deployment configuration of DOCA Telemetry Service with Grafana .

Grafana Deployment Prerequisites

  • BlueField DPU running DOCA Telemetry Service.

  • Optional remote server to host Grafana and Prometheus.

  • Prometheus installed on the host machine. Please refer to the Prometheus website for more information.

  • Grafana installed on the host machine. Please refer to Grafana Labs website for more information.

Grafana Deployment Configuration


DTS Configuration (DPU Side)

DTS will be configured to export the sysfs counter using the Prometheus plugin.

Note

Sysfs is used as an example, other counters are available. Please refer to the .NVIDIA DOCA Telemetry Service Guide v2.7.0 for more information.

  1. Make sure the sysfs counter is enabled.

    Copy
    Copied!


    vim /opt/mellanox/doca/services/telemetry/config/dts_config.ini   enable-provider=sysfs

  2. Enable Prometheus exporter by setting the prometheus address and port.

    Copy
    Copied!


    vim /opt/mellanox/doca/services/telemetry/config/dts_config.ini   prometheus=http://0.0.0.0:9100

    Note

    In this example, the Prometheus plugin exports data on localhost port 9100, this is an arbitrary value and can changed.

Note

DTS must be restarted to apply changes.


Prometheus Configuration (Remote Server)

Please download Prometheus for your platform.

Prometheus is configured via command-line flags and a configuration file, prometheus.yml.

  1. Open the prometheus.yml file and configure the DPU as the endpoint target.

    Copy
    Copied!


    vim prometheus.yml # metrics_path defaults to '/metrics' # scheme defaults to 'http'.   static_configs: - targets: ["<dpu-ip>:<prometheus-port>"]

    Where:

    • <dpu-ip> is the DPU IP address. Prometheus reaches to this IP to pull data.

    • <prometheus-port> the exporter port that set in DTS configuration.

  2. Run Prometheus server:

    Copy
    Copied!


    ./prometheus --config.file="prometheus.yml"

    Tip

    Prometheus services are available as Docker images. Please refer to Using Docker in Prometheus' Installation guide.

Grafana Configuration (Remote Server)

Please download and install Grafana for your platform.

  1. Setup Grafana. Please refer to Install Grafana guide in Grafana documentation.

  2. Log into the Grafana dashboard at http://localhost:3000.

    Note

    Port 3000 is the default port number set by Grafana. This can be changed if needed. The default credentials are admin/admin.

  3. Add Prometheus as data source by navigating to Settings → Data sources → Add data source → Prometheus.


  4. Configure the Prometheus data source. Under the HTTP section, set the Prometheus server address.


    Note

    The Prometheus server's default listen port is 9090. Prometheus and Grafana are both running on the same server, thus the address is localhost.

  5. Save and test.

Exploring Telemetry Data

Go to the Explore page on the left-hand side, and choose a Prometheus provider.

Choose a metric to display and specify a label. The label can be used to filter out data based on the source and HCA devices.


Graph display after selecting a metric and specifying a label to filter by:



On top of the Troubleshooting section in the NVIDIA DOCA Container Deployment Guide, here are additional troubleshooting tips for DTS:

  • For general troubleshooting, refer to the NVIDIA DOCA Troubleshooting Guide.

  • If the pod's state fails to be marked as "Ready", refer to /var/log/syslog.

  • Check if the service is configured to write data to the disk as this may cause the system to run out of disk space.

  • If a PIC bus error occurs, configure the following files inside the container:

    Copy
    Copied!


    crictl exec -it <container-id> /bin/bash # Add to /config/clx.env the following line: " export UCX_TLS=tcp "

© Copyright 2024, NVIDIA. Last updated on Aug 15, 2024.
