Application Recognition

NVIDIA DOCA Application Recognition Guide

This document provides application recognition implementation on top of NVIDIA® BlueField® DPU.

1. Introduction

Important:

No updates were made to the DOCA Application Recognition application in DOCA 2.2. Please refer to DOCA 2.5 for a note regarding future updates.

Application Recognition (AR) allows identifying applications that are in use on a monitored networking node.

AR enables the security administrator to generate consolidated reports that show usage patterns from the application perspective. AR is also used as a corner stone of many security applications such as L7-based firewalls.

Due to the massive growth in the number of applications that communicate over Layer 7 (HTTP), effective monitoring of network activity requires looking deeper into Layer 7 traffic so individual applications can be identified. Different applications may require different levels of security and service.

This document describes how to build AR using the deep packet inspection (DPI) engine, which leverages NVIDIA® BlueField®-2 DPU capabilities such as regular expression (RXP) acceleration engine, hardware-based connection tracking, and more.

2. System Design

The AR application is designed to run as "bump-on-the-wire" on the BlueField-2 instance, it intercepts the traffic coming from the wire, and passes it to the Physical Function (PF) representor connected to the host.

3. Application Architecture

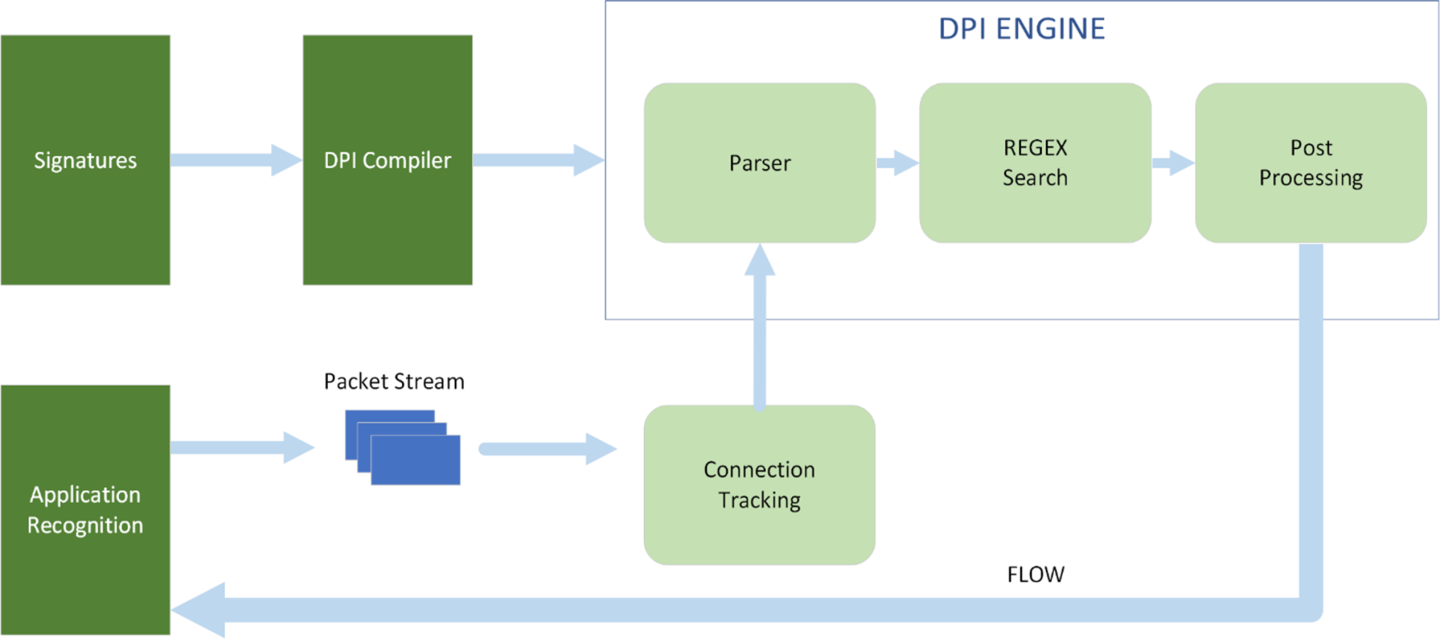

AR runs on top of Data Plan Development Kit (DPDK) based Stateful Flow Tracking (SFT) to identify the flow that each packet belongs to, then uses DPI to process L7 classification.

Signatures are compiled by DPI compiler and then loaded to DPI engine.
Ingress traffic is identified using the stateful table module in the DPDK libs which utilizes the connection tracking hardware offloads. This allows flow classifications to be done in the hardware level and be forwarded to the hairpin queue without being processed by the software, which increases performance dramatically.
Traffic is scanned against DPI engine compiled signature DB.
Post processing is performed for match decision.
Matched flows are identified, and actions can be offloaded to the hardware to increase performance as no further inspection is needed.
Flow termination is done by the aging timer set in the SFT to 60 seconds. When a flow is offloaded it cannot be tracked and destroyed.

4. DOCA Libraries

This application leverages the following DOCA libraries:

5. Configuration Flow

Parse application argument.

Copy
Copied!


            doca_argp_init();

Initialize arg parser resources and register DOCA general parameters.

Copy
Copied!


            doca_argp_init();

Register AR application parameters.

Copy
Copied!


            register_ar_params();

Parse the arguments.
Copy

Copied!
```

            doca_argp_start

```
1. Parse DPDK flags and invoke the handler for calling the rte_eal_init() function.
2. Parse app flags.

DPDK initialization.
Copy

Copied!
```

            dpdk_init();

```
Calls rte_eal_init() to initialize EAL resources with the provided EAL flags.
DPDK port initialization and start.
Copy

Copied!
```

            dpdk_queues_and_ports_init();

```
1. Initialize SFT.
2. Initialize DPDK ports, including mempool allocation.
AR initialization.
Copy

Copied!
```

            ar_init();

```
1. Initialize signature database.
2. Initialize DPI engine.
3. Load signatures to DPI.
Configure DPI packet processing.
Copy

Copied!
```

            dpi_worker_lcores_run();

```
1. Configure DPI enqueue packets.
2. Send jobs to RegEx engine.
3. Configure DPI dequeue packets.
Send statistics and write database.
Copy

Copied!
```

            sig_database_write_to_csv();
send_netflow_record();

```
1. Send statistics to the collector.
2. Write CSV file with signature statistics.

AR destroy.

Copy
Copied!


            ar_destroy();

Clear thread.
Stop DPI worker.
Stop DOCA DPI.

DPDK ports and queues destruction.

Copy
Copied!


            dpdk_queues_and_ports_fini();

DPDK finish.
Copy

Copied!
```

            dpdk_fini();

```
Calls rte_eal_destroy() to destroy initialized EAL resources.

DPI destroy

Copy
Copied!


            doca_dpi_destroy();

Arg parser destroy.

Copy
Copied!


            doca_argp_destroy()

6. Running Application

Refer to the following documents:
- NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software
- NVIDIA DOCA Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA applications
- NVIDIA DOCA Applications Overview for additional compilation instructions and development tips regarding the DOCA applications
The application recognition binary is located under /opt/mellanox/doca/applications/application_recognition/bin/doca_application_recognition. To build all the applications together, run:
Copy

Copied!
```

            cd /opt/mellanox/doca/applications/
meson build
ninja -C build

```

To build only the application recognition application:

Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
- Set enable_all_applications to false
- Set enable_application_recognition to true
Run the commands in step 2.

Note:

doca_application_recognition is created under ./build/application_recognition/src/.

Application usage:

Copy
Copied!


            Usage: doca_application_recognition [DPDK Flags] -- [DOCA Flags] [Program Flags]

DOCA Flags:
  -h, --help                        Print a help synopsis
  -v, --version                     Print program version information
  -l, --log-level                   Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60>

Program Flags:
  -p, --print-match                 Prints FID when matched in DPI engine
  -n, --netflow <source_id>         Collect netflow statistics and set source_id if value is set
  -i, --interactive                 Adds interactive mode for blocking signatures
  -o, --output-csv <path>           Path to the output of the CSV file
  -c, --cdo <path>                  Path to CDO file compiled from a valid PDD
  -f, --fragmented                  Enables processing fragmented packets
  -a, --pci-addr                    DOCA DPI device PCI address

Note:

For additional information on available flags for DPDK, use -h before the -- separator:

Copy
Copied!


            /opt/mellanox/doca/applications/application_recognition/bin/doca_application_recognition -h

Note:

For additional information on the application, use -h after the -- separator:

Copy
Copied!


            /opt/mellanox/doca/applications/application_recognition/bin/doca_application_recognition -- -h

Running the application on BlueField:
- Pre-run setup:
  1. The application recognition example is based on DPDK libraries. Therefore, the user is required to provide DPDK flags, and allocate huge pages.
    Copy

    Copied!

    sudo echo 2048 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages
  2. Make sure the RegEx engine is active:
    Copy

    Copied!

    systemctl status mlx-regex
    If the status is inactive (Active: failed), run:
    Copy

    Copied!

    systemctl start mlx-regex
  3. To use the supplied signature file (suricata_rules_example), which is installed to the bin directory, the DPI compiler must be used, as the RegEx engine accepts only .cdo files. The CDO files are constructed by compiling a signature file written in the Suricata open-source format. Compile the signature file:
    Copy

    Copied!

    doca_dpi_compiler -i /opt/mellanox/doca/applications/application_recognition/bin/ar_suricata_rules_example -o /tmp/ar.cdo -f suricata
    A .cdo is created in the output path flagged as the -o input path of the compiler. That file can be used when executing the application using the -c flag.
- CLI example for running the app:
  Copy

  Copied!
```

            /opt/mellanox/doca/applications/application_recognition/bin/doca_application_recognition -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 -- -c /tmp/ar.cdo -p

```
  Note:
  The SFT supports a maximum of 64 queues. Therefore, the application cannot be run with more than 64 cores. To limit the number of cores, run:
  Copy

  Copied!

  /opt/mellanox/doca/applications/application_recognition/bin/doca_application_recognition -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 -l 0-64 -- -p
  This limits the application to 65 cores (core-0 to core-64) with 1 core for the main thread and 64 cores to serve as workers.
  Note:

  The flags -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 are necessary for proper usage of the application. Modifying them results in unexpected behavior as only 2 ports are supported. The subfunction number is arbitrary and configurable. The RegEx device, however, is not and must be initiated on port 0.

  Note:

  Sub-functions must be enabled according to the Scalable Function Setup Guide.

Running the application on the host, CLI example:

Copy
Copied!


            doca_application_recognition -a 0000:04:00.0,class=regex -a 04:00.3 -a 04:00.4 -v -- -c suricata_rules_example.cdo -o /tmp/check.csv -p

Note:

Refer to section "Running DOCA Application on Host" in NVIDIA DOCA Virtual Functions User Guide.

To run doca_application_recognition using a JSON file:

Copy
Copied!


            doca_application_recognition --json [json_file]

For example:

Copy
Copied!


            cd /opt/mellanox/doca/applications/application_recognition/bin
./doca_application_recognition --json ./ar_params.json

The application periodically dumps a .csv file with the recognition results containing statistics about the recognized apps in the format SIG_ID, APP_NAME, MATCHING_FIDS, and DROP.

As per the example above, a file called ar_stats.csv will be created.

Additional features can be triggered by using the shell interaction. This allows blocking and unblocking specific signature IDs using the following commands:

block <sig_id>
unblock <sig_id>

The TAB key allows autocompletion while the quit command terminates the application.

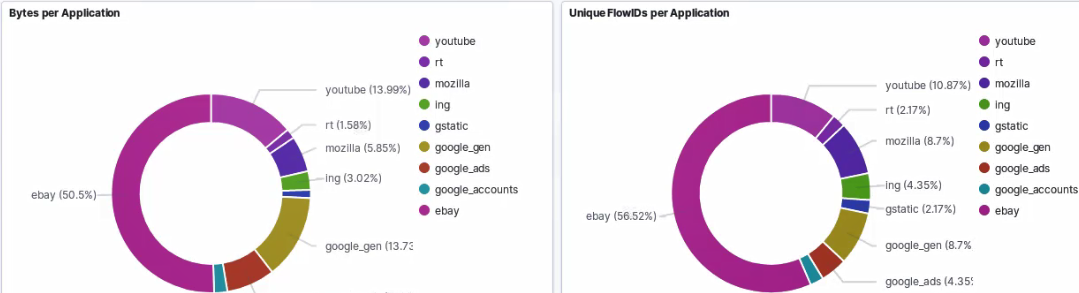

NetFlow collector UI example:

The NetFlow module uses the DOCA Telemetry Netflow library to export NetFlow packets in the NetFlow v9 format. The usage of telemetry is hardcoded to send packets to a collector set on the host connected to the Bluefield device through the rshim interface (specifically 192.168.100.2:2055).

It is recommended to use the DOCA telemetry service (DTS) as an aggregator to export records instead of exporting directly from the client side which requires enabling IPC. Refer to the NVIDIA DOCA Telemetry Service Guide guide for additional information.

7. Arg Parser DOCA Flags

Refer to NVIDIA DOCA Arg Parser Programming Guide for more information.

Flag Type	Short Flag	Long Flag/JSON Key	Description	JSON Content
DPDK flags	a	devices	Adds a PCIe device into the list of devices to probe	Copy Copied! `"devices": [ {"device": "regex", "id": "0000:03:00.0"}, {"device": "sf", "id": "4","sft": true}, {"device": "sf", "id": "5","sft": true}, ]`
DPDK flags	l	core-list	List of cores to run on	Copy Copied! `"core-list": "0-4"`
General flags	l	log-level	Sets the log level for the application: CRITICAL=20 ERROR=30 WARNING=40 INFO=50 DEBUG=60	Copy Copied! `"log-level": 60`
	v	version	Prints program version information	N/A
	h	help	Prints a help synopsis	N/A
Program flags	p	print-match	Prints FID when matched in DPI engine	Copy Copied! `"print-match": true`
	n	netflow	Exports data from BlueField to remote DTS. The IP is set to 192.168.100.2 which is the host's IP using the RShim interface. Also sets `source_id` to be written to the NetFlow packet.	Copy Copied! `"netflow": 0`
	i	interactive	Adds interactive mode for blocking signatures	Copy Copied! `"interactive": false`
	o	output-csv	Path to the output of the CSV file	Copy Copied! `"output-csv": "/tmp/ ar_stats.csv"`
	c	cdo	Path to CDO file compiled from a valid PDD Note: This is mandatory flag.	Copy Copied! `"cdo": "/tmp/ar.cdo"`
	f	fragmented	Enables processing fragmented packets	Copy Copied! `"fragmented": false`

8. Deploying Containerized Application

The application recognition example supports a container-based deployment:

Refer to the NVIDIA DOCA Container Deployment Guide for details on how to deploy a DOCA container to the BlueField.
Application-specific configuration steps can be found on NGC under the application's container page.

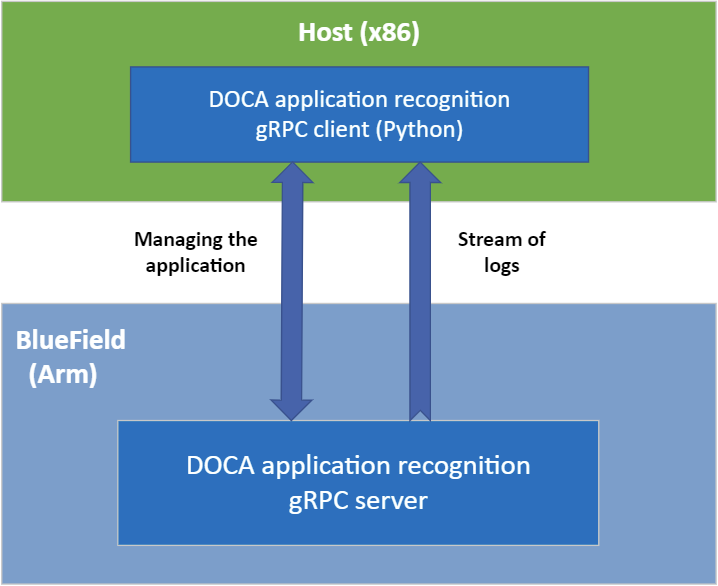

9. Managing gRPC-Enabled Application from Host

Refer to NVIDIA DOCA gRPC Infrastructure User Guide for instructions on running the gRPC application server on the BlueField.

To run the Python client of the gRPC-enabled application:

Copy
Copied!


            ./doca_application_recognition_gRPC_client.py -d/--debug <server address[:server port]>

For example:

Copy
Copied!


            /opt/mellanox/doca/applications/application_recognition/bin/grpc/client/doca_application_recognition_gRPC_client.py 192.168.104.2

10. References

/opt/mellanox/doca/applications/application_recognition/src
/opt/mellanox/doca/applications/application_recognition/bin/ar_suricata_rules_example
