DOCA Management Service Guide

This guide explains how to use the DOCA Management Service (DMS) with the NVIDIA® BlueField® networking platform or NVIDIA® ConnectX® SmartNICs.

DOCA Management Service (DMS) is a centralized solution for configuring and operating NVIDIA® BlueField® and ConnectX® devices.

DMS consolidates NVIDIA’s internal scripts and tools under a streamlined, industry-standard API based on OpenConfig. Users can configure BlueField or ConnectX devices either locally (via SSH) or remotely (via gRPC).

DMS exposes configurable parameters for BlueField and ConnectX over the external interface, enabling automated configuration from a management station. The interface offers a consistent and unified approach to device configuration while abstracting away the underlying tools used to manage individual features.

DMS follows a client-server architecture. The server component, DMS Daemon (dmsd), is responsible for resource discovery and for processing incoming commands from clients. These clients can be either the provided DMS Client (dmsc) or a custom-built client using the same API.

Open Config and YANG Models

• OpenConfig is a standard that defines and implements a common, vendor-independent software layer for managing and monitoring network devices.

  It utilizes YANG data models to represent device configurations and operational states in a consistent and standardized format.

  Most gNMI/gNOI protocols used in DMS are aligned with the OpenConfig community and rely on the gRPC protocol for command transmission.

• YANG (Yet Another Next Generation) is a data modeling language used to describe the structure and content of network configuration and state data.

  It represents data hierarchically, similar to an XML tree, and defines schemas for configuration, operational state, and remote procedure calls (RPCs). YANG models serve as the foundation for implementing the OpenConfig standard.

To operate the DMS, DOCA must be installed on the system where DMS will run.

• DMS on Host – The DOCA for Host package must be installed on the host system. It should be installed using either the doca-networking or doca-all profile.

• DMS on DPU (BlueField Arm) – A compatible DOCA image must be installed on the BlueField Arm processor.

DMS has 3 major components:

• DMSD – Server – DMS server can run on the BlueField ARM or on the host with an NVIDIA PCIe device

• DMSC – Client – DOCA provided OpenConfig client. Customers can choose to use this client, any other open-source client, or develop their own (gRPC-based) client.

• Yang files – Yang model files contain the data model used to configure the device, using NVIDIA-specific extension to common OpenConfig YANG Models.

OpenConfig consists of 2 main protocols:

• gNMI – gRPC Network Management Interface, protocol to configure of network device.

• gNOI – gRPC Network Operations Interface, a protocol to perform operational commands on network devices (i.e., provision, upgrade, reboot).

Service Connectivity

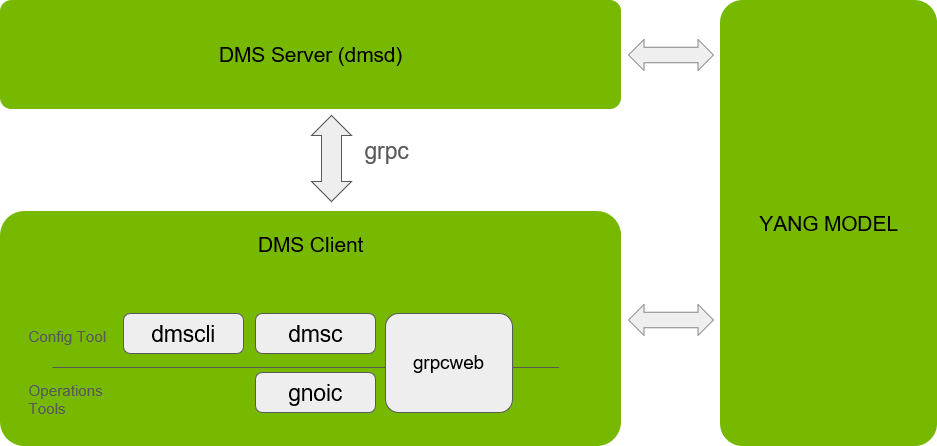

The following is an architectural diagram of DMS:

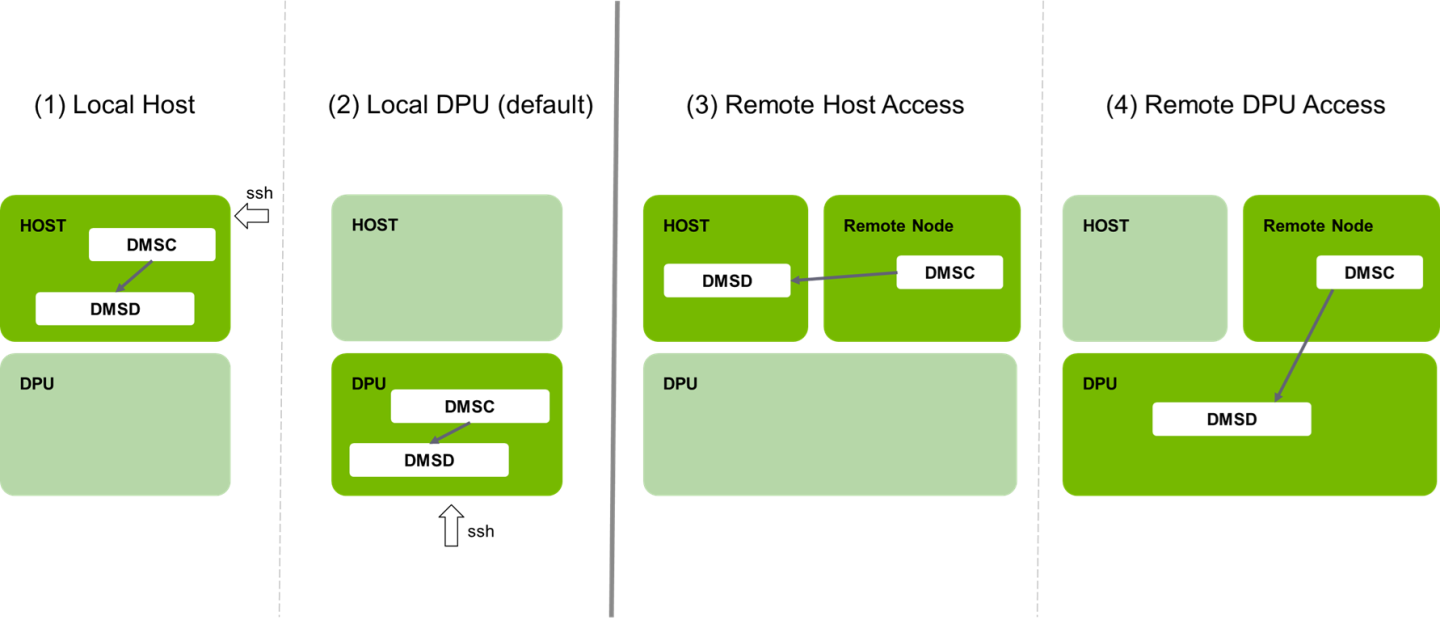

The following diagram presents the DMS modes of operation, as the DMS client can operate from different location:

1. Both DMS client and server components are deployed on the Host.

2. Both DMS client and server components are deployed on DPU (BlueField Arm).

3. DMS server component is deployed on the Host, while DMS client is deployed remotely (connecting to DMS server over management network).

4. DMS server component is deployed on DPU (BlueField Arm), while DMS client is deployed remotely (connecting to DMS server over management network).

DMS Daemon Launch Options

Option 1: SystemD Service (Recommended)

On the DPU, the DMS Daemon (dmsd) runs as a systemd service and comes pre-installed with the BlueField BFB-Bundle.

It should be running locally by default as a systemd service, bound to localhost:9339.

• To check if dmsd is running:

  Copy

  Copied!




  ps -ef | grep dms


• To manage the service:

  Copy

  Copied!




  sudo systemctl status dmsd
  sudo systemctl start dmsd
  sudo systemctl stop dmsd


• To interact with dmsd using the built-in client (requires user-password authentication; the default is the OS root password):

  Copy

  Copied!




  dmscli


• A template systemd service file is included in the DOCA package:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsd.service/dmsd.service


  Note

  dmsd runs automatically as a systemd service only on the DPU, not on the host.

Option 2: Manual Launch

You can start the dmsd daemon manually with a variety of authentication methods.

1. Localhost with username/password:

   Copy

   Copied!




   /opt/mellanox/doca/services/dms/dmsd \
     --bind_address localhost:9339 \
     --auth credentials \
     --username my_username \
     --password my_password


2. Remote host with shadow file:

   Copy

   Copied!




   /opt/mellanox/doca/services/dms/dmsd \
     --bind_address <ip>:<port> \
     --auth shadow \
     --username my_username \
     --shadow /etc/shadow


3. TLS certificate-based authentication:

   Copy

   Copied!




   /opt/mellanox/doca/services/dms/dmsd \
     --bind_address localhost:9339 \
     --auth cert \
     --ca <ca.pem> \
     --tls_key_file <key.pem> \
     --tls_cert_file <cert.pem>


4. Specific PCIe device (for a host with multiple DPUs):

   Copy

   Copied!




   /opt/mellanox/doca/services/dms/dmsd \
     --bind_address localhost:9339 \
     --auth credentials \
     --username my_username \
     --password my_password \
     --target_pci 0000:08:00


5. Provide a list of PCIe devices (for a host with multiple DPUs):

   Copy

   Copied!




   /opt/mellanox/doca/services/dms/dmsd \
     --bind_address localhost:9339 \
     --auth credentials \
     --username my_username \
     --password my_password \
     --target_pci 0000:08:00,0000:09:00


DMS Server Flags

To see the full list of flags, use the help flag (i.e., dmsd --help, dmsd -h).

General Flags

• --bind_address <string> – Bind to <address>:<port> or just :<port> (default is :9339). Can be localhost for the local use case, or an IP address for the remote use case.

• -v <value> – log level for V logs

• --target_pci <string> – One or multiple target PCIe addresses (i.e., 0000:03:00, 0000:03:00,0000:04:00). Auto-select if only one NVIDIA network device is present; otherwise, one or more PCIe addresses must be specified.

Provisioning Flags

• --image_folder <string> – Specify the image install folder. Can copy images directly to the folder to avoid transfer over the net. Default create folder: /tmp/dms.

• --chunk_size_ack <uint> – The chunk size of the image to respond with a transfer response in bytes (default: 12000000)

• --exec_timeout <uint> – The maximum execution timeout in seconds for a command if not responding (not printing to stdout); 0 (default) is unlimited

Config Flags

• --init_config <string> – File containing gNMI requests to run on DMS start. By default, DMS adds any gNMI set request to a file (file format is req.json).

Authentication Method Flags

The --auth <string> flag specifies one of the following three authentication methods, each with its own set of required flags:

Shadow

• Zero-touch setup – no need to create a dedicated DMS user (reuses existing OS user)

• The server reads the hashed password from the shadow file in real time for each client request

• Required flags: --username <string> and --shadow <string>

  • Example:

    Copy

    Copied!




    --auth shadow --username root --shadow /etc/shadow


• To disable authentication:

  Copy

  Copied!




  --noauth


Credentials

• Requires the admin to define a strong password.

• Required flags: --username <string> and optionally --password <string>

  • Example:

    Copy

    Copied!




    --auth credentials --username root --password 123456


• To prompt for password input interactively at startup, leave the --password flag empty.

• To disable authentication:

  Copy

  Copied!




  --noauth


Certificate (TLS)

• The most secure option, using Transport Layer Security (TLS) for both encryption and mutual authentication.

• Authentication is based on digital certificates, ensuring only trusted clients can connect.

  • Required flags:

    --auth cert

    --ca <path/to/ca.crt>

    --tls_key_file <path/to/target.key>

    --tls_cert_file <path/to/target.crt>

  • Example:

    Copy

    Copied!




    --auth cert --ca /path/to/certs/ca.crt --tls_key_file /path/to/certs/target.key --tls_cert_file /path/to/certs/target.crt


• To disable TLS:

  Copy

  Copied!




  --tls_enabled=false


Security Flags

TLS Encryption and Authentication

DMS uses TLS (Transport Layer Security) by default to secure communication. TLS is a widely adopted cryptographic protocol that provides the following guarantees:

• Encryption – Protects transmitted data from eavesdropping.

• Authentication – Verifies the identity of the server and optionally the client via digital certificates.

• Integrity – Ensures transmitted data is not tampered with.

TLS relies on a public/private key pair and a digital certificate issued by a Certificate Authority (CA). These elements ensure secure, authenticated communication.

DMS supports TLS for both gNMI and gNOI interfaces, and works with either self-signed or CA-signed certificates.

To enable TLS, both server and client must provide:

• --ca <string> – Path to the CA certificate used to validate the remote party’s certificate.

• --tls_cert_file <string> – Path to the public certificate presented during the TLS handshake.

• --tls_key_file <string> – Path to the corresponding private key used to sign the handshake and decrypt messages.

  Note

  The private key must be protected. If compromised, it can be used to impersonate the server or client.

TLS Communication Modes

Mutual TLS Authentication (mTLS)

Both the server and client present certificates and verify each other during the TLS handshake.




# Server:
/opt/mellanox/doca/services/dms/dmsd <flags> --auth cert \
  --ca /path/to/certs/client_ca.crt \
  --tls_cert_file /path/to/certs/target.crt \
  --tls_key_file /path/to/certs/target.key

# Client:
/opt/mellanox/doca/services/dms/dmsc <flags> \
  --tls-ca /path/to/certs/target_ca.crt \
  --tls-cert /path/to/certs/client.crt \
  --tls-key /path/to/certs/client.key <command>


Highlights:

• Provides the highest level of security.

• Ensures both sides are authenticated and trusted.

• All traffic is encrypted.

TLS (Server Authentication Only)

Only the server presents its certificate during the handshake. The client verifies the server but does not present a certificate.




# Server:
/opt/mellanox/doca/services/dms/dmsd <flags> --auth cert \
  --tls_cert_file /path/to/certs/target.crt \
  --tls_key_file /path/to/certs/target.key

# Client:
/opt/mellanox/doca/services/dms/dmsc <flags> \
  --tls-ca /path/to/certs/target_ca.crt \
  --skip-verify <command>


Highlights:

• Client authenticity is not verified.

• Use --skip-verify if a root CA is not provided.

• Traffic remains encrypted.

Insecure Mode (No TLS)

TLS is disabled entirely on both server and client. No encryption or authentication is performed.




# Server:
/opt/mellanox/doca/services/dms/dmsd <flags> --auth cert --tls_enabled=false

# Client:
/opt/mellanox/doca/services/dms/dmsc <flags> --insecure <command>


To achieve insecure communication (no encryption), configure:

• Server – use --tls_enabled=false param

• Client – use --insecure flag'

Highlights:

• Not recommended for production.

• Use only in fully isolated, trusted environments for testing or development.

To see the full list of flags, use the help flag (i.e., dmsc --help, dmsc -h).

DMS Client Flags

General Flags

• --address <string> – Bind to <address>:<port> or just :<port> (default is :9339). Can be localhost for the local use case, or an IP address for the remote use case.

• --target <string> – Target PCIe address to interact with. Mandatory if the server is running for multiple PCIe addresses.

• -d, --debug – Debug mode.

Authentication Flags

• -u, --username <string> – username.

• -p, --password <string>– password.

Security Flags

• --tls-ca <string> – path to server CA certificate.

• --tls-key <string> – path to the client TLS private key.

• --tls-cert <string> – path to the client TLS certificate, containing the public key.

• --skip-verify – tells the client to skip verifying the server's certificate during the TLS handshake. TLS is enabled, and the connection is encrypted.

• --insecure – Disable TLS. The client connects over plain TCP, with no encryption or authentication.

gNMI Command

gNMI (gRPC Network Management Interface) is a standardized network management protocol to configure and monitor network devices via gRPC and Protocol Buffers. It enables interaction with devices using models such as OpenConfig.

Core gNMI commands:

• Get – Retrieves device data (e.g., operational state, configuration).

• Set – Modifies device configuration.

• Capabilities – Queries the device’s capabilities (e.g., supported models, versions, encodings).

• Subscribe – Streams data from the device to the client.

  Note

  DMS currently does not support the Subscribe command.

In DMSC, the gNMI functionality is powered by the GNMIC project. For additional details, refer to the GNMIC documentation.

Prompt mode with autocomplete can be invoked using the prompt command. To access it, run dmscli and authenticate with the dmsd user password (by default, the root OS password).

Get Request

Get requests happen in real-time without a cache. Get command requires providing the YANG Xpath as described in the following:




/opt/mellanox/doca/services/dms/dmsc <flags> get --path /interfaces/interface[name=p0]/config/mtu
[
  {
    "source": "localhost:9339",
    "timestamp": 1712485149723248511,
    "time": "2024-04-07T10:19:09.723248511Z",
    "updates": [
      {
        "Path": "interfaces/interface[name=p0]/config/mtu",
        "values": {
          "interfaces/interface/config/mtu": "1500"
        }
      }
    ]
  }
]


Get request also work on subtree (subPath) as follows:




/opt/mellanox/doca/services/dms/dmsc <flags> get --path /nvidia/roce
[
  {
    "source": "127.0.0.1:9339",
    "timestamp": 1728471432988295603,
    "time": "2024-10-09T13:57:12.988295603+03:00",
    "updates": [
      {
        "Path": "nvidia/roce",
        "values": {
          "nvidia/roce": {
            "config": {
              "adaptive-routing": "false",
              "multipath-dscp": "MULTIPATH_DSCP_DEFAULT",
              "tx-sched-locality-mode": "TX_SCHED_LOCALITY_ACCUMULATIVE"
            }
          }
        }
      }
    ]
  }
]


Set Request

Set requests happen immediately, invoking tools to configure the OS.

Set commands require providing Yang Xpath as described in the following:




/opt/mellanox/doca/services/dms/dmsc <flags> set --update /interfaces/interface[name=p0]/config/mtu:::int:::9216
{
  "source": "localhost:9339",
  "time": "1970-01-01T00:00:00Z",
  "results": [
    {
      "operation": "UPDATE",
      "path": "interfaces/interface[name=p0]/config/mtu"
    }
  ]
}


It is also possible to invoke a command JSON list:




/opt/mellanox/doca/services/dms/dmsc <flags> set --request-file req.json


req.json example:




{
  "updates":
    [
      {
        "path": "/interfaces/interface[name=p0]/config/mtu",
        "value": 9216,
        "encoding": "uint"
      },
      {
        "path": "/interfaces/interface[name=p0]/config/enabled",
        "value": true,
        "encoding": "bool"
      }
    ]
}


List of DMS Supported Path Entries for Get/Set Commands

To get the list of supported paths for get/set commands, run the following command:




dmsc --file /opt/mellanox/doca/service/dms/yang path --types --descr


gNOI Commands

gNOI (gRPC Network Operations Interface) is a protocol for operational tasks such as installing software, managing certificates, and troubleshooting. It complements gNMI by focusing on administrative and system-level functions.

Within DMSc, gNOI support is provided by the GNOIC project. For full documentation, refer to the GNOIC project documentation.

To invoke a gNOI command, run:




/opt/mellanox/doca/services/dms/dmsc -a localhost --port 9339 --tls-cert client.crt --tls-key client.key <command>


To use interactive mode with autocompletion, enter:




/opt/mellanox/doca/services/dms/dmsc prompt


OS Commands

The following commands support provisioning of DOCA images (BFB) or firmware on BlueField devices.

Install

Transfers and authenticates the specified package file. If the file is valid, it is saved to the server’s image folder (default: /tmp/dms). If the file already exists in that folder with the expected version and extension, the server skips the file transfer and proceeds with authentication only.




/opt/mellanox/doca/services/dms/dmsc <flags> os install \
    --version <version_string> \
    --pkg <path_to_bfb_or_cfg_or_fw>


Examples:

• Install a BFB image:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os install \
      --version 2_9_0 \
      --pkg DOCA_2.9.0_Ubuntu.bfb


• Install a config file:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os install \
      --version 0_0_1.cfg \
      --pkg bf.cfg


• Install firmware:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os install \
      --version 24_29_0046.fw \
      --pkg fw-BlueField.bin


The file extension is autodetected based on the provided package. If omitted from the --version string, it is inferred automatically. Users can also copy the file manually to the image folder and run the command to authenticate it without triggering a transfer.

The file is saved to the folder specified in the -image_folder flag (default /tmp/dms) given to the server, if the file authenticates successfully.

Activate

The activate command deploys BFB bundles and/or firmware to the hardware.




/opt/mellanox/doca/services/dms/dmsc <flags> os activate --version <version_string>


Examples:

• Activate all files under a version prefix:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os activate --version 2_9_0


• Activate specific files by name (use semicolon to separate multiple components):

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os activate --version "2_9_0.bfb;0_0_1.cfg;24_29_0046.fw"


• Auto-detect and install the appropriate firmware:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os activate --version auto


Behavior:

• The --version flag specifies which files to activate from the directory defined by the --image_folder flag (default: /tmp/dms).

• If no file extensions are included, the command activates all files matching the base version name.

• When using --version auto, the mlnx-fw-updater.pl script runs automatically. This script:

  • Detects the connected device type.

  • Identifies the appropriate firmware version.

  • Installs it accordingly.

Verify

The verify command retrieves the currently installed firmware and BFB bundle versions from the target device.




/opt/mellanox/doca/services/dms/dmsc <flags> os verify


The response includes the firmware and BFB versions, separated by a semicolon:




+-----------------+---------------------------------------------------------------+-----------------------------+
|   Target Name   |                          Version                              | Activation Fail Msg         |
+-----------------+---------------------------------------------------------------+-----------------------------+
| 127.0.0.1:19999 | FW: 32.42.1000;BFB: bf-bundle-2.8.0-98_24.07-ubuntu-22.04_dev |                             |
+-----------------+---------------------------------------------------------------+-----------------------------+


Notes:

• The Version column lists both the firmware (FW) and BFB versions if available.

• The Activation Fail Msg column displays error messages if activation fails.

• The BFB bundle version is displayed only if it was installed via DMS.

System

The following subsections describe actions related to rebooting the BFB bundle or firmware on BlueField.

Reboot Status

Use the following command to check whether a reboot is currently in progress:




/opt/mellanox/doca/services/dms/dmsc <flags> system reboot-status [--reboot_status_check <string>]


The returned value indicates the system status:

• false – The system is active and not rebooting.

• true – The system is in the process of rebooting.

• If the status cannot be retrieved, the result appears as failure, and the message field provides additional details.

The flag --reboot_status_check <string> checks if firmware reboot is needed:

Reboot

To reboot the BlueField Arm and firmware, use the following command:




/opt/mellanox/doca/services/dms/dmsc <flags> system reboot --delay <seconds> [--subcomponent <component>] [--method <type>]


This command is non-blocking and returns immediately after it is issued.

By default, if subcomponent and method are not specified, the command executes the lowest-level reset available for the system.

Factory-reset

Performs a factory reset on the target node by resetting all PFs (Physical Functions) to their default configurations.

Start

Resets device configurations to their default values for each PF on the specified target:




/opt/mellanox/doca/services/dms/dmsc <flags> factory-reset start


Or using the alias:




/opt/mellanox/doca/services/dms/dmsc <flags> reset start


File

Performs operational tasks related to files on the target device.

Stat

Retrieves metadata for a specified file or directory.




# Single file
/opt/mellanox/doca/services/dms/dmsc <flags> file stat --path /path/to/file

# Directory with recursive listing
/opt/mellanox/doca/services/dms/dmsc <flags> file stat --path /path/to/dir --recursive


Example output:




+----------------+---------------------+----------------------+------------+------------+------+
|  Target Name   |        Path         |     LastModified     |    Perm    |   Umask    | Size |
+----------------+---------------------+----------------------+------------+------------+------+
| 127.0.0.1:9339 | /path/to/dir/file_1 | 2025-04-10T09:05:37Z | -rw-r--r-- | -----w--w- | 0    |
|                | /path/to/dir/file_2 | 2025-04-10T09:05:37Z | -rw-r--r-- | -----w--w- | 0    |
+----------------+---------------------+----------------------+------------+------------+------+


Get

Streams the contents of a file from the target device to the client.




/opt/mellanox/doca/services/dms/dmsd <flags> --allow_list_read <dir1>,<dir2>,<dir3>


Client invocation:




/opt/mellanox/doca/services/dms/dmsc <flags> file get --file /tmp/debug/<file_to_get>


Put

Streams a file from the client to the target device.




/opt/mellanox/doca/services/dms/dmsd <flags> --allow_list_write <dir1>,<dir2>,<dir3>


Client invocation:




/opt/mellanox/doca/services/dms/dmsc <flags> file put --file /tmp/debug/file_to_send --dst /tmp/output/path_on_remote_host


Containerz

Containerz supports remote management and monitoring of containers on either the host or the DPU. This deployment model follows the DOCA container methodology described in the DOCA Container Deployment Guide .

Containerz supports the following two backend modes.

Docker Backend (Default)

This mode interacts with the Docker daemon (dockerd) on the host.

Ensure that the Docker daemon is running:




systemctl start docker


Kubelet Backend

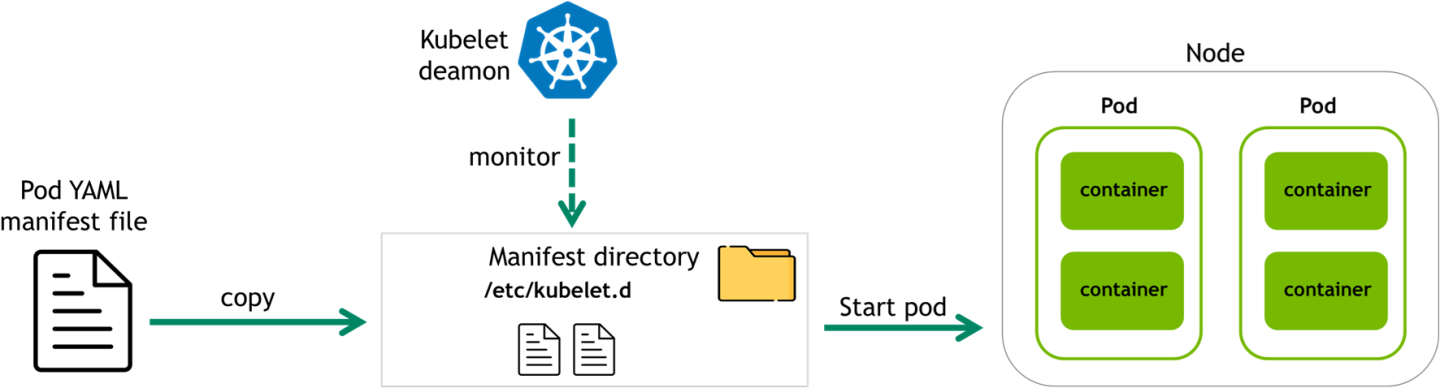

This mode uses the Kubelet daemon to manage containers on the BlueField DPU using static pod definitions. It does not require a full Kubernetes cluster.

Kubelet automatically handles any manifest files placed in /etc/kubelet.d.

• Add a pod – Place a YAML manifest in /etc/kubelet.d

• Remove a pod – Delete the corresponding YAML file

To specify the container backend mode, use the --container_interface flag:




/opt/mellanox/doca/services/dms/dmsd <flags> --container_interface <kubelet|docker>


Container Operations

These operations control container lifecycle, image usage, and persistent volumes on the system. Behavior differs based on the selected container backend (Docker or Kubelet).

Container Start

Launches a container using the specified image or configuration file.

• Docker mode: The image must exist locally.

• Kubelet mode: Provide a YAML file defining the pod. The file is copied to the Kubelet manifest directory, which triggers container startup.




# Docker mode
/opt/mellanox/doca/services/dms/dmsd <flags> containerz container start --image <image_name>

# Kubelet mode
/opt/mellanox/doca/services/dms/dmsd <flags> containerz container start --image path/to/yaml/file.yaml


Container List

Displays all currently running containers.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz container list


Container Stop

Stops a running container. The container remains available for later restart.

• Kubelet mode: Stops the container by deleting its manifest YAML from the directory.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz container stop --instance <container name>


Container Remove

Stops and deletes the specified container.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz container remove --instance <container name>


Image Operations

These commands manage container images—pulling from registries, pushing from the client, listing available images, and removing them from the device.

Image Pull

Downloads a container image from a remote registry to the device.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz image pull --image ubuntu


Image Push

Streams a container image (in .tar format) from the client to the device. The image is transferred over gRPC and saved locally.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz image push --file /path/to/tarfile.tar


Image List

Lists all container images currently available on the device.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz image list


Image Remove

Deletes a specific container image from the device.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz image remove --image ubuntu


Volume Operations

These commands manage persistent storage volumes for containers.

Volume Create

Creates a new named volume on the device.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz volume create --name my_volume


Volume Remove

Deletes the specified volume by name.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz volume remove --name volume_name


Volume list

Displays all named volumes and their associated mount points.




/opt/mellanox/doca/services/dms/dmsd <flags> containerz volume list
