DOCA Storage Initiator ComCh Application Guide

Introduction

The doca_storage_initiator_comch application functions as a client to the DOCA storage service. It benchmarks the performance of data transfers over the ComCh interface, providing detailed measurements of throughput, bandwidth, and latency.

System Design

The doca_storage_initiator_comch application performs the following key tasks:

Initiates a sequence of I/O requests to exercise the DOCA storage service.
Measures and reports storage performance, including:
- Millions of I/O operations per second (IOPS)
- Effective data bandwidth
- I/O operation latency:
  - Minimum latency
  - Maximum latency
  - Mean latency

The application establishes a connection to the storage service running on an NVIDIA® BlueField® platform using the doca_comch_client interface.

Application Architecture

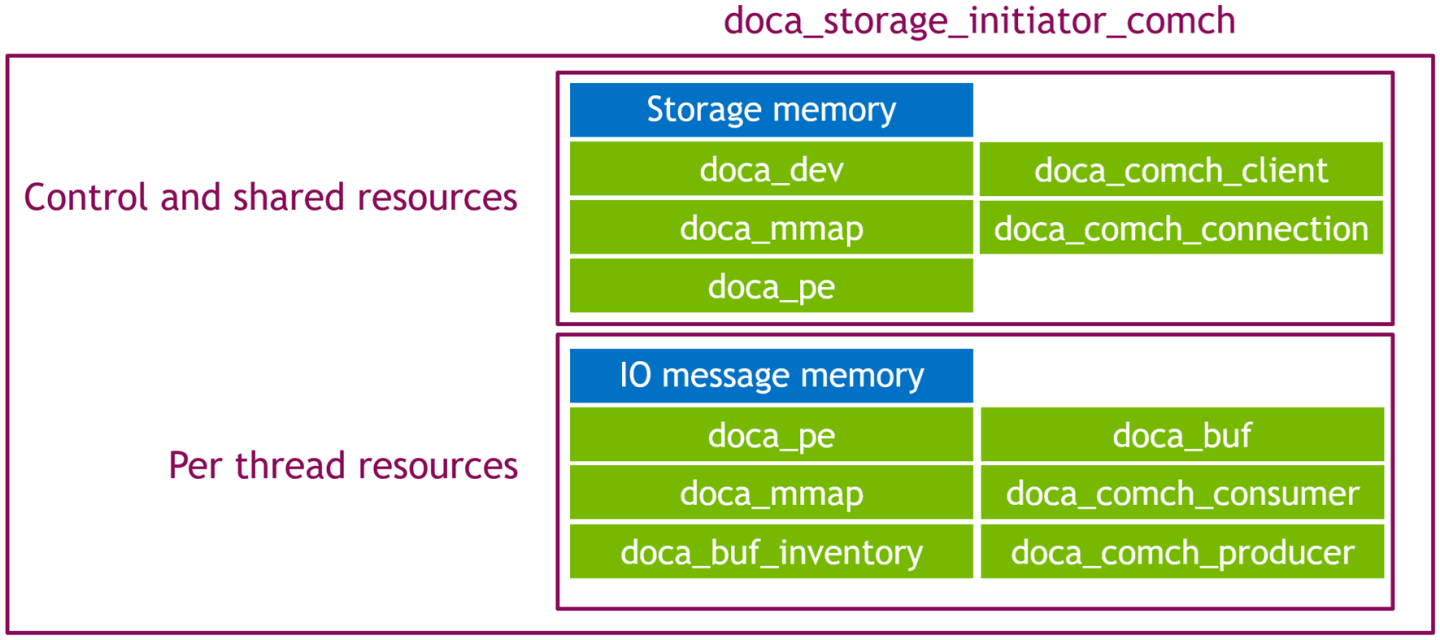

The application is logically divided into two functional areas:

Control-time and shared resources
Per-thread data path resources


The execution consists of two main phases:

Control Phase
Data Path Phase

Control Phase

The control phase is responsible for establishing and managing the storage session lifecycle. It performs the following steps:

Query storage – Retrieve storage service metadata.
Init storage – Initialize the storage window and prepare for data transfers.
Start storage – Begin the data path phase and launch data threads.

Once the data phase is initiated, the main thread waits for test completion. Afterward, it issues final cleanup commands:

Stop storage – Stop data movement.
Shutdown – Tear down the session and release resources.

Data Path Phase

The data path is executed by worker threads and operates in one of three modes:

Throughput Test (Read or Write)

Tasks are submitted once at the start.
A tight polling loop monitors progress until the target operation count is met.
Each task is assigned a storage window address, which is advanced after each submission.
If the end of the storage range is reached, the address wraps around to the beginning, ensuring round-robin access.

Read-Only Data Validity Test

A reference copy of expected storage contents is held in memory.
Tasks are submitted similarly to the throughput test.
After each segment is read, the application compares the contents with the expected data to verify correctness.
Once the entire range has been read and verified, the test concludes.

Write-Then-Read Data Validity Test

The application first writes a known memory pattern across the entire storage range.
Then, it performs the read-only validity test, but compares the read data against the previously written pattern (instead of a file-based reference).
This verifies both write and read correctness in a full-cycle validation.

DOCA Libraries

This application leverages the following DOCA libraries:

DOCA Comch

Compiling the Application

This application is compiled as part of the set of storage applications. For compilation instructions, refer to the DOCA Storage Applications page.

Running the Application

Application Execution

Warning

This application can only run from the host.

Info

DOCA Storage Initiator Comch is provided in source form. Therefore, compilation is required before the application can be executed.

Application usage instructions:

Copy
Copied!


            Usage: doca_storage_initiator_comch [DOCA Flags] [Program Flags]

DOCA Flags:
  -h, --help                        Print a help synopsis
  -v, --version                     Print program version information
  -l, --log-level                   Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  --sdk-log-level                   Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>

Program Flags:
  -d, --device                      Device identifier
  --cpu                             CPU core to which the process affinity can be set
  --storage-plain-content           File containing the plain data that is represented by the storage
  --execution-strategy              Define what to run. One of: read_throughput_test | write_throughput_test | read_write_data_validity_test | read_only_data_validity_test
  --run-limit-operation-count       Run N operations (per thread) then stop. Default: 1000000
  --task-count                      Number of concurrent tasks (per thread) to use. Default: 64
  --command-channel-name            Name of the channel used by the doca_comch_client. Default: "doca_storage_comch"
  --control-timeout                 Time (in seconds) to wait while performing control operations. Default: 5
  --batch-size                      Batch size: Default: 4

Info

This usage printout can be printed to the command line using the -h (or --help) options:

Copy
Copied!


            ./doca_storage_initiator_comch -h

For additional information, refer to section "Command-line Flags".

CLI example for running the application on the BlueField:

Copy
Copied!


            ./doca_storage_initiator_comch -d 3b:00.0 --execution-strategy read_throughput_test --run-limit-operation-count 1000000 --cpu 0

Note

Both the DOCA Comch device PCIe address (3b:00.0) should match the addresses of the desired PCIe devices.

Command-line Flags

Flag Type	Short Flag	Long Flag	Description
General flags	`h`	`help`	Print a help synopsis
	`v`	`version`	Print program version information
	`l`	`log-level`	Set the log level for the application: DISABLE=10 CRITICAL=20 ERROR=30 WARNING=40 INFO=50 DEBUG=60 TRACE=70 (requires compilation with `TRACE` log level support)
	N/A	`sdk-log-level`	Set the log level for the program: DISABLE=10 CRITICAL=20 ERROR=30 WARNING=40 INFO=50 DEBUG=60 TRACE=70
Program flags	`d`	`device`	DOCA device identifier. One of: PCIe address: `3b:00.0` InfiniBand name: `mlx5_0` Network interface name: `en3f0pf0sf0` Note This flag is a mandatory.
	N/A	`--execution-strategy`	The data path routine to run. One of: `read_throughput_test` `write_throughput_test` `read_only_data_validity_test` `read_write_data_validity_test` Note This flag is a mandatory.
	N/A	`--cpu`	Index of CPU to use. One data path thread is spawned per CPU. Index starts at 0. Note The user can specify this argument multiple times to create more threads. Note This flag is a mandatory.
	N/A	`--storage-plain-content`	Expected plain content that is expected to be read from storage during a `read_only_data_validity_test`
	N/A	`--run-limit-operation-count`	Number of IO operations to perform when performing a throughput test
	N/A	`--task-count`	Number of parallel tasks per thread to use
	N/A	`--command-channel-name`	Allows customizing the server name used for this application instance if multiple comch servers exist on the same device.
	N/A	`--control-timeout`	Time, in seconds, to wait while performing control operations
	N/A	`--batch-size`	Set how many tasks should be submitted before triggering the hardware to start processing them.

Copy
Copied!


            initiator_comch_app app{parse_cli_args(argc, argv)};

Connect to the storage service:

Copy
Copied!


            app.connect_to_storage_service();

Query storage capabilities:
Copy

Copied!
```

            app.query_storage();

```
- Retrieves storage size, block size, and other metadata
Initialize storage session:
Copy

Copied!
```

            app.init_storage();

```
- Allocates memory resources.
- Sends the init_storage control message.
- Creates per-thread resources including comch_producer and comch_consumer.

Prepare worker threads and allocate tasks:

Copy
Copied!


            app.prepare_threads();

Start storage session and data threads:
Copy

Copied!
```

            app.start_storage();

```
- Sends the start_storage control message
- Waits for response
- Launches the data path threads
Run the test:
Copy

Copied!
```

            app.run();

```
- Starts all worker threads
- Waits for thread completion
- Collects and processes statistics

Join worker threads:

Copy
Copied!


            app.join_threads();

Stop storage session:

Copy
Copied!


            app.stop_storage();

Display results or failure banner:

Copy
Copied!


            if (run_success) {
		app.display_stats();
} else {
	exit_value = EXIT_FAILURE;
	fprintf(stderr, "+================================================+\n");
	fprintf(stderr, "| Test failed!!\n");
	fprintf(stderr, "+================================================+\n");
}

Shutdown the session and release resources:

Copy
Copied!


            app.shutdown();

Data Path Phase

Read/Write Throughput Test

Wait for run_flag to be set:

Copy
Copied!


            while (!hot_data.run_flag) {
    std::this_thread::yield();
    if (hot_data.error_flag) return;
}

Submit initial batch of transactions:

Copy
Copied!


            auto const initial_task_count = std::min(hot_data.transactions_size, hot_data.remaining_tx_ops);
for (uint32_t ii = 0; ii != initial_task_count; ++ii)
	hot_data.start_transaction(hot_data.transactions[ii], std::chrono::steady_clock::now());

Poll the progress engine in a tight loop until complete:

Copy
Copied!


            while (hot_data.run_flag) {
    doca_pe_progress(hot_data.pe) ? ++hot_data.pe_hit_count : ++hot_data.pe_miss_count;
}

Read-Only Data Validity Test

Wait for run_flag to be set:

Copy
Copied!


            while (!hot_data.run_flag) {
    std::this_thread::yield();
    if (hot_data.error_flag) return;
}

Load expected content into memory:

Copy
Copied!


            read_and_validate_storage_memory(hot_data, hot_data.storage_plain_content);

Set expected operation count:

Copy
Copied!


            hot_data.remaining_tx_ops = hot_data.remaining_rx_ops = io_region_size / hot_data.io_block_size;

Submit read transactions:

Copy
Copied!


            auto const initial_task_count = std::min(hot_data.transactions_size, hot_data.remaining_tx_ops);
for (uint32_t ii = 0; ii != initial_task_count; ++ii) {
	char *io_request;
	doca_buf_get_data(doca_comch_producer_task_send_get_buf(hot_data.transactions[ii].request), (void**)&io_request));
	storage::io_message_view::set_type(storage::io_message_type::read, io_request);
	hot_data.start_transaction(hot_data.transactions[ii], std::chrono::steady_clock::now());
}

Poll until all reads are completed:

Copy
Copied!


            while (hot_data.remaining_rx_ops != 0) {
	doca_pe_progress(hot_data.pe) ? ++(hot_data.pe_hit_count) : ++(hot_data.pe_miss_count);
}

Validate memory content:

Copy
Copied!


            for (size_t offset = 0; offset != io_region_size; ++offset) {
	if (hot_data.io_region_begin[offset] != expected_memory_content[offset]) {
		DOCA_LOG_ERR("Data mismatch @ position %zu: %02x != %02x", offset, hot_data.io_region_begin[offset], expected_memory_content[offset]);
		hot_data.error_flag = true;
		break;
	}
}

Write-Then-Read Data Validity Test

Wait for run_flag to be set:

Copy
Copied!


            while (!hot_data.run_flag) {
    std::this_thread::yield();
    if (hot_data.error_flag) return;
}

Prepare memory content to write:

Copy
Copied!


            size_t const io_region_size = hot_data.io_region_end - hot_data.io_region_begin;
std::vector<uint8_t> write_data;
write_data.resize(io_region_size);
for (size_t ii = 0; ii != io_region_size; ++ii) {
    write_data[ii] = static_cast<uint8_t>(ii);
}

Write memory to storage:

Copy
Copied!


            write_storage_memory(hot_data, write_data.data());

Set expected operation count:

Copy
Copied!


            hot_data.remaining_tx_ops = hot_data.remaining_rx_ops = io_region_size / hot_data.io_block_size;

Copy write pattern into local memory for validation:

Copy
Copied!


            hot_data.io_addr = hot_data.io_region_begin;
std::copy(expected_memory_content, expected_memory_content + io_region_size, hot_data.io_region_begin);

Submit write transactions:

Copy
Copied!


            auto const initial_task_count = std::min(hot_data.transactions_size, hot_data.remaining_tx_ops);
for (uint32_t ii = 0; ii != initial_task_count; ++ii) {
	char *io_request;
	doca_buf_get_data(doca_comch_producer_task_send_get_buf(hot_data.transactions[ii].request), (void**)&io_request));
	storage::io_message_view::set_type(storage::io_message_type::write, io_request);

	hot_data.start_transaction(hot_data.transactions[ii], std::chrono::steady_clock::now());
}

Poll until writes are completed:

Copy
Copied!


            while (hot_data.remaining_rx_ops != 0) {
	doca_pe_progress(hot_data.pe) ? ++(hot_data.pe_hit_count) : ++(hot_data.pe_miss_count);
}

Read back and validate storage:

Copy
Copied!


            read_and_validate_storage_memory(hot_data, write_data.data())

Repeat steps to submit read transactions and validate memory as in the read-only test.
