DOCA Management Service Guide

This guide explains how to use the DOCA Management Service (DMS) with the NVIDIA® BlueField® networking platform or NVIDIA® ConnectX® SmartNICs.

DOCA Management Service (DMS) is a centralized solution for configuring and operating BlueField and ConnectX devices.

Networking management in Cloud and AI Cloud environments is often fragmented, relying on incompatible tools and complex syntax. DMS addresses this by providing a unified API that simplifies secure local and remote configuration through intent-based models and standard protocols.

Data Modeling and Framework

DMS uses a methodical management framework inspired by OpenConfig. It provides a structured "dictionary" for device configurations, ensuring that diverse hardware features are managed through a consistent, hierarchical model rather than disparate scripts.

Unified Configuration Dictionary

DMS leverages YANG (Yet Another Next Generation) as its modeling language. This allows hardware parameters, firmware settings, and operational states to be mapped into a predictable, tree-like schema.

• Logic-based abstraction: YANG abstracts the complexity of underlying tools (like mlxconfig or OS scripts), representing them as intuitive paths (e.g., /interfaces/interface/config/mtu).

• Structured paths: DMS follows the OpenConfig convention of separating Configuration (desired state) and State (actual operational data) into distinct branches.

• Standardized transport: All interactions occur over gRPC, ensuring high-performance and secure communication.

Management Protocols

DMS implements two primary gRPC-based interfaces to handle different types of management tasks.

DMS provides multiple layers of security to protect the infrastructure:

Architecture Security

Process Separation

DMS uses a two-process architecture to minimize security risks (detailed in the "Process Separation" section):

• dmsd (Frontend) – Handles client communication with limited privileges

• dmspe (Backend) – Executes privileged operations in an isolated process

This separation ensures that even if the frontend is compromised, privileged operations remain protected. The frontend process runs with minimal permissions and only communicates with the backend through a controlled interface, limiting the attack surface.

User Group Authorization

Only users in the dmsgroup are authorized to execute DMS commands, providing an additional access control layer.

Authentication and Encryption

DMS supports multiple authentication methods with varying security levels. The table below provides a quick overview; for detailed configuration examples and usage, see section "Manual Launch & Authentication Modes".

Network Exposure Risks and Mitigations

Risks

• Exposing DMS on external networks without proper authentication may allow unauthorized access

• Weak or default passwords can be exploited by attackers

• Unencrypted traffic can be intercepted (man-in-the-middle attacks)

Mitigations

The following security mitigations are recommended. For practical command examples, refer to section "Security Best Practices".

• Use Certificate (TLS) for production

• Enable TLS encryption for all external interfaces (see section "Mode 4: TLS with Certificates" for TLS configuration)

• For PAM authentication: use the allowed_users list to restrict which Unix users can connect (see section "Mode 2: PAM Authentication")

• Use strong, unique passwords or passfile instead of command-line passwords

• Bind to localhost (127.0.0.1) for local-only access

• Deploy DMS on the DPU for better isolation from the host network

Customer Responsibilities

To ensure secure DMS operation:

1. Use TLS in production – Always enable certificate-based authentication

2. Restrict network access – Configure firewall rules to restrict access to the dmsd listening port (configured via the -bind_address flag; see the "General Flags" section for port configuration details). Only allow connections from trusted management networks or specific client IP addresses.

3. Limit user access – Add only necessary users to dmsgroup (see the requirement to add user to dmsgroup)

4. Secure credentials – Use --passfile and restrict file permissions (chmod 600)

5. Monitor logs – Regularly review dmsd logs for suspicious activity

6. Keep software updated – Apply DOCA updates to address security fixes

To operate the DMS, DOCA must be installed on the system where DMS will run.

• DMS on Host – The DOCA for Host package must be installed on the host system. It should be installed using either the doca-networking or doca-all profile. See the "Host Deployment (Non-DPU)" section for full details.

• DMS on DPU (BlueField Arm) – A compatible DOCA image must be installed on the BlueField Arm processor. See the "Running on the DPU (Arm)" section for full details.

• DMS in POD (Kubernetes) – Kubernetes must be installed and configured on the system. The system must have appropriate container runtime support (Docker or Kubelet). See the "POD Deployment (Kubernetes)" section for full details.

DMS consists of the below components :

• dmsd – Server (Frontend) – DMS server frontend that handles client communication. Can run on the BlueField Arm or on the host with an NVIDIA PCIe device.

• dmspe – Privileged Backend – Executes privileged operations in an isolated process for security (see the "Process Separation" section).

• dmsc – Client – DOCA-provided OpenConfig client. Customers can choose to use this client, any other open-source client, or develop their own (gRPC-based) client.

• Yang files – Yang model files contain the data model used to configure the device, using NVIDIA-specific extension to common OpenConfig YANG Models.

• Configuration files - DMS uses configuration files for authentication (password files, user access lists), security (TLS certificates and keys), and service settings (YAML configuration files, service files). These files manage access control, encryption, and operational parameters.

DMS Operational Modes

DMS consists of two main processes that work together to provide secure management capabilities:

dmsd (Frontend Process)

Acts as the frontend service responsible for managing communication with clients. It handles incoming requests and prepares them for secure execution. The dmsd process is user-facing and responds to client requests, then communicates with the privileged backend when elevated permissions are required.

dmspe (Privileged Backend Process)

Responsible for executing privileged commands that require elevated permissions. These commands are executed securely to ensure system integrity. The dmspe process operates as a back-end service, silently executing commands on behalf of dmsd with the necessary privileges.

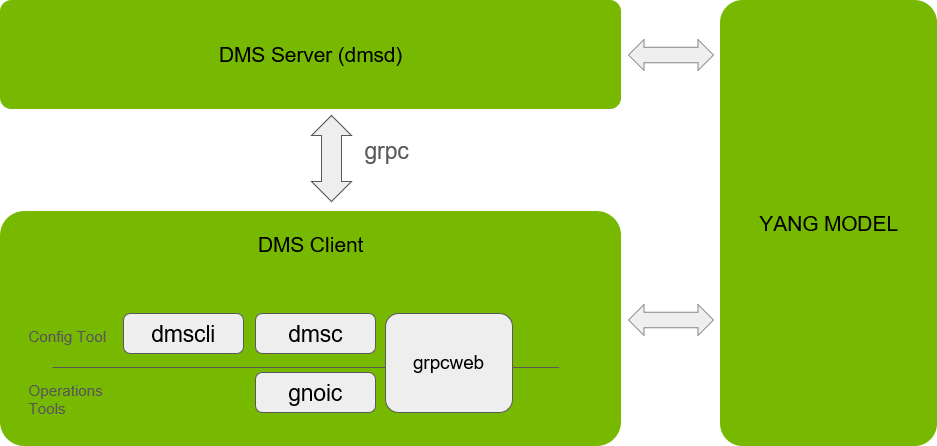

The following diagram illustrates the DMS architecture and component interactions:

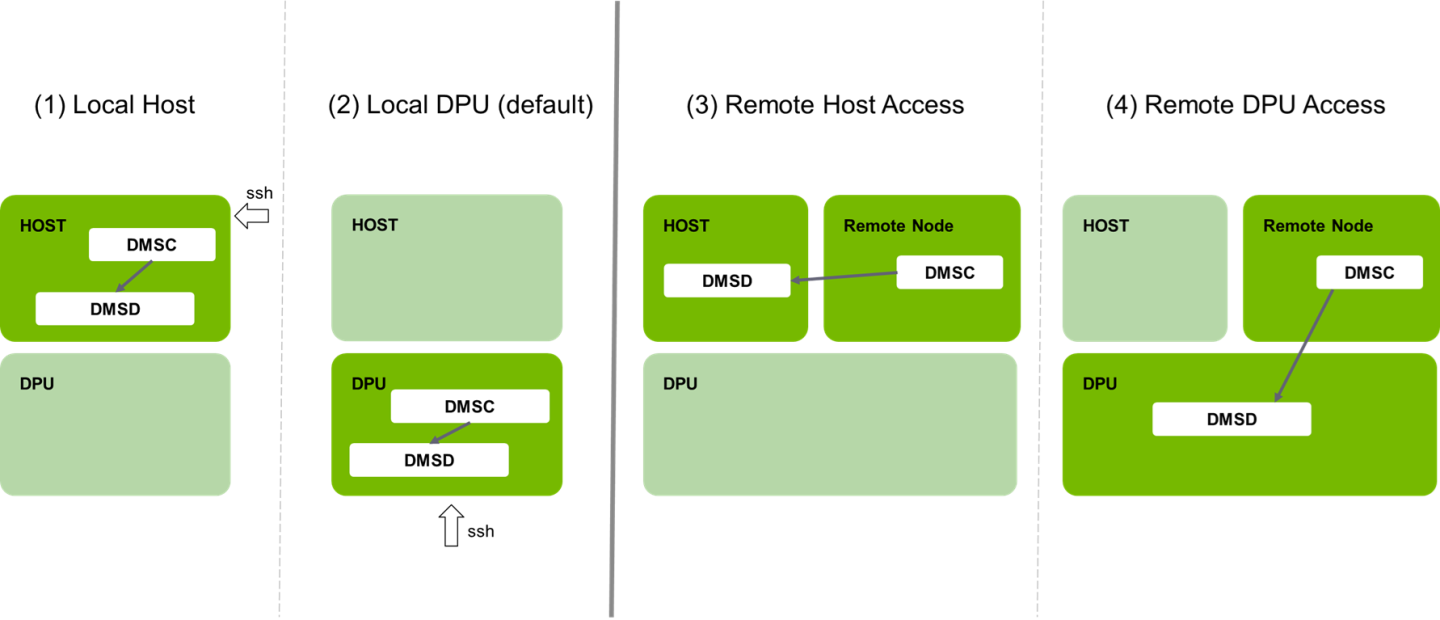

The DMS architecture supports flexible deployment.

The DMS client (Dmsc) can operate from various locations relative to the server components (Dmsd frontend and Dmspe backend).

The supported modes of operation are:

• 1. Local Host – Both the DMS client (dmsc) and server components (dmsd frontend with dmspe backend) are deployed on the Host.

• 2. Local DPU (Default) – Both the DMS client and server components are deployed on the DPU (BlueField Arm).

• 3. Remote Client (Host Server) – The DMS server components are deployed on the Host, while the DMS client is deployed remotely, connecting over the management network.

• 4. Remote Client (DPU Server) – The DMS server components are deployed on the DPU, while the DMS client is deployed remotely.

• 5. Host with ConnectX NIC (non-DPU) – DMS server components run on the Host, managing a ConnectX NIC without a DPU.

• 6. Host with Multiple NICs/DPUs – A single DMS server on the Host manages multiple network devices simultaneously.

• 7. Containerized Deployment – DMS server components run in a container on the Host (see the Containerz deployment instructions).

• 8. POD Deployment – DMS server components run in a Kubernetes pod, enabling orchestrated deployment

Process Separation

DMS implements process separation to enhance security and performance by isolating privileged operations from client-facing services. This architecture ensures that:

• Client-facing operations (handled by dmsd frontend) remain non-privileged and user-facing

• Privileged operations (handled by dmspe backend) are executed in an isolated, secure process

• System integrity is maintained by limiting the attack surface and preventing unauthorized access to elevated permissions

The detailed architecture and process descriptions are provided in section "DMS Operational Modes".

Prerequisites

To operate the DMS, the underlying DOCA framework must be properly installed and configured based on your deployment target.

Host Deployment (Non-DPU)

When running DMS on the host server to manage connected PCIe devices, the following setup is required:

• The DOCA for Host package must be installed using either the doca-networking or doca-all profile.

• You must execute the install_dmspe.sh script to install the backend with the correct execution permissions.

• Only users within the dmsgroup are authorized to execute DMS commands. Add your user and apply the changes:

  Copy

  Copied!




  sudo usermod -a -G dmsgroup $USER
  newgrp dmsgroup


DPU Deployment (BlueField Arm)

When running DMS directly on the BlueField Arm cores, the necessary backend permissions are set automatically, so no installation script is required.

• A compatible DOCA image must be installed on the BlueField Arm processor.

• You must still ensure your user is a member of the dmsgroup to execute commands.

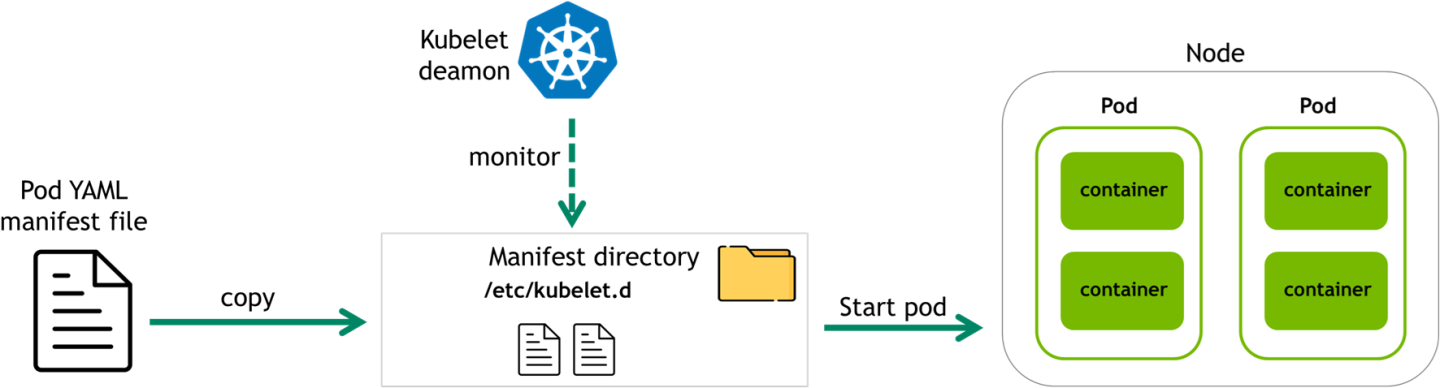

POD Deployment (Kubernetes)

When orchestrating DMS via Kubernetes, the user group requirements are handled automatically within the container environment.

• A Kubernetes cluster must be configured with a compatible container runtime (Docker or Kubelet).

• The POD must be deployed using the provided dms.yaml file.

• The container requires privileged access to interact with the underlying hardware devices.

DMS Daemon Launch Options

The dmsd frontend server can be launched automatically via SystemD or manually from the command line for custom authentication testing.

Option 1: SystemD Service (Recommended)

On the DPU, dmsd comes pre-installed with the BlueField BFB-Bundle and runs automatically as a systemd service bound to localhost:9339.

By default, the service uses PAM authentication. You can interact with it using the built-in dmscli wrapper, which defaults to the OS root password.

SystemD management commands:

• View current configuration:

  Copy

  Copied!




  systemctl cat dmsd.service


• Edit service flags (e.g., change auth mode):

  Copy

  Copied!




  sudo systemctl edit --full dmsd.service


• Apply changes and restart:

  Copy

  Copied!




  sudo systemctl daemon-reload && sudo systemctl restart dmsd.service


• Verify the process is running:

  Copy

  Copied!




  ps -ef | grep dms


Option 2: Manual Launch & Authentication Modes

When launching dmsd manually, you must define the authentication mode using the --auth flag. Below are the four supported operational modes, ranging from local testing to production-grade security.

Authentication Modes Overview

CLI Command Reference

Use the following server and client command templates to launch and interact with DMS in your chosen mode.




dmsd -bind_address 127.0.0.1:9339 -auth cert -tls_enabled=false





dmsc -a 127.0.0.1:9339 -i get --path /state/system/platform





dmsd -bind_address 0.0.0.0:9339 -auth pam -allowed_users root,admin -tls_enabled=false





dmsc -a <server_ip>:9339 -u root -i get --path /state/system/platform





dmsd -bind_address 0.0.0.0:9339 -auth credentials -username admin -password secret -tls_enabled=false





dmsc -a <server_ip>:9339 -u admin -i get --path /state/system/platform





dmsd -bind_address 0.0.0.0:9339 -auth cert -tls_ca /tmp/ca.crt -tls_cert /tmp/target.crt -tls_key /tmp/target.key





dmsc -a <server_ip>:9339 --tls-ca /tmp/ca.crt --tls-cert /tmp/client.crt --tls-key /tmp/client.key get --path /state/system/platform


Advanced Launch Configurations

The following examples demonstrate how to start the dmsd daemon manually for specialized environments, alternate authentication methods, and specific hardware targeting.

Shadow File Authentication (Remote Host)

This method allows for a zero-touch setup by reusing an existing OS user's credentials, reading the hashed password directly from the shadow file.




/opt/mellanox/doca/services/dms/dmsd \
  --bind_address <ip>:<port> \
  --auth shadow \
  --username my_username \
  --shadow /etc/shadow


Credentials with Inline Password (Localhost)

While standard credential modes prompt for a password interactively, you can explicitly pass it inline for automation scripts.




/opt/mellanox/doca/services/dms/dmsd \
  --bind_address localhost:9339 \
  --auth credentials \
  --username my_username \
  --password my_password


Targeting a Specific PCIe Device

If your host contains multiple NVIDIA DPUs or network devices, you must specify the exact PCIe address for the DMS daemon to bind to.




/opt/mellanox/doca/services/dms/dmsd \
  --bind_address localhost:9339 \
  --auth credentials \
  --username my_username \
  --password my_password \
  --target_pci 0000:08:00


Targeting Multiple PCIe Devices

You can manage multiple DPUs simultaneously from a single server instance by providing a comma-separated list of their PCIe addresses.




/opt/mellanox/doca/services/dms/dmsd \
  --bind_address localhost:9339 \
  --auth credentials \
  --username my_username \
  --password my_password \
  --target_pci 0000:08:00,0000:09:00


Security Best Practices

To ensure proper protection of your infrastructure, always adhere to the following guidelines:

DMS Server Flags (dmsd)

To view the complete list of flags dynamically, run dmsd --help.

General & Provisioning Flags

Authentication & Security Flags

Authentication Method Flags

The --auth <string> flag specifies one of the following three authentication methods, each with its own set of required flags:

Shadow

• Zero-touch setup – no need to create a dedicated DMS user (reuses existing OS user)

• The server reads the hashed password from the shadow file in real time for each client request

• Required flags: --username <string> and --shadow <string>

  • Example:

    Copy

    Copied!




    --auth shadow --username root --shadow /etc/shadow


• To disable authentication:

  Copy

  Copied!




  --noauth


Credentials

• Requires the admin to define a strong password.

• Required flags: --username <string> and optionally --password <string>

  • Example:

    Copy

    Copied!




    --auth credentials --username root --password 123456


• To prompt for password input interactively at startup, leave the --password flag empty.

• To disable authentication:

  Copy

  Copied!




  --noauth


Certificate (TLS)

• The most secure option, using Transport Layer Security (TLS) for both encryption and mutual authentication.

• Authentication is based on digital certificates, ensuring only trusted clients can connect.

  • Required flags:

    --auth cert

    --ca <path/to/ca.crt>

    --tls_key_file <path/to/target.key>

    --tls_cert_file <path/to/target.crt>

  • Example:

    Copy

    Copied!




    --auth cert --ca /path/to/certs/ca.crt --tls_key_file /path/to/certs/target.key --tls_cert_file /path/to/certs/target.crt


• To disable TLS:

  Copy

  Copied!




  --tls_enabled=false


Security Flags

TLS Encryption and Authentication

DMS uses TLS (Transport Layer Security) by default to secure communication. TLS is a widely adopted cryptographic protocol that provides the following guarantees:

• Encryption – Protects transmitted data from eavesdropping.

• Authentication – Verifies the identity of the server and optionally the client via digital certificates.

• Integrity – Ensures transmitted data is not tampered with.

TLS relies on a public/private key pair and a digital certificate issued by a Certificate Authority (CA). These elements ensure secure, authenticated communication.

DMS supports TLS for both gNMI and gNOI interfaces, and works with either self-signed or CA-signed certificates.

To enable TLS, both server and client must provide:

• --ca <string> – Path to the CA certificate used to validate the remote party’s certificate.

• --tls_cert_file <string> – Path to the public certificate presented during the TLS handshake.

• --tls_key_file <string> – Path to the corresponding private key used to sign the handshake and decrypt messages.

  Note

  The private key must be protected. If compromised, it can be used to impersonate the server or client.

TLS Communication Modes

Mutual TLS Authentication (mTLS)

Both the server and client present certificates and verify each other during the TLS handshake.




# Server:
/opt/mellanox/doca/services/dms/dmsd <flags> --auth cert \
  --ca /path/to/certs/client_ca.crt \
  --tls_cert_file /path/to/certs/target.crt \
  --tls_key_file /path/to/certs/target.key

# Client:
/opt/mellanox/doca/services/dms/dmsc <flags> \
  --tls-ca /path/to/certs/target_ca.crt \
  --tls-cert /path/to/certs/client.crt \
  --tls-key /path/to/certs/client.key <command>


Highlights:

• Provides the highest level of security.

• Ensures both sides are authenticated and trusted.

• All traffic is encrypted.

TLS (Server Authentication Only)

Only the server presents its certificate during the handshake. The client verifies the server but does not present a certificate.




# Server:
/opt/mellanox/doca/services/dms/dmsd <flags> --auth cert \
  --tls_cert_file /path/to/certs/target.crt \
  --tls_key_file /path/to/certs/target.key

# Client:
/opt/mellanox/doca/services/dms/dmsc <flags> \
  --tls-ca /path/to/certs/target_ca.crt \
  --skip-verify <command>


Highlights:

• Client authenticity is not verified.

• Use --skip-verify if a root CA is not provided.

• Traffic remains encrypted.

Insecure Mode (No TLS)

TLS is disabled entirely on both server and client. No encryption or authentication is performed.




# Server:
/opt/mellanox/doca/services/dms/dmsd <flags> --auth cert --tls_enabled=false

# Client:
/opt/mellanox/doca/services/dms/dmsc <flags> --insecure <command>


To achieve insecure communication (no encryption), configure:

• Server – use --tls_enabled=false param

• Client – use --insecure flag'

Highlights:

• Not recommended for production.

• Use only in fully isolated, trusted environments for testing or development.

Logging

DMS generates comprehensive logs for troubleshooting and system monitoring. Understanding exactly where these logs are stored and how they are generated is critical for maintaining system health.

Log Components and Locations

There is no single "end-to-end" log file for DMS. You must check the specific component logs based on your deployment type:

Example Log Rotation Configuration

To prevent the wrapper logs from filling your storage, save the following configuration to /etc/logrotate.d/dms:




/var/log/dms/*.log {
    daily
    rotate 7
    compress
    delaycompress
    missingok
    notifempty
    create 0644 root root
}


Configuration Persistency

DMS can automatically restore device configurations when the service restarts by utilizing the -init_config flag. This mechanism ensures that your infrastructure configurations persist reliably across service interruptions or scheduled restarts.

State Restoration Mechanism

1. When DMS receives gNMI Set requests, it automatically records the desired state to the specified init_config file.

   Note

   This behavior can be disabled using the -disable_recording_init_config flag.

2. On startup, the DMS daemon reads the init_config file and automatically applies all stored configurations.

This workflow ensures that device configurations are always restored to their last successfully configured state following a reboot or service restart.

Configuration File Characteristics

• The configuration file stores gNMI Set requests in standard JSON format.

• If the specified file does not exist at startup, DMS will automatically generate an empty JSON file ({}).

• The file is updated in real-time whenever a Set request is processed, keeping the persistent state synchronized with runtime changes.

Disabling Automatic Recording

If you need strict, immutable control over your startup configurations, you can prevent DMS from automatically recording new Set requests by passing the -disable_recording_init_config flag at launch.

This is useful when administrators want to manually curate the JSON configuration file, and it prevents runtime changes from surviving a service reboot.

Execution Example

To set up configuration persistency, launch the dmsd server and point the -init_config flag to your desired JSON file path.




dmsd -bind_address 0.0.0.0:9339 -auth pam -init_config /opt/mellanox/doca/services/dms/dms_config.json


Upon any subsequent restart, DMS will automatically apply the configurations saved in dms_config.json.

To see the full list of flags, use the help flag (i.e., dmsc --help, dmsc -h).

DMS Client Flags (dmsc)

General and security flags:

gNMI Command

The gRPC Network Management Interface (gNMI) is a standardized protocol used to configure and monitor network devices via gRPC and Protocol Buffers. It enables structured interaction using standardized models like OpenConfig.

Supported Core Commands

• Get – Retrieves real-time device data (e.g., operational state, configurations).
• Set – Modifies device configurations immediately.

• Capabilities – Queries the device’s capabilities, including supported models, versions, and encodings.

  Note

  DMS does not currently support the gNMI Subscribe command (streaming telemetry data).

Executing Get Requests

Get requests retrieve data in real-time without relying on a cache. You must provide the specific YANG XPath for the parameter you wish to query.

You can query exact parameters or request an entire subtree.

Syntax (querying a specific interface MTU):




/opt/mellanox/doca/services/dms/dmsc <flags> get --path /interfaces/interface[name=p0]/config/mtu


Example JSON response:




[
  {
    "source": "localhost:9339",
    "timestamp": 1712485149723248511,
    "time": "2024-04-07T10:19:09.723248511Z",
    "updates": [
      {
        "Path": "interfaces/interface[name=p0]/config/mtu",
        "values": {
          "interfaces/interface/config/mtu": "1500"
        }
      }
    ]
  }
]


Executing Set Requests

Set requests execute immediately, invoking the underlying OS tools to apply the configuration.

Syntax (updating MTU to 9216):




/opt/mellanox/doca/services/dms/dmsc <flags> set --update /interfaces/interface[name=p0]/config/mtu:::int:::9216


Example JSON response:




{
  "source": "localhost:9339",
  "time": "1970-01-01T00:00:00Z",
  "results": [
    {
      "operation": "UPDATE",
      "path": "interfaces/interface[name=p0]/config/mtu"
    }
  ]
}


Bulk Configurations via JSON

To apply multiple configurations simultaneously, you can pass a JSON file containing a list of commands using the --request-file flag.




/opt/mellanox/doca/services/dms/dmsc <flags> set --request-file req.json


Example req.json structure:




{
  "updates": [
    {
      "path": "/interfaces/interface[name=p0]/config/mtu",
      "value": 9216,
      "encoding": "uint"
    },
    {
      "path": "/interfaces/interface[name=p0]/config/enabled",
      "value": true,
      "encoding": "bool"
    }
  ]
}


Supported Get/Set Paths Reference

To dynamically list all supported paths on your specific device, run the following command:




/opt/mellanox/doca/services/dms/dmsc --file /opt/mellanox/doca/service/dms/yang path --types --descr


The tables below outline the primary configuration paths available across DMS.

• Configuration Paths (/config/...): Support both Get and Set operations.
• State Paths (/state/...): Support Get only (read-only operational data).
• Command Paths (/nvidia/command/...): Support Get only to trigger execution.

Core Interface Settings

Base paths prefix: /interfaces/interface[name=*].

Quality of Service (QoS)

Base paths prefix: /interfaces/interface[name=*]/nvidia/qos.

RoCE Configuration

Base paths prefix: /interfaces/interface[name=*]/nvidia/roce (unless marked global).

Congestion Control (CC) Settings

Base paths prefix: /interfaces/interface[name=*]/nvidia/cc (unless marked global).

System and Device Management

Base paths prefix: /nvidia.

gNOI Commands

gNOI (gRPC Network Operations Interface) is a protocol for operational tasks such as installing software, managing certificates, and troubleshooting. It complements gNMI by focusing on administrative and system-level functions.

Within DMSc, gNOI support is provided by the GNOIC project. For full documentation, refer to the GNOIC project documentation.

To invoke a gNOI command, run:




/opt/mellanox/doca/services/dms/dmsc -a localhost --port 9339 --tls-cert client.crt --tls-key client.key <command>


To use interactive mode with autocompletion, enter:




/opt/mellanox/doca/services/dms/dmsc prompt


OS Commands

The OS command suite facilitates the lifecycle management of device software, supporting the provisioning of DOCA images (BFB bundles) on BlueField DPUs and firmware updates for both DPUs and ConnectX NICs.

Install

This command transfers and authenticates the specified package file to the target device.

If the file already exists in the server’s image folder (default: /tmp/dms) with the expected version and extension, the server intelligently skips the transfer phase and proceeds directly to authentication.

Syntax examples:

• Install a BFB image:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os install --version 2_9_0 --pkg DOCA_2.9.0_Ubuntu.bfb


• Install a configuration file:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os install --version 0_0_1.cfg --pkg bf.cfg


• Install firmware:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os install --version 24_29_0046.fw --pkg fw-BlueField.bin


Activate

Deploys the staged BFB bundles or firmware to the active hardware.

The activate command deploys BFB bundles and/or firmware to the hardware.




/opt/mellanox/doca/services/dms/dmsc <flags> os activate --version <version_string>


Syntax examples:

• Activate all files matching a version prefix:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os activate --version 2_9_0


• Activate specific files by name (semicolon-separated):

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os activate --version "2_9_0.bfb;0_0_1.cfg;24_29_0046.fw"


• Auto-detect and install the appropriate firmware:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> os activate --version auto


Important activation behaviors:

• Auto mode: Using --version auto automatically triggers the mlnx-fw-updater.pl script, which detects the connected device type and installs the correct firmware version.
• Host requirement: Deploying BFB bundles is strictly supported only when the command is run from the host system.
• Automatic reset: Activating firmware automatically triggers a firmware reset upon completion.

Verify

Retrieves the currently installed firmware and BFB bundle versions from the target device.




/opt/mellanox/doca/services/dms/dmsc <flags> os verify


The response includes the firmware and BFB versions, separated by a semicolon:




+-----------------+---------------------------------------------------------------+-----------------------------+
|   Target Name   |                          Version                              | Activation Fail Msg         |
+-----------------+---------------------------------------------------------------+-----------------------------+
| 127.0.0.1:19999 | FW: 32.42.1000;BFB: bf-bundle-2.8.0-98_24.07-ubuntu-22.04_dev |                             |
+-----------------+---------------------------------------------------------------+-----------------------------+


System

Manage system-level state transitions, such as rebooting the BlueField Arm or firmware.

Reboot Status

Queries the target to determine if a reboot is currently in progress.




/opt/mellanox/doca/services/dms/dmsc <flags> system reboot-status [--reboot_status_check <mode>]


Reboot status check modes:

Reboot

Triggers a reboot of the device. This command is non-blocking and returns immediately to the client.




/opt/mellanox/doca/services/dms/dmsc <flags> system reboot --delay <seconds> [--subcomponent <component>] [--method <type>]


This command is non-blocking and returns immediately after it is issued.

Factory-reset

Performs a factory reset on the target node by restoring all PFs to their default out-of-the-box configurations.

Standard execution:




/opt/mellanox/doca/services/dms/dmsc <flags> factory-reset start


Alias execution:




/opt/mellanox/doca/services/dms/dmsc <flags> reset start


File

The file command suite performs operational file transfers and metadata queries directly on the target device.

Stat

Retrieves metadata (such as permissions, size, and modification dates) for a specified file or directory.

• Single file query:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> file stat --path /path/to/file


• Directory query with recursive listing:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> file stat --path /path/to/dir --recursive


Example output:




+----------------+---------------------+----------------------+------------+------------+------+
|  Target Name   |        Path         |     LastModified     |    Perm    |   Umask    | Size |
+----------------+---------------------+----------------------+------------+------------+------+
| 127.0.0.1:9339 | /path/to/dir/file_1 | 2025-04-10T09:05:37Z | -rw-r--r-- | -----w--w- | 0    |
|                | /path/to/dir/file_2 | 2025-04-10T09:05:37Z | -rw-r--r-- | -----w--w- | 0    |
+----------------+---------------------+----------------------+------------+------------+------+


Get

Streams the contents of a file from the remote target device down to the client.




/opt/mellanox/doca/services/dms/dmsd <flags> --allow_list_read <dir1>,<dir2>,<dir3>


Client command:




/opt/mellanox/doca/services/dms/dmsc <flags> file get --file /tmp/debug/<file_to_get>


Put

Streams a file from the client up to the remote target device.




/opt/mellanox/doca/services/dms/dmsd <flags> --allow_list_write <dir1>,<dir2>,<dir3>


Client command:




/opt/mellanox/doca/services/dms/dmsc <flags> file put --file /tmp/debug/file_to_send --dst /tmp/output/path_on_remote_host


mlxconfig

The mlxconfig suite enables deep hardware configuration by allowing administrators to set and retrieve native device parameters.

Set

Applies KEY=VALUE parameter pairs to the target device.

Examples:

• Setting a single param:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> mlxconfig set LINK_TYPE_P1=1


• Setting multiple parameters:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> mlxconfig set LINK_TYPE_P1=1 LINK_TYPE_P2=1


Query

Retrieves the configuration parameter values from the device.

Examples:

• Standard query (returns the nextboot value):

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> mlxconfig query LINK_TYPE_P1 LINK_TYPE_P2


• Verbose query (Returns default, current, and nextboot values):

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> mlxconfig query -v LINK_TYPE_P1


Reset

Restores all mlxconfig parameters to their default values.




/opt/mellanox/doca/services/dms/dmsc <flags> mlxconfig reset


Containerz

The Containerz suite supports the remote management and monitoring of containers on either the host or the DPU. Behavior adapts automatically based on whether the server is using the Docker or Kubelet backend.

This deployment model follows the DOCA container methodology described in the DOCA Container Deployment Guide .

Container Lifecycle Management

These operations control the execution states of your containers.

• Launch a container.

  • In Docker mode, the image must exist locally:

    Copy

    Copied!




    /opt/mellanox/doca/services/dms/dmsc <flags> containerz container start --image <image_name>


  • In Kubelet mode, provide the path to the pod's YAML manifest:

    Copy

    Copied!




    /opt/mellanox/doca/services/dms/dmsc <flags> containerz container start --image /path/to/yaml/file.yaml


• Display all currently running containers:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz container list


• Halt a running container but leave it available for restart:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz container stop --instance <container_name>


  Note

  In Kubelet mode, this deletes the manifest YAML from the directory.

• Stop and permanently delete the specified container:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz container remove --instance <container_name>


Image Management

These commands handle the staging, pushing, and removal of container images on the target device.

• Download an image from a remote registry directly to the device:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz image pull --image ubuntu


• Stream a local container image (in .tar format) from the client to the target device over gRPC:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz image push --file /path/to/tarfile.tar


• Display all container images currently stored on the device:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz image list


• Delete a specific container image from the device's storage:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz image remove --image ubuntu


Volume Operations

Manages persistent storage volumes mapped to your containers.

• Create a new named storage volume:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz volume create --name my_volume


• Display all named volumes and their current mount points:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz volume list


• Delete a specific volume by its name:

  Copy

  Copied!




  /opt/mellanox/doca/services/dms/dmsc <flags> containerz volume remove --name my_volume
