DOCA PCC

This guide provides an overview and configuration instructions for DOCA Programmable Congestion Control (PCC) API.

The DOCA PCC library provides a high-level programming interface that allows users to implement their own customized congestion control (CC) algorithm , facilitating efficient management of network congestion in their applications.

The DOCA PCC library provides an API to:

  • Configure probe packets to send and receive

  • Get the CC event/packet and access its fields

  • Set a rate limit for a flow

  • Maintain a context for each flow

  • Initiate and configure CC algorithms

  • Obtain request packets arriving from the network and setup response packets in return

This library uses the NVIDIA® BlueField®-3 Platform hardware acceleration for CC management, while providing an API that simplifies hardware complexity, allowing users to focus on the functionality of the CC algorithm.

DOCA PCC-based applications can run either on the host machine or on the NVIDIA® BlueField®-3 Platform (or later) target.

Info

Currently, DOCA PCC is only supported for ETHERNET link type.

To enable DOCA PCC RP:

  1. Run the following on the host/VM:

    Copy
    Copied!


    mlxconfig -d <mlx_device> -y s USER_PROGRAMMABLE_CC=1

  2. Perform graceful shutdown then power cycle the host.

To enable DOCA PCC NP:

  1. Run the following on the host/VM

    Copy
    Copied!


    mlxconfig -d <mlx_device> -y s PCC_INT_EN=0

  2. Perform graceful shutdown then power cycle the host.

Note

Configuring PCC_INT_EN to 1 blocks the creation of DOCA PCC NP context and enables legacy NP solution. In addition, it only supports DOCA PCC RP context to set Congestion Control Message After Drop (CCMAD) probe packet format.

If IFA2.0 support is needed, user needs to enable DOCA PCC RP and DOCA PCC NP on all nodes of the cluster.

Note

If running from the host in NIC mode, users must have PRIVILIGED permission to configure the above parameters. To check privileging level, run:

Copy
Copied!


mlxprivhost -d <mlx_device> q

The DPACC tool is used to compile and link user algorithm and device code with the DOCA PCC device library to get applications that can be loaded from the host program .

DPACC is bundled as part of the DOCA SDK installation package. For more information on DPACC, refer to NVIDIA DOCA DPACC Compiler.

Changes in 2.9.0

Added

doca_pcc.h:

  • doca_pcc_cap_is_ccmad_custom_header_supported(const struct doca_devinfo *devinfo);

  • doca_pcc_rp_set_ccmad_custom_header_size(struct doca_pcc *pcc, uint32_t probe_format_slot, uint8_t header_size);

  • doca_pcc_rp_set_ccmad_custom_header_location(struct doca_pcc *pcc, uint32_t probe_format_slot, doca_pcc_ccmad_custom_header_loc_t header_loc);

  • doca_pcc_cap_is_probe_priority_change_supported(const struct doca_devinfo *devinfo);

  • doca_pcc_rp_set_ccmad_probe_priority_change_en(struct doca_pcc *pcc, uint32_t probe_format_slot, bool enable);

doca_pcc_dev_common.h:

  • doca_pcc_dev_get_logical_ports(void);

  • doca_pcc_dev_get_port_planes(uint32_t portid);

  • doca_pcc_dev_get_port_speed(uint32_t portid);

  • doca_pcc_dev_user_port_info_changed(uint32_t portid) __attribute__((weak));

doca_pcc_np_dev.h:

  • doca_pcc_np_dev_get_port_num(const struct doca_pcc_np_dev_request_packet *input);

doca_pcc_dev.h:

  • doca_pcc_dev_custom_header_set(doca_pcc_dev_algo_ctxt_t *algo_ctxt, doca_pcc_dev_event_t *event, uint32_t *header, uint32_t header_size, uint32_t wait_completed);

  • doca_pcc_dev_probe_prio_set(doca_pcc_dev_algo_ctxt_t *algo_ctxt, doca_pcc_dev_event_t *event, uint32_t use_custom_prio, uint32_t prio, uint32_t wait_completed);

doca_pcc_dev_event.h:

  • doca_pcc_dev_get_ttl_hoplimit(doca_pcc_dev_event_t *event);

  • doca_pcc_dev_get_flow_qpn(doca_pcc_dev_event_t *event);

  • doca_pcc_dev_get_rtt_np_rx_byte_counter(doca_pcc_dev_event_t *event);

  • doca_pcc_dev_get_rtt_resp_version(doca_pcc_dev_event_t *event);

  • doca_pcc_dev_get_rtt_resp_port_type(doca_pcc_dev_event_t *event);

Updated

  • enum doca_pcc_dev_nic_counter_ids_t → enum doca_pcc_dev_nic_port_counter_types_t;

  • struct mlnx_cc_roce_tx_t :

    Copy
    Copied!


    struct mlnx_cc_roce_tx_extra_t { /* Little Endian */ uint32_t flow_qpn:24; /* flow qp number */ /* access: RW */ uint32_t reserved_at_0:8; /* access: RW */  /* --------------------------------------------------------- */ };   struct mlnx_cc_roce_tx_t { /* Little Endian */ uint32_t first_timestamp; /* first coalesced event timestamp */ /* access: RW */ /*----------------------------------------------------------*/ struct mlnx_cc_roce_tx_cntrs_t cntrs; /* tx counters */ /* access: RW */ /*----------------------------------------------------------*/ - uint32_t flow_qpn:24; /* flow qp number */ - uint32_t reserved_at_40:8; + struct mlnx_cc_roce_tx_extra_t extra; /* access: RW */ /*----------------------------------------------------------*/ unsigned char reserved_at_60[4]; /* access: RW */  /* --------------------------------------------------------- */ };

  • Removed struct mlnx_cc_results_t and replaced with struct doca_pcc_dev_results:

    Copy
    Copied!


    /** * @brief CC algorithm results */ typedef struct doca_pcc_dev_results { uint32_t rate; /**< Tx rate of the CC flow */ union { uint32_t rtt_req; /**< rtt request bit */ uint32_t probe_req; /**< probe request bit */ }; uint32_t probe_type_slot; /**< probe type slot to indicate which probe to send */ uint32_t credits; /**< Num of credits allowed for the CC flow */ uint32_t reload_credits; /**< Command to reload credits to the CC flow */ } doca_pcc_dev_results_t;

The library requires firmware version 32.38.1000 and higher.

DOCA PCC comprises three main components which are part of the DOCA SDK installation package.

Host Library

The host library offers a unified interface for managing the DOCA PCC context configuration.

As part of the control path, the host library integrates passively within the application, orchestrating congestion control activities without directly handling data transmission.

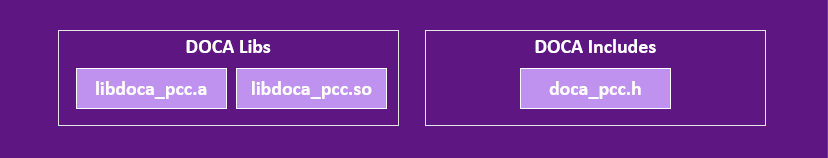

Host/device library and header files:

host-dpu-library-and-header-files-version-1-modificationdate-1709127880633-api-v2.png


Device Libraries

The DOCA PCC context assumes one of two roles:

  • Reaction point (RP): Monitors network conditions actively, dynamically adjusting data transmission rates to alleviate congestion promptly. RP context is global per NIC.

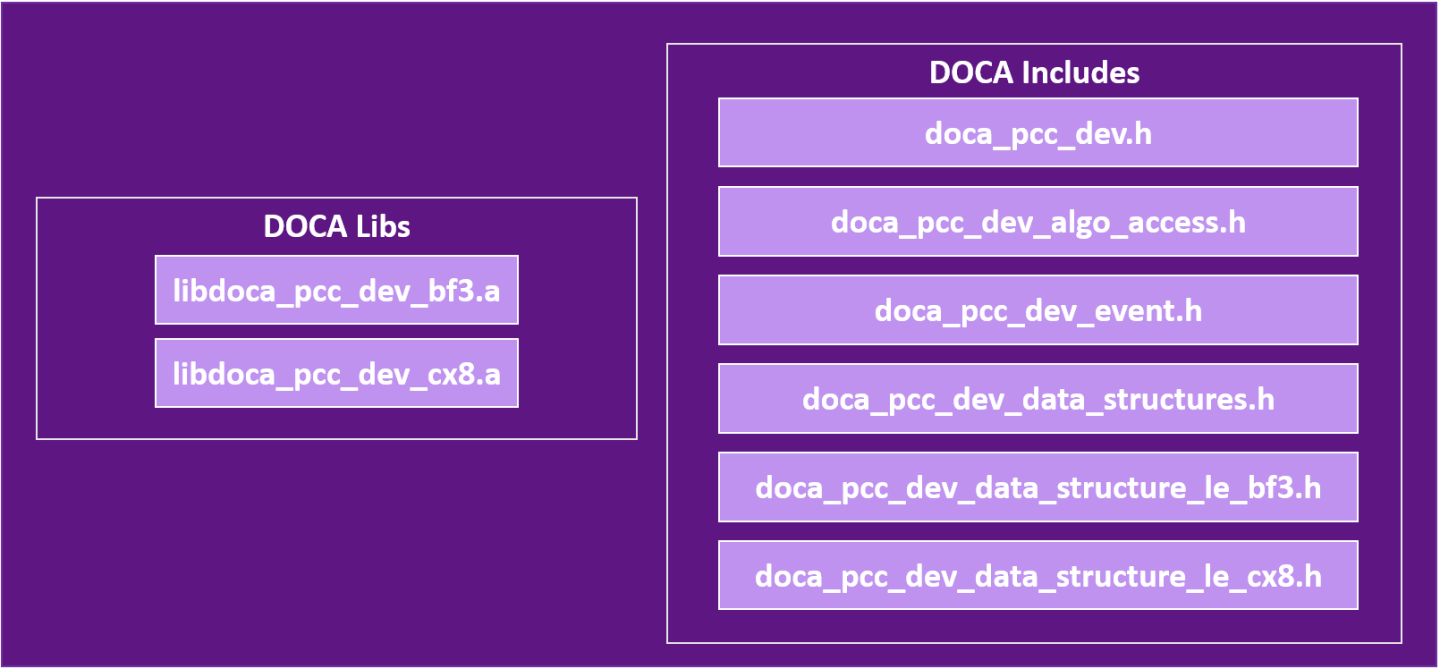

    Device library and header files:


  • Notification point (NP): Passively receives congestion notifications from external sources, processing them intelligently to facilitate informed decisions within the application. NP context is global per e-switch owner.

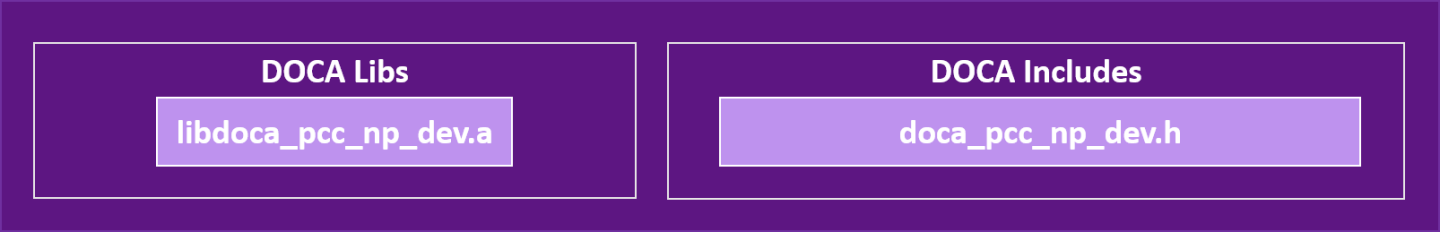

    Device library and header files:

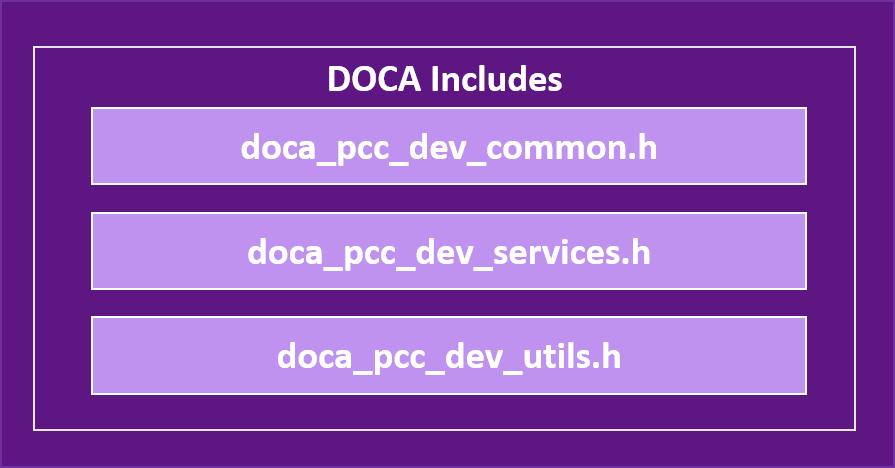

Both RP and NP device libraries share common headers:


Currently, the device library and the user algorithm are implemented and managed over the BlueField's data-path accelerator (DPA) subsystem.

For more info on DPA, refer to DPA Subsystem.

Development Flow

DOCA enables developers to program the congestion control algorithm into the system using the DOCA PCC library.

The following are the required steps to start programming:

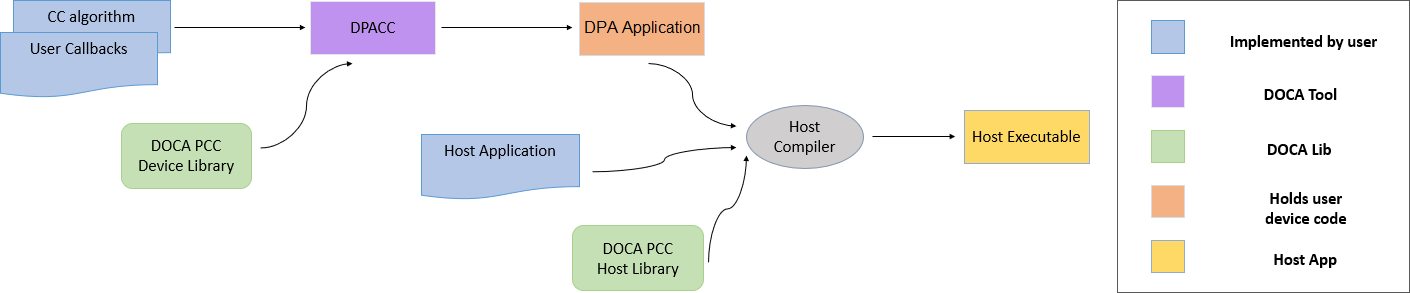

  1. Implement CC algorithms and probe packet handling using the API provided by the device header files.

  2. Implement the user callbacks defined by the library for DataPath:

    • For RP: doca_pcc_dev_user_init(), doca_pcc_dev_user_set_algo_params(), doca_pcc_dev_user_algo().

    • For NP: doca_pcc_dev_np_user_packet_handler()

  3. Use DPACC to build a DPA application (i.e., a host library which contains an embedded device executable). Input for DPACC are the files containing the implementation of the previous steps.

  4. Build host executable using a host compiler. Inputs for the host compiler are the DPA application generated in the previous step and the user application host source files.

  5. In the host executable, create and start a DOCA PCC context which is set with the DPA application containing the device code.


For a more descriptive example, refer to NVIDIA DOCA PCC Application Guide.

System Design

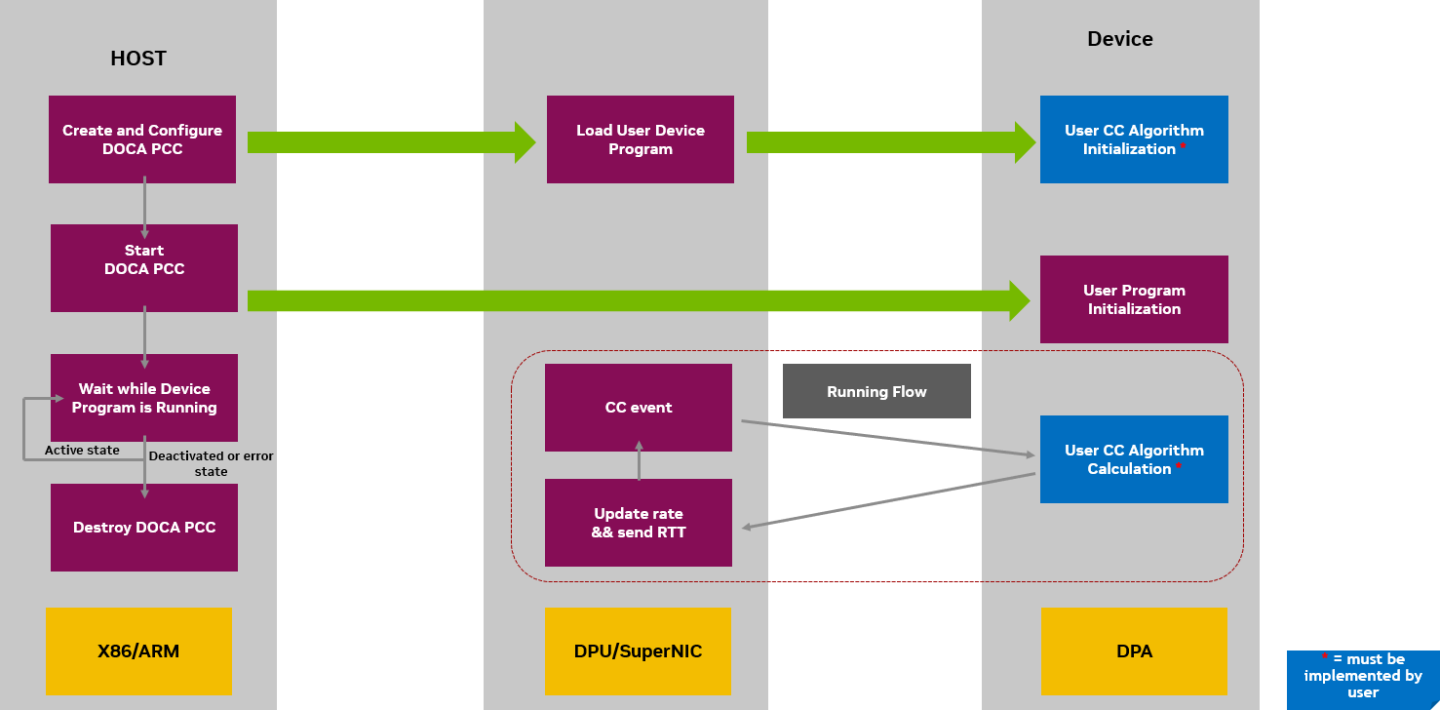

DOCA PCC flow for implementing an RP program:

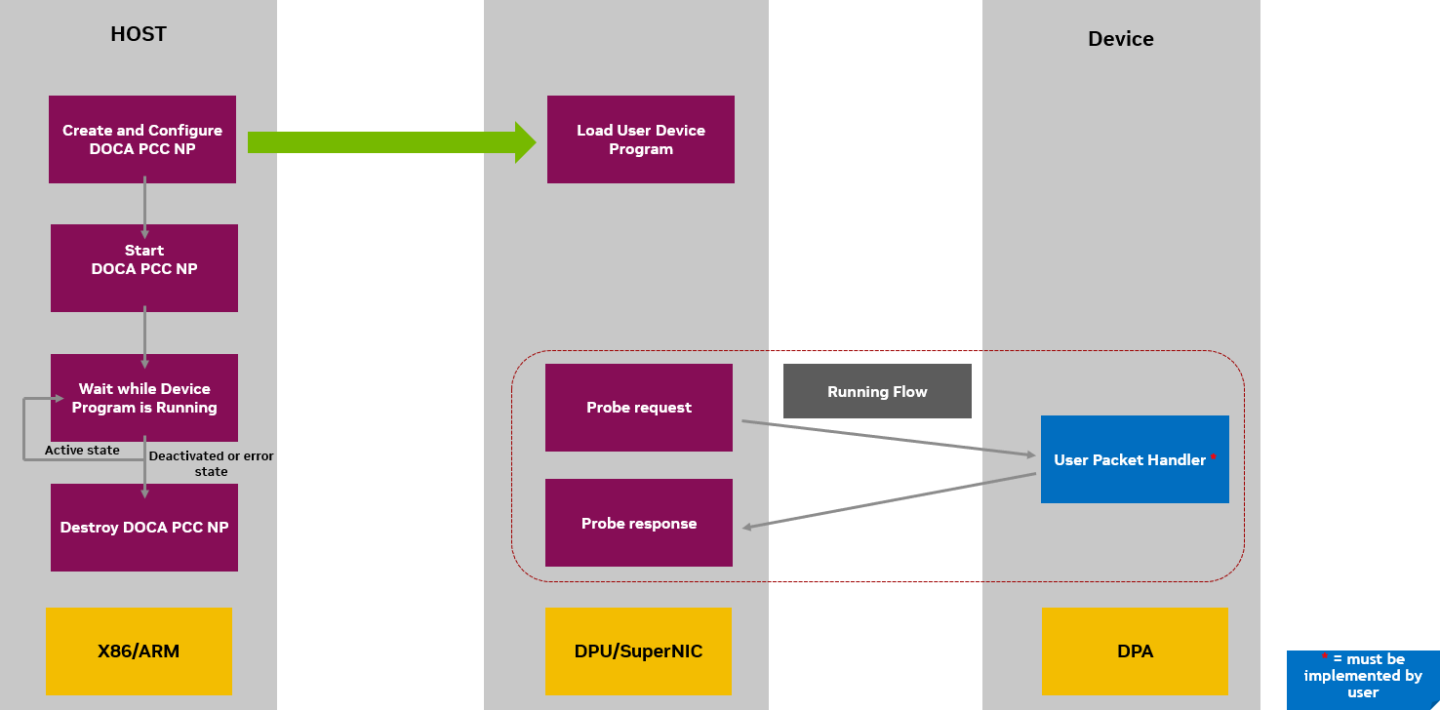

DOCA PCC flow for implementing an NP program:



For the library API reference, refer to PCC API documentation in the NVIDIA DOCA Library APIs.

The following sections provide additional details about the library API.

Host API

The host library API consists of calls to set the PCC context attributes and observe availability of the process.

Selecting and Opening DOCA Device

To perform PCC operations, a device must be selected. To select a device, users may iterate over all DOCA devices using doca_devinfo_list_create() and check whether the device supports the desired PCC role either via doca_devinfo_get_is_pcc_supported() for RP, or doca_pcc_np_cap_is_supported() for NP.

Setting Up and Starting DOCA PCC Context

After selecting a DOCA device, a PCC context can be created.

As described in the Architecture section, The DOCA PCC library provides APIs to leverage Reaction Points (RP) and Notification Points (NP) to implement programmable congestion control strategies.

Call doca_pcc_create() to create a DOCA PCC RP context, and doca_pcc_np_create() to create a DOCA PCC NP context.

Afterwards, the following attributes must be set for the PCC context:

  • Context app – the name of the DPA application compiled using DPACC, consisting of the device algorithm and code. This is set using the call doca_pcc_set_app().

  • Context threads – the affinity of DPA threads to be used to handle CC events. This is set using the call doca_pcc_set_thread_affinity(). The number of threads to be used must be constrained between the minimum and maximum number of threads allowed to run the PCC process (see doca_pcc_get_min_num_threads()and doca_pcc_get_max_num_threads()). The availability and usage of the threads for PCC is dependent on the complexity of the CC algorithm, link rate, and other potential DPA users.

    Note

    Users can manage DPA threads in the system using EU pre-configuration with the dpaeumgmt tool. For more information, refer to NVIDIA DOCA DPA Execution Unit Management Tool.

After setting up the context attributes, the context can be started using doca_pcc_start(). Starting the context initiates the CC algorithm supplied by the user.

Configuring Probe Packets

The DOCA PCC library provides APIs to configure the probe packet settings to tailor congestion control behaviors according to specific network conditions.

The probe packet serves to probe the network for congestion and gather essential feedback for congestion control algorithms.

The DOCA PCC Library supports the following probe packet types:

  • CCMAD – Provides information about the network's round-trip time so the algorithm can detect and adapt to congestion proactively

  • IFA1 – In-band Flow Analyzer 1 packets provide in-band congestion feedback for proactive congestion control

  • IFA2 – In-band Flow Analyzer 2 packets offer an alternative method for in-band congestion feedback, optimized for specific network environments

Configuring Dedicated Fields for Different Probe Types

The DOCA PCC library provides APIs to configure specific fields in different supported probe packet types.

  • IFA1 – support to configure probe marker

  • IFA2 – support to configure gns and hop limit

Configuring Remote NP Handler

To enable Reaction Point contexts to interact with remote Notification Point contexts, the DOCA PCC library provides an API to set the expected remote handler type.

When the DOCA PCC RP process expects CCMAD probe packet responses from a DOCA PCC NP process, it should set it as so using the API doca_pcc_rp_set_ccmad_remote_sw_handler(). If not set, the DOCA PCC RP process expects that no remote DOCA PCC NP process is activated, and that responses are handled by the remote node's hardware. Note that if using other probe types than CCMAD, probe packet responses are always expected to be generated from a remote DOCA Notification Point process.

Debuggability

The DOCA PCC library provides a set of debugging APIs to allow the user to diagnose and troubleshoot any issues on the device, as well as accessing real-time information from the running application:

  • doca_pcc_set_dev_coredump_file() – API to set a filename to write crash data and core dump into should a fatal error occur on the device side of the application. The data written into the file would include a memory snapshot at the time of the crash, which would contain information instrumental in pinpointing the cause of a crash (e.g., the program's state, variable values, and the call stack).

  • doca_pcc_set_trace_message() – API to enable tracing on the device side of the application by setting trace message formats that can be printed from the device. The tracer provided by the library is of high-frequency and is designed to not have significant impact on the application's performance. This API can help the user to monitor and gain insight into the behavior of the running device algorithm, identify performance bottlenecks, and diagnose issues, w ithout incurring any notable performance degradation.

  • doca_pcc_set_print_buffer_size() – API to set the buffer size to be printed by the print API provided by the device library.

Device Mailbox

The DOCA PCC library provides a set of APIs for sending and receiving messages through a mailbox. This service allows communication between the host and device :

  • doca_pcc_set_mailbox() – API to set the mailbox attributes for the process .

  • doca_pcc_mailbox_get_request_buffer() and doca_pcc_mailbox_get_response_buffer() – API to get the buffers with which the communication will be handled . User can set the request he wants to send to the device, and get a response back.

  • doca_pcc_mailbox_send() – API to send the mailbox request to the device. This is a blocking call which invokes a callback on the device doca_pcc_dev_user_mailbox_handle() which user can handle.

High Availability

The DOCA PCC library provides high availability, allowing fast recovery should the running PCC process malfunction. High availability can be achieved by running multiple PCC processes in parallel.

When calling doca_pcc_start(), the library registers the process with the BlueField firmware such that the first PCC process to be registered becomes the ACTIVE PCC process (i.e., actually runs on DPA and handles CC events).

The other processes operate in STANDBY mode. If the ACTIVE process stops processing events or hits an error, the firmware replaces it with one of the standby processes, making it ACTIVE.

The defunct process should call doca_pcc_destroy() to free its resources.

The state of the process may be observed periodically using doca_pcc_get_process_state(). A change in the state of the process returns the call doca_pcc_wait().

The following values describe the state of the PCC process at any point:

Copy
Copied!


typedef enum { DOCA_PCC_PS_ACTIVE = 0, /**< The process handles CC events (only one process is active at a given time) */ DOCA_PCC_PS_STANDBY = 1, /**< The process is in standby mode (another process is already ACTIVE)*/ DOCA_PCC_PS_DEACTIVATED = 2, /**< The process was deactivated by NIC FW and should be destroyed */ DOCA_PCC_PS_ERROR = 3, /**< The process is in error state and should be destroyed */ } doca_pcc_process_state_t;

Device API

The device library API consists of calls to setup the CC algorithm to handle CC events arriving on hardware.

Counter Sampling

The device libraries APIs provide an API to sample the NIC bytes counters. These counters help monitor the amount of data transmitted and received through the NIC.

The user can prepare the list of counters to read using doca_pcc_dev_nic_counters_config() and sample the new counters values with the call doca_pcc_dev_nic_counters_sample().

It is recommended to configure the counters in the user callback doca_pcc_dev_user_port_info_changed() as it indicates the port state to sample counters from.

Algorithm Access

The Reaction Point (RP) device library API provides a set of functions to initiate and identify the different CC algorithms.

The DOCA PCC library is designed to support more than one PCC algorithm. The library comes with a default algorithm which can be used fully or partially by the user using doca_pcc_dev_default_internal_algo() , alongside other CC algorithms supplied by the user . This can be useful for fast comparative runs between the different algorithms. Each algorithm can run on a different device port using doca_pcc_dev_init_algo_slot() .

The algorithm can supply its own identifier, initiate its parameter (using doca_pcc_dev_algo_init_param()), counter (using doca_pcc_dev_algo_init_counter()), and metadata base (using doca_pcc_dev_algo_init_metadata()).

Events

The RP device library API provides a set of optimized CC event access functions. These functions serve as helpers to build the CC algorithm and to provide runtime data to analyze and inspect CC events arriving on hardware.

Utilities

The device library APIs provide a set of optimized utility macros that are set to support programming the CC algorithm. Such utilities are composed of fixed-point operations, memory space fences, and more.

User Callbacks

The device libraries API consists of specific user callbacks used by the library to initiate and run the CC algorithm and handle input and output packets. These callbacks must be implemented by the user and, to be part of the DPA application, compiled by DPACC to provide to the DOCA PCC context.

The set of callbacks to be implemented for RP:

  • doca_pcc_dev_user_init() – called on PCC process load and should initialize the data of all user algorithms

  • doca_pcc_dev_user_algo() – entry point to the user algorithm handling code

  • doca_pcc_dev_user_set_algo_params() – called when the parameter change is set externally

The set of callbacks to be implemented for NP:

  • doca_pcc_dev_np_user_packet_handler() – called on probe packets arrival
