SNAP-4 Service Advanced Features

RPC log history (enabled by default) records all the RPC requests (from snap_rpc.py and spdk_rpc.py) sent to the SNAP application and the RPC response for each RPC requests in a dedicated log file, /var/log/snap-log/rpc-log. This file is visible outside the container (i.e., the log file's path on the DPU is /var/log/snap-log/rpc-log as well).

The SNAP_RPC_LOG_ENABLE env can be used to enable (1) or disable (0) this feature.

SR-IOV configuration depends on the kernel version and must be handled carefully to ensure device visibility and system stability across both hypervisor and DPU orchestrators.

To ensure a safe and stable SR-IOV setup, follow these steps:

1. Preconfigure VF controllers on the DPU – Before configuring SR-IOV on the host, ensure that the DPU is properly configured with all required VF controllers already created and opened.

   • VF functions are always visible and configurable on the DPU side. Use the following command to verify:

     Copy

     Copied!




     snap_rpc.py emulation_function_list --all


   • Confirm that the configuration meets your requirements.

     • Check the number of resources allocated for the PF, specifically MSIX and queues (queried using snap_rpc.py virtio_blk_controller_list RPC output, field free_queues and free_msix ) are enough to satisfy your needs for all underlying VFs.

     • Use dynamic MSIX if needed and supported.

   • Once host-side configuration begins, further modifications may not be possible.

2. Disable autoprobing with sriov_drivers_autoprobe=0 – In deployments with many virtual devices, autoprobing must be disabled to ensure stable device discovery. Failing to disable autoprobing may result in:

   • Incomplete device visibility

   • Missing virtual disks

   • System hangs during initialization

   • Unreliable behavior in large-scale environments (more than 100 VFs)

     Tip

     Recommended configuration for large-scale deployments:

     • Disable autoprobe:

       Copy

       Copied!




       echo 0 > /sys/bus/pci/devices/<BDF>/sriov_drivers_autoprobe


     • Manually bind the VFs to drivers using tools such as driverctl, or by writing to bind/unbind in sysfs.

3. Configure SR-IOV on the host – For small-scale deployments (fewer than 100 VFs), use the sriov_totalvfs entry:

   Copy

   Copied!




   echo <number_of_vfs> > /sys/bus/pci/devices/<BDF>/sriov_totalvfs


   For newer drivers, use:

   Copy

   Copied!




   echo <number_of_vfs> > /sys/bus/pci/devices/<BDF>/sriov_numvfs


   Note

   After SR-IOV configuration, no disks appear in the hypervisor by default. Disks are only visible inside VMs once the corresponding PCIe VF is assigned to the VM via a virtualization manager (e.g., libvirt, VMware). To use the device directly from the hypervisor, manually bind the VF to the appropriate driver.

Additional notes:

• Hot-plugged PFs do not support SR-IOV.

• For deployments requiring more than 127 VFs, add the following kernel parameter to the host’s boot command line:

  Copy

  Copied!




  pci=assign-busses


  Without this, the host may log errors such as:

  Copy

  Copied!




  pci 0000:84:00.0: [1af4:1041] type 7f class 0xffffff
  pci 0000:84:00.0: unknown header type 7f, ignoring device


  These errors prevent the virtio driver from probing the device.

PCI hotplug functions allow the addition or removal of PCI devices from a running system without requiring a machine shutdown or interrupting operations. This technology relies on hardware and software support to isolate individual slots, manage power and control signals, and ensure proper power sequencing during device insertion or removal. When a device is hotplugged, the operating system's hotplug service handles quiescing the device driver, controlling the physical slot, and managing power states while the bus remains active.

SNAP enables dynamic hot-plugging and hot-unplugging of PCIe functions at runtime via dedicated RPCs (see section "Hot-pluggable PCIe Functions Management"). Once a PCIe function is hotplugged, it persists in the host's PCIe device list until it is explicitly unplugged via RPC or a firmware reset occurs. This persistence is maintained even if the SNAP process terminates.

Two-step PCIe Hotplug

The two-step PCIe hotplug method divides the process into two distinct phases:

1. PCIe function creation (the function is accessible within the DPU application but remains hidden from the host OS/kernel).

2. PCIe function exposure to the host.

Symmetrically, hot-unplugging involves hiding the function from the host before destroying it.

A primary advantage of this approach is the ability to pre-configure a controller on the function prior to exposing it to the host driver. Users are required to create a controller to initiate the host exposure phase.

Sync vs. Async Hotplug Operations

Exposing a new PCIe function involves notifying the host and awaiting its response. SNAP provides two modes for this operation, controlled via the --wait_for_done option:

• Synchronized hotplug – The RPC blocks until the host acknowledges the action and updates its PCIe function list, or until the host is determined to be temporarily unavailable.

• Asynchronized hotplug – The RPC does not block. The user must actively validate the function's hotplug state using the emulation_functions_list RPC to check for host acceptance.

Host Awareness

During periods such as OS reboots, the host may temporarily be unable to accept new PCIe functions. SNAP offers two modes to handle these scenarios, configurable via the --mode parameter:

• Host-aware mode (recommended) – The device checks the host's state and takes it into consideration. If the host is unready, the firmware blocks the command and returns an RPC error. Users must manually retry the operation if a failure occurs.

• Host-unaware mode – The operation proceeds regardless of the host's state. The user is responsible for ensuring the PCI enumeration process completes successfully and avoiding undesired behaviors, as the firmware will not block the command.

Attention Button

Because the Linux Virtio PCI driver stack does not support the surprise removal of devices, ungraceful removal can cause the host PCI subsystem to repeatedly attempt device recovery (like resetting the device and reprogramming MSI-X vectors) even after it is gone.

The Attention Button feature, defined in the PCIe specification, enables a graceful hot-plug/hot-unplug sequence. When utilized via the host_aware_ab mode, all state transitions are intentionally delayed by 5 seconds to allow the host OS time to react to the corresponding PCIe events.

Legacy ("One-step") PCIe Hotplug

The deprecated legacy mechanism uses a single-step "create-and-expose" flow where the emulation function is instantiated on the DPU and immediately presented to the host in one RPC. This tight coupling means the function's lifecycle is directly bound to host enumeration without any intermediate hidden state.

This legacy approach has several structural limitations:

• The controller cannot be fully configured, tested, and bound to backing storage before being exposed to the host.

• Failures in host enumeration translate directly into RPC failures or undefined host behavior, as the operation cannot be retried on a hidden function.

• Functions cannot be hidden from the host for maintenance, migration, or gradual rollout while keeping the emulation object alive.

• It lacks options for selecting advanced host-awareness settings or the Attention Button flow.

SNAP-direct allows SNAP applications to transfer data directly from the host memory to remote storage without using any staging buffer inside the DPU.

SNAP enables the feature according to the SPDK BDEV configuration only when working against an SPDK NVMe-oF RDMA block device.

To enable zero copy, set the environment variable (as it is enabled by default):




SNAP_RDMA_ZCOPY_ENABLE=1


For more info refer to SNAP-4 Service Environment Variables.

NVMe/TCP Zero Copy is implemented as a custom NVDA_TCP transport in SPDK NVMe initiator, and it is based on a new XLIO socket layer implementation.

The implementation is different for Tx and Rx:

• The NVMe/TCP Tx Zero Copy is similar between RDMA and TCP in that the data is sent from the host memory directly to the wire without an intermediate copy to Arm memory

• The NVMe/TCP Rx Zero Copy allows achieving partial zero copy on the Rx flow by eliminating copy from socket buffers (XLIO) to application buffers (SNAP). But data still must be DMA'ed from Arm to host memory.

To enable NVMe/TCP Zero Copy, use SPDK v22.05.nvda --with-xlio (v22.05.nvda or higher).

To enable SNAP TCP XLIO Zero Copy:

1. SNAP container: Set the environment variables and resources in the YAML file to request 6G of hugepages:

   Copy

   Copied!




   resources:
     requests:
       memory: "4Gi"
       cpu: "8"
     limits:
       hugepages-2Mi: "6Gi"
       memory: "6Gi"
       cpu: "16"

   ## Set according to the local setup
   env:
     - name: APP_ARGS
       value: "--wait-for-rpc"
     - name: SPDK_XLIO_PATH
       value: "/usr/lib/libxlio.so"


2. SNAP sources: Set the environment variables and resources in the relevant scripts

   1. In run_snap.sh, edit the APP_ARGS variable to use the SPDK command line argument --wait-for-rpc:

      run_snap.sh

      Collapse Source

      Copy

      Copied!




      APP_ARGS="--wait-for-rpc"


   2. In set_environment_variables.sh, uncomment the SPDK_XLIO_PATH environment variable:

      set_environment_variables.sh

      Collapse Source

      Copy

      Copied!




      export SPDK_XLIO_PATH="/usr/lib/libxlio.so"





[dpu] spdk_rpc.py bdev_nvme_set_options --transport-ack-timeout 12


Expose an NVMe-oF subsystem with one namespace by using a TCP transport type on the remote SPDK target.




[dpu] spdk_rpc.py sock_set_default_impl -i xlio
[dpu] spdk_rpc.py framework_start_init
[dpu] spdk_rpc.py bdev_nvme_set_options --transport-ack-timeout 12
[dpu] spdk_rpc.py bdev_nvme_attach_controller -b nvme0 -t nvda_tcp -a 3.3.3.3 -f ipv4 -s 4420 -n nqn.2023-01.io.nvmet
[dpu] snap_rpc.py nvme_subsystem_create --nqn nqn.2023-01.com.nvda:nvme:0
[dpu] snap_rpc.py nvme_namespace_create -b nvme0n1 -n 1 --nqn nqn. 2023-01.com.nvda:nvme:0 --uuid 16dab065-ddc9-8a7a-108e-9a489254a839
[dpu] snap_rpc.py nvme_controller_create --nqn nqn.2023-01.com.nvda:nvme:0 --ctrl NVMeCtrl1 --pf_id 0 --suspended --num_queues 16
[dpu] snap_rpc.py nvme_controller_attach_ns -c NVMeCtrl1 -n 1
[dpu] snap_rpc.py nvme_controller_resume -c NVMeCtrl1 -n 1

[host] modprobe -v nvme
[host] fio --filename /dev/nvme0n1 --rw randrw --name=test-randrw --ioengine=libaio --iodepth=64 --bs=4k --direct=1 --numjobs=1 --runtime=63 --time_based --group_reporting --verify=md5


The SPDK version included with SNAP supports hardware encryption/decryption offload. To enable AES/XTS and allow the mlx5_2 and mlx5_3 SFs to support encryption, they must be designated as trusted.

1. Edit the configuration file /etc/mellanox/mlnx-sf.conf.

2. Append the following commands to configure the VHCA_TRUST_LEVEL and create the SFs:

   Copy

   Copied!




   /usr/bin/mlxreg -d 03:00.0 –-reg_name VHCA_TRUST_LEVEL –-yes –-indexes "vhca_id=0x0,all_vhca=0x1" –-set "trust_level=0x1"
   /usr/bin/mlxreg -d 03:00.1 --reg_name VHCA_TRUST_LEVEL --yes --indexes "vhca_id=0x0,all_vhca=0x1" --set "trust_level=0x1"
   /sbin/mlnx-sf –action create -–device 0000:03:00.0 -–sfnum 0 --hwaddr 02:11:3c:13:ad:82
   /sbin/mlnx-sf –action create -–device 0000:03:00.1 -–sfnum 0 --hwaddr 02:76:78:b9:6f:52


3. Reboot the DPU to apply these changes.

Zero Copy (SNAP-direct) with Encryption

SNAP offers support for zero copy with encryption for bdev_nvme with an RDMA transport.

mlx5_scan_accel_module

Accepts a list of devices to use for the crypto operation provided in the --allowed-devs parameter. If no devices are specified, then the first device which supports encryption is used.

For best performance, it is recommended to use the devices with the largest InfiniBand MTU (4096). The MTU size can be verified using the ibv_devinfo command (look for the max and active MTU fields). Normally, the mlx5_2 device is expected to have an MTU of 4096 and should be used as an allowed crypto device.

Command parameters:

accel_crypto_key_create

Creates crypto key. One key can be shared by multiple bdevs.

Command parameters:

bdev_nvme_attach_controller

Creates NVMe block device.

Command parameters:

bdev_crypto_create

This RPC creates a virtual crypto block device which adds encryption to the base block device.

Command parameters:

SPDK Crypto Example

The following is an example of a configuration with a crypto virtual block device created on top of bdev_nvme with RDMA transport and zero copy support:




[dpu] # spdk_rpc.py mlx5_scan_accel_module --allowed-devs "mlx5_2" --enable-driver
[dpu] # spdk_rpc.py framework_start_init
[dpu] # spdk_rpc.py accel_crypto_key_create -c AES_XTS -k 00112233445566778899001122334455 -e 11223344556677889900112233445500 -n test_dek
[dpu] # spdk_rpc.py bdev_nvme_attach_controller -b nvme0 -t rdma -a 1.1.1.1 -f ipv4 -s 4420 -n nqn.2016-06.io.spdk:cnode0
[dpu] # spdk_rpc.py bdev_crypto_create nvme0n1 crypto_0 -n test_dek
[dpu] # snap_rpc.py nvme_subsystem_create --nqn nqn.2023-05.io.nvda.nvme:0
[dpu] # snap_rpc.py nvme_controller_create --nqn nqn.2023-05.io.nvda.nvme:0 --pf_id 0 --ctrl NVMeCtrl0 --suspended
[dpu] # snap_rpc.py nvme_namespace_create –nqn nqn.2023-05.io.nvda.nvme:0 --bdev_name crypto_0 –-nsid 1 -–uuid 263826ad-19a3-4feb-bc25-4bc81ee7749e
[dpu] # snap_rpc.py nvme_controller_attach_ns –-ctrl NVMeCtrl0 --nsid 1
[dpu] # snap_rpc.py nvme_controller_resume –-ctrl NVMeCtrl0


Live migration is a standard process supported by QEMU which allows system administrators to pass devices between virtual machines in a live running system. For more information, refer to QEMU VFIO Device Migration documentation.

Live migration is supported for SNAP virtio-blk devices in legacy and standard VFIO modes. Legacy mode uses drivers like NVIDIA's proprietary vDPA-based Live Migration Solution, while standard mode leverages the latest kernel capabilities using the virtio-vfio-pci kernel driver. Legacy mode can be enabled/disabled using the environment variable `VIRTIO_CTRL_VDPA_ADMIN_Q` (enabled by default).

Software Requirements for Standard VFIO

• Kernel – 6.16-rc3+ (using virtio-vfio-pci driver)

• QEMU – 9.2+

• libvirt – 10.6+

SNAP Configuration

1. Set the environment variable VIRTIO_CTRL_VDPA_ADMIN_Q to 1 (default) for legacy or 0 for standard VFIO mode.

2. Create a PF Controller with Admin Queue (common to both modes):

   Copy

   Copied!




   snap_rpc.py virtio_blk_controller_create --admin_q …


The Live Upgrade feature enables administrators to update a container's SNAP image without incurring system downtime.

Although newer releases may introduce features that alter system behavior, the upgrade architecture is engineered to maintain full backward and forward compatibility.

Live Upgrade Prerequisites

To enable live upgrade, perform the following modifications:

1. Allocate double hugepages for the destination and source containers.

2. Make sure the requested amount of CPU cores is available.

   The default YAML configuration sets the container to request a CPU core range of 8-16. This means that the container is not deployed if there are fewer than 8 available cores, and if there are 16 free cores, the container utilizes all 16.

   For instance, if a container is currently using all 16 cores and, during a live upgrade, an additional SNAP container is deployed. In this case, each container uses 8 cores during the upgrade process. Once the source container is terminated, the destination container starts utilizing all 16 cores.

   Note

   For 8-core DPUs, the .yaml must be edited to the range of 4-8 CPU cores.

3. Change the name of the doca_snap.yaml file that describes the destination container (e.g., doca_snap_new.yaml ) so as to not overwrite the running container .yaml.

4. Change the name of the new .yaml pod and container on lines 16 and 20, respectively (e.g., snap-new).

5. Deploy the the destination container by copying the new yaml (e.g., doca_snap_new.yaml ) to kubelet.

SNAP Container Live Upgrade Procedure

1. Follow the steps in section "Live Upgrade Prerequisites" and deploy the destination SNAP container using the modified yaml file.

2. Query the source and destination containers:

   Copy

   Copied!




   crictl ps -r


3. Check for SNAP started successfully in the logs of the destination container, then copy the live update from the container to your environment.

   Copy

   Copied!




   [dpu] crictl logs -f <dest-container-id>
   [dpu] crictl exec <dest-container-id> cp /opt/nvidia/nvda_snap/bin/live_update.py /etc/nvda_snap/


4. Run the live_update.py script to move all active objects from the source container to the destination container:

   Copy

   Copied!




   [dpu] cd /etc/nvda_snap
   [dpu] ./live_update.py -s <source-container-id> -d <dest-container-id>


   Info

   Transition freely between a SNAP source package service and a SNAP container service in either direction.

   • Use the -s 0 flag to specify that the original process (source) is running from the SNAP source package.

   • The tool does not support transitioning directly from one SNAP source package service to another

   Customize the suspend timeout by passing the -t or --timeout parameter (e.g., -t 1 sets the timeout to 1 ms). The system defaults to 20 ms.

5. After the script completes, the live update process also completes, delete the source container by removing the YAML from kubelet tool:

   Note

   To post RPCs, use the crictl tool:

   Copy

   Copied!




   crictl exec -it <container-id X> snap_rpc.py <RPC-method>
   crictl exec -it <container-id Y> spdk_rpc.py <RPC-method>


   Note

   To automate the SNAP configuration (e.g., following failure or reboot) as explained in section "Automate SNAP Configuration (Optional)", spdk_rpc_init.conf and snap_rpc_init.conf must not include any configs as part of the live upgrade. Then, once the transition to the new container is done, spdk_rpc_init.conf and snap_rpc_init.conf can be modified with the desired configuration.

SNAP Container Live Upgrade Commands

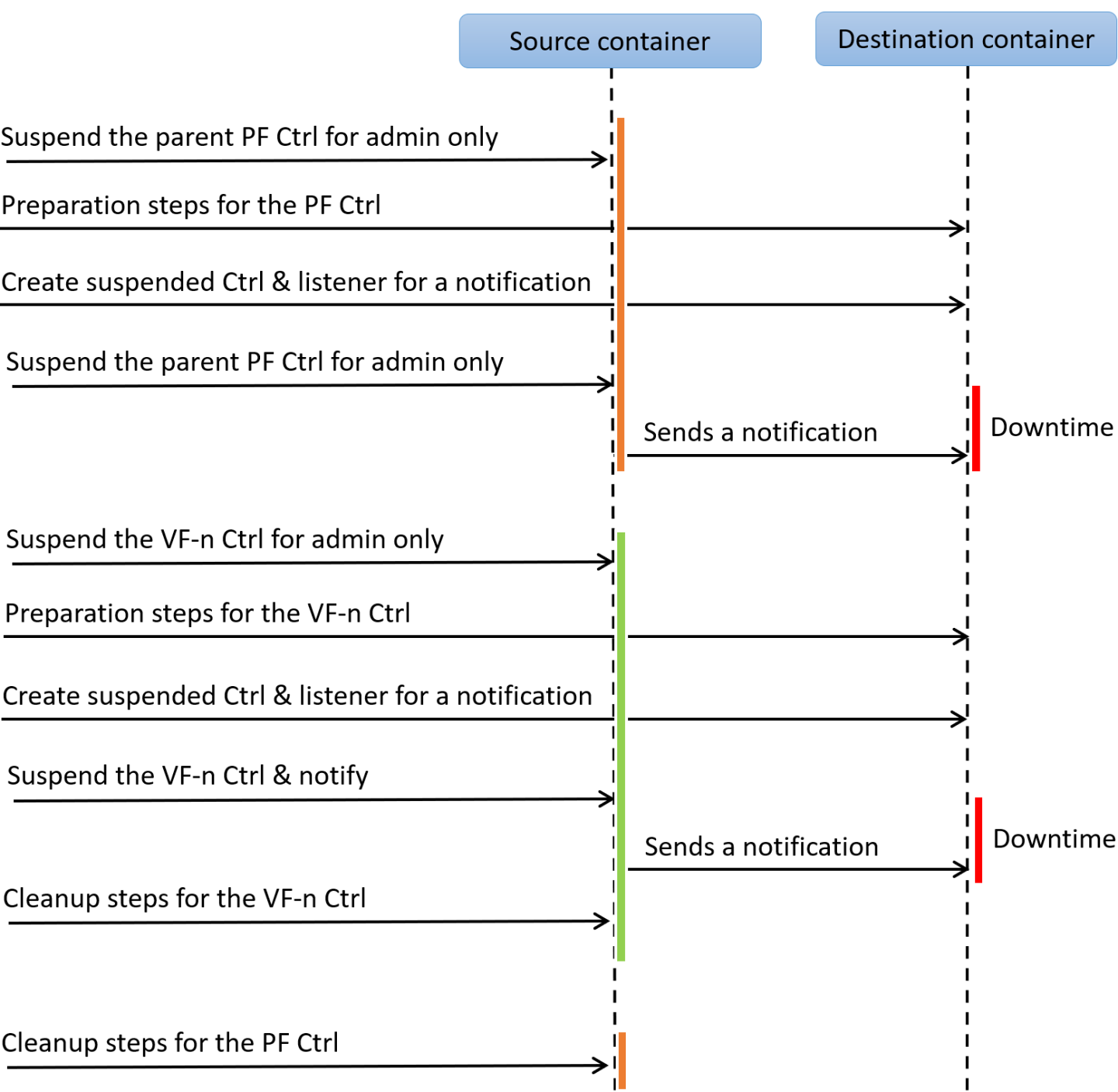

The live upgrade process allows moving SNAP controllers and SPDK block devices between containers while minimizing host VM disruption.

The upgrade is done using a dedicated live update tool, which iterates over all active emulation functions and performs the following steps:

1. Suspend controller (admin only). On the source container, suspend the controller to admin-only mode. This ensures the controller no longer processes admin commands from the host driver, avoiding state changes during the handover. I/O traffic continues, so downtime has not started yet.

   • NVMe example:

     NMVe exmaple:

     Collapse Source

     Copy

     Copied!




     snap_rpc.py nvme_controller_suspend --ctrl NVMeCtrl0VF0 --admin_only


   • Virtio-blk example:

     Virtio-blk Example

     Collapse Source

     Copy

     Copied!




     snap_rpc.py virtio_blk_controller_suspend --ctrl [ctrl_name] --events_only


2. Preparation on destination container. On the destination container, create all required objects for the new controller, including attaching the backend device.

   • NVMe example:

     NMVe exmaple:

     Collapse Source

     Copy

     Copied!




     spdk_rpc.py bdev_nvme_attach_controller ...
     snap_rpc.py nvme_subsystem_create ...
     snap_rpc.py nvme_namespace_create -n 1 ...


   • Virtio-blk example:

     Virtio-blk Example

     Collapse Source

     Copy

     Copied!




     spdk_rpc.py bdev_nvme_attach_controller ...


3. Create suspended controller (as listener). On the destination container, create the controller in a suspended state and mark it as a listener for a live update notification from the source container. At this point, the controller in the source container is still handling I/O, so downtime has not started yet.

   • NVMe example:

     NMVe exmaple:

     Collapse Source

     Copy

     Copied!




     snap_rpc.py nvme_controller_create --pf_id 0 --vf_id 0 --ctrl NVMeCtrl0VF0 --live_update_listener --suspended ...
     snap_rpc.py nvme_controller_attach_ns -c NVMeCtrl0VF0 -n 1


   • Virtio-blk example:

     Virtio-blk Example

     Collapse Source

     Copy

     Copied!




     snap_rpc.py virtio_blk_controller_create  --pf_id 0 --vf_id 0 --ctrl VBLKCtrl0VF0 ...


4. Suspend and notify. On the source container, suspend the controller using the --live_update_notifier flag. This triggers the start of downtime and sends a notification to the destination container. Once suspended, the controller on the destination container resumes and starts handling I/O. This marks the end of downtime.

   • NVMe example:

     Copy

     Copied!




     snap_rpc.py nvme_controller_suspend --ctrl NVMeCtrl0VF0 --live_update_notifier --timeout_ms


   • Virtio-blk example:

     Copy

     Copied!




     snap_rpc.py virtio_blk_controller_suspend --ctrl [ctrl_name] --events_only


5. Cleanup source container. After the migration is complete, clean up any remaining controller objects on the source container.

   Note

   The PF controller must remain present in the source container until all related virtual functions (VFs) have been removed.

   • NVMe example:

     Copy

     Copied!




     snap_rpc.py nvme_controller_detach_ns ...
     spdk_rpc.py bdev_nvme_detach_controller ...
     snap_rpc.py nvme_namespace_destroy ...
     snap_rpc.py nvme_controller_destroy ...


   • Virtio-blk example:

     Copy

     Copied!




     snap_rpc.py virtio_blk_controller_suspend --ctrl [ctrl_name] --events_only


Shared Memory Pool Live Update

The Shared Memory Pool Live Update feature resolves resource constraints when a host lacks sufficient hugepages to run two full SNAP processes concurrently during a live update. By allowing the two processes to share a portion of the memory pool, this optimization significantly reduces the peak hugepage requirement.

Memory Pool Architecture

To facilitate shared memory, SNAP divides its memory management into two distinct pools:

• Base mempool – The essential memory required for the process to operate.

• Extended mempool – Additional memory used for standard operation, managed dynamically during the update.

Live Update Configuration

Enable this feature by configuring specific environment variables in the doca_vfs.yaml file. The SNAP_MEMPOOL_SIZE_MB value must strictly exceed the SNAP_MEMPOOL_BASE_SIZE_MB value.

Configuration example:




env:
  - name: SNAP_MEMPOOL_SIZE_MB
    value: "1024"
  - name: SNAP_MEMPOOL_BASE_SIZE_MB
    value: "512"


Live Update Procedure

This optimized workflow introduces two specific RPCs: memory_manager_deallocate_basepool and memory_manager_allocate_extpool.

Execute the live update using the following strict sequence:

1. Prepare source – Issue the memory_manager_deallocate_basepool RPC on the source (old) container to release shared resources.

2. Deploy destination – Start the destination (new) container. It initializes using only the Base Mempool.

3. Execute handover – Run the standard live update script and wait for completion.

4. Cleanup – Destroy the source container.

5. Finalize destination – Issue the memory_manager_allocate_extpool RPC on the destination container to reclaim full memory capacity.

Message Signaled Interrupts eXtended (MSI-X) enables devices to utilize multiple interrupt vectors, reducing CPU utilization, improving device performance, and enhancing scalability compared to traditional shared interrupts.

In SR-IOV environments, the default system behavior distributes MSI-X vectors evenly across all Virtual Functions (VFs). However, this uniform distribution is often suboptimal for heterogeneous environments where VFs attach to different VMs with varying resource requirements. Dynamic MSI-X Management allows administrators to manually override this default and explicitly control the number of MSI-X vectors allocated to each individual VF.

Lifecycle and Persistence

Dynamic MSI-X management follows a strict lifecycle for resource allocation and reclamation.

Allocation Workflow

1. Reclaim: When no VF controllers are open (sriov_numvfs=0), PF-related MSI-X vectors return from the VFs into the PF's global free pool.

2. Allocate: Administrators allocate MSI-X vectors from the free pool to a specific VF during controller creation.

3. Release: Resources return back to the free pool when a VF controller is destroyed.

Persistence Rules

Once configured, the MSI-X allocation for a VF remains persistent across various state changes:

Configuration Procedure (NVMe Example)

The following procedure demonstrates Dynamic MSI-X configuration for an NVMe controller. Apply the same logic when configuring virtio-blk.

Step 1: Reclaim Resources

Ensure no VFs are active, then reclaim all MSI-X vectors back to the PF's free pool:




snap_rpc.py nvme_controller_vfs_msix_reclaim <CtrlName>


Step 2: Query Resource Constraints

Query the controller to view the available resources currently residing in the PF's free pool:




snap_rpc.py nvme_controller_list -c <CtrlName>


Output definitions:

• free_msix – Total MSI-X vectors available in the PF pool (assigned via vf_num_msix).

• free_queues – Total queues (doorbells) available in the PF pool (assigned via num_queues).

• vf_min_msix/vf_max_msix – The valid configuration range for the vf_num_msix parameter.

• vf_min_queues/vf_max_queues – The valid configuration range for the num_queues parameter.

Step 3: Create VF and Distribute Resources

Create the VF controller and specify the exact resource allocation:




snap_rpc.py nvme_controller_create --vf_num_msix <n> --num_queues <m> ...


Step 4: VF Teardown

When destroying the VF, ensure resources are explicitly released back to the free pool:




snap_rpc.py nvme_controller_destroy --release_msix ...


Step 5: Enable SR-IOV

Enable the VFs on the host driver:




echo <N> > /sys/bus/pci/devices/<BDF>/sriov_numvfs


Safe Configuration Methods

Strict ordering of operations is required to prevent system instability during SR-IOV configuration.

To configure Dynamic MSI-X safely and avoid deadlock, utilize one of the following two methods:

Method A: Disable Autoprobe (Recommended)

Disable automatic driver binding, complete the VF configuration, and manually bind them afterward:

1. Disable autoprobe to prevent immediate binding:

   Copy

   Copied!




   echo 0 > /sys/bus/pci/devices/<BDF>/sriov_driver_autoprobe


2. Perform SNAP Configuration (Execute Steps 1-5 from above).

3. Manually bind VFs to the driver:

   Copy

   Copied!




   echo "0000:01:00.0" > /sys/bus/pci/drivers/nvme/bind


Method B: Use VFIO Driver

Utilize the vfio-pci driver for SR-IOV configuration instead of the standard kernel driver.

1. Bind PF to the VFIO driver:

   Copy

   Copied!




   echo 0000:af:00.2 > /sys/bus/pci/drivers/vfio-pci/bind


2. Enable SR-IOV support:

   Copy

   Copied!




   echo 1 > /sys/module/vfio_pci/parameters/enable_sriov


3. Create VFs:

   Copy

   Copied!




   echo <N> > /sys/bus/pci/drivers/vfio-pci/0000:af:00.2/sriov_numvfs


The recovery feature enables the restoration of controller state after the SNAP application terminates—either gracefully or unexpectedly (e.g., due to kill -9).

NVMe Recovery

NVMe recovery enables the restoration of an NVMe controller after a SNAP application terminates, whether gracefully or due to a crash (e.g., kill -9).

To perform NVMe recovery:

1. Re-create the controller in a suspended state using the exact same configuration as before the crash (including the same bdevs, number of queues, namespaces, and namespace UUIDs).

2. Resume the controller only after all namespaces have been attached.

The recovery process uses shared memory files located under /dev/shm on the BlueField to restore the controller's internal state. These files are deleted when the BlueField is reset, meaning recovery is not supported after a BF reset.

Virtio-blk Crash Recovery

To use virtio-blk recovery, the controller must be re-created with the same configuration as before the crash (i.e. the same bdevs, num queues, etc).

The following options are available to enable virtio-blk crash recovery.

Virtio-blk Crash Recovery with --force_in_order

For virtio-blk crash recovery with --force_in_order, disable the VBLK_RECOVERY_SHM environment variable and create a controller with the --force_in_order argument.

In virtio-blk SNAP, the application is not guaranteed to recover correctly after a sudden crash (e.g., kill -9).

To enable the virtio-blk crash recovery, set the following:




snap_rpc.py virtio_blk_controller_create --force_in_order …


Virtio-blk Crash Recovery without --force_in_order

For virtio-blk crash recovery without --force_in_order, enable the VBLK_RECOVERY_SHM environment variable and create a controller without the --force_in_order argument.

Virtio-blk recovery allows the virtio-blk controller to be recovered after a SNAP application is closed whether gracefully or after a crash (e.g., kill -9).

To use virtio-blk recovery without --force_in_order flag. VBLK_RECOVERY_SHM must be enabled, the controller must be recreated with the same configuration as before the crash (i.e., same bdevs, num queues, etc).

When VBLK_RECOVERY_SHM is enabled, virtio-blk recovery uses files on the BlueField under /dev/shm to recover the internal state of the controller. Shared memory files are deleted when the BlueField is reset. For this reason, recovery is not supported after BlueField reset.

SNAP Configuration Recovery

SNAP can store its configuration as defined by user RPCs and, upon restart, reload it from a configuration JSON file. This mechanism is intended for recovering a previously configured SNAP state - it cannot be used for the initial configuration.

Usage:

1. Set the environment variable SNAP_RPC_INIT_CONF_JSON to the directory path where the configuration file will be stored.

2. The configuration file, snap_config.json, is created in this directory after all changes in your script have been successfully applied.

3. If a new configuration (different from the pre-shutdown configuration) is required after restarting SNAP, delete the existing snap_config.json file before applying the new settings.

When this method is used, there is no need to re-run snap RPCs or set RPCs in init files after the initial configuration — SNAP will automatically load the saved configuration from the SNAP_RPC_INIT_CONF_JSON path. This approach is recommended for fast recovery.

Improving SNAP Recovery Time

The following table outlines features designed to accelerate SNAP initialization and recovery processes following termination.




spdk_rpc.py save_config > config.json





{
	"method": "mlx5_scan_accel_module",
	"params": {
	 "qp_size": 64,
	 "cq_size": 1024,
 	 "num_requests": 2048,
 	 "enable_driver": false,
 	 "split_mb_blocks": 0,
 	 "siglast": false,
 	 "qp_per_domain": false,
	 "disable_signature": true,
	 "disable_crypto": true,
	 "enable_module": false
	}


The Watchdog and Heartbeat Monitoring feature is an experimental reliability mechanism designed to enhance the robustness of the system by automatically detecting and recovering from application hangs, crashes, or unresponsive components. This mechanism minimizes service disruption by triggering recovery procedures without requiring manual intervention.

The heartbeat system functions as a periodic signal emitted by the SNAP service to indicate its operational status. These signals serve as an indicator that the service is active and functioning as expected.

A dedicated watchdog component monitors the presence and frequency of heartbeat signals. If the heartbeat is not received within a predefined timeout interval, the watchdog determines that the monitored component is unresponsive and initiates a predefined recovery action.

The typical sequence of operations is as follows:

1. A SNAP component becomes unresponsive due to a crash, hang, or other failure condition.

2. The watchdog detects the absence of the expected heartbeat signal.

3. A recovery action is automatically triggered.

4. The SNAP service is restarted, and previously configured virtual disk states are restored.

5. Normal operation resumes.

The entire recovery process is designed to complete within a few seconds, thereby minimizing downtime.

Configuring the Watchdog

The behavior of the Watchdog and Heartbeat Monitoring system is configurable through environment variables. These variables allow the user to specify parameters such as heartbeat intervals, timeouts, and recovery policies without requiring changes to the application code.

Running the Watchdog

To initiate the watchdog service while the SNAP application is running, execute the following command:




./snap_watchdog.py --daemon


This command launches the watchdog in the background, where it continuously monitors the health of the SNAP service and initiates recovery procedures as necessary.




pip install dataclasses


The I/O Core Multiplexer (MP) is a configurable mechanism that determines how I/O requests from a single source are distributed across the available DPU cores. This feature is critical for optimizing performance based on application-specific needs, particularly in scenarios involving high I/O workloads.

The multiplexer offers two policy modes:

• None (Default) – All I/O operations originating from a single source are processed by a single DPU core. I/O sources are distributed across DPU cores in a balanced manner.

  • Recommended for: Low-latency environments

  • Optimization focus: I/O latency

• (Weighted) Round Robin – I/O requests from a single source are distributed across multiple DPU cores in a round-robin sequence. If the backend supports per-core weight configuration (e.g., SPDK NVMe-oF bdev), the distribution follows those weights. Otherwise, the I/Os are spread evenly.

  • Recommended for: Bandwidth-intensive environments or systems with low per-core backend throughput (e.g., TCP-based backends)

  • Optimization focus: I/O bandwidth

To configure the IO/Core Multiplexer policy, users need to set the IO_CORE_DISTRIBUTION_POLICY environment variable. The available options are:

• none – Refers to the default policy where all I/Os from a single source are handled by a single DPU core

• weighted_rr – Refers to the (Weighted) Round Robin policy, distributing I/Os across multiple cores

  Note

  weighted_rr policy is not supported for virtio-blk.

The DPA is an auxiliary processor designed to accelerate data-path operations. Its architecture comprises a cluster of 16 cores, each containing 16 execution units (EUs).

• Total SNAP capacity – 171 EUs (index range: 0–170).

• Supported protocols – SNAP utilizes DPA applications to accelerate NVMe and virtio-blk protocols.

• Hardware constraint – The hardware enforces a strict limit of 128 queues (threads) per DPA EU.

By default, the system shares all EUs (0–170) across NVMe, virtio-blk, and other system DPA applications (such as virtio-net).

Method 1: YAML-based Resource Management (Recommended)

The YAML-based tool serves as the primary method for controlling DPA EUs, providing a centralized and consistent approach to allocating resources across applications.

Configuration Requirements

Multi-Container Configuration

When deploying multiple SNAP containers, enforce unique application naming:

1. Set the environment variable SNAP_DPA_INSTANCE_ID_ENV to a unique ID inside each container.

2. Update the YAML file to reflect the instance names using the <APP_NAME>_<ID> format.

Example of two virtio-blk DPU containers:




---
version: 25.04
---
DPA_APPS:
  dpa_helper_1:
    - partition: ROOT
      affinity_EUs: [1-16]
  dpa_helper_2:
    - partition: ROOT
      affinity_EUs: [17-32]


Deployment Workflow

1. Define your configuration in a source file (e.g., ~/DPA_RESOURCE_INPUT.yaml).

2. Execute the management tool to generate the final system configuration:

   Copy

   Copied!




   dpa-resource-mgmt config -d mlx5_0 -f ~/DPA_RESOURCE_INPUT.yaml


   Warning

   Never manually edit the output YAML file generated by the dpa-resource-mgmt tool.

3. Point SNAP to the generated configuration file:

   Copy

   Copied!




   export SNAP_DPA_YAML_PATH=~/ROOT.YAML


   Note

   Ensure the generated YAML file path is properly mounted into the container, such as mapped to /etc/nvda_snap).

Default Configuration Reference

For reference, the standard default configuration is as follows:




---
version: 25.04
---
DPA_APPS:
  dpa_helper:
    - partition: ROOT
      affinity_EUs: [1-16]
  dpa_virtq_split:
    - partition: ROOT
      affinity_EUs: [0-169]
  dpa_nvme:
    - partition: ROOT
      affinity_EUs: [0-169]


Method 2: Core Mask (Specific Use Case)

The Core Mask method provides an alternative approach for EU allocation.

Configuration

To assign a specific set of EUs via a mask, set the corresponding environment variable using a hexadecimal string.

Mask Logic

The system parses the core mask from right to left, utilizing valid hexadecimal digits.

Example: dpa_virtq_split_core_mask=0xff00

• The hexadecimal ff00 sets 8 bits high (specifically bits 8–15).

• Result: The system allocates 8 EUs (EUs 8 through 15) to the virtio-blk application.

The SNAP ML Online Optimizer is a dynamic performance-tuning utility that continuously adjusts polling parameters within the SNAP I/O subsystem. It maximizes controller throughput by identifying the optimal configuration based on real-time hardware conditions, workload patterns, and system constraints.

Operational Workflow

The optimizer utilizes predictive modeling to converge on an optimal setup efficiently, eliminating the need to exhaustively test all possible parameter combinations. It operates using the following iterative loop:

1. Execute actions: Iteratively modifies internal configuration parameters (actions) during runtime.

2. Measure rewards: Measures the resulting system performance (reward) after each configuration change. Currently, the optimizer explicitly targets and maximizes IOPS as the primary reward metric.

3. Predict next state: Uses predictive models to determine the most promising configuration to evaluate next.

Background Optimization Behavior

The SNAP ML Optimizer continuously analyzes active workloads and applies optimization actions in the background. It dynamically learns workload profiles and adapts rapidly when it recognizes returning traffic patterns.

Once the optimizer characterizes a workload and applies the optimal parameters, it transitions into an idle state. It resumes active tuning only when it detects a significant change in the underlying traffic pattern.

Configuring SNAP ML Online Optimizer

The ML Optimizer can be enabled using one of two methods:

1. Environment variable – Set SNAP_ML_OPTIMIZER_ENABLED=1 when launching SNAP.

2. Runtime RPC – Execute the snap_ml_optimizer_create RPC.

ML Optimizer RPCs

The following Remote Procedure Calls (RPCs) are used to manage the optimizer at runtime.

snap_ml_optimizer_create

The snap_ml_optimizer_create initializes or recreates the ML Optimizer, which will immediately begin analyzing and optimizing the system.

snap_ml_optimizer_destroy

The snap_ml_optimizer_destroy command tops the ML Optimizer service.

• Once stopped, the system restores the default SNAP parameters.

• All workload data collected by the optimizer is discarded. Any future instances of the optimizer will begin the learning process from scratch.

snap_ml_optimizer_is_running

The snap_ml_optimizer_is_running command queries the current operational status of the ML Optimizer.

snap_ml_optimizer_current_parameters

The snap_ml_optimizer_current_parameters command retrieves the currently active internal parameters. This command returns the active configuration regardless of whether it was applied by the ML Optimizer or manually configured by the user.

snap_actions_set

The snap_actions_set command is used to dynamically adjust SNAP parameters (known as "actions") that control polling behavior. This command is a core feature of SNAP-AI tools, enabling both automated optimization for specific environments and workloads, as well as manual adjustment of polling parameters.

Command parameters:

snap_reward_get

The snap_reward_get command retrieves performance counters, specifically completion counters (or "reward"), which are used by the optimizer to monitor and enhance SNAP performance.

No parameters are required for this command.

snap_observations_get

The snap_observations_get returns the current state of SNAP as a set of predefined parameters.

No parameters are required for this command.

SNAP ML Optimizer Preparation Steps

Machine Requirements

The device should be able to SSH to the BlueField:

• Python 3.10 or above

• At least 6 GB of free storage

Setting Up SNAP ML Optimizer

To set up the SNAP ML optimizer:

1. Copy the snap_ml folder from the container to the shared nvda_snap folder and then to the requested machine:

   Copy

   Copied!




   crictl exec -it $(crictl ps -s running -q --name snap) cp -r /opt/nvidia/nvda_snap/bin/snap_ml /etc/nvda_snap/


2. Change directory to the snap_ml folder:

   Copy

   Copied!




   cd tools/snap_ml


3. Create a virtual environment for the SNAP ML optimizer.

   Copy

   Copied!




   python3 -m venv snap_ml


   This ensures that the required dependencies are installed in an isolated environment.

4. Activate the virtual environment to start working within this isolated environment:

   Copy

   Copied!




   source snap_ml/bin/activate


5. Install the Python package requirements:

   Copy

   Copied!




   pip3 install --no-cache-dir -r requirements.txt


   This may take some time depending on your system's performance.

6. Run the SNAP ML Optimizer.

   Copy

   Copied!




   python3 snap_ml.py --help


   Use the --help flag to see the available options and usage information:

   Copy

   Copied!




   --version Show the version and exit.
   -f, --framework <TEXT> Name of framework (Recommended: ax , supported: ax, pybo).
   -t, --total-trials <INTEGER> Number of optimization iterations. The recommended range is 25-60.
   --filename <TEXT> where to save the results (default: last_opt.json).
   --remote <TEXT> connect remotely to the BlueField card, format: <bf_name>:<username>:<password>
   --snap-rpc-path <TEXT> Snap RPC prefix (default: container path).
   --log-level <TEXT> CRITICAL | ERROR | WARN | WARNING | INFO | DEBUG
   --log-dir <TEXT> where to save the logs.


Run the Offline ML Optimizer

To optimize SNAP’s parameters for your environment, use the following command:




python3 snap_ml.py --framework ax --total-trials 40 --filename example.json --remote <bf_hostname>:<username>:<password> --log-dir <log_directory>


Results and Post-optimization Actions

Once the optimization process is complete, the tool automatically applies the optimized parameters. These parameters are also saved in a example.json file in the following format:




{
    "poll_size": 30,
    "poll_ratio": 0.6847347955107689,
    "max_inflights": 32768,
    "max_iog_batch": 512,
    "max_new_ios": 32
}


Additionally, the tool documents all iterations, including the actions taken and the rewards received, in a timestamped file named example_<timestamp>.json.

Applying Optimized Parameters Manually

Users can apply the optimized parameters on fresh instances of SNAP service by explicitly calling the snap_actions_set RPC with the optimized parameters as follows:




snap_rpc.py snap_actions_set –poll_size 30 –poll_ratio 0.6847 --max_inflights 32768 –max_iog_batch 512 –max_new_ios 32


Deactivating Python Environment

Once users are done using the SNAP ML Optimizer, they can deactivate the Python virtual environment by running:




deactivate


Plugins are modular components or add-ons that enhance the functionality of the SNAP application. They integrate seamlessly with the main software, allowing additional features without requiring changes to the core codebase. Plugins are designed for use only with the source package, as it allows customization during the build process, such as enabling or disabling plugins as needed.

In containerized environments, the SNAP application is shipped as a pre-built binary with a fixed configuration. Since the binary in the container is precompiled, adding or removing plugins is not possible. The containerized software only supports the plugins included during its build. For environments requiring plugin flexibility, such as adding custom plugins, the source package must be used.

To build a SNAP source package with a plugin, perform the following instead of following the basic build steps :

1. Move to the sources folder. Run:

   Copy

   Copied!




   cd /opt/nvidia/nvda_snap/src/


2. Build the sources with plugin to be enabled. Run:

   Copy

   Copied!




   meson setup /tmp/build -Denable-bdev-null=true -Denable-bdev-malloc=true


3. Compile the sources. Run:

   Copy

   Copied!




   meson compile -C /tmp/build


4. Install the sources. Run:

   Copy

   Copied!




   meson install -C /tmp/build


5. Configure the SNAP environment variables and run SNAP service as explained in sections "Configure SNAP Environment Variables" and "Run SNAP Service".

Bdev

SNAP supports various block device (bdev) plugins to emulate storage backends without modifying core software. SPDK serves as the default bdev plugin; SNAP routes block device operations through SPDK unless an alternative is explicitly specified. For detailed SPDK documentation, refer to spdk_bdev.

The following plugins provide specific storage emulation capabilities:

Asynchronous I/O Block Device

The AIO plugin uses the Linux asynchronous I/O (libaio) interface to support block devices backed by regular files or raw Linux block devices. It routes SPDK storage operations through the kernel instead of user-space drivers.

• Use cases: Testing, development, and environments lacking direct hardware access. It also enables UEFI boot (including read-only boot images) by exposing a bootable disk before initializing hardware drivers.

• Constraints: Introduces higher latency than native SPDK drivers due to kernel overhead.

• Build option: Enable via --enable-bdev-aio.

AIO configuration example:

1. Create a file-backed AIO bdev:

   Copy

   Copied!




   fallocate -l 10G test
   spdk_rpc.py bdev_aio_create test aio_test 512


2. Create an AIO bdev backed by a disk image and attach it to an NVMe controller:

   Copy

   Copied!




   spdk_rpc.py bdev_aio_create /path/to/disk.img aio_test 512
   snap_rpc.py nvme_subsystem_create --nqn nqn.2022-10.io.nvda.nvme:0
   snap_rpc.py nvme_namespace_create -b aio_test -n 1 --nqn nqn.2022-10.io.nvda.nvme:0 --uuid 263826ad-19a3-4febbc25-4bc81ee7749e
   snap_rpc.py nvme_controller_create --nqn nqn.2022-10.io.nvda.nvme:0 --pf_id 0 --suspended
   snap_rpc.py nvme_controller_attach_ns -c NVMeCtrl1 -n 1
   snap_rpc.py nvme_controller_resume -c NVMeCtrl1


3. Delete the AIO bdev:

   Copy

   Copied!




   spdk_rpc.py bdev_aio_delete aio_test


Malloc

The Malloc plugin creates a memory-backed block device by allocating a buffer in RAM.

• Use cases: Performance analysis and debugging.

• Constraints: Not for production. Data is volatile and permanently lost upon system shutdown or device resizing.

• Build option: Enable via --enable-bdev-malloc.

Malloc configuration example:

1. Create a Malloc bdev and attach it to an NVMe controller:

   Copy

   Copied!




   snap_rpc.py snap_bdev_malloc_create --bdev test 64 512
   snap_rpc.py nvme_subsystem_create -s nqn.2020-12.mlnx.snap
   snap_rpc.py nvme_namespace_create -s nqn.2020-12.mlnx.snap -t malloc -b test -n 1
   snap_rpc.py nvme_controller_create --pf_id=0 -s nqn.2020-12.mlnx.snap --mdts=7
   snap_rpc.py nvme_controller_attach_ns -c NVMeCtrl1 -n 1


2. Resize a Malloc bdev:

   Copy

   Copied!




   snap_rpc.py snap_bdev_malloc_resize test 32


   Warning

   This destroys the existing device and creates a new one; all data is lost.

3. Delete the Malloc bdev:

   Copy

   Copied!




   snap_rpc.py snap_bdev_malloc_destroy test


NULL

The NULL plugin acts as a dummy block device that accepts I/O requests without performing actual physical storage operations.

• Use cases: Benchmarking and testing scenarios that require minimal system resources and no real storage hardware.

• Constraints: Not for production. Strictly for performance analysis and debugging.

• Build option: Enable via --enable-bdev-null.

NULL configuration example:

1. Create a NULL bdev and attach it to an NVMe controller:

   Copy

   Copied!




   snap_rpc.py snap_bdev_null_create_dbg test 1 512
   snap_rpc.py nvme_subsystem_create -s nqn.2020-12.mlnx.snap
   snap_rpc.py nvme_namespace_create -s nqn.2020-12.mlnx.snap -t malloc -b test -n 1
   snap_rpc.py nvme_controller_create --pf_id=0 -s nqn.2020-12.mlnx.snap --mdts=7
   snap_rpc.py nvme_controller_attach_ns -c NVMeCtrl1 -n 1


2. Delete the NULL bdev:

   Copy

   Copied!




   snap_rpc.py snap_bdev_null_destroy_dbg test


Single Protocol Mode restricts a SNAP instance to a single designated storage protocol (NVMe or virtio-blk). This configuration facilitates strict resource isolation and enables parallel container deployments.

System Behaviors

When operating in this mode, the system enforces the following behaviors:

• Initialization checks – During startup, SNAP verifies that the underlying hardware supports the configured protocol. If a capability mismatch occurs, the service fails to start and outputs a critical log detailing the missing hardware requirements.

• Function filtering – The emulation_function_list RPC response strictly filters its output, displaying only the functions associated with the configured protocol.

• Strict rejection – The system immediately rejects any hotplug or controller creation requests targeting an unsupported protocol, returning an explicit error message to the user.

Configuration

Enable and define the protocol restriction using the SNAP_SUPPORTED_PROTOCOL environment variable.

Deployment Guidelines and Constraints

When deploying multiple parallel SNAP containers, adhere to the following best practices to prevent resource contention and system conflicts:

• Protocol separation: Deploy concurrent containers using different protocols (e.g., one NVMe container alongside one virtio-blk container). Running multiple containers configured for the exact same protocol can cause severe conflicts when sharing firmware protocol objects.

• Resource partitioning: Running two parallel containers requires doubling the total hugepage allocation. Ensure other system resources, such as CPU cores and RAM, are explicitly partitioned between the instances.

• Object isolation: Do not share identical operational objects across different containers. For example, avoid connecting two separate containers to the exact same remote block device (bdev).

This section provides a step-by-step guide for configuring SNAP NVMe and virtio-blk devices as UEFI boot targets. The workflow encompasses firmware configuration, SNAP backend preparation, and host BIOS/UEFI integration.

Prerequisites

Before initiating the configuration, ensure the environment meets the following baseline requirements:

• Software: BlueField must run a full DOCA image with SNAP-4 deployed (either as a container or a source-package service).

• Firmware: Storage emulation must be enabled in the firmware for NVMe and/or virtio-blk Physical Functions (PFs). Static PFs are strongly recommended for boot configurations.

• Storage backend: A bootable backend must exist and be reachable (e.g., a local NVMe SSD, a remote NVMe-oF RDMA target, or another supported SPDK bdev). This backend must contain a pre-installed OS or an accessible installer ISO.

Step 1: Configure UEFI Expansion ROM in Firmware

UEFI boot requires the activation of NVIDIA's UEFI expansion ROM drivers on the DPU. This allows the platform firmware to utilize NVIDIA’s driver during the UEFI boot phase instead of relying on the vendor's default BIOS implementation.

1. Ensure the device operates in the internal CPU model and that storage emulation is active.

   • INTERNAL_CPU_MODEL=1

   • PF_BAR2_ENABLE=0

     Note

     This parameter is deprecated and must strictly be set to 0.

   • NVME_EMULATION_ENABLE=1 and/or VIRTIO_BLK_EMULATION_ENABLE=1 (with at least one PF configured).

2. Execute the following mlxconfig command to enable the UEFI expansion ROMs for x86 hosts:

   Copy

   Copied!




   mlxconfig -d /dev/mst/mt41692_pciconf0 s \
       EXP_ROM_VIRTIO_BLK_UEFI_x86_ENABLE=1 \
       EXP_ROM_NVME_UEFI_x86_ENABLE=1


3. Perform a complete power cycle of both the host and the DPU to apply the firmware configuration.​

Step 2: Prepare SNAP Backend and Controller on the DPU

The UEFI stack strictly requires boot devices to be fully configured before the boot phase initiates. The SNAP PCIe function must be visible, and the backend disk must be attached to the emulated controller prior to the host reaching the UEFI boot sequence.

Option A: NVMe Configuration (Recommended Pattern)

To utilize NVMe for the system disk, create the controller in a suspended state, attach the namespace, and then resume operations. This guarantees the namespace is available upon initialization.

1. Attach the remote backend:

   Copy

   Copied!




   spdk_rpc.py bdev_nvme_attach_controller -b nvme0 -t rdma \
       -a <target_ip> -f ipv4 -s 4420 -n <subnqn>


2. Create the subsystem and namespace:

   Copy

   Copied!




   snap_rpc.py nvme_subsystem_create \
       --nqn nqn.2025-01.com.nvda:nvme:boot0

   snap_rpc.py nvme_namespace_create \
       -b nvme0n1 -n 1 \
       --nqn nqn.2025-01.com.nvda:nvme:boot0 \
       --uuid <boot_ns_uuid>


3. Create the controller in a suspended state:

   Copy

   Copied!




   snap_rpc.py nvme_controller_create \
       --nqn nqn.2025-01.com.nvda:nvme:boot0 \
       --pf_id 0 \
       --ctrl NVMeBoot0 \
       --suspended \
       --num_queues 2


4. Attach the namespace and resume the controller:

   Copy

   Copied!




   snap_rpc.py nvme_controller_attach_ns -c NVMeBoot0 -n 1
   snap_rpc.py nvme_controller_resume -c NVMeBoot0


Option B: virtio-blk Configuration

Configure a single system disk using the virtio-blk protocol:

1. Attach the remote backend:

   Copy

   Copied!




   spdk_rpc.py bdev_nvme_attach_controller -b nvme0 -t rdma \
       -a <target_ip> -f ipv4 -s 4420 -n <subnqn>


2. Create the virtio-blk controller:

   Copy

   Copied!




   snap_rpc.py virtio_blk_controller_create \
       --pf_id 0 \
       --ctrl VBLKBoot0 \
       --bdev nvme0n1


Validation

After executing either option, run snap_rpc.py emulation_function_list or {nvme,virtio_blk}_controller_list to verify the emulation function is present and successfully bound to the correct controller.

Step 3: Host BIOS/UEFI Configuration

With the firmware and SNAP environment fully configured, map the host BIOS/UEFI to boot from the SNAP-provided disk.

1. Access BIOS: Reboot the host into the BIOS/UEFI setup utility. Ensure the DPU remains powered and the SNAP service is fully active during this process.

2. Identify the device: Navigate to the UEFI boot menu and verify the SNAP emulated device appears as a bootable NVMe or virtio-blk disk.

   Note

   Exact name and vendor strings depend on the specific firmware configuration.

3. Set boot priority: Select the emulated disk as the primary boot option. Alternatively, boot from an installer ISO, install the OS to the SNAP-provided disk, and subsequently set it as the primary system disk.
