Metrics Visualization with Prometheus and Grafana#

Overview#

This guide shows how to set up Prometheus and Grafana for visualizing Dynamo metrics on a single machine for demo purposes.

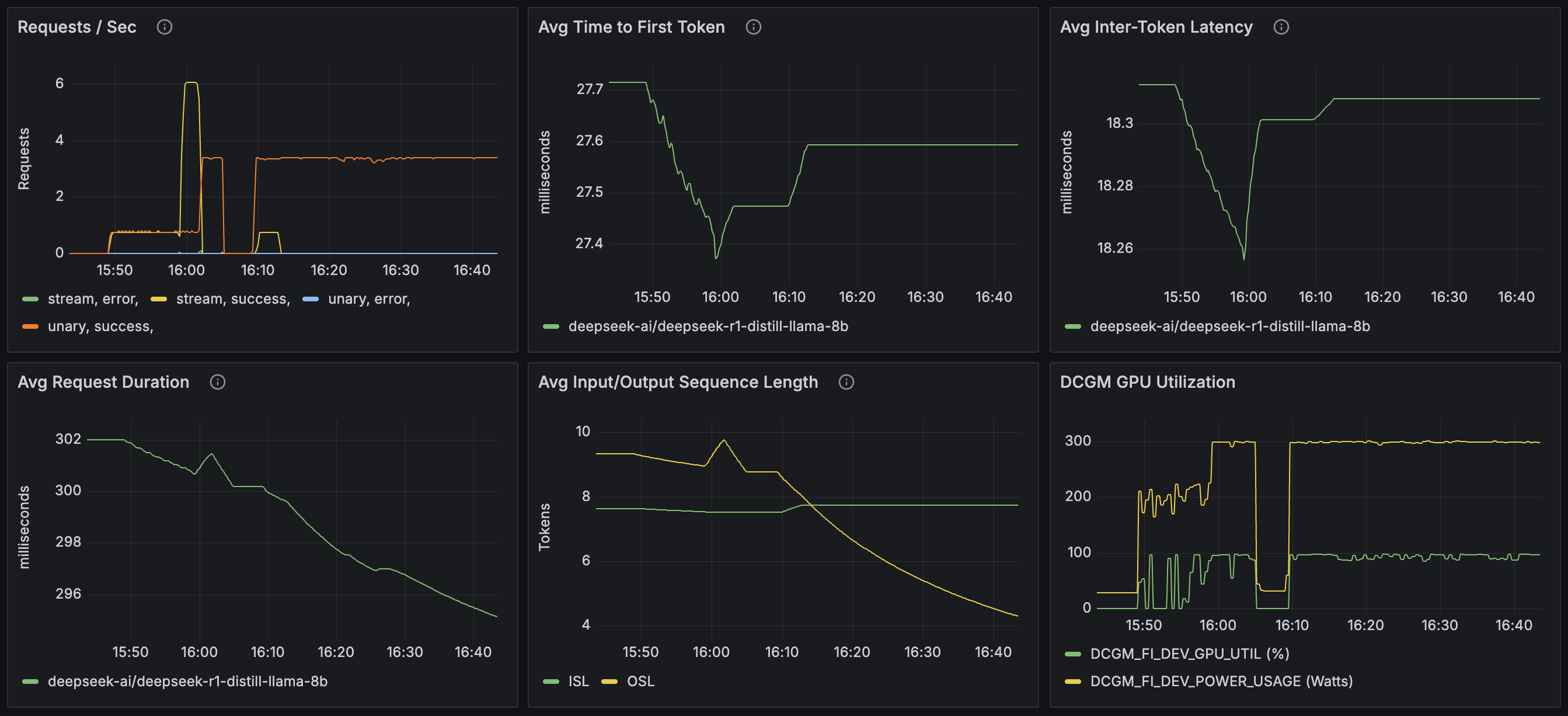

Grafana Dynamo Dashboard

Components:

  • Prometheus Server - Collects and stores metrics from Dynamo services

  • Grafana - Provides dashboards by querying the Prometheus Server

For metrics reference, see Metrics Documentation.

Environment Variables#

Variable

Description

Default

Example

DYN_SYSTEM_PORT

System metrics/health port

-1 (disabled)

8081

Getting Started Quickly#

This is a single machine example.

Start the Observability Stack#

Start the observability stack (Prometheus, Grafana, Tempo, exporters). See Observability Getting Started for instructions and prerequisites.

Start Dynamo Components#

Start frontend and worker (a simple single GPU example):

# Start frontend (default port 8000, override with --http-port or DYN_HTTP_PORT env var)
python -m dynamo.frontend &

# Start vLLM worker with metrics enabled on port 8081
DYN_SYSTEM_PORT=8081 python -m dynamo.vllm --model Qwen/Qwen3-0.6B --enforce-eager

After the workers are running, send a few test requests to populate metrics in the system:

curl -X POST http://localhost:8000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -d '{
    "model": "Qwen/Qwen3-0.6B",
    "messages": [{"role": "user", "content": "Hello"}],
    "max_completion_tokens": 100
  }'

After sending a few requests, the Prometheus Exposition Format text metrics are available at:

  • Frontend: http://localhost:8000/metrics

  • Backend worker: http://localhost:8081/metrics

Access Web Interfaces#

Once Dynamo components are running:

  1. Open Grafana at http://localhost:3000 (username: dynamo, password: dynamo)

  2. Click on Dashboards in the left sidebar

  3. Select Dynamo Dashboard to view metrics and traces

Other interfaces:

  • Prometheus: http://localhost:9090

  • Tempo (tracing): Accessible through Grafana’s Explore view. See Tracing Guide for details.

Note: If accessing from another machine, replace localhost with the machine’s hostname or IP address, and ensure firewall rules allow access to these ports (3000, 9090).

Configuration#

Prometheus#

The Prometheus configuration is specified in prometheus.yml. This file is set up to collect metrics from the metrics aggregation service endpoint.

Please be aware that you might need to modify the target settings to align with your specific host configuration and network environment.

After making changes to prometheus.yml, restart the Prometheus service. See Observability Getting Started for Docker Compose commands.

Grafana#

Grafana is pre-configured with:

  • Prometheus datasource

  • Sample dashboard for visualizing service metrics

Troubleshooting#

  1. Verify services are running using docker compose ps

  2. Check logs using docker compose logs

  3. Check Prometheus targets at http://localhost:9090/targets to verify metric collection.

  4. If you encounter issues with stale data or configuration, stop services and wipe volumes using docker compose down -v then restart.

Note: The -v flag removes named volumes (grafana-data, tempo-data), which will reset dashboards and stored metrics.

For specific Docker Compose commands, see Observability Getting Started.

Developer Guide#

For detailed information on creating custom metrics in Dynamo components, see:
