A class to iterate over a compressed contact stream. This supports read-only access to the various contact formats. More...

#include <PxContact.h>

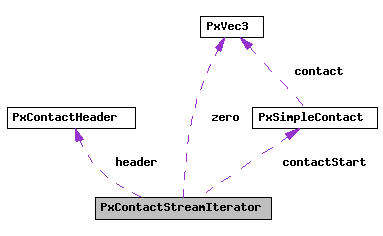

Collaboration diagram for PxContactStreamIterator:

[legend]

Public Member Functions
PX_FORCE_INLINE	PxContactStreamIterator (const PxU8 *stream, PxU32 size)
	Constructor. More...

PX_FORCE_INLINE bool	hasNextPatch () const
	Returns whether there are more patches in this stream. More...

PX_FORCE_INLINE PxU32	getTotalContactCount () const
	Returns the total contact count. More...

PX_INLINE void	nextPatch ()
	Advances iterator to next contact patch. More...

PX_FORCE_INLINE bool	hasNextContact () const
	Returns if the current patch has more contacts. More...

PX_FORCE_INLINE void	nextContact ()
	Advances to the next contact in the patch. More...

PX_FORCE_INLINE const PxVec3 &	getContactNormal () const
	Gets the current contact's normal. More...

PX_FORCE_INLINE PxReal	getInvMassScale0 () const
	Gets the inverse mass scale for body 0. More...

PX_FORCE_INLINE PxReal	getInvMassScale1 () const
	Gets the inverse mass scale for body 1. More...

PX_FORCE_INLINE PxReal	getInvInertiaScale0 () const
	Gets the inverse inertia scale for body 0. More...

PX_FORCE_INLINE PxReal	getInvInertiaScale1 () const
	Gets the inverse inertia scale for body 1. More...

PX_FORCE_INLINE PxReal	getMaxImpulse () const
	Gets the contact's max impulse. More...

PX_FORCE_INLINE const PxVec3 &	getTargetVel () const
	Gets the contact's target velocity. More...

PX_FORCE_INLINE const PxVec3 &	getContactPoint () const
	Gets the contact's contact point. More...

PX_FORCE_INLINE PxReal	getSeparation () const
	Gets the contact's separation. More...

PX_FORCE_INLINE PxU32	getFaceIndex0 () const
	Gets the contact's face index for shape 0. More...

PX_FORCE_INLINE PxU32	getFaceIndex1 () const
	Gets the contact's face index for shape 1. More...

PX_FORCE_INLINE PxReal	getStaticFriction () const
	Gets the contact's static friction coefficient. More...

PX_FORCE_INLINE PxReal	getDynamicFriction () const
	Gets the contact's static dynamic coefficient. More...

PX_FORCE_INLINE PxReal	getRestitution () const
	Gets the contact's restitution coefficient. More...

PX_FORCE_INLINE PxU32	getMaterialFlags () const
	Gets the contact's material flags. More...

PX_FORCE_INLINE PxU16	getMaterialIndex0 () const
	Gets the contact's material index for shape 0. More...

PX_FORCE_INLINE PxU16	getMaterialIndex1 () const
	Gets the contact's material index for shape 1. More...

bool	advanceToIndex (const PxU32 initialIndex)
	Advances the contact stream iterator to a specific contact index. More...

Public Attributes
PxVec3	zero
	Utility zero vector to optimize functions returning zero vectors when a certain flag isn't set. More...

const PxContactHeader *	header
	The current contact header. More...

const PxU8 *	currPtr
	Current pointer in the stream. More...

const PxU8 *	endPtr
	Pointer to the end of the stream. More...

const PxU8 *	patchStart
	Pointer to the start of the patch. More...

const PxU8 *	patchEnd
	Pointer to the end of the patch. More...

const PxSimpleContact *	contactStart
	Pointer to the first contact in the patch. More...

PxU32	streamSize
	Size of the stream in bytes. More...

PxU32	nbContactsInPatch
	Total number of contacts in the patch. More...

PxU32	currentContact
	Current contact index in the patch. More...

PxU32	contactPatchHeaderSize
	Size of contact patch header. More...

PxU32	contactPointSize
	Contact point size. More...

PxU32	hasFaceIndices
	Indicates whether this stream carries face indices. More...

PxU32	contactsWereModifiable
	Indicates whether this stream is created from modifiable contact (internal usage), the variables are still read-only. More...

PxU32	forceNoResponse
	Indicates whether this stream is notify-only or not. More...

Private Member Functions
PX_FORCE_INLINE const PxContactPatch &	getContactPatch () const
	Internal helper. More...

PX_FORCE_INLINE const PxModifiableContact &	getModifiableContact () const
	Internal helper. More...

PX_FORCE_INLINE const PxModifyContactHeader &	getModifiableContactHeader () const
	Internal helper. More...

Detailed Description

A class to iterate over a compressed contact stream. This supports read-only access to the various contact formats.

Constructor & Destructor Documentation

PX_FORCE_INLINE PxContactStreamIterator::PxContactStreamIterator	(	const PxU8 *	stream,
		PxU32	size
	)

inline

Constructor.

Parameters

[in]	stream	Pointer to the start of the stream.
[in]	size	Size of the stream in bytes.

References PxContactHeader::eFORCE_NO_RESPONSE, PxContactHeader::eHAS_FACE_INDICES, PxContactHeader::eMODIFIABLE, PxContactHeader::flags, NULL, and PX_ASSERT.

Member Function Documentation

bool PxContactStreamIterator::advanceToIndex ( const PxU32 initialIndex )

inline

Advances the contact stream iterator to a specific contact index.

References PX_ASSERT.

PX_FORCE_INLINE const PxVec3& PxContactStreamIterator::getContactNormal ( ) const

inline

Gets the current contact's normal.

Returns: The current contact's normal.

Referenced by PxContactPair::extractContacts().

PX_FORCE_INLINE const PxContactPatch& PxContactStreamIterator::getContactPatch ( ) const

inlineprivate

Internal helper.

References PX_ASSERT.

PX_FORCE_INLINE const PxVec3& PxContactStreamIterator::getContactPoint ( ) const

inline

Gets the contact's contact point.

Returns: The contact's contact point.

Referenced by PxContactPair::extractContacts().

PX_FORCE_INLINE PxReal PxContactStreamIterator::getDynamicFriction ( ) const

inline

Gets the contact's static dynamic coefficient.

Returns: The contact's static dynamic coefficient.

PX_FORCE_INLINE PxU32 PxContactStreamIterator::getFaceIndex0 ( ) const

inline

Gets the contact's face index for shape 0.

Returns: The contact's face index for shape 0.

References PXC_CONTACT_NO_FACE_INDEX.

Referenced by PxContactPair::extractContacts().

PX_FORCE_INLINE PxU32 PxContactStreamIterator::getFaceIndex1 ( ) const

inline

Gets the contact's face index for shape 1.

Returns: The contact's face index for shape 1.

References PXC_CONTACT_NO_FACE_INDEX.

Referenced by PxContactPair::extractContacts().

PX_FORCE_INLINE PxReal PxContactStreamIterator::getInvInertiaScale0 ( ) const

inline

Gets the inverse inertia scale for body 0.

Returns: The inverse inertia scale for body 0.

PX_FORCE_INLINE PxReal PxContactStreamIterator::getInvInertiaScale1 ( ) const

inline

Gets the inverse inertia scale for body 1.

Returns: The inverse inertia scale for body 1.

PX_FORCE_INLINE PxReal PxContactStreamIterator::getInvMassScale0 ( ) const

inline

Gets the inverse mass scale for body 0.

Returns: The inverse mass scale for body 0.

PX_FORCE_INLINE PxReal PxContactStreamIterator::getInvMassScale1 ( ) const

inline

Gets the inverse mass scale for body 1.

Returns: The inverse mass scale for body 1.

PX_FORCE_INLINE PxU32 PxContactStreamIterator::getMaterialFlags ( ) const

inline

Gets the contact's material flags.

Returns: The contact's material flags.

PX_FORCE_INLINE PxU16 PxContactStreamIterator::getMaterialIndex0 ( ) const

inline

Gets the contact's material index for shape 0.

Returns: The contact's material index for shape 0.

PX_FORCE_INLINE PxU16 PxContactStreamIterator::getMaterialIndex1 ( ) const

inline

Gets the contact's material index for shape 1.

Returns: The contact's material index for shape 1.

PX_FORCE_INLINE PxReal PxContactStreamIterator::getMaxImpulse ( ) const

inline

Gets the contact's max impulse.

Returns: The contact's max impulse.

References PX_MAX_REAL.

PX_FORCE_INLINE const PxModifiableContact& PxContactStreamIterator::getModifiableContact ( ) const

inlineprivate

Internal helper.

References PX_ASSERT.

PX_FORCE_INLINE const PxModifyContactHeader& PxContactStreamIterator::getModifiableContactHeader ( ) const

inlineprivate

Internal helper.

References PX_ASSERT.

PX_FORCE_INLINE PxReal PxContactStreamIterator::getRestitution ( ) const

inline

Gets the contact's restitution coefficient.

Returns: The contact's restitution coefficient.

PX_FORCE_INLINE PxReal PxContactStreamIterator::getSeparation ( ) const

inline

Gets the contact's separation.

Returns: The contact's separation.

Referenced by PxContactPair::extractContacts().

PX_FORCE_INLINE PxReal PxContactStreamIterator::getStaticFriction ( ) const

inline

Gets the contact's static friction coefficient.

Returns: The contact's static friction coefficient.

PX_FORCE_INLINE const PxVec3& PxContactStreamIterator::getTargetVel ( ) const

inline

Gets the contact's target velocity.

Returns: The contact's target velocity.

PX_FORCE_INLINE PxU32 PxContactStreamIterator::getTotalContactCount ( ) const

inline

Returns the total contact count.

Returns: Total contact count.

PX_FORCE_INLINE bool PxContactStreamIterator::hasNextContact ( ) const

inline

Returns if the current patch has more contacts.

Returns: If there are more contacts in the current patch.

Referenced by PxContactPair::extractContacts().

PX_FORCE_INLINE bool PxContactStreamIterator::hasNextPatch ( ) const

inline

Returns whether there are more patches in this stream.

Returns: Whether there are more patches in this stream.

Referenced by PxContactPair::extractContacts().

PX_FORCE_INLINE void PxContactStreamIterator::nextContact ( )

inline

Advances to the next contact in the patch.

References PX_ASSERT.

Referenced by PxContactPair::extractContacts().

PX_INLINE void PxContactStreamIterator::nextPatch ( )

inline

Advances iterator to next contact patch.

Referenced by PxContactPair::extractContacts().

Member Data Documentation

PxU32 PxContactStreamIterator::contactPatchHeaderSize

Size of contact patch header.

Note: This varies whether the patch is modifiable or not.

PxU32 PxContactStreamIterator::contactPointSize

Contact point size.

Note: This varies whether the patch has feature indices or is modifiable.

const PxSimpleContact* PxContactStreamIterator::contactStart

Pointer to the first contact in the patch.

PxU32 PxContactStreamIterator::contactsWereModifiable

Indicates whether this stream is created from modifiable contact (internal usage), the variables are still read-only.

PxU32 PxContactStreamIterator::currentContact

Current contact index in the patch.

const PxU8* PxContactStreamIterator::currPtr

Current pointer in the stream.

const PxU8* PxContactStreamIterator::endPtr

Pointer to the end of the stream.

PxU32 PxContactStreamIterator::forceNoResponse

Indicates whether this stream is notify-only or not.

PxU32 PxContactStreamIterator::hasFaceIndices

Indicates whether this stream carries face indices.

const PxContactHeader* PxContactStreamIterator::header

The current contact header.

PxU32 PxContactStreamIterator::nbContactsInPatch

Total number of contacts in the patch.

const PxU8* PxContactStreamIterator::patchEnd

Pointer to the end of the patch.

const PxU8* PxContactStreamIterator::patchStart

Pointer to the start of the patch.

PxU32 PxContactStreamIterator::streamSize

Size of the stream in bytes.

PxVec3 PxContactStreamIterator::zero

Utility zero vector to optimize functions returning zero vectors when a certain flag isn't set.

Note: This allows us to return by reference instead of having to return by value. Returning by value will go via memory (registers -> stack -> registers), which can cause performance issues on certain platforms.

The documentation for this struct was generated from the following file:

PxContact.h
