Virtual GPU Software License Server User Guide
Documentation for system administrators that explains how to install, configure, and manage the NVIDIA virtual GPU software license server.
1. Introduction to the NVIDIA vGPU Software License Server
The NVIDIA vGPU software License Server is used to serve a pool of floating licenses to NVIDIA vGPU software licensed products. The license server is designed to be installed at a location that is accessible from a customer’s network, and be configured with licenses obtained from the NVIDIA Licensing Portal.

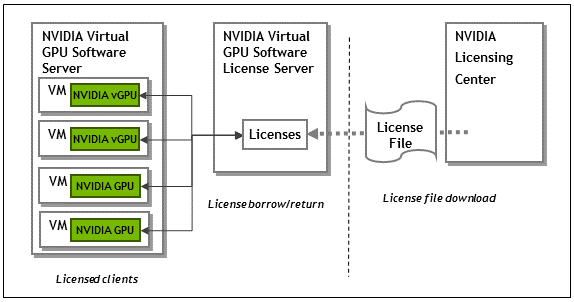

1.1. Overview of NVIDIA vGPU software Licensing
NVIDIA vGPU software is a licensed product. Licensed vGPU functionalities are activated during guest OS boot by the acquisition of a software license served over the network from an NVIDIA vGPU software license server. The license is returned to the license server when the guest OS shuts down.
The licenses served by the NVIDIA vGPU software license server are obtained from the NVIDIA Licensing Portal as downloadable license files, and installed into the license server through its management interface.
1.2. NVIDIA vGPU Software License Server High Availability
To provide NVIDIA vGPU software clients with continued access to NVIDIA vGPU software features if a single license server fails, you can configure the license server for high availability. High availability requires two license servers in a failover configuration:
- A primary license server, which is actively serving licenses to NVIDIA vGPU software clients
- A secondary license server, which acts as a backup for the primary license server
Configuring two servers in a failover configuration increases availability because simultaneous failure of two servers is rare. The primary and secondary license servers work together to ensure that licenses in the enterprise remain continually available to NVIDIA vGPU software clients.
If the primary license server fails, failover occurs and the secondary server can continue to serve licenses for up to the license server maintenance interval, which is seven days.
During normal operation, the primary license server periodically updates the secondary server with information about the licenses that are being served to clients. However, when the primary server is returned to service after a failure, it is not updated with information from the secondary server about licenses that were served while the primary server was out of service.
For more information about configuring the license server for high availability, see High Availability Requirements.
1.3. Overview of the NVIDIA vGPU Software Licensing Process
The following table lists the major tasks in the process of licensing NVIDIA vGPU software and provides a cross-reference to instructions for performing each task.
| Task | Instructions |
|---|---|
| Get your NVIDIA vGPU software and NVIDIA vGPU software License Server software. | Virtual GPU Software Quick Start Guide |
| Install the NVIDIA vGPU software License Server software. | Installing the NVIDIA vGPU Software License Server |
| Access the management interface of the license server. | Accessing the License Server Management Interface |
| Get the MAC address of the license server. | Obtaining the License Server’s MAC Address |
| HA license servers only: Enable failover support. | Enabling Failover Support on the Primary and Secondary License Servers |
| Register your license server, generate licenses, and download license files. | Managing your License Servers and Getting your License Files |
| Install a license. | Installing a License |

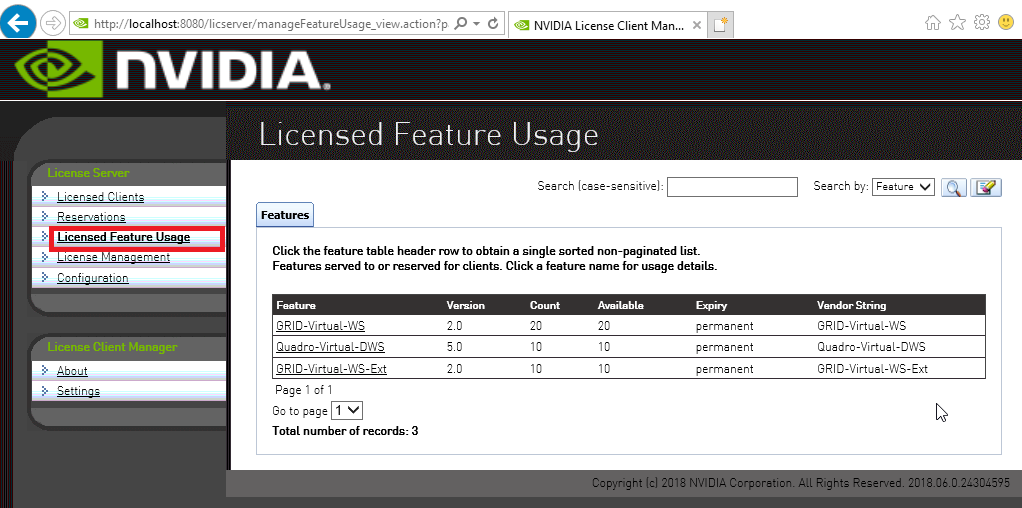

| View available licenses. | Viewing Information About Installed Licenses |

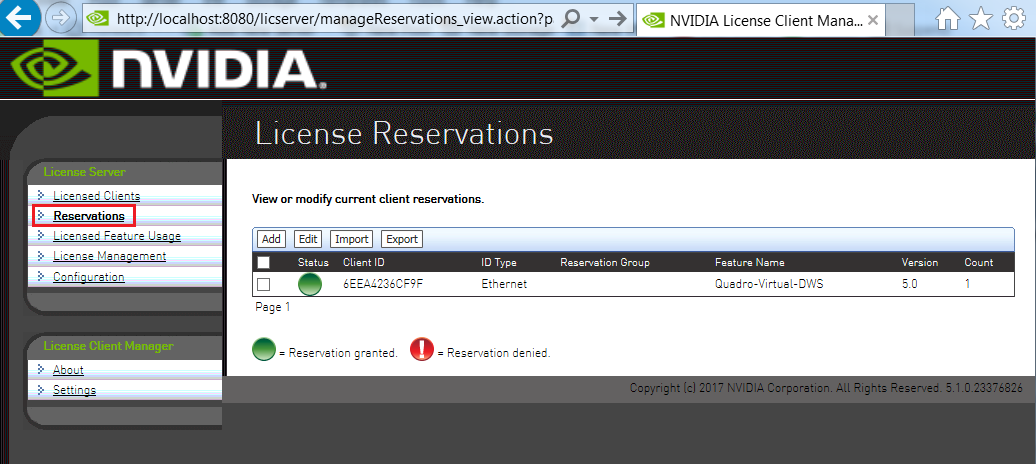

| Reserve and release licenses. | Reserving Licenses |
| Move a license to a new server. | |
| Convert a trial license server to a permanent license server. | Converting an Evaluation License Server to a Permanent License Server |
| Configure licensed NVIDIA vGPU software products for use with license server. | Virtual GPU Client Licensing User Guide |
| Troubleshoot the license server. | Troubleshooting the NVIDIA vGPU Software License Server |
| Uninstall the license server software. | Uninstalling the NVIDIA vGPU Software License Server |
2. Installing the NVIDIA vGPU Software License Server
You can install the NVIDIA vGPU software license server on Windows and Linux systems that meet the license server’s platform requirements. If you require high availability for the license server, you must install the license server both on the system that you will use as the primary license server and on the system that you will use as the secondary license server.
The license server requires a Java runtime environment and an Apache Tomcat server. Before you install the license server software, ensure that the required software is already installed on each license server host machine that you are using:
- On Windows, you need ensure only that the Java runtime environment is installed. The Apache Tomcat server is included in the license server installer for Windows.
- On Linux, you must ensure that both the Java runtime environment and the Apache Tomcat server are installed.
Also ensure that you have obtained your NVIDIA vGPU software and NVIDIA vGPU software License Server software. For more information, refer to Virtual GPU Software Quick Start Guide.
2.1. Platform Requirements
Before proceeding, ensure that you have a platform suitable for hosting the license server.
2.1.1. Hardware and Software Requirements
- The hosting platform may be a physical machine, an on-premises virtual machine (VM), or a VM on a supported cloud service. NVIDIA recommends using a host that is dedicated solely to running the license server.
- The recommended minimum configuration is 2 CPU cores and 4 Gbytes of RAM. A high-end configuration of 4 or more CPU cores with 16 Gbytes of RAM is suitable for handling up to 150,000 licensed clients.
- At least 1 Gbyte of hard drive space is required.
- The hosting platform must run a supported operating system.
- On Window platforms, .NET Framework 4.5 or later is required.
2.1.2. Platform Configuration Requirements
- The platform must have a fixed (unchanging) IP address. The IP address may be assigned dynamically by DHCP or statically configured, but must be constant.
- The platform must have at least one unchanging Ethernet MAC address, to be used as a unique identifier when registering the server and generating licenses in the NVIDIA Licensing Portal.
- The platform’s date and time must be set accurately. NTP is recommended.
2.1.3. Network Ports and Management Interface
The license server requires TCP port 7070 to be open in the platform’s firewall, to serve licenses to clients. By default, the installer will automatically open this port.
The license server’s management interface is web-based, and uses TCP port 8080. The management interface itself does not implement access control; instead, the installer does not open port 8080 by default, so that the management interface is only available to web browsers running locally on the license server host. Access to the management interface is therefore controlled by limiting remote access (via VNC, RDP, etc.) to the license server platform.
2.1.4. High Availability Requirements
If you plan to configure high availability for the license sever by configuring a primary server and a secondary server, these requirements must be met:
- Both servers must run the same version of the NVIDIA vGPU Software License Server software.
- The clocks on both servers must be accurate and synchronized. NTP is recommended.
- The same license configuration file must be installed on both servers. This file is configured to include the Ethernet MAC addresses of both servers.
- Installing the license server:
- Obtaining the License Server’s MAC Address
- Enabling Failover Support on the Primary and Secondary License Servers
- Managing your License Servers and Getting your License Files
- Installing a License
- Verifying High Availability Setup of the License Server
- Reserving Licenses
2.2. Installing the NVIDIA vGPU Software License Server on Windows
The license server requires a Java runtime environment, which must be installed separately before you install the license server.
2.2.1. Installing the Java Runtime Environment on Windows
Install a JRE for the same the processor architecture as the license server that you will install: If you will install a 32-bit license server, install a 32-bit JRE; if you will install a 64-bit license server, install a 64-bit JRE.
If you are installing OpenJDK to migrate from Oracle Java SE JRE and upgrade your license server version, see Upgrading the NVIDIA vGPU Software License Server and Migrating to OpenJDK on Windows.
- Download a supported Oracle Java SE JRE or OpenJDK JRE.
- Download Oracle Java SE JRE from the Java Downloads for All Operating Systems page.
- Download OpenJDK JRE from the Community builds using source code from OpenJDK project on GitHub.
- Install the JRE that you downloaded.
- Oracle Java SE JRE installation:
- OpenJDK JRE installation:
- Oracle Java SE JRE installation:
-
Set the JAVA_HOME system variable to the full path to the
jre folder of your JRE installation.
For example:
- For 64-bit Oracle Java SE JRE: C:\Program Files\Java\jre1.8.0_191
- For 32-bit Oracle Java SE JRE: C:\Program Files (x86)\Java\jre1.8.0_191
- For 64-bit OpenJDK JRE: C:\Program Files\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\jre
- For 32-bit OpenJDK JRE: C:\Program Files (x86)\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\jre
Ensure that the path does not include any trailing characters, such as a slash or a space.
If you are upgrading to a new version of the JRE, update the value of the JAVA_HOME system variable to the full path to the jre folder of your new JRE version.
-
Ensure that the Path system variable contains the path to the
java.exe executable file.
The installer may have already added this path for you.
For example:
- For 64-bit Oracle Java SE JRE: C:\Program Files\Java\jre1.8.0_191\bin
- For 32-bit Oracle Java SE JRE: C:\Program Files (x86)\Java\jre1.8.0_191\bin
- For 64-bit OpenJDK JRE: C:\Program Files\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\bin
- For 32-bit OpenJDK JRE: C:\Program Files (x86)\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\bin
2.2.2. Installing the License Server Software on Windows in Graphical Mode
If you are replacing an existing version of the license server that was configured to use HTTPS, copy the files that are necessary to re-instate the configuration after you install the new version.
-
If you configured HTTPS for connections between the management interface and the license server, copy the SSL certificate that the license server was configured with. The installer deletes the entire contents of any existing license server installation folder, including files that were added after the license server software was installed, such as the SSL certificate.
Note:Copying an SSL certificate might corrupt it. To determine if the certificate is corrupted, run this command:
$JAVA_HOME/bin/keytool -list -keystore certificate-file-name.jks -storepass certificate-password
If the certificate is corrupted, contact the CA that issued your certificate to obtain a new certificate.
-
If you specified HTTPS for connections from a web browser to the license server management interface, copy the Tomcat configuration file server.xml so that you can reinstate the necessary changes to the Tomcat configuration. The installer overwrites the existing server.xml file and any custom configuration specified in the file is lost.
- Unzip the license server installer and run setup.exe.
- Accept the EULA for the license server software and the Apache Tomcat software used to support the license server’s management interface.
- Choose the destination folder where you want the license server software to be
installed.Figure 3. Destination Folder Selection on Windows
- In the Choose Firewall Options dialog box, select the ports to be
opened in the firewall.
To enable remote clients to access licenses from the server and prevent remote access to the management interface, use the default setting, which sets ports as follows:
- Port 7070 is open to enable remote clients to access licenses from the server.
- Port 8080 is closed to ensure that the management interface is available only through a web browser running locally on the license server host.
- After installation has completed successfully, click Done to exit the installer.
If you are replacing an existing version of the license server and it was configured to use HTTPS, re-instate the HTTPS configuration as explained in Configuring HTTPS for Connections Between the Management Interface and the License Server and Specifying HTTPS for Connections from a Web Browser to the License Server Management Interface.

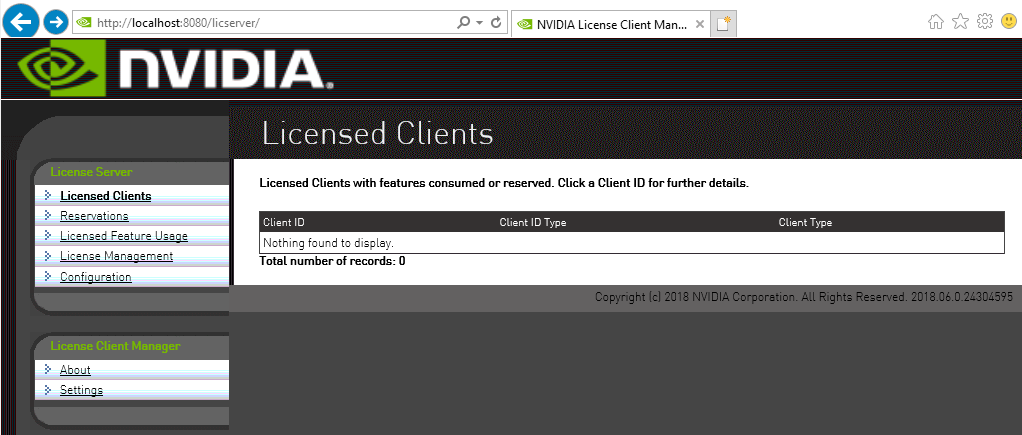

Verify the installation by accessing the license server management interface as explained in Accessing the License Server Management Interface.
2.2.3. Installing the License Server Software on Windows in Console Mode
If you are replacing an existing version of the license server that was configured to use HTTPS, copy the files that are necessary to re-instate the configuration after you install the new version.
-
If you configured HTTPS for connections between the management interface and the license server, copy the SSL certificate that the license server was configured with. The installer deletes the entire contents of any existing license server installation folder, including files that were added after the license server software was installed, such as the SSL certificate.
Note:Copying an SSL certificate might corrupt it. To determine if the certificate is corrupted, run this command:
$JAVA_HOME/bin/keytool -list -keystore certificate-file-name.jks -storepass certificate-password
If the certificate is corrupted, contact the CA that issued your certificate to obtain a new certificate.
-
If you specified HTTPS for connections from a web browser to the license server management interface, copy the Tomcat configuration file server.xml so that you can reinstate the necessary changes to the Tomcat configuration. The installer overwrites the existing server.xml file and any custom configuration specified in the file is lost.
- Extract the contents of the license server zip archive.
- Run the extracted setup binary.
C:\> setup.exe -i console
The Introduction screen of the InstallAnywhere installer is displayed. - In the Introduction screen, press Enter to continue.
- In the License Agreement screen, press Enter each time you are prompted to page through the license agreement. When you reach the end of the license agreement, you are prompted to accept its terms.
- Type y to accept the terms of the license agreement and proceed with installation.
- In the Apache License Agreement screen, press Enter each time you are prompted to page through the license agreement. When you reach the end of the license agreement, you are prompted to accept its terms.
- Type y to accept the terms of the license agreement and proceed with installation.
- In the Choose Install Folder screen, specify where you want the
license server software to be installed:
- Press Enter to accept the default installation folder.
- Enter the absolute path to the destination folder where you want the license server software to be installed.
- In the Choose Firewall Options screen box, select the ports to be
opened in the firewall.
The options for selecting ports to be opened in the firewall are presented as follows:
->1- License server (port 7070) 2- Management interface (port 8080)- Press Enter to accept the default setting.
- Enter a comma-separated list of numbers that represent your choice of ports to be opened.
To enable remote clients to access licenses from the server and prevent remote access to the management interface, use the default setting, which sets ports as follows:
- Port 7070 is open to enable remote clients to access licenses from the server.
- Port 8080 is closed to ensure that the management interface is available only through a web browser running locally on the license server host.
- In the Pre-Installation Summary screen, review your choices and press Enter to start the installation. After installation has completed successfully, the Install Complete screen is displayed.
- In the Install Complete screen, press Enter to exit the installer.
If you are replacing an existing version of the license server and it was configured to use HTTPS, re-instate the HTTPS configuration as explained in Configuring HTTPS for Connections Between the Management Interface and the License Server and Specifying HTTPS for Connections from a Web Browser to the License Server Management Interface.
Verify the installation by accessing the license server management interface as explained in Accessing the License Server Management Interface.
2.2.4. Upgrading the NVIDIA vGPU Software License Server and Migrating to OpenJDK on Windows
- Use the Services application to confirm that the
Apache Tomcat 8.5 Tomcat8 service is running.
- Use the Services application to confirm that the
FlexNet License Server - nvidia service is
running.
- In the Services application, context-click the FlexNet License Server - nvidia service and choose Stop.
- In the Services application, context-click the Apache Tomcat 8.5 Tomcat8 service and choose Stop.
- Uninstall Oracle Java SE JRE.
- Open Windows Control Panel and under Programs, follow the Uninstall a program link.
- Context-click the installed Oracle Java SE JRE program, choose
Uninstall, and if you are prompted to confirm
that you want to uninstall the program, click
Yes.
- Install OpenJDK.
- Set the JAVA_HOME system variable to the full path to the
jre folder of your JRE installation.
For example:
- For 64-bit OpenJDK JRE: C:\Program Files\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\jre
- For 32-bit OpenJDK JRE: C:\Program Files (x86)\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\jre
Ensure that the path does not include any trailing characters, such as a slash or a space.
If you are upgrading to a new version of the JRE, update the value of the JAVA_HOME system variable to the full path to the jre folder of your new JRE version.
- Ensure that the Path system variable contains the path to the
java.exe executable file.
For example:
- For 64-bit OpenJDK JRE: C:\Program Files\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\bin
- For 32-bit OpenJDK JRE: C:\Program Files (x86)\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\bin
- Ensure that Apache Tomcat can locate your OpenJDK
JRE.
- In Windows File Explorer, navigate to the
bin folder of your Apache Tomcat
installation.
This default folder depends on whether 64-bit or 32-bit
Apache Tomcat is installed:
- 64-bit: %SystemDrive%:\Program Files\NVIDIA\License Server\Tomcat\bin
- 32-bit: %SystemDrive%:\Program Files (x86)\NVIDIA\License Server\Tomcat\bin
- Double-click the Tomcat8w application in this folder.
- In the Apache Tomcat 8.5 Tomcat8 Properties window that opens, click the Java tab.
- Deselect the Use default option, set
Java Virtual Machine to the full path to the
JVM DLL file jvm.dll of your OpenJDK installation
and click OK.
For example:
- For 64-bit OpenJDK JRE: C:\Program Files\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\jre\bin\server\jvm.dll
- For 32-bit OpenJDK JRE: C:\Program Files (x86)\ojdkbuild\java-1.8.0-openjdk-1.8.0.201-1\jre\bin\server\jvm.dll
- In Windows File Explorer, navigate to the
bin folder of your Apache Tomcat
installation.
This default folder depends on whether 64-bit or 32-bit
Apache Tomcat is installed:
- In the Services application, context-click the Apache Tomcat 8.5 Tomcat8 service and choose Start.
- In the Services application, context-click the FlexNet License Server - nvidia service and choose Start.
- Confirm that the license server is working by accessing the license server management interface as explained in Accessing the License Server Management Interface.
2.2.5. Upgrading from a 32-Bit to a 64-Bit NVIDIA vGPU Software License Server on Windows
The 64-bit NVIDIA vGPU software license server requires a 64-bit JRE. If you want to upgrade from a 32-bit license server to a 64-bit license server, you must uninstall and reinstall the license server and associated software to meet this requirement.
If you are replacing an existing version of the license server that was configured to use HTTPS, copy the files that are necessary to re-instate the configuration after you install the new version.
-
If you configured HTTPS for connections between the management interface and the license server, copy the SSL certificate that the license server was configured with. The installer deletes the entire contents of any existing license server installation folder, including files that were added after the license server software was installed, such as the SSL certificate.
Note:Copying an SSL certificate might corrupt it. To determine if the certificate is corrupted, run this command:
$JAVA_HOME/bin/keytool -list -keystore certificate-file-name.jks -storepass certificate-password
If the certificate is corrupted, contact the CA that issued your certificate to obtain a new certificate.
-
If you specified HTTPS for connections from a web browser to the license server management interface, copy the Tomcat configuration file server.xml so that you can reinstate the necessary changes to the Tomcat configuration. The installer overwrites the existing server.xml file and any custom configuration specified in the file is lost.
- Uninstall the existing 32-bit license server. For instructions, see Uninstalling the NVIDIA vGPU Software License Server on Windows.
- Uninstall the existing 32-bit Apache Tomcat software.
- Open Windows Control Panel.
- Select Programs and Features.
- In the list of programs, select Apache Tomcat and click Uninstall/Change.
- Remove the existing license server log files and trusted storage database by deleting all files in the folder %SystemDrive%:\Windows\ServiceProfiles\NetworkService\flexnetls\nvidia.
- Uninstall the existing 32-bit JRE.
- Open Windows Control Panel and under Programs, follow the Uninstall a program link.
- Context-click the installed JRE program, choose Uninstall, and if you are prompted to confirm that you want to uninstall the program, click Yes.
- Install a 64-bit JRE. For instructions, see Installing the Java Runtime Environment on Windows.
- Install the 64-bit license server and Apache Tomcat software. For instructions, see the following topics:
If you are replacing an existing version of the license server and it was configured to use HTTPS, re-instate the HTTPS configuration as explained in Configuring HTTPS for Connections Between the Management Interface and the License Server and Specifying HTTPS for Connections from a Web Browser to the License Server Management Interface.

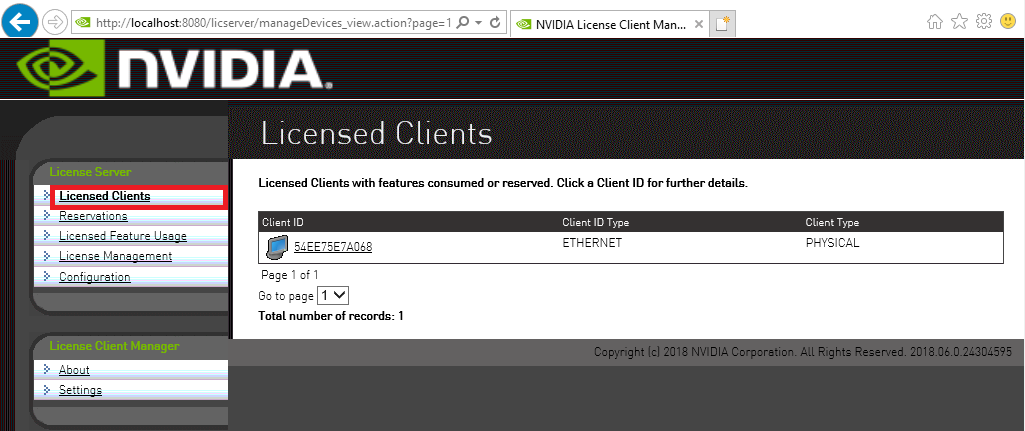

Verify the installation by accessing the license server management interface as explained in Accessing the License Server Management Interface.
After uninstalling and reinstalling the license server, you must reinstall each of your licenses as explained in Installing a License. Installed NVIDIA vGPU software licenses are not retained across an uninstallation followed by reinstallation.
2.3. Installing the NVIDIA vGPU Software License Server on Linux
The license server requires a Java runtime environment and an Apache Tomcat server, which must be installed separately before you install the license server software.
2.3.1. Installing the Java Runtime Environment on Linux
If you are installing OpenJDK to migrate from Oracle Java SE JRE and upgrade your license server version, see Upgrading the NVIDIA vGPU Software License Server and Migrating to OpenJDK on Linux.
- Determine whether a version of Java is installed on your system.
[nvidia@localhost ~]$ java -version
If a Java version is installed, the version is shown as follows and you do not need to install JRE.
java version "1.7.0_51" OpenJDK Runtime Environment (rhel-2.4.5.5.el7-x86_64 u51-b31) OpenJDK 64-Bit Server VM (build 24.51-b03, mixed mode) [nvidia@localhost ~]$
- Use your Linux distribution’s package manager to install OpenJDK.
-
For distributions based on Red Hat, use the yum package manager to install the java package.
[nvidia@localhost ~]$ sudo yum install java
-
For distributions based on Debian, use the apt package manager to install the default-jdk package.
[nvidia@localhost ~]$ sudo apt install default-jdk
-
- Set the JAVA_HOME environment variable to the jre folder of your OpenJDK JRE installation, for example, /usr/lib/jvm/java-8-openjdk-amd64/jre.
2.3.2. Installing and Running the Apache Tomcat Server on Linux
- Use your Linux distribution’s package manager to install the required Apache
Tomcat packages.
-
For distributions based on Red Hat, use the yum package manager to install the tomcat and tomcat-webapps packages.
[nvidia@localhost ~]$ sudo yum install tomcat tomcat-webapps
-
For distributions based on Debian, use the apt package manager to install the tomcatrelease package. For example, for Apache Tomcat 8, run:
[nvidia@localhost ~]$ sudo apt install tomcat8
-
- After installing the packages, enable the Tomcat service for automatic startup
on boot.
-
For distributions based on Red Hat, enable the tomcat service.
[nvidia@localhost ~]$ sudo systemctl enable tomcat.service
-
For distributions based on Debian, enable the tomcatrelease service. For example, for Apache Tomcat 8, run:
[nvidia@localhost ~]$ sudo systemctl enable tomcat8.service
-
- Start the Tomcat service.
-
For distributions based on Red Hat, start the tomcat service.
[nvidia@localhost ~]$ sudo systemctl start tomcat.service
-
For distributions based on Debian, start the tomcatrelease service. For example, for Apache Tomcat 8, run:
[nvidia@localhost ~]$ sudo systemctl start tomcat8.service
-
- Verify that the Tomcat service is operational by opening the URL http://localhost:8080 in a web browser. The home page of the default Tomcat web application should be displayed, as shown in Figure 6.
2.3.3. Installing the License Server Software on Linux in Graphical Mode
- Extract the contents of the license server ZIP archive.
[nvidia@localhost ~]$ unzip NVIDIA-ls-linux-2019.05.0.26416627.zip - Add execute permission to the extracted setup binary file.
[nvidia@localhost ~]$ chmod +x setup.bin
- As root, run the extracted setup binary.
[nvidia@localhost ~]$ sudo ./setup.bin
- Accept the EULA to proceed with installation.Figure 7. License Agreements on Linux
- Choose the destination folder where you want the license server software to be
installed.Figure 8. Destination Folder Selection on Linux
- Specify the path to the folder on the local host that contains the
webapps folder.
Web applications are deployed on Apache Tomcat Server to the webapps folder.
-
For distributions based on Red Hat, the default path to this folder is /usr/share/tomcat.
-
For distributions based on Debian, the default path to this folder is /var/lib/tomcatrelease, for example /var/lib/tomcat8, for Apache Tomcat 8.
Figure 9. Apache Tomcat Server Path on Linux
-
- In the Choose Firewall Options dialog box, shown in Figure 10, select the ports to be opened in the firewall.
To enable remote clients to access licenses from the server and prevent remote access to the management interface, use the default setting, which sets ports as follows:
- Port 7070 is open to enable remote clients to access licenses from the server.
- Port 8080 is closed to ensure that the management interface is available only through a web browser running locally on the license server host.
- After installation has completed successfully, click Done to exit the installer.
Verify the installation by accessing the license server management interface as explained in Accessing the License Server Management Interface.
2.3.4. Installing the License Server Software on Linux in Console Mode
- Extract the contents of the license server ZIP archive.
[nvidia@localhost ~]$ unzip NVIDIA-ls-linux-2019.05.0.26416627.zip - Add execute permission to the extracted setup binary file.
[nvidia@localhost ~]$ chmod +x setup.bin
- As root, run the extracted setup binary.
[nvidia@localhost ~]$ sudo ./setup.bin -i console
The Introduction screen of the InstallAnywhere installer is displayed. - In the Introduction screen, press Enter to continue.
- In the License Agreement screen, press Enter each time you are prompted to page through the license agreement. When you reach the end of the license agreement, you are prompted to accept its terms.
- Type y to accept the terms of the license agreement and proceed with installation.
- In the Choose Install Folder screen, specify where you want the
license server software to be installed:
- Press Enter to accept the default installation folder.
- Enter the absolute path to the destination folder where you want the license server software to be installed.
- In the Choose Local Tomcat Server Path screen, enter
the path to the folder on the local host that contains the webapps
folder.
Web applications are deployed on Apache Tomcat Server to the webapps folder.
-
For distributions based on Red Hat, the default path to this folder is /usr/share/tomcat.
-
For distributions based on Debian, the default path to this folder is /var/lib/tomcatrelease, for example /var/lib/tomcat8, for Apache Tomcat 8.
-
- In the Choose Firewall Options screen box, select the ports to be
opened in the firewall.
The options for selecting ports to be opened in the firewall are presented as follows:
->1- License server (port 7070) 2- Management interface (port 8080)- Press Enter to accept the default setting.
- Enter a comma-separated list of numbers that represent your choice of ports to be opened.
To enable remote clients to access licenses from the server and prevent remote access to the management interface, use the default setting, which sets ports as follows:
- Port 7070 is open to enable remote clients to access licenses from the server.
- Port 8080 is closed to ensure that the management interface is available only through a web browser running locally on the license server host.
- In the Pre-Installation Summary screen, review your choices and press Enter to start the installation. After installation has completed successfully, the Install Complete screen is displayed.
- In the Install Complete screen, press Enter to exit the installer.
Verify the installation by accessing the license server management interface as explained in Accessing the License Server Management Interface.
2.3.5. Upgrading the NVIDIA vGPU Software License Server and Migrating to OpenJDK on Linux
If you no longer want to use Oracle Java SE JRE and are upgrading your existing installation of NVIDIA vGPU software license server, you can replace the Oracle Java SE JRE with the OpenJDK JRE.
- Check status of the Apache Tomcat service.
-
For distributions based on Red Hat, check the status of the tomcat service.
[nvidia@localhost ~]$ systemctl status tomcat.service
-
For distributions based on Debian, check the status of the tomcatrelease service. For example, for Apache Tomcat 8, run:
[nvidia@localhost ~]$ sudo systemctl status tomcat8.service
-
- Check the status of the NVIDIA vGPU software license server
flexnetls-nvidia service.
[nvidia@localhost ~]$ systemctl status flexnetls-nvidia.service
- Stop the NVIDIA vGPU software license server
flexnetls-nvidia service.
[nvidia@localhost ~]$ systemctl stop flexnetls-nvidia.service
- Stop the Apache Tomcat service.
-
For distributions based on Red Hat, stop the tomcat service.
[nvidia@localhost ~]$ sudo systemctl stop tomcat.service
-
For distributions based on Debian, stop the tomcatrelease service. For example, for Apache Tomcat 8, run:
[nvidia@localhost ~]$ sudo systemctl stop tomcat8.service
-
- Use your Linux distribution’s package manager to install OpenJDK.
-
For distributions based on Red Hat, use the yum package manager to install the java package.
[nvidia@localhost ~]$ sudo yum install java
-
For distributions based on Debian, use the apt package manager to install the default-jdk package.
[nvidia@localhost ~]$ sudo apt install default-jdk
-
- Optional: Uninstall Oracle Java SE JRE. For information about uninstalling Oracle Java SE JRE, see How do I uninstall Java for Linux ? on the java.com: Java + You website.
- Ensure that Apache Tomcat can locate your OpenJDK
JRE.
- Get the parent of the jre folder for your OpenJDK
installation.
The following example gets the parent of the jre folder for an installation of 64-bit OpenJDK 8.
[nvidia@localhost ~] update-java-alternatives -l java-1.8.0-openjdk-amd64 1081 /usr/lib/jvm/java-1.8.0-openjdk-amd64
- Open the file /etc/default/tomcat8 in a plain text
editor and edit the value of the JAVA_HOME environment
variable to specify the full path to the jre folder
of your OpenJDK installation.
The following example sets JAVA_HOME for an installation of 64-bit OpenJDK 8.
JAVA_HOME=/usr/lib/jvm/java-8-openjdk-amd64/jre
- Get the parent of the jre folder for your OpenJDK
installation.
- Start the Apache Tomcat service.
-
For distributions based on Red Hat, start the tomcat service.
[nvidia@localhost ~]$ sudo systemctl start tomcat.service
-
For distributions based on Debian, start the tomcatrelease service. For example, for Apache Tomcat 8, run:
[nvidia@localhost ~]$ sudo systemctl start tomcat8.service
-
- Start the NVIDIA vGPU software license server
flexnetls-nvidia service.
[nvidia@localhost ~]$ systemctl start flexnetls-nvidia.service
- Confirm that the license server is working by accessing the license server management interface as explained in Accessing the License Server Management Interface.
2.4. Installing and Securing the License Server in the Cloud
To support bring your own license (BYOL) deployments of NVIDIA vGPU software on supported cloud services, you can host the license server on a VM on a supported cloud service.
The following cloud services support NVIDIA vGPU software running in GPU pass-through mode:
- Amazon EC2
- Google Cloud Platform
- Microsoft Azure
For more information, see NVIDIA Virtual GPU Software Supported Cloud Services.
A license server that is hosted in the cloud is accessed over the public Internet. For increased security, protect the license server and the licenses installed on it as follows:
- Use the features of the license server to secure the license server as as explained in Securing the NVIDIA vGPU Software License Server.
- Restrict access to the license server by client machines in one of the following ways:
- Use firewall settings on the license server host or elsewhere to limit the machines that can access the license server.
- Configure the license server host and the licensed client VMs to operate within a virtual private network.
3. Securing the NVIDIA vGPU Software License Server
3.1. Controlling Access to the License Server Management Interface
For increased security, you can control access to the license server management interface by allowing access only to authorized users. When access to the license server management interface is controlled, authorized users must authenticate themselves to manage licenses on the license server.
You control access to the license server management interface by using the nvidialsadmin command. For general information about the nvidialsadmin command that you need to complete this task, see:
3.1.1. Enabling Administrative Security for the License Server
When administrative security is enabled for the license server, any user attempting to administer the license server through the command line tool or the license server management interface must provide a set of authorization credentials. By default, administrative security is not enabled on the license server.
Perform this task in a command shell on the license server host.
Set the property security.enabled to true.
nvidialsadmin -config -set security.enabled=true Updated the property:security.enabled with value:true successfully
In any subsequent nvidialsadmin command, users must provide the required credentials for authenticating with the license server. For more information, see Authenticating with the License Server.
nvidialsadmin -authorize admin admin-password -config -set security.enabled=false User authentication succeeded. Updated the property:security.enabled with value:false successfully
After setting the property security.enabled to false, restart the Apache Tomcat server and the flexnetls-nvidia service.
3.1.2. Default License Server Administrative Credentials
When the license server is started, the default administrator account is created and assigned super user role. This account is inactive until administrative security is enabled for the license server. By default, administrative security is not enabled for the license server.
When administrative security is enabled for the license server, the default administrator account grants a full range of privileges to administer the license server, including authorization to create and manage other user accounts that have limited administrative privileges or other license server administrator accounts.
The default credentials for the license server administrator account are as follows:
- User name: admin
- Password: Admin@123
For increased security, reset the administrator password immediately after enabling administrative security for the license server. For instructions, see Resetting the Default Administrator Password for the License Server.
3.1.3. License Server Password Requirements
To help you set strong passwords, the license server enforces some requirements on the length and complexity of passwords.
A license server password must be 8-64 characters long, contain no white space, and contain all of the following:
- At least one lowercase character
- At least one uppercase character
- At least one number
- At least one special character (for example, ^, *, $, -, +, ?, _, &, =, !, %, {, }, /, and #)
The password is case sensitive.
3.1.4. Resetting the Default Administrator Password for the License Server
Perform this task in a command shell on the license server host.
Change the password of the admin user.
nvidialsadmin -authorize admin Admin@123 -users -edit admin new-password
- new-password
- Your choice of new password for the default administrator account. The password is case sensitive and must be a strong password that meets the requirements in License Server Password Requirements.
3.1.5. Listing All License Server User Accounts
Perform this task in a command shell on the license server host.
Run the nvidialsadmin utility with only the -users option and no other options.
nvidialsadmin -users
3.1.6. Creating a License Server User Account
Perform this task in a command shell on the license server host.
Run the nvidialsadmin utility with the -users and -create options.
nvidialsadmin -users -create new-username new-user-password[ roles]
- new-username
- Your choice of user name for the user that you are adding.
- new-user-password
- Your choice of password for authenticating the user that you are adding. The password is case sensitive and must be a strong password that meets the requirements in License Server Password Requirements.
- roles
- One or more roles that determine operations allowed by the user for
managing licenses on the license server:
- ROLE_READ grants the user privileges to perform read-only operations on the license server, for example, to query features, licenses, license reservations, or license server status. This role is assigned by default.
- ROLE_RESERVATIONS grants the user privileges to create and manage license reservations.
- ROLE_ADMIN grants the user administrator privileges to update license server policies (local license server only), create and manage other user accounts, and perform other administrative tasks.
You can assign multiple roles to a user by separating each role with the + sign, for example, ROLE_READ+ROLE_RESERVATIONS.
This example adds the user lsmgr with the password 3Nt3rl5vr and the ROLE_ADMIN role.
nvidialsadmin -users -create lsmgr 3Nt3rl5vr ROLE_ADMIN
3.1.7. Modifying a License Server User Account
You can modify the account of an existing license server user to change the password or the roles for the account.
Perform this task in a command shell on the license server host.
Run the nvidialsadmin utility with the -users and -edit options.
nvidialsadmin -users -edit username user-password[ new-roles]
- username
- The user name of the user whose account you are modifying.
- user-password
- The password for authenticating the user whose account you are
modifying.
You must specify the password, even if you are not changing it.
- To leave the password unchanged, specify the user's existing password.
- To change the password, specify a new password. The password is case sensitive and must be a strong password that meets the requirements in License Server Password Requirements.
- new-roles
- The new roles that determine operations allowed by the user for managing
licenses on the license server.
Specify new roles only if you want to change the roles for the account. To leave the user's existing roles unchanged, do not specify any roles in the command.
You can assign multiple roles to a user by separating each role with the + sign, for example, ROLE_READ+ROLE_RESERVATIONS.
This example changes role of the user lsmgr to the ROLE_RESERVATIONS role. Because the user's existing password 3Nt3rl5vr is specified, the password is not changed.
nvidialsadmin -users -edit lsmgr 3Nt3rl5vr ROLE_RESERVATIONS
3.1.8. Deleting a License Server User Account
Perform this task in a command shell on the license server host.
Run the nvidialsadmin utility with the -users and -delete options.
nvidialsadmin -users -delete username
- username
- The user name for the user whose account you are deleting.
This example deletes the user account lsmgr from the license server.
nvidialsadmin -users -delete lsmgr
3.2. Configuring HTTPS for Connections Between the Management Interface and the License Server
By default, the license server management interface connects to the license server over the HTTP protocol. This connection is for communications between two processes that are running on the same host machine. For increased security, you can specify that the license server management interface connects to the license server over HTTPS.
To configure HTTPS for connections between the management interface and the license server, follow this sequence of instructions:
- Obtaining an SSL Certificate for the License Server
- Configuring the License Server with an SSL Certificate
- Setting the License Server Connection Protocol to HTTPS
You can also specify HTTPS for users' connections from a web browser to the license server management interface. See Specifying HTTPS for Connections from a Web Browser to the License Server Management Interface.
3.2.1. Obtaining an SSL Certificate for the License Server
- Request an SSL certificate from a certificate authority (CA) in Java keystore
format (not a PEM text file) and secured with a password.
In the certificate, you can choose to identify the license server host through either its host name or its fully qualified domain name. In your certificate signing request (CSR) to the CA, ensure that the Common Name (CN) attribute of the CSR matches how the license server is identified in the certificate. For example, if the license server is identified in the certificate through its fully qualified domain name, set the CN attribute to the fully qualified domain name of the license server.
If necessary, contact the CA that will provide your certificate for information about how to request a certificate in Java keystore format or convert an existing certificate to this format.
- Store the SSL certificate in the appropriate directory on the license server
host.
- On Linux, store the SSL certificate in the /opt/flexnetls/nvidia/ directory.
- On Windows, store the SSL certificate in the folder in which the license
server is installed. The default license server installation folder depends
on whether a 32-bit or 64-bit license server is installed:
- 32-bit: %SystemDrive%:\Program Files (x86)\NVIDIA\License Server
- 64-bit: %SystemDrive%:\Program Files\NVIDIA\License Server
- Optional: To prevent the password from being stored in plain text in license server
configuration files, obfuscate the password.
java -jar flexnetls.jar --password=password
- password
- The password with which the certificate is secured.
This example obfuscates the password abracadabra.
java -jar flexnetls.jar --password=abracadabra abracadabra => OBF:1ri71v1r1v2n1ri71shq1ri71shs1ri71v1r1v2n1ri7
3.2.2. Configuring the License Server with an SSL Certificate
Before configuring the license server with an SSL certificate, ensure that the following prerequisites are met:
- You have obtained the certificate from a trusted CA.
- The license server is not blocked by a firewall.
How to configure the license server with an SSL certificate depends on whether the license server is running on a Windows or Linux platform.
3.2.2.1. Configuring the License Server with an SSL Certificate on Windows
- In the
license-server-installation-folder\server\local-configuration.yaml
file, edit the https-in section to set attributes that provide
access to the certificate.
- license-server-installation-folder
- The folder in which the license server software is installed. The
default license server installation folder depends on whether a
32-bit or 64-bit license server is installed:
- 32-bit: %SystemDrive%:\Program Files (x86)\NVIDIA\License Server
- 64-bit: %SystemDrive%:\Program Files\NVIDIA\License Server
Specifically, set the following attributes:
- Enable HTTPS
- The port number for incoming HTTPS requests
- The full or relative path to the SSL certificate file for the license server on the license server host
- The password with which the certificate is secured
https-in: # Set to true to enable HTTPS enabled: true # HTTPS listening port port: https-port # Path to keystore keystore-path: server-certificate-file-path # Keystore password. You can obfuscate this with java -jar flexnetls.jar -password your-password-here keystore-password: password
- https-port
- The port number for incoming HTTPS requests, for example, 443.
- server-certificate-file-path
- The full or relative path to the SSL certificate file for the license server on the license server host.
- password
- The password with which the certificate is secured. If the password
is obfuscated, specify the entire obfuscated string, including the
OBF: prefix, for example,
OBF:1ri71v1r1v2n1ri71shq1ri71shs1ri71v1r1v2n1ri7.
Note: To protect this password, ensure that the file that contains the password is appropriately secured. Specifically, limit access to the file that contains the password so that it can be read only by the user that the Tomcat process runs as and the administrator user on Windows or the root user on Linux.
This example provides access to the SSL certificate file keystore.jks, which is protected by an obfuscated password. The port number for incoming HTTPS requests is 443.
https-in: # Set to true to enable HTTPS enabled: true # HTTPS listening port port: 443 # Path to keystore keystore-path: ..\keystore.jks # Keystore password. You can obfuscate this with java -jar flexnetls.jar -password your-password-here keystore-password: OBF:1ri71v1r1v2n1ri71shq1ri71shs1ri71v1r1v2n1ri7
- Restart the license server.
3.2.2.2. Configuring the License Server with an SSL Certificate on Linux
- In the /opt/flexnetls/nvidia/local-configuration.yaml
file, edit the https-in section to set attributes that provide
access to the certificate.
Specifically, set the following attributes:
- Enable HTTPS
- The port number for incoming HTTPS requests
- The name of the SSL certificate file for the license server on the license server host
- The password with which the certificate is secured
https-in: # Set to true to enable HTTPS enabled: true # HTTPS listening port port: https-port # Path to keystore keystore-path: server-certificate-file-name # Keystore password. You can obfuscate this with java -jar flexnetls.jar -password your-password-here keystore-password: password
- https-port
- The port number for incoming HTTPS requests, for example, 1443. To
avoid the need to run the license server from a privileged account,
use a port number greater than or equal to 1024. On Linux systems,
access to ports below 1024 is restricted to processes that run with
root user privileges.
The default port for HTTPS requests is 443. If you use a different port, you can re-direct incoming HTTPS requests for the default port to the port that you are using.
- server-certificate-file-name
- The name of the SSL certificate file for the license server on the license server host. Do not include the path to this file.
- password
- The password with which the certificate is secured. If the password
is obfuscated, specify the entire obfuscated string, including the
OBF: prefix, for example,
OBF:1ri71v1r1v2n1ri71shq1ri71shs1ri71v1r1v2n1ri7.
Note: To protect this password, ensure that the file that contains the password is appropriately secured. Specifically, limit access to the file that contains the password so that it can be read only by the user that the Tomcat process runs as and the administrator user on Windows or the root user on Linux.
This example provides access to the SSL certificate file keystore.jks, which is protected by an obfuscated password. The port number for incoming HTTPS requests is 1443.
https-in: # Set to true to enable HTTPS enabled: true # HTTPS listening port port: 1443 # Path to keystore keystore-path: keystore.jks # Keystore password. You can obfuscate this with java -jar flexnetls.jar -password your-password-here keystore-password: OBF:1ri71v1r1v2n1ri71shq1ri71shs1ri71v1r1v2n1ri7
- Restart the license server.
[nvidia@localhost ~]$ systemctl restart flexnetls-nvidia
- Optional: If necessary, use the iptables command to re-direct incoming
HTTPS requests from the local host for the default port to the port that you
specified earlier.
Perform this step if you are not using the default port for incoming HTTPS requests (443) and cannot guarantee that all incoming HTTPS requests will specify the port number.
To re-direct incoming HTTPS requests from the local host, use the OUTPUT chain.
For example, to re-direct incoming HTTPS requests from the local host for port 443 to 1443, type this command:
[nvidia@localhost ~]$ sudo iptables -t nat -A OUTPUT -o lo -p tcp \ --dport 443 -j REDIRECT --to-port 1443
3.2.3. Setting the License Server Connection Protocol to HTTPS
- In the license server management interface, select
Settings.
The Settings page opens.
Figure 12. License Server Settings for Setting the Connection Protocol
- In the Settings page, set the properties for connecting to the
license server over HTTPS and click Save.
- Set the License server host name property to the value of the CN attribute in the certificate signing request for your license server certificate. For example, if the CN attribute was set to the fully qualified domain name, set License server host name to the fully qualified domain name of the license server.
- Set the License server listen port property to the port number for incoming HTTPS requests, for example, 443 or 1443. The port number is set in the license server configuration files. If necessary, ask the system administrator who configured the license server for the port number.
- Set the Connect using HTTPS property to Yes.
3.3. Specifying HTTPS for Connections from a Web Browser to the License Server Management Interface
By default, users connect from a web browser to the license server management interface over the HTTP protocol. For increased security, particularly if the license server is accessed over the public Internet, you can specify HTTPS for users' connections from a web browser to the license server management interface. Specifying HTTPS for these connections involves configuring an HTTPS connector for the Apache Tomcat server that the license server management interface uses.
- In the Tomcat configuration file
catalina-base/conf/server.xml, add a
Connector element to define an SSL Coyote HTTP/1.1
connector on a specific port, for, example, 8443.
- catalina-base
- The base directory of the Apache Tomcat instance.
<!-- Define a SSL Coyote HTTP/1.1 Connector on the specified port --> <Connector protocol="org.apache.coyote.http11.Http11NioProtocol" port="port" maxThreads="200" scheme="https" secure="true" SSLEnabled="true" keystoreFile="path-to-server-certificate" keystorePass="password" clientAuth="false" sslProtocol="TLS" />- port
- The HTTPS port for users' connections from a web browser
to the license server management interface, for example,
8443.
Ensure that the port is not already in use by another service. For example, do not use the port for accessing the license server SSL certificate as described in Configuring the License Server with an SSL Certificate on Windows and Configuring the License Server with an SSL Certificate on Linux.
- path-to-server-certificate
- The full path to the certificate file on the license server host.
- password
- The password with which the certificate is secured.
The password must be specified in plain text. You cannot use an
obfuscated password.Note: To protect this password, ensure that the file that contains the password is appropriately secured. Specifically, limit access to the file that contains the password so that it can be read only by the user that the Tomcat process runs as and the administrator user on Windows or the root user on Linux.
For additional information about how to obscure the password, see Apache Tomcat Passwords FAQ.
For more information, see Edit the Tomcat Configuration File in the Apache Tomcat SSL/TLS Configuration HOW-TO.
- Restart the Apache Tomcat service.
4. Managing Licenses on the NVIDIA vGPU Software License Server
Managing licenses on the NVIDIA vGPU software license server involves installing licenses on the license server and controlling and monitoring the usage of installed licenses. You manage the license server in a web browser through the license server management interface.
You can also manage the license server from the command line.
4.1. Accessing the License Server Management Interface
- In a web browser, visit the home page for the license server management
interface.
- If the license server host does not permit remote access, open a web browser on
the license server host and connect to one of the following URLs, depending on whether
the connection protocol is HTTP or HTTPS:
- HTTP: http://localhost:8080/licserver
- HTTPS: https://localhost:https-port/licserver
- If the license server host’s network firewall is configured to permit remote
access to the license server, open a web browser on a remote machine and connect to one
of the following URLs, depending on whether the connection protocol is HTTP or HTTPS:
- HTTP: http://hostname:8080/licserver
- HTTPS: https://hostname:https-port/licserver
- https-port
- The HTTPS port for users' connections from a web browser to the license server management interface, for example, 8443. This port is specified in the Apache Tomcat configuration as explained in Specifying HTTPS for Connections from a Web Browser to the License Server Management Interface.
- hostname
- The fully-qualified domain name or IP address of the license server host.
- If the license server host does not permit remote access, open a web browser on
the license server host and connect to one of the following URLs, depending on whether
the connection protocol is HTTP or HTTPS:
- If administrative security is enabled for the license server, log in to the license
server.
- In the license server management interface, select Login.
- In the Login page that is displayed, enter your user name and
password for logging in to the license server and click
Authorize.Figure 13. License Server Login Page
Note: If administrative security is not enabled for the license server and you try to log in, the license server reports that the login failed. However, you can ignore the login failure and continue to use the license server management interface.
The browser should display the home page for the license server management interface, as shown in Figure 14.
If the management interface is not displayed, consult Management Interface Connection Errors for troubleshooting steps.
4.2. Obtaining the License Server’s MAC Address
The license server’s Ethernet MAC address uniquely identifies your server to the NVIDIA Licensing Portal. You will need this address to register your license server with the NVIDIA Licensing Portal to generate license files.
- In the license server management interface, select Configuration.
- On the License Server Configuration page that opens, in the
Server host ID drop-down list, select the platform’s ETHERNET
address.
Note: You must use the same ETHERNET ID to consistently identify the server when generating licenses on the NVIDIA Licensing Portal. If your platform has multiple Ethernet interfaces, multiple ETHERNET entries may be displayed in the Server host ID drop-down list. To ensure that you use the same ETHERNET ID to consistently to identify the server, select one entry that corresponds to a primary (nonremovable) interface on the platform.
4.3. Enabling Failover Support on the Primary and Secondary License Servers
If you are configuring high availability for the license server, you must enable failover support on both the primary license server and on the secondary license server. Set the same options on both servers.
- In the license server management interface, select
Configuration.
The License Server Configuration page opens.

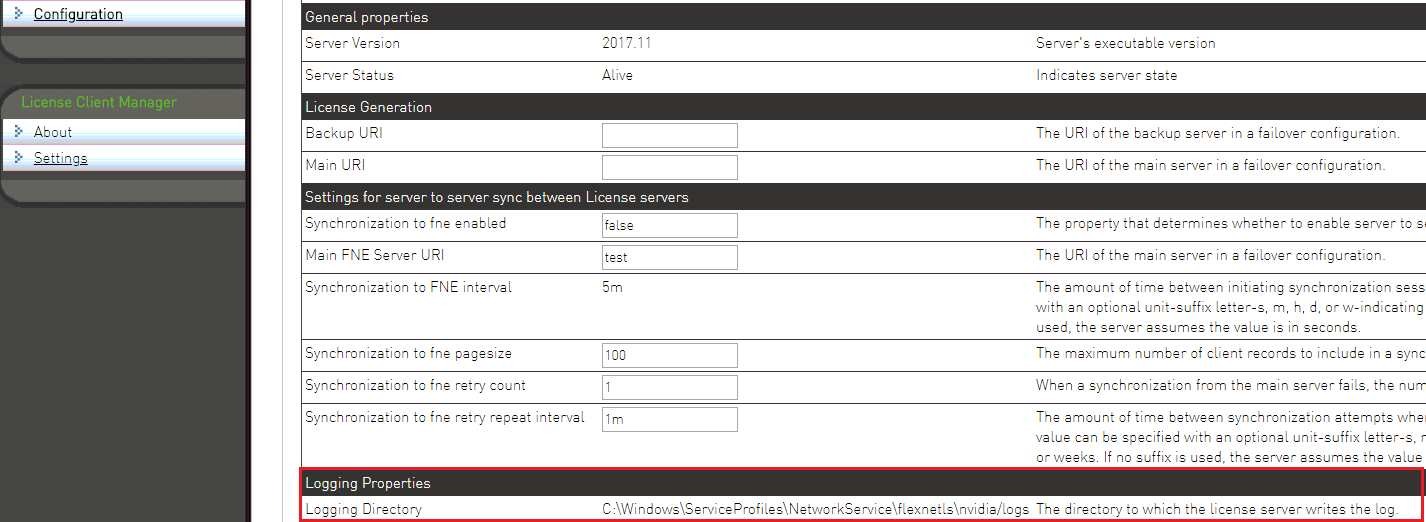

Figure 16. License Server Settings for Enabling Failover Support
- Under License Generation, use the Backup
URI and Main URI fields to set the URI to each server
in a failover configuration.
- In the Backup URI field, enter http://secondary-server:7070/fne/bin/capability.
- In the Main URI field, enter http://primary-server:7070/fne/bin/capability.
- secondary-server
- The fully-qualified domain name (for example, gridlicense2.example.com) or the IP address (for example, 10.31.20.46) of the secondary license server.
- primary-server
- The fully-qualified domain name (for example, gridlicense1.example.com) or the IP address (for example, 10.31.20.45) of the primary license server.
- Set the options under Settings for server to sync between License
servers as follows:
- Set the Synchronization to fne enabled option to true.
- In the Main FNE Server URI field, enter
http://primary-server:7070/fne/bin/capability.
- primary-server
- The fully-qualified domain name (for example, gridlicense1.example.com) or the IP address (for example, 10.31.20.45) of the primary license server.
- Click Save.
4.4. Managing your License Servers and Getting your License Files
You can also distribute your licenses across multiple license servers as necessary, add new licensed products to an existing server, delete license servers that you no longer require, and add users to help you administer your license servers.
4.4.1. Creating a License Server on the NVIDIA Licensing Portal
To be able to download NVIDIA vGPU software licenses, you must create at least one license server on the NVIDIA Licensing Portal. Creating a license server on the NVIDIA Licensing Portal registers your license server host with the NVIDIA Licensing Portal through the MAC address of the host.
- If you are not already logged in, log in to the NVIDIA Enterprise Application Hub and click NVIDIA
LICENSING PORTAL to go to the NVIDIA Licensing Portal.
If no license servers have been created for your account, the NVIDIA Licensing Portal dashboard displays a message asking if you want to
create a license server.
- On the NVIDIA Licensing Portal dashboard, click CREATE
LICENSE SERVER.
If you are adding a license server to an
account for which a license server has already been created, click the Add
License Server icon at the bottom right of the page.
The Create License Server pop-up window opens.
- Provide the details of your primary
license server.
- In the Server Name field, enter the host name of the primary license server.
- Optional: In the Description field, enter a text description of the license server. This description will be displayed on the details page for the license server that you are creating.
- In the MAC Address field, enter the MAC address of your primary license server.
- Add the licenses that you want to allocate to this license server.
- From the Product drop-down list, select the product for which you want to add licenses.
- In the Licenses field, enter the number of licenses for the product that you want to add.
- To add licenses for an additional product, click the plus (+) icon next to the Licenses field and use the Product and Licenses fields that are added to the window to select the product and enter the number of licenses.
- Optional: Provide the details of your secondary license server.
- In the Secondary License Server field, enter the host name of the secondary license server. If you have only one license server configured, leave this field unset.
- In the Secondary MAC Address field, enter the MAC address of your secondary license server. If you have only one license server configured, leave this field unset.
- Click Create.
4.4.2. Downloading a License File
Each license server that you create has license file associated with it. The license file contains all the licenses that you allocated to the license server. After downloading the license file, you can install it on the license server host associated with the license server on the NVIDIA Licensing Portal.
- If you are not already logged in, log in to the NVIDIA Enterprise Application Hub and click NVIDIA LICENSING PORTAL to go to the NVIDIA Licensing Portal.
- In the list of license servers on the NVIDIA Licensing Portal dashboard, select the license server whose associated license file you want to download.
- In the details page for the license server that opens, review the licenses allocated to
the license server.
If necessary, add or remove licenses on the server as explained in Managing Licenses on a License Server. - Click DOWNLOAD LICENSE FILE and save the .bin license file to your license server for installation.
4.4.3. Managing Licenses on a License Server
If you want to remove licensed products from a license server to return all licenses for the product to the entitlement, see Removing Licensed Products from a License Server.
- If you are not already logged in, log in to the NVIDIA Licensing Portal.
- In the list of license servers on the NVIDIA Licensing Portal dashboard, select the license server to which you want to add or from which you want to remove licenses.
- In the details page for the license server that opens, click MANAGE
LICENSES.
- In the Manage Licenses pop-up window that opens, add or remove
licenses as follows:
- From the License Feature drop-down list, select the product for which you want to add or remove licenses.
- In the Licenses field, enter the number of licenses for the
product that you want to remain on the server after updating licenses.
-
To add licenses to the server, enter a number greater than the number already allocated to the server, but less than or equal to the total number of licenses available.
If you enter a number greater than the total number of licenses available, an error occurs.
-
To remove licenses from the server, enter a number less than the number already allocated to the server but greater than 0.
For example, to remove 4 licenses from a server to which 10 licenses are allocated, leaving 6 licenses allocated to the server, enter 6 in the Licenses field.
If you enter 0, an error occurs. You must leave at least 1 license on the license server. If you want to remove all licenses for a product from the license server, you must follow the instructions in Removing Licensed Products from a License Server.
-
- To add or removes licenses for an additional product, click the plus (+) icon next to the Licenses field and use the License Feature and Licenses fields that are added to the window to select the product and enter the number of licenses.
- Click UPDATE LICENSES.
4.4.4. Adding Licensed Products to a License Server
You can add a new licensed product to a license server after the license server has been created. When you add a licensed product to a license server, you must also set the number of consumed licenses.
- If you are not already logged in, log in to the NVIDIA Licensing Portal.
- In the list of license servers on the NVIDIA Licensing Portal dashboard, select the license server to which you want to add licensed products.
- In the details page for the license server that opens, click ADD
FEATURES.
- In the Add Features pop-up window that opens, add licensed
products as follows:
- From the New Entitlement Feature drop-down list, select the licensed product that you want to add to the license server.
- In the Licenses field, enter the number of licenses for the product that you want to allocate to the server.
- To add an additional licensed product, click the plus (+) icon next to the Licenses field and use the New Entitlement Feature and Licenses fields that are added to the window to select the product and enter the number of licenses.
- Click ADD LICENSES.
4.4.5. Removing Licensed Products from a License Server
Remove licensed products from a license server if they are no longer needed or in preparation for migrating them to a new server. All licenses for the products that you remove are returned to the entitlement.
- If you are not already logged in, log in to the NVIDIA Licensing Portal.
- In the list of license servers on the NVIDIA Licensing Portal dashboard, select the license server from which you want to remove licensed products.
- In the details page for the license server that opens, click REMOVE FEATURES.
- In the Remove Features pop-up window that opens, remove licensed
products as follows:
- From the License Feature drop-down list, select the licensed product that you want to remove.
- To remove an additional product, click the plus (+) icon next to the Licenses field and use the License Feature field that is added to the window to select the product.
- Click REMOVE LICENSES.
4.4.6. Deleting a License Server
- If you are not already logged in, log in to the NVIDIA Licensing Portal.
- In the list of license servers on the NVIDIA Licensing Portal dashboard, select the license server that you want to delete.
- In the details page for the license server that opens, click DELETE
SERVER.
- When asked to confirm that you want to delete the license server, click DELETE SERVER.
4.4.7. Managing Users on the NVIDIA Licensing Portal
To assist you with administering licenses on the NVIDIA Licensing Portal, you can add users to your account on the NVIDIA Licensing Portal. You can also remove users who no longer require access from your account on the NVIDIA Licensing Portal.
You can add the following types of users to your account on NVIDIA Licensing Portal:
- Base user
- A base user cannot manage users on NVIDIA Licensing Portal.
- Admin user
- An admin user can manage users on NVIDIA Licensing Portal.
4.4.7.1. Adding a User to the NVIDIA Licensing Portal
- If you are not already logged in, log in to the NVIDIA Licensing Portal.
- In the left navigation pane of the NVIDIA Licensing Portal
dashboard, click USER MANAGEMENT.
- In the USER MANAGEMENT page that opens, click the Add User icon at the bottom right of the page.
- In the Add User pop-up window that opens, provide the
e-mail address and the name of the user, select the user's role, and click
SEND INVITATION.
Select one of the following roles for the user:
- Base user
- A base user cannot manage users on NVIDIA Licensing Portal.
- Admin user
- An admin user can manage users on NVIDIA Licensing Portal.

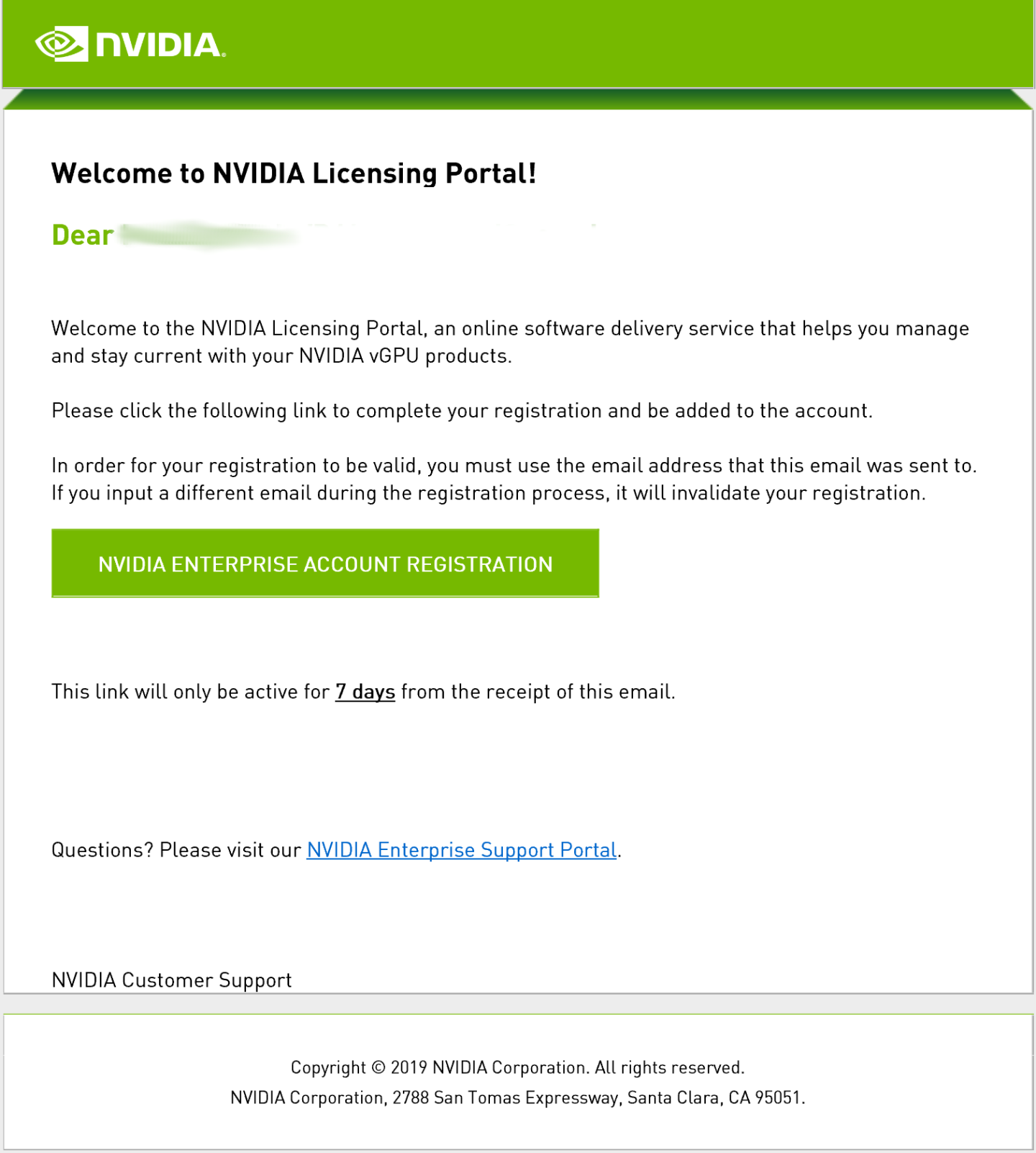

An e-mail is sent to the user at the e-mail address that you provided.
The link to the NVIDIA Enterprise Support Portal in this e-mail provides information about how to contact NVIDIA Enterprise Support.
4.4.7.2. Removing a User from the NVIDIA Licensing Portal
- If you are not already logged in, log in to the NVIDIA Licensing Portal.
- In the left navigation pane of the NVIDIA Licensing Portal
dashboard, click USER MANAGEMENT.
- In the list of users in USER MANAGEMENT page that opens, click Delete for the user that you want to remove .
- When asked to confirm that you want to remove the user, click DELETE USER.
4.5. Installing a License
NVIDIA vGPU software licenses are distributed as .bin files for download from the NVIDIA Licensing Portal.
- In the license server management interface, select License Management.
- On the License Management page that opens, click Choose File.
- In the file browser that opens, select the .bin file and click Open.
- Back on the License Management page, click Upload to install the license file on the license server. The license server should confirm successful installation of the license file.
- If you have configured high availability for the license server, restart the license
server service on the primary license server and on the secondary license
server.
- On Windows, use the Service Manager, which is accessible from Task Manager, to restart the FNLS-nvidia service.
- On Linux, as root, restart the flexnetls-nvidia
service.
[nvidia@localhost ~]$ sudo systemctl restart flexnetls-nvidia
4.6. Verifying High Availability Setup of the License Server
For the location of the log file on your platform, refer to Log File Locations and Types.
In the license server log file, search for the string that indicates whether the server has received or initiated a synchronization request. The line that contains the string and the lines that follow it indicate the role and status of the server.
- For the primary server, search for the string Received sync request from
the backup server.
22:46:30,085 INFO [request sync-session=480THG8NMUHJ] Received sync request from the backup server 22:46:30,977 INFO [request] POST:/fne/bin/capability 22:46:30,977 INFO [request sync-session=480THG8NMUHJ] Received sync request from the backup server 22:46:51,034 INFO [request] POST:/request
- For the secondary server, search for the string Starting sync: backup
requests main -> backup.
22:46:29,648 INFO [sync-session=480THG8NMUHJ] Starting sync: backup requests main -> backup. 22:46:31,438 INFO [sync-session=480THG8NMUHJ] Successfully completed sync from main server
4.7. Viewing Information About Installed Licenses
From the license server management interface, you can find out which licenses are installed on the server, view detailed information about individual licenses, and see how licensed clients are using the installed licenses.
4.7.1. Viewing the Properties of All Installed Licensed Features
In the license server management interface, select Licensed Feature Usage.
The Licensed Feature Usage page that opens lists all licensed features installed on the license server.
For each licensed feature, the properties in the following table are displayed.
| Property | Description |
|---|---|
| Feature | An abbreviated name for the feature. |
| Version | The version number associated with the feature. |
| Count | The number of licenses for the feature that are currently installed on the license server. Each concurrent user of a feature normally consumes one license. |
| Available | The number of licenses for the feature that are currently available to borrow from the server. This number decreases as users borrow licenses from the server, and increases as licenses are returned. |
| Expiry | The date on which the right to use the licensed feature expires. If the licenses are perpetual use licenses, they have no expiration date. Perpetual licenses are indicated by permanent in place of an expiration date. |
4.7.2. Viewing the Details of a Single Licensed Feature
- In the license server management interface, select Licensed Feature Usage.
- On the Licensed Feature Usage page that opens, click the individual licensed feature about which you want detailed information. The Licensed Feature Details page that opens shows information about the feature.
4.7.3. Viewing Information About All Borrowed Licenses
In the license server management interface, select Licensed Clients.
The Licensed Clients page that opens lists the NVIDIA vGPU software client virtual machines are using licensed features.
The example in Figure 21 shows that one NVIDIA vGPU software client virtual machine is using a Quadro-Virtual-DWS license.
4.7.4. Viewing the Details of a Single Licensed Client
- In the license server management interface, select Licensed Clients.
- On the Licensed Clients page that opens, click the Client ID of the licensed client about which you want detailed information. The Client Details page opens to show detailed information about the licensed client.
4.7.5. About the License Borrow Period
At the end of the borrow period, typically multiple days, a borrowed license is automatically freed by the license server for use by other clients, and becomes unavailable on the licensed client that previously held it. While active, a licensed client renews its license periodically to ensure the borrow period does not expire, if it continues to use the license and has ongoing network connectivity to the license server.
4.8. Reserving Licenses
Licenses are normally distributed to clients on a first-come, first-served basis. Reservations allow licenses to be set aside for specific clients, ensuring that those clients can always obtain a license.
4.8.1. Creating License Reservations
- In the license server management interface, select Reservations. The License Reservations page opens.
- Add each reservation that you want to create to the list of pending reservations.
- On the License Reservations page, click Add.
- On the Add Reservation page that opens, provide the details of
the client for which you are creating the reservation and click
Add.
- Group Name
- (Optional) Enter the name you want to assign to this reservation group.
- Client ID
- Enter the client’s Ethernet MAC address without spaces.
- Feature Name
- Enter the licensed feature name as listed on the Licensed Feature Usage page, which is shown in Viewing the Properties of All Installed Licensed Features.
- Version
- Enter the version number listed for the feature listed on the Licensed Feature Usage page.
- Count
- Set to the number of licenses that you want to reserve for the client.
- After adding all reservations that you want to create, click Submit to commit the pending reservations to the license server.
4.8.2. Deleting License Reservations
- In the license server management interface, select Reservations.
- On the License Reservations page that opens, select the
reservations that you want to delete and click Edit.
The License Reservations page is updated to replace the existing buttons on the page with the Delete button.
- On the updated License Reservations page, click Delete.
- In the confirmation dialog box that opens, click OK.
4.8.3. Exporting and Importing License Reservations
- In the license server management interface, select Reservations.
- On the License Reservations page that opens, do one of the
following:
- To export license reservations, click Export.
- To import license reservations, click Import, browse to the XML file that contains the reservations, and click Upload.
Converting an Evaluation License Server to a Permanent License Server
If you purchase NVIDIA vGPU software licenses after evaluating the software, you can use the same license server that you created for your evaluation licenses to serve your permanent licenses.
- Log in to the NVIDIA Licensing Portal with the account that you created for getting your evaluation licenses.
- Get the NVIDIA vGPU software for the licenses that you purchased. For instructions, refer to Virtual GPU Software Quick Start Guide.
- Add the licenses that you purchased to your license server on the NVIDIA Licensing Portal as explained in Adding Licensed Products to a License Server.
- Download your new license file as explained in Downloading a License File.
5. Troubleshooting the NVIDIA vGPU Software License Server
You can troubleshoot some common issues with the license server yourself without the need to obtain help from NVIDIA.
5.1. Obtaining Diagnotsic Information from the License Server Log files
The license server log files contain diagnostic information to help with troubleshooting. If necessary, you can increase the amount of information in the log files by changing the log level of the license server.
5.1.1. Log File Locations and Types
Log files from the installer and license server are in the locations in the following table.
| Host OS | Log | Location |
|---|---|---|
| Windows | 32-bit installer | %SystemDrive%:\Program Files (x86)\NVIDIA\License Server\Logs |
| 64-bit installer | %SystemDrive%:\Program Files\NVIDIA\License Server\Logs | |
| License server | %SystemDrive%:\Windows\ServiceProfiles\NetworkService\flexnetls\nvidia\logs | |
| Linux | Installer | /opt/flexnetls/nvidia/Logs/ |
| License server | /var/opt/flexnetls/nvidia/logs |
To confirm the location of the license server log files, use the license server management interface: Select Configuration and click the Properties tab.
The location of the log files is displayed on the License Server Configuration page in the Logging Directory field.
The license server generates these types of runtime log files:
- Management interface accesses are recorded in access_*.request.log files.
- License server activity is recorded in flexnetls_*.log files.
5.1.2. Changing the License Server Log Level
The default log level of the license server is INFO.
To adjust the amount of information in the log files, set the log level to a different level.
- In the license server management interface, select Configuration and click the Properties tab.
- On the License Server Configuration page, in the Logging Threshold field, enter a new log level, for example WARN or ERROR, and click Save.
5.2. Management Interface Connection Errors
- If you are trying to access the management interface from a remote machine, try accessing the interface locally from the license server host. To access the interface locally, open a web browser on the license server host and connect to the URL http://localhost:8080/licserver.
- If you can access the management interface locally, ensure that the license server host’s firewall is configured to allow remote access to server TCP port 8080.
- If you cannot access the management interface locally, verify that the Apache Tomcat
service is running on the license server host.
- On Windows, use the Services application to restart the service if it is not running.
- On Linux, check the status of the tomcat
service.
[nvidia@localhost ~]$ systemctl status tomcat.service tomcat.service - Apache Tomcat Web Application Container Loaded: loaded (/usr/lib/systemd/system/tomcat.service; enabled) Active: active (running) since Fri 2019-04-19 07:39:11 PDT; 9h ago Main PID: 1373 (java) CGroup: /system.slice/tomcat.service └─1373 java -classpath /usr/share/tomcat/bin/bootstrap.jar:/usr/sh...
5.3. License Server Connection Errors
- Verify that the license service is running.
- On Windows, use the Services application to restart the service if it is not running.
- On Linux, check the status of the flexnetls-nvidia
service.
[nvidia@localhost ~]$ systemctl status flexnetls-nvidia.service flexnetls-nvidia.service - LSB: start and stop FlexNet License Server Loaded: loaded (/etc/rc.d/init.d/flexnetls-nvidia) Active: active (running) since Fri 2019-04-19 14:44:34 PDT; 2h 49min ago Process: 4502 ExecStart=/etc/rc.d/init.d/flexnetls-nvidia start (code=exited, status=0/SUCCESS) CGroup: /system.slice/flexnetls-nvidia.service ├─4567 java -Dbase.dir=/var/opt/flexnetls/nvidia -jar /opt/flexnet... └─4609 java -Dbase.dir=/var/opt/flexnetls/nvidia -jar /opt/flexnet...
- Inspect the license server log files, which are described in Log File Locations and Types.
5.4. License Upload Failures
Errors may occur during an attempt to upload a license file to the license server.
5.4.1. License Response Fails Trust Criteria
The license server reports a trust failure if it attempts to reload a license file that’s already loaded.
Verify that the license file being uploaded is not already active on the server.
5.4.2. Capability Response Rejected - Response Time Too Old
The license server reports this error if the license file you are attempting to upload has expired. Licenses generated on the NVIDIA licensing portal must be installed onto your license server within 24 hours of generation.
Generate a new license file on the licensing portal and promptly upload the new file to your license server.
5.4.3. Capability Response Rejected – Update Time Invalid
The license server reports this error if the license server is already configured with a license file that is newer than the license file you are attempting to upload.
You cannot roll back an active license to an older license file.
5.4.4. Capability Response Rejected - Response Enterprise ID Does Not Match the Server
The license server reports this error if you are trying to download a license file to a license server on which licenses from a different customer account are installed.
- Stop the license server.
- Delete the license server's trusted storage database.
- Restart the license server.
- Download and install the new license.
5.5. Trusted Storage Database Errors
Errors in the trusted storage database, such as corruption of the database, can prevent the license server from reading the database. If it cannot read the database, the license server cannot start.
- Restoring the database from a backup
- Deleting the database and then reinstalling licenses on the license server
5.5.1. Restoring the Trusted Storage Database from a Backup
The license server automatically backs up the database after every 1,000 license checkouts or after every five-minute interval in which a change has taken place, whichever event occurs first. If no change to the database occurs during a five-minute interval, the database is not backed up. Backups are triggered by changes such as the checkout, renewal, or release of a license.
5.5.1.1. Restoring the Trusted Storage Database from a Backup on Windows
Before restoring the trusted storage database from a backup, ensure that the following prerequisites are met:
- The JAVA_HOME environment variable is set to the folder where the Java runtime environment is installed on the license server host.
- The TRUSTED_STORAGE_DIR environment variable is set to %SystemDrive%:\Windows\ServiceProfiles\NetworkService\flexnetls\nvidia, which is the folder that contains the trusted storage database files.
- Open a Command Prompt window and change to the
license-server-installation-folder\server
folder.
- license-server-installation-folder
- The folder in which the license server software is installed. The
default license server installation folder depends on whether a
32-bit or 64-bit license server is installed:
- 32-bit: %SystemDrive%:\Program Files (x86)\NVIDIA\License Server
- 64-bit: %SystemDrive%:\Program Files\NVIDIA\License Server
For example:
C:\>cd C:\Program Files (x86)\NVIDIA\License Server\server C:\Program Files (x86)\NVIDIA\License Server\server>
- In the Command Prompt window, run the command to restore
the database.
C:\Program Files (x86)\NVIDIA\License Server\server>flexnetls.bat -restore-database
5.5.1.2. Restoring the Trusted Storage Database from a Backup on Linux
Before restoring the trusted storage database from a backup, ensure that the following prerequisites are met:
- The JAVA_HOME environment variable is set to the directory where the Java runtime environment is installed on the license server host.
- The TRUSTED_STORAGE_DIR environment variable is set to /var/opt/flexnetls/nvidia/, which is the directory that contains the trusted storage database files.
- Change to the
license-server-installation-dir/server
directory.
- license-server-installation-dir
- The directory in which the license server software is installed. The default license server installation directory is /opt/flexnetls/nvidia.
For example:
$ cd /opt/flexnetls/nvidia/server
- Run the command to restore the database.
$ flexnetls --restore-database
5.5.2. Deleting the Trusted Storage Database
Deleting the trusted storage database clears all information about license assignments and allocations.
After deleting the trusted storage database, reinstall your licenses on the license server as explained in Installing a License.
5.5.2.1. Deleting the Trusted Storage Database on Windows
- Close any web browser windows that are accessing the license server.
- Stop the FlexNet License Server - nvidia service.
- Start Task Manager and in the Windows Task Manager window that opens, click the Services button.
- In the Services window that opens, context-click FlexNet License Server - nvidia and from the menu that pops up, choose Stop.
- Delete all files in the %SystemDrive%:\Windows\ServiceProfiles\NetworkService\flexnetls\nvidia folder, which contains the trusted storage database files.
- Start the FlexNet License Server - nvidia service.
- Start Task Manager and in the Windows Task Manager window that opens, click the Services button.
- In the Services window that opens, context-click FlexNet License Server - nvidia and from the menu that pops up, choose Start.
5.5.2.2. Deleting the Trusted Storage Database on Linux
- Close any web browser windows that are accessing the license server.
- Stop the flexnetls-nvidia service.
# sudo systemctl stop flexnetls-nvidia.service - Delete all files in the /var/opt/flexnetls/nvidia/
directory, which contains the trusted storage database files.
# sudo \rm -rf /var/opt/flexnetls/nvidia/* - Start the flexnetls-nvidia service.
# sudo systemctl start flexnetls-nvidia.service
5.6. Issues when the License Server Is Used with Security Software
When the license server is used with security software, such as a firewall or antivirus software, issues may occur if the security software blocks certain applications or functionality.
The following issues are examples of the kinds of issues that may occur if security software blocks certain applications or functionality:
- Failure of the license server to start
- Access violation exceptions
- Core dumps by the JRE
To determine whether security software is causing these issues, test your license server setup with the security software disabled or removed. If disabling or removing the security software resolves the issue, consider one of the following long-term fixes:
- If your organization's software security policies allow, add an exception rule for the license server application.
- Otherwise, contact NVIDIA Enterprise Support for assistance in determining the root cause of the issue. When you contact NVIDIA Enterprise Support, provide a detailed description of the symptoms of the issue and the exact versions of any security software that you are using on the license server host.
6. Uninstalling the NVIDIA vGPU Software License Server
You can uninstall the NVIDIA vGPU software License Server when it is no longer required.
6.1. Uninstalling the NVIDIA vGPU Software License Server on Windows
- Start the license server uninstaller.
You can start the license server uninstaller from Windows Control Panel, Windows Explorer, or a Command Prompt window.
If you start the license server uninstaller from Windows Control Panel or Windows Explorer, how it runs depends on the mode in which license server software was installed. If the license server software was installed in console mode, the uninstaller runs in silent mode. Otherwise, the Configure License Server dialog box opens.
To avoid the possibility of running the license server installer in silent mode, start it from a Command Prompt window.
- In Windows Control Panel, open the Programs and Features pane, select License Server from the publisher NVIDIA, and click Uninstall/Change.
- In Windows Explorer, open the license server installation
directory and double-click the Change License Server Installation
application.
The default license server installation directory depends on whether a 32-bit or 64-bit license server is installed:
- 32-bit: %SystemDrive%:\Program Files (x86)\NVIDIA\License Server
- 64-bit: %SystemDrive%:\Program Files\NVIDIA\License Server
- In a Command Prompt window, change to the
license server installation directory and start the license server installer in
interactive console mode.
The default license server installation directory depends on whether a 32-bit or 64-bit license server is installed:
- 32-bit: %SystemDrive%:\Program Files (x86)\NVIDIA\License Server
- 64-bit: %SystemDrive%:\Program Files\NVIDIA\License Server
C:\Program Files (x86)\NVIDIA\License Server>"Change License Server Installation.exe" -i console
- If the Configure License Server dialog box opens, ensure that the Uninstall Product option is selected and click Next.
- When prompted, confirm that you want to uninstall the license server and specify whether you want to uninstall Apache Tomcat.
6.2. Uninstalling the NVIDIA vGPU Software License Server on Linux
- Start the license server uninstaller.
- Change to the license server installation directory.
The default license server installation directory is
/opt/flexnetls/nvidia.
[nvidia@localhost ~]$ cd /opt/flexnetls/nvidia
- As root, run the Change License Server Installation
command.
[nvidia@localhost ~]$ sudo ./Change\ License\ Server\ Installation
- Change to the license server installation directory.
The default license server installation directory is
/opt/flexnetls/nvidia.
- If the Configure License Server window opens, ensure that the Uninstall Product option is selected and click Next.
- When prompted, confirm that you want to uninstall the license server.
A. Administering the License Server from the Command Line
The nvidialsadmin utility provides options for administering the license server from the command line.
Options are available for the following administrative operations:
- Maintaining the license server
- Managing administrative security
- Viewing features installed on the license server
- Monitoring license distribution to clients
A.1. Running the nvidialsadmin Utility
Before attempting to run the nvidialsadmin utility, ensure that the JAVA_HOME environment variable is set to the folder where the Java runtime environment is installed on the license server host.
Run the nvidialsadmin utility in a Windows or Linux command shell from the folder that contains the nvidialsadmin.bat batch file or the nvidialsadmin.sh shell script.
The nvidialsadmin utility is contained in the folder license-server-installation-folder/enterprise.
- license-server-installation-folder
- The folder in which the license server software is installed.
The default folders for the Windows and Linux platforms are as follows:
- 32-bit Windows: %SystemDrive%:\Program Files (x86)\NVIDIA\License Server\enterprise
- 64-bit Windows: %SystemDrive%:\Program Files\NVIDIA\License Server\enterprise
- Linux: /opt/flexnetls/nvidia/enterprise
You must run the nvidialsadmin utility from the folder that contains the nvidialsadmin.bat batch file or the nvidialsadmin.sh shell script. If you try to run the utility from another folder by specifying the path to the utility either in the PATH variable or on the command line, the attempt fails and the following error message is displayed:
Error: Unable to access jarfile nvidialsadmin.jar
A.2. Setting the License Server Base URL for the nvidialsadmin Utility
The format of the base URL of the license server is as follows:
scheme://address:port/api/version/instances/~
- scheme
- The URL scheme, which is either http or https.
- address
- The address of the license server, which can be a fully-qualified domain name such as gridlicense1.example.com, or an IP address such as 10.31.20.45.
- port
- The port number through which the nvidialsadmin utility accesses the
licence server. The default depends on whether scheme is
http or https.
- For http, the default is 7070.
- For https, the default is 443.
- version
- The API version of the license server, for example, 1.0.
The following examples show the different ways of specifying the address of the license server in the base URL:
- Fully-qualified domain name:
- http://gridlicense1.example.com:7070/api/1.0/instances/~
- https://gridlicense1.example.com:443/api/1.0/instances/~
- IP address:
- http://10.31.20.45:7070/api/1.0/instances/~
- https://10.31.20.45:443/api/1.0/instances/~
Set the license server base URL for the nvidialsadmin utility in one of the following ways:
- Globally for all nvidialsadmin commands by specifying the FLEXNETLS_BASEURL environment variable
- Individually in each nvidialsadmin command by setting the -server option
A.3. Getting Help for the nvidialsadmin Utility
For details about the nvidialsadmin utility and its options, get help information for the utility by entering the following command in a command shell on the license server host:
nvidialsadmin -help
A.4. Authenticating with the License Server
When administrative security is enabled for the license server, the -authorize option with your credentials must be the first option that you specify in any nvidialsadmin command.
- To provide your password in the command, specify the credentials as
follows:
nvidialsadmin -authorize username password
- To be prompted for your password and avoid typing the password in clear text in
the command, provide the -passwordConsoleInput option
.
nvidialsadmin -authorize username -passwordConsoleInput
- username
- Your user name for authenticating with the license server.
- password
- Your password for authenticating with the license server.
Too many failed logins for user admin on instance WX0EDD7ALYMN. Logins will be blocked for 10 minutes
A.5. Checking the Status of the License Server
You can perform a status check to confirm that the license server is running correctly.
This check tells you whether the license server is active and provides additional information, such as:
- Version information for the license server
- The URLs for the main license server and, if HA is configured for the license server, the back-up license server
Perform this task in a command shell on the license server host.
Run the nvidialsadmin utility with the -status option.
nvidialsadmin -status Copyright (c) 2015-2018 Flexera LLC. All Rights Reserved. (version) Version : 2018.09 (buildVersion) Build Version : 237146 The server is in active state. Server: http://localhost:7070/ active Backup Server: Not configured
A.6. Getting General Configuration Information for the License Server
You can get general informaton about the configuration of the license server, such as the IP address and host name of the server.
Perform this task in a command shell on the license server host.
Run the nvidialsadmin utility with the -config option and set the -filter option to general.
nvidialsadmin -config -filter general General License Server Information ----------------------------------- (license_server_url) IP : 127.0.0.1 (host_name) Host Name : localhost (publisher_name) Publisher Name : nvidia (host_id) Binding ID : ETHERNET (482AE30D8299) (license_server_port) Port : 7070 (licensing.backup.uri) : Not Configured -----------------------------------
A.7. Listing Features Installed on the License Server
Perform this task in a command shell on the license server host.
Run the nvidialsadmin utility with the -features option.
nvidialsadmin -features ================================================================================ Name Count Version Type Expiration ================================================================================ Quadro-Virtual-DWS 75000 5.0 CONCURRENT permanent Total number of features : 1
A.8. Listing the Distribution of License Server Features
Perform this task in a command shell on the license server host.
Run the nvidialsadmin utility with the -licenses and -verbose options.
nvidialsadmin -licenses -verbose
===================================================================================
Feature ID Feature Name Feature Version Feature Count Used/Available
===================================================================================
1 vGPU-virtual 3.0 0/25
2 Quadro-Virtual-DWS 5.0 1/24
===================================================================================
Device Information:
-------------------------------------------------------------
Device Name Feature Registered(Used Count)
-------------------------------------------------------------
5C5F67C3836D Quadro-Virtual-DWS(1)
===================================================================================
Total feature count : 50
Total feature count used : 1
Total uncounted features : 0
===================================================================================B. Reverting to NVIDIA vGPU Software License Server 2018.10
B.1. Reverting to NVIDIA vGPU Software License Server 2018.10 on Windows
You must uninstall and reinstall the license server and associated software to revert to an earlier release.
If you are replacing an existing version of the license server that was configured to use HTTPS, copy the files that are necessary to re-instate the configuration after you install the new version.
-
If you configured HTTPS for connections between the management interface and the license server, copy the SSL certificate that the license server was configured with. The installer deletes the entire contents of any existing license server installation folder, including files that were added after the license server software was installed, such as the SSL certificate.
Note:Copying an SSL certificate might corrupt it. To determine if the certificate is corrupted, run this command:
$JAVA_HOME/bin/keytool -list -keystore certificate-file-name.jks -storepass certificate-password
If the certificate is corrupted, contact the CA that issued your certificate to obtain a new certificate.
-
If you specified HTTPS for connections from a web browser to the license server management interface, copy the Tomcat configuration file server.xml so that you can reinstate the necessary changes to the Tomcat configuration. The installer overwrites the existing server.xml file and any custom configuration specified in the file is lost.
- Uninstall the NVIDIA vGPU software license server 2019.05 and the Apache Tomcat software. For instructions, see Uninstalling the NVIDIA vGPU Software License Server on Windows.
- Remove the existing license server log files and trusted storage database by deleting all files in the folder %SystemDrive%:\Windows\ServiceProfiles\NetworkService\flexnetls\nvidia.
- If you were using 64-bit NVIDIA vGPU software license server 2019.05
software, replace the existing 64-bit JRE with a 32-bit JRE.
The processor architecture for the JRE and the license server must match. On
Windows, only 32-bit NVIDIA vGPU software license server 2018.10 software
is available. Therefore, you must use a 32-bit JRE.
- Open Windows Control Panel and under Programs, follow the Uninstall a program link.
- Context-click the installed JRE program, choose Uninstall, and if you are prompted to confirm that you want to uninstall the program, click Yes.
- Remove the JAVA_HOME system environment variable that was set for the 64-bit JRE that you just uninstalled.
- Install a 32-bit JRE. For instructions, see Installing the Java Runtime Environment on Windows in Virtual GPU License Server User Guide for release 2018.10.
- If you are using OpenJDK, set JAVA_HOME. For instructions, see Setting the JRE and JVM locations for New Installations with OpenJDK in Virtual GPU License Server User Guide for release 2018.10.
- Install the license server 2018.10 and Apache Tomcat software. For instructions, see the following topics in Virtual GPU License Server User Guide for release 2018.10:
If you are replacing an existing version of the license server that was configured to use HTTPS, re-instate the HTTPS configuration as explained in the following topics in Virtual GPU License Server User Guide for release 2018.10:
- Configuring HTTPS for Connections Between the Management Interface and the License Server
- Specifying HTTPS for Connections from a Web Browser to the License Server Management Interface.
Verify the installation by accessing the license server management interface as explained in Accessing the License Server Management Interface.
After uninstalling and reinstalling the license server, you must reinstall each of your licenses as explained in Installing a License. Installed NVIDIA vGPU software licenses are not retained across an uninstallation followed by reinstallation.
B.2. Reverting to NVIDIA vGPU Software License Server 2018.10 on Linux
You must uninstall and reinstall the license server software to revert to an earlier release.
If you configured HTTPS for connections between the management interface and the license server, copy the SSL certificate that the license server was configured with. The installer deletes the entire contents of any existing license server installation folder, including files that were added after the license server software was installed, such as the SSL certificate.
Copying an SSL certificate might corrupt it. To determine if the certificate is corrupted, run this command:
$JAVA_HOME/bin/keytool -list -keystore certificate-file-name.jks -storepass certificate-password
If the certificate is corrupted, contact the CA that issued your certificate to obtain a new certificate.
- Uninstall the NVIDIA vGPU software license server 2019.05 software. For instructions, see Uninstalling the NVIDIA vGPU Software License Server on Linux.
- Remove the existing license server log files and trusted storage database by
deleting all files in the directory
/var/opt/flexnetls/nvidia/.
# sudo \rm -rf /var/opt/flexnetls/nvidia/*
- Install the license server 2018.10 software. For instructions, see the following topics in Virtual GPU License Server User Guide for release 2018.10:
If you are replacing an existing version of the license server that was configured to use HTTPS, re-instate the HTTPS configuration as explained in Configuring HTTPS for Connections Between the Management Interface and the License Server in Virtual GPU License Server User Guide for release 2018.10.
Verify the installation by accessing the license server management interface as explained in Accessing the License Server Management Interface.
After uninstalling and reinstalling the license server, you must reinstall each of your licenses as explained in Installing a License. Installed NVIDIA vGPU software licenses are not retained across an uninstallation followed by reinstallation.
Notices
Notice
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, "MATERIALS") ARE BEING PROVIDED "AS IS." NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE.
Information furnished is believed to be accurate and reliable. However, NVIDIA Corporation assumes no responsibility for the consequences of use of such information or for any infringement of patents or other rights of third parties that may result from its use. No license is granted by implication of otherwise under any patent rights of NVIDIA Corporation. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all other information previously supplied. NVIDIA Corporation products are not authorized as critical components in life support devices or systems without express written approval of NVIDIA Corporation.
HDMI
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Trademarks
NVIDIA, the NVIDIA logo, NVIDIA GRID, vGPU, Pascal, Quadro, and Tesla are trademarks or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.
Third-Party Software
This NVIDIA product contains third party software that is made available under their respective software licenses.
Apache Tomcat (https://tomcat.apache.org/download-80.cgi) is provided under the following terms: Copyright 2015 NVIDIA Corporation Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0 Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
