Specifications
The DPU Controller maximum power consumption does not exceed 150W and is split between the two power sources as follows:
Up to 66W from the PCIe golden fingers (12V)
The rest of the consumed power is drawn from the external PCIe power supply connector
BlueField-3 IC |
BlueField-3 E-Series - 16 Arm-Cores - 505 MHz/2000MHz |
||
Crypto Enabled with integrated BMC |
|||
Physical |
Single-Slot FHHL Card Dimensions: 111.15mm x 167.65mm Tall Bracket Dimensions: 121.0mm x 21.6mm 900-9D3C6-00CV-DA0 Only: Heatsink Dimensions (Length, Width, Height): 139.6mm x 92.7mm x 10.2mm |
||
Interfaces |
|||
PCI Express Interface |
Gen 5.0 SERDES @ 32.0GT/s, 16 lanes (4.0, 3.0, 2.0 and 1.1 compatible) |
||
Optional: Additional PCIe x16 Gen 5.0 @ SERDES 32GT/s through the PCIe auxiliary passive card and Cabline SA-II Plus harnesses |
|||
On-Board Memory |
|
||
Networking Connector |
Dual-port QSFP112 (copper and optical) |
||
Data Rate |
InfiniBand |
NDR200/HDR/HDR100/EDR/FDR/SDR |
|
Ethernet (Default Speed) |
200/100/50/25/10 Gb/s |
||
Protocol Support |
InfiniBand: IBTA v1.5a Auto-Negotiation: NDR200 ( 2 lanes x 100Gb/s per lane ) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane). |
||
Ethernet: 200GAUI-4 C2M, 200GAUI-2 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI |
|||
Electrical and Thermal Specifications |
Voltage: 12V |
||
Electrical and thermal specifications are provided in " NVIDIA BlueField-3 DPUs and SuperNICs Electrical and Thermal Specifications " document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative. |
|||
Environmental |
Temperature |
Operational |
0°C to 55°C |
Non-operational |
-40°C to 70°Ca |
||
Humidity |
Operational |
10% to 85% relative humidity |
|
Non-operational |
10% to 90% relative humidity |
||
Altitude (Operational) |
3050m |
||
Regulatory |
Safety |
CB / cTUVus / CE |
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||
RoHS |
RoHS compliant |
a. The non-operational storage temperature specifications apply to the product without its package.

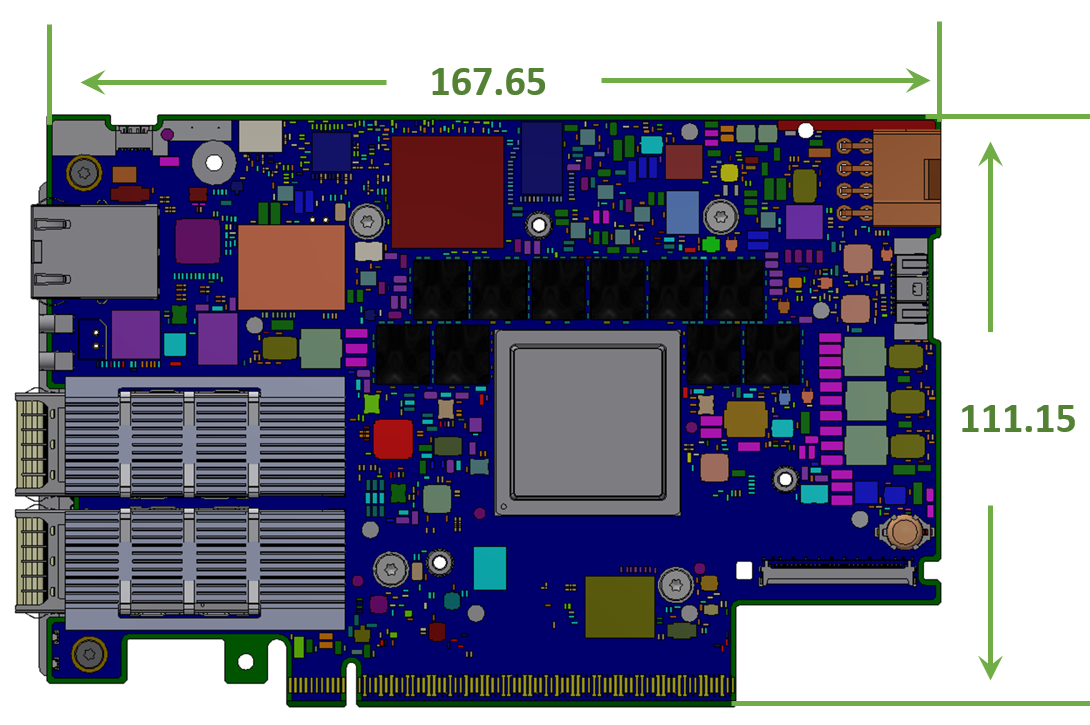

DPU Controller Mechanical Drawing and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
The diagrams may differ for different cards and are provided here for illustration purposes only.
![image2023-2-9_11-11-48-version-1-modificationdate-1712141256937-api-v2.png](https://docscontent.nvidia.com/dims4/default/51c4c20/2147483647/strip/true/crop/1090x725+0+0/resize/1090x725!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000191-5aa1-d665-aff9-ffff9ef00000%2Fimages%2Fdownload%2Fattachments%2F2729714881%2Fimage2023-2-9_11-11-48-version-1-modificationdate-1712141256937-api-v2.png)

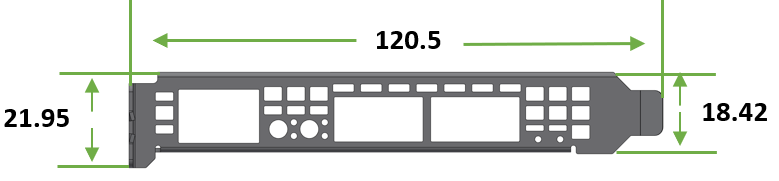

Tall Bracket Mechanical Drawing and Dimensions
![BRACKET-version-1-modificationdate-1712141253860-api-v2.png](https://docscontent.nvidia.com/dims4/default/eba02e9/2147483647/strip/true/crop/779x181+0+0/resize/779x181!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000191-5aa1-d665-aff9-ffff9ef00000%2Fimages%2Fdownload%2Fattachments%2F2729714881%2FBRACKET-version-1-modificationdate-1712141253860-api-v2.png)
