MCP2M00-A0xxEyyz 25GbE SFP28 DAC Cable Product Specifications

Introduction

NVIDIA® MCP2M00-A0xxEyyz DAC (Direct Attach Copper) cables are high speed, cost-effective alternatives to fiber optics in 25GbE Ethernet applications.

The MCP2M00 passive copper cable contains a single high-speed copper pair, operating at data rates of up to 25GbE. The cables are compliant SFF-8402 SFP28 standard. Each SFP28 port comprises an EEPROM providing product information, which can be read by the host system.

The MCP2M00 cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 4 up to 5m support IEEE 802.3by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5 and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.

NVIDIA unique-quality cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.


Warning

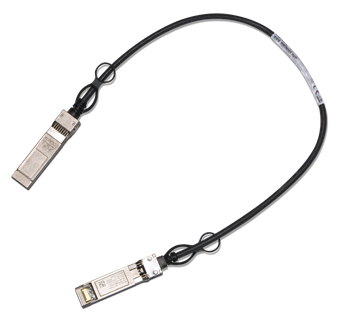

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Key Features

  • Up to 25GbE data rate

  • SFF-8402 compliant SFP28

  • Operating case temperature 0-70°C

  • Single 3.3V supply voltage

  • Hot pluggable

  • RoHS compliant

  • LSZH (Low Smoke Zero Halogen) jacket

  • LF (Lead Free) HF (Halogen Free) PCB

  • SFF-8636 compliant I2C management interface
