Introduction
NVIDIA®
MCP7H70-V0xxRyy DAC (Direct Attach Copper) splitter cables are a high speed, cost-effective 200GbE to 4x50GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.

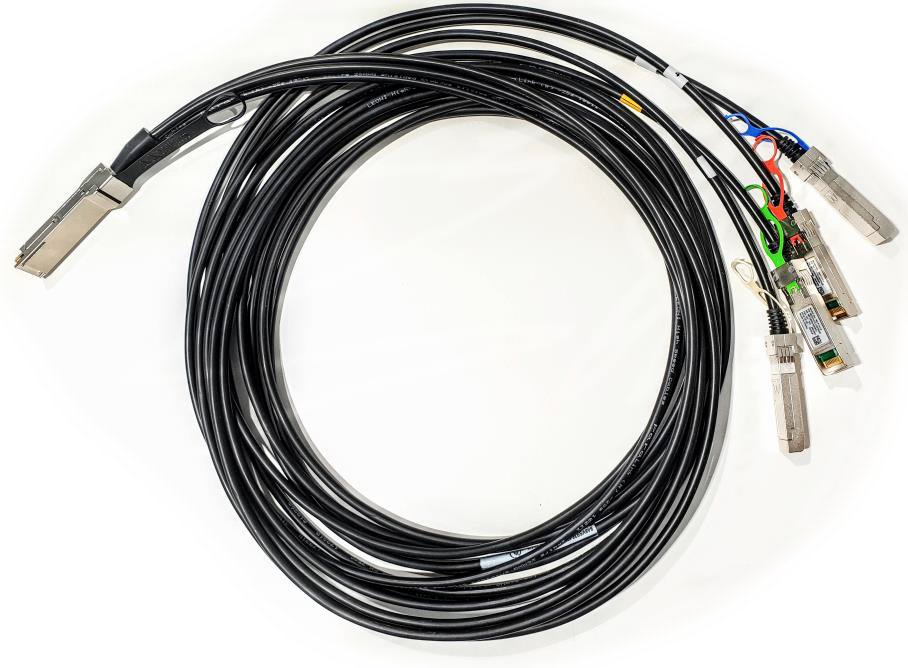

The MCP7H70 cables provide connectivity between system units with QSFP56 port on one side and up to four different SFP56 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP56 end to the single pair of each of the SFP56 ends. Each QSFP56/SFP56 port comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA’s unique-quality cable solutions provide power-efficient connectivity for short distance interconnects, enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.
Images are for illustration purposes only. Product labels, colors, and form may vary.
Key Features
200GbE to 4x50GbE data rate.
IEEE 802.3cd PAM4 200GAUI-4, 100GAUI-2 and 50GAUI-1 compliant
Single 3.3V supply voltage
SFF-8636 compliant I2C management interface
Operating case temperature of 0-70°C
Hot pluggable
RoHS compliant
LSZH (Low Smoke Zero Halogen) jacket
LF (Lead Free) HF (Halogen Free) PCB
Applications
200GbE to 4x50GbE data rate
