The Fabric Validation tab displays the fabric validation tests and gives the ability to run the test and receive/view the summary as a job output. Summary of the job contains all errors and warnings that were found during the test execution.
![image2022-4-28_22-47-56.png](https://docscontent.nvidia.com/dims4/default/ad8af27/2147483647/strip/true/crop/606x658+0+0/resize/606x658!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018a-6691-d88c-afbe-ffd7dd260000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F119753400%2Fimage2022-4-28_22-47-56.png)
Test |
Description |
Check Lids |
Checks for bad lids. Possible lid errors are:
|
Check Links |
Checks for connectivity issues where all ports connected are not in the same state (active) |
Check Subnet Manager |
Checks for errors related to subnet manager. Possible SM errors are:
|
Check Duplicate Nodes |
Checks for duplications in nodes description |
Check Duplicate Guids |
Checks for GUIDs duplications |
Check Routing |
Checks for failures in getting routing MADs |
Check Link Speed |
Checks for errors related to link speed. Possible link speed errors are:
|
Check Link Width |
Checks for errors related to link width. Possible link width errors are:
|
Check Partition Key |
Checks for errors related to PKey. Possible PKey errors are:
|
Check Temperature |
Checks for failure in getting temperature sensing. |
Check Cables |
Checks for errors related to cables. Possible cable errors are:
|
Check Effective BER |
Checks that the Effective BER does not exceed the threshold |
Dragonfly Topology Validation |
Validate if the topology is Dragonfly |
SHARP Fabric Validation |
Checks for SHARP Configurations in the fabric |
Tree Topology Validation |
Checks if the fabric is a tree topology |
Socket Direct Mode Reporting |
Presents the inventory of fabric HCAs that are using socket direct |

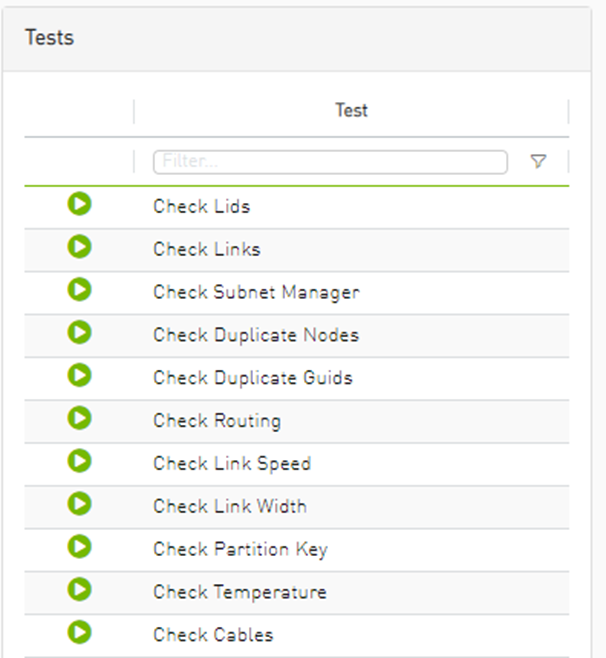

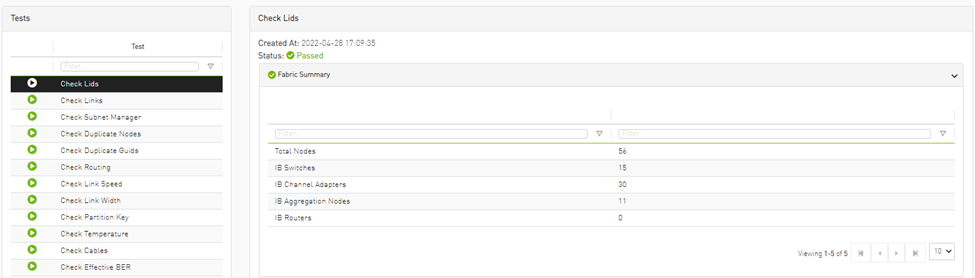

To run a specific test, click the play button. The job will be displayed once completed.
![image2022-4-28_22-48-31.png](https://docscontent.nvidia.com/dims4/default/290f098/2147483647/strip/true/crop/975x278+0+0/resize/975x278!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018a-6691-d88c-afbe-ffd7dd260000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F119753400%2Fimage2022-4-28_22-48-31.png)
The job will also be displayed in the Jobs window.
Some validation tests contain data related to devices or ports like device GUID and port GUID.
Depending on that information a context menu for each related device/port can be shown.

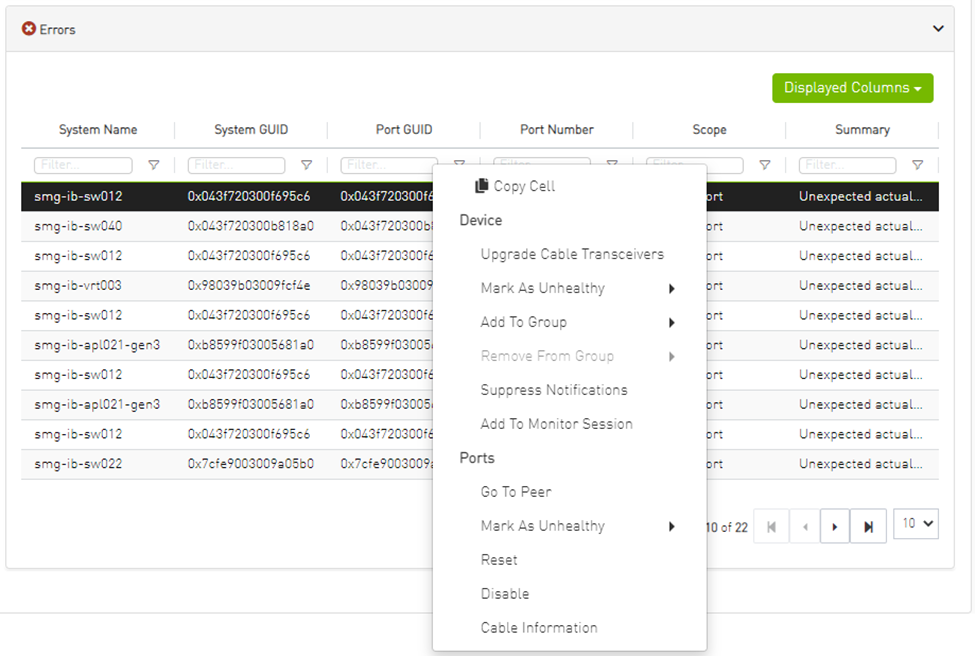

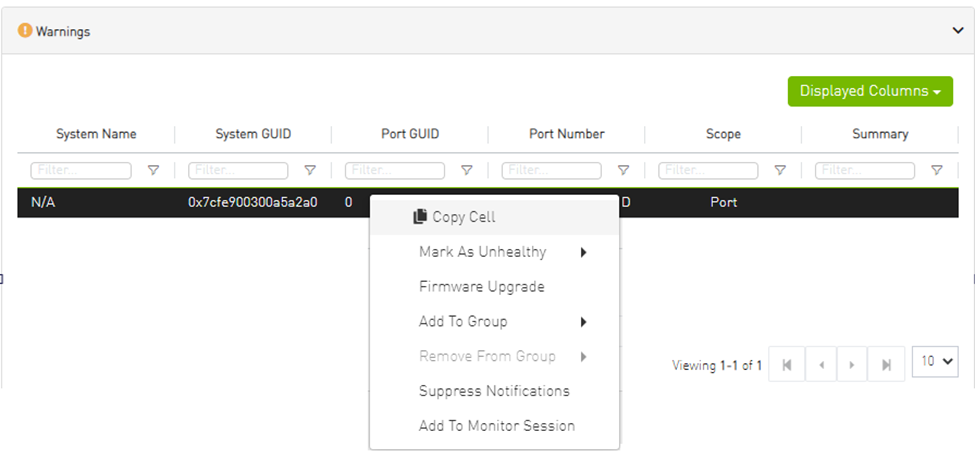

I f the data i s related to a port the context menu will contain both port and device options .
![image2022-4-28_22-48-47.png](https://docscontent.nvidia.com/dims4/default/53c724a/2147483647/strip/true/crop/975x656+0+0/resize/975x656!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018a-6691-d88c-afbe-ffd7dd260000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F119753400%2Fimage2022-4-28_22-48-47.png)
![image2022-4-28_22-49-10.png](https://docscontent.nvidia.com/dims4/default/7bc2848/2147483647/strip/true/crop/975x458+0+0/resize/975x458!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018a-6691-d88c-afbe-ffd7dd260000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F119753400%2Fimage2022-4-28_22-49-10.png)
