Physical |

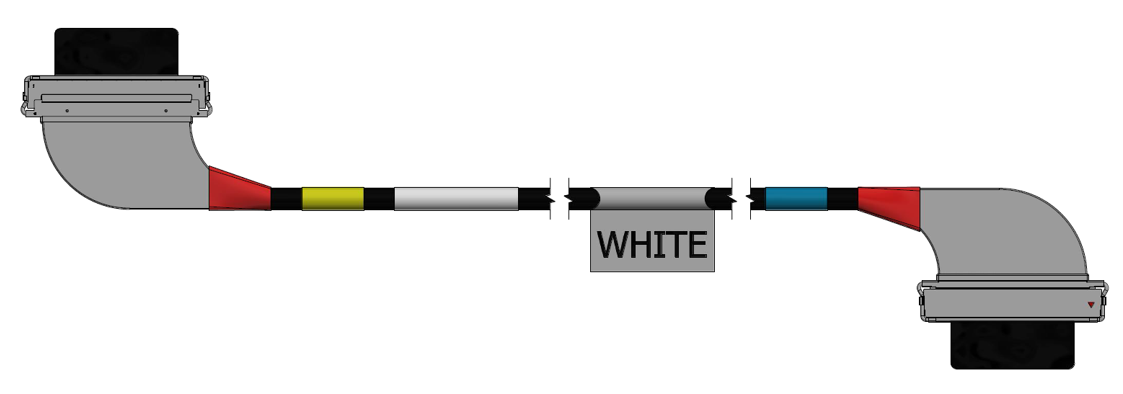

PCIe Auxiliary Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm) Two Cabline CA-II Plus harnesses (white and black) Length: 15, 25 or 35cm |
|||
Power Consumption |
Voltage: 12V, 3.3V_AUX Maximum current: 100mA for the 3.3V_AUX voltage rail |
|||
PCIe Connectivity |
930-9DAX5-0015-000 |
PCI Express Gen 5.0/4.0: SERDES @ 16/32 GT/s, x16 lanes (Gen 3.0 compatible) |
||
930-9DAX4-0035-000 |
PCI Express Gen 4.0: SERDES @ 16GT/s, x16 lanes (Gen 3.0 compatible) |
|||
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
Non-operational |
-40°C to 70°C |
|||
Humidity |
Operational |
10% to 85% relative humidity |
||
Non-operational |
10% to 90% relative humidity |
|||
Altitude (Operational) |
3050m |
|||
Regulatory |
Safety: CB / cTUVus / CE |
|||
EMC: CE / FCC / VCCI / ICES / RCM / KC |
||||
RoHS: RoHS Compliant |

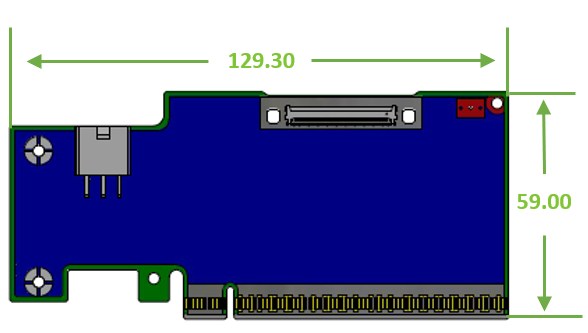

All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
![image2022-2-10_13-55-42-version-1-modificationdate-1712141304890-api-v2.png](https://docscontent.nvidia.com/dims4/default/ff46fe2/2147483647/strip/true/crop/588x333+0+0/resize/588x333!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018f-914e-d115-a3df-9b7f8d880000%2Fimages%2Fdownload%2Fattachments%2F2729714945%2Fimage2022-2-10_13-55-42-version-1-modificationdate-1712141304890-api-v2.png)

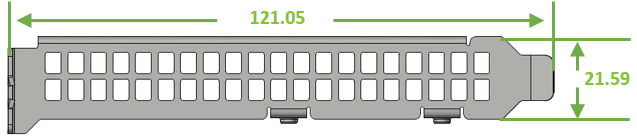

Auxiliary PCIe Connection Card Tall Bracket |

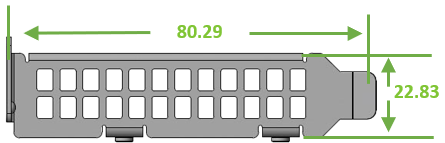

Auxiliary PCIe Connection Card Short Bracket |
![]()
|
![]()
|
