BIOS Configuration

BMC supports configuring the NVIDIA® BlueField®'s BIOS using Redfish commands.

Copy
Copied!


curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/Registries/BiosAttributeRegistry/BiosAttributeRegistry

Output example:

Note

In the following output, there is only one BIOS attribute, UefiPassword.

Copy
Copied!


{ "@odata.type": "#AttributeRegistry.v1_3_6.AttributeRegistry", "Description": "This registry defines a representation of BIOS attribute instances", "Id": "BiosAttributeRegistry", "Language": "en", "Name": "BF2 BIOS Attribute Registry", "OwningEntity": "NVIDIA BlueField", "RegistryEntries": { "Attributes": [ { "AttributeName": "UefiPassword", "CurrentValue": "", "DisplayName": "New UEFI Password", "DisplayOrder": 16, "HelpText": "Set the UEFI password.", "Hidden": false, "Immutable": false, "MaxLength": 50, "MenuPath": "./SystemConfiguration/UefiPassword", "MinLength": 0, "ReadOnly": false, "ResetRequired": false, "Type": "String", "WriteOnly": false } ], "Dependencies": [], "Menus": [ { "DisplayName": "Set the UEFI Password.", "DisplayOrder": 18, "Hidden": false, "MenuName": "UefiPassword", "MenuPath": "./SystemConfiguration/UefiPassword", "ReadOnly": false } ] }, "RegistryVersion": "1.0.0", "SupportedSystems": [ { "FirmwareVersion": "BlueField:4.2.0-33-gbe969d4", "ProductName": "NVIDIA BF2", "SystemId": "BF2-DPU" } ] }

Copy
Copied!


curl -k -u root:'<password>' -H Content-Type: application/octet-stream -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/Bios/

Output example:

Note

The current value of UefiPassword is an empty string.

Copy
Copied!


{ "@Redfish.Settings": { "@odata.type": "#Settings.v1_3_5.Settings", "SettingsObject": { "@odata.id": "/redfish/v1/Systems/Bluefield/Bios/Settings" } }, "@odata.id": "/redfish/v1/Systems/Bluefield/Bios", "@odata.type": "#Bios.v1_2_0.Bios", "Actions": { "#Bios.ChangePassword": { "target": "/redfish/v1/Systems/Bluefield/Bios/Actions/Bios.ChangePassword" }, "#Bios.ResetBios": { "target": "/redfish/v1/Systems/Bluefield/Bios/Actions/Bios.ResetBios" } }, "Attributes": { "UefiPassword": "" }, "Description": "BIOS Configuration Service", "Id": "BIOS", "Name": "BIOS Configuration", "ResetBiosToDefaultsPending": false }

Copy
Copied!


curl -k -u root:'<password>' -X PATCH https://<bmc_ip>/redfish/v1/Systems/Bluefield/Bios/Settings -d '{Attributes:{<attribute Name> : <attribute Value>}}'

This command example requests changing the UefiPassword attribute to NewPassword123. At the next boot cycle of the DPU, the UEFI changes the requested attribute if the requested value is valid.

Copy
Copied!


curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/Bios/Settings

Pending values are a list of values that that user has requested to change. The list of pending values is purged once the UEFI changes the pending attributes.

Output example:

Note

UefiPassword appears in the pending attributes list.

Copy
Copied!


{ "@odata.id": "/redfish/v1/Systems/Bluefield/Bios/Settings", "@odata.type": "#Bios.v1_2_0.Bios", "Attributes": { "UefiPassword": "NewPassword123" }, "Description": "BIOS Settings", "Id": "BIOS_Settings", "Name": "BIOS Configuration" }

Note

The active BIOS attribute list is updated only after the UEFI approves the changes during the next reboot cycle.

Changing Default UEFI Password Using Redfish

  1. Check the UEFI attributes and their values by performing a GET on BIOS URL over 1GbE OOB to the DPU BMC.

  2. Look for the "Attributes" property to make sure the UEFI version being used has all the necessary attributes. See section "Get BIOS Attributes List" for instructions.

  3. Perform PATCH to BIOS pending settings URI over 1GbE OOB to the DPU BMC as follows:

    Copy
    Copied!


    curl -k -X PATCH -d '{"Attributes":{"CurrentUefiPassword": "CURRENTPASSWD", "UefiPassword": "NEWPASSWORD"}}' -u root:<password> https://<DPU-BMC-IP>/redfish/v1/Systems/<SystemID>/Bios/Settings | python3 -m json.tool

  4. To confirm whether the PATCH request completed successfully, trigger a GET to the BIOS pending settings URI over 1GbE OOB to the DPU BMC:

    Copy
    Copied!


    curl -k -X GET -u root:<password> https://<DPU-BMC-IP>/redfish/v1/Systems/<SystemID>/Bios/Settings | python3 -m json.tool

  5. Reboot the DPU using the Redfish manager schema over 1GbE OOB to the DPU BMC. See section "Reboot BMC Redfish Command" for instructions.

  6. If the "CurrentUefiPassword" is correct, then the UEFI password is updated during the UEFI Redfish phase of the boot.

Changing UEFI Password

Copy
Copied!


curl -k -u root:<password> -X PATCH -H "Content-Type: application/json" https://<bmc_ip>/redfish/v1/Systems/Bluefield/Bios/Settings -d '{"Attributes":{"CurrentUefiPassword":"CurrentPassword", "UefiPassword":"NewPassword321"}}'


Viewing Currently Installed BIOS CA Certificates

Important

The certificates installed on the UEFI may differ from the certificate presented on the DPU BMC. This discrepancy arises from a distinct certificate validation processed implemented in the UEFI and DPU BMC.

  1. Trigger the following GET request to view the content of the system's Truststore:

    Copy
    Copied!


    curl -k -u root:<password> -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates

    For example, the following is the response when there are two certificates installed:

    Copy
    Copied!


    { "@Redfish.SupportedCertificates": [ "PEM" ], "@odata.id": "/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates", "@odata.type": "#CertificateCollection.CertificateCollection", "Members": [ { "@odata.id": "/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates/1" }, { "@odata.id": "/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates/2" } ], "Members@odata.count": 2, "Name": "TruststoreBios Certificate Collection" }

  2. Trigger the following GET request to view the details of a specific certificate:

    Copy
    Copied!


    curl -k -u root:<password> -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates/<cert_num>

    For example:

    Copy
    Copied!


    {   "@odata.id": "/redfish/v1/Systems/Bluefield/Boot/Certificates/1",   "@odata.type": "#Certificate.v1_7_0.Certificate",   "CertificateString": "<cert_str>",   "CertificateType": "PEM",   "Id": "1",   "Issuer": {     "City": "Santa Clara",     "CommonName": "Kg639IcpJtYMRzvh.nvidia",     "Country": "US",     "Organization": "NVIDIA",     "OrganizationalUnit": "NBU",     "State": "California"   },   "KeyUsage": [     "CRLSigning"   ],   "Name": "TruststoreBios Certificate",   "Subject": {     "City": "Santa Clara",     "CommonName": "Kg639IcpJtYMRzvh.nvidia",     "Country": "US",     "Organization": "NVIDIA",     "OrganizationalUnit": "NBU",     "State": "California"   },   "UefiSignatureOwner": "<UEFI_Owner>",   "ValidNotAfter": "2043-01-01T00:00:00+00:00",   "ValidNotBefore": "2023-01-01T00:00:00+00:00" }

BIOS CA Certificates Collection Operations

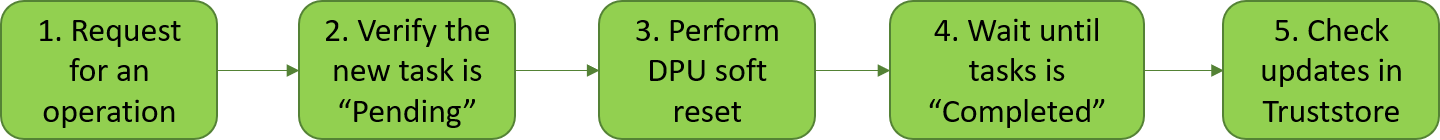

bios-ca-certificates-collection-operations-flow-version-1-modificationdate-1707428471551-api-v2.png

  1. Request for an operation:

    • To install a certificate, trigger the following POST request which contains the certificate string and type in JSON format:

      Warning

      The BMC certificate must be replaced with a CA signed certificate before installing new CA certificates, and after BMC factory reset. See section "Example: CSR Generation, Certificate Creation and Replacement" for instructions.

      Important

      If an invalid certificate is installed, the BMC rejects it and does not display it. However, it is still accepted by the UEFI and it must be deleted manually through the UEFI menu.

      Copy
      Copied!


      curl -k -u root:<password> -X POST https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates -d @CAcert.json

      The content of CAcert.json must be {"CertificateString": "<cert_string>", "CertificateType": "<cert_type>"}. Where:

      • cert_string – certification string which starts with -----BEGIN CERTIFICATE-----\n and ends with -----END CERTIFICATE-----\n.

        Warning

        The "\n" at the end are mandatory.

      • cert_type – certification type. Only "PEM" is supported.

    • To delete a CA certificate, trigger the following DELETE request with the CA certificate URI that should be deleted:

      Copy
      Copied!


      curl -k -u root:<password> -H "Content-Type: application/json" -X DELETE https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates/<cert_num>

    • To reset all certificates in the Truststore, trigger the following TruststoreCertificates.ResetKeys action with the DeleteAllKeys option:

      Copy
      Copied!


      curl -k -u root:<password> -H "Content-Type: application/json" -X POST https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Actions/TruststoreCertificates.ResetKeys -d '{"ResetKeysType":"DeleteAllKeys"}'

  1. Verify the new task is Pending:

    The responses of these requests indicate the creation of a new task for the UEFI:

    Copy
    Copied!


    {   "@odata.id": "/redfish/v1/TaskService/Tasks/<task_id>",   "@odata.type": "#Task.v1_4_3.Task",   "Id": "<task_id>",   "TaskState": "Pending",   "TaskStatus": "OK" }

  2. Perform DPU soft reset in order for the UEFI to start handling the pending tasks:

    Copy
    Copied!


    curl -k -u root:<password> -H "Content-Type: application/json" -X POST https://<bmc_ip>/redfish/v1/Systems/Bluefield/Actions/ComputerSystem.Reset -d '{"ResetType" : "GracefulRestart"}'

  3. Wait until task is Completed.

    The task details and status can be checked using the following GET request:

    Copy
    Copied!


    curl -k -u root:<password> -H "Content-Type: application/json" -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/<task_id>

    The task status can be either:

    • Pending – Initial state.

      Copy
      Copied!


      { "@odata.id": "/redfish/v1/TaskService/Tasks/<task_id>", "@odata.type": "#Task.v1_4_3.Task", ... "PercentComplete": 0, ... "TaskState": "Pending", "TaskStatus": "OK" }

      If the task remains in a "Pending" state after DPU reset completes, please check the UEFI-BMC communication.
      In case of communication failure, consider either:

      • Replacing the BMC certificate with one signed by a CA which its certificate was installed, and resetting DPU.

      • Removing all CA certificates from the UEFI menu.

    • Completed – Finished state.

      Copy
      Copied!


      { "@odata.id": "/redfish/v1/TaskService/Tasks/<task_id>", "@odata.type": "#Task.v1_4_3.Task", ... "PercentComplete": 100, ... "TaskState": "Completed", "TaskStatus": "OK" }

    • Exception – Failure state.

      Copy
      Copied!


      { "@odata.id": "/redfish/v1/TaskService/Tasks/<task_id>", "@odata.type": "#Task.v1_4_3.Task", ... "PercentComplete": 0, ... "TaskState": "Exception", "TaskStatus": "OK" }

      In this case, verify that the certificate is valid.

  4. Check updates in Truststore. See section "Viewing Currently Installed BIOS CA Certificates" for details.
