Specifications
Parameter | Description | |||
Marketing Description | Mellanox Innova-2 Flex Open for Application Acceleration, dual-port SFP28, 25GbE, KU15P, 8GB, No Crypto, PCI4.0 x8, HHHL, active heat sink, tall bracket | |||
Physical | Size: 167.65mm x 68.90mm | |||
Connector: Dual SFP28 (Copper and optical) | ||||
Protocol Support | Ethernet: 25GBASE-R, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CR, 10GBASE-KR, 1000BASE-CX, 1000BASE-KX | |||
Data Rate: 10/25 Gb/s Ethernet | ||||
PCI Express Gen3/4: SERDES @ 16GT/s, 8 lanes (Gen 2.0 and 1.1 compatible) | ||||
Power and Environmental | Voltage: 12V | |||
Power Consumption | Use Case | Cable | PCIe Card Power | |
Ambient Temperature: 25°C | ||||
Typical Power | No FPGA logic | Passive cables | 18W | |
FPGA consumes 20W | Passive cables | 41W | ||
Maximum Power | FPGA consumes 35W | Passive cables | 59W | |
FPGA consumes 35W | 1.5W Active cables | 63W | ||
Maximum power the card supports | 75Wa | |||
Temperature: Operational 0°C to 55°Cb; Non-operational -40°C to 70°C | ||||
Humidity: 90% relative humidityc | ||||
Air Flow: See MNV303212A-ADLT Air Flow Specifications below. | ||||
Regulatory | Safety: IEC/EN 60950-1:2006, ETSI EN 300 019-2-2, IEC 60068-2- 64, 29, 32 | |||
RoHS: RoHS compliant | ||||
Cable Support | To obtain the list of supported Mellanox cables for your adapter, please refer to the Cables Reference Table. | |||
a. In order to attain the specified consumption by the board, it is required to place it inside a x16 PCI slot.
b. Ambient temperature may vary. Please contact Mellanox technical support if further assistance is needed.
c. For both operational and non-operational states.
MNV303212A-ADLT Air Flow Specifications
Ta = 35°C | Ta = 45°C | Ta = 55°C | ||||||
FPGA Power (W) | Cable Type | Airflow Requirement (LFM) | FPGA Power (W) | Cable Type | Airflow Requirement (LFM) | FPGA Power (W) | Cable Type | Airflow Requirement (LFM) |
42 | Active | 300 | 42 | Active | 650 | 42 | Active | Not supported |
Passive | Passive | Passive | ||||||
40 | Active | 300 | 40 | Active | 550 | 40 | Active | Not supported |
Passive | Passive | Passive | ||||||
35 | Active | 300 | 35 | Active | 400 | 35 | Active | 800 |
Passive | Passive | Passive | ||||||
30 | Active | 300 | 30 | Active | 300 | 30 | Active | 700 |
Passive | Passive | Passive | 600 | |||||
25 | Active | 300 | 25 | Active | 300 | 25 | Active | 600 |
Passive | Passive | Passive | 400 | |||||
Parameter | Description | |||
Marketing Description | Mellanox Innova-2 Flex Open VPI, dual-port QSFP28, EDR / 100GbE, KU15P, No memory, No Crypto, PCI4.0 x8, HHHL, passive heat sink, tall bracket | |||
Physical | Size: 161.3mm x 68.90mm | |||
Connector: Dual QSFP28 (Copper and optical) | ||||
Protocol Support | VPI: 25GBASE-R, 10GBASE-SR, 10GBASE-LR,10GBASE-ER,10GBASE-CR, 10GBASE-KR, 1000BASE-CX, 1000BASE-KX | |||
Data Rate: EDR / 100GbE | ||||
PCI Express Gen3/4: SERDES @ 16GT/s, 8 lanes (Gen 2.0 and 1.1 compatible) | ||||
Power and Environmental | Voltage: 12V | |||
Power Consumption | Use Case | Cable | PCIe Card Power | |
Ambient Temperature: 25°C | ||||
Typical Power | No FPGA logic | Passive cables | 22W | |
FPGA consumes 20W | Passive cables | 45W | ||
Maximum Power | FPGA consumes 35W | Passive cables | 63W | |
FPGA consumes 35W | 3.5W Active cables | 71W | ||
Maximum power the card supports | 75Wa | |||
Temperature: Operational 0°C to 55°Cb; Non-operational -40°C to 70°C | ||||
Humidity: 90% relative humidityc | ||||
Air Flow: See MNV303611A-EDLT Air Flow Specifications below. | ||||
Regulatory | Safety: IEC/EN 60950-1:2006, ETSI EN 300 019-2-2, IEC 60068-2- 64, 29, 32 | |||
RoHS: RoHS compliant | ||||
Cable Support | To obtain the list of supported Mellanox cables for your adapter, please refer to the Cables Reference Table. | |||
a. In order to attain the specified consumption by the board, it is required to place it inside a x16 PCI slot.
b. Ambient temperature may vary. Please contact Mellanox technical support if further assistance is needed.
c. For both operational and non-operational states.
MNV303611A-EDLT Air Flow Specifications
Ta = 35°C | Ta = 45°C | Ta = 55°C | ||||||
FPGA Power (W) | Cable Type | Airflow Requirement (LFM) | FPGA Power (W) | Cable Type | Airflow Requirement (LFM) | FPGA Power (W) | Cable Type | Airflow Requirement (LFM) |
35 | Active | 600 | 35 | Active | 800 | 35 | Active | Not supported |
Passive | Passive | Passive | ||||||
30 | Active | 500 | 30 | Active | 700 | 30 | Active | Not supported |
Passive | Passive | Passive | ||||||
25 | Active | 550 | 25 | Active | 700 | 25 | Active | Not supported |
Passive | 500 | Passive | 650 | Passive | 850 | |||
20 | Active | 400 | 20 | Active | 600 | 20 | Active | Not supported |
Passive | Passive | Passive | 750 | |||||
All dimensions are in millimeters. All the mechanical tolerances are +/- 0.1mm.

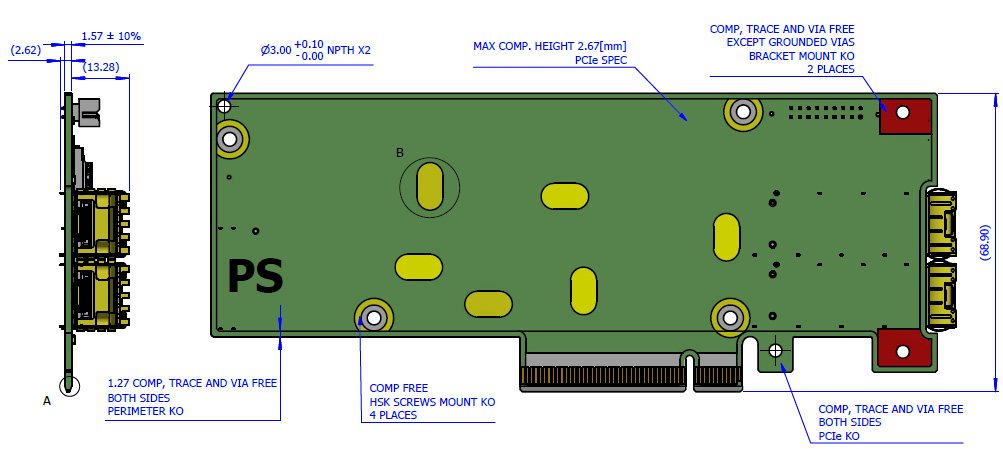

MNV303212A-ADLT Drawing and Dimensions
MNV303611A-EDLT Drawing and Dimensions
