Overview

The single port OSFP is used only with ConnectX-7/OSFP network adapters.

BlueField-3/QSFP112 DPUs and ConnectX-7/QSFP112 adapters require QSFP112 ends found on the MCA7J65 and MCA7J75.

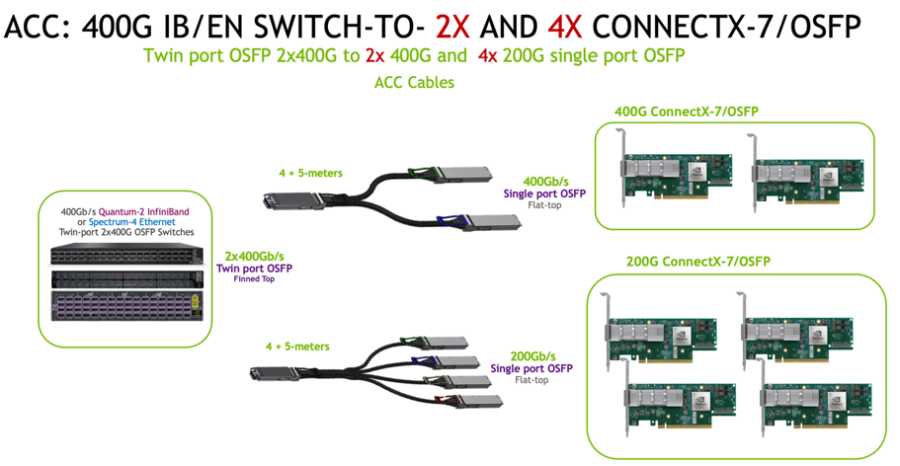

Use case illustration:

The splitter ACC cables are available in:

• 1:2 splits (2x 400G) MCA7J60 4-channels x 100G-PAM4

• 1:4 splits (4x 200G) MCA7J70 2-channels x 100G-PAM4.
