MCP7Y70-Hxxx 400Gb_s Twin-port 2x200G OSFP to 4x100G QSFP56 DAC Splitter Product Specifications

Use Cases

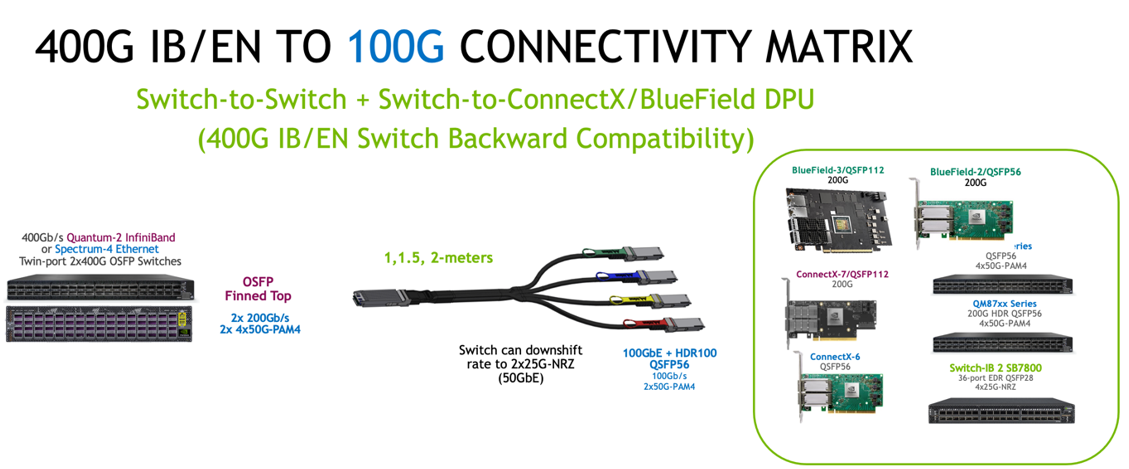

The MCP7Y70 is used to connect Quantum-2 NDR InfiniBand and 400GbE Ethernet switches to Quantum based switches, ConnectX-6/QSFP56 adapters, and/or BlueField-2 DPUs spanning up to 2-meters.

  • Both a ConnectX-6 and BlueField-2 DPU can be linked at the same time.

  • 2x200G DAC can downshift the HDR100 InfiniBand 2x50G-PM4 rate to 2x25G-NRZ or 50GbE.
