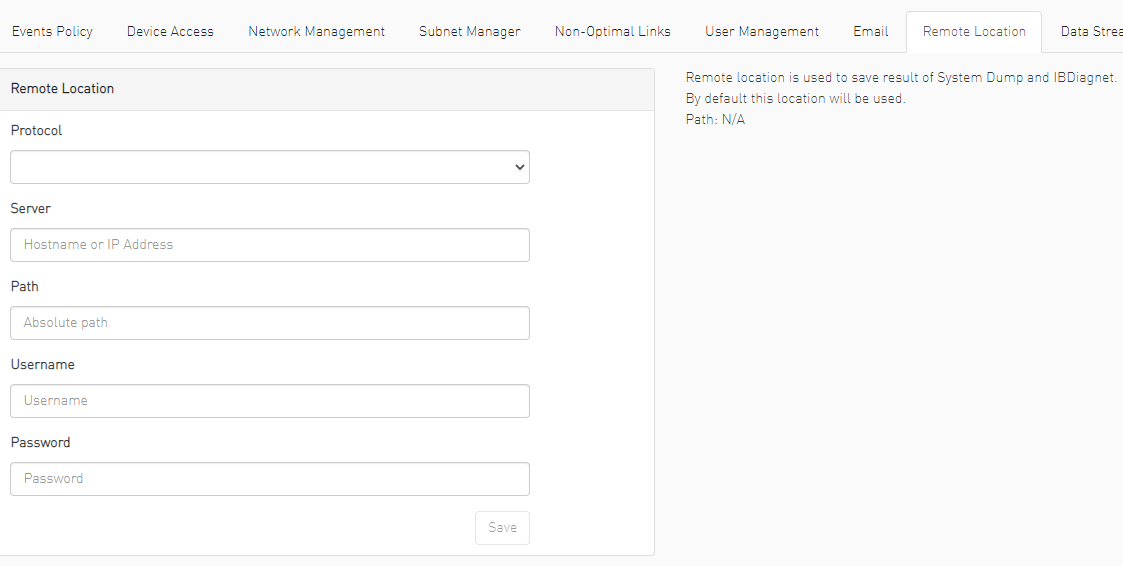

Remote location tab is used to set a predefined remote location for the results of System Dump action on switches and hosts and for IBDiagnet executions.
![remote-location-tab-version-1-modificationdate-1718614808777-api-v2.png](https://docscontent.nvidia.com/dims4/default/8660a59/2147483647/strip/true/crop/1123x566+0+0/resize/1123x566!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000190-5ad0-da8b-afb0-7add96490000%2Fimages%2Fdownload%2Fattachments%2F2924743917%2Fremote-location-tab-version-1-modificationdate-1718614808777-api-v2.png)
Field | Description |
Protocol | The protocol to use to move the dump file to the external storage (scp/sftp) |
Server | Hostname or IP address of the server |
Path | The path where dump files are saved |
Username | Username for the server |
Password | Respective password |
After configuring these parameters, it would be possible for users to collect sysdumps for specific devices, groups, or links (through Network Map/Cables Window) by right-clicking the item and selecting System Dump.
