NGC Private Registry User Guide

This document is for users and administrators of NVIDIA NGC Private Registry.

This document describes how to use the NVIDIA® NGC Private Registry. This guide assumes the user is familiar with Linux and Docker and has access to an NVIDIA GPU-based computing solution, such as an NVIDIA DGX system or NVIDIA-Certified system configured for internet access and prepared for running NVIDIA GPU-accelerated Docker containers.

As data scientists build custom content, storing, sharing, and versioning this valuable intellectual property is critical to meeting their company’s business needs. To address these needs, NVIDIA has developed the NGC Private Registry to provide a secure space to store and share custom containers, models, Jupyter notebooks, and Helm charts within your enterprise. The NGC Private Registry is available to DGX and NVIDIA AI Enterprise customers.

Increased Collaboration

We all are used to working collaboratively using tools such as Slack or Microsoft Teams, to share our content and ensure that our colleagues are all aligned. The primary goal of NGC Private Registry is to enable sharing of artificial intelligence (AI) content such as containers, models, Helm charts within your organization. This feature empowers key stakeholders in your organization to collaborate without reinventing the wheel, increasing productivity, saving valuable resources, and bringing your products to market faster.

Enterprise Ready

When sharing content across a large organization, it is essential to ensure that you can manage the users. The comprehensive user and team management in an NGC Private Registry allow administrators to control access to content stored in the registry.

With the power of the cloud, the content stored in the NGC Private Registry is always available with redundant storage that can be accessed from anywhere, making it extremely easy to get to your content.


2.1. Obtaining a Private Registry

This chapter provides instructions for DGX customers on obtaining a private registry.

After purchasing a support entitlement with NVIDIA, the end-customer will receive an NVIDIA Entitlement Certificate via email. The email will include all the pertinent instructions to register for technical support.

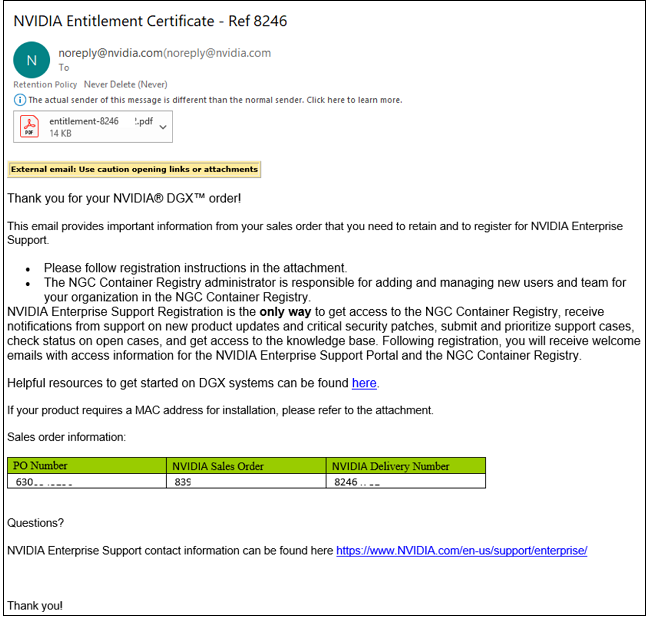

The following is an example of the NVIDIA Entitlement Certificate email.


The Entitlement Certificate itself is provided as a PDF attachment. The following is an example of an NVIDIA Entitlement Certificate.


The PDF also includes instructions for using the certificate.


  • If you already have an account, you can immediately log into the NVIDIA Enterprise Support portal.
  • If you are a new user without an NGC Support account, click the NVIDIA Enterprise Support Registration Form link.

    This link will have embedded information regarding your account. It is essential not to share this entitlement link outside of your organization.

    Registration will provide an NGC private registry and NVIDIA Enterprise Support accounts. You'll receive a welcome email, at which time you can activate your NGC private registry account.

2.2. Activating a New NGC Account

Before using NGC, you must have an NGC account created by your organization owner or other administrators in your organization. You need an email address to set up an account. Choose one of the following processes depending on your situation for activating your NGC account.

2.2.1. Joining an NGC Org or Team with an Existing NVIDIA Account

This section describes joining an org or team when your email address is already associated to an NVIDIA account.

After NVIDIA or your organization administrator adds you to a new org or team within an organization, you will receive a welcome email that invites you to continue the activation and sign in process.


  1. Click the Accept Invitation and Sign In link to open the NGC sign-in page.

    Enter your email address and sign in using your NVIDIA account credentials.


    The Set Your Organization screen appears.


  2. Select the new organization and team you have been invited to. Click Continue.

    You can always change to a different org or team that you are a member of after logging in. Refer to Switching Orgs or Team After Logging into NGC for more information.

    The NGC web UI opens to the NGC Catalog landing page.

To view artifacts in your private registry, select Private Registry in the left navigation menu. You may select containers, Helm charts, models and resources as needed.


2.2.2. Joining an Org or Team with a New NVIDIA Account

This section describes activating a new account where the domain of your email address is not mapped to an organization's single sign-on.

After your organization administrator invites you to an org or team, you will receive a welcome email that invites you to continue the activation and login process.



  1. Click the Accept Invitation and Sign In link to open the NGC sign-in dialog in your browser, or go to NGC sign-in.


  2. Type in your email address and click Continue. You will be automatically prompted to create a new NVIDIA account.


  3. Fill in your information, create a password, agree to the Terms and Conditions, and click Create Account. An email is sent to you to verify your email address.
  4. Open the email and click Verify Email Address.


  5. In the Almost done! dialog, select your communication preferences and then click Submit.


  6. In the NVIDIA Account Terms of Use dialog, select the desired options and click Agree.


  7. Select the organization and team you want to log in under and then click Continue.


    You can always change to a different org or team that you are a member of after logging in. Refer to Switching Orgs or Team After Logging into NGC for more information.

    The NGC web UI opens to the NGC Catalog landing page.

To view artifacts in your private registry, select Private Registry in the left navigation menu. You may select containers, Helm charts, models and resources as needed.


2.2.3. Joining an Org as Org Owner

This section describes activating a new NGC org where you are joining as the org owner.

After NVIDIA sets up your NGC org, you will receive a welcome email that invites you to continue the activation and login process.


In the example, "Novi Sciences" is the owner of the newly-created organization. The steps below assume Novi is new to NGC and explain how to create a new NVIDIA account and sign in as org owner. If you already have an NVIDIA account managing other NGC orgs as org owner, click on Use alternate method to sign in with your existing NVIDIA account and access your new org. Take note of the following important information in the email.

  • "TB3-org" is the display name for your org. The display name identifies your org in the NGC web UI.

  • "njdfzzqagzno" is the unique identifier for your org. This identifier represents your org namespace. You can use this identifier in some CLI commands.

  1. Click Sign in to NGC, or using a browser, navigate to the NGC sign in page.

    Type in your email address and click Continue.


  2. You will be presented with a create account screen.

    Verify your email and create a password. Review the NVIDIA Account Terms of Use and Privacy Policy, and click Create Account.


    A verification email is sent.

  3. Open the email and click Verify Email Address.


  4. In the Almost done! dialog, select your communication preferences and then click Submit.


  5. In the NVIDIA Account Terms of Use dialog, select the desired options and click Agree.


  6. Select the organization and team you want to log in under and then click Continue.


    You can always change to a different org or team that you are a member of after logging in. Refer to Switching Orgs or Team After Logging into NGC for more information.

    The NGC web UI opens to the NGC Catalog landing page.

2.2.4. Joining an Org or Team with an External SSO Company Account

This section describes joining an org or team that has been federated by your company to an external SSO/IdP authentication service and your email address domain requires NGC authentication against your company's single sign-on.

After your organization administrator adds you to a new org or team within the organization, you'll receive a welcome email that invites you to continue the activation and sign-in process.


  1. Click the Accept Invitation and Sign In link to open the NGC sign-in page.

    Enter your email address and click Continue.


    With your email address domain associated to an external SSO identity provider, you will be automatically redirected and prompted to authenticate against the external authentication method.

    For example:


    After successfully authenticating you will be redirected to NGC.

    If you are a member of more than one NGC org, the Set Your Organization screen appears.


  2. Select the new organization and team you have been invited to and Click Continue.

    You can always change to a different org or team that you are a member of after logging in. Refer to Switching Orgs or Team After Logging into NGC for more information.

    The NGC web UI opens to the NGC Catalog landing page.

To view artifacts in your private registry, select Private Registry in the left navigation menu. You may select containers, Helm charts, models and resources as needed.


2.2.5. Switching Orgs or Team After Logging into NGC

This section describes switching to a different org or team after logging in.

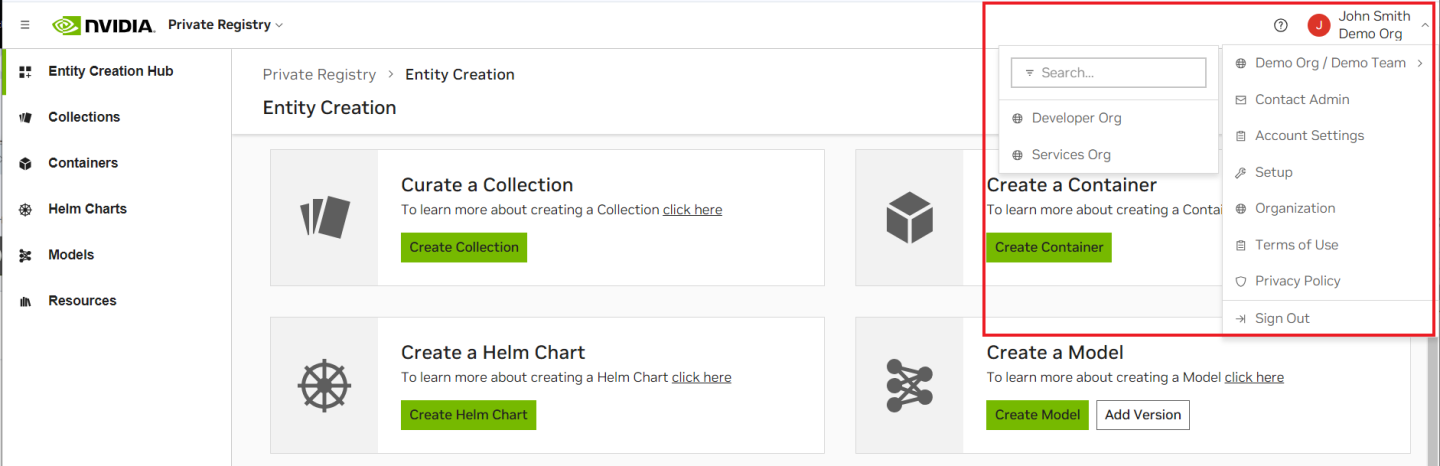

In the top menu bar, click your user account icon. Then, select your org menu to expand the view to other available orgs. If you manage many orgs, you can use the search field to find the specific org you want to select. Select the desired org by clicking it once.


Depending on the org or team you select, your current page may also refresh.

2.3. Generating Your NGC API Key

This section describes how to obtain an API key to access locked container images from the NGC Registry.

  1. Sign in to the NGC website.

    From a browser, go to https://ngc.nvidia.com/signin/email and then enter your email and password.

  2. In the top right corner, click your user account icon and select Setup.


  3. Click Get API key to open the Setup > API Key page.

    The API Key is the mechanism used to authenticate your access to the NGC container registry.


  4. Click Generate API Key to generate your API key. A warning message lets you know that your old API key will become invalid if you create a new key.
  5. Click Confirm to generate the key.

    Your API key appears.

    You only need to generate an API Key once. NGC does not save your key, so store it in a secure place.

    Tip:

    You can copy your API Key to the clipboard by clicking the copy icon to the right of the API key.

    If you lose your API Key, you can generate a new one from the NGC website. When you generate a new API Key, the old one is invalidated.

2.4. Managing Users and Teams in NGC

This chapter applies to organization and team administrators, and explains the tasks that an organization or team administrator can perform from the NGC website.

When the Organization was created, an Organization owner was created from the primary technical contact information provided during the sales process. This organization owner will receive an email from NGC. As the NGC Org owner for your organization, you can invite other users to join your organization’s NGC account. Users can then be assigned as members of teams within your organization. Teams are useful for keeping custom work private within the organization. You can also create other administrators in the organization to share that responsibility. The general workflow for building teams of users is as follows:

  1. The organization admin invites users to the organization’s NGC account.
  2. The organization admin creates teams within the organization.
  3. The organization admin adds users to appropriate teams, and typically assigns at least one user to be the team admin.
  4. The organization or team admin can then add other users to the team.

2.4.1. NGC Registry User Roles

Prior to adding users and teams, familiarize yourself with the following definitions of each role.

The NGC container registry supports the following user roles.

Organizational and Team Level Roles

The following roles can be assigned to a user.

  • Org Owner : This user is created at the time of Org creation. Only one user can be the Org Owner at a given moment. This user can download/upload, push/pull or delete, add/remove users and create teams within an organization.
  • Registry Admin : This user can download/upload, push/pull or delete artifacts within an organization or team.
  • Registry User : This user can download, upload, push/pull artifacts within an organization or team.
  • Registry Read : This user can download and pull artifacts within an organization or team.
  • User Admin : This user can view and invite other users and user admins within an organization. At the team level, the User Admin can view and invite other users and user admins to that team. A User Admin can only grant roles that they possess.
  • User Read : This user can view details of an organization or team.

Note:

A user must be a "Registry Read", "Registry User", and/or "User Admin" role to be a member of the organization or any team.

Capability Registry Admin Registry User User Admin Registry Read User Read
Add teams X X X X
Add new users to orgs or teams X X X X
View users X X X
Delete images X X X X
View/Edit all image information via UI and CLI X X X
View all artifacts namely containers, model, resources X
Download all artifacts namely containers, model, resources X X
Create and push/upload all artifacts namely containers, model, resources X X X

2.4.2. Creating Teams

Creating teams is useful for allowing users to share images within a team while keeping them invisible to other teams in the same organization. Only organization administrators can create teams.

To create a team,

  1. Log on to the NGC website.
  2. Select Organization > Teams from the left navigation menu, then click Create Team menu at the top of the screen.


  3. Enter a team name and description, then click Add Team. Team names must be all lowercase.

2.4.3. Creating Users

As the organization owner or user administrator, you must create user accounts to allow others to use the NGC container registry within the organization.

  1. Log on to the NGC website.
  2. Click Organization > Users from the left navigation menu, then click Invite New User at the top right of the screen.


  3. Fill out the Add User form for the new user as follows:


    1. Enter the display name and email where indicated.
    2. Select the organization or team to be assigned.
    3. Select the roles to assign to the user.
    4. Click Add Role and then click Create User when done.


An invitation email is automatically sent to the user.

2.4.4. Adding a new User to a Team

Org owners or org level user administrators can add users to any team in the organization. Team user administrators can add users to their teams.

  1. Log on to the NGC website.
  2. Click Organization > Teams from the left navigation menu, then select the team that you want to add a user.
  3. On the Teams page, click Invite New User.


  4. In the Add User dialog, follow the steps in section Creating Users to fill out the add user form and invite the new user to the team. Make sure the user is invited at the desired team context.

Users can be members of more than one team. To add a user to another team, repeat these steps for any additional teams.

2.4.5. Adding an Existing User to a Team

Org owners or org level user administrators can add users to any team in the organization. Team user administrators can add users to their teams.

  1. Log on to the NGC website.
  2. Click Organization > Teams from the left navigation menu, then select the team that you want to add a user.
  3. On the Users page, click Add Existing User.


  4. In the Find Existing User dialog, enter the name of the user you want to add.


  5. Select the user and click Edit User.
  6. On the Update User page, assign the user to the desired team and roles. Click Add Role to save your changes.


Users can be members of more than one team. To add a user to another team, repeat these steps for any additional teams.

2.4.6. Changing User Roles

You can change user assignments and roles for any users you create.

  1. Log on to the NGC website.
  2. Select the org and team for which you want to change the user role.

    Click your user icon to select from the list of orgs, select an org, and if applicable, select a team.

  3. Click Organization > Users from the left side menu. A list of all the users in the current registry space appears.
  4. Select the user whose role you want to change. The User Information form appears.
  5. Click Edit Membership.


    A prompt appears for editing membership roles.

  6. You can assign new roles, update and delete user roles and click Add Role when done.

2.5. Introduction to the NGC Catalog and NGC CLIs

Unified NGC and Enterprise Catalog

Note:

The Enterprise Catalog, which housed software supported by NVIDIA AI Enterprise (NVAIE), is now integrated into the NGC Catalog (public), providing users with a cohesive and comprehensive platform. NVAIE customers, with their active NVAIE entitlement, can access software and features exclusive to them from within the NGC Catalog.

The NGC Catalog aims to provide a centralized catalog of publicly available entities (e.g., containers, models, resources) alongside those that are part of products called entitled entities. This approach enables users to search and filter seamlessly across all entities, for a more efficient and improved user experience.

Users can view and download entitled entities by signing in to NGC. The NGC CLI is also available for downloading software using the API key. Access to all granted products will remain even when switching org/team context. Unauthenticated users will see a prompt to log in or gain access to the product when attempting to download gated features or entitled entities.

Publishers can publish and map entities to products. Access to entities is restricted by entity type, entity access type, user subscriptions, and roles, enhancing security and control. For entitled entities, guest users are encouraged to convert to registered or subscribed status to access product-specific entities.

Introduction to NGC CLIs

The NGC CLIs are command-line interfaces for managing content within the NGC Registry. The CLI operates within a shell and lets you use scripts to automate commands.

NGC Catalog CLI

The NGC Catalog CLI is available to you if you have guest access to the NGC Registry, and with it, you can

  • View a list of GPU-accelerated Docker container images, pre-trained deep-learning models, and scripts for creating deep-learning models.
  • Download container images, models, and resources.

NGC Registry CLI

The NGC Registry CLI is available to you if you are logged in with your own NGC account or with an NGC Private Registry account, and with it, you can

  • View a list of GPU-accelerated Docker containers available and detailed information about each image.
  • See a list of deep-learning models and resources and detailed information about them.
  • Download container images, models, and resources.
  • Upload container images, models, and resources.
  • Create and manage users and teams (available to NGC Private Registry administrators).

For more details and best practices, visit the NGC CLI documentation page.

2.5.1. Installing NGC Registry CLI

To install NGC Registry CLI,

  1. Log in to your enterprise account on the NGC website (https://ngc.nvidia.com).
  2. In the top right corner, click your user account icon and select Setup, then click Downloads under CLI from the Setup page.
  3. From the CLI Install page, click the Windows, Linux, or macOS tab, according to the platform from which you will be running NGC Registry CLI.
  4. Follow the instructions to install the CLI.
  5. Verify the installation by entering ngc --version. The output should be NGC CLI x.y.z where x.y.z indicates the version.

2.5.2. Managing Users and Teams

This section applies to the organization and team administrators.

As the NGC administrator for your organization, you can invite other users to join your organization’s NGC account. Users can then be assigned as members of teams within your organization. Teams are useful for keeping custom work private within the organization.

The general workflow for building teams of users is as follows:

  1. The organization admin invites users to the organization’s NGC account.
  2. The organization admin creates teams within the organization.
  3. The organization admin adds users to appropriate teams, and typically assigns at least one user to be the team admin.
  4. The organization or team admin can then add other users to the team.

2.5.2.1. Inviting users to the organization’s NGC account

Required Role: Org Admin (REGISTRY_WRITE_ADMIN_ROLE)

Syntax

Copy
Copied!


c:\> ngc org add-user <email> <name>


Example of adding John Smith (email: jsmith@example.com)

Copy
Copied!


c:\> ngc org add-user jsmith@example.com “John Smith”

2.5.2.2. Creating teams

Required Role: Org Admin (REGISTRY_WRITE_ADMIN_ROLE)

Syntax

Copy
Copied!


c:\> ngc org add-team <name> <description>


Example of adding Team A

Copy
Copied!


c:\> ngc org add-team team_a “Team A”


Copy
Copied!


Team created. ---------------------------------------------------- Team Information Id: 363 Name: team-a Description: Team A Deleted: False ----------------------------------------------------

2.5.2.3. Adding users to teams

Required Role: Org Admin (REGISTRY_WRITE_ADMIN_ROLE) or Team Admin (REGISTRY_WRITE_TEAM_ADMIN_ROLE)

Syntax

Copy
Copied!


c:\> ngc team add-user <email> <name>


Example of adding existing user John Smith to Team A as a regular user

Copy
Copied!


c:\> ngc team add-user jsmith@example.com “John Smith” --team team-a --role REGISTRY_WRITE_USER_ROLE


Note:

You do not need the --team argument if the target team is already set in your current NGC configuration.

2.5.2.4. Creating a team and adding a user in the same command

Required Role: Org Admin (REGISTRY_WRITE_ADMIN_ROLE)

Syntax

Copy
Copied!


c:\> ngc org add-user <email> <name> --team <name> --role <user-role>


Example of inviting new user John Smith to Team A as a team admin

Copy
Copied!


c:\> ngc org add-user jsmith@example.com “John Smith” --team team-a --role REGISTRY_WRITE_TEAM_ADMIN_ROLE


Note:

You do not need the --team argument if the target team is already set in your current NGC configuration.

2.5.2.5. Creating a team and adding a user in the same command

Role Service Access Levels
ADMIN ACE READ, ADMIN, WRITE
ADMIN CONTAINER READ, ADMIN, WRITE
ADMIN DATASET READ, ADMIN, WRITE
ADMIN HELM READ, ADMIN, WRITE
ADMIN JOB READ, ADMIN, WRITE
ADMIN MODEL READ, ADMIN, WRITE
ADMIN MODELSCRIPT READ, ADMIN, WRITE
ADMIN ORG READ, ADMIN, WRITE
ADMIN TEAM READ, ADMIN, WRITE
ADMIN USER READ, ADMIN, WRITE
ADMIN WORKSPACE READ, ADMIN, WRITE
EGX_ADMIN EGX READ, ADMIN, WRITE
EGX_ADMIN ORG READ, ADMIN, WRITE
EGX_ADMIN TEAM READ, ADMIN, WRITE
EGX_ADMIN USER READ, ADMIN, WRITE
EGX_READ EGX READ
EGX_READ ORG READ
EGX_READ TEAM READ
EGX_USER EGX READ, WRITE
EGX_USER ORG READ, WRITE
EGX_USER TEAM READ, WRITE
REGISTRY_READ CONTAINER READ
REGISTRY_READ HELM READ
REGISTRY_READ MODEL READ
REGISTRY_READ MODELSCRIPT READ
REGISTRY_READ ORG READ
REGISTRY_READ TEAM READ
REGISTRY_ADMIN CONTAINER READ, ADMIN, WRITE
REGISTRY_ADMIN HELM READ, ADMIN, WRITE
REGISTRY_ADMIN MODEL READ, ADMIN, WRITE
REGISTRY_ADMIN MODELSCRIPT READ, ADMIN, WRITE
REGISTRY_ADMIN ORG READ, ADMIN, WRITE
REGISTRY_ADMIN TEAM READ, ADMIN, WRITE
REGISTRY_ADMIN USER READ, ADMIN, WRITE
REGISTRY_USER CONTAINER READ, WRITE
REGISTRY_USER HELM READ, WRITE
REGISTRY_USER MODEL READ, WRITE
REGISTRY_USER MODELSCRIPT READ, WRITE
REGISTRY_USER ORG READ, WRITE
REGISTRY_USER TEAM READ, WRITE
USER_ADMIN CONTAINER READ, ADMIN, WRITE
USER_ADMIN HELM READ, ADMIN, WRITE
USER_ADMIN MODEL READ, ADMIN, WRITE
USER_ADMIN MODELSCRIPT READ, ADMIN, WRITE
USER_ADMIN ORG READ, ADMIN, WRITE
USER_ADMIN TEAM READ, ADMIN, WRITE
USER_ADMIN USER READ, ADMIN, WRITE
USER ACE READ, WRITE
USER CONTAINER READ, WRITE
USER DATASET READ, WRITE
USER HELM READ, WRITE
USER JOB READ, WRITE
USER MODEL READ, WRITE
USER MODELSCRIPT READ, WRITE
USER ORG READ, WRITE
USER TEAM READ, WRITE
USER WORKSPACE READ, WRITE


Over the last few years there has been a dramatic rise in the use of software containers for simplifying deployment of data center applications at scale. Containers encapsulate an application along with its libraries and other dependencies to provide reproducible and reliable execution of applications and services without the overhead of a full virtual machine.

GPU support within Docker containers enables GPU-based applications that are portable across multiple machines in a similar way to how Docker® enables CPU-based applications to be deployed across multiple machines.

Docker container
A Docker container is an instance of a Docker image. A Docker container deploys a single application or service per container.
Docker image
A Docker image is simply the software (including the filesystem and parameters) that you run within a nvidia-docker container.

3.1. What Is A Docker Container?

A Docker container is a mechanism for bundling a Linux application with all of its libraries, data files, and environment variables so that the execution environment is always the same, on whatever Linux system it runs and between instances on the same host.

Unlike a VM which has its own isolated kernel, containers use the host system kernel. Therefore, all kernel calls from the container are handled by the host system kernel. DGX™ systems uses Docker containers as the mechanism for deploying deep learning frameworks.

A Docker container is the running instance of a Docker image.

3.2. Why Use A Container?

One of the many benefits to using containers is that you can install your application, dependencies and environment variables one time into the container image; rather than on each system you run on. In addition, the key benefits to using containers also include:

  • Install your application, dependencies and environment variables one time into the container image; rather than on each system you run on.
  • There is no risk of conflict with libraries that are installed by others.
  • Containers allow use of multiple different deep learning frameworks, which may have conflicting software dependencies, on the same server.
  • After you build your application into a container, you can run it on lots of other places, especially servers, without having to install any software.
  • Legacy accelerated compute applications can be containerized and deployed on newer systems, on premise, or in the cloud.
  • Specific GPU resources can be allocated to a container for isolation and better performance.
  • You can easily share, collaborate, and test applications across different environments.
  • Multiple instances of a given deep learning framework can be run concurrently with each having one or more specific GPUs assigned.
  • Containers can be used to resolve network-port conflicts between applications by mapping container-ports to specific externally-visible ports when launching the container.

3.3. Using NGC Container Registry from the Docker Command Line

3.3.1. Accessing the NGC Container Registry

You can access the NGC container registry by running a Docker command from your client computer. You are not limited to using your NVIDIA DGX platform to access the NGC container registry. You can use any Linux computer with Internet access on which Docker is installed.
Before accessing the NGC container registry, ensure that the following prerequisites are met:

  • Your NGC account is activated.
  • You have an NGC API key for authenticating your access to NGC container registry. For more information, see Generating Your NGC API Key.
  • You are logged in to your client computer as an administrator user.

    An alternate approach for enabling other users to run containers without giving them sudo privilege, and without having to type sudo before each docker command, is to add each user to the docker group, with the command:

    Copy
    Copied!


    sudo usermod -aG docker $USER

    While this approach is more convenient and commonly used, it is less secure because any user who can send commands to the docker engine can escalate privilege and run root level operations. If you choose to use this method, only add users to the docker group who you would trust with root privileges.

  1. Log in to the NGC container registry.
    Copy
    Copied!


    sudo docker login nvcr.io

  2. When prompted for your user name, enter the following text:
    Copy
    Copied!


    $oauthtoken

    The $oauthtoken user name is a special user name that indicates that you will authenticate with an API key and not a user name and password.

  3. When prompted for your password, enter your NGC API key as shown in the following example.
    Copy
    Copied!


    Username: $oauthtoken Password: my-api-key

    Tip:

    When you get your API key as explained in Generating Your NGC API Key, copy it to the clipboard so that you can paste the API key into the command shell when you are prompted for your password.

3.3.2. Uploading an NVIDIA Container Image onto Your System

No container images are preloaded onto a DGX system. Instead, containers are available for download from the NGC container registry. NVIDIA has provided a number of containers for download from the NGC container registry. If your organization has provided you with access to any custom containers, you can download those as well.
Before loading an NGC container image, ensure that the following prerequisites are met:

Tip:

To browse the available containers in the NGC container registry, use a web browser to log in to your NGC account on the NGC website.


  1. Run the command to download the container that you want from the registry.
    Copy
    Copied!


    sudo docker pull registry/registry-space/repository:tag

    registry
    The URL of the container registry, which for the NGC container registry is nvcr.io.
    registry-space
    The name of the space within the registry that contains the container. For example, nvidia is the registry space for containers provided by NVIDIA.
    repository
    Repositories are collections of containers of the same name, but distinguished from each other by their tags. Think of it as the main container name.
    tag
    A tag that identifies the version of the container.
  2. To confirm that the container was downloaded, list the Docker images on your system.
    Copy
    Copied!


    sudo docker images

The following are several examples of pulling container images.

  • Example of pulling tensorflow:18.06-py3 from the nvidia registry space.

    Copy
    Copied!


    ~$ sudo docker pull nvcr.io/nvidia/tensorflow:18.06-py3

  • Example of pulling a custom container image tagged v2.0 from the acme organization registry space.

    Copy
    Copied!


    ~$ sudo docker pull nvcr.io/acme/custom-image:v2.0

  • Example of pulling a custom container image tagged v2.0 from the acme/team team registry space.

    Copy
    Copied!


    ~$ sudo docker pull nvcr.io/acme/zoom/custom-image:v2.0

3.3.3. Tagging and Pushing a Container Image

You can upload custom images to the registry if you have write access to the registry space. Uploading a container image involves first tagging the image and then pushing the image to the registry space.

In the following examples, the user is a member of the Acme (mxa8oi8djw7m) organization and the Zoom team within the Acme organization. Refer to Joining an Org as Org Owner on how to find your Org name.

  • Tagging Example

    This example tags a local container image mycaffe in the mxa8oi8djw7m/zoom team space with v1.5.

    Copy
    Copied!


    ~$ sudo docker tag mycaffe nvcr.io/mxa8oi8djw7m/zoom/mycaffe:v1.5

  • Pushing Example

    This example pushes version v1.5 of the mycaffe local container image to the mxa8oi8djw7m/zoom team space:

    Copy
    Copied!


    ~$ sudo docker push nvcr.io/mxa8oi8djw7m/zoom/mycaffe:v1.5

3.4. Using the Container Registry

The ngc registry image commands let you access ready-to-use GPU-accelerated container images from the registry.

3.4.1. Viewing Container Image Information

There are several commands for viewing information about available container images.

To list container images:

Copy
Copied!


C:\>ngc registry image list +-------------+-------------+-------------+------------+---------+------------+ | Name | Repository | Latest Tag | Image Size | Updated | Permission | | | | | | Date | | +-------------+-------------+-------------+------------+---------+------------+ | BigDFT | hpc/bigdft | cuda10-ubun | 2.37 GB | Oct 18, | unlocked | | | | tu1804-ompi | | 2019 | | | | | 4-mkl | | | | | CANDLE | hpc/candle | 20180326 | 1.52 GB | Oct 18, | unlocked | | | | | | 2019 | | ...

"Unlocked" permissions indicate images that do not require an API key to access.

To view detailed information about a specific image, specify the image and the tag.

Example:

Copy
Copied!


C:\>ngc registry image info nvidia/caffe:19.02-py2 -------------------------------------------------- Image Information Name: nvidia/caffe:19.02-py2 Architecture: amd64 Schema Version: 1 --------------------------------------------------

3.4.3. Pulling a Container Image

With the NGC Registry CLI you can pull (download) images to your system.

To pull an image to your registry space, specify the image and, optionally, the tag.

Copy
Copied!


C:\>ngc registry image pull <image-name>[:<tag>]


If a tag is not specified, then the tag 'latest' will be used.

Pushing a Container Image

With the NGC Registry CLI you can push (upload) images to your registry space.

To push an image to your registry space, specify the image and, optionally, the tag.

Copy
Copied!


C:\>ngc registry image push <image-name>[:<tag>]


If a tag is not specified, then the tag 'latest' will be used.

3.4.4. Removing a Container Image

With the NGC Registry CLI you can removed images that are no longer needed from your registry space.

To remove all versions of an image, specify the image.

Copy
Copied!


C:\>ngc registry image remove <image-name>


To remove a specific image version, specify the image and tag.

Copy
Copied!


C:\>ngc registry image remove <image-name>:<tag>

3.5. Updating Container Metadata

You can find best practices on how to fill out the metadata for your container in the Product Page Guidelines.

3.5.1. Updating Container Metadata via the NGC Website

Perform the following instructions to update the container metadata using the NGC website.

  1. Click on the vertical ellipsis in the right upper corner of your container product page to reveal the entity action menu.


  2. Select Edit Details from the entity action menu.


  3. Update the container description and all other container metadata as needed.
  4. To save your changes, click again on the vertical ellipsis to reveal the entity action menu and select Save.


3.5.2. Updating Container Metadata Using the NGC CLI

With the NGC Registry CLI you can update the container description and all the other container metadata.

With the NGC Registry CLI you can update the container description and all the other container metadata.

To update container metadata, use the following command.

Copy
Copied!


ngc registry image update [--ace <name>] [--built-by <name>] [--debug] [--desc <desc>] [--format_type <fmt>] [--label <label>] [--logo <url>] [--org <name>] [--overview <file.md>] [--publisher <publisher>] [--team <name>] [-h] <image>[:<tag>]


Specify a named argument (field that will be updated, and values to update field) as well as a positional argument (name of the container image and, optionally, tag).

Positional Arguments:

<image>[:<tag>]

Name of the image repository or tagged image, <image>[:<tag>]

Named Arguments

--debug

Enable debug mode.

--format_type

Possible choices: ascii, csv, json. Specify the output format type. Supported formats are: ['ascii', 'csv', 'json']. Only commands that produce tabular data support csv format. Default: ascii.

--org

Specify the organization name. Use "--org no-org" to override other sources and specify no org. Default: current configuration.

--ace

Specify the ACE name. Use "--ace no-ace" to override other sources and specify no ACE. Default: current configuration.

--team

Specify the team name. Use "--team no-team" to override other sources and specify no team. Default: current configuration.

--desc

Description for the target image.

--overview

Documentation (text or markdown file) for the image.

--label

A label to describe the repository. Can be used multiple times.

--logo

A URL pointing to the logo for the repository.

--publisher

The person or entity publishing the image.

--built-by

The person who built the container image.

Specify the image and, optionally, the tag.

Example: Changing description of a container image

To view the existing container metadata use the following command.

Copy
Copied!


$ ngc registry image info nvidia/testcontainer -------------------------------------------------- Image Repository Information Name: testcontainer Short Description: Test description. Built By: Kristina Publisher: NVIDIA Logo: www.logo.com/logo.png Labels: Machine Learning, Classification, Retail Public: No Last Updated: May 8, 2020 Latest Image Size: 60.27 MB Latest Tag: 3.0 Tags: 3.0 2.0 1.0 --------------------------------------------------


Update the container description with the following command.

Copy
Copied!


$ ngc registry image update --desc "A test container image with useful tools." nvidia/testcontainer -------------------------------------------------- Updating repository metadata Repository metadata updated.

To check if the update was successful, run the info command again

Copy
Copied!


$ ngc registry image info nvidia/testcontainer -------------------------------------------------- Image Repository Information Name: testcontainer Short Description: A test container image with useful tools. Built By: Kristina Publisher: NVIDIA Logo: www.logo.com/logo.png Labels: Machine Learning, Classification, Retail Public: No Last Updated: May 8, 2020 Latest Image Size: 60.27 MB Latest Tag: 3.0 Tags: 3.0 2.0 1.0 -------------------------------------------------- $ ngc registry image update Command overview

3.6. Multi-architecture Support for NGC Container Images

When running an image, docker will automatically select an image variant which matches your OS and architecture.

NGC Container Registry now allows users to leverage docker multi-architecture. It can support multiple architectures, which means that a single image may contain variants for different architectures like ARM, x86, Power and others; and sometimes for different operating systems, such as Windows.
Manifest Lists and Tags

NGC Container Registry now supports the manifest list schema now application/vnd.docker.distribution.manifest.list.v2+json providing the ability to assign multiple tags per image. For inspection of manifest list read instructions here.

NGC UI allows you to navigate through the supported architecture.


The NGC private registry lets you upload and access deep-learning models.

4.1. Creating New NGC Models Using the NGC CLI

Issue ngc registry model create -h to see a description of available options and command descriptions for creating as model.

This example creates a new model called "Final Review Model" with all required and optional arguments used:

Copy
Copied!


$ ngc registry model create \ --application OBJECT_DETECTION \ --format "cpkt" --framework TensorFlow\ --precision FP16 \ --short-desc "A model for object detection using TensorFlow" \ --built-by "My Name" \ --display-name "Final Review Model" \ --label "fast" --label "sparkly" \ --owner-name "MyTeam" \ --overview-filename /path/to/my/overview/file.md \ --publisher "NVIDIA MyTeam" \ --public-dataset-license <license> \ --public-dataset-link "www.example.com" \ --public-dataset-name "200_10x200_images" \ nvidia/myteam/final_review_model

4.2. Creating a New Model Using the NGC Website

To create a new model asset, select Private Registry > Models from the left navigation pane. Click Create Model on the top right of the page.


The Create Model page walks you through the process of creating a new model asset.


Once this form has been completed and submitted you will have the option of creating a model version. This step can be skipped and completed later. See “Uploading A New Version” for more information.

Field Validation Description Options
Name String The name of the model -
Publisher String The name of the individual who owns the asset (dropdown) -
Description String Short description of the model -
Overview Markdown (String) A place to share more details/usage instructions for the model -
Labels String (List) Tags to make the asset more discoverable -
Use Case String Intended use case Annotation, Automatic Speech Recongition, Image Classification, Image Segmentation, Image Synthesis, Natural Language Processing, Object Detection, Translation
Framework String Deep learning framework used to build the model Caffe, Clara, NeMo/PyTorch, PyTorch, TensorFlow, TensorRT, Transfer Learning Toolkit
Model Format String Output format of the weights file caffemodel, HDF5, ONNX, protobuf, PyTorch PTH, SavedModel, TensorFlow CKPT, TensorRT Plan, TLT
Precision String Training precision used AMP, FP16, FP32, INT8

4.3. Uploading a New NGC Model Version Using the NGC CLI

Issue ngc registry model upload-version -h to see a description of available options and command descriptions for uploading a model version.

An example using all required and optional arguments to create model version 1 for the model created in the previous section.

Copy
Copied!


$ ngc registry model upload-version \ --accuracy-reached 96.5 \ --batch-size 2000 \ --gpu-model "V100" \ --memory-footprint 4GB \ --num-epochs 100 \ --desc "A new and exciting version: 1" \ --link "www.example.com/model/v1" \ --link-type Other \ --owner-name "My Name" \ --source path/to/my/model/version/dir \ nvidia/myteam/final_review_model:1

Adding Custom Metrics

You can also upload custom metrics tables for each model version. Each table can hold up to twelve key-value attribute pairs. Three tables maximum per model version.

Metrics tables are defined as JSON tables - one table per file. You can add the table to the upload with --metrics-file.

Some example metrics files:

zeppelin_table.json

Copy
Copied!


{ "name": "ZeppelinTable", "attributes": [ {"key": "Robert", "value": "Plant"}, {"key": "Jimmy", "value": "Page"}, {"key": "John", "value": "Bonham"}, {"key": "John", "value": "Paul Jones"} ] }

rhcp_table.json

Copy
Copied!


{ "name": "RHCPTable", "attributes": [ {"key": "Anthony", "value": "Keidis"}, {"key": "Michael", "value": "Balzary"}, {"key": "John", "value": "Frusciante"}, {"key": "Chad", "value": "Smith"} ] }

The above example with a custom metrics tables included:

Copy
Copied!


$ ngc registry model upload-version \ --accuracy-reached 95.5 \ --batch-size 2000 \ --gpu-model "SomeGPUModel" \ --memory-footprint 4GB \ --num-epochs 100 \ --desc "A new and exciting version: 1" \ --link "www.example.com/model/v1" \ --link-type Other \ --owner-name "My Name" \link-type --metrics-file zeppelin_table.json \ --metrics-file rhcp_table.json \ --source path/to/my/model/version/dir \ nvidia/myteam/final_review_model:1

4.4. Uploading an NGC Model Version Using the NGC Website

There are two ways to upload a new version of a model via the NGC Website.

  • Via the Model Creation page discussed above
  • From the Model Details page for any model


From the version creation page, shown below, you can specify all the relevant information about the specific version that you are uploading. You can also upload files directly from your browser.


Once you’ve completed the form, and uploaded any relevant files, submitting will publish the new version of the content.

Adding Custom Metrics

As deep learning models evolve we’re aware that you might also want to convey different information to distinguish between different versions. Using the NGC Model Registry, you can specify up to 36 different metrics to help people find the right versions.

When creating your version, simply “add custom metrics” to create the tables.


  • Model Name - String - The name of the model you for which you wish to upload a version
  • Owner - String - The name of the individual who owns the asset (dropdown)
  • Version - String - A way of identifying that version (we recommend SemVer)
  • Overview - Markdown - A place to share more details/usage instructions for the model (shared across all versions)
  • Number of Epochs - String - Number of Epochs trained (or N/A)
  • Batch Size - String - Training Batch Size (or N/A)
  • GPU Model - Drop Down - GPU family used for training
  • Accuracy Reached - String - Accuracy of the model (or N/A)
  • Memory Footprint - String - Memory Footprint used by the model
  • Related Resources - You can optionally specify additional resources for your model
    • Link Text - Drop Down - The text to display for additional resources, such as containers or code samples, to accompany your version.
    • URL - String - The URL of the additional resource

Once you’ve entered the key/value pairs, select “add table”.

4.5. Editing NGC Model Information Using the NGC CLI

Issue ngc registry model update -h to see a description of available options and command descriptions for editing a model or model version.

An example updating a model's overview file for a model.

Copy
Copied!


$ ngc registry model update \ --overview-filename "path/to/my/updated/overview/file.md" \ nvidia/myteam/final_review_model

An example updating a model-version's accuracy reached and memory footprint.

Copy
Copied!


$ ngc registry model update \ --accuracy-reached 96.5 \ --memory-footprint 16GB \ nvidia/myteam/final_review_model:1

ngc registry model info nvidia/model-name
show information about a model
ngc registry model info nvidia/model-name:version
show information about a model version
ngc registry model list
list available models
ngc registry model download-version nvidia/model-name:version
download the specified model-version
ngc registry model remove nvidia/model-name:version
remove a model-version
ngc registry model remove nivida/model-name
remove a model

4.6. Editing NGC Model Information Using the NGC Website

To edit a Model’s metadata or overview tab, simply select “edit” from the top right of the model details page.


You can then edit any of the model’s details, or even delete the model if you wish.


The NGC private registry lets you upload and access resources for deep-learning models.

5.1. Before You Begin

With the NGC Registry CLI you can update the container description and all the other container metadata.

Be sure you know your context, or which org and team you are logged into. This determines which registry space your model will be uploaded. You can do this by entering the following:

Copy
Copied!


$ ngc config current


If you intend to upload a model to a different registry space, or if no team is reported and you intend to upload to a team space, then you can either

  • Use ngc config set to switch to another org or team.
    Copy
    Copied!


    $ ngc config set [--org <new org>][--team <new team>]

    or

  • Set the context at each command, using the same --org or --team options.

5.2. Uploading a Resource

The following is the general process for uploading a resource to the model script registry.

  1. Create a resource in the registry. This is a placeholder for your model and contains metadata about the resource. Example of creating resource "cmr_gnmt".
    Copy
    Copied!


    $ ngc registry resource create nvidia/cmr_gnmt

    To see a complete list of required and optional arguments, enter the following.
    Copy
    Copied!


    $ ngc registry resource create -h

  2. Upload your resrouce files.

Each time you upload files to the same resource, the upload becomes a unique version of the resource. You can specify the version when you upload, or let the CLI increment the version automatically.

Example: Uploading version 1 of the resource ‘cmr_gnmt’ (required arguments omitted for simplicity).

Copy
Copied!


$ ngc registry resource upload-version nvidia/cmr_gnmt:first-upload [--source .<directory or file path for the model contents>] ---------------------------------------------------- Transfer id: cmr_gnmt[version=first-upload] Upload status: Completed. Uploaded local path: C:\resource Total files uploaded: 26 Total uploaded size: 134.48 KB Started at: 2019-03-15 17:18:09.083000 Completed at: 2019-03-15 17:18:21.698000 Duration taken: 12s seconds ----------------------------------------------------

5.3. Updating a Resource

You can update or revise information for a resource or resource version.

The following is the basic command.

Copy
Copied!


$ ngc registry resource update <org>/[<team>/]<resource-name[:version]>


To update information, use the optional arguments to specify the information to change. To see the list of arguments, run

Copy
Copied!


$ ngc registry resource update -h

5.4. Resource Commands

The full list of optional commands for NGC resources can be seen here.

--accuracy-reached <accuracy>
Accuracy reached with target version.
--ace <name>
Specify the ACE name. Use "--ace no-ace" to override other sources and specify no ACE. Default: current configuration
--advanced-filename <path>

Advanced guide. Provide the path to a file that contains the "Advanced Guide" for the resource.

--application <app>

Target model application. Allowed values: CLASSIFICATION, OBJECT_DETECTION, SEGMENTATION, TRANSLATION, TEXT_TO_SPEECH, RECOMMENDER, SENTIMENT, NLP, KUBEFLOW_PIPELINE, OTHER.

--batch-size <size>

The batch size of the target version.

--built-by <name>

Builder of the target model.

--debug

Enable debug mode.

--desc <desc>

Full description of target version.

--display-name <name>

Display name.

--format <fmt>

Format of the target model.

--format_type <fmt>

Specify the output format type. Supported formats are: ascii, csv, json. Only commands that produce tabular data support csv format. Default: ascii

--framework <fwk>

Framework used to train the target model. Allowed values: TensorFlow, Caffe2, CNTK, Torch, PyTorch, MXNet, Keras, Other.

--gpu-model <model>

The GPU used to train the target version.

--label <label>

Label for the resource. To specify more than one label, use multiple --label arguments.

--logo <url>

URL for the resource logo image.

--memory-footprint <footprint>

The memory footprint of the target version.

--num-epochs <num>

The number of epochs for the target version.

--org <name>

Specify the organization name. Use "--org no-org" to override other sources and specify no org. Default: current configuration

--overview-filename <path>

Overview. Provide the path to a file that contains the overview for the resource.

--performance-filename <path>

Performance data. Provide the path to a file that contains the performance data for the resource.

--precision <prec>

Precision the target model was trained with. Allowed Values: FP16, FP32, INT8, FPBOTH, OTHER.

--public-dataset-license <lcs>

License for public dataset used in the target model.

--public-dataset-link <url>

Link to public dataset used in the target model.

--public-dataset-name <name>

Name of public dataset used in the target model.

--publisher <name>

Publisher of the target model.

--quick-start-guide-filename <path>

Quick start information. Provide the path to a file that contains the "Quick Start Guide" information for the resource.

--release-notes-filename <path>

Release notes. Provide the path to a file that contains the release notes for the resource.

--setup-filename <path>

Setup instructions. Provide the path to a file that contains the setup instructions for the resource.

--short-desc <desc>

Short description.

--team <name>

Specify the team name. Use "--team no-team" to override other sources and specify no team. Default: current configuration

5.5. Deleting a Resource

Only admins and creators of the model can delete a model.

Be sure the context is set appropriately for the resource you want to delete. For example, if you want to delete a model that you created in the team_A space, then be sure to set the context as --team team_A.

To remove the resource, including all versions of the resource, enter the following.

Copy
Copied!


$ ngc registry resource remove <org>/[<team>/]<resource>


To remove only a specific version of the resource, enter the following.

Copy
Copied!


$ ngc registry resource remove <org>/[<team>/]<resource:version>

This document describes how to use the NGC registry to manage Helm charts.

6.1. Introduction to NGC and Helm Charts

Helm is an application package manager running on top of Kubernetes. It lets you create Helm charts where you can define, install, and upgrade Kubernetes applications.

This document describes how to share Helm charts with others in your org or team using the NGC registry.

Prerequisites

These instructions assume the following prerequisites are met.

  • Helm v 2.x or 3.x installed

    This is only required if you are creating or packaging Helm charts yourself. It is not needed otherwise.

  • NGC organization account

    See the section Getting Started for instructions.

Note:

The asset ngcdocstest referenced below was created for example purposes only. It is intended merely as a guide and is not a requirement for publishing Helm assets to NGC.

6.2. Creating and Packaging a Helm Chart

This section describes how to package a Helm chart for publishing to NGC.
There is no need to “deploy” the Helm chart in order to publish your chart to NGC. A.tgz file of the chart can be published to an org in NGC without being deployed first to the GPU infrastructure.

  1. Create a Helm chart template by issuing the following.
    Copy
    Copied!


    $ helm create <chart-name>

    Where <chart-name> is the name of your choosing.

    Example:

    Copy
    Copied!


    $ helm create ngcdocstest

  2. Modify the contents of the template with your Helm chart data.
  3. Package the Helm chart by issuing the following.
    Copy
    Copied!


    $ helm package <chart-name>

    Example:
    Copy
    Copied!


    $ helm package ngcdocstest

    This example creates the tar package ngcdocstest-0.1.0.tgz.

6.3. Manage Helm Charts Using the NGC Web UI

6.3.1. Viewing the List of Helm Charts and Getting Fetch Commands

From the NGC website you can

  • View the contents of the Helm chart repository.
  • Get the push command for a specific Helm chart in the repository.

  1. From a browser, log in to https://ngc.nvidia.com.
  2. If you are a member of more than one org, select the one that contains the Helm charts that you are interested in, then click Sign In.
  3. Click Helm Charts from the left-side navigation pane.


    The page presents cards for each available Helm chart.


  4. Select one of the Helm chart cards.

    The page for each Helm chart provides information about the chart.


    The Fetch Commandsection shows the command to use for downloading the Helm chart package.

    Click either the Fetch download button from the upper right corner or the copy icon next to the fetch command to copy the fetch command to the clipboard.

    The File Browser tab lets you see the file content of the Helm chart package.


6.3.2. Adding Helm Charts Using the NGC Web UI


Note:

Make sure you have the right permissions to create Helm Charts in your organization and/or team. You need to have the user role “Registry User” or “Registry Admin”. For details refer to NGC Registry User Roles.

Before a chart can be uploaded to your organization’s registry, you must first create a record containing the basic information about the chart.

  1. Click Entity Creation Hub under Private Registry section of the left side menu.


  2. Click Create Helm Chart.
  3. Fill in information about your Helm Chart.


  4. Click “Create Helm Chart” .
  5. To push (upload) a Helm chart to your org space, use the NGC CLI.

    Example:

    Copy
    Copied!


    $ ngc registry chart push nvidian/ngcdocstest:0.1.0

    See Pushing a Helm Chart for details.

Updating the Helm Chart Page From the Website


  1. To update the fields in the NGC Helm Chart page for a specific Heml chart, click Edit Details.


  2. Edit each field as needed, then click Save.


6.3.4. Removing Helm Charts from the Web UI


Note:

Make sure you have the right permissions to create Helm Charts in your organization and/or team. You need to have the user role “Registry Admin”. For details refer to NGC Registry User Roles.


  1. To delete a Helm chart, elick Edit Details from the details page of the Helm chart to delete.


  2. Click Delete tro remove the Helm chart.


  3. Click Delete at the confirmation dialog.


6.4. Manage Helm Charts Using the NGC CLI

6.4.1. Searching for Available Helm Charts in an Org

The NGC CLI supports wildcard searches, using standard Unix shell-style wildcards. For example, to see a list of all available Chart packages in your org, run the following command.

$ ngc registry chart list *<org_name>*

Example:

$ ngc registry chart list *nvidian*

That will return all charts with ‘nvidian’ anywhere in the name.

Copy
Copied!


+---------------+---------------+---------+-----------+-----------------+-------------+--------------+---------------+ | Name | Repository | Version | Size | Created By | Description | Created Date | Last Modified | +---------------+---------------+---------+-----------+-----------------+-------------+--------------+---------------+ | fluentd-elasti| nvidian/fluen | 4.8.1 | 245.61 KB | stg-3emmf14t83v | Changed sho | Nov 15, 2019 | Dec 17, 2019 | | csearch | ntd-elasticse | | | d0s5v81qasfi479 | rt descript | | | | | arch | | | | ion | | | | clara | nvidian/repo1 | 0.0.1 | 65.66 KB | stg-p6urlvepnjb | | Feb 07, 2020 | Mar 12, 2021 | | | /clara | | | q06qfis28l5m6a4 | | | |

6.4.2. Fetching Helm Charts

To download (or ”pull”) a Chart package, run the following command. Note: if no version is specified, the most recent version will be pulled.

$ ngc registry chart pull org/[team/]chart[:version]

Example:

$ ngc registry chart pull nvidian/nginix-ingress:1.2.3 (pulls version 1.2.3)

$ ngc registry chart pull nvidian/nginix-ingress (pulls the latest version)

6.4.3. Adding Helm Charts to a Private Registry

Note:

Make sure you have the right permissions to create Helm Charts in your organization and/or team. You need to have the user role “Registry User” or “Registry Admin”. For details, refer to NGC Registry User Roles.

Creating a Chart

Before a chart can be uploaded to your organization’s registry, you must first create a record containing the basic information about the chart. There are several values you can specify (issue ngc registry chart create --help to view all of them), but you must at least provide a short description of the chart.

Copy
Copied!


$ ngc registry chart create <org>/[<team>/]<chart_name> --short-desc <description>

Example:

Copy
Copied!


$ ngc registry chart create nvidian/ngcdocstest --short-desc "Doc testing chart" Successfully created chart 'nvidian/ngcdocstest'. -------------------------------------------------- Chart Information Name: ngcdocstest Short Description: Doc testing chart Display Name: Team: Publisher: Built By: Labels: Logo: Created Date: 2021-03-22 18:48:36 UTC Updated Date: 2021-03-22 18:48:36 UTC Read Only: False Latest Version ID: Latest Version Size (bytes): Overview: --------------------------------------------------


Updating a Chart

You can update the metadata about a chart after it has been created with the update command.

Copy
Copied!


$ ngc registry chart update <org>/[<team>/]<chart_name> --<property> <value>

Example:

Copy
Copied!


$ ngc registry chart update nvidian/ngcdocstest --publisher "test account" --display-name "Helm Demo Chart" --built-by "my team" Successfully updated chart 'nvidian/ngcdocstest'. -------------------------------------------------- Chart Information Name: ngcdocstest Short Description: Doc testing chart Display Name: Helm Demo Chart Team: Publisher: test account Built By: my team Labels: Logo: Created Date: 2021-03-22 18:48:36 UTC Updated Date: 2021-03-22 18:52:01 UTC Read Only: False Latest Version ID: 0.1.0 Latest Version Size (bytes): 10664 Overview: --------------------------------------------------

6.4.4. Getting Information about a Helm Chart

You can see the information about a chart at any time by running the info command:

Example:

Copy
Copied!


$ ngc registry chart info nvidia/ngcdocstest -------------------------------------------------- Chart Information Name: ngcdocstest Short Description: Doc testing chart Display Name: Helm Demo Chart Team: Publisher: test account Built By: my team Labels: Logo: Created Date: 2021-03-22 18:48:36 UTC Updated Date: 2021-03-22 18:54:44 UTC Read Only: False Latest Version ID: 0.1.0 Latest Version Size (bytes): 10664 Overview: --------------------------------------------------

6.4.5. Pushing a Helm Chart

To push (upload) a Helm chart to your org space, issue the following.

Copy
Copied!


$ ngc registry chart push <org>/[<team>/]<chart_name>:<version>

Example:

Copy
Copied!


$ ngc registry chart push nvidian/ngcdocstest:0.1.0 Successfully pushed chart version 'ngcdocstest:0.1.0'. -------------------------------------------------- Chart Version Information Created Date: 2021-03-22 18:54:44 UTC Updated Date: 2021-03-22 18:54:44 UTC Version ID: 0.1.0 Total File Count: 11 Total Size: 10.41 KB Status: UPLOAD_COMPLETE --------------------------------------------------

6.4.6. Listing Helm Chart Versions

To see a list of all available versions for a chart, specify the chart name, and use the wildcard ‘*‘ for the version.

Example:

Copy
Copied!


$ ngc registry chart list nvidian/nginx-ingress:* +---------+------------+-----------+--------------+ | Version | File Count | File Size | Created Date | +---------+------------+-----------+--------------+ | 0.8.0 | 27 | 181.94 KB | Mar 12, 2021 | | 1.0.0 | 25 | 149.51 KB | Oct 02, 2020 | | 0.0.6 | 25 | 149.51 KB | Oct 02, 2020 | | 0.0.5 | 25 | 149.51 KB | Oct 02, 2020 | | 0.6.0 | 25 | 149.51 KB | Sep 17, 2020 | | 0.6.1 | 25 | 149.51 KB | Sep 17, 2020 | | 1.26.2 | 68 | 109.19 KB | Feb 08, 2020 | +---------+------------+-----------+--------------+

6.4.7. Removing Helm Charts from a Private Registry

Note:

Make sure you have the right permissions to create Helm Charts in your organization and/or team. You need to have the user role “Registry Admin”. For details, refer to NGC Registry User Roles.

If you are an admin, you can delete a specific version of a chart running the following command:

Copy
Copied!


$ ngc registry chart remove <org>/[<team>/]<chart_name>:<version>

The following example removes just version 0.1.0:

Copy
Copied!


$ ngc registry chart remove nvidian/ngcdocstest:0.1.0

The following example removes all versions and data about the chart:

Copy
Copied!


$ ngc registry chart remove nvidian/ngcdocstest

If you do not specify a version, every version of the chart, as well as the chart metadata, will be deleted.

Example:

Copy
Copied!


$ ngc registry chart remove nvidia/ngcdocstest Are you sure you would like to remove nvidia/ngcdocstest? [y/n]y Successfully removed chart version 'nvidia/ngcdocstest:0.1.0'. Successfully removed chart 'nvidia/ngcdocstest'.

6.5. Manage Helm Charts Using the NGC API

6.5.1. Updating Information on the Helm Chart Page

The NGC API lets you specify information about your Helm chart. Use the NGC API Explorer page (URL: https://docs.ngc.nvidia.com/models/index.html#!/Artifacts/updateArtifactInOrgUsingPATCH). You can use the page to build the JSON file for use in a CURL command.

The following page elements can be edited.

Page Element JSON Field Description
Helm Chart name displayName The name of the Helm chart appearing in the title on the tile and Helm chart page
Publisher publisher The organization/entity responsible for creating the asset
Logo logo URL of the image to use as the logo for the asset
Description shortDescription A short description for the Helm chart
Labels labels Tags to enhance search results
Overview tab description Content of the “Overview” tab which can provide publishers to convey additional

The JSON column shows the corresponding JSON fields to use when updating the page using the NGC API. The following shows the relevant fields in the JSON file.

Copy
Copied!


{ "attributes": [ { "key": "string", "value": "string" } ], "builtBy": "string", "description": "string", "displayName": "string", "labels": [ "string" ], "logo": "string", "publisher": "string", "shortDescription": "string" }


Example

The following shows example JSON values.

Copy
Copied!


{ "builtBy": "NVIDIA", "description": “#NGC Docs Chart”, "displayName": "NGC DOCS CHART TEST", "labels": [ "Helm Chart", "Documentation" ], "shortDescription": "This charts is for the docs!" }


The following is an example CURL command.

Copy
Copied!


curl -X PATCH --header 'Content-Type: application/json' --header 'Accept: application/json' --header 'Authorization: Bearer <<BEARER_TOKEN>> -d '{ "builtBy": "NVIDIA", "description": "#Le Chart", "displayName": "NGC DOCS TEST", "labels": [ "Helm Chart", "Documentation" ], "shortDescription": "This chart is for the docs&#33;" }' 'https://api.ngc.nvidia.com/v2/org/nvidian/helm-charts/ngcdocstest'

6.5.2. Deleting Helm Charts Using the NGC API



To remove Helm charts from your org or team, you must use the NGC API. Refer to https://docs.ngc.nvidia.com/api/index.html#!/Model/proxyDeleteUsingDELETE for a description of the relevant API.
To delete a Helm chart from an org space, issue the following:

Copy
Copied!


$ curl -X DELETE --header 'Accept: application/json' --header 'Authorization: Bearer <Bearer Token>' 'https://api.ngc.nvidia.com/v2/org/<org-name>/helm-charts/<chart-name>’


To delete a Helm chart from a Team space, issue the following:

Copy
Copied!


$ curl -X DELETE --header 'Accept: application/json' --header 'Authorization: Bearer <Bearer Token>' 'https://api.ngc.nvidia.com/v2/org/<org-name>/team/<team-name>helm-charts/<chart-name>’

6.6. Manage Helm Charts Using the Helm CLI

6.6.1. Setting Up an NGC Helm Repository


  1. Obtain an NGC API Key.

    See Generating Your NGC API Key for instructions.

  2. Export the API Key for use in commands.
    Copy
    Copied!


    $ export NGC_API_KEY=<your-api-key>

  3. Add the NGC org to your Helm repository.
    Copy
    Copied!


    $ helm repo add <repo-name> https://helm.ngc.nvidia.com/<org-name> --username=\$oauthtoken --password=$NGC_API_KEY

    Where <repo-name> is a name of your choosing by which you will reference the repository.

6.6.2. Searching for Available Helm Charts



To view a list of available Chart packages in your org, issue the following.

Copy
Copied!


$ helm search <repo-name>

6.6.3. Fetching Helm Charts



To download (or ”fetch”) a Helm chart package from the repo, issue the following.

Copy
Copied!


$ helm fetch <repo-name>/<chart-name>

Adding Helm Charts to a Private NGC Org/Team



These instructions assume the Helm push plugin is installed. To install the plugin, issue the following.

Copy
Copied!


$ helm plugin install https://github.com/chartmuseum/helm-push

To push (upload) a Helm chart to your org space, issue the following.

Copy
Copied!


$ helm push <chart-name>.tgz <repo-name>

Removing Helm Charts from a Private NGC Org/Team



To remove Helm charts from your org or team, you must use the NGC CLI or NGC API.

For additional information on using the NGC container registry and for getting help if you encounter issues, send an email to enterprisesupport@nvidia.com with a description of your issue and a ticket will be created for you.


To maintain optimal performance and service quality, the following size limits are applied to the Private Registry:

Description Limit Note
Single image layer size 10 GB Size limit per layer for Docker images (recommended).
Total image size 1 TB Size limit for all Docker images stored in the registry (recommended).
Total model/resource size 5 TB Size limit for all models or resources stored in the registry (enforced).


Notice

THE INFORMATION IN THIS GUIDE AND ALL OTHER INFORMATION CONTAINED IN NVIDIA DOCUMENTATION REFERENCED IN THIS GUIDE IS PROVIDED "AS IS." NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE INFORMATION FOR THE PRODUCT, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. Notwithstanding any damages that customer might incur for any reason whatsoever, NVIDIA's aggregate and cumulative liability towards customer for the product described in this guide shall be limited in accordance with the NVIDIA terms and conditions of sale for the product.

THE NVIDIA PRODUCT DESCRIBED IN THIS GUIDE IS NOT FAULT TOLERANT AND IS NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE IN CONNECTION WITH THE DESIGN, CONSTRUCTION, MAINTENANCE, AND/OR OPERATION OF ANY SYSTEM WHERE THE USE OR A FAILURE OF SUCH SYSTEM COULD RESULT IN A SITUATION THAT THREATENS THE SAFETY OF HUMAN LIFE OR SEVERE PHYSICAL HARM OR PROPERTY DAMAGE (INCLUDING, FOR EXAMPLE, USE IN CONNECTION WITH ANY NUCLEAR, AVIONICS, LIFE SUPPORT OR OTHER LIFE CRITICAL APPLICATION). NVIDIA EXPRESSLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR SUCH HIGH RISK USES. NVIDIA SHALL NOT BE LIABLE TO CUSTOMER OR ANY THIRD PARTY, IN WHOLE OR IN PART, FOR ANY CLAIMS OR DAMAGES ARISING FROM SUCH HIGH RISK USES.

NVIDIA makes no representation or warranty that the product described in this guide will be suitable for any specified use without further testing or modification. Testing of all parameters of each product is not necessarily performed by NVIDIA. It is customer's sole responsibility to ensure the product is suitable and fit for the application planned by customer and to do the necessary testing for the application in order to avoid a default of the application or the product. Weaknesses in customer's product designs may affect the quality and reliability of the NVIDIA product and may result in additional or different conditions and/or requirements beyond those contained in this guide. NVIDIA does not accept any liability related to any default, damage, costs or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any manner that is contrary to this guide, or (ii) customer product designs.

Other than the right for customer to use the information in this guide with the product, no other license, either expressed or implied, is hereby granted by NVIDIA under this guide. Reproduction of information in this guide is permissible only if reproduction is approved by NVIDIA in writing, is reproduced without alteration, and is accompanied by all associated conditions, limitations, and notices.

Trademarks

NVIDIA and the NVIDIA logo are trademarks and/or registered trademarks of NVIDIA Corporation in the United States and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.

© 2020-2024 NVIDIA CORPORATION & AFFILIATES. All rights reserved. Last updated on Feb 12, 2024.
