NGC Catalog User Guide

NGC Catalog User Guide (PDF)

NGC Catalog User Guide

This user guide details how to navigate the NGC Catalog and step-by-step instructions on downloading and using content.


The NGC Catalog is a curated set of GPU-optimized software for AI, HPC and Visualization.

The content provided by NVIDIA and third-party ISVs simplifies building, customizing, and integrating GPU-optimized software into workflows, accelerating the time to solutions for users.

The NGC Catalog consists of containers, pre-trained models, Helm charts for Kubernetes deployments, and industry-specific AI toolkits with software development kits (SDKs).

Containers

The NGC Catalog hosts a broad range of containers, including deep learning frameworks, machine learning, HPC, and visualization applications that maximize the utilization of GPU environments. Containers package software applications, libraries, dependencies, and run-time compilers in a self-contained environment to easily deploy them across various computing environments. They enable software portability, and through a single command, users can pull, run and scale applications across the cloud, the data center, and the edge.

Models and Resources

The NGC Catalog offers pre-trained models for a wide range of common AI tasks optimized for NVIDIA Tensor Core GPUs. The pre-trained models can be used for inference or fine-tuned with transfer learning, saving data scientists and developers valuable time.

Resources offer documentation, code samples, and many other assets such as Jupyter Notebooks, deployment pipelines, and step-by-step instructions and scripts for creating deep learning models, making it easy to get started with deep learning.

Helm Charts

Kubernetes is a container orchestrator that facilitates the deployment and management of containerized applications and microservices. A Helm chart is a package manager that allows DevOps to configure, deploy and update applications across Kubernetes environments more efficiently. The NGC Catalog provides Helm charts for deploying GPU-optimized applications and SDKs.

Software Development Kits

SDKs deliver all the tooling users need to build and deploy AI applications across domains such as medical imaging, conversational AI, or video analytics. They include annotation tools for data labeling, pre-trained models for customization with transfer learning, and SDKs that enable deployment across the cloud, the data center, or the edge for low-latency inference.

To learn more about the NGC Catalog content, visit the NGC Catalog website.


The following are common terms used in this document.
Term Definition
Authenticated / Registered User A user who has signed in to NGC using their email account. The user inherits all "guest user" privileges and can access certain free/ free trial entities/features that require users to sign in.
Entity A container, model, helm chart, or resource. They are also referred to as "software" in this document.
Guest User An unauthenticated user who can access (view and download) entities from the public catalog without signing in.
Container Images All applications running in NGC are containerized as Docker containers and execute in our Runtime environment. Containers are stored in the NGC Registry nvcr.io, accessible from both the CLI and the Web UI.
Container Port Opening a port when creating a job will create a URL that can be used to reach the container on that port using web protocols. The security of web applications (e.g. Jupyterlab) that are accessed this way is the user's responsibility. See note below.
Enterprise Catalog

The Enterprise Catalog includes the NVIDIA AI Enterprise software and can only be accessed by customers with an active subscription. NVIDIA AI Enterprise also includes software available in the public/free catalog which is designed as "NVIDIA AI Enterprise Supported..

The existing implementation of the enterprise catalog will be integrated with the NGC Catalog described in this document.

Enterprise-only software The containers, Helm charts, resources, models, and collections that are only available for users with an NVIDIA AI Enterprise subscription.
Enterprise-only features The features of the NGC Catalog that are only available for users with a product (i.e., subscribers).
Models NGC offers a collection of state-of-the-art pre-trained deep learning models that can be easily used out of the box, re-trained or fine-tuned.
NVIDIA AI Enterprise

The software layer of the NVIDIA AI platform, NVIDIA AI Enterprise, accelerates the data science pipeline and streamlines the development and deployment of production AI, including generative AI, computer vision, speech AI, and more. Regular security reviews, API stability, and dependable support SLAs ensure AI projects stay on track.

The NVIDIA AI Enterprise subscriptions include entities, support, and exclusive software features/models.

Publisher Publisher is an owner of the entity hosted on NGC.
Private Registry The NGC private registry provides a secure space to store and share custom containers, models, resources, and Helm charts within your enterprise.
Resources NGC offers step-by-step instructions and scripts for creating deep learning models that you can share within teams or the org.
Subscriber

A user who is signed in (i.e., registered) to NGC using their email account and is part of an org that has access to products (e.g., "nv-ai-enterprise", "riva-enterprise").

An example of a free product for subscriber is someone who has purchased a license or has been granted access to gated software for free for a limited time.


NGC provides software to meet the needs of data scientists, developers, and researchers with various levels of AI expertise.

Software hosted on NGC undergoes scans against an aggregated set of common vulnerabilities and exposures (CVEs), crypto, and private keys.

In addition to security scanning, NGC software is tested against a broad range of GPU-enabled platforms, including public cloud instances, workstations, and OEM servers targeted for data center or edge deployments. Supported GPUs include H100, V100, A100, T4, Jetson, and the RTX Quadro.

NGC software is tested and assured to scale to multiple GPUs and, in some cases, to scale to multi-node, ensuring users maximize the use of their GPU-powered servers out of the box.

For a select set of containers, NVIDIA offers NGC Support Services for running software on DGX platforms or certified OEM servers. The service gives enterprise IT direct access to NVIDIA subject matter experts to quickly address software issues and minimize system downtime.


There are four ways to explore and access software on NGC.

Guest Access: Content under guest access does not require users to register or sign in to pull or download the software.

Guest users can view all publicly available software and most of the entitled content in the NGC Catalog but cannot download entitled content.

The majority of software on the NGC Catalog falls under guest access. However, it is important to note that many third-party applications require a license key that can be sourced directly from ISVs. While pulling public software from the NGC Catalog does not require sign-in, a user might have to reach out to an ISV to obtain a license key for further use.

Authenticated Access: Software under authenticated access requires a user to sign into their NGC org using an NVIDIA account or sign in to NGC using SSO if the user's org is federated to their external SSO/IdP service. Pulling or downloading the software requires the user to provide their API key.

Registered users can view and download all publicly available software in the NGC Catalog. Entitled content is also viewable but not downloadable. Note that registered users may not view content exclusively gated to users of that product.

Approved Access: The publisher must grant user approval to access the software under this category. Once access is granted, the user will receive a notification with further instructions for accessing the software. Instructions to request access are provided in the overview section of the respective software.

Subscription: To access subscription-based software, users must provide Business Address details and a token (serial number, activation code, and so on). Note that this category also requires Authenticated Access.

Subscribers can view and download all publicly available software, including entitled content and exclusive content, in the NGC Catalog.

The following table outlines the permissions and capabilities associated with each user access level (guest user, registered user, subscriber).

Access Level View Public Entities Download Public Entities View Entitled Content Download Entitled Content View/Download Exclusive Content
Guest User Yes Yes Yes No No
Registered User Yes Yes Yes No No
Subscriber Yes Yes Yes Yes Yes


Instructions for registering and activating a new NGC org.

5.1. Signing Up for an NVIDIA Account and Activating a New NGC Org

This section describes the steps to sign up for an individual NGC org.

  1. Go to the NGC sign-in page from your browser, enter your email address, and then click Continue.


  2. At the Create your Account screen, create a password, make sure to review the NVIDIA Account Terms of Use and Privacy Policy, and click Create Account to accept and proceed with account creation. You will receive an email to verify your email address.


    A verification email is sent to your email address.

  3. Open the NVIDIA account creation email and click Verify Email Address.


    You are automatically directed to nvidia.com and see an Email verified successfully page.

  4. At the Almost done! dialog, set your communications preferences, and then click Submit.


  5. Complete your user profile at the Set Your Profile screen, agree to the NVIDIA GPU Cloud Terms of Use, and then click Submit.


    Your NVIDIA account is created, and you will be automatically logged in to your NGC org.

5.2. Generating NGC API Keys

This section describes obtaining an API key to access locked container images from the NGC Registry.

  1. Sign in to the NGC website.

    From a browser, go to https://ngc.nvidia.com/signin and then enter your email and password.

  2. Click your user account icon in the top right corner and select Setup.


  3. Click Generate API Key to open the API Key page.

    The API Key is the mechanism to authenticate your access to the NGC container registry.


  4. On the API Key page, click + Generate API Key to generate your API key.

    A warning message shows that your old API key will become invalid if you create a new one.

  5. Click Confirm to generate the key.

    Your API key appears.

    You only need to generate an API Key once. NGC does not save your key, so store it securely.

    Tip:

    You can copy your API Key to the clipboard by clicking the copy icon to the right of the API key.

    You can generate a new one from the NGC website if you lose your API Key. When you generate a new API Key, the old one is invalidated.

Unified NGC and Enterprise Catalog

Note:

The Enterprise Catalog, which housed software supported by NVIDIA AI Enterprise (NVAIE), is now integrated into the NGC Catalog (public), providing users with a cohesive and comprehensive platform. NVAIE customers, with their active NVAIE entitlement, can access software and features exclusive to them from within the NGC Catalog.

The NGC Catalog aims to provide a centralized catalog of publicly available entities (e.g., containers, models, resources) alongside those that are part of products called entitled entities. This approach enables users to search and filter seamlessly across all entities, for a more efficient and improved user experience.

Users can view and download entitled entities by signing in to NGC. The NGC CLI is also available for downloading software using the API key. Access to all granted products will remain even when switching org/team context. Unauthenticated users will see a prompt to log in or gain access to the product when attempting to download gated features or entitled entities.

Publishers can publish and map entities to products. Access to entities is restricted by entity type, entity access type, user subscriptions, and roles, enhancing security and control. For entitled entities, guest users are encouraged to convert to registered or subscribed status to access product-specific entities.

Introduction to NGC CLIs

The NGC CLIs are command-line interfaces for managing content within the NGC Registry. The CLI operates within a shell and lets you use scripts to automate commands.

NGC Catalog CLI

The NGC Catalog CLI is available to you if you have guest access to the NGC Registry, and with it, you can

  • View a list of GPU-accelerated Docker container images, pre-trained deep-learning models, and scripts for creating deep-learning models.
  • Download container images, models, and resources.

NGC Registry CLI

The NGC Registry CLI is available to you if you are logged in with your own NGC account or with an NGC Private Registry account, and with it, you can

  • View a list of GPU-accelerated Docker containers available and detailed information about each image.
  • See a list of deep-learning models and resources and detailed information about them.
  • Download container images, models, and resources.
  • Upload container images, models, and resources.
  • Create and manage users and teams (available to NGC Private Registry administrators).

For more details and best practices, visit the NGC CLI documentation page.

6.1. Installing NGC Catalog CLI

To install NGC Catalog CLI,

  1. Enter the NGC website (https://ngc.nvidia.com) as a guest user.
  2. In the top right corner, click Welcome Guest and then select Setup from the menu.
  3. Click Downloads under CLI from the Setup page.
  4. From the CLI Install page, click the Windows, Linux, or macOS tab, according to the platform you will be running NGC Catalog CLI.
  5. Follow the instructions to install the CLI.
  6. Verify the installation by entering ngc --version. The output should be NGC CLI x.y.z where x.y.z indicates the version.

6.2. Installing NGC Registry CLI

To install NGC Registry CLI,

  1. Log in to your enterprise account on the NGC website (https://ngc.nvidia.com).
  2. In the top right corner, click your user account icon and select Setup, then click Downloads under CLI from the Setup page.
  3. From the CLI Install page, click the Windows, Linux, or macOS tab, according to the platform from which you will be running NGC Registry CLI.
  4. Follow the instructions to install the CLI.
  5. Verify the installation by entering ngc --version. The output should be NGC CLI x.y.z where x.y.z indicates the version.


Over the last few years there has been a dramatic rise in the use of software containers for simplifying deployment of data center applications at scale. Containers encapsulate an application along with its libraries and other dependencies to provide reproducible and reliable execution of applications and services without the overhead of a full virtual machine.

GPU support within Docker containers enables GPU-based applications that are portable across multiple machines in a similar way to how Docker enables CPU-based applications to be deployed across multiple machines.

Docker container
A Docker container is an instance of a Docker image. A Docker container deploys a single application or service per container.
Docker image
A Docker image is simply the software (including the filesystem and parameters) that you run within a Docker container.

7.1. What Is a Docker Container?

A Docker container is a mechanism for bundling a Linux application with all of its libraries, data files, and environment variables so that the execution environment is always the same, on whatever Linux system it runs and between instances on the same host.

Unlike a VM which has its own isolated kernel, containers use the host system kernel. Therefore, all kernel calls from the container are handled by the host system kernel. Users can use Docker containers as the mechanism for deploying deep learning frameworks on-prem,, in the cloud, or at the edge.

A Docker container is the running instance of a Docker image.

7.2. Why Use A Container?

Using containers allows you to package your application, dependencies, and environment variables into a single image rather than on each system you run on. Additional benefits to using containers include:

  • Multiple versions of the same application, which may have conflicting software dependencies, can run on the same server.

  • Containerized applications can be deployed on premise, in the cloud, or at the edge

  • Specific GPU resources can be allocated to a container for isolation and better performance.

  • Easily share, collaborate, and test applications across different environments.

  • Resolve network-port conflicts between applications by mapping container-ports to specific externally-visible ports when launching the container.

7.3. Searching and Filtering Containers

To view NGC containers, navigate to Catalog > Containers in the left menu. Use the search bar at the top of the page to find a particular container or sort the list using the criteria from the dropdown menu. You can refine your search by utilizing the filters under NVIDIA Platform, NVIDIA AI Enterprise, Quick Deploy, and many others. The descriptions for the filtering options are as follows:

  • Use Case: Choose from the available common use cases.

  • NVIDIA Platform: Choose from Clara, DeepStream, TensorFlow, and many others.

  • NVIDIA AI Enterprise Support: Select this option to find publicly available containers supported by NVAIE containers.

  • NVIDIA AI Enterprise Exclusive: Choose products under this to see entitled entities.

  • Quick Deploy: Select this option to find containers to quickly deploy your artifacts in a Jupyter environment.

  • Industry: Select by available industries.

  • Solution: Select the solution that closely matches your use case.

  • Publisher: Filter by publisher.

  • Architecture: Choose this option for multi-architecture support.

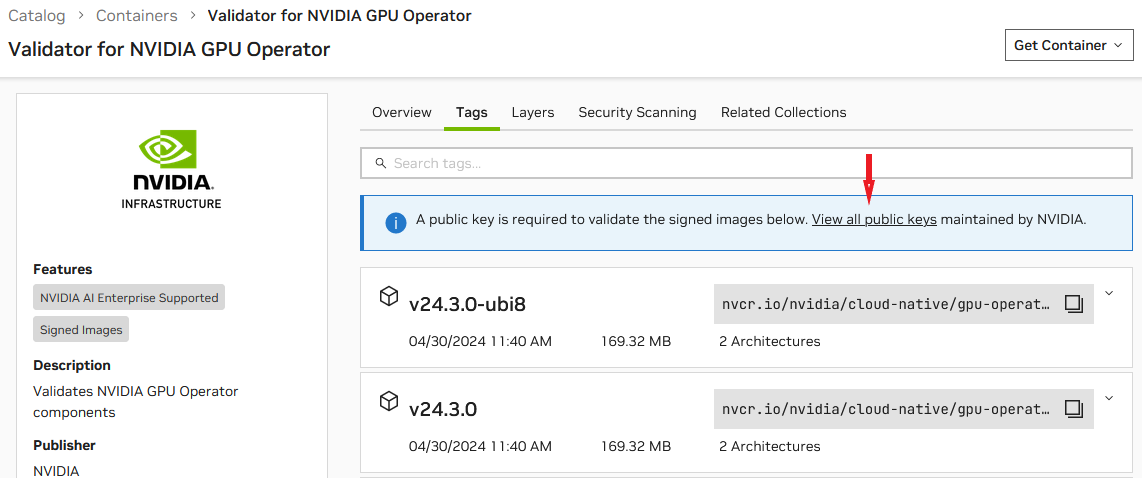

  • Signed Images: Choose this option for container images with a digital signature.

  • Multi-Node: Choose this option for multi-node support.

  • Other: Miscellaneous options.

The following page displays a list of sample containers for guest users:


Select a container from the list to view its details. All users can access the overview information, regardless of their sign-in status. Here's an example of an NVIDIA AI Enterprise Supported container:

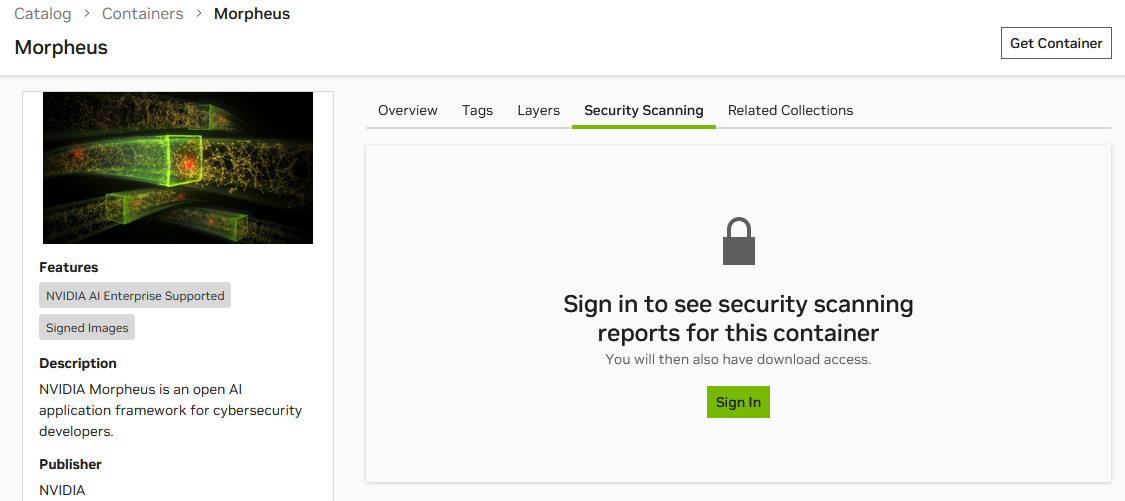

Users must sign in to view the content for the Security Scanning tab.

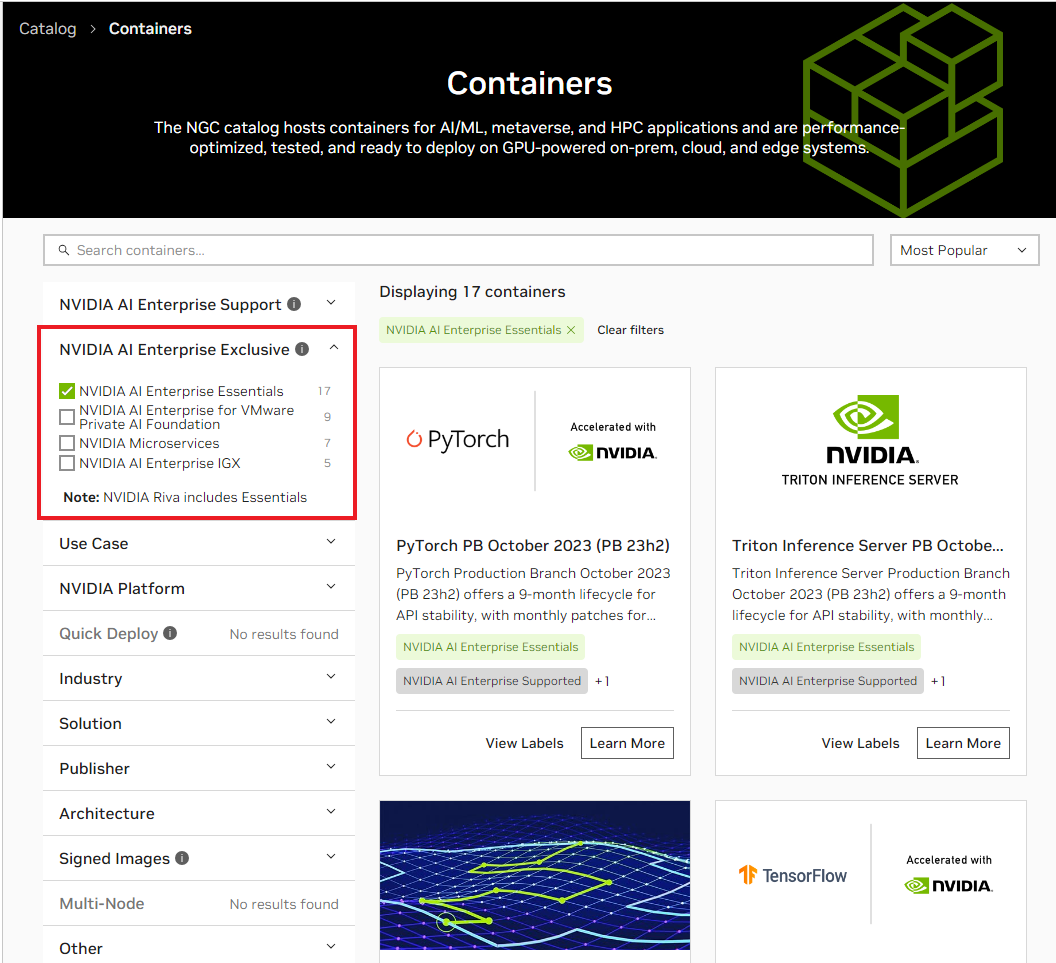

Similarly, when filtering on NVIDIA AI Enterprise Essentials, the available containers will be displayed:

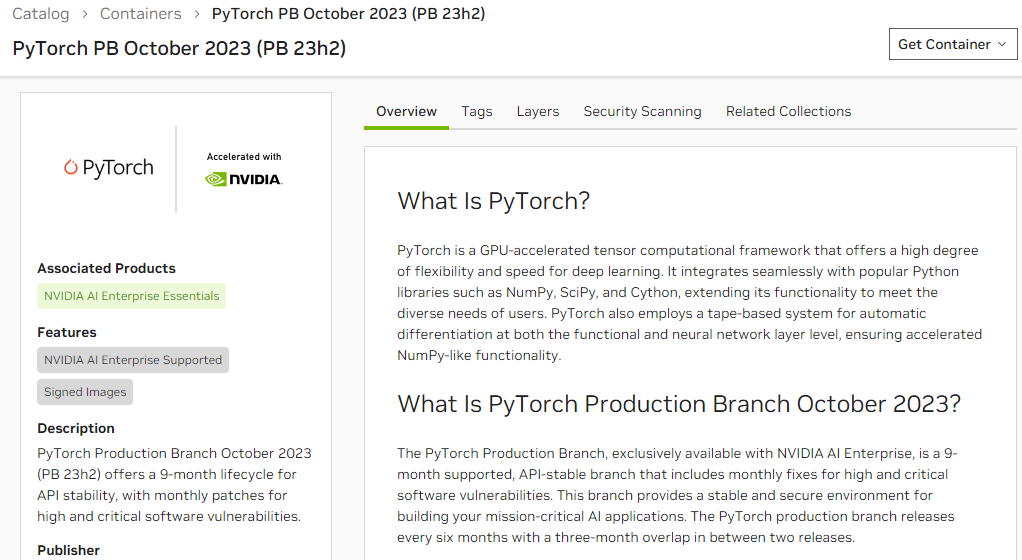

Once you choose a container, it shows the information in the Overview tab:


If users are not subscribed to NVIDIA AI Enterprise Software Exclusive products, they’ll see the following message when viewing other tabs:


If users try to download the container, they’ll see a message indicating that a subscription is required:


However, once users subscribe to NVIDIA AI Enterprise Software Exclusive products, they can view the container information.


NGC Containers are designed to enable a software platform centered around minimal OS requirements, Docker and driver installation on the server or workstation, and provisioning of all application and SDK software in the NGC containers through the NGC container registry.

NGC Catalog is a curated set of fully integrated and optimized container images for Deep Learning, HPC and Visualization applications.

  • Deep learning framework containers that take full advantage of NVIDIA GPUs in both single GPU and multi-GPU configurations. They include CUDA Toolkit, DIGITS workflow, and deep learning frameworks: NVCaffe, Caffe2, Microsoft Cognitive Toolkit (CNTK), MXNet, PyTorch, TensorFlow, Theano, and Torch. These framework containers are delivered ready-to-run, including all necessary dependencies such as CUDA runtime, NVIDIA libraries, and an operating system. NVIDIA updates these deep learning containers monthly to ensure they continue to provide peak performance.
  • NGC also hosts a catalog of HPC applications such as NAMD, GROMACS, LAMMPS, RELION, CHROMA, MILC, and many more.
  • In addition to HPC applications, NGC hosts the industry’s leading visualization tools, including ParaView with NVIDIA IndeX volume renderer, NVIDIA OptiX ray-tracing library, and NVIDIA Holodeck for interactive real-time visualization and high-quality visuals.
  • NGC also hosts popular third-party GPU-ready application containers which conform to NGC container standards and best practices, making it easy to get the most out of your NVIDIA GPU.
  • With the NGC Quick Deploy feature, many NGC containers can be used as a kernel to launch a JupyterLab instance on Google Cloud Vertex AI Workbench with optimal configuration and all software dependencies preload.

8.1. Why NGC Container Images?

Every image hosted on NGC Catalog undergoes a security scan and GPU-performance test by the NGC team.

8.1.1. NGC Container Security Policy

A critical function of enterprise risk and security assessment processes is to ensure all container images being used in development or deployment have been tested for known vulnerabilities. Containers published to the NGC Catalog undergo scanning with the NGC Container Security Policy.

The security scans include checks such as the following:

  • Outdated software packages, such as vulnerability scans

  • Metadata checks, such as open ports specified in Dockerfiles, etc

  • Cryptographic key material leaks

The scanning policy for CVEs rates the severity into critical, high, medium, and low vulnerabilities using the Common Vulnerability Scoring System (CVSS). Scan results and NVIDIA Security-Risk Scale are made available to users. Published images are rescanned every 30 days to reflect the newest CVE findings.

8.1.2. NVIDIA Security Risk Scale

The NVIDIA Security-Risk Scale rates the risk level a given container image poses for a development/production infrastructure environment.

This rating takes into account vulnerability scans for OS and non-OS packages.

Scale Description Packages Details
AAA Rated to have lowest security risk. 0 No package with vulnerabilities
AA Rated to have lower security risk. 1 1 package has a Critical or High vulnerability
A Rated to have moderate security risk with some speculative judgment needed based on environment workloads 2-3 2-3 packages with Critical or High vulnerabilities
B Rated to have high security risk with some speculative judgment needed based on environment workloads 3+ 4-5 packages with Critical or High vulnerabilities
C Rated as highest security risk 5+ 5+ packages with Critical or High vulnerabilities

8.1.3. GPU-performance tests for NGC Catalog Container Images

To ensure that NVIDIA GPU owners can perform well with NGC hosted images, all container images undergo basic installation, functional, scalability and performance tests on GPUs.

These tests are performed on an array of GPUs ranging from NVIDIA T4s to A100 to DGX Systems for performance and multi-GPU for scale. The selection of supported GPUs may be limited to few architectures or single-/multi-GPU based on the business use case of application containers.

These tests are performed on both bare-metal installations and cloud deployed instances to ensure both on-prem and cloud deployment use-cases.

8.2. NVIDIA Container Toolkit

The NVIDIA Container Toolkit allows users to build and run GPU accelerated containers. The toolkit includes a container runtime library and utilities to automatically configure containers to leverage NVIDIA GPUs. It integrates with many popular container runtimes including Docker, podman, CRI-O, LXC etc.

To enable portability in Docker images that leverage NVIDIA GPUs, NVIDIA developed nvidia-docker, an open-source project hosted on Github that provides the two critical components needed for portable GPU-based containers:

  1. Driver-agnostic CUDA images.
  2. A Docker command line wrapper that mounts the user mode components of the driver and the GPUs (character devices) into the container at launch.

nvidia-docker is a Docker command line wrapper that provisions a container with the necessary components to execute code on the GPU.

When working with containers that utilize GPUs, the only command that must be executed through an nvidia-dockercommand is the run command. For all other functionalities, docker commands can be used.

But for simplicity in this documentation we use nvidia-docker for all commands.

8.3. NVIDIA CUDA Toolkit

The NVIDIA® CUDA® Toolkit provides a development environment for creating high-performance GPU-accelerated applications. With the CUDA Toolkit, you can develop, optimize, and deploy your applications on GPU-accelerated embedded systems, desktop workstations, enterprise data centers, cloud-based platforms, and HPC supercomputers. The toolkit includes GPU-accelerated libraries, debugging and optimization tools, a C/C++ compiler and a runtime library to deploy your application.

GPU-accelerated CUDA libraries enable drop-in acceleration across multiple domains such as linear algebra, image and video processing, deep learning, and graph analytics. For developing custom algorithms, you can use available integrations with commonly used languages and numerical packages as well as well-published development APIs. Your CUDA applications can be deployed across all NVIDIA GPU families available on premise and on GPU instances in the cloud. Using built-in capabilities for distributing computations across multi-GPU configurations, scientists and researchers can develop applications that scale from single GPU workstations to cloud installations with thousands of GPUs.

8.4. Running Singularity Containers

NGC supports both Docker and Singularity container runtimes. While Docker is prevalent primarily in enterprises, Singularity has become ubiquitous in the HPC community. Singularity was developed to better satisfy the requirements of HPC users and system administrators, including the ability to run containers without superuser privileges.

NGC containers can be easily used with Singularity. Let’s use the NGC NAMD container to illustrate. NAMD is a parallel molecular dynamics application designed for high-performance simulation of large biomolecular systems, developed by the Theoretical and Computational Biophysics Group at the University of Illinois.

Prerequisites

These instructions assume the following.

  • You have Singularity v2.6+installed on your system

  • You have performed the following steps from the NGC website.

    • Signed up for an NGC account at https://ngc.nvidia.com/signup.

    • Created an NGC API key for access to the NGC container registry

    • Browsed the NGC website and identified an available NGC container and tag to run

  • Ensure you have correctly set udev rules which are detailed (here)

Note:

It is recommended that you install nvidia-container-cli because if installed, Singularity will use it. More information can be found here.

8.4.2. Converting to Singularity Image

Before running with Singularity you must set NGC container registry authentication credentials.

This is most easily accomplished by setting the following environment variables.

bash

Copy
Copied!


$ export SINGULARITY_DOCKER_USERNAME='$oauthtoken' $ export SINGULARITY_DOCKER_PASSWORD=<NVIDIA NGC API key>


tcsh

Copy
Copied!


> setenv SINGULARITY_DOCKER_USERNAME '$oauthtoken' > setenv SINGULARITY_DOCKER_PASSWORD <NVIDIA NGC API key>


More information describing how to obtain and use your NVIDIA NGC API key can be found here.

Once credentials are set in the environment, the NGC container can be pulled to a local Singularity image.

Copy
Copied!


$ singularity build <app_tag>.simg docker://nvcr.io/<repository>/<app:tag>


This will save the container to the current directory as

Copy
Copied!


<app_tag>.simg


For example to convert the HPC application NAMD hosted on NGC to a Singularity image, run

Copy
Copied!


$ singularity build namd_2.12-171025.simg docker://nvcr.io/hpc/namd:2.12-171025


After the build has finished the Singularity image file, namd_2.12-171025.simg, will be available for use in the current working directory.

8.4.3. Running the Singularity Container

Once the local Singularity image has been pulled, the following modes of running are supported.

To leverage NVIDIA GPUs, you must use the Singularity flag --nvwhen running the containers. More singularity flags are explained here.

Important:

For Amazon Machine Image Users Amazon Machine Images on Amazon Web Service have a default root umask of 077. Singularity must be installed with a umask of 022 to run properly. To (re)install Singularity with correct permissions:

  • Uninstall Singularity (if it is installed)

  • Change the umask with: $ umask 0022

  • Install Singularity

  • Restore the umask: $ umask 0077

This causes installed Singularity files to have permission 0755 instead of the default 0700. Note that the umask command only applies changes to the current shell. Use umask and install Singularity from the same shell session.


8.4.3.1. Directory Access

Singularity containers are themselves ostensibly read only. In order to provide application input and persist application output we’ll bind a host directory into our container, this is accomplished through the Singularity -B flag. The format of this flag is -B <host_src_dir>:<container_dst_dir>. Once a host directory is bound into the container we can interact with this directory from within the container exactly as we can outside the container.

It is also often convenient to use the  --pwd <container_dir> flag, which will set the present working directory of the command to be run within the container.

The Singularity commands below will mount the present working directory on the host to /host_pwd in the container process and set the present working directory of the container process to /host_pwd. With this set of flags the <cmd> to be run will be  launched from the host directory Singularity was called from.

Copy
Copied!


$ singularity exec --nv -B $(pwd):/host_pwd --pwd /host_pwd <image.simg> <cmd>


Note:

Binding to a directory which doesn't exist within the container image requires kernel and configuration support that may not be available on all systems, particularly those running older kernels such as CentOS/RHEL 6. When in doubt contact your system administrator.

8.4.3.2. Command Line Execution with Singularity

Running the container with Singularity from the command line looks similar to the command below.

Copy
Copied!


$ singularity exec --nv <app_tag>.simg <command_to_run>


For example, to run the NAMD executable in the container

Copy
Copied!


$ singularity exec --nv namd_2.12-171025.simg /opt/namd/namd-multicore

8.4.3.3. Interactive Shell with Singularity

To start a shell within the container, run the command below

Copy
Copied!


$ singularity exec --nv <app_tag>.simg /bin/bash


For example, to start an interactive shell in the NAMD container

Copy
Copied!


$ singularity exec --nv namd_2.12-171025.simg


To enable portability in Docker images that leverage GPUs, three methods of providing GPU support for Docker containers have been developed.

  • Running Docker-ce 19,.03 or later for Native GPU support
  • nvidia-docker2
  • nvidia-docker

Each of these methods mount the user mode components of the NVIDIA driver and the GPUs into the Docker container at launch. They allow NGC containers to take full advantage of NVIDIA GPUs.

9.1. Prerequisites for Using NGC Containers on DGX Systems

DGX™ users should follow the instructions in the Preparing Your DGX System For Use With NVIDIA Container Runtime.

9.2. Prerequisites for Using NGC Containers on Cloud Platforms

On each of the major public cloud providers, NVIDIA publishes customized virtual machine images (VMIs) with updated OS’s and NVIDIA driver that have been tested with NGC containers. These VMIs have the NVIDIA Container Toolkit pre-installed allowing you to begin pulling and running Docker containers from NGC right away. To use the NVIDIA NGC GPU-optimized VMIs on cloud platforms, you would need -

9.3. Prerequisites for Using NGC Containers on Other NVIDIA GPUs

  • Users running NGC containers on other NVIDIA GPUs or in a virtual GPU environment should follow the corresponding instructions for TITAN PCs, Quadro PCs, or vGPUs.

  • Other users should follow the nvidia-docker installation documentation at nvidia-docker installation and install the latest NVIDIA drivers for your GPU product type and series for your operating system. If NVIDIA drivers are not already configured on your system, then install them from here: Download Drivers.

  • Ensure you have an NVIDIA GPU supporting Compute Unified Device Architecture® (CUDA) version with compute capability 6.0.0 or higher. For example, Pascal GPU architecture generation or later.

9.4. HPC Visualization Containers

In addition to accessing the NVIDIA optimized frameworks and HPC containers, the NVIDIA GPU Cloud (NGC) container registry also hosts the following scientific visualization containers for HPC. These containers rely on the popular scientific visualization tool called ParaView. Visualization in an HPC environment typically requires remote visualization, that is, data resides and is processed on a remote HPC system or in the cloud, and the user graphically interacts with this application from their workstation. As some visualization containers require specialized client applications, the HPC visualization containers consist of two components:

Server container
The server container needs access to the files on your server system. Details on how to grant this access are provided below. The server container can run both in serial mode or in parallel. For this alpha release, we are focusing on the serial node configuration. If you are interested in parallel configuration, contact hpcviscontainer@nvidia.com.
Client container
To ensure matching versions of the client application and the server container, NVIDIA provides the client application in a container. Similarly, to the server container, the client container needs access to some of the ports to establish connection with the server container.

In addition, the client container needs access to the users’ X server for displaying the graphical user interface.

9.4.1. Prerequisites For HPC Visualization Containers

  • Install docker-ce and nvidia-docker2. First install docker-ce, then install nvidia-docker2 for your operating system and Docker version. For a script to install nvidia-docker2, see Installing NVIDIA Docker 2.0.
    Note:

    If you already have nvidia-docker1 installed and intend to keep it, you can install nvidia-container-runtime.

  • Install the NVIDIA Display driver version 384.57 or onwards depending on your GPU product type and series for your operating system. For more information, see Download Drivers.
  • Ensure you have an NVIDIA GPU supporting Compute Unified Device Architecture® (CUDA) version with compute capability 6.0.0 or higher. For example, Pascal GPU architecture generation or later.
  • Log into the NVIDIA® GPU Cloud (NGC) Container Registry located at nvcr.io using your NGC API key. For step-by-step instructions on how to gain access and get your API key, see Generating NGC API Keys.

9.4.2. Installing NVIDIA Docker 2.0

The following script installs NVIDIA Docker 2.0 which is a prerequisite to pulling the ParaView with NVIDIA IndeX HPC visualization container.

Full support for concurrent graphics and compute capabilities in containers is supported in NVIDIA Docker 2.0. Current installations of NGC run on NVIDIA Docker 1.0. Prior to using a container on any of these instances, NVIDIA Docker 2.0 must be installed. Use the following script below to install NVIDIA Docker 2.0 on your instance.

Copy
Copied!


# Install NVIDIA Docker 2.0 docker volume ls -q -f driver=nvidia-docker | \ xargs -r -I{} -n1 docker ps -q -a -f volume={} | xargs -r docker rm -f sudo apt-get purge -y nvidia-docker curl -L https://nvidia.github.io/nvidia-docker/gpgkey | sudo apt-key add - sudo tee /etc/apt/sources.list.d/nvidia-docker.list <<< \ "deb https://nvidia.github.io/libnvidia-container/ubuntu16.04/amd64 / deb https://nvidia.github.io/nvidia-container-runtime/ubuntu16.04/amd64 / deb https://nvidia.github.io/nvidia-docker/ubuntu16.04/amd64 /" sudo apt-get -y update sudo apt-get install -y nvidia-docker2 sudo pkill -SIGHUP dockerd # Tests #docker run --runtime=nvidia --rm nvidia/cuda nvidia-smi

9.4.3. ParaView With NVIDIA Holodeck

Currently, the ParaView with NVIDIA Holodeck container requires a running X server both on the server host and the client host. Therefore, only a single container image is required.

  1. Create X-forwarding variables for your container.
    Copy
    Copied!


    XSOCK=/tmp/.X11-unix; XAUTH=/tmp/.docker.xauth; touch /tmp/.docker.xauth; xauth nlist :0 | sed -e 's/^..../ffff/' | xauth -f /tmp/.docker.xauth nmerge -

  2. On the server host, start the ParaView Holodeck server:
    Copy
    Copied!


    docker run --rm -it --runtime=nvidia \ -v /tmp/.X11-unix:/tmp/.X11-unix -v /tmp/.docker.xauth:/tmp/.docker.xauth \ -e XAUTHORITY=/tmp/.docker.xauth -e DISPLAY=:0 \ -p 11111:11111 \ --shm-size=4g \ nvcr.io/nvidia-hpcvis/paraview-holodeck:glx-17.11.13-beta \ ./service.sh externalvis pvserver

    The Holodeck render window showing a space scene displays.

    The server container is ready after you receive a message similar to the following:

    Copy
    Copied!


    “Accepting connection(s): [...]:11111”

  3. Set up X access and start the client container on the client host. Ensure you replace your_server_hostname.
    Copy
    Copied!


    XSOCK=/tmp/.X11-unix; XAUTH=/tmp/.docker.xauth touch /tmp/.docker.xauth xauth nlist :0 | sed -e 's/^..../ffff/' \ | xauth -f /tmp/.docker.xauth nmerge -docker run --rm -it --runtime=nvidia \ -v /tmp/.X11-unix:/tmp/.X11-unix -v /tmp/.docker.xauth:/tmp/.docker.xauth \ -e XAUTHORITY=/tmp/.docker.xauth -e DISPLAY=:0 \ nvcr.io/nvidia-hpcvis/paraview-holodeck:glx-17.11.13-beta \ sh -c paraview\ --server-url=cs://your_server_hostname:11111

    The ParaView user interface displays.

9.4.4. ParaView With NVIDIA IndeX

To support both X-enabled and headless hosts, the ParaView IndeX container image is available with GLX and EGL support. The following section shows how to launch the IndeX container with different use cases.

For more information about ParaView, see the ParaView User’s Guide and the NVIDIA IndeX SDK.

9.4.4.1. Single-Machine With GLX

  1. Login to the docker repository and pull the X display-enabled container on your workstation:
    Copy
    Copied!


    docker pull nvcr.io/nvidia-hpcvis/paraview-index:glx-17.11.13-beta

  2. Specify X-forwarding variables:
    Copy
    Copied!


    XSOCK=/tmp/.X11-unix; XAUTH=/tmp/.docker.xauth touch /tmp/.docker.xauth xauth nlist :0 | sed -e 's/^..../ffff/' \ | xauth -f /tmp/.docker.xauth nmerge

  3. Run the image. In this example, host system data in the current directory $(pwd) are mounted to both /work in the container. This should be modified as desired by the user.
    Copy
    Copied!


    docker run --rm -it --runtime=nvidia \ -v /tmp/.X11-unix:/tmp/.X11-unix -v /tmp/.docker.xauth:/tmp/.docker.xauth \ -v $(pwd):/work -e XAUTHORITY=/tmp/.docker.xauth -e DISPLAY=:0 \ nvcr.io/nvidia-hpcvis/paraview-index:glx-17.11.13-beta \ sh -c paraview

9.4.4.2. Server Container With EGL


In a typical client-server setup, one container acting as the server will run remotely on a display-less machine, connected to a second container that runs locally on a workstation and provides the graphical front end. Use the following command to pull the EGL-enabled, no-display container from the NGC registry on the server host:

Copy
Copied!


docker pull nvcr.io/nvidia-hpcvis/paraview-index:egl-17.11.13-beta


Run the server component on the server host. We listen on the default port 11111:

Copy
Copied!


docker run --runtime=nvidia -p 11111:11111 --rm -it \ nvcr.io/nvidia-hpcvis/paraview-index:egl-17.11.13-beta sh -c pvserver

9.4.4.3. GLX Client Connecting To A Server


Pull the X display-enabled container on your workstation:

Copy
Copied!


docker pull nvcr.io/nvidia-hpcvis/paraview-index:glx-17.11.13-beta


Set up X access and launch the client application container (make sure to replace your_server_hostname with the address of your ParaView server host):

Copy
Copied!


XSOCK=/tmp/.X11-unix; XAUTH=/tmp/.docker.xauth touch /tmp/.docker.xauth xauth nlist :0 | sed -e 's/^..../ffff/' \ | xauth -f /tmp/.docker.xauth nmerge -

Copy
Copied!


docker run --rm -it --runtime=nvidia \ -v /tmp/.X11-unix:/tmp/.X11-unix -v /tmp/.docker.xauth:/tmp/.docker.xauth \ -e XAUTHORITY=/tmp/.docker.xauth -e DISPLAY=:0 \ nvcr.io/nvidia-hpcvis/paraview-index:glx-17.11.13-beta \ sh -c paraview\ --server-url=cs://your_server_hostname:11111

9.4.5. ParaView With NVIDIA OptiX

The ParaView with NVIDIA OptiX container is designed to run ParaView as a user normally would outside a container. The following sections show how to launch the OptiX container with different use cases.

For more information about ParaView see the ParaView User’s Guide and the NVIDIA OptiX SDK.

9.4.5.1. Single-Machine Container With GLX

On systems with a physical display, or when running a ParaView client, users will wish to launch a container with GLX support. This can be done as follows.

  1. Pull the docker image:
    Copy
    Copied!


    docker pull nvcr.io/nvidia-hpcvis/paraview-optix:glx-17.11.13-beta

  2. Set up X11 forwarding variables:
    Copy
    Copied!


    XSOCK=/tmp/.X11-unix; XAUTH=/tmp/.docker.xauth; touch /tmp/.docker.xauth; xauth nlist :0 | sed -e 's/^..../ffff/' | xauth -f /tmp/.docker.xauth nmerge -

  3. Run the image. In this example, host system data in the current directory $(pwd) are mounted to both /work in the container. This should be modified as desired.
    Copy
    Copied!


    docker run --rm -it --runtime=nvidia -v /tmp/.X11-unix:/tmp/.X11-unix -v /tmp/.docker.xauth:/tmp/.docker.xauth -e XAUTHORITY=/tmp/.docker.xauth -e DISPLAY=:0 -v $(pwd):/work:rw nvcr.io/nvidia-hpcvis/paraview-optix-glx-beta:17.11.10 sh -c paraview

9.4.5.2. Server Container With EGL

Launching a ParaView server on GPU HPC resources often requires EGL support, requiring a separate build of ParaView for which we have a separate container.

  1. Pull the container:
    Copy
    Copied!


    docker pull nvcr.io/nvidia-hpcvis/paraview-optix:egl-17.11.13-beta

  2. Specify the connection port and launch the container as follows (in this example, we listen on the default port 11111):
    Copy
    Copied!


    docker run --runtime=nvidia -p 11111:11111 --rm -it \ nvcr.io/nvidia-hpcvis/paraview-optix:egl-17.11.13-beta sh -c pvserver

  3. For users who wish to run the server on a GLX-capable workstation, it is equally possible to use the GLX image with the pvserver argument.

9.4.5.3. Running The GLX Client And Attaching To The Server


With the server launched, it is then straightforward to use the GLX image to run a client, and connect to the server as follows. Here we assume the server is listening on port 11111, addressable at your.server.address.

Copy
Copied!


docker pull nvcr.io/nvidia-hpcvis/paraview-optix:glx-17.11.13-beta XSOCK=/tmp/.X11-unix; XAUTH=/tmp/.docker.xauth touch /tmp/.docker.xauth xauth nlist :0 | sed -e 's/^..../ffff/' \ | xauth -f /tmp/.docker.xauth nmerge - docker run --rm -it --runtime=nvidia \ -v /tmp/.X11-unix:/tmp/.X11-unix -v /tmp/.docker.xauth:/tmp/.docker.xauth \ -e XAUTHORITY=/tmp/.docker.xauth -e DISPLAY=:0 \ nvcr.io/nvidia-hpcvis/paraview-optix:glx-17.11.13-beta \ sh -c paraview\ --server-url=cs://your.server.address:11111

9.4.5.4. Optional: Using The ParaView .config File

It is helpful to reuse ParaView configuration files to maintain settings across ParaView sessions. To do this, first create a new directory for ParaView to store its settings.

Copy
Copied!


mkdir pvsettings


When issuing the docker run command, add the following command as an argument:

Copy
Copied!


-v $(pwd)/pvsettings:/home/paraview/.config/ParaView


Insert the command before the image URL. For example,

Copy
Copied!


docker run --rm -it --runtime=nvidia \ -v /tmp/.X11-unix:/tmp/.X11-unix -v /tmp/.docker.xauth:/tmp/.docker.xauth \ -e XAUTHORITY=/tmp/.docker.xauth -e DISPLAY=:0 \ nvcr.io/nvidia-hpcvis/paraview-optix:glx-17.11.13-beta \ -v $(pwd)/pvsettings:/home/paraview/.config/ParaView \ sh -c paraview\ --server-url=cs://your.server.address:11111


Before you using a container from the NGC Catalog, review the prerequisites described in the Prerequisites section.

To become a registered NGC user, follow the steps explained in the Registering and Activating a New NGC Org to Obtain Authenticated Access.

10.1. Key NGC Container Registry Terminology

In order to issue the pull and run commands, ensure that you are familiar with the following concepts. A pull command looks similar to:

Copy
Copied!


docker pull nvcr.io/nvidia/caffe2:17.10


A run command looks similar to:

Copy
Copied!


docker run --gpus all -it --rm –v local_dir:container_dir nvcr.io/nvidia/caffe2:<xx.xx>


Note:

The base command docker run --gpu all assumes that your system has Docker 19.03-CE installed. See the section Enabling GPU Support for NGC Containers for the command to use for earlier versions of Docker.


The following concepts describe the separate attributes that make up the both commands.

nvcr.io
The name of the container registry, which for the NGC container registry is nvcr.io.
nvidia
The name of the space within the registry that contains the container. For containers provided by NVIDIA, the registry space is nvidia. For more information, see NGC Container Images in NGC Catalog.
-it
You want to run the container in interactive mode.
--rm
You want to delete the container when finished.
–v
You want to mount the directory.
local_dir
The directory or file from your host system (absolute path) that you want to access from inside your container. For example, the local_dir in the following path is /home/jsmith/data/mnist.
Copy
Copied!


-v /home/jsmith/data/mnist:/data/mnist

If you are inside the container, for example, using the command ls /data/mnist, you will see the same files as if you issued the ls /home/jsmith/data/mnist command from outside the container.

container_dir
The target directory when you are inside your container. For example, /data/mnist is the target directory in the example:
Copy
Copied!


-v /home/jsmith/data/mnist:/data/mnist

<xx.xx>
The tag. For example, 17.10.

You can access the NGC container registry by running a Docker commands from any Linux computer with Internet access on which Docker is installed.You can access the NGC container registry at nvcr.io through the Docker CLI.

Before accessing the NGC container registry, see NGC Getting Started Guide for instructions on how to access the website and, if you intend to access locked NGC content, know how to sign up for an NGC account and obtain an API key.

10.2. Accessing And Pulling an NGC Container Image via the Docker CLI

10.2.1. Logging in to the NGC container registry

Before accessing locked NGC content, you must sign up for an NGC account and obtain an API key as explained in the section Generating NGC API Keys. Then log in to the NGC registry from the command line as follows.

  1. Log in to the NGC container registry.
    Copy
    Copied!


    $ docker login nvcr.io

  2. When prompted for your user name, enter the following text:
    Copy
    Copied!


    $oauthtoken

    The $oauthtoken username is a special user name that indicates that you will authenticate with an API key and not a username and password.
  3. When prompted for your password, enter your NGC API key as shown in the following example.
    Copy
    Copied!


    Username: $oauthtoken Password: k7cqFTUvKKdiwGsPnWnyQFYGnlAlsCIRmlP67Qxa

    Tip:

    When you get your API key, copy it to the clipboard so that you can paste the API key into the command shell when you are prompted for your password.

  4. Confirm "Login Success".

10.2.2. Pulling a Container from NGC Container Registry Using Docker CLI

You can browse the available containers in the NGC container registry by opening the NGC website using a web browser

  1. Browse the NGC Catalog, select the image to pull, then copy the pull command.

    The following image shows the pull comand on the PyTorch container page.


  2. Click the download icon to copy the pull command to the clipboard.
  3. Log in to nvcr.io, then paste the command in your terminal. For example, to pull the PyTorch container:
    Copy
    Copied!


    $ docker pull nvcr.io/nvidia/pytorch:20.03-py3

    See the NGC Getting Started Guide for details on using the NGC website.
  4. List the Docker images on your system to confirm that the container was pulled.
    Copy
    Copied!


    $ docker images

    For more information pertaining to your specific container, refer to the /workspace/README.md file inside the container.

After pulling a container, you can run jobs in the container to run scientific workloads, train neural networks, deploy deep learning models, or perform AI analytics.

Accessing and Pulling an NGC Catalog Container Using NGC CLI

If you will be pulling containers from the registry, you will need Docker installed on your local machine. To install Docker on your client machine, follow one of these instructions:

This document provides an introduction to using the NGC Catalog CLI. For a complete list of commands and options, use the -h option as explained in index.html#getting-help.

10.3.1. Viewing Container Image Information

There are several commands for viewing information about available container images.

To list container images:

Copy
Copied!


C:\>ngc registry image list


Example output

Copy
Copied!


+-----------+----------------+------------+------------+--------------+------------+ | Name | Repository | Latest Tag | Image Size | Updated Date | Permission | +-----------+----------------+------------+------------+--------------+------------+ | BigDFTZ | hpv/bigdftfe | cuda10-ubun| 2.37 GB | Oct 18, 2019 | unlocked | | | | tu1804-ompi| | 2019 | | | CANDLE | hpc/candle | 201803263 | 1.52 GB | Oct 18, 2019 | unlocked | ...|

To view detailed information about a specific image, specify the image and the tag.

Example:

Copy
Copied!


C:\>ngc registry image info nvidia/caffe:19.02-py2 -------------------------------------------------- Image Information Name: nvidia/caffe:19.02-py2 Architecture: amd64 Schema Version: 1 --------------------------------------------------

Pulling a Container Image

With the NGC Registry CLI you can pull (download) images to your system.

To pull an image to your registry space, specify the image and, optionally, the tag.

Copy
Copied!


C:\>ngc registry image pull <image-name>[:<tag>]


If a tag is not specified, then the tag 'latest' will be used.

Note:

nvcr.io/nvidia, nvcr.io/partners and nvcr.io/hpc is reserved namespace and does not grant permissions to users to push or delete container images, models, helm and all artifacts.


Each release of an NGC image is identified by a version “tag”. For simpler images this version tag usually contains the version of the major software package in the image. More complex images which contain multiple software packages or versions may use a separate version solely representing the containerized software configuration. One common scheme is versioning by the year and month of the image release. For example, the 20.01 release of an image was released in January, 2020.

An image name consists of two parts separated by a colon. The first part is the name of the container in the repository and the second part is the “tag” associated with the container. These two pieces of information are shown in Figure 2, which is the output from issuing the docker images command.

Figure 1. Output from docker images command


Figure 2 shows simple examples of image names, such as:

  • nvidia-cuda:8.0-devel
  • ubuntu:latest
  • nvcr.io/nvidia/tensorflow:17.01

If you choose not to add a tag to an image, by default the word “latest ” is added as the tag, however all NGC containers have an explicit version tag.

In the next sections, you will use these image names for running containers. Later in the document, there is also a section on creating your own containers or customizing and extending existing containers.


Software signing is the standard mechanism for establishing trust when distributing software, determining which software to trust, and allowing for execution.

Container image signing adds a digital signature to an image. This signature allows users to validate where an image came from and verify the image was not tampered with.

Starting in July 2023, all NVIDIA container images published on the NGC Catalog will be signed.

12.1. Checking for Signed Container Images

There are two ways to determine which containers are signed.

12.1.1. Using the NGC Catalog UI

Click on Catalog > Containers from the left navigation menu. Expand the Signed Images filter to the left and select Yes. The container images tagged with Signed Images will display.


Select a container image to view the details. On the details page, you will see the Signed Images badge on the left panel and the Signed badge on the pane in the Tags tab.


12.1.2. Using the NGC CLI

To find signed container images using the CLI, issue the following:

Copy
Copied!


$ ngc registry image list <image_name>


Example: List all images with name containing 'nginx'

Copy
Copied!


$ ngc registry image list '*nginx*'


If the image is signed, you can see a value populated in the Latest Tag column.

12.2. Finding NVIDIA's Public Key

The public key associated with the signed image can be used to validate its authenticity. You can find the public key of the container in the following ways.

12.2.1. Using the NGC Catalog UI

On the container details page, select the Tags tab. Click on “View all public keys” in the banner.


The public key URL will display in the dialog.


12.2.2. Using the NGC CLI

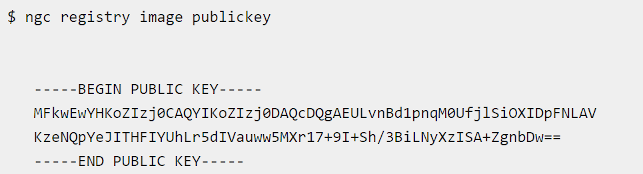

To find NVIDIA’s public key using the CLI, issue the following command:


12.3. Verifying NVIDIA's Signature

The following tools are examples that you can use to verify the signature. There are also other tools available.

Using Cosign

Cosign is a tool for signing container images. To begin, follow the installation instructions provided at the URL below to set up Cosign:

https://docs.sigstore.dev/cosign/installation/

Once Cosign is set up, issue the following command to verify the signature of the container image:

Copy
Copied!


$ cosign verify [--key <key path>|<key url>|<kms uri>] <image uri>

Make sure to replace the placeholders within the square brackets with the appropriate values:

  • <key path>: Path to the key file (if using a local key).

  • <key URL>: URL pointing to the key file (if using a remote key).

  • <KMS URI>: URI for the Key Management Service (if using a KMS for key management).

  • <image URI>: URI of the container image you wish to verify.

Cosign 2.x releases introduced a new flag --insecure-ignore-tlog=true for key-based signing with the cosign verify command. Please include this flag when using Cosign 2.x versions. Prior to version 2.x, this flag is not required as it is set as the default behavior.

Copy
Copied!


cosign verify --insecure-ignore-tlog [--key <key path>|<key url>|<kms uri>] <image uri>

12.3.2. Using an Admission Controller in Kubernetes Clusters

Several Open Source Software (OSS) admission controllers offer the capability of sigstore-based image verification. These powerful tools allow you to verify the integrity and authenticity of containers deployed within your Kubernetes environment.

For example, Connaisseur is a Kubernetes admission controller that can be used to integrate container image signature verification and trust pinning into a cluster. It ensures that only signed images are allowed to run in a cluster.

To set up Connaisseur, follow the steps outlined in the documentation below:

After configuring the Connaisseur validator, you can test it by running a container in the Kubernetes (K8s) cluster using the following command for a signed image:

Copy
Copied!


kubectl run test --image=${IMAGE}

When you run the container with the command, the request is admitted to the cluster if the image is signed and passes the verification. Kubernetes will return the following response:

Copy
Copied!


pod/test created


Before you can run an NGC deep learning framework container, your Docker environment must support NVIDIA GPUs. To run a container, issue the appropriate command as explained in this chapter, specifying the registry, repository, and tags.

13.1. Enabling GPU Support for NGC Containers

To obtain the best performance when running NGC containers, three methods of providing GPU support for Docker containers have been developed:

  • Native GPU support (included with Docker-ce 19.03 or later)

  • NVIDIA Container Runtime for Docker (nvidia-docker2 package)

  • Docker Engine Utility for NVIDIA GPUs (nvidia-docker package)

The method implemented in your system depends on the DGX OS version installed (for DGX systems), the specific NGC Cloud Image provided by a Cloud Service Provider, or the software that you have installed in preparation for running NGC containers on TITAN PCs, Quadro PCs, or vGPUs.

Refer to the following table to assist in determining which method is implemented in your system.

GPU Support Method When Used How to Determine
Native GPU Support Included with Docker-ce 19.03 or later Run docker version to determine the installed Docker version.
NVIDIA Container Runtime for Docker If the nvidia-docker2 package is installed Run nvidia-docker version and check for NVIDIA Docker version 2.0 or later
Docker Engine Utility for NVIDIA GPUs If the nvidia-docker package is installed Run nvidia-docker versionand check for NVIDIA Docker version 1.x

Each method is invoked by using specific Docker commands, described as follows.

Using Native GPU support

Note:

If Docker is updated to 19.03 on a system which already has nvidia-docker or nvidia-docker2 installed, then the corresponding methods can still be used.

  • To use the native support on a new installation of Docker, first enable the new GPU support in Docker.

    Copy
    Copied!


    $ sudo apt-get install -y docker nvidia-container-toolkit

    This step is not needed if you have updated Docker to 19.03 on a system with nvidia-docker2 installed. The native support will be enabled automatically.

  • Use docker run --gpus to run GPU-enabled containers.

    • Example using all GPUs

      Copy
      Copied!


      $ sudo docker run --gpus all ...

    • Example using two GPUs

      Copy
      Copied!


      $ sudo docker run --gpus 2 ...

    • Examples using specific GPUs

      Copy
      Copied!


      $ sudo docker run --gpus "device=1,2" ...

      Copy
      Copied!


      $ sudo docker run --gpus "device=UUID-ABCDEF,1" ...

Using the NVIDIA Container Runtime for Docker

With the NVIDIA Container Runtime for Docker installed (nvidia-docker2), you can run GPU-accelerated containers in one of the following ways.

  • Use docker run and specify runtime=nvidia.

    Copy
    Copied!


    $ sudo docker run --runtime=nvidia ...

  • Use nvidia-docker run.

    Copy
    Copied!


    $ sudo nvidia-docker run ...

    The new package provides backward compatibility, so you can still run GPU-accelerated containers by using this command, and the new runtime will be used.

Use docker run with nvidia as the default runtime.

You can set nvidia as the default runtime, for example, by adding the following line to the /etc/docker/daemon.json configuration file as the first entry.

Copy
Copied!


"default-runtime": "nvidia",


The following is an example of how the added line appears in the JSON file. Do not remove any pre-existing content when making this change.

Copy
Copied!


{ "default-runtime": "nvidia", "runtimes": { "nvidia": { "path": "/usr/bin/nvidia-container-runtime", "runtimeArgs": [] } }, }

You can then use docker run to run GPU-accelerated containers.

Copy
Copied!


$ sudo docker run ...


CAUTION:

If you build Docker images while nvidia is set as the default runtime, make sure the build scripts executed by the Dockerfile specify the GPU architectures that the container will need. Failure to do so may result in the container being optimized only for the GPU architecture on which it was built. Instructions for specifying the GPU architecture depend on the application and are beyond the scope of this document. Consult the specific application build process for guidance.

Using the Docker Engine Utility for NVIDIA GPUs

With the Docker Engine Utility for NVIDIA GPUs installed (nvidia-docker), run GPU-enabled containers as follows.

Copy
Copied!


$ sudo nvidia-docker run ...

13.2. Running NGC Containers with Runtime Resources

On a system with GPU support for NGC containers, the following occurs when running a container.

  • The Docker Engine loads the image into a container which runs the software.
  • You define the runtime resources of the container by including additional flags and settings that are used with the command. These flags and settings are described in the following sections.
  • The GPUs are explicitly defined for the Docker container (defaults to all GPUs, can be specified using NV_GPU environment variable).
Note:

The base command docker run --gpu all assumes that your system has Docker 19.03-CE installed. See the section Enabling GPU Support for NGC Containers for the command to use for earlier versions of Docker.


  1. As a user, run the container interactively.
    Copy
    Copied!


    $ docker run --gpus all -it --rm –v local_dir:container_dir nvcr.io/nvidia/<repository>:<xx.xx>

    The following example runs the December 2016 release (16.12) of the NVCaffe container in interactive mode. The container is automatically removed when the user exits the container.

    Copy
    Copied!


    $ docker run --gpus all --rm -ti nvcr.io/nvidia/caffe:16.12 =========== == Caffe == =========== NVIDIA Release 16.12 (build 6217) Container image Copyright (c) 2016, NVIDIA CORPORATION. All rights reserved. Copyright (c) 2014, 2015, The Regents of the University of California (Regents) All rights reserved. Various files include modifications (c) NVIDIA CORPORATION. All rights reserved. NVIDIA modifications are covered by the license terms that apply to the underlying project or file. root@df57eb8e0100:/workspace#

  2. From within the container, start the job that you want to run. The precise command to run depends on the deep learning framework in the container that you are running and the job that you want to run. For details see the /workspace/README.md file for the container.

    The following example runs the caffe time command on one GPU to measure the execution time of the deploy.prototxt model.

    Copy
    Copied!


    # caffe time -model models/bvlc_alexnet/ -solver deploy.prototxt -gpu=0

  3. Optional: Run the December 2016 release (16.12) of the same NVCaffe container but in non-interactive mode.
    Copy
    Copied!


    % docker run --gpus all --rm nvcr.io/nvidia/caffe:16.12 caffe time -model /workspace/models/bvlc_alexnet -solver /workspace/deploy.prototxt -gpu=0

13.2.1. Specifying A User

Unless otherwise specified, the user inside the container is the root user. When running within the container, files created on the host operating system or network volumes can be accessed by the root user. This is unacceptable for some users and they will want to set the ID of the user in the container. For example, to set the user in the container to be the currently running user, issue the following:

Copy
Copied!


% docker run --gpus all -ti --rm -u $(id -u):$(id -g) nvcr.io/nvidia/<repository>:<tag>


Typically, this results in warnings due to the fact that the specified user and group do not exist in the container. You might see a message similar to the following:

Copy
Copied!


groups: cannot find name for group ID 1000I have no name! @c177b61e5a93:/workspace$

The warning can usually be ignored.

13.2.2. Setting The Remove Flag


By default, Docker containers remain on the system after being run. Repeated pull or run operations use up more and more space on the local disk, even after exiting the container. Therefore, it is important to clean up the nvidia-docker containers after exiting.

Note:

Do not use the --rm flag if you have made changes to the container that you want to save, or if you want to access job logs after the run finishes.


To automatically remove a container when exiting, add the --rm flag to the run command.

Copy
Copied!


% docker run --gpus all --rm nvcr.io/nvidia/<repository>:<tag>

13.2.3. Setting The Interactive Flag

By default, containers run in batch mode; that is, the container is run once and then exited without any user interaction. Containers can also be run in interactive mode as a service. To run in interactive mode, add the -ti flag to the run command.

Copy
Copied!


% docker run --gpus all -ti --rm nvcr.io/nvidia/<repository>:<tag>

13.2.4. Setting The Volumes Flag

There are no data sets included with the containers, therefore, if you want to use data sets, you need to mount volumes into the container from the host operating system. For more information, see Manage data in containers.

Typically, you would use either Docker volumes or host data volumes. The primary difference between host data volumes and Docker volumes is that Docker volumes are private to Docker and can only be shared amongst Docker containers. Docker volumes are not visible from the host operating system, and Docker manages the data storage. Host data volumes are any directory that is available from the host operating system. This can be your local disk or network volumes.

Example 1
Mount a directory /raid/imagedata on the host operating system as /images in the container.
Copy
Copied!


% docker run --gpus all -ti --rm -v /raid/imagedata:/images nvcr.io/nvidia/<repository>:<tag>

Example 2
Mount a local docker volume named data (must be created if not already present) in the container as /imagedata.
Copy
Copied!


% docker run --gpus all -ti --rm -v data:/imagedata nvcr.io/nvidia/<repository>:<tag>

13.2.5. Setting The Mapping Ports Flag

Applications such as Deep Learning GPU Training System™ (DIGITS) open a port for communications. You can control whether that port is open only on the local system or is available to other computers on the network outside of the local system. Using DIGITS as an example, in DIGITS 5.0 starting in container image 16.12, by default the DIGITS server is open on port 5000. However, after the container is started, you may not easily know the IP address of that container. To know the IP address of the container, you can choose one of the following ways:

  • Expose the port using the local system network stack (--net=host) where port 5000 of the container is made available as port 5000 of the local system.

or

  • Map the port (-p 8080:5000) where port 5000 of the container is made available as port 8080 of the local system.

In either case, users outside the local system have no visibility that DIGITS is running in a container. Without publishing the port, the port is still available from the host, however not from the outside.

13.2.6. Setting The Shared Memory Flag

Certain applications, such as PyTorch™ and the Microsoft® Cognitive Toolkit™ , use shared memory buffers to communicate between processes. Shared memory can also be required by single process applications, such as MXNet™ and TensorFlow™ , which use the NVIDIA® Collective Communications Library ™ (NCCL) (NCCL).

By default, Docker containers are allotted 64MB of shared memory. This can be insufficient, particularly when using all 8 GPUs. To increase the shared memory limit to a specified size, for example 1GB, include the --shm-size=1g flag in your docker run command.

Alternatively, you can specify the --ipc=host flag to re-use the host’s shared memory space inside the container. Though this latter approach has security implications as any data in shared memory buffers could be visible to other containers.

13.2.7. Setting The Restricting Exposure Of GPUs Flag

From inside the container, the scripts and software are written to take advantage of all available GPUs. To coordinate the usage of GPUs at a higher level, you can use this flag to restrict the exposure of GPUs from the host to the container. For example, if you only want GPU 0 and GPU 1 to be seen in the container, you would issue the following:

Using native GPU support

Copy
Copied!


$ docker run --gpus "device=0,1" ...


Using nvidia-docker2

Copy
Copied!


$ NV_GPU=0,1 docker run --runtime=nvidia ...


Using nvidia-docker

Copy
Copied!


$ NV_GPU=0,1 nvidia-docker run ...


This flag creates a temporary environment variable that restricts which GPUs are used.

Specified GPUs are defined per container using the Docker device-mapping feature, which is currently based on Linux cgroups.

13.2.8. Container Lifetime

The state of an exited container is preserved indefinitely if you do not pass the --rm flag to the docker run command. You can list all of the saved exited containers and their size on the disk with the following command:

Copy
Copied!


$ docker ps --all --size --filter Status=exited


The container size on the disk depends on the files created during the container execution, therefore the exited containers take only a small amount of disk space. You can permanently remove a exited container by issuing:

Copy
Copied!


docker rm [CONTAINER ID]


By saving the state of containers after they have exited, you can still interact with them using the standard Docker commands. For example:

  • You can examine logs from a past execution by issuing the docker logs command.
    Copy
    Copied!


    $ docker logs 9489d47a054e

  • You can extract files using the docker cp command.
    Copy
    Copied!


    $ docker cp 9489d47a054e:/log.txt .

  • You can restart a stopped container using the docker restart command.
    Copy
    Copied!


    $ docker restart <container name>

    For the NVCaffe™ container, issue this command:
    Copy
    Copied!


    $ docker restart caffe

  • You can save your changes by creating a new image using the docker commit command. For more information, see Example 3: Customizing a Container using docker commit.
    Note:

    Use care when committing Docker container changes, as data files created during use of the container will be added to the resulting image. In particular, core dump files and logs can dramatically increase the size of the resulting image.


The NGC Container Registry allows users to leverage docker multi-architecture. It can support multiple architectures, which means that a single image may contain variants for different CPU architectures like ARM, x86, IBM POWER and others ; and sometimes for different operating systems, such as Windows. When running an image, docker will automatically select an image variant which matches the target deployment OS and architecture.

Manifest Lists and Tags

The NGC Container Registry supports the manifest list schema application/vnd.docker.distribution.manifest.list.v2+json providing the ability to assign multiple tags per image. To inspect the manifest list, please follow the instructions here.

NGC UI allows users to easily identify multi-architecture containers and see the supported CPU architectures.


Basic Docker Commands for Multi-architecture Images

Inspect Manifest : Display an image manifest or manifest list

$ docker manifest inspect <container_name>:<tag>

More help on manifest: link

Pull a specific image for an architecture

In order to pull an image with a specific architecture, first do docker manifest which lists multiple platforms and then pull with a specific platform name that matches with the manifest digest.

$ docker pull --platform=<arch>

More help on the above docker command: link


NGC images come prepackaged, tuned, and ready to run; however, you may want to build a new image from scratch or augment an existing image with custom code, libraries, data, or settings for your corporate infrastructure. This section will guide you through exercises that will highlight how to create a container from scratch, customize a container, extend a deep learning framework to add features, develop some code using that extended framework from the developer environment, then package that code as a versioned release.

By default, you do not need to build a container. The NGC container registry, nvcr.io, has a number of containers that can be used immediately. These include containers for deep learning, scientific computing and visualization, as well as containers with just the CUDA Toolkit.

One of the great things about containers is that they can be used as starting points for creating new containers. This can be referred to as “customizing” or “extending” a container. You can create a container completely from scratch, however, since these containers are likely to run on a GPU system, it is recommended that you are least start with a nvcr.io container that contains the OS and CUDA. However, you are not limited to this and can create a container that runs on the CPUs in the system which does not use the GPUs. In this case, you can start with a bare OS container from Docker. However, to make development easier, you can still start with a container with CUDA - it is just not used when the container is used.

In the case of the DGX-1 and the DGX Station, you can push or save your modified/extended containers to the NVIDIA DGX container registry, nvcr.io. They can also be shared with other users of the DGX system but this requires some administrator help.

Currently, you cannot save customized containers from the NGC container registry (cloud based) solution to nvcr.io. The customized or extended containers can be saved to a user’s private container repository. The customized or extended containers can be saved to a user’s private container repository. It is important to note that all NGC deep learning framework images include the source to build the framework itself as well as all of the prerequisites.

Attention:

Do not install an NVIDIA driver into the Docker® image at Docker build time. nvidia-docker is essentially a wrapper around Docker that transparently provisions a container with the necessary components to execute code on the GPU.


NVIDIA provides a large set of images in the NGC container registry that are already tested, tuned, and are ready to run. You can pull any one of these images to create a container and add software or data of your choosing.

A best-practice is to avoid docker commit usage for developing new docker images, and to use Dockerfiles instead. The Dockerfile method provides visibility and capability to efficiently version-control changes made during development of a docker image. The docker commit method is appropriate for short-lived, disposable images only (see Example 3: Customizing A Container Using docker commit for an example).

For more information on writing a Docker file, see the best practices documentation.

15.1. Benefits And Limitations To Customizing A Container

You can customize a container to fit your specific needs for numerous reasons; for example, you depend upon specific software that is not included in the container that NVIDIA provides. No matter your reasons, you can customize a container.

The container images do not contain sample data-sets or sample model definitions unless they are included with the framework source. Be sure to check the container for sample data-sets or models.

15.2. Example 1: Building A Container From Scratch

Docker uses Dockerfiles to create or build a Docker image. Dockerfiles are scripts that contain commands that Docker uses successively to create a new Docker image. Simply put, a Dockerfile is the source code for the container image. Dockerfiles always start with a base image to inherit from.

For more information, see Best practices for writing Dockerfiles.

  1. Create a working directory on your local hard-drive.
  2. In that directory, open a text editor and create a file called Dockerfile. Save the file to your working directory.
  3. Open your Dockerfile and include the following:
    Copy
    Copied!


    FROM ubuntu:14.04 RUN apt-get update && apt-get install -y curl CMD echo "hello from inside a container"

    Where the last line CMD, executes the indicated command when creating the container. This is a way to check that the container was built correctly.

    For this example, we are also pulling the container from the Docker repository and not the DGX™ system repository. There will be subsequent examples using the NVIDIA® repository.

  4. Save and close your Dockerfile.
  5. Build the image. Issue the following command to build the image and create a tag.
    Copy
    Copied!


    $ docker build -t <new_image_name>:<new_tag> .

    Note:

    This command was issued in the same directory where the Dockerfile is located.

    The output from the docker build process lists “Steps”; one for each line in the Dockerfile.

    For example, let us name the container test1 and tag it with latest. Also, for illustrative purposes, let us assume our private DGX system repository is called nvidian_sas. The command below builds the container. Some of the output is shown below so you know what to expect.

    Copy
    Copied!


    $ docker build -t test1:latest . Sending build context to Docker daemon 3.072 kB Step 1/3 : FROM ubuntu:14.04 14.04: Pulling from library/ubuntu ... Step 2/3 : RUN apt-get update &amp;&amp; apt-get install -y curl ... Step 3/3 : CMD echo "hello from inside a container" ---> Running in 1f491b9235d8 ---> 934785072daf Removing intermediate container 1f491b9235d8 Successfully built 934785072daf

    For information about building your image, see docker build. For information about tagging your image, see docker tag.

  6. Verify that the build was successful. You should see a message similar to the following:
    Copy
    Copied!


    Successfully built 934785072daf

    This message indicates that the build was successful. Any other message and the build was not successful.
    Note:

    The number, 934785072daf, is assigned when the image is built and is random.

  7. Confirm you can view your image by issuing the following command and view your container.
    Copy
    Copied!


    $ docker images REPOSITORY TAG IMAGE ID CREATED SIZE test1 latest 934785072daf 19 minutes ago 222 MB

    The new container is now available to be used.
    Note:

    The container is local to this DGX system. If you want to store the container in your private repository, follow the next step.

  8. Store the container in your private Docker repository by pushing it.
    Note:

    This applies if you have a private registry account associated with the DGX system purchased by your organization.

    1. The first step in pushing it, is to tag it.
      Copy
      Copied!


      $ docker tag test1 nvcr.io/nvidian_sas/test1:latest

    2. Now that the image has been tagged, you can push it to, for example, a private project on nvcr.io named nvidian_sas.
      Copy
      Copied!


      $ docker push nvcr.io/nvidian_sas/test1:latest The push refers to a repository [nvcr.io/nvidian_sas/test1] …

    3. Verify that the container appears in the nvidian_sas repository.

15.3. Example 2: Customizing A Container Using Dockerfile

This example uses a Dockerfile to customize the NVCaffe container in nvcr.io. Before customizing the container, you should ensure the NVCaffe 17.03 container has been loaded into the registry using the docker pull command before proceeding.

Copy
Copied!


$ docker pull nvcr.io/nvidia/caffe:17.03


As mentioned earlier in this document, the Docker containers on nvcr.io also provide a sample Dockerfile that explains how to patch a framework and rebuild the Docker image. In the directory /workspace/docker-examples, there are two sample Dockerfiles. For this example, we will use the Dockerfile.customcaffe file as a template for customizing a container.

  1. Create a working directory called my_docker_images on your local hard drive.
  2. Open a text editor and create a file called Dockerfile. Save the file to your working directory.
  3. Open your Dockerfile again and include the following lines in the file:
    Copy
    Copied!


    FROM nvcr.io/nvidia/caffe:17.03 # APPLY CUSTOMER PATCHES TO CAFFE # Bring in changes from outside container to /tmp # (assumes my-caffe-modifications.patch is in same directory as Dockerfile) #COPY my-caffe-modifications.patch /tmp # Change working directory to NVCaffe source path WORKDIR /opt/caffe # Apply modifications #RUN patch -p1 < /tmp/my-caffe-modifications.patch # Note that the default workspace for caffe is /workspace RUN mkdir build && cd build && \ cmake -DCMAKE_INSTALL_PREFIX:PATH=/usr/local -DUSE_NCCL=ON -DUSE_CUDNN=ON -DCUDA_ARCH_NAME=Manual -DCUDA_ARCH_BIN="35 52 60 61" -DCUDA_ARCH_PTX="61" .. && \ make -j"$(nproc)" install && \ make clean && \ cd .. && rm -rf build # Reset default working directory WORKDIR /workspace

    Save the file.
  4. Build the image using the docker build command and specify the repository name and tag. In the following example, the repository name is corp/caffe and the tag is 17.03.1PlusChanges. For the case, the command would be the following:
    Copy
    Copied!


    $ docker build -t corp/caffe:17.03.1PlusChanges .

  5. Run the Docker image using the command appropriate to the methoid of GPU support installed.
    Copy
    Copied!


    $ docker run --gpus all -ti --rm corp/caffe:17.03.1PlusChanges .

    Note:

    The base command docker run --gpu all assumes that your system has Docker 19.03-CE installed. See the section Enabling GPU Support for NGC Containers for the command to use for earlier versions of Docker.

15.4. Example 3: Customizing A Container Using docker commit


This example uses the docker commit command to flush the current state of the container to a Docker image. This is not a recommended best practice, however, this is useful when you have a container running to which you have made changes and want to save them. In this example, we are using the apt-get tag to install packages which requires that the user run as root.

Note:

  • The NVCaffe image release 17.04 is used in the example instructions for illustrative purposes.
  • Do not use the --rm flag when running the container. If you use the --rm flag when running the container, your changes will be lost when exiting the container.

  1. Pull the Docker container from the nvcr.io repository to the DGX system. For example, the following command will pull the NVCaffe container:
    Copy
    Copied!


    $ docker pull nvcr.io/nvidia/caffe:17.04

  2. Run the container on the DGX system.
    Copy
    Copied!


    $ docker run --gpus all -ti nvcr.io/nvidia/caffe:17.04

    Copy
    Copied!


    ================== == NVIDIA Caffe == ================== NVIDIA Release 17.04 (build 26740) Container image Copyright (c) 2017, NVIDIA CORPORATION. All rights reserved. Copyright (c) 2014, 2015, The Regents of the University of California (Regents) All rights reserved. Various files include modifications (c) NVIDIA CORPORATION. All rights reserved. NVIDIA modifications are covered by the license terms that apply to the underlying project or file. NOTE: The SHMEM allocation limit is set to the default of 64MB. This may be insufficient for NVIDIA Caffe. NVIDIA recommends the use of the following flags: nvidia-docker run --shm-size=1g --ulimit memlock=-1 --ulimit stack=67108864 ... root@1fe228556a97:/workspace#

    Note:

    The base command docker run --gpu all assumes that your system has Docker 19.03-CE installed. See the section Enabling GPU Support for NGC Containers for the command to use for earlier versions of Docker.

  3. You should now be the root user in the container (notice the prompt). You can use the command apt to pull down a package and put it in the container.
    Note:

    The NVIDIA containers are built using Ubuntu which uses the apt-get package manager. Check the container release notes Deep Learning Documentation for details on the specific container you are using.

    In this example, we will install Octave; the GNU clone of MATLAB, into the container.
    Copy
    Copied!


    # apt-get update # apt install octave

    Note:

    You have to first issue apt-get update before you install Octave using apt.

  4. Exit the workspace.
    Copy
    Copied!


    # exit

  5. Display the list of containers using docker ps -a. As an example, here is some of the output from the docker ps -a command:
    Copy
    Copied!


    $ docker ps -a CONTAINER ID IMAGE CREATED ... 1fe228556a97 nvcr.io/nvidia/caffe:17.04 3 minutes ago ...

  6. Now you can create a new image from the container that is running where you have installed Octave. You can commit the container with the following command.
    Copy
    Copied!


    $ docker commit 1fe228556a97 nvcr.io/nvidian_sas/caffe_octave:17.04 sha256:0248470f46e22af7e6cd90b65fdee6b4c6362d08779a0bc84f45de53a6ce9294

  7. Display the list of images.
    Copy
    Copied!


    $ docker images REPOSITORY TAG IMAGE ID ... nvidian_sas/caffe_octave 17.04 75211f8ec225 ...

  8. To verify, let's run the container again and see if Octave is actually there.
    Note:

    This only works for the DGX-1 and the DGX Station.

    Copy
    Copied!


    $ docker run --gpus all -ti nvidian_sas/caffe_octave:17.04

    Copy
    Copied!


    ================== == NVIDIA Caffe == ================== NVIDIA Release 17.04 (build 26740) Container image Copyright (c) 2017, NVIDIA CORPORATION. All rights reserved. Copyright (c) 2014, 2015, The Regents of the University of California (Regents) All rights reserved. Various files include modifications (c) NVIDIA CORPORATION. All rights reserved. NVIDIA modifications are covered by the license terms that apply to the underlying project or file. NOTE: The SHMEM allocation limit is set to the default of 64MB. This may be insufficient for NVIDIA Caffe. NVIDIA recommends the use of the following flags: nvidia-docker run --shm-size=1g --ulimit memlock=-1 --ulimit stack=67108864 ... root@2fc3608ad9d8:/workspace# octave octave: X11 DISPLAY environment variable not set octave: disabling GUI features GNU Octave, version 4.0.0 Copyright (C) 2015 John W. Eaton and others. This is free software; see the source code for copying conditions. There is ABSOLUTELY NO WARRANTY; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. For details, type 'warranty'. Octave was configured for "x86_64-pc-linux-gnu". Additional information about Octave is available at http://www.octave.org. Please contribute if you find this software useful. For more information, visit http://www.octave.org/get-involved.html Read http://www.octave.org/bugs.html to learn how to submit bug reports. For information about changes from previous versions, type 'news'. octave:1>

    Since the Octave prompt displayed, Octave is installed.

  9. If you want to save the container into your private repository (Docker uses the phrase “push”), then you can use the command docker push ....
    Copy
    Copied!


    $ docker push nvcr.io/nvidian_sas/caffe_octave:17.04

The new Docker image is now available for use. You can check your local Docker repository for it.

15.5. Example 4: Developing A Container Using Docker

There are two primary use cases for a developer to extend a container:

  1. Create a development image that contains all of the immutable dependencies for the project, but not the source code itself.
  2. Create a production or testing image that contains a fixed version of the source and all of the software dependencies.

The datasets are not packaged in the container image. Ideally, the container image is designed to expect volume mounts for datasets and results.

In these examples, we mount our local dataset from /raid/datasets on our host to /dataset as a read-only volume inside the container. We also mount a job specific directory to capture the output from a current run.

In these examples, we will create a timestamped output directory on each container launch and map that into the container at /output. Using this method, the output for each successive container launch is captured and isolated.

Including the source into a container for developing and iterating on a model has many awkward challenges that can over complicate the entire workflow. For instance, if your source code is in the container, then your editor, version control software, dotfiles, etc. also need to be in the container.

However, if you create a development image that contains everything you need to run your source code, you can map your source code into the container to make use of your host workstation’s developer environment. For sharing a fixed version of a model, it is best to package a versioned copy of the source code and trained weights with the development environment.

As an example, we will work though a development and delivery example for the open source implementation of the work found in Image-to-Image Translation with Conditional Adversarial Networks by Isola et. al. and is available at pix2pix. Pix2Pix is a Torch implementation for learning a mapping from input images to output images using a Conditional Adversarial Network. Since online projects can change over time, we will focus our attention on the snapshot version d7e7b8b557229e75140cbe42b7f5dbf85a67d097 change-set. In this section, we are using the container as a virtual environment, in that the container has all the programs and libraries needed for our project.

Note:

We have kept the network definition and training script separate from the container image. This is a useful model for iterative development because the files that are actively being worked on are persistent on the host and only mapped into the container at runtime.


The differences to the original project can be found here Comparing changes.

If the machine you are developing on is not the same machine on which you will be running long training sessions, then you may want to package your current development state in the container.

  1. Create a working directory on your local hard-drive.
    Copy
    Copied!


    mkdir Projects $ cd ~/Projects

  2. Git clone the Pix2Pix git repository.
    Copy
    Copied!


    $ git clone https://github.com/phillipi/pix2pix.git $ cd pix2pix

  3. Run the git checkout command.
    Copy
    Copied!


    $ git checkout -b devel d7e7b8b557229e75140cbe42b7f5dbf85a67d097

  4. Download the dataset:
    Copy
    Copied!


    bash ./datasets/download_dataset.sh facades I want to put the dataset on my fast /raid storage. $ mkdir -p /raid/datasets $ mv ./datasets/facades /raid/datasets

  5. Create a file called Dockerfile, and add the following lines:
    Copy
    Copied!


    FROM nvcr.io/nvidia/torch:17.03 RUN luarocks install nngraph RUN luarocks install https://raw.githubusercontent.com/szym/display/master/display-scm-0.rockspec WORKDIR /source

  6. Build the development Docker container image (build-devel.sh).
    Copy
    Copied!


    docker build -t nv/pix2pix-torch:devel .

  7. Create the following train.sh script:
    Copy
    Copied!


    #!/bin/bash -x ROOT="${ROOT:-/source}" DATASET="${DATASET:-facades}" DATA_ROOT="${DATA_ROOT:-/datasets/$DATASET}" DATA_ROOT=$DATA_ROOT name="${DATASET}_generation" which_direction=BtoA th train.lua

    If you were actually developing this model, you would be iterating by making changes to the files on the host and running the training script which executes inside the container.

  8. Optional: Edit the files and execute the next step after each change.
  9. Run the training script (run-devel.sh).
    Copy
    Copied!


    docker run --gpus all --rm -ti -v $PWD:/source -v /raid/datasets:/datasets nv/pix2pix-torch:devel ./train.sh

    Note:

    The base command docker run --gpu all assumes that your system has Docker 19.03-CE installed. See the section Enabling GPU Support for NGC Containers for the command to use for earlier versions of Docker.

Example 4.1: Package The Source Into The Container

Packaging the model definition and script into the container is very simple. We simply add a COPY step to the Dockerfile.

We’ve updated the run script to simply drop the volume mounting and use the source packaged in the container. The packaged container is now much more portable than our devel container image because the internal code is fixed. It would be good practice to version control this container image with a specific tag and store it in a container registry.

The updates to run the container are equally subtle. We simply drop the volume mounting of our local source into the container.

A discussion of NGC models and how to download them from the NGC Catalog.

16.1. What are Models

Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. When developing applications with these capabilities, it is much faster to start with a model that is pre-trained and then tune it for a specific use case.

NGC offers pre-trained models for a large number of AI tasks that are optimized for NVIDIA Tensor Core GPUs, and can be easily re-trained by updating just a few layers, saving valuable time.

So whether you’re looking for content you can simply retrain for your specific use case or a complete model you can grab and deploy right away, NGC has you covered.

16.2. Searching and Filtering Models

To view NGC models, navigate to Catalog > Models in the left menu. Use the search bar at the top of the page to filter the types of models or sort the list using the criteria from the dropdown menu. You can refine your search by utilizing the filters under Use Case, NVIDIA Platform, NVIDIA AI Enterprise, and many others. The descriptions for the filtering options are as follows:

  • Use Case: Choose from the available common use cases.
  • NVIDIA AI Enterprise Support: Select this option to find publicly available models supported by NVAIE.

  • NVIDIA Platform: Choose from Clara, DeepStream, TensorFlow, and many others.

  • NVIDIA AI Enterprise Exclusive: Choose products under this to see entitled entities.

  • Framework: Filter by framework such as TAO Toolkit, PyTorch, and Riva.

  • Industry: Select by available industries.

  • Solution: Select the solution that closely matches your use case.

  • Publisher: Filter by publisher.

  • Language: Select by language.

  • Other: Miscellaneous options.

The following example page shows the available models when searching on 'deep learning':


The filters will contain the results for the matching search criteria or "No results found" if there aren't any matches.

16.3. Downloading Models via NGC CLI

A discussion of NGC models and how to download them from the NGC Catalog.

To download a model from the registry to your local disk, specify the model name and version.

Copy
Copied!


$ ngc registry model download-version <org-name>/<model-name:version>


Example

Copy
Copied!


$ ngc registry model download-version nvidia/ngcdocsmodel:1


The following is an example showing the output confirming completion of the download:

Copy
Copied!


Downloaded 230.92 MB in 38s, Download speed: 6.07 MB/s ---------------------------------------------------- Transfer id: trt_onnx_vgg16_v100_16g_int8_v1 Download status: Completed. Downloaded local path: C:\ngcdocsmodel Total files downloaded: 3 Total downloaded size: 230.92 MB Started at: 2019-03-18 14:09:31.664000 Completed at: 2019-03-18 14:10:09.712000 Duration taken: 38s seconds ----------------------------------------------------

The model is downloaded to a folder that corresponds to the model name in the current directory. You can specify another path using the -d . option.

Example: Downloading a model to a specific directory (/models).

Copy
Copied!


$ ngc registry model download-version nvidia/ngcdocsmodel:1 -d ./models


Copy
Copied!


Downloaded 230.92 MB in 38s, Download speed: 6.07 MB/s ---------------------------------------------------- Transfer id: trt_onnx_vgg16_v100_16g_int8_v1 Download status: Completed. Downloaded local path: C:\ngcdocsmodel Total files downloaded: 3 Total downloaded size: 230.92 MB Started at: 2019-03-18 14:09:31.664000 Completed at: 2019-03-18 14:10:09.712000 Duration taken: 38s seconds ----------------------------------------------------

16.4. Downloading Models via WGET/cURL

16.4.1. Downloading Guest Access Models via WGET/cURL

How to download guest access models via WGET/cURL.

To get a copy of a single file from an NGC Model via wget/curl you can use the URL provided in the NGC UI.

  1. Open the NGC UI, click Models from the left navigation menu and then locate and click the model you want to download.


  2. Click the Download button on the top right or navigate to the File Browser tab.


  3. Select the Copy curl cmd or Copy wget cmd to copy the relevant code to the clipboard.


The following will then be added to your clipboard: $ wget https://api.ngc.nvidia.com/v2/models/nvidia/<model-name>/versions/<version>/files/<filename>

16.4.2. Downloading Authenticated Access Models via WGET/cURL

How to download authenticated access models via WGET/cURL.

  1. Obtain an NGC API Key. See Generating NGC API Keys. This will be referred to as <API-key> below.
  2. Find orgs and teams scope and model name, model version.

    In the example below the <org> is nvidia and <team> is riva, <model-name> is speechtotext_en_us_conformer_xl, <version> is deployable_v4.0_export_v2, <file-name> is Conformer-CTC-XL_spe-128_en-US_Riva-ASR-SET-4.0.riva


    Note: Not all models are within a team. In this case, the model name follows directly after the org name.

  3. Generate a Bearer token.

    Note: The token is valid for 15 minutes. If the model is not in a team context, /<team> is ommitted.

    Copy
    Copied!


    API_KEY=<API-key> TOKEN=$(curl -s -u "\$oauthtoken":"$API_KEY" -H 'Accept:application/json' 'https://authn.nvidia.com/token?service=ngc&scope=group/ngc:<org>&group/ngc:<org>/<team>' | jq -r '.token')

  4. Download the model using curl.
    1. Download the model ZIP using curl.

      Note: If the model is not in a team context, team/<team>/ is omitted.

      Copy
      Copied!


      echo "Download Model ZIP" curl -LO 'https://api.ngc.nvidia.com/v2/org/<org>/team/<team>/models/<model-name>/versions/<version>/zip' -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json"

      Example model zip download:

      Copy
      Copied!


      echo "Download Model ZIP" curl -LO 'https://api.ngc.nvidia.com/v2/org/nvidia/team/riva/models/speechtotext_en_us_conformer_xl/versions/trainable_v4.0/zip' -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json"

    2. Download a model file using curl

      Note: If the model is not in a team context, team/<team>/ is omitted.

      Copy
      Copied!


      echo "Download Model file" curl -LO --request GET 'https://api.ngc.nvidia.com/v2/org/<org>/team/<team>/models/<model-name>/versions/<version>/files/<file-name>' -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json"

      Example model file download:

      Copy
      Copied!


      echo "Download Model file" curl -LO --request GET 'https://api.ngc.nvidia.com/v2/org/nvidia/team/riva/models/speechtotext_en_us_conformer_xl/versions/trainable_v4.0/files/Conformer-CTC-XL_spe-128_en-US_Riva-ASR-SET-4.0.nemo' -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json"

  5. Download the model using wget.
    1. Download the model ZIP using wget.

      Note: If the model is not in a team context, team/<team>/ is omitted.

      Copy
      Copied!


      echo "Download Model ZIP" wget --header="Authorization: Bearer $TOKEN" \ --header="Content-Type: application/json" \ 'https://api.ngc.nvidia.com/v2/org/<org>/team/<team>/models/<model-name>/versions/<version>/zip' \ 2>&1 \ | awk '/Location:/ {print $2}' \ | xargs wget --content-disposition

      Example model zip download:

      Copy
      Copied!


      echo "Download Model ZIP" wget --header="Authorization: Bearer $TOKEN" \ --header="Content-Type: application/json" \ 'https://api.ngc.nvidia.com/v2/org/nvidia/team/riva/models/speechtotext_en_us_conformer_xl/versions/trainable_v4.0/zip' \ 2>&1 \ | awk '/Location:/ {print $2}' \ | xargs wget --content-disposition

    2. Download a model file using wget

      Note: If the model is not in a team context, team/<team>/ is omitted.

      Copy
      Copied!


      echo "Download Model file" wget --header="Authorization: Bearer $TOKEN" \ --header="Content-Type: application/json" \ 'https://api.ngc.nvidia.com/v2/org/<org>/team/<team>/models/<model-name>/versions/<version>/files/<file-name>' \ 2>&1 \ | awk '/Location:/ {print $2}' \ | xargs wget --content-disposition

      Example model file download:

      Copy
      Copied!


      echo "Download Model file" wget --header="Authorization: Bearer $TOKEN" \ --header="Content-Type: application/json" \ 'https://api.ngc.nvidia.com/v2/org/nvidia/team/riva/models/speechtotext_en_us_conformer_xl/versions/trainable_v4.0/files/Conformer-CTC-XL_spe-128_en-US_Riva-ASR-SET-4.0.nemo' \ 2>&1 \ | awk '/Location:/ {print $2}' \ | xargs wget --content-disposition

16.5. Downloading Models via Web UI

How to download NGC models via the Web UI.

Downloading the Latest Version of a Model

To download the latest version of a model to your local machine, performing the following.

  1. Open the NGC UI, click Catalog > Containers from the left navigation and then locate and select the model you want to download.
  2. Click the actions menu from the top right corner of the model detail page and then click Download <version>.

Example


Downloading a Specific Version of a Model

To download a specific version of a model, performing the following.

  1. Open the NGC UI, click Models from the top content type ribbon and then locate and click the model you want to download.
  2. Click the Version History tab, then click the actions icon for the version to download and then click Download .

The following diagram illustrates the steps.


Description of NGC resources, their purpose, and how to use them.

17.1. What are Resources?

NGC resources offer documentation, code samples, and many other assets such as Jupyter Notebooks, deployment pipelines, and step-by-step instructions and scripts for creating deep learning models. These scripts have sample performance and accuracy metrics that allow you to compare your results. These scripts provide expert guidance on building DL models for image classification, language translation, text-to-speech, and more. Data scientists can quickly build performance-optimized models by easily adjusting the hyperparameters.

17.2. Searching and Filtering Resources

To view NGC resources, navigate to Catalog > Resources in the left menu. Use the search bar at the top of the page to filter on resources or sort the list using the criteria from the dropdown menu. You can refine your search by utilizing the filters under Use Case, NVIDIA Platform, NVIDIA AI Enterprise, and many others. The descriptions for the filtering options are as follows:

  • Use Case: Choose from the available common use cases.

  • NVIDIA Platform: Choose from Clara, DeepStream, TensorFlow, and many others.

  • NVIDIA AI Enterprise Support: Select this option to find publicly available resources supported by NVAIE.

  • NVIDIA AI Enterprise: Choose products under this to see entitled entities.

  • Quick Deploy: Select this option to find containers to quickly deploy your artifacts in a Jupyter environment.

  • Framework: Filter by framework such as MXNet or NeMo.

  • Industry: Select by available industries.

  • Solution: Select the solution that closely matches your use case.

  • Publisher: Filter by publisher.

  • Type: Filter by type.

  • Language: Select by language.

  • Other: Miscellaneous options.

The following example page shows the search and filtering options available when logging in as a guest user:


17.3. Downloading Resources via the NGC CLI

To download a resource from the registry to your local disk, specify the resource name and version.

Copy
Copied!


$ ngc registry resource download-version nvidia/<resource-name:version>


Example: Downloading a resource to the current directory.

Copy
Copied!


$ ngc registry resource download-version nvidia/gnmt_v2_for_tensorflow:1


The following is an example showing the output confirming completion of the download:

Copy
Copied!


Downloaded 130.6 KB in 1s, Download speed: 130.6 KB/s ---------------------------------------------------- Transfer id: gnmt_v2_for_tensorflow_v1 Download status: Completed. Downloaded local path: C:\gnmt_v2_for_tensorflow_v1 Total files downloaded: 35 Total downloaded size: 130.6 KB Started at: 2019-03-20 11:24:00.168000 Completed at: 2019-03-20 11:24:01.176000 Duration taken: 1s seconds ----------------------------------------------------

The model is downloaded to a folder that corresponds to the model name in the current directory. You can specify another path using the -d option.

Example: Downloading a resource to a specific directory (/resources).

Copy
Copied!


$ ngc registry resource download-version nvidia/gnmt_v2_for_tensorflow:1 -d ./resources


Copy
Copied!


Downloaded 130.6 KB in 1s, Download speed: 130.6 KB/s ---------------------------------------------------- Transfer id: gnmt_v2_for_tensorflow_v1 Download status: Completed. Downloaded local path: C:\resources\gnmt_v2_for_tensorflow_v1 Total files downloaded: 35 Total downloaded size: 130.6 KB Started at: 2019-03-20 11:24:00.168000 Completed at: 2019-03-20 11:24:01.176000 Duration taken: 1s seconds ----------------------------------------------------

17.4. Downloading Resources via WGET/cURL

17.4.1. Downloading Guest Access Resources via WGET/cURL

How to download guest access resources via WGET/cURL.

To get a copy of a single file from an NGC Resource via wget/curl you can use the URL provided in the NGC UI.

  1. Open the NGC UI, click Resources from the left navigation menu and then locate and click the resource you want to download.


  2. Click the Download button on the top right or navigate to the File Browser tab.


  3. Select the Copy curl cmd or Copy wget cmd to copy the relevant code to the clipboard.


The following will be added to your clipboard for the wget command:

Copy
Copied!


wget --content-disposition 'https://api.ngc.nvidia.com/v2/resources/org/nvidia/team/tao/tao-converter/v5.1.0_8.6.3.1_x86/files?redirect=true&path=tao-converter' -O tao-converter

Similarly, the following will be added to your clipboard for the curl command:

Copy
Copied!


curl -LO 'https://api.ngc.nvidia.com/v2/resources/org/nvidia/team/tao/tao-converter/v5.1.0_8.6.3.1_x86/files?redirect=true&path=tao-converter'

17.4.2. Downloading Authenticated Access Resources via WGET/cURL

How to download authenticated access resources via WGET/cURL.

  1. Obtain an NGC API Key. See Generating NGC API Keys. This will be referred to as <API-key> below.
  2. Find orgs and teams scope and resource name, resource version.

    In the example below, the <org> is nvidia and <team> is riva, <resource-name> is riva_quickstart, <version> is 2.15.0, <file-name> is nemo2riva-2.15.0-py3-none-any.whi


  3. Generate a Bearer token.

    Note: The token is valid for 15 minutes. If the resource is not in a team context, /<team> is ommitted.

    Copy
    Copied!


    API_KEY=<API-key> TOKEN=$(curl -s -u "\$oauthtoken":"$API_KEY" -H 'Accept:application/json' 'https://authn.nvidia.com/token?service=ngc&scope=group/ngc:<org>&group/ngc:<org>/<team>' | jq -r '.token')

  4. Download the resource using curl.
    1. Download the resource ZIP using curl.

      Note: If the resource is not in a team context, team/<team>/ is omitted.

      Copy
      Copied!


      echo "Download Resource ZIP" curl -LO 'https://api.ngc.nvidia.com/v2/org/<org>/team/<team>/resources/<resource-name>/versions/<version>/zip' -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json"

      Example resource zip download:

      Copy
      Copied!


      echo "Download Resource ZIP" curl -LO 'https://api.ngc.nvidia.com/v2/org/nvidia/team/riva/resources/riva_quickstart/versions/2.9.0/zip' -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json"

    2. Download a resource file using curl.

      Note: If the resource is not in a team context, team/<team>/ is omitted.

      Copy
      Copied!


      echo "Download Resource file" curl -LO --request GET 'https://api.ngc.nvidia.com/v2/org/<org>/team/<team>/reources/<resource-name>/versions/<version>/files/<file-name>' -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json"

      Example resource file download:

      Copy
      Copied!


      echo "Download Resource file" curl -LO --request GET 'https://api.ngc.nvidia.com/v2/org/nvidia/team/riva/resources/riva_quickstart/versions/2.9.0/files/riva_init.sh' -H "Authorization: Bearer ${TOKEN}" -H "Content-Type: application/json"

  5. Download the resource using wget.
    1. Download the resource ZIP using wget.

      Note: If the resource is not in a team context, team/<team>/ is omitted.

      Copy
      Copied!


      echo "Download Resource ZIP" wget --header="Authorization: Bearer $TOKEN" \ --header="Content-Type: application/json" \ 'https://api.ngc.nvidia.com/v2/org/<org>/team/<team>/resources/<resource-name>/versions/<version>/zip' \ 2>&1 \ | awk '/Location:/ {print $2}' \ | xargs wget --content-disposition

      Example resource zip download:

      Copy
      Copied!


      echo "Download Resource ZIP" wget --header="Authorization: Bearer $TOKEN" \ --header="Content-Type: application/json" \ 'https://api.ngc.nvidia.com/v2/org/nvidia/team/riva/resources/riva_quickstart/versions/2.9.0/zip' \ 2>&1 \ | awk '/Location:/ {print $2}' \ | xargs wget --content-disposition

    2. Download a resource file using wget

      Note: If the resource is not in a team context, team/<team>/ is omitted.

      Copy
      Copied!


      echo "Download Resource file" wget --header="Authorization: Bearer $TOKEN" \ --header="Content-Type: application/json" \ 'https://api.ngc.nvidia.com/v2/org/<org>/team/<team>/resources/<resource-name>/versions/<version>/files/<file-name>' \ 2>&1 \ | awk '/Location:/ {print $2}' \ | xargs wget --content-disposition

      Example resource file download:

      Copy
      Copied!


      echo "Download Resource file" wget --header="Authorization: Bearer $TOKEN" \ --header="Content-Type: application/json" \ 'https://api.ngc.nvidia.com/v2/org/nvidia/team/riva/resources/riva_quickstart/versions/2.9.0/files/riva_quickstart.sh' \ 2>&1 \ | awk '/Location:/ {print $2}' \ | xargs wget --content-disposition

17.5. Downloading Resources via Web UI

  1. From a browser, go to the NGC Catalog website.
  2. Sign in. Refer to Registering and Activating Your NGC Account.
  3. Click Resources from the left navigation menu.


    You will see a page with available Resources.

  4. Select one of the Resource cards.

    The details page provides additional information for each Resource.


    The Download menu on the upper right corner offers three different ways to download the Resource.


    Click either Browser (Direct Download) to start the download, or WGET or CLI to copy the download commands to the clipboard.

    The File Browser tab lets you see the file content of the Resources.


Helm is an application package manager running on top of Kubernetes. This section describes how to use access Helm charts from the NGC Catalog.

Prerequisites

These instructions assume the following prerequisites are met.

18.1. Setting Up an NGC Helm Repository


  1. Obtain an NGC API Key.

    See Generating Your NGC API Key for instructions.

  2. Export the API Key for use in commands.
    Copy
    Copied!


    $ export NGC_API_KEY=<your-api-key>

  3. Add the NGC org to your Helm repository.
    Copy
    Copied!


    $ helm repo add <repo-name> https://helm.ngc.nvidia.com/<org-name> --username=\$oauthtoken --password=$NGC_API_KEY

    Where <repo-name> is a name of your choosing by which you will reference the repository.

18.2. Searching for Available Helm Charts in the NGC Catalog


To view a list of available Chart packages in your org, issue the following.

Copy
Copied!


$ helm search <repo-name>


Example

Copy
Copied!


$ helm search nvidian

18.3. Fetching Helm Charts


To download (or ”fetch”) a Helm chart package from the repo, issue the following.

Copy
Copied!


$ helm fetch <repo-name>/<chart-name>

18.4. Using the NGC Website to View the List of Helm Charts and Get Fetch Commands

From the NGC website you can

  • View the contents of the Helm chart repository.
  • Get the push command for a specific Helm chart in the repository.

  1. From a browser, log in to https://ngc.nvidia.com.
  2. If you are a member of more than one org, select the one that contains the Helm charts that you are interested in, then click Sign In.
  3. Click Helm Charts from the left-side navigation pane.


    The page presents cards for each available Helm chart.


  4. Select one of the Helm chart cards.

    The page for each Helm chart provides information about the chart.


    The Fetch Commandsection shows the command to use for downloading the Helm chart package.

    Click either the Fetch download button from the upper right corner or the copy icon next to the fetch command to copy the fetch command to the clipboard.

    The File Browser tab lets you see the file content of the Helm chart package.



NVIDIA AI toolkits provide libraries and tools to train, fine-tune, optimize and deploy pre-trained NGC models across a broad domain of industries and AI applications.

These include

  • An AI-assisted annotation tool to help users label their datasets for training.

  • A transfer learning toolkit to fine-tune pre-trained models with user data, saving the cost of training from scratch.

  • Federated learning that preserves privacy by allowing users to collaborate and train AI models without sharing private data between clients.

  • The NeMo toolkit to quickly build state-of-the-art models for speech recognition and natural language processing.

  • The Service Maker toolkit that exposes trained models as a gRPC service that can be scaled and easily deployed on a Kubernetes service.

  • Models built using the toolkits can be integrated inside client applications and deployed in production with the software development kits offered by NVIDIA. These SDKs leverage TensorRT and the Triton Inference Server as foundational building blocks.

NVIDIA provides AI toolkits and application frameworks targeted towards industries or specific use cases. These are listed in the table below.

Industry or AI Application AI Toolkits
Healthcare and Life Sciences NVIDIA Clara
Streaming video analytics

NVIDIA Metropolis

NVIDIA DeepStream

Robotics NVIDIA Isaac Sim
5G acceleration NVIDIA Aerial
Recommender Systems NVIDIA Merlin
Conversational AI NVIDIA Riva


Deep learning frameworks offer building blocks for designing, training and validating deep neural networks, through a high level programming interface. Widely used deep learning frameworks such as MXNet, PyTorch, TensorFlow and others rely on GPU-accelerated libraries such as cuDNN, NCCL and DALI to deliver high-performance multi-GPU accelerated training.

Developers, researchers and data scientists can get easy access to NVIDIA optimized deep learning framework containers with deep learning examples, that are performance tuned and tested for NVIDIA GPUs. This eliminates the need to manage packages and dependencies or build deep learning frameworks from source

GPU Operator

The Operator Framework within Kubernetes takes operational business logic and allows the creation of an automated framework for the deployment of applications within Kubernetes using standard Kubernetes APIs and kubectl. The NVIDIA GPU Operator automates the management of all NVIDIA software components needed to provision GPUs within Kubernetes. NVIDIA, Red Hat, and others in the community have collaborated on creating the GPU Operator. The GPU Operator is an important component of the NVIDIA EGX software-defined platform that is designed to make large-scale hybrid-cloud and edge operations possible and efficient.

Notice

THE INFORMATION IN THIS GUIDE AND ALL OTHER INFORMATION CONTAINED IN NVIDIA DOCUMENTATION REFERENCED IN THIS GUIDE IS PROVIDED "AS IS." NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE INFORMATION FOR THE PRODUCT, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. Notwithstanding any damages that customer might incur for any reason whatsoever, NVIDIA's aggregate and cumulative liability towards customer for the product described in this guide shall be limited in accordance with the NVIDIA terms and conditions of sale for the product.

THE NVIDIA PRODUCT DESCRIBED IN THIS GUIDE IS NOT FAULT TOLERANT AND IS NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE IN CONNECTION WITH THE DESIGN, CONSTRUCTION, MAINTENANCE, AND/OR OPERATION OF ANY SYSTEM WHERE THE USE OR A FAILURE OF SUCH SYSTEM COULD RESULT IN A SITUATION THAT THREATENS THE SAFETY OF HUMAN LIFE OR SEVERE PHYSICAL HARM OR PROPERTY DAMAGE (INCLUDING, FOR EXAMPLE, USE IN CONNECTION WITH ANY NUCLEAR, AVIONICS, LIFE SUPPORT OR OTHER LIFE CRITICAL APPLICATION). NVIDIA EXPRESSLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR SUCH HIGH RISK USES. NVIDIA SHALL NOT BE LIABLE TO CUSTOMER OR ANY THIRD PARTY, IN WHOLE OR IN PART, FOR ANY CLAIMS OR DAMAGES ARISING FROM SUCH HIGH RISK USES.

NVIDIA makes no representation or warranty that the product described in this guide will be suitable for any specified use without further testing or modification. Testing of all parameters of each product is not necessarily performed by NVIDIA. It is customer's sole responsibility to ensure the product is suitable and fit for the application planned by customer and to do the necessary testing for the application in order to avoid a default of the application or the product. Weaknesses in customer's product designs may affect the quality and reliability of the NVIDIA product and may result in additional or different conditions and/or requirements beyond those contained in this guide. NVIDIA does not accept any liability related to any default, damage, costs or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any manner that is contrary to this guide, or (ii) customer product designs.

Other than the right for customer to use the information in this guide with the product, no other license, either expressed or implied, is hereby granted by NVIDIA under this guide. Reproduction of information in this guide is permissible only if reproduction is approved by NVIDIA in writing, is reproduced without alteration, and is accompanied by all associated conditions, limitations, and notices.

Trademarks

NVIDIA and the NVIDIA logo are trademarks and/or registered trademarks of NVIDIA Corporation in the United States and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.

© 2020-2024 NVIDIA CORPORATION & AFFILIATES. All rights reserved. Last updated on May 9, 2024.
