Performance

Evaluation Process

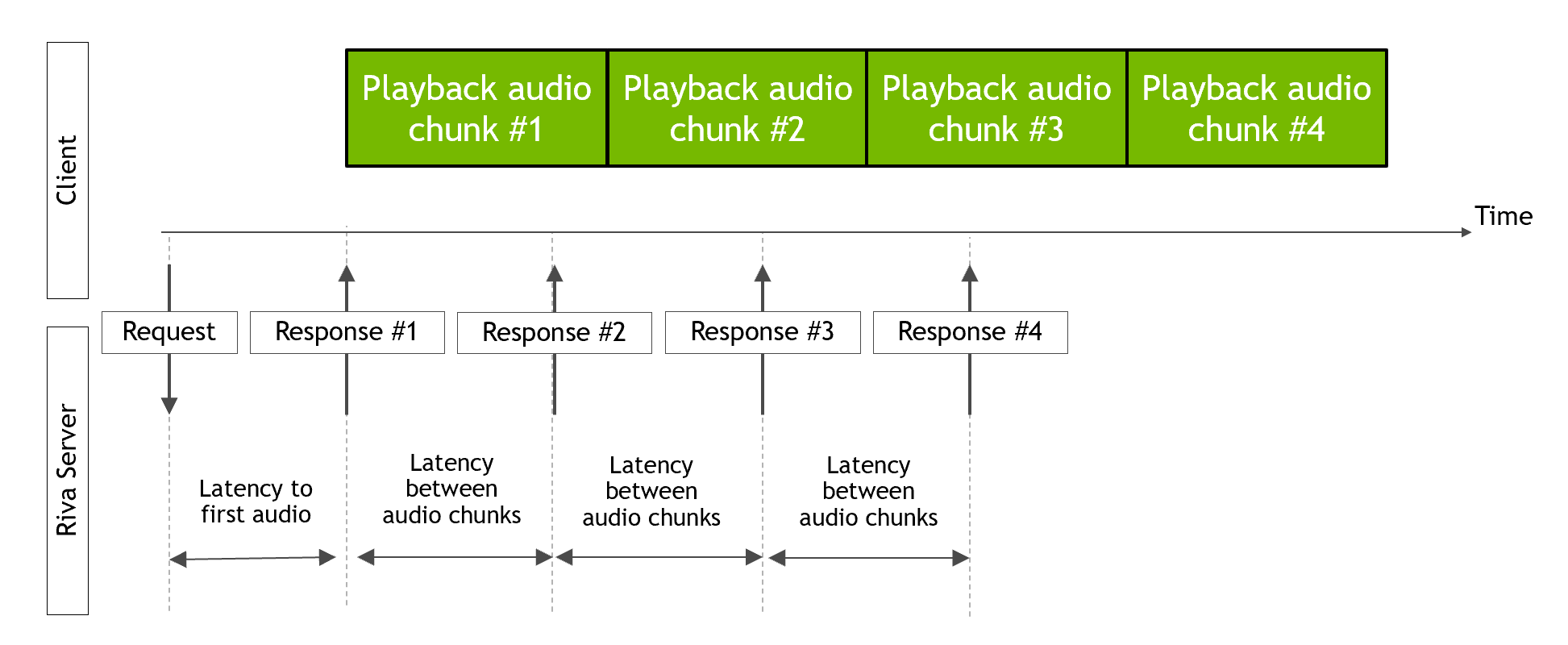

This section presents latency and throughput numbers of the Riva text-to-speech (TTS) service on different GPUs. Performance of the TTS service was measured for a different number of parallel streams. Each parallel stream performed 20 iterations over 10 input strings from the LJSpeech dataset. Each stream sends a request to the Riva server and waits for all audio chunks to have been received before sending another request. Latency to first audio chunk, latency between successive audio chunks, and throughput were measured. The following diagram shows how the latencies are measured.

The Riva TTS perf client riva_tts_perf_client, provided in the Riva image, was used to measure performance. The source code of the client can be obtained at Riva C++ Clients.

The following command was used to generate the following tables:

riva_tts_perf_client \
    --num_parallel_requests=<num_streams> \
    --num_iterations=<20*num_streams> \
    --online=true \
    --text_file=$test_file \
    --write_output_audio=false

Where test_file is a path to the ljs_audio_text_test_filelist_small.txt file.

Results

Latencies to first audio chunk, latencies between audio chunks, and throughput are reported in the following tables. Throughput (duration of audio generated / computation time) is measured in RTFX.

Note

The values in the tables are average values over three trials. The values in the table are rounded to the last significant digit according to the standard deviation calculated on three trials. If a standard deviation is less than 0.001 of the average, then the corresponding value is rounded as if standard deviation equals 0.001 of the value.

For information about the hardware that collected these measurements, see the Hardware Specifications section.

On-Prem

A100

FastPitch HiFi-GAN en-US

# of streams	Latency to first audio (ms)				Latency between audio chunks (ms)				Throughput (RTFX)
	avg	p90	p95	p99	avg	p90	p95	p99
1	22	24.2	25	25.3	2.84	3.1	3.15	4.02	150.8
4	40	50	60	70	5	8	9	12	340
8	63	84	90	100	8	12	14	18	420
16	120	143	154	200	14.3	17.8	19.4	23	460
32	323	340	355	390	14.5	17.9	19.9	23.9	440

Magpie TTS Multilingual

# of streams	Latency to first audio (ms)				Latency between audio chunks (ms)				Throughput (RTFX)
	avg	p90	p95	p99	avg	p90	p95	p99
1	327	304	371	1333	95	109	112	115	1.43
2	3457	6387	6625	7917	107	129	132	137	1.56

H100

FastPitch HiFi-GAN en-US

# of streams	Latency to first audio (ms)				Latency between audio chunks (ms)				Throughput (RTFX)
	avg	p90	p95	p99	avg	p90	p95	p99
1	17	19	19.3	20	2.5	3.035	3.08	3.16	185
4	30	42	50	60	4	6	7	9	430
8	60	80	80	90	6	10	11	14	500
16	100	120	130	2000	7.7	13	14.6	18.2	500
32	200	230	242	500	9.5	13	14.6	18.63	700

Magpie TTS Multilingual

# of streams	Latency to first audio (ms)				Latency between audio chunks (ms)				Throughput (RTFX)
	avg	p90	p95	p99	avg	p90	p95	p99
1	209	210	234	238	68	78	79	82	2
2	689	2178	2439	2712	96	113	116	123	2.5

L40

FastPitch HiFi-GAN en-US

# of streams	Latency to first audio (ms)				Latency between audio chunks (ms)				Throughput (RTFX)
	avg	p90	p95	p99	avg	p90	p95	p99
1	21.5	24.3	24.7	25.5	2.4	3.3	3.5	4	162
4	40	55	60	70	5	7	8	10	300
8	60	80	86	100	6.8	10	11	13	440
16	100	122	133	170	9.7	14.4	16.4	21	600
32	300	310	320	2000	12	17	19.4	24	500

Magpie TTS Multilingual

# of streams	Latency to first audio (ms)				Latency between audio chunks (ms)				Throughput (RTFX)
	avg	p90	p95	p99	avg	p90	p95	p99
1	253	261	274	283	76	87	89	92	1.78
2	1707	4593	5099	5573	97	118	123	128	2.08

On-Prem Hardware Specifications

A100

GPU
NVIDIA DGX A100 40GB
CPU
Model	AMD EPYC 7742 64-Core Processor
Thread(s) per core	2
Socket(s)	2
Core(s) per socket	64
NUMA node(s)	8
Frequency boost	enabled
CPU max MHz	2250
CPU min MHz	1500
RAM
Model	Micron DDR4 36ASF8G72PZ-3G2B2 3200MHz
Configured Memory Speed	2933 MT/s
RAM Size	32x64GB (2048GB Total)

H100

GPU
NVIDIA H100 80GB HBM3
CPU
Model	Intel(R) Xeon(R) Platinum 8480CL
Thread(s) per core	2
Socket(s)	2
Core(s) per socket	56
NUMA node(s)	2
CPU max MHz	3800
CPU min MHz	800
RAM
Model	Micron DDR5 MTC40F2046S1RC48BA1 4800MHz
Configured Memory Speed	4400 MT/s
RAM Size	32x64GB (2048GB Total)

L40

GPU
NVIDIA L40
CPU
Model	AMD EPYC 7763 64-Core Processor
Thread(s) per core	1
Socket(s)	2
Core(s) per socket	64
NUMA node(s)	8
Frequency boost	enabled
CPU max MHz	3529
CPU min MHz	1500
RAM
Model	Samsung DDR4 M393A4K40DB3-CWE 3200MHz
Configured Memory Speed	3200 MT/s
RAM Size	16x32GB (512GB Total)

Performance Considerations

When the server is under high load, requests might time out, as the server will not start inference for a new request until a previous request is completely generated so that inference slot can be freed. This is done to maximize throughput for the TTS service and allow for real-time interaction.

Model Accuracy

Riva evaluates TTS model accuracy using an automated approach that leverages Automatic Speech Recognition (ASR). The process works as follows:

1. The TTS model generates synthetic speech from input text

2. This generated audio is then passed through an ASR system

3. The ASR transcription is compared with the original input text using Character Error Rate (CER)

The Character Error Rate measures the percentage of characters that differ between the original text and the ASR transcription of the synthesized speech. A lower CER indicates better TTS quality, as it means the synthesized speech was clear enough for ASR to accurately transcribe it back to the original text.

Model	Language	Dataset	CER % ⬇️	ASR model used
Magpie TTS Multilingual	English	subset of LibriTTS dev set	1.0	stt_en_conformer_transducer_large
	Spanish	CML Spanish test set	1.1	whisper-large-v3
	French	CML French test set	3.9	whisper-large-v3

Note

We performed metrics calculations on a subset of the dev-clean split of LibriTTS for English, and the CML dataset for French and Spanish. For our analysis, we selected a subset of samples from the total available samples, ensuring that all speakers had at least 5 utterances of at least 5 seconds each. The reported metrics are the average values obtained from multiple iterations, ensuring a more efficient and reliable evaluation of the metrics.
