3. Nsight Compute

The User Guide for Nsight Compute.

3.1. Introduction

For users migrating from Visual Profiler to NVIDIA Nsight Compute, please see the Visual Profiler Transition Guide for comparison of features and workflows.

3.1.1. Overview

This document is a user guide to the next-generation NVIDIA Nsight Compute profiling tools. NVIDIA Nsight Compute is an interactive kernel profiler for CUDA applications. It provides detailed performance metrics and API debugging via a user interface and command line tool. In addition, its baseline feature allows users to compare results within the tool. NVIDIA Nsight Compute provides a customizable and data-driven user interface and metric collection and can be extended with analysis scripts for post-processing results.

Important Features

  • Interactive kernel profiler and API debugger

  • Graphical profile report

  • Result comparison across one or multiple reports within the tool

  • Fast Data Collection

  • UI and Command Line interface

  • Fully customizable reports and analysis rules

3.2. Quickstart

The following sections provide brief step-by-step guides of how to setup and run NVIDIA Nsight Compute to collect profile information. All directories are relative to the base directory of NVIDIA Nsight Compute, unless specified otherwise.

The UI executable is called ncu-ui. A shortcut with this name is located in the base directory of the NVIDIA Nsight Compute installation. The actual executable is located in the folder host\windows-desktop-win7-x64 on Windows or host/linux-desktop-glibc_2_11_3-x64 on Linux. By default, when installing from a Linux .run file, NVIDIA Nsight Compute is located in /usr/local/cuda-<cuda-version>/nsight-compute-<version>. When installing from a .deb or .rpm package, it is located in /opt/nvidia/nsight-compute/<version> to be consistent with Nsight Systems. In Windows, the default path is C:\Program Files\NVIDIA Corporation\Nsight Compute <version>.

After starting NVIDIA Nsight Compute, by default the Welcome Page is opened. The Start section allows the user to start a new activity, open an existing report, create a new project or load an existing project. The Continue section provides links to recently opened reports and projects. The Explore section provides information about what is new in the latest release, as well as links to additional training. See Environment on how to change the start-up action.

../_images/welcome-page.png

Welcome Page

3.2.1. Interactive Profile Activity

  1. Launch the target application from NVIDIA Nsight Compute

    When starting NVIDIA Nsight Compute, the Welcome Page will appear. Click on Quick Launch to open the Connection dialog. If the Connection dialog doesn’t appear, you can open it using the Connect button from the main toolbar, as long as you are not currently connected. Select your target platform on the left-hand side and your connection target (machine) from the Connection drop down. If you have your local target platform selected, localhost will become available as a connection. Use the + button to add a new connection target. Then, continue by filling in the details in the Launch tab. In the Activity panel, select the Interactive Profile activity to initiate a session that allows controlling the execution of the target application and selecting the kernels of interest interactively. Press Launch to start the session.

    ../_images/quick-start-interactive-profiling-connect.png

  2. Launch the target application with tools instrumentation from the command line

    The ncu can act as a simple wrapper that forces the target application to load the necessary libraries for tools instrumentation. The parameter --mode=launch specifies that the target application should be launched and suspended before the first instrumented API call. That way the application waits until we connect with the UI.

    $ ncu --mode=launch CuVectorAddDrv.exe

  3. Launch NVIDIA Nsight Compute and connect to target application

    ../_images/quick-start-interactive-profiling-attach.png

    Select the target machine at the top of the dialog to connect and update the list of attachable applications. By default, localhost is pre-selected if the target matches your current local platform. Select the Attach tab and the target application of interest and press Attach. Once connected, the layout of NVIDIA Nsight Compute changes into stepping mode that allows you to control the execution of any calls into the instrumented API. When connected, the API Stream window indicates that the target application waits before the very first API call.

    ../_images/quick-start-interactive-profiling-connected.png

  4. Control application execution

    Use the API Stream window to step the calls into the instrumented API. The dropdown at the top allows switching between different CPU threads of the application. Step In (F11), Step Over (F10), and Step Out (Shift + F11) are available from the Debug menu or the corresponding toolbar buttons. While stepping, function return values and function parameters are captured.

    ../_images/quick-start-interactive-profiling-api-stream.png

    Use Resume (F5) and Pause to allow the program to run freely. Freeze control is available to define the behavior of threads currently not in focus, i.e. selected in the thread drop down. By default, the API Stream stops on any API call that returns an error code. This can be toggled in the Debug menu by Break On API Error.

  5. Isolate a kernel launch

    To quickly isolate a kernel launch for profiling, use the Run to Next Kernel button in the toolbar of the API Stream window to jump to the next kernel launch. The execution will stop before the kernel launch is executed.

    ../_images/quick-start-interactive-profiling-next-launch.png

  6. Profile a kernel launch

    Once the execution of the target application is suspended at a kernel launch, additional actions become available in the UI. These actions are either available from the menu or from the toolbar. Please note that the actions are disabled, if the API stream is not at a qualifying state (not at a kernel launch or launching on an unsupported GPU). To profile, press Profile Kernel and wait until the result is shown in the Profiler Report. Profiling progress is reported in the lower right corner status bar.

    Instead of manually selecting Profile, it is also possible to enable Auto Profile from the Profile menu. If enabled, each kernel matching the current kernel filter (if any) will be profiled using the current section configuration. This is especially useful if an application is to be profiled unattended, or the number of kernel launches to be profiled is very large. Sections can be enabled or disabled using the Metric Selection tool window.

    Profile Series allows to configure the collection of a set of profile results at once. Each result in the set is profiled with varying parameters. Series are useful to investigate the behavior of a kernel across a large set of parameters without the need to recompile and rerun the application many times.

For a detailed description of the options available in this activity, see Interactive Profile Activity.

3.2.2. Non-Interactive Profile Activity

  1. Launch the target application from NVIDIA Nsight Compute

    When starting NVIDIA Nsight Compute, the Welcome Page will appear. Click on Start Activity to open the Start Activity dialog. If the Start Activity dialog doesn’t appear, you can open it using the Start Activity button from the main toolbar, as long as you are not currently connected. Select your target platform on the left-hand side and your localhost from the Connection drop down. Then, fill in the launch details. In the Activity panel, select the Profile activity to initiate a session that pre-configures the profile session and launches the command line profiler to collect the data. Provide the Output File name to enable starting the session with the Launch button.

    ../_images/quick-start-profiling-connect.png
  2. Additional Launch Options

    For more details on these options, see Command Line Options. The options are grouped into tabs: The Filter tab exposes the options to specify which kernels should be profiled. Options include the kernel regex filter, the number of launches to skip, and the total number of launches to profile. The Sections tab allows you to select which sections should be collected for each kernel launch. Hover over a section to see its description as a tool-tip. To change the sections that are enabled by default, use the Metric Selection tool window. The Sampling tab allows you to configure sampling options for each kernel launch. The Other tab includes the option to collect NVTX information or custom metrics via the --metrics option.

    ../_images/quick-start-profiling-options-sections.png

For a detailed description of the options available in this activity, see Profile Activity.

3.2.3. System Trace Activity

  1. Launch the target application from NVIDIA Nsight Compute

    When starting NVIDIA Nsight Compute, the Welcome Page will appear. Click on Start Activity to open the Start Activity dialog. If the Start Activity dialog doesn’t appear, you can open it using the Start Activity button from the main toolbar, as long as you are not currently connected. Select your local target platform on the left-hand side and your localhost from the Connection drop down. Then, fill in the launch details. In the Activity panel, select the System Trace activity to initiate a session with pre-configured settings. Press Launch to start the session.

    ../_images/quick-start-system-trace-connect.png
  2. Additional Launch Options

    For more details on these options, see System-Wide Profiling Options.

    ../_images/quick-start-system-trace-options.png
  3. Once the session is completed, the Nsight Systems report is opened in a new document. By default, the timeline view is shown. It provides detailed information of the activity of the CPU and GPUs and helps understanding the overall behavior and performance of application. Once a CUDA kernel is identified to be on the critical path and not meeting the performance expectations, right click on the kernel launch on timeline and select Profile Kernel from the context menu. A new Start Activity opens up that is already preconfigured to profile the selected kernel launch. Proceed with optimizing the selected kernel using Non-Interactive Profile Activity

    ../_images/quick-start-system-trace-timeline.png

3.3. Start Activity Dialog

Use the Start Activity Dialog to launch and attach to applications on your local and remote platforms. Start by selecting the Target Platform for profiling. By default (and if supported) your local platform will be selected. Select the platform on which you would like to start the target application or connect to a running process.

../_images/connection-dialog.png

When using a remote platform, you will be asked to select or create a Connection in the top drop down. To create a new connection, select + and enter your connection details. When using the local platform, localhost will be selected as the default and no further connection settings are required. You can still create or select a remote connection, if profiling will be on a remote system of the same platform.

Depending on your target platform, select either Launch or Remote Launch to launch an application for profiling on the target. Note that Remote Launch will only be available if supported on the target platform.

Fill in the following launch details for the application:

  • Application Executable: Specifies the root application to launch. Note that this may not be the final application that you wish to profile. It can be a script or launcher that creates other processes.

  • Working Directory: The directory in which the application will be launched.

  • Command Line Arguments: Specify the arguments to pass to the application executable.

  • Environment: The environment variables to set for the launched application.

Select Attach to attach the profiler to an application already running on the target platform. This application must have been started using another NVIDIA Nsight Compute CLI instance. The list will show all application processes running on the target system which can be attached. Select the refresh button to re-create this list.

Finally, select the Activity to be run on the target for the launched or attached application. Note that not all activities are necessarily compatible with all targets and connection options. Currently, the following activities exist:

3.3.1. Remote Connections

Remote devices that support SSH can also be configured as a target in the Start Activity Dialog. To configure a remote device, ensure an SSH-capable Target Platform is selected, then press the + button. The following configuration dialog will be presented.

../_images/add-remote-connection.png

NVIDIA Nsight Compute supports both password and private key authentication methods. In this dialog, select the authentication method and enter the following information:

  • Password

    • IP/Host Name: The IP address or host name of the target device.

    • User Name: The user name to be used for the SSH connection.

    • Password: The user password to be used for the SSH connection.

    • Port: The port to be used for the SSH connection. (The default value is 22)

    • Deployment Directory: The directory to use on the target device to deploy supporting files. The specified user must have write permissions to this location.

    • Connection Name: The name of the remote connection that will show up in the Start Activity Dialog. If not set, it will default to <User>@<Host>:<Port>.

  • Private Key

    ../_images/add-remote-connection-private-key.png
    • IP/Host Name: The IP address or host name of the target device.

    • User Name: The user name to be used for the SSH connection.

    • SSH Private Key: The private key that is used to authenticate to SSH server.

    • SSH Key Passphrase: The passphrase for your private key.

    • Port: The port to be used for the SSH connection. (The default value is 22)

    • Deployment Directory: The directory to use on the target device to deploy supporting files. The specified user must have write permissions to this location.

    • Connection Name: The name of the remote connection that will show up in the Start Activity Dialog. If not set, it will default to <User>@<Host>:<Port>.

In addition to keyfiles specified by path and plain password authentication, NVIDIA Nsight Compute supports keyboard-interactive authentication, standard keyfile path searching and SSH agents.

When all information is entered, click the Add button to make use of this new connection.

When a remote connection is selected in the Start Activity Dialog, the Application Executable file browser will browse the remote file system using the configured SSH connection, allowing the user to select the target application on the remote device.

When an activity is launched on a remote device, the following steps are taken:

  1. The command line profiler and supporting files are copied into the Deployment Directory on the remote device. (Only files that do not exist or are out of date are copied.)

  2. Communication channels are opened to prepare for the traffic between the UI and the Application Executable.

    • For Interactive Profile activities, a SOCKS proxy is started on the host machine.

    • For Non-Interactive Profile activities, a remote forwarding channel is opened on the target machine to tunnel profiling information back to the host.

  3. The Application Executable is executed on the remote device.

    • For Interactive Profile activities, a connection is established to the remote application and the profiling session begins.

    • For Non-Interactive Profile activities, the remote application is executed under the command line profiler and the specified report file is generated.

  4. For non-interactive profiling activities, the generated report file is copied back to the host, and opened.

The progress of each of these steps is presented in the Progress Log.

../_images/progress-log.png

Progress Log

Note that once either activity type has been launched remotely, the tools necessary for further profiling sessions can be found in the Deployment Directory on the remote device.

On Linux and Mac host platforms, NVIDIA Nsight Compute supports SSH remote profiling on target machines which are not directly addressable from the machine the UI is running on through the ProxyJump and ProxyCommand SSH options.

These options can be used to specify intermediate hosts to connect to or actual commands to run to obtain a socket connected to the SSH server on the target host and can be added to your SSH configuration file.

Note that for both options, NVIDIA Nsight Compute runs external commands and does not implement any mechanism to authenticate to the intermediate hosts using the credentials entered in the Start Activity Dialog. These credentials will only be used to authenticate to the final target in the chain of machines.

When using the ProxyJump option NVIDIA Nsight Compute uses the OpenSSH client to establish the connection to the intermediate hosts. This means that in order to use ProxyJump or ProxyCommand, a version of OpenSSH supporting these options must be installed on the host machine.

A common way to authenticate to the intermediate hosts in this case is to use a SSH agent and have it hold the private keys used for authentication.

Since the OpenSSH SSH client is used, you can also use the SSH askpass mechanism to handle these authentications in an interactive manner.

It might happen on slow networks that connections used for remote profiling through SSH time out. If this is the case, the ConnectTimeout option can be used to set the desired timeout value.

A known limitation of the remote profiling through SSH is that problems may arise if NVIDIA Nsight Compute tries to do remote profiling through SSH by connecting to the same machine it is running on. In this case, the workaround is to do local profiling through localhost.

For more information about available options for the OpenSSH client and the ecosystem of tools it can be used with for authentication refer to the official manual pages.

3.3.2. Interactive Profile Activity

The Interactive Profile activity allows you to initiate a session that controls the execution of the target application, similar to a debugger. You can step API calls and workloads (CUDA kernels), pause and resume, and interactively select the kernels of interest and which metrics to collect.

This activity does currently not support profiling or attaching to child processes.

  • Enable CPU Call Stack

    Collect the CPU-sided Call Stack at the location of each profiled kernel launch.

  • CPU Call Stack Types

    If “Enable CPU Call Stack” is set to “Yes”, the type(s) of call stack may be selected here.

  • Enable NVTX Support

    Collect NVTX information provided by the application or its libraries. Required to support stepping to specific NVTX contexts.

  • Disable Profiling Start/Stop

    Ignore calls to cu(da)ProfilerStart or cu(da)ProfilerStop made by the application.

  • Enable Profiling From Start

    Enables profiling from the application start. Disabling this is useful if the application calls cu(da)ProfilerStart and kernels before the first call to this API should not be profiled. Note that disabling this does not prevent you from manually profiling kernels.

  • Cache Control

    Control the behavior of the GPU caches during profiling. Allowed values: For Flush All, all GPU caches are flushed before each kernel replay iteration during profiling. While metric values in the execution environment of the application might be slightly different without invalidating the caches, this mode offers the most reproducible metric results across the replay passes and also across multiple runs of the target application.

    For Flush None, no GPU caches are flushed during profiling. This can improve performance and better replicates the application behavior if only a single kernel replay pass is necessary for metric collection. However, some metric results will vary depending on prior GPU work, and between replay iterations. This can lead to inconsistent and out-of-bounds metric values.

  • Clock Control

    Control the behavior of the GPU clocks during profiling. Allowed values: For Base, GPC and memory clocks are locked to their respective base frequency during profiling. This has no impact on thermal throttling. For None, no GPC or memory frequencies are changed during profiling.

  • Import Source

    Enables permanently importing available source files into the report. Missing source files are searched in Source Lookup folders. Source information must be embedded in the executable, e.g. via the -lineinfo compiler option. Imported files are used in the CUDA-C view on the Source Page.

  • Graph Profiling

    Set if CUDA graphs should be stepped and profiled as individual Nodes or as complete Graphs. See the Kernel Profiling Guide for more information on this mode.

3.3.3. Profile Activity

The Profile activity provides a traditional, pre-configurable profiler. After configuring which kernels to profile, which metrics to collect, etc, the application is run under the profiler without interactive control. The activity completes once the application terminates. For applications that normally do not terminate on their own, e.g. interactive user interfaces, you can cancel the activity once all expected kernels are profiled.

This activity does not support attaching to processes previously launched via NVIDIA Nsight Compute. These processes will be shown grayed out in the Attach tab.

  • Output File

    Path to report file where the collected profile should be stored. If not present, the report extension .ncu-rep is added automatically. The placeholder %i is supported for the filename component. It is replaced by a sequentially increasing number to create a unique filename. This maps to the --export command line option.

  • Force Overwrite

    If set, existing report file are overwritten. This maps to the --force-overwrite command line option.

  • Target Processes

    Select the processes you want to profile. In mode Application Only, only the root application process is profiled. In mode all, the root application process and all its child processes are profiled. This maps to the --target-processes command line option.

  • Replay Mode

    Select the method for replaying kernel launches multiple times. In mode Kernel, individual kernel launches are replayed transparently during the single execution of the target application. In mode Application, the entire target application is relaunched multiple times. In each iteration, additional data for the target kernel launches is collected. Application replay requires the program execution to be deterministic. This maps to the --replay-mode command line option. See the Kernel Profiling Guide for more details on the replay modes.

  • Graph Profiling

    Set if CUDA graphs should be profiled as individual Nodes or as complete Graphs.

  • Additional Options

    All remaining options map to their command line profiler equivalents. See the Command Line Options for details.

3.3.4. Reset

Entries in the connection dialog are saved as part of the current project. When working in a custom project, simply close the project to reset the dialog.

When not working in a custom project, entries are stored as part of the default project. You can delete all information from the default project by closing NVIDIA Nsight Compute and then deleting the project file from disk.

3.5. Tool Windows

3.5.1. API Statistics

The API Statistics window is available when NVIDIA Nsight Compute is connected to a target application. It opens by default as soon as the connection is established. It can be re-opened using Debug > API Statistics from the main menu.

../_images/tool-window-api-statistics.png

Whenever the target application is suspended, it shows a summary of tracked API calls with some statistical information, such as the number of calls, their total, average, minimum and maximum duration. Note that this view cannot be used as a replacement for Nsight Systems when trying to optimize CPU performance of your application.

The Reset button deletes all statistics collected to the current point and starts a new collection. Use the Export to CSV button to export the current statistics to a CSV file.

3.5.2. API Stream

The API Stream window is available when NVIDIA Nsight Compute is connected to a target application. It opens by default as soon as the connection is established. It can be re-opened using Debug > API Stream from the main menu.

../_images/tool-window-api-stream.png

Whenever the target application is suspended, the window shows the history of API calls and traced kernel launches. The currently suspended API call or kernel launch (activity) is marked with a yellow arrow. If the suspension is at a subcall, the parent call is marked with a green arrow. The API call or kernel is suspended before being executed.

For each activity, further information is shown such as the kernel name or the function parameters (Func Parameters) and return value (Func Return). Note that the function return value will only become available once you step out or over the API call.

Use the Current Thread dropdown to switch between the active threads. The dropdown shows the thread ID followed by the current API name. One of several options can be chosen in the trigger dropdown, which are executed by the adjacent >> button. Run to Next Kernel resumes execution until the next kernel launch is found in any enabled thread. Run to Next API Call resumes execution until the next API call matching Next Trigger is found in any enabled thread. Run to Next Range Start resumes execution until the next start of an active profiler range is found. Profiler ranges are defined by using the cu(da)ProfilerStart/Stop API calls. Run to Next Range Stop resumes execution until the next stop of an active profiler range is found. The API Level dropdown changes which API levels are shown in the stream. The Export to CSV button exports the currently visible stream to a CSV file.

3.5.3. Baselines

The Baselines tool window can be opened by clicking the Baselines entry in the Profile menu. It provides a centralized place from which to manage configured baselines. (Refer to Baselines, for information on how to create baselines from profile results.)

../_images/tool-window-baselines.png

The baseline visibility can be controlled by clicking on the check box in a table row. When the check box is checked, the baseline will be visible in the summary header as well as all graphs in all sections. When unchecked the baseline will be hidden and will not contribute to metric difference calculations.

The baseline color can be changed by double-clicking on the color swatch in the table row. The color dialog which is opened provides the ability to choose an arbitrary color as well as offers a palette of predefined colors associated with the stock baseline color rotation.

The baseline name can be changed by double-clicking on the Name column in the table row. The name must not be empty and must be less than the Maximum Baseline Name Length as specified in the options dialog.

The z-order of a selected baseline can be changed by clicking the Move Baseline Up and Move Baseline Down buttons in the tool bar. When a baseline is moved up or down its new position will be reflected in the report header as well as in each graph. Currently, only one baseline may be moved at a time.

The selected baselines may be removed by clicking on the Clear Selected Baselines button in the tool bar. All baselines can be removed at once by clicking on the Clear All Baselines button, from either the global tool bar or the tool window tool bar.

The configured baselines can be saved to a file by clicking on the Save Baselines button in the tool bar. By default baseline files use the .ncu-bln extension. Baseline files can be opened locally and/or shared with other users.

Baseline information can be loaded by clicking on the Load Baselines button in the tool bar. When a baseline file is loaded, currently configured baselines will be replaced. A dialog will be presented to the user to confirm this operation when necessary.

Differences between the current result and the baselines can be visualized with graphical bars for metrics in Details page section headers. Use the Difference Bars drop down to select the visualization mode. Bars are extending from left to right and have a fixed maximum.

3.5.4. Metric Details

The Metric Details tool window can be opened using the Metric Details entry in the Profile menu or the respective tool bar button. When a report and the tool window are open, a metric can be selected in the report to display additional information in the tool window. It also contains a search bar to look up metrics in the focused report.

../_images/tool-window-metric-details.png

Report metrics can be selected on the Details Page or on the Raw Page. The window will show basic information (name, unit and raw value of the metric) as well as additional information, such as its extended description.

For results collected for Green Contexts applications, the Metric Details tool window also shows an additional row with the Attribution level of the selected performance metric (e.g., Context or Green Context, if applicable).

The search bar can be used to open metrics in the focused report. It shows available matches as you type. The entered string must match from the start of the metric name.

By default, selecting or searching for a new metric updates the current Default Tab. You can click the pin button located in the upper-left corner of the tab control to create a copy of the default tab, unless the same metric is already pinned. This makes it possible to save multiple tabs and quickly switch between them to compare values.

Some metrics contain Instance Values. When available, they are listed in the tool window. Instance values can have a Correlation ID that allows correlating the individual value with its associated entity, e.g. a function address or instruction name.

For metrics collected with PM sampling, the correlation ID is the GPU timestamp in nanoseconds. It is shown relative to the first timestamp for this metric. Note that the instance values for PM sampling metrics are currently not context-switched , even if this is enabled in the corresponding timeline UI.

3.5.5. Launch Details

The Launch Details tool window can be opened using the Launch Details entry in the Profile menu or the respective tool bar button. When a result containing multiple sub-launches is selected and this tool window is open, it will display information about each sub-launch contained in the result.

../_images/tool-window-launch-details.png

This tool window is split into two sections:

  • a header displaying information applying to the result as a whole

  • a body displaying information specific to the viewed sub-launch

Body

The body of this tool window displays a table with sub-launch-specific metrics. This table has four columns:

  • Metric Name: the name of the metric

  • Metric Unit: the unit for metric values

  • Instance Value: the value of this metric for the selected sub-launch

  • Aggregate Value: the aggregate value for this metric over all sub-launches in the selected result

3.5.6. NVTX

The NVTX window is available when NVIDIA Nsight Compute is connected to a target application. If closed, it can be re-opened using Debug > NVTX from the main menu. Whenever the target application is suspended, the window shows the state of all active NVTX domains and ranges in the currently selected thread. Note that NVTX information is only tracked if the launching command line profiler instance was started with --nvtx or NVTX was enabled in the NVIDIA Nsight Compute launch dialog.

../_images/tool-window-nvtx.png

Use the Current Thread dropdown in the API Stream window to change the currently selected thread. NVIDIA Nsight Compute supports NVTX named resources, such as threads, CUDA devices, CUDA contexts, etc. If a resource is named using NVTX, the appropriate UI elements will be updated.

../_images/tool-window-nvtx-resources.png

3.5.7. CPU Call Stack

The CPU Call Stack window is available when NVIDIA Nsight Compute is connected to a target application. If closed, it can be re-opened using Debug > CPU Call Stack from the main menu. Whenever the target application is suspended, the window shows all enabled CPU call stacks for the currently selected thread.

../_images/tool-window-callstack.png

Use the Call Stack Type dropdown menu to switch between stack types in case multiple stack types were enabled (e.g., Native, Python). Note that Python call stack collection requires CPython version 3.9 or later.

3.5.8. Resources

The Resources window is available when NVIDIA Nsight Compute is connected to a target application. It shows information about the currently known resources, such as CUDA devices, CUDA streams or kernels. The window is updated every time the target application is suspended. If closed, it can be re-opened using Debug > Resources from the main menu.

../_images/tool-window-resources.png

Using the dropdown on the top, different views can be selected, where each view is specific to one kind of resource (context, stream, kernel, …). The Filter edit allows you to create filter expressions using the column headers of the currently selected resource.

The resource table shows all information for each resource instance. Each instance has a unique ID, the API Call ID when this resource was created, its handle, associated handles, and further parameters. When a resource is destroyed, it is removed from its table.

Memory Allocations

When using the asynchronous malloc/free APIs, the resource view for Memory Allocation will also include the memory objects created in this manner. These memory objects have a non-zero memory pool handle. The Mode column will indicate which code path was taken during the allocation of the corresponding object. The modes are:

  • REUSE_STREAM_SUBPOOL: The memory object was allocated in memory that was previously freed. The memory was backed by the memory pool set as current for the stream on which the allocation was made.

  • USE_EXISTING_POOL_MEMORY: The memory object was allocated in memory that was previously freed. The memory is backed by the default memory pool of the stream on which the allocation was made.

  • REUSE_EVENT_DEPENDENCIES: The memory object was allocated in memory that was previously freed in another stream of the same context. A stream ordering dependency of the allocating stream on the free action existed. Cuda events and null stream interactions can create the required stream ordered dependencies.

  • REUSE_OPPORTUNISTIC: The memory object was allocated in memory that was previously freed in another stream of the same context. However, no dependency between the free and allocation existed. This mode requires that the free be already committed at the time the allocation is requested. Changes in execution behavior might result in different modes for multiple runs of the application.

  • REUSE_INTERNAL_DEPENDENCIES: The memory object was allocated in memory that was previously freed in another stream of the same context. New internal stream dependencies may have been added in order to establish the stream ordering required to reuse a piece of memory previously released.

  • REQUEST_NEW_ALLOCATION: New memory had to be allocated for this memory object as no viable reusable pool memory was found. The allocation performance is comparable to using the non-asynchronous malloc/free APIs.

Graphviz DOT and SVG exports

Some of the shown Resources can also be exported to GraphViz DOT or SVG* files using the Export to GraphViz or Export to SVG buttons.

When exporting OptiX traversable handles, the traversable graph node types will be encoded using shapes and colors as described in the following table.

Table 2. OptiX Traversable Graph Node Types

Node Type

Shape

Color

IAS

Hexagon

#8DD3C7

Triangle GAS

Box

#FFFFB3

AABB GAS

Box

#FCCDE5

Curve GAS

Box

#CCEBC5

Sphere GAS

Box

#BEBADA

Static Transform

Diamond

#FB8072

SRT Transform

Diamond

#FDB462

Matrix Motion Transform

Diamond

#80B1D3

Error

Paralellogram

#D9D9D9

3.5.9. Metric Selection

The Metric Selection window can be opened from the main menu using Profile > Metric Selection. It tracks all metric sets, sections and rules currently loaded in NVIDIA Nsight Compute, independent from a specific connection or report. The directory to load those files from can be configured in the Profile options dialog. It is used to inspect available sets, sections and rules, as well as to configure which should be collected, and which rules should be applied. You can also specify a comma separated list of individual metrics, that should be collected. The window has two views, which can be selected using the dropdown in its header.

The Metric Sets view shows all available metric sets. Each set is associated with a number of metrics sections. You can choose a set appropriate to the level of detail for which you want to collect performance metrics. Sets which collect more detailed information normally incur higher runtime overhead during profiling.

../_images/tool-window-section-sets.png

When enabling a set in this view, the associated metric sections are enabled in the Metric Sections/Rules view. When disabling a set in this view, the associated sections in the Metric Sections/Rules view are disabled. If no set is enabled, or if sections are manually enabled/disabled in the Metric Sections/Rules view, the <custom> entry is marked active to represent that no section set is currently enabled. Note that the basic set is enabled by default.

Whenever a kernel is profiled manually, or when auto-profiling is enabled, only sections enabled in the Metric Sections/Rules view and individual metrics specified in input box are collected. Similarly, whenever rules are applied, only rules enabled in this view are active.

../_images/tool-window-sections.png

The enabled states of sections and rules are persisted across NVIDIA Nsight Compute launches. The Reload button reloads all sections and rules from disk again. If a new section or rule is found, it will be enabled if possible. If any errors occur while loading a rule, they will be listed in an extra entry with a warning icon and a description of the error.

Use the Enable All and Disable All checkboxes to enable or disable all sections and rules at once. The Filter text box can be used to filter what is currently shown in the view. It does not alter activation of any entry.

The table shows sections and rules with their activation status, their relationship and further parameters, such as associated metrics or the original file on disk. Rules associated with a section are shown as children of their section entry. Rules independent of any section are shown under an additional Independent Rules entry.

Clicking an entry in the table’s Filename column opens this file as a document. It can be edited and saved (ctrl + s) directly in NVIDIA Nsight Compute. After editing the file, Reload must be selected to apply those changes. Document also supports text search (ctrl + f), zoom in (ctrl + mouse scroll down), zoom out (ctrl + mouse scroll up) functionalities.

When a section or rule file is modified, the entry in the State column will show User Modified to reflect that it has been modified from its default state. When a User Modified row is selected, the Restore button will be enabled. Clicking the Restore button will restore the entry to its default state and automatically Reload the sections and rules.

Similarly, when a stock section or rule file is removed from the configured Sections Directory (specified in the Profile options dialog), the State column will show User Deleted. User Deleted files can also be restored using the Restore button.

Section and rule files that are created by the user (and not shipped with NVIDIA Nsight Compute) will show up as User Created in the state column.

See the Sections and Rules for the list of default sections for NVIDIA Nsight Compute.

3.6. Profiler Report

The profiler report contains all the information collected during profiling for each kernel launch. In the user interface, it consists of a header with general information, as well as controls to switch between report pages or individual collected launches.

3.6.1. Header

../_images/profiler-report-header.png

The top of the report shows a table with information about the selected profile result (as Current) and potentially additional baselines. For many values in this table, tooltips provide additional information or data, e.g., the tooltip of the column Attributes provides additional information about the context type and resources used for the launch.

The Result dropdown can be used to switch between all collected kernel launches. The information displayed in each page commonly represents the selected launch instance. On some pages (e.g. Raw), information for all launches is shown and the selected instance is highlighted. You can type in this dropdown to quickly filter and find a kernel launch.

The Apply Filters button opens the filter dialog. You can use more than one filter to narrow down your results. On the filter dialog, enter your filter parameters and press OK button. The Launch dropdown, Summary Page table, and Raw Page table will be filtered accordingly. Select the arrow dropdown to access the Clear Filters button, which removes all filters.

../_images/profiler-report-header-filter-dialog.png

Filter Dialog

Underneath the current and baseline results are the tabs for switching between the report pages. The pages themselves are explained in detail in the next section.

Each group button to the right of the page tabs opens a context menu that features related actions. Some actions may be enabled only when the related report page is selected.

  • Compare

    • Add Baseline promotes the current result in focus to become the baseline of all other results from this report and any other report opened in the same instance of NVIDIA Nsight Compute.

    • Clear Baselines removes all currently active baselines. You may also use the Baselines tool window to manage baseline for comparison.

    • Source Comparison navigates to the Source Comparison document in case at least two profile results are available for comparison.

  • Tools

    • Occupancy Calculator opens the Occupancy Calculator in a new document.

    • Metric Details Windows opens the Metric Details tool window. When the window is open and a metric is selected elsewhere in the report, it shows detailed information about it.

    • Launch Details Windows opens the Launch Details tool window. When the window is open and a result containing multiple sub-launches is selected, it displays information about each sub-launch in the result.

  • View

    • Show/Hide Rules Output toggles the visibility of rule results.

    • Show/Hide Section Descriptions toggles the visibility of section descriptions on the Details page.

    • Show/Hide Green Context Markers toggles the visibility of markers for attributable Green Context metrics.

    • Expand Sections expands all sections to show their body contents, not only header and rule output. Note that sections may have multiple bodies and the visible one can be chosen using the dropdown in the section header.

    • Collapse Sections collapses all sections to show only their header and rule output.

  • Export

    • Copy as Image - Copies the contents of the page to the clipboard as an image.

    • Save as Image - Saves the contents of the page to a file as an image.

    • Save as PDF - Saves the contents of the page to a file as a PDF.

    • Export to CSV - Exports the contents of the page to CSV format.

  • More (three bars icon)

    • Apply Rules applies all rules available for this report. If rules had been applied previously, those results will be replaced. By default, rules are applied immediately once the kernel launch has been profiled. This can be changed in the options under Tools > Options > Profile > Report UI > Apply Applicable Rules Automatically.

    • Reset to Default resets the page to a default state by removing any persisted settings.

3.6.2. Report Pages

Use the Page dropdown in the header to switch between the report pages.

By default, when opening a report with a single profile result, the Details Page is shown. When opening a report with multiple results, the Summary Page is selected instead. You can change the default report page in the Profile options.

Summary Page

The Summary page shows a table of all collected results in the report, as well as a list of the most important rule outputs (Prioritized Rules) which are ordered by the estimated speedup that could potential be obtained by following their guidance. Prioritized Rules are shown by default and can be toggled with the [R] button on the upper right of the page.

../_images/profiler-report-pages-summary.png

Summary page with Summary Table and Prioritized Rules.

The Summary Table gives you a quick comparison overview across all profiled workloads. It contains a number of important, pre-selected metrics which can be customized as explained below. Its columns can be sorted by clicking the column header. You can transpose the table with the Transpose button. Aggregate of all results per each counter metric is shown in the table header along with the column name. You can change the aggregated values by selecting the desired results for multiple metrics simultaneously. When selecting any entry by single-click, a list of its Prioritized Rules will be shown below the table. Double-click any entry to make the result the currently active one and switch to the Details Page page to inspect its performance data. By default, kernel demangled names are simplified, renamed and shown in an optimized manner. This behavior can be changed with Rename Demangled Names option. If an auto-simplified name is not useful, you can rename it through a configuration file. You can also persist the updated names directly in the report by double-clicking on the name, renaming and saving the report. Use Rename Kernels Config Path option to specify the configuration file which should be used while importing renamed kernels or exporting demangled names with mappings to rename them. To export names to a new file, click Export button and use Rename Kernels Config option. See Kernel Renaming for more details on configuration file usage.

../_images/profiler-report-pages-summary-table.png

You can configure the list of metrics included in this table in the Profile options dialog. If a metric has multiple instance values, the number of instances is shown after its standard value. A metric with ten instance values could for example look like this: 35.48 {10}. In the Profile options dialog, you can select that all instance values should be shown individually. You can also inspect the instances values of a metric result in the Metric Details tool window.

In addition to metrics, you can also configure the table to include any of the following properties:

Properties

Properties

property__api_call_id

ID of the API call associated with this profile result.

property__block_size

Block Size. If the result contains multiple launches, this will contain the maximum value for each dimension of the block.

property__creation_time

Local collection time.

property__demangled_name

Kernel demangled name, potentially renamed.

property__device_name

GPU device name.

property__estimated_speedup

Maximal relative speedup achievable for this profile result as estimated by the guided analysis rules.

property__function_name

Kernel function name or range name.

property__grid_dimensions

Grid Dimensions. If the result contains multiple launches, this will contain the maximum value for each dimension of the grid.

property__grid_offset

Grid Offset.

property__grid_size

Grid Size. If the result contains multiple launches, this will contain the maximum value for each dimension of the grid.

property__issues_detected

Number of issues detected by guided analysis rules for this profile result.

property__kernel_id

Kernel ID.

property__mangled_name

Kernel mangled name.

property__original_demangled_name

Original kernel demangled name without any renaming.

property__process_name

Process name.

property__runtime_improvement

Runtime improvement corresponding to the estimated speedup.

property__series_id

ID of the profile series.

property__series_parameters

Profile series parameters.

property__thread_id

CPU thread ID.

For Range Replay reports, a smaller set of columns is shown by default, as not all apply to such results.

For the currently selected metric result the Prioritized Rules show the most impactful rule results with respect to the estimated potential speedup. Clicking on any of the rule names on the left allows you to easily navigate to the containing section on the details page. With the downward-facing arrow on the right a table with the relevant key performance indicators can be toggled. This table contains the metrics which should be tracked when optimizing performance according to the rule guidance.

../_images/profiler-report-pages-summary-rules.png

Prioritized Rules with key performance indicators table.

Details Page

Overview

The Details page is the main page for all metric data collected during a kernel launch. The page is split into individual sections. Each section consists of a header table and an optional body that can be expanded. You can expand or collapse the body of each section by clicking on its respective header. The sections are completely user defined and can be changed easily by updating their respective files. For more information on customizing sections, see the Customization Guide. For a list of sections shipped with NVIDIA Nsight Compute, see Sections and Rules.

By default, once a new profile result is collected, all applicable rules are applied. Any rule results will be shown as Recommendations on this page. Most rule results will contain an optimization advice along with an estimate of the improvement that could be achieved when successfully implementing this advice. Other rule results will be purely informative or have a warning icon to indicate a problem that occurred during execution (e.g., an optional metric that could not be collected). Results with error icons typically indicate an error while applying the rule.

Estimates of potential improvement are shown below the rule result’s name and exist in two types. Global estimates (“Est. Speedup”) are an approximation of the decrease in workload runtime, whereas local estimates (“Est. Local Speedup”) are an approximation of the increase in efficiency of the hardware utilization of the particular performance problem the rule addresses.

../_images/profiler-report-pages-section-with-rule.png

Rule results often point out performance problems and guide through the analysis process.

If a rule result references another report section, it will appear as a link in the recommendation. Select the link to scroll to the respective section. If the section was not collected in the same profile result, enable it in the Metric Selection tool window.

You can add or edit comments in each section of the Details view by clicking on the comment button (speech bubble). The comment icon will be highlighted in sections that contain a comment. Comments are persisted in the report and are summarized in the Comments Page.

../_images/profiler-report-pages-details-comments.png

Use the Comments button to annotate sections.

Besides their header, sections typically have one or more bodies with additional charts or tables. Click the triangle Expander icon in the top-left corner of each section to show or hide those. If a section has multiple bodies, a dropdown in their top-right corner allows you to switch between them.

../_images/profiler-report-pages-section-bodies.png

Sections with multiple bodies have a dropdown to switch between them.

Memory

If enabled, the Memory Workload Analysis section contains a Memory chart that visualizes data transfers, cache hit rates, instructions and memory requests. More information on how to use and read this chart can be found in the Kernel Profiling Guide.

Occupancy

You can open the Occupancy Calculator by clicking on the calculator button in the report header or in the header of the Occupancy Section.

Range Replay

Note that for Range Replay results some UI elements, analysis rules, metrics or section body items such as charts or tables might not be available, as they only apply to kernel launch-based results. The filters can be checked in the corresponding section files.

Rooflines

If enabled, the GPU Speed Of Light Roofline Chart section contains a Roofline chart that is particularly helpful for visualizing kernel performance at a glance. (To enable roofline charts in the report, ensure that the section is enabled when profiling.) More information on how to use and read this chart can be found in Roofline Charts. NVIDIA Nsight Compute ships with several different definitions for roofline charts, including hierarchical rooflines. These additional rooflines are defined in different section files. While not part of the full section set, a new section set called roofline was added to collect and show all rooflines in one report. The idea of hierarchical rooflines is that they define multiple ceilings that represent the limiters of a hardware hierarchy. For example, a hierarchical roofline focusing on the memory hierarchy could have ceilings for the throughputs of the L1 cache, L2 cache and device memory. If the achieved performance of a kernel is limited by one of the ceilings of a hierarchical roofline, it can indicate that the corresponding unit of the hierarchy is a potential bottleneck.

../_images/profiler-report-pages-section-rooflines.png

Sample roofline chart.

The roofline chart can be zoomed and panned for more effective data analysis, using the controls in the table below. When the Metric Details tool window is open, you can click on an achieved value in the chart to see its metric formula in the tool window.

Table 3. Roofline Chart Zoom and Pan Controls

Zoom In

Zoom Out

Zoom Reset

Pan

  • Click the Zoom In button in the top right corner of the chart.

  • Click the left mouse button and drag to create a rectangle that bounds the area of interest.

  • Press the plus (+) key.

  • Use Ctrl + MouseWheel (Windows and Linux only)

  • Click the Zoom Out button in the top right corner of the chart.

  • Click the right mouse button.

  • Press the minus (-) key.

  • Use Ctrl + MouseWheel (Windows and Linux only)

  • Click the Zoom Reset button in the top right corner of the chart.

  • Press the Escape (Esc) key.

  • Use Ctrl (Command on Mac) + LeftMouseButton to grab the chart, then move the mouse.

  • Use the cursor keys.

Source

Sections such as Source Counters can contain source hot spot tables. These tables indicate the N highest or lowest values of one or more metrics in your kernel source code. Select the location links to navigate directly to this location in the Source Page. Hover the mouse over a value to see which metrics contribute to it.

../_images/profiler-report-pages-details-source-table.png

Hot spot tables point out performance problems in your source.

Timelines

When collecting metrics with PM sampling, they can be viewed in a timeline. The timeline shows metrics selected in the respective section file or on the command line with their labels/names and their values over time.

Different metrics may be collected in different passes (replays) of the workload, as only a limited number of them can be sampled in the same pass. Context switch trace is used to filter the collected data to only include samples from the profiled contexts and to align it in the timeline.

You can hover the mouse over a metric row label to see further information on the metrics in the row. Hovering over a sample on the timeline shows the metric values at that timestamp within the current row. With the Metric Details tool window open, click to select a value on the timeline and show the metric and all its raw timestamps (absolute and relative) correlated values in the tool window.

You can also use the Metric Details tool window to inspect profiler metrics generated during PM sampling. These provide information about the used sampling intervals, buffer sizes, dropped samples and other properties for each collection pass. A detailed list can be found in the metrics reference.

The timeline has a context menu for further actions regarding copying content and zooming. In addition, the Enable/Disable Context Switch Filter option can be used to enable or disable the filtering of the timeline data with context switch information, if it is available. When the context switch filter is enabled (the default), samples from each pass group are only shown for the active contexts. When the context switch filter is disabled, the raw collected sampling data is shown along with a separate row for each pass group’s context switch trace.

When the context menu option is not available, the report does not include context switch trace data. In this case, the option Enable/Disable Trim Filter is shown instead, which, when enabled, tries to align based on the first non-zero value in any sampling metric in this pass group. However, this fallback does not take into account actual context switches.

The timeline row Workload Execution shows each kernel’s start and end timestamp. When the context switch filter is enabled, kernel execution is only shown for one of the passes for the active contexts. When the context switch filter is disabled, kernel execution is shown for all the passes.

Source Page

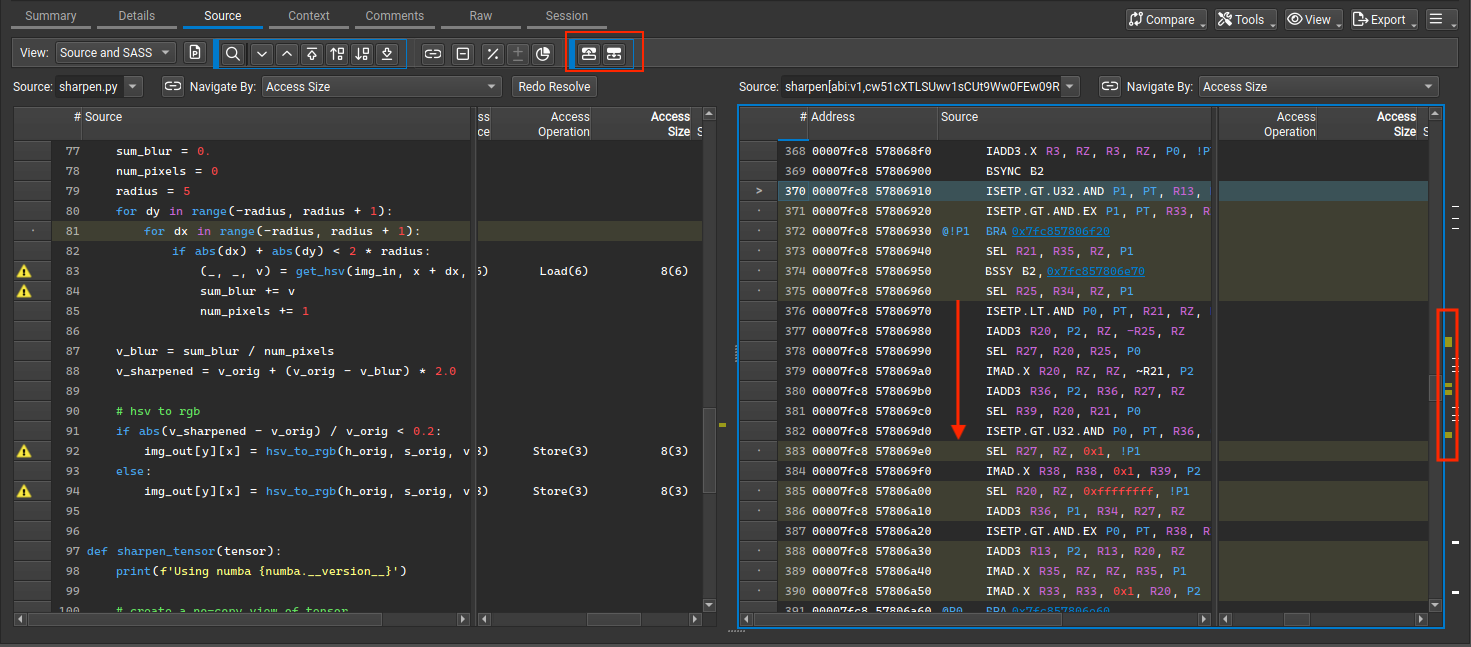

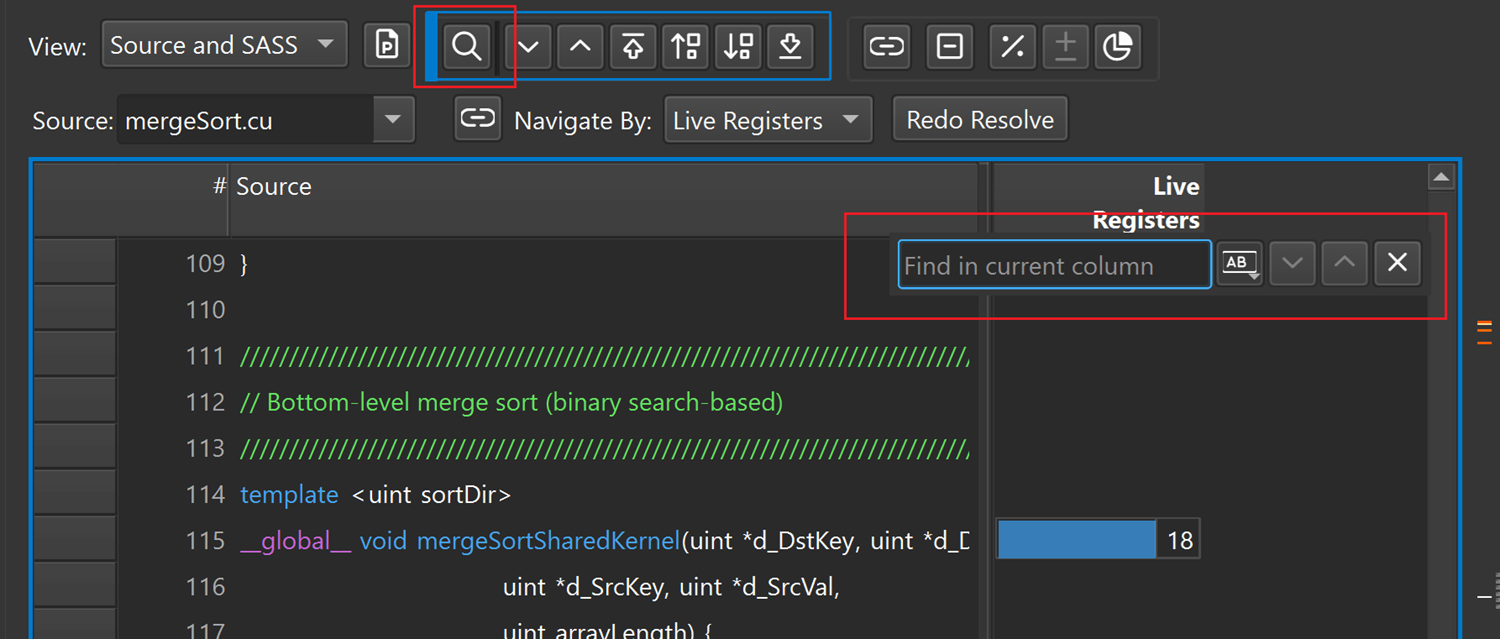

The Source page correlates assembly (SASS) with high-level code such as CUDA-C, Python or PTX. In addition, it displays instruction-correlated metrics to help pinpoint performance problems in your code.

../_images/profiler-report-pages-source.png

Source Correlation

The page can be switched between different Views to focus on a specific source layer or see two layers side-by-side. This includes SASS, PTX and Source (CUDA-C, Fortran, Python, …), as well as their combinations. Which options are available depends on the source information embedded into the executable.

The high-level Source (CUDA-C) view is available if the application was built with the -lineinfo or --generate-line-info nvcc flag to correlate SASS and source. When using separate linking at the ELF level, there is no PTX available in the ELF that would correspond to the final SASS. As such, NVIDIA Nsight Compute does not show any PTX even though it would be available statically in the executable and could be shown with cuobjdump -all -lptx. However, this is a pre-linked version of the PTX and cannot be reliably used for correlation.

Metrics

Metrics Correlation

The page is most useful when inspecting performance information and metrics correlated with your code. Metrics are shown in columns, which can be enabled or disabled using the Column Chooser accessible using the column header right click menu.

../_images/profiler-report-pages-source-column-chooser.png

Column Chooser

To not move out of view when scrolling horizontally, columns can be fixed. By default, the Source column is fixed to the left, enabling easy inspection of all metrics correlated to a source line. To change fixing of columns, right click the column header and select Freeze or Unfreeze, respectively.

../_images/profiler-report-pages-fix-column.png

Column Freezing/Unfreezing

The heatmap on the right-hand side of each view can be used to quickly identify locations with high metric values of the currently selected metric in the dropdown. The heatmap uses a black-body radiation color scale where black denotes the lowest mapped value and white the highest, respectively. The current scale is shown when clicking and holding the heatmap with the right mouse button.

../_images/profiler-report-pages-source-heatmap.png

Heatmap Color Scale

By default, applicable metrics are shown as percentage values relative to their sum across the launch. A bar is filling from left to right to indicate the value at a specific source location relative to this metric’s maximum within the launch. The [%] and [+-] buttons can be used to switch the display from relative to absolute and from abbreviated absolute to full-precision absolute, respectively. For relative values and bars, the [circle/pie] button can be used to switch the display between relative to global (launch) and relative to local (function/file) scope. This button is disabled when the view is collapsed, as percentages are always relative to the global launch scope in this case.

../_images/profiler-report-pages-source-rel-abs.png

Relative and Absolute Metric Values.

Pre-Defined Source Metrics

  • Live Registers

    Number of registers that need to be kept valid by the compiler. A high value indicates that many registers are required at this code location, potentially increasing the register pressure and the maximum number of register required by the kernel.

    The total number of registers reported as launch__registers_per_thread may be significantly higher than the maximum live registers. The compiler may need to allocate specific registers that can creates holes in the allocation, thereby affecting launch__registers_per_thread, even if the maximum live registers is smaller. This may happen due to ABI restrictions, or restrictions enforced by particular hardware instructions. The compiler may not have a complete picture of which registers may be used in either callee or caller and has to obey ABI conventions, thereby allocating different registers even if some register could have theoretically been re-used.

  • Warp Stall Sampling (All Samples)1

    The number of samples from the Statistical Sampler at this program location.

  • Warp Stall Sampling (Not-issued Samples)2

    The number of samples from the Statistical Sampler at this program location on cycles the warp scheduler issued no instructions. Note that (Not Issued) samples may be taken on a different profiling pass than (All) samples mentioned above, so their values do not strictly correlate.

    This metric is only available on devices with compute capability 7.0 or higher.

  • Instructions Executed

    Number of times the source (instruction) was executed per individual warp, independent of the number of participating threads within each warp.

  • Thread Instructions Executed

    Number of times the source (instruction) was executed by any thread, regardless of predicate presence or evaluation.

  • Predicated-On Thread Instructions Executed

    Number of times the source (instruction) was executed by any active, predicated-on thread. For instructions that are executed unconditionally (i.e. without predicate), this is the number of active threads in the warp, multiplied with the respective Instructions Executed value.

  • Avg. Threads Executed

    Average number of thread-level executed instructions per warp, regardless of their predicate.

  • Avg. Predicated-On Threads Executed

    Average number of predicated-on thread-level executed instructions per warp.

  • Divergent Branches

    Number of divergent branch targets, including fallthrough. Incremented only when there are two or more active threads with divergent targets. Divergent branches can lead to warp stalls due to resolving the branch or instruction cache misses.

  • Information on Memory Operations

    Label

    Name

    Description

    Address Space

    memory_type

    The accessed address space (global/local/shared).

    Access Operation

    memory_access_type

    The type of memory access (e.g. load or store).

    Access Size

    memory_access_size_type

    The size of the memory access, in bits.

    L1 Tag Requests Global

    memory_l1_tag_requests_global

    Number of L1 tag requests generated by global memory instructions.

    L1 Conflicts Shared N-Way

    derived__memory_l1_conflicts_shared_nway

    Average N-way conflict in L1 per shared memory instruction. A 1-way access has no conflicts and resolves in a single pass. Note: This is a derived metric which can not be collected directly.

    L1 Wavefronts Shared Excessive

    derived__memory_l1_wavefronts_shared_excessive

    Excessive number of wavefronts in L1 from shared memory instructions, because not all not predicated-off threads performed the operation. Note: This is a derived metric which can not be collected directly.

    L1 Wavefronts Shared

    memory_l1_wavefronts_shared

    Number of wavefronts in L1 from shared memory instructions.

    L1 Wavefronts Shared Ideal

    memory_l1_wavefronts_shared_ideal

    Ideal number of wavefronts in L1 from shared memory instructions, assuming each not predicated-off thread performed the operation.

    L2 Theoretical Sectors Global Excessive

    derived__memory_l2_theoretical_sectors_global_excessive

    Excessive theoretical number of sectors requested in L2 from global memory instructions, because not all not predicated-off threads performed the operation. Note: This is a derived metric which can not be collected directly.

    L2 Theoretical Sectors Global

    memory_l2_theoretical_sectors_global

    Theoretical number of sectors requested in L2 from global memory instructions.

    L2 Theoretical Sectors Global Ideal

    memory_l2_theoretical_sectors_global_ideal

    Ideal number of sectors requested in L2 from global memory instructions, assuming each not predicated-off thread performed the operation.

    L2 Theoretical Sectors Local

    memory_l2_theoretical_sectors_local

    Theoretical number of sectors requested in L2 from local memory instructions.

    All L1/L2 Sectors/Wavefronts/Requests metrics give the number of achieved (actually required), ideal, and excessive (achieved - ideal) sectors/wavefronts/requests. Ideal metrics indicate the number that would needed, given each not predicated-off thread performed the operation of given width. Excessive metrics indicate the required surplus over the ideal case. Reducing divergence between threads can reduce the excess amount and result in less work for the respective HW units.

Several of the above metrics on memory operations were renamed in version 2021.2 as follows:

Old name

New name

memory_l2_sectors_global

memory_l2_theoretical_sectors_global

memory_l2_sectors_global_ideal

memory_l2_theoretical_sectors_global_ideal

memory_l2_sectors_local

memory_l2_theoretical_sectors_local

memory_l1_sectors_global

memory_l1_tag_requests_global

memory_l1_sectors_shared

memory_l1_wavefronts_shared

memory_l1_sectors_shared_ideal

memory_l1_wavefronts_shared_ideal

  • L2 Explicit Evict Policy Metrics

    Starting with the NVIDIA Ampere architecture the eviction policy of the L2 cache can be tuned to match the kernel’s access pattern. The eviction policy can be either set implicitly for a memory window (for more details see CUaccessProperty) or set explicitly per executed memory instruction. If set explicitly, the desired eviction behavior for the cases of an L2 cache hit or miss are passed as input to the instruction. For more details refer to CUDA’s Cache Eviction Priority Hints.

    Label

    Name

    Description

    L2 Explicit Evict Policies

    smsp__inst_executed_memdesc_explicit_evict_type

    Comma separated list of configured explicit eviction policies. As the policies can be set dynamically at runtime, this list includes all policies that were part of any executed instruction.

    L2 Explicit Hit Policy Evict First

    smsp__inst_executed_memdesc_explicit_hitprop_evict_first

    Number of times a memory instruction was executed by any warp which had the evict_first policy set in case the access leads to a cache hit in L2. Data cached with this policy will be first in the eviction priority order and will likely be evicted when cache eviction is required. This policy is suitable for streaming data.

    L2 Explicit Hit Policy Evict Last

    smsp__inst_executed_memdesc_explicit_hitprop_evict_last

    Number of times a memory instruction was executed by any warp which had the evict_last policy set in case the access leads to a cache hit in L2. Data cached with this policy will be last in the eviction priority order and will likely be evicted only after other data with evict_normal or evict_first eviction policy is already evicted. This policy is suitable for data that should remain persistent in cache.

    L2 Explicit Hit Policy Evict Normal

    smsp__inst_executed_memdesc_explicit_hitprop_evict_normal

    Number of times a memory instruction was executed by any warp which had the evict_normal (default) policy set in case the access leads to a cache hit in L2.

    L2 Explicit Hit Policy Evict Normal Demote

    smsp__inst_executed_memdesc_explicit_hitprop_evict_normal_demote

    Number of times a memory instruction was executed by any warp which had the evict_normal_demote policy set in case the access leads to a cache hit in L2.

    L2 Explicit Miss Policy Evict First

    smsp__inst_executed_memdesc_explicit_missprop_evict_first

    Number of times a memory instruction was executed by any warp which had the evict_first policy set in case the access leads to a cache miss in L2. Data cached with this policy will be first in the eviction priority order and will likely be evicted cache eviction is required. This policy is suitable for streaming data.

    L2 Explicit Miss Policy Evict Normal

    smsp__inst_executed_memdesc_explicit_missprop_evict_normal

    Number of times a memory instruction was executed by any warp which had the evict_normal (default) policy set in case the access leads to a cache miss in L2.

  • Individual Warp Stall Sampling Metrics

    All stall_* metrics show the information combined in Warp Stall Sampling individually. See Statistical Sampler for their descriptions.

  • See the Customization Guide on how to add additional metrics for this view and the Metrics Reference for further information on available metrics.

Register Dependencies

Dependencies between registers are displayed in the SASS view. When a register is read, all the potential addresses where it could have been written are found. The links between these lines are drawn in the view. All dependencies for registers, predicates, uniform registers and uniform predicates are shown in their respective columns.

../_images/profiler-report-pages-source-register-dependencies.png

The picture above shows some dependencies for a simple CUDA kernel. On the first row, which is line 9 of the SASS code, we can see writes on registers R2 and R3, represented by filled triangles pointing to the left. These registers are then read on lines 17, 20 and 23, and this is represented by regular triangles pointing to the right. There are also some lines where both types of triangles are on the same line, which means that a read and a write occured for the same register.

Dependencies across source files and functions are not tracked.

The Register Dependencies Tracking feature is enabled by default, but can be disabled completely in Tools > Options > Profile > Report Source Page > Enable Register Dependencies.

1

This metric was previously called Sampling Data (All).

2

This metric was previously called Sampling Data (Not Issued).

Profiles

The icon next to the View dropdown can be used to manage Source View Profiles.

../_images/profiler-report-pages-source-profiles-button.png

This button opens a dialog that shows you the list of saved source view profiles. Such profiles can be created using the Create button in the dialog. Profiles let you store the column properties of all views in the report to a file. Such properties include column visibility, freeze state, width, order and the selected navigation metric. A saved profile can be applied to any opened report using the Apply button. This updates the column properties mentioned above from the selected profile in all views.

../_images/profiler-report-pages-source-profiles.png

Profiles are useful for configuring views to your preferences, or for a certain use case. Start by choosing metric columns from the Column Chooser. Next, configure other properties like freezing column, changing width or order and setting a heatmap metric in the Navigation dropdown before creating the profile. Once a profile is created, you can always use this profile on any opened report to hide all non-required columns or to restore your configured properties. Simply select the profile from the source view profiles dialog and click the Apply button.

Note that the column properties are stored separately for each View in the profile and when applied, only those views will be updated which are present in the selected profile. You will not see the metric columns that are not available in your report even if those were configured to be visible in the source profile you have applied.

Additional Tables

Inline Functions Table

This table shows all call sites where the selected function from the Source view is inlined.

In the Source view, correlated metric values of every inline function source line are an aggregation of metric values of related SASS lines from all call sites. The table provides such SASS lines info for each call site individually to help in identifying which call site contributes how much to the overall metric values.

../_images/profiler-report-pages-inline-functions-table.png

Inline Functions Table

Source Markers Table

The code in the different Views can also contain warnings, errors or just notifications that are displayed as Source Markers in the left header, as shown below. These can be generated from multiple sources, but as of now only NvRules are supported.

../_images/profiler-report-pages-source-markers.png

Source Markers

This table shows all lines containing Source Markers in the open View. The user can click on the line number to navigate to the corresponding line in the view.

../_images/profiler-report-pages-source-markers-table.png

Source Markers Table

Statistics Table

This table allows the user to select multiple lines in the source code above and calculate a variety of statistics. They can be used to check if anything seems unusual, like an unexpected gap between minimum and maximum.

Cells will be empty if the metric has either not been collected or its statistical value is not meaningful in the context of the calculation. For example, a memory access or any other non-numeric metric can’t have a minimum or maximum since there is no defined order.

../_images/profiler-report-pages-source-statistics.png

Statistics Table

Limitations

Range Replay

When using Range Replay mode, instruction-level source metrics are not available.

Graph Profiling

When profiling complete CUDA graphs, instruction-level source metrics are not available.

Context Page

The CPU Call Stack section of this report page shows the CPU call stack(s) for the executing CPU thread at the time the kernel was launched. For this information to show up in the profiler report, the option to collect CPU call stacks had to be enabled in the Connection Dialog or using the corresponding NVIDIA Nsight Compute CLI command line parameter.

../_images/profiler-report-pages-callstack.png

NVIDIA Nsight Compute supports to collect native CPU call stacks as well as call stacks for Python applications. Either or both types can be selected in the Activity menu of the Connection Dialog (via the “CPU Call Stack Types” option), or using the NVIDIA Nsight Compute CLI command line parameter –call-stack-type. In case both types are enabled, a dropdown menu will appear to select the desired call stack type.

../_images/profiler-report-pages-callstack-python.png

Note that Python call stack collection requires CPython version 3.9 or later.

The NVTX State section of this report page shows the NVTX context when the kernel was launched. All thread-specific information is with respect to the thread of the kernel’s launch API call. Note that NVTX information is only collected if the profiler is started with NVTX support enabled, either in the Connection Dialog or using the NVIDIA Nsight Compute CLI command line parameter.

../_images/profiler-report-pages-nvtx.png

This page has been renamed from “Call Stack / NVTX Page”.

Comments Page

The Comments page aggregates all section comments in a single view and allows the user to edit those comments on any launch instance or section, as well as on the overall report. Comments are persisted with the report. If a section comment is added, the comment icon of the respective section in the Details Page will be highlighted.

Raw Page

The Raw page shows a list of all collected metrics with their units per profiled kernel launch. It can be exported, for example, to CSV format for further analysis. The page features a filter edit to quickly find specific metrics. You can transpose the table of kernels and metrics by using the Transpose button.

If a metric has multiple instance values, the number of instances is shown after the standard value. This metric for example has ten instance values: 35.48 {10}. You can select in the Profile options dialog that all instance values should be shown individually or inspect the metric result in the Metric Details tool window.

Session Page

This Session page contains basic information about the report and the machine, as well as device attributes of all devices for which launches were profiled. When switching between launch instances, the respective device attributes are highlighted.

3.6.3. Metrics and Units

Numeric metric values are shown in various places in the report, including the header and tables and charts on most pages. NVIDIA Nsight Compute supports various ways to display those metrics and their values.

When available and applicable to the UI component, metrics are shown along with their unit. This is to make it apparent if a metric represents cycles, threads, bytes/s, and so on. The unit will normally be shown in rectangular brackets, e.g. Metric Name [bytes] 128.

By default, units are scaled automatically so that metric values are shown with a reasonable order of magnitude. Units are scaled using their SI-factors, i.e. byte-based units are scaled using a factor of 1000 and the prefixes K, M, G, etc. Time-based units are also scaled using a factor of 1000, with the prefixes n, u and m. This scaling can be disabled in the Profile options.

Metrics which could not be collected are shown as n/a and assigned a warning icon. If the metric floating point value is out of the regular range (i.e. nan (Not a number) or inf (infinite)), they are also assigned a warning icon. The exception are metrics for which these values are expected and which are allow-listed internally.

3.6.4. Filtered Profiler Report

A filtered profiler report is a subset of the full profiler report. You can save filtered or selected results from the full profiler report to a new file. To save the filtered results, you can use the File > Save Filtered Results As menu option, which will save the Filtered Results to a new file. Alternatively, you can select one or more results on the Summary Page or Raw Page and save them to a new file using the File > Save Selected Results As menu option or the right-click Save Result(s) menu option.

3.7. Baselines

NVIDIA Nsight Compute supports diffing collected results across one or multiple reports using Baselines. Each result in any report can be promoted to a baseline. This causes metric values from all results in all reports to show the difference to the baseline. If multiple baselines are selected simultaneously, metric values are compared to the average across all current baselines. Baselines are not stored with a report and are only available as long as the same NVIDIA Nsight Compute instance is open, unless they are saved to a ncu-bln file from the Baselines tool window.

../_images/baselines.png

Profiler report with one baseline

Select Add Baseline to promote the current result in focus to become a baseline. If a baseline is set, most metrics on the Details Page, Raw Page and Summary Page show two values: the current value of the result in focus, and the corresponding value of the baseline or the percentage of change from the corresponding baseline value. (Note that an infinite percentage gain, inf%, may be displayed when the baseline value for the metric is zero, while the focus value is not.)

If multiple baselines are selected, each metric will show the following notation:

<focus value> (<difference to baselines average [%]>, z=<standard score>@<number of values>)

The standard score is the difference between the current value and the average across all baselines, normalized by the standard deviation. If the number of metric values contributing to the standard score equals the number of results (current and all baselines), the @<number of values> notation is omitted.

../_images/baselines-multiple.png

Profiler report with multiple baselines

Baseline added for the current result in focus is always shown on the top. However, the actual order of added baselines is shown in the Baselines tool window.

../_images/baselines-tool-window.png

Baselines tool window with mutliple baselines

Double-clicking on a baseline name allows the user to edit the displayed name. Edits are committed by pressing Enter/Return or upon loss of focus, and abandoned by pressing Esc. Hovering over the baseline color icon allows the user to remove this specific baseline from the list.

Use the Clear Baselines entry from the dropdown button, the Profile menu, or the corresponding toolbar button to remove all baselines.

Baseline changes can also be made in the Baselines tool window.

3.8. Standalone Source Viewer

NVIDIA Nsight Compute includes a standalone source viewer for cubin files. This view is identical to the Source Page, except that it won’t include any performance metrics.

Cubin files can be opened from the File > Open main menu command. The SM Selection dialog will be shown before opening the standalone source view. If available, the SM version present in the file name is pre-selected. For example, if your file name is mergeSort.sm_80.cubin then SM 8.0 will be pre-selected in the dialog. Choose the appropriate SM version from the drop down menu if it’s not included in the file name.

../_images/sm-selection-dialog.png

SM Selection Dialog

Click Ok button to open Standalone Source Viewer.

../_images/cubin-viewer.png

Standalone Source Viewer

3.9. Source Comparison

Source comparison provides a way to see the source files of two profile results side by side. It enables to quickly identify source differences and understand changes in metric values.

To compare two results side by side add one result as a baseline, navigate to the other result, and then click the Source Comparison button located in the report header.

For example, if you want to compare kernel XYZ from report R1 with kernel XYZ from report R2, first open report R1, add the profile result for kernel XYZ as baseline, open report R2, choose kernel XYZ, and then click the Source Comparison button.

Source comparison will be shown only with first added baseline result.

../_images/source-comparison-from-header.png

Source Comparison Button

../_images/source-comparison-document.png

Source Comparison

Currently only high-level Source (CUDA-C) view and SASS view are supported for comparison.

Navigation to the previous or next difference is supported using the navigation buttons or the keyboard shortcuts Ctrl + 1 and Ctrl + 2.

../_images/source-comparison-navigation-buttons.png

Source Comparison Navigation Buttons

3.10. Occupancy Calculator

NVIDIA Nsight Compute provides an Occupancy Calculator that allows you to compute the multiprocessor occupancy of a GPU for a given CUDA kernel. It offers feature parity to the CUDA Occupancy Calculator spreadsheet.

The Occupancy Calculator can be opened directly from a profile report or as a new activity. The occupancy calculator data can be saved to a file using File > Save. By default, the file uses the .ncu-occ extension. The occupancy calculator file can be opened using File > Open File

  1. Launching from the Connection Dialog

    Select the Occupancy Calculator activity from the connection dialog. You can optionally specify an occupancy calculator data file, which is used to initialize the calculator with the data from the saved file. Click the Launch button to open the Occupancy Calculator.

    ../_images/occupancy-calculator-activity.png
  2. Launching from the Profiler Report

    The Occupancy Calculator can be opened from the Profiler Report using the calculator button located in the report header or in the header of the Occupancy section on the Detail Page.

    ../_images/occupancy-calculator-from-header.png

    Details page header

    ../_images/occupancy-calculator-from-section.png

    Occupancy section header

The user interface consists of an input section as well as tables and graphs that display information about GPU occupancy. To use the calculator, change the input values in the input section, click the Apply button and examine the tables and graphs.

3.10.1. Tables

The tables show the occupancy, as well as the number of active threads, warps, and thread blocks per multiprocessor, and the maximum number of active blocks on the GPU.

../_images/occupancy-calculator-tables.png

Tables

3.10.2. Graphs

The graphs show the occupancy for your chosen block size as a blue circle, and for all other possible block sizes as a line graph.

../_images/occupancy-calculator-graphs.png

Graphs

3.10.3. GPU Data

The GPU Data shows the properties of all supported devices.

../_images/occupancy-calculator-gpu-data.png

GPU Data

3.11. Green Contexts support

NVIDIA Nsight Compute provides a number of features to ease the analysis of applications using CUDA Green Contexts, see the Kernel Profiling Guide for an overview about profiling such applications.

To identify Green Context results quickly, the icon of the Attributes button in the Profiler Report Header turns into a leaf for Green Context results. Clicking on this button navigates to the Launch Statistics section of the result (if available), which contains additional metrics related to the Green Context (e.g., its ID and the number of SMs used). Some of this information is also available from the tooltip when hovering over the Attributes button.

To distinguish between Green-Contexts attributable and non-attributable metrics when navigating the Details page, Green Context markers may be used. These can be toggled via the View menu of the Report Header and adds a leaf icon behind attributable metrics in all section headers. When hovering over attributable metrics, the tooltip also shows a hint about the scaling of such metrics. Additionally, the Metrics Details tool window shows an Attribution row for metrics of Green Context results.

../_images/green-contexts-details-page.png

Details page of a Green Context result showing Attributes tooltip, Metrics Details tool window and Green Context markers.

When profiling Green Context applications interactively, the Resources tool window also allows to track the state of all Green Contexts, and their associated streams.

../_images/green-contexts-resource-tool-window.png

3.12. Acceleration Structure Viewer

The Acceleration Structure Viewer allows inspection of acceleration structures built using the OptiX API. In modern ray tracing APIs like OptiX, acceleration structures are data structures describing the rendered scene’s geometries that will be intersected when performing ray tracing operations. More information concerning acceleration structures can be found in the OptiX programming guide.

It is the responsibility of the user to set these up and pass them to the OptiX API which translates them to internal data structures that perform well on modern GPUs. The description created by the user can be very error-prone and it is sometimes hard to understand why the rendered result is not as expected. The Acceleration Structure Viewer is a component allowing OptiX users to inspect the acceleration structures they build before launching a ray tracing pipeline.

The Acceleration Structure Viewer is opened through a button in the Resources window. The button will only be available when the currently viewed resource is OptiX: TraversableHandles. It opens the currently selected handle.

../_images/as-viewer-open-button.png

The viewer is multi-paned: it shows a hierarchical view of the acceleration structure on the left, a graphical view of the acceleration structure in the middle, and controls and options on the right. In the hierarchical tree view on the left of the viewer the instance acceleration structures (IAS), geometry acceleration structures (GAS), child instances and child geometries are shown. In addition to this, some general properties for each of them is shown such as their primitive count, surface area and size on the device.

../_images/as-viewer.png

In the hierarchical view on the left of the Acceleration Structure Viewer, the following information is displayed where applicable.

Table 4. Acceleration Structure Hierarchical Columns

Column

Description

Name

An identifier for each row in the hierarchy. Click on the check box next to the name to show or hide the selected geometry or hierarchy. Double-click on this entry to jump to the item in the rendering view.

# Prims

The number of primitives that make up this acceleration structure.

Surface Area

A calculation of the total surface area for the AABB that bounds the particular entry.

Size

The size of the output buffer on the device holding this acceleration structure.

Performance analysis tools are accessible in the bottom left corner on the main view. These tools help identify potential performance problems that are outlined in the RTX Ray Tracing Best Practices Guide. These analysis tools aim to give a broad picture of acceleration structures that may exhibit sub-optimal performance. To find the most optimal solution, profiling and experimentation is recommended but these tools may paint a better picture as to why one structure performs poorly compared to another.

Table 5. Acceleration Structure Analysis Tools

Action

Description

Instance Overlaps

Identifies instance AABBs that overlap with other instances in 3D. Consider merging GASes when instance world-space AABBs overlap significantly to potentially increase performance.

Instance Heatmap

This allows you to set the threshold used by the AABB heatmap rendered in the visualizer.

3.12.1. Navigation

The Acceleration Structure Viewer supports multiple navigation modes. The navigation mode can be changed using the combo box in the camera controls pane, to the right of the rendering pane. The keyboard and mouse bindings for each mode are as follows:

Table 6. Acceleration Structure Key Bindings

Binding

Fly Camera

Dolly Camera

Orbit Camera

WASD/Arrow Keys

Move forward, backward, left, right

Move forward, backward, left, right

Track (Move up, down, left, right)

E/Q

Move up/down

Move up/down

n/a

Z/C

Increase/decrease field of view

Increase/decrease field of view

Increase/decrease field of view

Shift/Ctrl

Move faster/slower

Move faster/slower

Move faster/slower

Mousewheel

Zoom in/out

Zoom in/out

Zoom in/out

LMB + Drag

Rotate in place

Rotate left/right, move forward/backward

Rotate around the geometry

RMB + Drag

Zoom in/out

Rotate in place

Zoom in/out

MMB + Drag

Track (Move up, down, left, right)

Track (Move up, down, left, right)

Track (Move up, down, left, right)

Alt

Temporarily switch to Orbit Camera

Temporarily switch to Orbit Camera

n/a

F/Double Click

Focus on the selected geometry

Focus on the selected geometry

Focus on the selected geometry

Based on the coordinate system of the input geometry, you may need to change the Up Direction setting to Z-Axis or the Coordinates setting to RHS. To reset the camera to its original location, click Reset Camera.

There are also a selection of Camera Controls for fast and precise navigation. To save a position, use the bookmarks controls. Each node within the acceleration structure hierarchy can also be double-clicked to quickly navigate to that location.

../_images/as-viewer-cam.png

3.12.2. Filtering and Highlighting

The acceleration structure view supports acceleration structure filtering as well as highlighting of data matching particular characteristics. The checkboxes next to each geometry allow users to toggle the rendering of each traversable.

Geometry instances can also be selected by clicking on them in the main graphical view. Additionally, right clicking in the main graphical view gives options to hide or show all geometry, hide the selected geometry, or hide all but the selected geometry.

../_images/as-viewer-display-filter.png

Beyond filtering, the view also supports highlight-based identification of geometry specified with particular flags. Checking each highlight option will identify those resources matching that flag, colorizing for easy identification. Clicking an entry in this section will dim all geometry that does not meet the filter criteria allowing items that match the filter to standout. Selecting multiple filters requires the passing geometry to meet all selected filters (e.g., AND logic). Additionally, the heading text will be updated to reflect the number of items that meet this filter criteria.

../_images/as-viewer-property-filter.png

3.12.3. Rendering Options

Under the highlight controls, additional rendering options are available. These include methods to control the geometry colors and the ability to toggle the drawing of wireframes for meshes and AABBs.

../_images/as-viewer-rendering-options.png

3.12.4. Exporting

The data displayed in the acceleration structure viewer document can be saved to file. Exporting an Acceleration Structure Viewer document allows for persisting the data you have collected beyond the immediate analysis session. This capability is particularly valuable for comparing different revisions of your geometry or sharing with others. Bookmarks are persisted as well.

3.13. Options

NVIDIA Nsight Compute options can be accessed via the main menu under Tools > Options. All options are persisted on disk and available the next time NVIDIA Nsight Compute is launched. When an option is changed from its default setting, its label will become bold. You can use the Restore Defaults button to restore all options to their default values.

../_images/options-profile.png

Profile options

3.13.1. Profile

Table 7. NVIDIA Nsight Compute Profile Options

Name

Description

Values

Sections Directory

Directory from which to import section files and rules. Relative paths are with respect to the NVIDIA Nsight Compute installation directory.

Include Sub-Directories

Recursively include section files and rules from sub-directories.

Yes (Default)/No

Apply Applicable Rules Automatically

Automatically apply active and applicable rules.

Yes (Default)/No

Reload Rules Before Applying

Force a rule reload before applying the rule to ensure changes in the rule script are recognized.

Yes/No (Default)

Default Report Page

The report page to show when a report is generated or opened. Auto lets the tool decide the best page to show when opening a report.

  • Session

  • Summary

  • Details

  • Source

  • Comments

  • Call Stack/NVTX

  • Raw

  • Auto (default)

Function Name Mode

Determines how function/kernel names are shown.

  • Auto (default): each component uses its preferred mode

  • Demangled: kernel names are shown demangled with all parameters

  • Function: kernel names are shown with their demangled function name without parameters

  • Mangled: kernel names are shown with their mangled name, if applicable

NVTX Rename Mode

Determines how NVTX information is used for renaming. Range replay results are always renamed when possible.

  • None: no renaming

  • Kernel: kernel names are renamed using the most recent enclosing push/pop range

  • Resources (default): resources like CPU threads or CUDA contexts and streams are renamed

  • All: Kernel and Resources

Show Metrics Aggregation

Show aggregate of all results per each counter metric in the table header. Also, show aggregated value of all randomly selected metrics from summary or raw page table in the bottom-right label.

Yes (Default)/No

Rename Demangled Names

Perform auto-simplification on kernel demangled names or import renamed names from a configuration file. See more unique keywords in kernel demangled names first while expanding the column.

Yes (Default)/No

Rename Kernels Config Path

Use a configuration file to rename multiple demangled names. Also, export demangled names from the report to the specified file with mappings for renaming them.

ncu-kernel-renames.yaml

Maximum Baseline Name Length

The maximum length of baseline names.

1..N (Default: 40)

Number of Full Baselines to Display

Number of baselines to display in the report header with all details in addition to the current result or the baseline added for the current result

0..N (Default: 2)

Auto-Convert Metric Units

Auto-adjust displayed metric units and values (e.g. Bytes to KBytes).

Yes (Default)/No

Show Instanced Metric Values

Show the individual values of instanced metrics in tables.

Yes/No (Default)

Show Metrics As Floating Point

Show all numeric metrics as floating-point numbers.

Yes/No (Default)

Show Knowledge Base Information

Show information from the knowledge base in (metric) tooltips to explain terminology. Note: Nsight Compute needs to be restarted for this option to take effect.

Yes (Default)/No

Metrics/Properties

List of metrics and properties to show on the summary page. Comma-separated list of metric entries. Each entry has the format {Label:MetricName}.

Delay Load ‘Source’ Page

Delays loading the content of the report page until the page becomes visible. Avoids processing costs and memory overhead until the report page is opened.

Yes/No (Default)

Show Single File For Multi-File Sources

Shows a single file in each Source page view, even for multi-file sources.

Yes/No (Default)

Show Only Executed Functions

Shows only executed functions in the source page views. Disabling this can impact performance.

Yes (Default)/No

Auto-Resolve Remote Source Files

Automatically try to resolve remote source files on the source page (e.g. via SSH) if the connection is still registered.

Yes/No (Default)

Enable Register Dependencies

Track dependencies between SASS registers/predicates and display them in the SASS view.

Yes (Default)/No

Kernel Analysis Size Threshold (KB)

Enable SASS flow graph analysis for functions below this threshold. SASS analysis is required for Live Register and Register Dependency information. Set to -1 to enable analysis for all functions.

-1..N (Default: 1024)

Enable ELF Verification

Enable ELF (cubin) verification to run every time before SASS analysis. This should only be enabled when working with applications compiled before CUDA 11.0 or when encountering source page issues.

Yes/No (Default)

API Call History

Number of recent API calls shown in API Stream View.

1..N (Default: 100)

3.13.2. Environment

Table 8. NVIDIA Nsight Compute Environment Options

Name

Description

Values

Color Theme

The currently selected UI color theme.

  • Dark (Default)

  • Light

Mixed DPI Scaling

Disable Mixed DPI Scaling if unwanted artifacts are detected when using monitors with different DPIs.

  • Auto (Default)

  • Off

Default Document Folder

Directory where documents unassociated with a project will be saved.

At Startup

What to do when NVIDIA Nsight Compute is launched.

  • Show welcome page (Default)

  • Show quick launch dialog

  • Load last project

  • Show empty environment

Show version update notifications

Show notifications when a new version of this product is available.

  • Yes (Default)

  • No

3.13.3. Connection

Connection properties are grouped into Target Connection Options and Host Connection Properties.

Target Connection Properties

The Target Connection Properties determine how the host connects to the target application during an Interactive Profile Activity. This connection is used to transfer profile information to the host during the profile session.

Table 9. NVIDIA Nsight Compute Target Connection Properties

Name

Description

Values

Base Port

Base port used to establish a connection from the host to the target application during an Interactive Profile activity (both local and remote).

1-65535 (Default: 49152)

Maximum Ports

Maximum number of ports to try (starting from Base Port) when attempting to connect to the target application.

2-65534 (Default: 64)

Host Connection Properties

The Host Connection Properties determine how the command line profiler will connect to the host application during a Profile Activity. This connection is used to transfer profile information to the host during the profile session.

Table 10. NVIDIA Nsight Compute Host Connection Options

Name

Description

Values

Base Port

Base port used to establish a connection from the command line profiler to the host application during a Profile activity (both local and remote).

1-65535 (Default: 50152)

Maximum Ports

Maximum number of ports to try (starting from Base Port) when attempting to connect to the host application.

1-100 (Default: 10)

3.13.4. Source Lookup

Table 11. NVIDIA Nsight Compute Source Lookup Options

Name

Description

Values

Program Source Locations

Set program source search paths. These paths are used to resolve CUDA-C source files on the Source page if the respective file cannot be found in its original location. Files which cannot be found are marked with a File Not Found error. See the Ignore File Properties option for files that are found but don’t match.

Ignore File Properties

Ignore file properties (e.g. timestamp, size) for source resolution. If this is disabled, all file properties like modification timestamp and file size are checked against the information stored by the compiler in the application during compilation. If a file with the same name exists on a source lookup path, but not all properties match, it won’t be used for resolution (and a File Mismatch error will be shown).

Yes/No (Default)

3.13.5. Send Feedback

Table 12. NVIDIA Nsight Compute Send Feedback Options

Name

Description

Values

Collect Usage and Platform Data

Choose whether or not you wish to allow NVIDIA Nsight Compute to collect usage and platform data.

  • Yes

  • No (Default)

3.14. Projects

NVIDIA Nsight Compute uses Project Files to group and organize profiling reports. At any given time, only one project can be open in NVIDIA Nsight Compute. Collected reports are automatically assigned to the current project. Reports stored on disk can be assigned to a project at any time. In addition to profiling reports, related files such as notes or source code can be associated with the project for future reference.

Note that only references to reports or other files are saved in the project file. Those references can become invalid, for example when associated files are deleted, removed or not available on the current system, in case the project file was moved itself.

NVIDIA Nsight Compute uses the ncu-proj file extension for project files.

When no custom project is current, a default project is used to store e.g. the current Start Activity Dialog entries. To remove all information from the default project, you must close NVIDIA Nsight Compute and then delete the file from disk.

  • On Windows, the file is located at <USER>\AppData\Local\NVIDIA Corporation\NVIDIA Nsight Compute\

  • On Linux, the file is located at <USER>/.local/share/NVIDIA Corporation/NVIDIA Nsight Compute/

  • On MacOSX, the file is located at <USER>/Library/Application Support/NVIDIA Corporation/NVIDIA Nsight Compute/

3.14.1. Project Dialogs

New Project

Creates a new project. The project must be given a name, which will also be used for the project file. You can select the location where the project file should be saved on disk. Select whether a new directory with the project name should be created in that location.

3.14.2. Project Explorer

The Project Explorer window allows you to inspect and manage the current project. It shows the project name as well as all Items (profile reports and other files) associated with it. Right-click on any entry to see further actions, such as adding, removing or grouping items. Type in the Search project toolbar at the top to filter the currently shown entries.

../_images/projects-explorer.png

Project Explorer

3.15. Visual Profiler Transition Guide

This guide provides tips for moving from Visual Profiler to NVIDIA Nsight Compute. NVIDIA Nsight Compute tries to provide as much parity as possible with Visual Profiler’s kernel profiling features, but some functionality is now covered by different tools.

3.15.1. Trace

NVIDIA Nsight Compute does not support tracing GPU or API activities on an accurate timeline. This functionality is covered by NVIDIA Nsight Systems. In the Interactive Profile Activity, the API Stream tool window provides a stream of recent API calls on each thread. However, since all tracked API calls are serialized by default, it does not collect accurate timestamps.

3.15.2. Sessions

Instead of sessions, NVIDIA Nsight Compute uses Projects to launch and gather connection details and collected reports.

  • Executable and Import Sessions

    Use the Project Explorer or the Main Menu to create a new project. Reports collected from the command line, i.e. using NVIDIA Nsight Compute CLI, can be opened directly using the main menu. In addition, you can use the Project Explorer to associate existing reports as well as any other artifacts such as executables, notes, etc., with the project. Note that those associations are only references; in other words, moving or deleting the project file on disk will not update its artifacts.

    nvprof or command-line profiler output files, as well as Visual Profiler sessions, cannot be imported into NVIDIA Nsight Compute.

3.15.3. Timeline

Since trace analysis is now covered by Nsight Systems, NVIDIA Nsight Compute does not provide views of the application timeline. The API Stream tool window does show a per-thread stream of the last captured CUDA API calls. However, those are serialized and do not maintain runtime concurrency or provide accurate timing information.

3.15.4. Analysis

  • Guided Analysis

    All trace-based analysis is now covered by NVIDIA Nsight Systems. This means that NVIDIA Nsight Compute does not include analysis regarding concurrent CUDA streams or (for example) UVM events. For per-kernel analysis, NVIDIA Nsight Compute provides recommendations based on collected performance data on the Details Page. These rules currently require you to collect the required metrics via their sections up front, and do not support partial on-demand profiling.

    To use the rule-based recommendations, enable the respective rules in the Metric Selection. Before profiling, enable Apply Rules in the Profile Options, or click the Apply Rules button in the report afterward.

  • Unguided Analysis

    All trace-based analysis is now covered by Nsight Systems. For per-kernel analysis, Python-based rules provide analysis and recommendations. See Guided Analysis above for more details.

  • PC Sampling View

    Source-correlated PC sampling information can now be viewed in the Source Page. Aggregated warp states are shown on the Details Page in the Warp State Statistics section.

  • Memory Statistics

    Memory Statistics are located on the Details Page. Enable the Memory Workload Analysis sections to collect the respective information.

  • NVLink View

    NVLink topology diagram and NVLink property table are located on the Details Page. Enable the NVLink Topology and NVLink Table sections to collect the respective information.

    Refer to the Known Issues section for the limitations related to NVLink.

  • Source-Disassembly View

    Source correlated with PTX and SASS disassembly is shown on the Source Page. Which information is available depends on your application’s compilation/JIT flags.

  • GPU Details View

    NVIDIA Nsight Compute does not automatically collect data for each executed kernel, and it does not collect any data for device-side memory copies. Summary information for all profiled kernel launches is shown on the Summary Page. Comprehensive information on all collected metrics for all profiled kernel launches is shown on the Raw Page.

  • CPU Details View

    CPU callstack sampling is now covered by NVIDIA Nsight Systems.

  • OpenACC Details View

    OpenACC performance analysis with NVIDIA Nsight Compute is available to limited extent. OpenACC parallel regions are not explicitly recognized, but CUDA kernels generated by the OpenACC compiler can be profiled as regular CUDA kernels. See the NVIDIA Nsight Systems release notes to check its latest support status.

  • OpenMP Details View

    OpenMP performance analysis is not supported by NVIDIA Nsight Compute. See the NVIDIA Nsight Systems release notes to check its latest support status.

  • Properties View

    NVIDIA Nsight Compute does not collect CUDA API and GPU activities and their properties. Performance data for profiled kernel launches is reported (for example) on the Details Page.

  • Console View

    NVIDIA Nsight Compute does not currently collect stdout/stderr application output.

  • Settings View

    Application launch settings are specified in the Start Activity Dialog. For reports collected from the UI, launch settings can be inspected on the Session Page after profiling.

  • CPU Source View

    Source for CPU-only APIs is not available. Source for profiled GPU kernel launches is shown on the Source Page.

3.15.5. Command Line Arguments

Please execute ncu-ui with the -h parameter within a shell window to see the currently supported command line arguments for the NVIDIA Nsight Compute UI.

To open a collected profile report with ncu-ui, simply pass the path to the report file as a parameter to the shell command.

3.16. Visual Studio Integration Guide

This guide provides information on using NVIDIA Nsight Compute within Microsoft Visual Studio, using the NVIDIA Nsight Integration Visual Studio extension, allowing for a seamless development workflow.

3.16.1. Visual Studio Integration Overview

NVIDIA Nsight Integration is a Visual Studio extension that allows you to access the power of NVIDIA Nsight Compute from within Visual Studio.

When NVIDIA Nsight Compute is installed along with NVIDIA Nsight Integration, NVIDIA Nsight Compute activities will appear under the NVIDIA ‘Nsight’ menu in the Visual Studio menu bar. These activities launch NVIDIA Nsight Compute with the current project settings and executable.

For more information about using NVIDIA Nsight Compute from within Visual Studio, please visit

Notices

Notices

ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE.

Information furnished is believed to be accurate and reliable. However, NVIDIA Corporation assumes no responsibility for the consequences of use of such information or for any infringement of patents or other rights of third parties that may result from its use. No license is granted by implication of otherwise under any patent rights of NVIDIA Corporation. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all other information previously supplied. NVIDIA Corporation products are not authorized as critical components in life support devices or systems without express written approval of NVIDIA Corporation.

Trademarks

NVIDIA and the NVIDIA logo are trademarks or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.
