FasterRCNN
The dataset structure of FasterRCNN is identical to that of DetectNet_v2. The only difference is the command line used to generate the TFRecords from KITTI text labels. To generate TFRecords for FasterRCNN training, use this command:
tao faster_rcnn dataset_convert [-h] -d <dataset_spec>
-o <output_tfrecords_file>
[--gpu_index <gpu_index>]
Required Arguments
-d, --dataset_spec
: path to the dataset spec file.-o, --output_filename
: path to the output TFRecords file.
Optional Arguments
--gpu_index
: The GPU index to run this command on. We can specify the GPU index used to run this command if the machine has multiple GPUs installed. Note that this command can only run on a single GPU.
The experiments specification (spec file for short) defines all the necessary parameters required to
in the entire workflow of a FasterRCNN model, from training to export. Below is a sample of the
FasterRCNN spec file. The format of the spec file is a protobuf text (prototxt) message and each of
its fields can be either a basic data type or a nested proto message. The top level structure of the
spec file is summarized in the table below. From the table, we can see the spec file has 9 components:
random_seed
, verbose
, enc_key
, dataset_config
, augmentation_config
,
model_config
, training_config
, inference_config
and evaluation_config
.
Here’s a sample of the FasterRCNN spec file:
random_seed: 42
enc_key: 'nvidia_tlt'
verbose: True
model_config {
input_image_config {
image_type: RGB
image_channel_order: 'bgr'
size_height_width {
height: 384
width: 1248
}
image_channel_mean {
key: 'b'
value: 103.939
}
image_channel_mean {
key: 'g'
value: 116.779
}
image_channel_mean {
key: 'r'
value: 123.68
}
image_scaling_factor: 1.0
max_objects_num_per_image: 100
}
arch: "resnet:18"
anchor_box_config {
scale: 64.0
scale: 128.0
scale: 256.0
ratio: 1.0
ratio: 0.5
ratio: 2.0
}
freeze_bn: True
freeze_blocks: 0
freeze_blocks: 1
roi_mini_batch: 256
rpn_stride: 16
use_bias: False
roi_pooling_config {
pool_size: 7
pool_size_2x: False
}
all_projections: True
use_pooling:False
}
dataset_config {
data_sources: {
tfrecords_path: "/workspace/tao-experiments/tfrecords/kitti_trainval/kitti_trainval*"
image_directory_path: "/workspace/tao-experiments/data/training"
}
image_extension: 'png'
target_class_mapping {
key: 'car'
value: 'car'
}
target_class_mapping {
key: 'van'
value: 'car'
}
target_class_mapping {
key: 'pedestrian'
value: 'person'
}
target_class_mapping {
key: 'person_sitting'
value: 'person'
}
target_class_mapping {
key: 'cyclist'
value: 'cyclist'
}
validation_fold: 0
}
augmentation_config {
preprocessing {
output_image_width: 1248
output_image_height: 384
output_image_channel: 3
min_bbox_width: 1.0
min_bbox_height: 1.0
}
spatial_augmentation {
hflip_probability: 0.5
vflip_probability: 0.0
zoom_min: 1.0
zoom_max: 1.0
translate_max_x: 0
translate_max_y: 0
}
color_augmentation {
hue_rotation_max: 0.0
saturation_shift_max: 0.0
contrast_scale_max: 0.0
contrast_center: 0.5
}
}
training_config {
enable_augmentation: True
enable_qat: False
batch_size_per_gpu: 8
num_epochs: 12
retrain_pruned_model: "/workspace/tao-experiments/data/faster_rcnn/model_1_pruned.tlt"
output_model: "/workspace/tao-experiments/data/faster_rcnn/frcnn_kitti_resnet18_retrain.tlt"
rpn_min_overlap: 0.3
rpn_max_overlap: 0.7
classifier_min_overlap: 0.0
classifier_max_overlap: 0.5
gt_as_roi: False
std_scaling: 1.0
classifier_regr_std {
key: 'x'
value: 10.0
}
classifier_regr_std {
key: 'y'
value: 10.0
}
classifier_regr_std {
key: 'w'
value: 5.0
}
classifier_regr_std {
key: 'h'
value: 5.0
}
rpn_mini_batch: 256
rpn_pre_nms_top_N: 12000
rpn_nms_max_boxes: 2000
rpn_nms_overlap_threshold: 0.7
regularizer {
type: L2
weight: 1e-4
}
optimizer {
sgd {
lr: 0.02
momentum: 0.9
decay: 0.0
nesterov: False
}
}
learning_rate {
soft_start {
base_lr: 0.02
start_lr: 0.002
soft_start: 0.1
annealing_points: 0.8
annealing_points: 0.9
annealing_divider: 10.0
}
}
lambda_rpn_regr: 1.0
lambda_rpn_class: 1.0
lambda_cls_regr: 1.0
lambda_cls_class: 1.0
}
inference_config {
images_dir: '/workspace/tao-experiments/data/testing/image_2'
model: '/workspace/tao-experiments/data/faster_rcnn/frcnn_kitti_resnet18_retrain.epoch12.tlt'
batch_size: 1
detection_image_output_dir: '/workspace/tao-experiments/data/faster_rcnn/inference_results_imgs_retrain'
labels_dump_dir: '/workspace/tao-experiments/data/faster_rcnn/inference_dump_labels_retrain'
rpn_pre_nms_top_N: 6000
rpn_nms_max_boxes: 300
rpn_nms_overlap_threshold: 0.7
object_confidence_thres: 0.0001
bbox_visualize_threshold: 0.6
classifier_nms_max_boxes: 100
classifier_nms_overlap_threshold: 0.3
#trt_inference {
#trt_engine: '/workspace/tao-experiments/data/faster_rcnn/trt.int8.engine'
#}
}
evaluation_config {
model: '/workspace/tao-experiments/data/faster_rcnn/frcnn_kitti_resnet18_retrain.epoch12.tlt'
batch_size: 1
validation_period_during_training: 1
rpn_pre_nms_top_N: 6000
rpn_nms_max_boxes: 300
rpn_nms_overlap_threshold: 0.7
classifier_nms_max_boxes: 100
classifier_nms_overlap_threshold: 0.3
object_confidence_thres: 0.0001
use_voc07_11point_metric:False
#trt_evaluation {
#trt_engine: '/workspace/tao-experiments/data/faster_rcnn/trt.int8.engine'
#}
gt_matching_iou_threshold: 0.5
}
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
The random seed for the experiment. |
Unsigned int |
|
|
The encoding and decoding key for the TAO models, can be overridden by the command
line arguments of |
Str, should not be empty |
– |
|
Controls the logging level during the experiments. Will print more logs if True. |
Boolean(True or False) |
|
|
The configurations of the dataset, this is the same as |
proto message |
– |
|
The configuration of the data augmentation, same as DetectNet_v2. |
proto message |
– |
|
The configuration of the model architecture. |
proto message |
– |
|
The configurations for doing training with the model. |
proto message |
– |
|
The configuration for doing inference with the model. |
proto message |
– |
|
The configuration for doing evaluation with the model. |
proto message |
– |
Dataset
The dataset_config
defines the dataset of a FasterRCNN experiments (including training dataset and validation dataset).
The definition of FasterRCNN dataset is identical to that of DetectNet_v2. Check the DetectNet_v2
dataset_config
documentation for the details of this parameter.
Data augmentation
The augmentation_config
defines the data augmentation during the training of a FasterRCNN
model. The definition of FasterRCNN data augmentation is identical to that of DetectNet_v2.
Check the DetectNet_v2 augmentation_config
documentation for the details of this parameter.
Model architecture
The model_config
defines the FasterRCNN model architecture. In this parameter, we can choose
the backbone of the FasterRCNN model, enabling BatchNormalization layers or not, whether or not to
freeze the BatchNormalization layers during training, and whether or not to freeze some blocks in the model
during training. With this parameter, we can define a specialized FasterRCNN model
architecture from the general FasterRCNN application, according to the use cases. Detailed
description of this parameter is summarized in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
Defines the input image format, including the image channel number, channel order, width and height, and the preprocessings (subtract per-channel mean and divided by a scaling factor) for it before feeding input the model. See below for details. |
proto message |
– |
|
The feature extractor (backbone) for the FasterRCNN model. FasterRCNN supports 14 backbones. |
str type. The architecture can be ResNet, VGG , GoogLeNet, MobileNet or DarkNet. For each specific architecture, it can have different layers or versions. Details listed below. ResNet series: resnet:10, resnet:18, resnet:34, resnet:50, resnet:101 VGG series: vgg:16, vgg:19 GoogLeNet: googlenet MobileNet series: mobilenet_v1, mobilenet_v2 DarkNet: darknet:19, darknet:53 EfficientNet: efficientnet:b0, efficientnet:b1 Here a notational convention can be used, i.e., for models that can have different numbers of layers, use a colon followed by the layer number as the suffix of the model name. E.g., resnet:<layer_number> |
– |
|
Configurations of the anchor boxes. |
proto message. |
– |
|
The batch size of ROIs for training the RCNN. |
int. |
|
|
Cummulative stride from model input to RPN. This value is fixed (16) in current implementation. |
int. |
|
|
A flag to freeze all the BatchNormalization layers in the model. Freezing a BatchNormalization layer means freezing its moving mean and moving variance while its gamma and beta parameters are still trainable. This is usually used in FasterRCNN training with a small batch size so the moving means and moving variances are initialized from the pretrained model and fixed during training. |
Boolean. |
|
|
The dropout rate is applicable to the Dropout layers in the model(if there are any). Currently only VGG 16/19 and EfficientNet has Dropout layers. |
float. In the interval (0, 1). |
|
|
The drop_connect rate for EfficientNet. |
float. In the interval (0, 1). |
|
|
The list of block IDs to freeze during training. Some times we want to freeze some blocks in the model after loading the pretrained models for some reason (save GPU memory, make training process more stable, etc.). |
list of ints. For ResNet, the valid block IDs for freezing is any subset of {0, 1, 2, 3}(inclusive). For VGG, the valid block IDs for freezing is any subset of {1, 2, 3, 4, 5}(inclusive). For GoogLeNet, the valid block IDs for freezing is any subset of {0, 1, 2, 3, 4, 5, 6, 7} (inclusive). For MobileNet V1, the valid block IDs is any subset of {0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11}(inclusive). For MobileNet V2, the valid block IDs is any subset of {0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13}(inclusive). For DarkNet, the valid blocks IDs is any subset of {0, 1, 2, 3, 4, 5}(inclusive). For EfficientNet, the valid block IDs is any subset of { 0, 1, 2, 3, 4, 5, 6, 7}(inclusive). |
leave it unspecified. |
|
A flag to use bias for convlutional layers in the model. If the model has BatchNormalization layers, we usually set it to False. |
Boolean. |
|
|
The configuration for the ROIPooling (CropAndResize) layer in the model. |
proto message. |
– |
|
A flag to replace all the shortcut layers with projection layers in the model. Only valid for ResNet and MobileNet V2. |
Boolean. |
|
|
A flag to use pooling layers in the model or not. This parameter is valid only for VGG and ResNet. If set to True, pooling layers will be used in the model(produces the same model structures as in papers). Otherwise, strided convlutional layers will be used and pooling layers will be omitted. |
Boolean. |
|
|
Defines the activation function used in the model. Only valid for EfficientNet. For INT8 deployment, EfficientNet with relu activation will produces much better accuracy (mAP) than the original swish activation. |
proto message. |
– |
Each of the above proto message parameters will be described in detail below.
Input image configurations
The input_image_config
defines the supported format of images by FasterRCNN model. We can
customize the input image size, the per-channel mean values and scaling factor for image preprocessing.
We can also specify the image type (RGB or grayscale) for our training/validation dataset, and the order of
the channel if we are going to use RGB images during training. This is described in the table
below in detail.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
The type of the images in the dataset. |
enum type, either |
|
|
Specify the input image’s smaller side size,
exclusive with |
proto message with only one |
– |
|
Specify the input image’s height and width,
exclusive with |
proto message with two parameters: |
– |
|
The image channel order. |
str type. Can be |
– |
|
Per-channel mean values for the input images. |
proto dict that maps each channel to its mean values. |
– |
|
The image scaling factor to scale the images. Each pixel value will be divided by this number. |
float. |
|
|
The maximum number of objects of an image in the dataset. |
int. |
|
The maximum number of objects in an image depends on the dataset. It is
important to set the parameter max_objects_num_per_image
to be no less than this number.
Otherwise, training will fail.
Anchor boxes
The parameter anchor_box_config
defines the anchor box sizes and aspect ratios in the
FasterRCNN model. There are two sub-parameters for it: scale
and ratio
. Each of
them is a list of floats as below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
Anchor box scales (sizes) in pixel. |
list of floats. |
– |
|
Aspect ratios of the anchor boxes. |
list of floats. |
– |
ROIPooling(CropAndResize)
The roi_pooling_config
parameter defines the parameters required in ROIPooling(CropAndResize)
layer in the model. Described in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
The output spatial size (height and width) of the pooled ROIs. Only square ROIs are supported, so this parameter is for both height and width. |
int. |
|
|
A flag to double the pooled ROIs’ size. If this is set to True. CropAndResize will produces ROIs of size 2*pool_size and in RCNN it will be downsampled 2x to get back to pool_size. |
Boolean. |
– |
Activation function
The parameter activation
defines the type and parameter for the activation function in
a FasterRCNN model. This parameter is only valid for EfficientNet.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
Type of the activation function. Only |
str. |
– |
Training configurations
The proto message training_config
defines all the necessary parameters required for
a FasterRCNN training experiment. Each parameter is described in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
A flag to enable data augmentation in training. |
Boolean. |
|
|
The path to the pretrained weights for initializing the FasterRCNN model. |
str. |
– |
|
The path to the pruned model that we are going to retrain. |
str. |
– |
|
The path to the model for which that we are going to resume an interrupted training. |
str. |
– |
|
The lower IoU threshold used to match anchor boxes to groundtruth boxes. If the IoU of an anchor box and any groundtruth box is below this threshold, then this anchor box will be regarded as an negative anchor box. |
float. In the interval (0, 1). |
|
|
The higher IoU threshold used to match anchor boxes to groundtruth boxes. If the IoU of an anchor box and some groundtruth box is higher this threshold, then this anchor box will be regarded as an positive anchor box. |
float. In the interval (0, 1). |
|
|
The lower IoU threshold used to generate the proposal target. If the IoU of a ROI and a groundtruth box is above this number and below classifier_max_overlap, then this ROI is regarded as a negative ROI (background) during training. |
float. In the interval (0, 1). |
|
|
The higher IoU threshold used to generate the proposal target. If the IoU of a ROI and a groundtruth box is above this number, then this ROI is regarded as a positive ROI during training. |
float. In the interval (0, 1). |
|
|
A flag to include groundtruth boxes in the positive ROIs for training the RCNN. |
Boolean. |
|
|
A scaling factor (multiplier) for RPN regression loss. |
float. |
|
|
Scaling factors (denominators) for the RCNN regression loss. A map from ‘x’, ‘y’, ‘w’, ‘h’ to its corresponding scaling factor, respectively. |
proto dict. |
|
|
Training batch size per GPU. |
int. |
– |
|
Number of epochs for the training. |
int. |
|
|
The path to the checkpoint TAO models during training. |
str. |
– |
|
The period in epochs that we will save the checkpoint. Setting this number to be greater than num_epochs will essentially disable checkpointing. |
int. |
|
|
The number of boxes (ROIs) to be retained before the NMS in Proposal layer. |
int. |
– |
|
The maximum number of boxes (ROIs) to be retained after the NMS in Proposal layer. |
int. |
– |
|
The IoU threshold for NMS in Proposal layer. |
float. In the interval (0, 1). |
|
|
The configuration for regularizer. |
proto message. |
– |
|
The configuration for optimizer. |
proto message. |
– |
|
The configuration for learning rate scheduler. |
proto message. |
– |
|
Weighting factor for RPN regression loss. |
float. |
|
|
Weighting factor for RPN classification loss. |
float. |
|
|
Weighting factor for RCNN regression loss. |
float. |
|
|
Weighting factor for RCNN classification loss. |
float. |
|
|
A flag to enable QAT (quantization-aware training). FasterRCNN does not support loading a non-QAT pruned model and retraining with QAT enabled. |
Boolean. |
|
|
List of fraction for model parallelism. Each
number is a fraction that represents the percentage
of model layers to be placed on a GPU. For example
two repeated |
repeated float |
– |
The description for regularizer
, optimizer
and learning_rate
are summarized
further below.
Regularizer
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
The type of the regularizer. |
enum type. |
– |
|
The penality of the regularizer. |
float. |
– |
Optimizer
Three types of optimizers are supported by FasterRCNN: Adam, SGD and RMSProp. Only one of them
should be specified in spec file. No matter which one is chosen, it will be wrapped in a optimizer
proto. For example:
optimizer {
adam {
lr: 0.00001
beta_1: 0.9
beta_2: 0.999
decay: 0.0
}
}
The Adam optimizer parameters are summarized in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
learning rate. This is actually overriden by the learning rate scheduler and hence not useful. |
float. |
|
|
Momentum for the means of the model parameters. |
float. |
|
|
Momentum for the variances of the model parameters. |
float. |
|
|
decay factor for the learning rate. Not useful |
float. |
|
The SGD optimizer parameters are summarized in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
learning rate. Not useful as the learning rate is overriden by the learning rate scheduler. |
float. |
|
|
Momentum of SGD. |
float. |
|
|
decay factor of the learning rate. Not useful as overriden by learning rate scheduler. |
float. |
|
|
A flag to enable Nesterov momentum for SGD. |
Boolean. |
|
The RMSProp optimizer parameters are summarized in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
learning rate. Not useful as learning rate is overriden by learning rate scheduler. |
float. |
|
Learning rate scheduler
The parameter learning_rate
defines the learning rate scheduler in a FasterRCNN training.
Two types of learning rate schedulers are supported in FasterRCNN: soft_start
and
step
. NO matter which one is chosen, it will be wrapped in a learning_rate
proto message.
For example:
learning_rate {
step {
base_lr: 0.00001
gamma: 1.0
step_size: 30
}
}
The parameters of soft_start
scheduler is described in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
Maximum learning rate during the training. |
float. |
– |
|
The initial learning rate at the start of the training. |
float. Smaller than |
– |
|
The duration (in percentage of total epochs) of the soft start phase of the learning rate curve. |
float. In the interval (0, 1). |
– |
|
List of time points at which to decrease the learning rate. Also in percentage. |
list of floats. |
– |
|
divider to decrease the learning rate at each of annealing_points. |
float. |
– |
The parameters of step
scheduler is described in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
base learning rate at the start of training. |
float. |
– |
|
multiplier to decrease learning rate. |
float. |
– |
|
the step size (in percentage of total epochs) at which the learning rate is multiplied by gamma. |
float. |
– |
The learning rate is automatically scaled with the number of GPUs used during training, or the effective learning rate is learning_rate * n_gpu
.
Inference configurations
The parameter inference_config
defines all the parameters required for running inference
against a FasterRCNN model.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
The path to the directory of images to run inference on. |
str. |
– |
|
Path to the |
str. |
– |
|
Batch size for running inference. |
int. |
|
|
The number of boxes (ROIs) to be retained before the NMS in Proposal layer in inference. |
int. |
– |
|
The maximum number of boxes (ROIs) to be retained after the NMS in Proposal layer in inference. |
int. |
– |
|
The IoU threshold for NMS in Proposal layer. |
float. In the interval (0, 1). |
|
|
Object confidence score threshold in NMS. All the objects whose confidence is lower than this number will filtered out in NMS. |
float. In the interval (0, 1). |
|
|
The maximum number of boxes to retain in RCNN NMS. |
int. |
|
|
RCNN NMS IoU threshold. |
float. In the interval (0, 1). |
|
|
Output directory for detection images. |
str. |
– |
|
A flag to display the class name and confidence for each detected object in an image. |
Boolean. |
|
|
Output directory to save the labels of the detected objects. |
str. |
– |
|
The configurations for TensorRT based inference.
If this parameter is set, inference will use
TensorRT engine instead of |
proto message. |
– |
|
The number of bits to represent the score values in NMS plugin in TensorRT OSS. The valid range is integers in [1, 10]. Setting it to any other values will make it fall back to ordinary NMS. Currently this optimized NMS plugin is only avaible in FP16 but it should also be selected by INT8 data type as there is no INT8 NMS in TensorRT OSS and hence this fastest implementation in FP16 will be selected. If falling back to ordinary NMS, the actual data type when building the engine will decide the exact precision(FP16 or FP32) to run at. |
int. In the interval [1, 10]. |
|
TensorRT based inference
The parameter trt_inference
defines all the parameters for TensorRT based inference.
When specified, Inference will use TensorRT engine instead of the .tlt
model.
The TensorRT engine is assumed to be generated by the tao-converter
tool.
All the parameters are summarized in the table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
Path to the TensorRT engine file to load. Exclisive with etlt_model below. |
str. |
– |
Evaluation configurations
The parameter evaluation_config
defines all the required parameters for running evaluation
against a FasterRCNN model. This parameter is very similar to inference_config
.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
Path to the |
str. |
– |
|
Batch size for running inference. |
int. |
|
|
The number of boxes(ROIs) to be retained before the NMS in Proposal layer in evaluation. |
int. |
– |
|
The maximum number of boxes(ROIs) to be retained after the NMS in Proposal layer in evaluation. |
int. |
– |
|
The IoU threshold for NMS in Proposal layer. |
float. In the interval (0, 1). |
|
|
Object confidence score threshold in NMS. All the objects whose confidence is lower than this number will filtered out in NMS. |
float. In the interval (0, 1). |
|
|
The maximum number of boxes to retain in RCNN NMS. |
int. |
|
|
RCNN NMS IoU threshold. |
float. In the interval (0, 1). |
|
|
A flag to use PASCAL VOC 2007 11-point AP metric. |
Boolean. |
– |
|
The period(in epochs) for doing validation during training. |
int. |
|
|
The configurations for TensorRT based evaluation.
If this parameter is set, evaluation will use
TensorRT engine instead of |
proto message. |
– |
|
IoU threshold to match detected boxes with groundtruth boxes. Exclusive with gt_matching_iou_threshold_range below. |
float. |
|
|
Range of IoU thresholds for computing AP at multiple IoU thresholds and computing COCO mAP. Exclusive with gt_matching_iou_threshold above. |
proto message. |
– |
TensorRT based evaluation
In the above table, the definition of trt_evaluation
is the same as trt_inference
parameter described before. The gt_matching_iou_threshold_range
parameter is described in
table below.
Parameter |
Description |
Data Type and Constraints |
Default/Suggested Value |
|
start point of the IoU list(inclusive). |
float. In the interval (0, 1). |
|
|
step size of the IoU list. |
float. In the interval (0, 1). |
|
|
end point of the IoU list(exclusive). |
float. In the interval (0, 1]. |
|
To run training of a FasterRCNN model, use this command:
tao faster_rcnn train [-h] -e <experiment_spec>
[-k <enc_key>]
[--gpus <num_gpus>]
[--num_processes <number_of_processes>]
[--gpu_index <gpu_index>]
[--use_amp]
[--log_file <log_file_path>]
Required Arguments
-e, --experiment_spec_file
: Experiment specification file to set up the evaluation experiment. This should be the same as training specification file.
Optional Arguments
-h, --help
: Show this help message and exit.-k, --enc_key
: TAO encoding key, can override the one in the spec file.--gpus
: The number of GPUs to be used in the training in a multi-GPU scenario (default: 1).--num_processes, -np
: Number of processes to be spawned for training. It defaults to be -1(equal to--gpus
, for the use case of data parallelism). In the case of model parallelism, this argument should be explicitly set to 1 or more, depending on the actual scenario. Setting--gpus
to be larger than 1 and--num_processes
to 1 correspoinding to the model parallelism use case; while setting both--gpus
andnum_processes
to be larger than 1 corresponding to the case of enabling both model parallelism and data parallelism. For example,--gpus=4
and--num_processes=2
means 2 horovod processes will be spawned and each of them will occupy 2 GPUs for model parallelism.--gpu_index
: The GPU indices used to run the training. We can specify the GPU indices used to run training when the machine has multiple GPUs installed.--use_amp
: A flag to enable AMP training.--log_file
: Path to the log file. Defaults to stdout.
Input Requirement
Input size: C * W * H (where C = 1 or 3, W >= 128, H >= 128)
Image format: JPG, JPEG, PNG
Label format: KITTI detection
Sample Usage
Here’s an example of using the FasterRCNN training command:
tao faster_rcnn train --gpu_index 0 -e <experiment_spec>
Using a Pretrained Model
Usually, using a pretrained model (weights) file for the initial training of FasterRCNN helps get better accuracy. NVIDIA recommends using the pretrained weights provided in NVIDIA GPU Cloud (NGC). FasterRCNN loads the pretrained weights by name. That is, layer by layer, if TAO Toolkit finds a layer whose name and weights (bias) shape in the pretrained weights file matches a layer in the TAO model, it will load that layer’s weights (and bias, if any) into the model. If some layer in the TAO Toolkit cannot find a matching layer in the pretrained weights, then TAO Toolkit will skip that layer and will use random initialization for that layer instead. An exception is that if TAO Toolkit finds a matching layer in the pretrained weights (and bias, if any) but the shape of the pretrained weights (or bias, if any) in that layer does not match the shape of weights (bias) for the corresponding layer in a TAO model, it will also skip that layer.
For some layers that have no weights (bias), nothing will be done for it(hence will be skipped). So, in total, there are three possible statuses to indicate how a layer’s pretrained weights loading is going on:
"Yes"
means a layer has weights (bias) and is loaded from the pretrained weights file successfully for initialization."No"
means a layer has weights (bias) but due to mismatched weights (bias) shape(or probably something else), the weights (bias) cannot be loaded successfully and will use random initialization instead."None"
means a layer has no weights (bias) at all and will not load any weights. In the FasterRCNN training log, there is a table that shows the pretrained weights loading status for each layer in the model.
To use a pretrained model in FasterRCNN training, set the pretrained_weights
path to point
to a pretrained .tlt
model (generated with the same encryption key as the FasterRCNN training),
a Keras .hdf5
model or a Keras .h5
weights.
At the start of the training, FasterRCNN will print the pretrained model loading status (per-layer). If facing with bad mAP with the model, we can double check this log to see if the pretrained model is loaded properly or not.
FasterRCNN does not support loading a non-QAT pruned model and retraining it with QAT enabled. To make the retrained model a QAT model, it is required to do the initial training with QAT enabled too.
Re-training a pruned model
A FasterRCNN model can be retrained one or more times. The typical use case is retraining for a pruned
model. To retrain an existing FasterRCNN model, set the retrain_pruned_model
path to point to
an existing FasterRCNN model.
Resuming an interrupted training
Sometimes a training job can be interrupted due to some reason (e.g., system crash). In these cases,
there is no need to redo the training from the start. We can resume the interrupted training
from the last checkpoint(saved .tlt
model during training). In this case, set the
resume_from_model
path in spec file to point to the last checkpoint and re-run the training
to resume the job.
Input shape: static and dynamic
FasterRCNN training can support both static input shape and dynamic input shape. Static input shape
means the input’s width and height are constant numbers like 960 x 544. Static shape is the most
commonly used case in practice. To enable static input shape, we should specify it in
input_image_config
and augmentation_config
. We should use size_height_width
in input_image_config
to specify the input height and width. Again, we should specify the
same two numbers in augmentation_config
. That is, we specify the
output_image_height
and output_image_width
in augmentation_config
.
With static input shape, we can offline resize the images to the target resolution or we can enable
automatic resize during training. By setting enable_auto_resize
in augmentation_config
to True
we will enable automatic resize during training. Automatic resize will reduce the
effort to manually resize the images each time we want to train the model on a different resolution.
But since resize happens during training, it will potentially increase the training time.
Users should make this tradeoff between offline resize and automatic(online) resize.
Dynamic input shape means the input’s height and width are not a constant number but rather can
change during training for different images. This kind of input shape is originally proposed in
the literature(such as in FasterRCNN paper) where we resize the image and keep aspect ratio such that
the resultant image’s smaller side is a given number. Besides the limit on smaller side, we also have
a limit on the larger side. If we resize and keep aspect ratio but the resultant image’s larger side’s
size exceed this limit on larger side, then we will resize and keep aspect ratio such that the larger
side’s size is a given number. In that case, the smaller side will be also no more than its limit.
FasterRCNN can support this kind of dynamic input shape. To enable this feature, we have to
specify size_min
in input_image_config
and specify output_image_min
and
output_image_max
in augmentation_confg
. size_min
and output_image_min
indicates the limit of the smaller side’s size, while output_image_max
indicates the limit on
the larger side’s size.
Note that there are some limitations regarding the dynamic shape of FasterRCNN.
TAO FasterRCNN training/evaluation/inference can only work with batch size 1.
TAO FasterRCNN export & DeepStream(TensorRT) inference/evaluation does not support dynamic shape for now.
Model parallelism
FasterRCNN supports model parallelism. Model parallelism is a technique that we split the entire model
on multiple GPUs and each GPU will hold a part of the model. A model is splitted by layers. For example,
if a model has 100 layers, then we can place the layer 0-49 on GPU 0 and layer 50-99 on GPU 1.
Model parallelism will be useful when the model is huge and cannot fit into a single GPU even with
batch size 1. Model parallelism is also useful if we want to increase the batch size that is seen
by BatchNormalization layers and hence potentially improve the accuracy. This feature can be enabled
by setting model_parallelism
in training_config
. For example,
model_parallelism: 0.3
model_parallelism: 0.7
will enable a 2-GPU model parallelism where the first GPU will hold 30% of the model layers and the second GPU will hold 70% of the model layers. The percentage of model layers can be adjusted with some trial-and-error so all GPUs consumes almost the same GPU memory size and in that case we can use the largest batch size for this model-parallelised training.
Model parallelism can be enabled jointly with data parallelism. For example, in above case we enabled a 2-GPU model parallelism, at the same time we can also enable 4 horovod processes for it. In this case, we have 4 horovod processes for data parallelism and each process will have the model splitted on 2 GPUs.
To run evaluation for a faster_rcnn model, use this command:
tao faster_rcnn evaluate [-h] -e <experiment_spec>
[-k <enc_key>]
[--gpu_index <gpu_index>]
[--log_file <log_file_path>]
Required Arguments
-e, --experiment_spec_file
: Experiment spec file to set up the evaluation experiment. This should be the same as a training spec file.
Optional Arguments
-h, --help
: show this help message and exit.-k, --enc_key
:The encoding key, can override the one in the spec file.--gpu_index
: The GPU index used to run the evaluation. We can specify the GPU index used to run evaluation when the machine has multiple GPUs installed. Note that evaluation can only run on a single GPU.--log_file
: Path to the log file. Defaults to stdout.
Evaluation Metrics
The PASCAL VOC 2007 vs 2012 metrics
For FasterRCNN, the evaluation will produce 4 metrics for the evaluated model:
AP (average precision), precision, recall and RPN_recall for each class in the evaluation dataset.
inally, it will also print the mAP (mean average precision) as a single metric number. Two
modes are supported for computing the AP, i.e., the PASCAL VOC 2007 and 2012 metrics. This
can be configured in the spec file’s evaluation_config.use_voc_11_point_metric
parameter.
If this parameter is set to True, then AP calculation will use VOC 2007 method, otherwise it will
use the VOC 2012 method.
Setting IoU value/range for computing AP/mAP
For matching the detected objects to groundtruth objects, we can define different IoU thresholds.
An IoU of 0.5 is used in PASCAL VOC metrics, while in MS COCO a list of IoUs are used to compute the AP.
For example, in MS COCO, the mAP@[0.5:0.05:0.95] is the averaged AP at 10 different IoUs, starting from 0.5
and ends with 0.95, with a step size of 0.05. TAO FasterRCNN supports evaluating AP at a list of IoUs
and computing the mAP across the range of IoUs. Specifically, setting gt_matching_iou_threshold
in evaluation_config
will produce the AP/mAP at a single IoU; setting gt_matching_iou_threshold_range
for a list (range) of IoUs will produce AP at these IoU values and the mAP. In order to compute PASCAL VOC
mAP, we can set the former to 0.5. While in order to compute COCO mAP, we can set the latter to be
start: 0.5
, step: 0.05
and end: 1.0
.
The RPN_recall metric indicates the recall capability of the RPN of the FasterRCNN model. The higher the RPN_recall metric, it means RPN can better detect an object as foreground (but it doesn’t say anything on which class this object belongs to since that is delegated to RCNN). The RPN_recall metric is mainly used for debugging on the accuracy issue of a FasterRCNN model.
Two Modes for Evaluation
The evaluation for FasterRCNN has two modes. It can run with either
TAO backend or TensorRT backend. This behavior is also controlled via the spec file. The
evaluation_config
in the spec file can have an optional trt_evaluation
sub-field
that specifies which backend the evaluation will run with.
By default (if the trt_evaluation
sub-field is not present in evaluation_config)
,
evaluation will use TAO Toolkit as the backend. If the trt_evaluation
sub-field
is present, it can specify evaluation to run at TensorRT backend. In that case,
the model to do inference is the TensorRT engine file from export or tao-converter
.
To use a TensorRT engine file for TensorRT backend based evaluation, the
trt_evaluation
sub-field should look like this:
trt_evaluation {
trt_engine: '/workspace/tao-experiments/data/faster_rcnn/trt.int8.engine'
}
If the TensorRT inference data type is not INT8, the calibration_cache
sub-field that
provides the path to the INT8 calibration cache is not required. In INT8 case, the calibration
cache should be generated via the tao faster_rcnn export
command line in INT8 mode.
See also the documentation of FasterRCNN spec file for the details of the trt_evaluation
message structure.
The inference tool for FasterRCNN networks can be used to visualize bboxes or generate frame by frame KITTI format labels on a directory of images. You can execute this tool from the command line as shown here:
tao faster_rcnn inference [-h] -e <experiment_spec>
[-k <enc_key>]
[--gpu_index <gpu_index>]
[--log_file <log_file_path>]
Required Arguments
-e, --experiment_spec_file
: Path to the experiment specification file for FasterRCNN training.
Optional Arguments
-h, --help
: Print help log and exit.-k, --enc_key
: The encoding key, can override the one in the spec file.--gpu_index
: The GPU index to run inference on. We can specify the GPU index used to run inference if the machine has multiple GPUs installed. Note that inference can only run on a single GPU.--log_file
: Path to the log file. Defaults to stdout.
Two Modes for Inference
The inference for FasterRCNN has two modes. It can run with either the TAO Toolkit
backend or TensorRT backend. This behavior is also controlled via the spec file. The
inference_config
in the spec file can have an optional trt_inference
sub-field that
specifies which backend the inference will run with. By default (if the trt_inference
sub-field is not present in inference_config
), inference will use TAO Toolkit as the backend.
If the trt_inference
sub-field is present, it can specify inference to run at
TensorRT backend. In that case, the model to do inference is the TensorRT engine file from export or
tao-converter
.
To use a TensorRT engine file for TensorRT backend based inference, the
trt_inference
sub-field should look like this:
trt_inference {
trt_engine: '/workspace/tao-experiments/data/faster_rcnn/trt.int8.engine'
}
If the TensorRT inference data type is not INT8, the calibration_cache
sub-field that
provides the path to the INT8 calibration cache is not required. In INT8 case, the calibration
cache should be generated via the tao faster_rcnn export
command line in INT8 mode.
See also the documentation of FasterRCNN spec file for the details of the trt_inference
message structure.
Pruning removes parameters from the model to reduce the model size without compromising the
integrity of the model itself using the tao faster_rcnn prune
command.
The tao faster_rcnn prune
command includes these parameters:
tao faster_rcnn prune [-h] -m <model>
-o <output_file>
-k <key>
[-n <normalizer>]
[-eq <equalization_criterion>]
[-pg <pruning_granularity>]
[-pth <pruning threshold>]
[-nf <min_num_filters>]
[-el [<excluded_list>]
[--gpu_index <gpu_index>]
[--log_file <log_file_path>]
Required Arguments
-m, --model
: Path to a pretrained.tlt
model to be pruned.-o, --output_file
: Path to save the pruned.tlt
model.-k, --ke
: Key to load a :code`.tlt` model.
Optional Arguments
-h, --help
: Show this help message and exit.-n, –normalizer
:max
to normalize by dividing each norm by the maximum norm within a layer;L2
to normalize by dividing by the L2 norm of the vector comprising all kernel norms. (default: max)-eq, --equalization_criterion
: Criteria to equalize the stats of inputs to an element wise op layer or depth-wise convolutional layer. This parameter is useful for resnets and mobilenets. Options arearithmetic_mean
,:code:geometric_mean,union
, andintersection
. (default:union
)-pg, -pruning_granularity
: Number of filters to remove at a time (default:8)-pth
: Threshold to compare normalized norm against (default:0.1)NoteNVIDIA recommends changing the threshold to keep the number of parameters in the model to within 10-20% of the original unpruned model.
-nf, --min_num_filters
: Minimum number of filters to keep per layer (default:16)-el, --excluded_layers
: List of excluded_layers. Examples: -i item1 item2 (default: [])--gpu_index
: The GPU index to run pruning on. We can specify the GPU index used to run pruning if the machine has multiple GPUs installed. Note that pruning can only run on a single GPU.--log_file
: Path to the log file. Defaults to stdout.
After pruning, the model needs to be retrained. See Re-training the Pruned Model for more details.
Using the Prune Command
Here’s an example of using the tao faster_rcnn prune
command:
tao faster_rcnn prune -m /workspace/output/weights/resnet_003.tlt
-o /workspace/output/weights/resnet_003_pruned.tlt
-eq union
-pth 0.7
-k nvidia_tlt
Once the model has been pruned, there might be a slight decrease in accuracy. This happens
because some previously useful weights may have been removed. In order to regain the accuracy,
NVIDIA recommends that you retrain this pruned model over the same dataset. To do this, use
the tao faster_rcnn train
command as documented in Training the model with
an updated spec file that points to the newly pruned model as the pretrained model file.
Users are advised to turn off the regularizer(set regularizer type to NO_REG
) or use a
smaller weight decay in the spec file to recover the accuracy when retraining a pruned model.
All the other parameters may be retained in the spec file from the previous training.
For FasterRCNN, it is important to set the retrain_pruned_model
path to point to the pruned
model.
Exporting the model decouples the training process from inference and allows conversion to
TensorRT engines outside the TAO environment. TensorRT engines are specific to each hardware
configuration and should be generated for each unique inference environment.
The exported model may be used universally across training and deployment hardware.
The exported model format is referred to as .etlt
. Like .tlt
, the .etlt
model
format is also a encrypted model format with the same key of the .tlt
model that it is
exported from. This key is required when deploying this model.
FasterRCNN export can optionally generate a (partial) DeepStream configuration file and label file. See below.
INT8 Mode Overview
TensorRT engines can be generated in INT8 mode to improve performance, but require a calibration
cache at engine creation-time. The calibration cache is generated using a calibration tensor
file, if export is run with the --data_type
flag set to int8
.
Pre-generating the calibration information and caching it removes the need for calibrating the
model on the inference device. Using the calibration cache also speeds up engine creation as building the
cache can take several minutes to generate depending on the size of the calibration data and the model
itself.
The export tool can generate INT8 calibration cache by ingesting training data using either of these options:
Option 1: Using the training data loader to load the training images for INT8 calibration. This option is now the recommended approach to support multiple image directories by leveraging the training dataset loader. This also ensures two important aspects of data during calibration:
Data pre-processing in the INT8 calibration step is the same as in the training process.
The data batches are sampled randomly across the entire training dataset, thereby improving the accuracy of the INT8 model.
Option 2: Pointing the tool to a directory of images that you want to use to calibrate the model. For this option, make sure to create a sub-sampled directory of random images that best represent your training dataset.
FP16/FP32 Model
The calibration.bin
is only required if you need to run inference at INT8 precision. For
FP16/FP32 based inference, the export step is much simpler. All that is required is to provide
a .tlt
model from the training/retraining step to be converted into an .etlt
.
Exporting the Model
Here’s an example of the tao faster_rcnn export
command:
tao faster_rcnn export [-h] -m <path to the .tlt model file generated by training>
-k <key>
--experiment_spec <path to experiment spec file>
[-o <path to output file>]
[--cal_data_file <path to tensor file>]
[--cal_image_dir <path to the directory images to calibrate the model]
[--cal_cache_file <path to output calibration file>]
[--data_type <data type for the TensorRT backend during export>]
[--batches <number of batches to calibrate over>]
[--max_batch_size <maximum trt batch size>]
[--max_workspace_size <maximum workspace size]
[--batch_size <batch size to TensorRT engine>]
[--engine_file <path to the TensorRT engine file>]
[--gen_ds_config]
[--verbose]
[--strict_type_constraints]
[--force_ptq]
[--gpu_index <gpu_index>]
[--log_file <log_file_path>]
Required Arguments
-m, --model
: Path to the.tlt
model file to be exported.-k, --key
: Key used to save the.tlt
model file.-e, --experiment_spec
: Path to the spec file.
Optional Arguments
-o, --output_file
: Path to save the exported model to. The default is./<input_file>.etlt
.--data_type
: Desired engine data type, generates calibration cache if in INT8 mode. The options are: {fp32
,fp16
,int8
} The default value isfp32
. If using INT8, the following INT8 arguments are required.--gen_ds_config
: A Boolean flag indicating whether to generate the partial DeepStream related configuration (“nvinfer_config.txt”) as well as a label file (“labels.txt”) in the same directory as theoutput_file
. Note that the config file is NOT a complete configuration file and requires the user to update the sample config files in DeepStream with the parameters generated.-s, --strict_type_constraints
: A Boolean flag to indicate whether or not to apply the TensorRT strict type constraints when building the TensorRT engine.--gpu_index
: The index of (discrete) GPUs used for exporting the model. We can specify the GPU index to run export if the machine has multiple GPUs installed. Note that export can only run on a single GPU.--log_file
: Path to the log file. Defaults to stdout.
INT8 Export Mode Required Arguments
--cal_data_file
: The output tensorfile if used with--cal_image_dir
.--cal_image_dir
: Directory of images to use for calibration.
--cal_image_dir
parameter for images and applies the necessary preprocessing
to generate a tensorfile at the path mentioned in the --cal_data_file
parameter which is in turn used for calibration. The number of batches in the
tensorfile generated is obtained from the value set to the --batches
parameter,
and the batch_size
is obtained from the value set to the --batch_size
parameter. Be sure that the directory mentioned in --cal_image_dir
has at least
batch_size * batches
number of images in it. The valid image extensions are .jpg,
.jpeg, and .png. In this case, the input_dimensions
of the calibration tensors
are derived from the input layer of the .tlt
model.
INT8 Export Optional Arguments
--cal_cache_file
: Path to save the calibration cache file. The default value is./cal.bin
.--batches
: Number of batches to use for calibration and inference testing.The default value is10
.--batch_size
: Batch size to use for calibration. The default value is8
.--max_batch_size
: Maximum batch size of TensorRT engine. The default value is16
.--max_workspace_size
: Maximum workspace size of TensorRT engine. The default value is:1073741824(1<<30)
.--engine_file
: Path to the serialized TensorRT engine file. Note that this file is hardware specific, and cannot be generalized across GPUs. Useful to quickly test your model accuracy using TensorRT on the host. As TensorRT engine file is hardware specific, you cannot use this engine file for deployment unless the deployment GPU is identical to training GPU.--force_ptq
: A boolean flag to force post training quantization on the exported etlt model.
When exporting a model trained with QAT enabled, the tensor scale factors to calibrate
the activations are peeled out of the model and serialized to a TensorRT readable cache file
defined by the cal_cache_file
argument. However, do note that the current version of
QAT doesn’t natively support DLA INT8 deployment in the Jetson device. In order to deploy
this model on a Jetson with DLA INT8, use the --force_ptq
flag to use
TensorRT post training quantization to generate the calibration cache file.
Exporting a Model
Here’s a sample command using the data loader for loading calibration data to calibrate a FasterRCNN model using option 1.
tao faster_rcnn export --gpu_index 0
-m $USER_EXPERIMENT_DIR/data/faster_rcnn/frcnn_kitti_resnet18_retrain.epoch12.tlt
-o $USER_EXPERIMENT_DIR/data/faster_rcnn/frcnn_kitti_resnet18_retrain_int8.etlt
-e $SPECS_DIR/default_spec_resnet18_retrain_spec.txt
-k nvidia_tlt
--data_type int8
--batch_size 8
--batches 10
--cal_cache_file $USER_EXPERIMENT_DIR/data/faster_rcnn/cal.bin

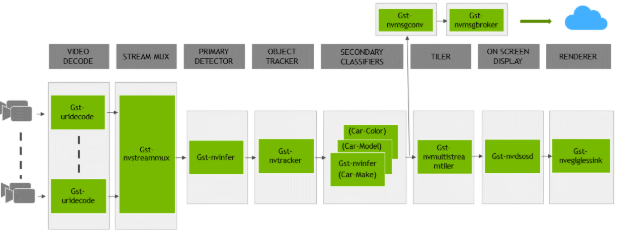

The deep learning and computer vision models that you’ve trained can be deployed on edge devices, such as a Jetson Xavier or Jetson Nano, a discrete GPU, or in the cloud with NVIDIA GPUs. TAO Toolkit has been designed to integrate with DeepStream SDK, so models trained with TAO Toolkit will work out of the box with DeepStream SDK.
DeepStream SDK is a streaming analytic toolkit to accelerate building AI-based video analytic applications. This section will describe how to deploy your trained model to DeepStream SDK.

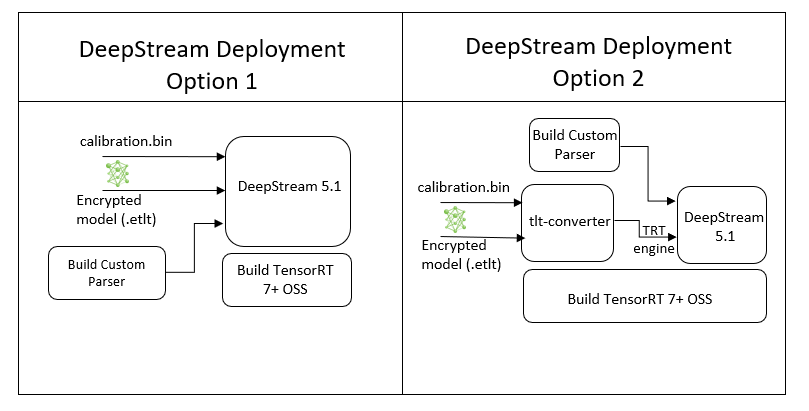

To deploy a model trained by TAO Toolkit to DeepStream we have two options:
Option 1: Integrate the
.etlt
model directly in the DeepStream app. The model file is generated by export.Option 2: Generate a device specific optimized TensorRT engine using
tao-converter
. The generated TensorRT engine file can also be ingested by DeepStream.
Machine-specific optimizations are done as part of the engine creation process, so a distinct engine should be generated for each environment and hardware configuration. If the TensorRT or CUDA libraries of the inference environment are updated (including minor version updates), or if a new model is generated, new engines need to be generated. Running an engine that was generated with a different version of TensorRT and CUDA is not supported and will cause unknown behavior that affects inference speed, accuracy, and stability, or it may fail to run altogether.
Option 1 is very straightforward. The .etlt
file and calibration cache are directly
used by DeepStream. DeepStream will automatically generate the TensorRT engine file and then run
inference. TensorRT engine generation can take some time depending on size of the model
and type of hardware. Engine generation can be done ahead of time with Option 2.
With option 2, the tao-converter
is used to convert the .etlt
file to TensorRT; this
file is then provided directly to DeepStream.
See the Exporting the Model section for more details on how to export a TAO model.
TensorRT Open Source Software (OSS)
TensorRT OSS build is required for FasterRCNN models. This is required because several TensorRT
plugins that are required by these models are only available in TensorRT open source repo and not
in the general TensorRT release. Specifically, for FasterRCNN, we need the cropAndResizePlugin
and
proposalPlugin
.
If the deployment platform is x86 with NVIDIA GPU, follow instructions for x86. If your deployment is on NVIDIA Jetson platform, follow instructions for Jetson.
TensorRT OSS on x86
Building TensorRT OSS on x86:
Install Cmake (>=3.13).
NoteTensorRT OSS requires cmake >= v3.13, so install cmake 3.13 if your cmake version is lower than 3.13c
sudo apt remove --purge --auto-remove cmake wget https://github.com/Kitware/CMake/releases/download/v3.13.5/cmake-3.13.5.tar.gz tar xvf cmake-3.13.5.tar.gz cd cmake-3.13.5/ ./configure make -j$(nproc) sudo make install sudo ln -s /usr/local/bin/cmake /usr/bin/cmake
Get GPU architecture. The
GPU_ARCHS
value can be retrieved by thedeviceQuery
CUDA sample:cd /usr/local/cuda/samples/1_Utilities/deviceQuery sudo make ./deviceQuery
If the
/usr/local/cuda/samples
doesn’t exist in your system, you could downloaddeviceQuery.cpp
from this GitHub repo. Compile and rundeviceQuery
.nvcc deviceQuery.cpp -o deviceQuery ./deviceQuery
This command will output something like this, which indicates the
GPU_ARCHS
is75
based on CUDA Capability major/minor version.Detected 2 CUDA Capable device(s) Device 0: "Tesla T4" CUDA Driver Version / Runtime Version 10.2 / 10.2 CUDA Capability Major/Minor version number: 7.5
Build TensorRT OSS:
git clone -b 21.03 https://github.com/nvidia/TensorRT cd TensorRT/ git submodule update --init --recursive export TRT_SOURCE=`pwd` cd $TRT_SOURCE mkdir -p build && cd build
NoteMake sure your
GPU_ARCHS
from step 2 is in TensorRT OSSCMakeLists.txt
. If GPU_ARCHS is not in TensorRT OSSCMakeLists.txt
, add-DGPU_ARCHS=<VER>
as below, where<VER>
representsGPU_ARCHS
from step 2./usr/local/bin/cmake .. -DGPU_ARCHS=xy -DTRT_LIB_DIR=/usr/lib/aarch64-linux-gnu/ -DCMAKE_C_COMPILER=/usr/bin/gcc -DTRT_BIN_DIR=`pwd`/out make nvinfer_plugin -j$(nproc)
After building ends successfully,
libnvinfer_plugin.so*
will be generated under\`pwd\`/out/.
Replace the original
libnvinfer_plugin.so*
:sudo mv /usr/lib/x86_64-linux-gnu/libnvinfer_plugin.so.7.x.y ${HOME}/libnvinfer_plugin.so.7.x.y.bak // backup original libnvinfer_plugin.so.x.y sudo cp $TRT_SOURCE/`pwd`/out/libnvinfer_plugin.so.7.m.n /usr/lib/x86_64-linux-gnu/libnvinfer_plugin.so.7.x.y sudo ldconfig
TensorRT OSS on Jetson (ARM64)
Install Cmake (>=3.13)
NoteTensorRT OSS requires cmake >= v3.13, while the default cmake on Jetson/Ubuntu 18.04 is cmake 3.10.2.
Upgrade TensorRT OSS using:
sudo apt remove --purge --auto-remove cmake wget https://github.com/Kitware/CMake/releases/download/v3.13.5/cmake-3.13.5.tar.gz tar xvf cmake-3.13.5.tar.gz cd cmake-3.13.5/ ./configure make -j$(nproc) sudo make install sudo ln -s /usr/local/bin/cmake /usr/bin/cmake
Get GPU architecture based on your platform. The
GPU_ARCHS
for different Jetson platform are given in the following table.Jetson Platform
GPU_ARCHS
Nano/Tx1
53
Tx2
62
AGX Xavier/Xavier NX
72
Build TensorRT OSS:
git clone -b 21.03 https://github.com/nvidia/TensorRT cd TensorRT/ git submodule update --init --recursive export TRT_SOURCE=`pwd` cd $TRT_SOURCE mkdir -p build && cd build
NoteThe
-DGPU_ARCHS=72
below is for Xavier or NX, for other Jetson platform, change72
referring toGPU_ARCHS
from step 2./usr/local/bin/cmake .. -DGPU_ARCHS=72 -DTRT_LIB_DIR=/usr/lib/aarch64-linux-gnu/ -DCMAKE_C_COMPILER=/usr/bin/gcc -DTRT_BIN_DIR=`pwd`/out make nvinfer_plugin -j$(nproc)
After building ends successfully,
libnvinfer_plugin.so*
will be generated under‘pwd’/out/.
Replace
"libnvinfer_plugin.so*"
with the newly generated.sudo mv /usr/lib/aarch64-linux-gnu/libnvinfer_plugin.so.7.x.y ${HOME}/libnvinfer_plugin.so.7.x.y.bak // backup original libnvinfer_plugin.so.x.y sudo cp `pwd`/out/libnvinfer_plugin.so.7.m.n /usr/lib/aarch64-linux-gnu/libnvinfer_plugin.so.7.x.y sudo ldconfig
Generating an Engine Using tao-converter
The tao-converter
tool is provided with the TAO Toolkit
to facilitate the deployment of TAO trained models on TensorRT and/or Deepstream.
This section elaborates on how to generate a TensorRT engine using tao-converter
.
For deployment platforms with an x86-based CPU and discrete GPUs, the tao-converter
is distributed within the TAO docker. Therefore, we suggest using the docker to generate
the engine. However, this requires that the user adhere to the same minor version of
TensorRT as distributed with the docker. The TAO docker includes TensorRT version 7.2.
Instructions for x86
Copy
/opt/nvidia/tools/tao-converter
to the target machine.Install TensorRT for the respective target machine.
For FasterRCNN, we need to build TensorRT Open source software on the machine. Instructions to build TensorRT OSS on x86 can be found in TensorRT OSS on x86 section above or in this GitHub repo.
Run
tao-converter
using the sample command below and generate the engine.
Instructions for Jetson
For the Jetson platform, the tao-converter
is available to download in the dev zone.
Once the tao-converter
is downloaded, follow the instructions below to generate a
TensorRT engine.
Unzip
tao-converter-trt7.1.zip
on the target machine.Install the open ssl package using the command:
sudo apt-get install libssl-dev
Export the following environment variables:
$ export TRT_LIB_PATH=”/usr/lib/aarch64-linux-gnu”
$ export TRT_INC_PATH=”/usr/include/aarch64-linux-gnu”
For Jetson devices, TensorRT comes pre-installed with Jetpack. If you are using older JetPack, upgrade to the latest one that
tao-converter
can support.For FasterRCNN, instructions to build TensorRT OSS on Jetson can be found in TensorRT OSS on Jetson (ARM64) section above or in this GitHub repo.
Run the
tao-converter
using the sample command below and generate the engine.
Make sure to follow the output node names as mentioned in Exporting the Model.
Using the tao-converter
tao-converter [-h] -k <encryption_key>
-d <input_dimensions>
-o <comma separated output nodes>
[-c <path to calibration cache file>]
[-e <path to output engine>]
[-b <calibration batch size>]
[-m <maximum batch size of the TRT engine>]
[-t <engine datatype>]
[-w <maximum workspace size of the TRT Engine>]
[-i <input dimension ordering>]
[-p <optimization_profiles>]
[-s]
[-u <DLA_core>]
input_file
Required Arguments
input_file
: Path to the.etlt
model exported usingexport
.-k
: The key used to encode the.tlt
model when doing the traning.-d
: Comma-separated list of input dimensions that should match the dimensions used forexport
. Unlikeexport
this cannot be inferred from calibration data. This parameter is not required for new models introduced in TAO Toolkit 3.0-21.08 (e.g., LPRNet, UNet, GazeNet, etc).-o
: Comma-separated list of output blob names that should match the output configuration used forexport
. This parameter is not required for new models introduced in TAO Toolkit 3.0 (e.g., LPRNet, UNet, GazeNet, etc). For FasterRCNN, set this argument toNMS
.
Optional Arguments
-e
: Path to save the engine to. (default:./saved.engine
)-t
: Desired engine data type, generates calibration cache if in INT8 mode. The default value isfp32
. The options are {fp32
,fp16
,int8
}.-w
: Maximum workspace size for the TensorRT engine. The default value is1073741824(1<<30)
.-i
: Input dimension ordering, all other TAO commands use NCHW. The default value isnchw
. The options are {nchw
,nhwc
,nc
}. For FasterRCNN, we can omit it (defaults tonchw
).-p
: Optimization profiles for.etlt
models with dynamic shape. Comma separated list of optimization profile shapes in the format<input_name>,<min_shape>,<opt_shape>,<max_shape>
, where each shape has the format:<n>x<c>x<h>x<w>
. Can be specified multiple times if there are multiple input tensors for the model. This is only useful for new models introduced in TAO Toolkit 3.21.08. This parameter is not required for models that are already existed in version 2.0.-s
: TensorRT strict type constraints. A Boolean to apply TensorRT strict type constraints when building the TensorRT engine.-u
: Use DLA core. Specifying DLA core index when building the TensorRT engine on Jetson devices.
INT8 Mode Arguments
-c
: Path to calibration cache file, only used in INT8 mode. The default value is./cal.bin
.-b
: Batch size used during the export step for INT8 calibration cache generation. (default:8
).-m
: Maximum batch size for TensorRT engine.(default:16
). If meet with out-of-memory issue, please decrease the batch size accordingly. This parameter is not required for.etlt
models generated with dynamic shape (This is only possible for new models introduced in TAO Toolkit 3.21.08).
Sample Output Log
Here is a sample log for exporting a FasterRCNN model.
tao-converter -d 3,544,960 \
-k nvidia_tlt \
-o NMS \
/workspace/tao-experiments/faster_rcnn/resnet18_pruned.epoch45.etlt
..
[INFO] Some tactics do not have sufficient workspace memory to run. Increasing workspace size may increase performance, please check verbose output.
[INFO] Detected 1 inputs and 2 output network tensors.
Integrating the model to DeepStream
There are 2 options to integrate models from TAO with DeepStream:
Option 1: Integrate the model (.etlt) with the encrypted key directly in the DeepStream app. The model file is generated by export.
Option 2: Generate a device specific optimized TensorRT engine using tao-converter. The TensorRT engine file can also be ingested by DeepStream.
For FasterRCNN, we will need to build TensorRT Open source plugins and custom bounding box parser. The instructions are provided below in the TensorRT OSS section above and the required code can be found in this GitHub repo.
In order to integrate the models with DeepStream, you need the following:
Download and install DeepStream SDK. The installation instructions for DeepStream are provided in the DeepStream Development Guide.
An exported
.etlt
model file and optional calibration cache for INT8 precision.A
labels.txt
file containing the labels for classes in the order in which the networks produces outputs.A sample
config_infer_*.txt
file to configure the nvinfer element in DeepStream. The nvinfer element handles everything related to TensorRT optimization and engine creation in DeepStream.
DeepStream SDK ships with an end-to-end reference application which is fully configurable. Users
can configure input sources, inference model, and output sinks. The app requires a primary object
detection model, followed by an optional secondary classification model. The reference
application is installed as deepstream-app
. The graphic below shows the architecture of the
reference application.
![arch_ref_appl2.png](https://docscontent.nvidia.com/dims4/default/9849cfb/2147483647/strip/true/crop/617x231+0+0/resize/617x231!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fsphinx%2F00000187-15a5-da68-af97-d7a5bb8e0000%2Ftao%2Ftao-toolkit-archive%2Ftao-30-2108%2F_images%2Farch_ref_appl2.png)
There are typically 2 or more configuration files that are used with this app. In the install
directory, the config files are located in samples/configs/deepstream-app
or
sample/configs/tlt_pretrained_models
. The main config file configures all the high level
parameters in the pipeline above. This would set input source and resolution, number of
inferences, tracker, and output sinks. The other supporting config files are for each individual
inference engine. The inference specific config files are used to specify models, inference
resolution, batch size, number of classes and other customization. The main config file will call
all the supporting config files. Here are some config files in
samples/configs/deepstream-app
for your reference.
source4_1080p_dec_infer-resnet_tracker_sgie_tiled_display_int8.txt
: Main config fileconfig_infer_primary.txt
: Supporting config file for primary detector in the pipeline aboveconfig_infer_secondary_*.txt
: Supporting config file for secondary classifier in the pipeline above
The deepstream-app
will only work with the main config file. This file will most likely
remain the same for all models and can be used directly from the DeepStream SDK will little to no
change. User will only have to modify or create config_infer_primary.txt
and
config_infer_secondary_*.txt
.
Integrating a FasterRCNN Model
To run a FasterRCNN model in DeepStream, you need a label file and a DeepStream configuration file. In addition, you need to compile the TensorRT Open source software and FasterRCNN bounding box parser for DeepStream.
A DeepStream sample with documentation on how to run inference using the trained FasterRCNN models from TAO Toolkit is provided on GitHub here.
Prerequisite for FasterRCNN Model
FasterRCNN requires the cropAndResizePlugin and the proposalPlugin. This plugin is available in the TensorRT open source repo. Detailed instructions to build TensorRT OSS can be found in TensorRT Open Source Software (OSS).
FasterRCNN requires custom bounding box parsers that are not built-in inside the DeepStream SDK. The source code to build custom bounding box parsers for FasterRCNN is available here. The following instructions can be used to build bounding box parser:
Step 1: Install git-lfs (git >= 1.8.2)
curl -s https://packagecloud.io/install/repositories/github/git-lfs/
script.deb.sh | sudo bash
sudo apt-get install git-lfs
git lfs install
Step 2: Download Source Code with SSH or HTTPS
git clone -b release/tlt3.0 https://github.com/NVIDIA-AI-IOT/deepstream_tlt_apps
Step 3: Build
// or Path for DS installation
export CUDA_VER=10.2 // CUDA version, e.g. 10.2
make
This generates libnvds_infercustomparser_tlt.so
in the directory post_processor
.
Label File
The label file is a text file containing the names of the classes that the FasterRCNN model is
trained to detect. The order in which the classes are listed here must match the order in which
the model predicts the output. This order is derived from the order the objects are instantiated
in the target_class_mapping
field of the FasterRCNN experiment specification file.
During the training, TAO FasterRCNN will make all the class names in lower case and sort them in
alphabetical order. For example, if the target_class_mapping
label file is:
target_class_mapping {
key: "car"
value: "car"
}
target_class_mapping {
key: "person"
value: "person"
}
target_class_mapping {
key: "bicycle"
value: "bicycle"
}
The actual class name list is bicycle
, car
, person
. The example of the
corresponding label_file_frcnn.txt
file is (we always append a background
class at
the end):
bicycle
car
person
background
If --gen_ds_config
is provided during TAO export of a FasterRCNN model, then a
label file named labels.txt
will be generated automatically. Without knowing the
above details, the labels.txt
file can be used directly in DeepStream inference.
DeepStream Configuration File
The detection model is typically used as a primary inference engine. It can also be used as a
secondary inference engine. To run this model in the sample deepstream-app
, you must
modify the existing config_infer_primary.txt
file to point to this model as well as
the custom parser.
![dstream_deploy_options3.png](https://docscontent.nvidia.com/dims4/default/11a54a1/2147483647/strip/true/crop/809x411+0+0/resize/809x411!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fsphinx%2F00000187-15a5-da68-af97-d7a5bb8e0000%2Ftao%2Ftao-toolkit-archive%2Ftao-30-2108%2F_images%2Fdstream_deploy_options3.png)
Option 1: Integrate the model (.etlt
) directly in the DeepStream app.
For this option, users will need to add the following parameters in the configuration file.
The int8-calib-file
is only required for INT8 precision.
tlt-encoded-model=<TLT exported .etlt>
tlt-model-key=<Model export key>
int8-calib-file=<Calibration cache file>
The tlt-encoded-model
parameter points to the exported model (.etlt
) from TAO Toolkit. The
tlt-model-key
is the encryption key used during model export.
Option 2: Integrate TensorRT engine file with DeepStream app.
Step 1: Generate TensorRT engine using tao-converter. See the Generating an engine using tao-converter section above for detailed instructions.
Step 2: Once the engine file is generated successfully, modify the following parameters to use this engine with DeepStream.
model-engine-file=<PATH to generated TensorRT engine>
All other parameters are common between the 2 approaches. To use the custom bounding box parser instead of the default parsers in DeepStream, modify the following parameters in [property] section of primary infer configuration file:
parse-bbox-func-name=NvDsInferParseCustomNMSTLT
custom-lib-path=<PATH to libnvds_infercustomparser_tlt.so>
Add the label file generated above using:
labelfile-path=<Classification labels>
For all the options, see the configuration file below. To learn about what all the parameters are used for, refer to DeepStream Development Guide.
Here’s a sample config file, config_infer_primary.txt
:
[property]
gpu-id=0
net-scale-factor=1.0
offsets=<image mean values as in the training spec file> # e.g.: 103.939;116.779;123.68
model-color-format=1
labelfile-path=<Path to frcnn_labels.txt>
tlt-encoded-model=<Path to FasterRCNN model>
tlt-model-key=<Key to decrypt the model>
infer-dims=<c;h;w> # e.g., 3;544;960 Where c = number of channels, h = height of the model input, w = width of model input
uff-input-order=0
uff-input-blob-name=<input_blob_name> # e.g.: input_image
batch-size=<batch size> e.g.: 1
## 0=FP32, 1=INT8, 2=FP16 mode
network-mode=0
num-detected-classes=<number of classes to detect(including background)> #
e.g.: 5
interval=0
gie-unique-id=1
is-classifier=0
#network-type=0
output-blob-names=<output_blob_names> e.g.: NMS
parse-bbox-func-name=NvDsInferParseCustomNMSTLT
custom-lib-path=<PATH to libnvds_infercustomparser_tlt.so>
[class-attrs-all]
pre-cluster-threshold=0.6
roi-top-offset=0
roi-bottom-offset=0
detected-min-w=0
detected-min-h=0
detected-max-w=0
detected-max-h=0
If --gen_ds_config
is provided during TAO export of a FasterRCNN model, then a
config file named nvinfer_config.txt
will be generated automatically. This file is an
incomplete config file for DeepStream inference; you should copy and paste available fields
in this partial config file to you own complete config file.
