Log Management for UCS Tools Applications#

Telemetry consists of reading logs from various components. It plays a vital role in checking the health of constituent microservices. You must ship logs to a log management system where logs can be stored, analyzed, and alerts generated for any issues.

Prerequisites#

Microservices used in the application must log to stdout / stderr.

Enable Logging in MicroK8s Cluster#

Enable log management easily in a MicroK8s Cluster with the Elasticsearch, Fluentd and Kibana (the EFK stack).

To demonstrate logging, we will use the application from the tutorial Sharing Storage between Pod Replicas and assume it has been already deployed.

Enable the EFK stack#

First enable the community add-on and then the fluentd add-on.

$ microk8s enable community
...
Community repository is now enabled

$ microk8s enable fluentd
...
Fluentd-Elasticsearch is enabled

Next, forward the Kibana service port to access the Kibana service from any host.

$ microk8s kubectl port-forward -n kube-system service/kibana-logging --address 0.0.0.0 8181:5601
Forwarding from 0.0.0.0:8181 -> 5601

Create a new index pattern#

Now open http://<NODE_IP>:8181/app/management/kibana/indexPatterns/create in a browser where NODE_IP is the IP address of the machine where the kubectl port-forward command is running.

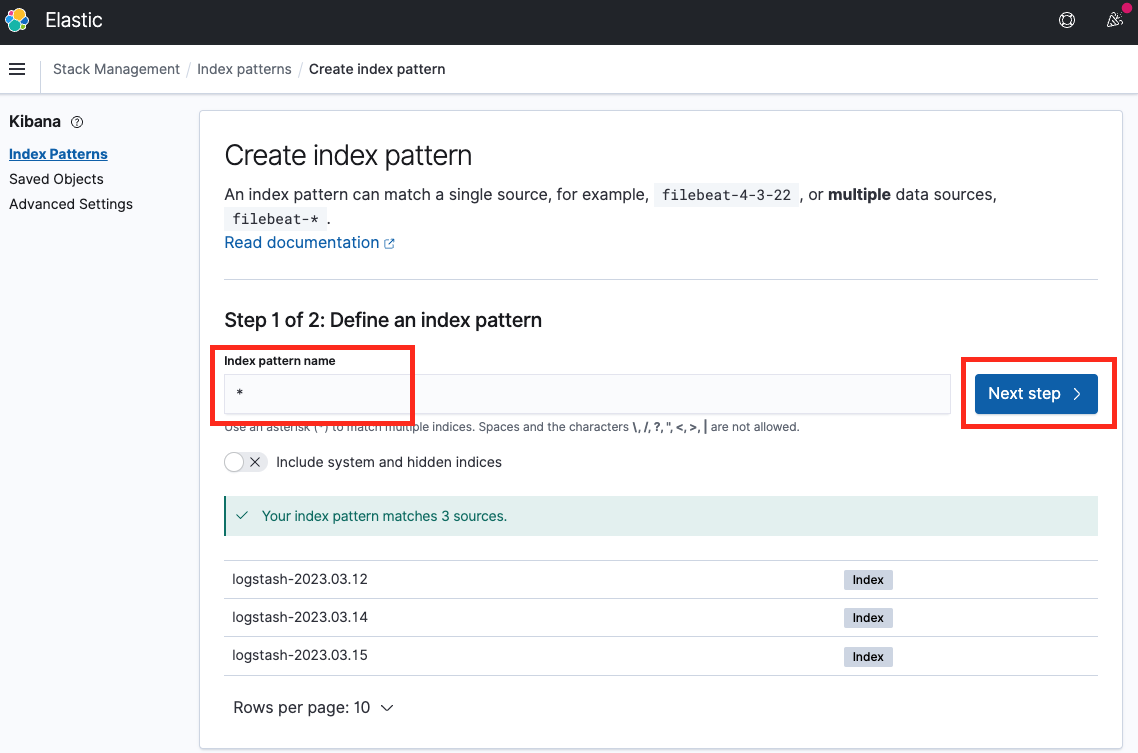

Enter * or logstash-* as the index pattern and click on Next step.

MicroK8S Logging - Kibana - Index Pattern

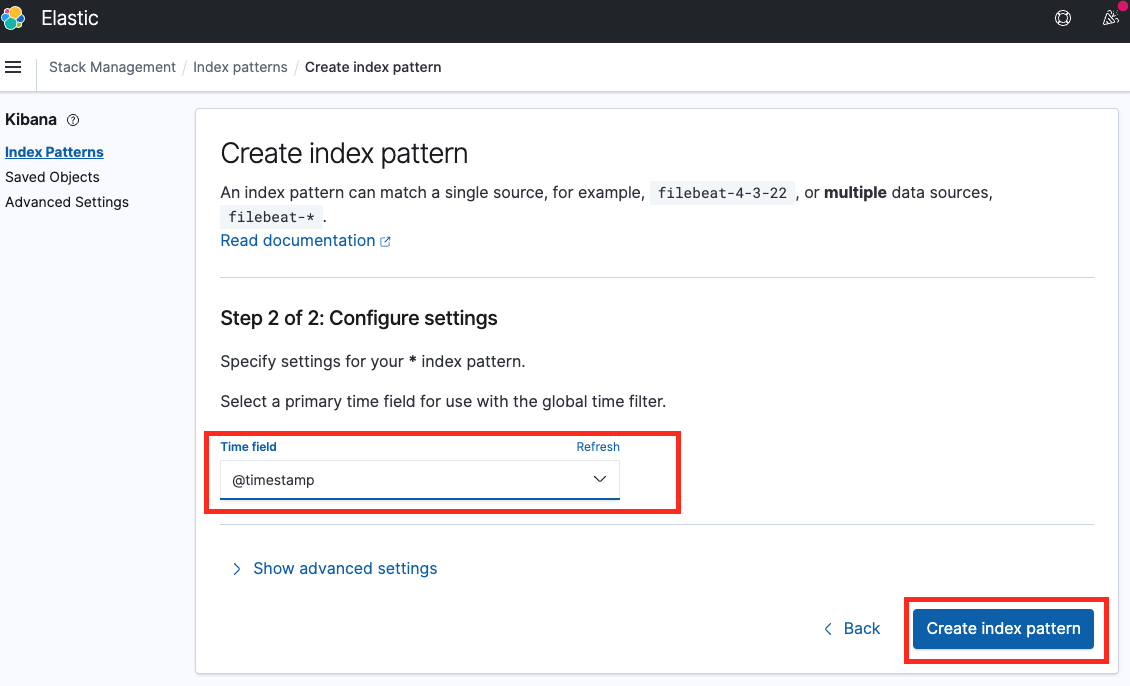

Next, select @timestamp as the timestamp field and click on Create index pattern.

MicroK8S Logging - Kibana - Timestamp field

View logs#

Now go to http://<NODE_IP>:8181/app/discover. The application logs along with other Kubernetes and system logs should be visible here.

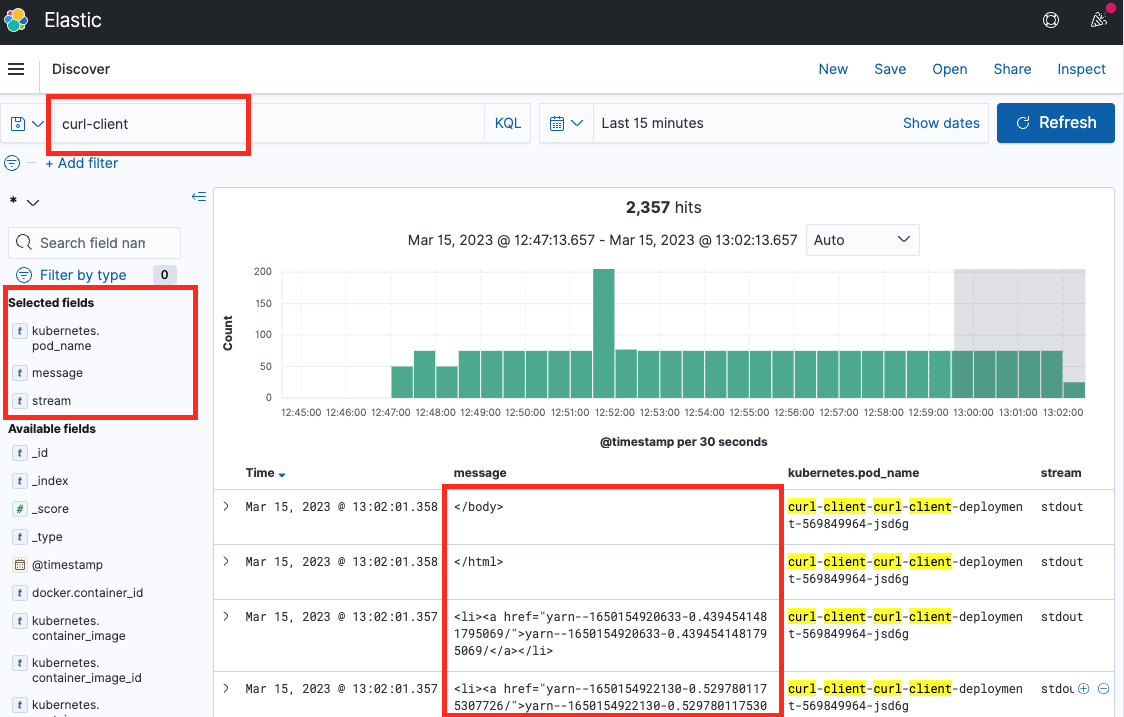

Filter the data to only show curl-client logs and only show a few selected fields.

Thus we can see logs from our application in the EFK stack.
