Aerial follows the best practices of Kubernetes (https://kubernetes.io/docs/concepts/cluster-administration/logging/) for implementing logging.

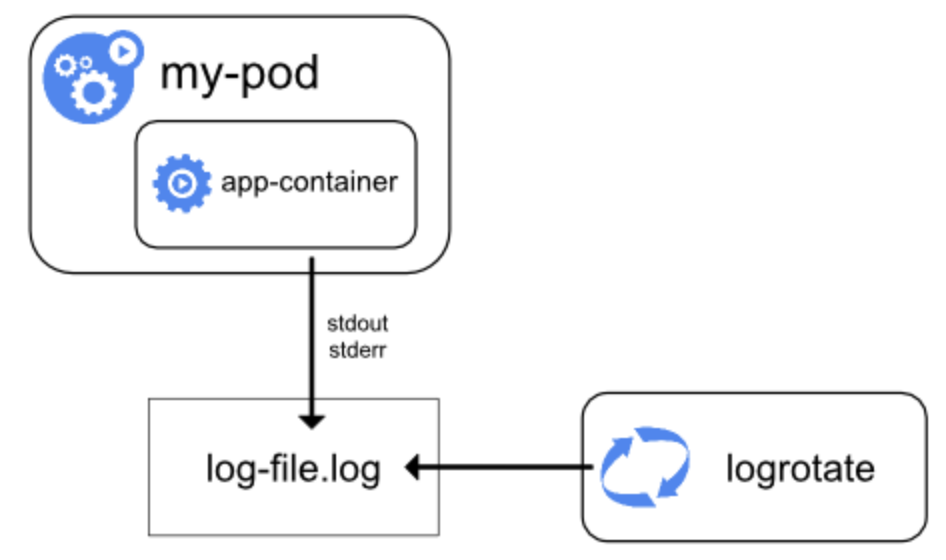

The cuphycontroller application outputs log messages with log level less than or equal to the cuphycontroller YAML configuration parameter nvlog.console_log_level directly to stdout using the “logging at the node level” pattern.

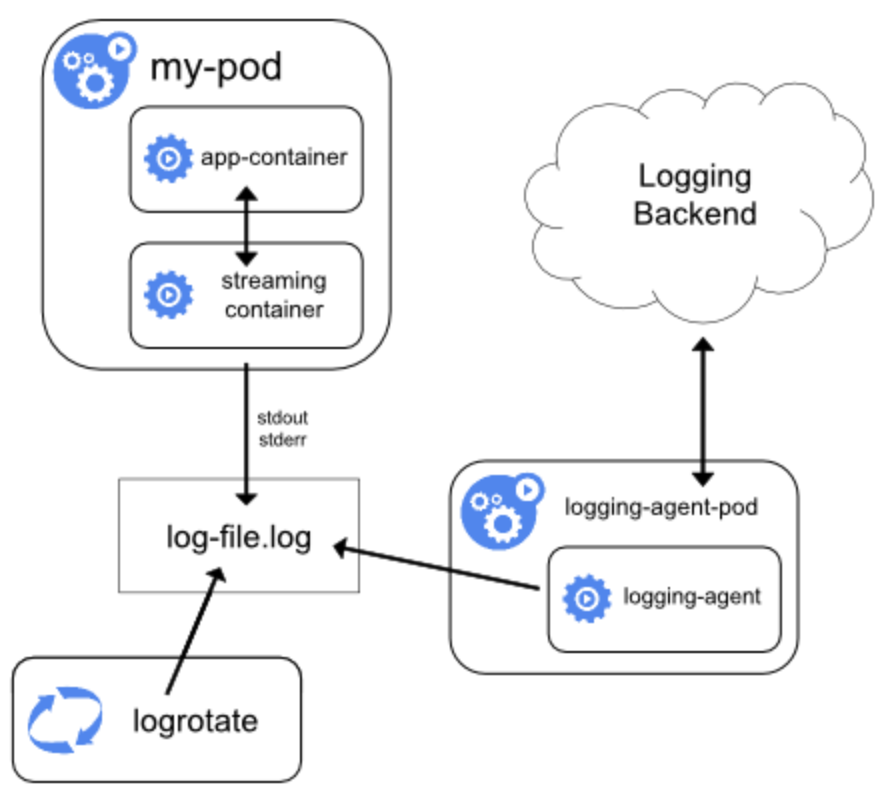

For high performance logs, Aerial uses a shared memory logger to offload the I/O bottleneck from the real-time threads. Log messages with level less than or equal to cuphycontroller YAML configuration parameter nvlog.shm_log_level are output to the shared memory logger. The shared memory logger outputs can be retrieved using either the “streaming sidecar” pattern with logs written directly to the local disk:

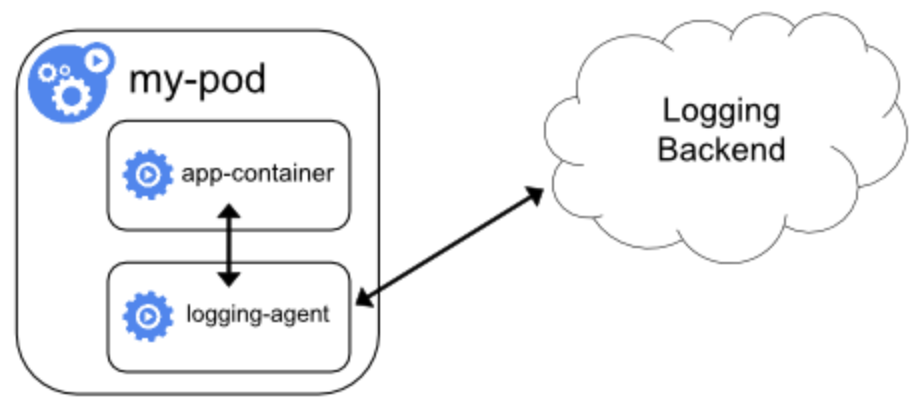

or the “sidecar with logging agent” pattern to stream directly to an external logging backend:
Each nvlog message is a string of the form “[Software Component Name] Msg” prefixed with the following space-separated optional fields:
Date
Timestamp
Primary or Secondary nvlog process
Log level
Log event code id
Log event code string
CPU core number the calling thread is running on
64-bit sequence number
Thread ID
Thread Name
These fields are enabled in the nvlog_config.yaml.
An example nvlog message is:
20:58:09.036299 C [NVLOG.CPP] nvlog_create: name=phy shm_level=1
console_level=1 max_file_size=0x10000000 shm_cache_size=0x200000
log_buf_size=1024 prefix_opts=0x09
The message above had the following prefaces enabled:
Timestamp
Log level
Here are three more example nvlog message with all prefixed fields enabled taken at the start of cuphycontroller process execution:
2021-09-15 21:29:22.926521 P C 0 SUCESS 1 0 140699056300032
cuphycontroller [NVLOG.CPP] nvlog_create: name=phy shm_level=1
console_level=1 max_file_size=0x10000000 shm_cache_size=0x200000
log_buf_size=1024 prefix_opts=0xFF
2021-09-15 21:29:22.926560 P C 0 SUCCESS 1 1 140699056300032
cuphycontroller [CTL.SCF] Config file:
/cuBB_21-3/cuPHY-CP/cuphycontroller/config/cuphycontroller_V08.yaml
2021-09-15 21:29:23.130882 P C 0 SUCCESS 22 2 140699056300032
cuphycontroller [CTL.YAML] Standalone mode: No
Here is an example of an nvlog message at Fault level with Event Code AERIAL_MEMORY_EVENT:
20:58:09.036299 F MEMORY_EVENT Unable to allocate memory for FH buffers
The message above had the following prefaces enabled:
Timestamp
Log level
Log event code string
The fields are further described herein:
Date is YYYY-MM-DD format, e.g. 1970-01-01
Timestamp is HH:MM:SS.us, e.g. 20:58:09.036299
Primary process is P, secondary process is S
Log level is:
F - Fatal
E - Error
C - Console
W - Warning
I - Info
D - Debug
V - Verbose
Log event code string / log event code id is a string (or a numerical id) that indicates the category of event which has occurred.
Aerial implements the following default logging component tags.
nvlog component:
10: “NVLOG”
11: “NVLOG.TEST”
12: “NVLOG.ITAG”
nvipc component:
30: “NVIPC”
cuPHY-CP Controller component:
100: “CTL”
101: “CTL.SCF”
102: “CTL.ALTRAN”
103: “CTL.DRV”
104: “CTL.YAML”
cuPHY-CP driver component:
200: “DRV”
201: “DRV.SA”
202: “DRV.TIME”
203: “DRV.CTX”
204: “DRV.API”
205: “DRV.FH”
206: “DRV.GEN_CUDA”
207: “DRV.GPUDEV”
208: “DRV.PHYCH”
209: “DRV.TASK”
210: “DRV.WORKER”
211: “DRV.DLBUF”
212: “DRV.CSIRS”
213: “DRV.PBCH”
214: “DRV.PDCCH_DL”
215: “DRV.PDSCH”
216: “DRV.MAP_DL”
217: “DRV.FUNC_DL”
218: “DRV.HARQ_POOL”
219: “DRV.ORDER_CUDA”
220: “DRV.ORDER_ENTITY”
221: “DRV.PRACH”
222: “DRV.PUCCH”
223: “DRV.PUSCH”
224: “DRV.MAP_UL”
225: “DRV.FUNC_UL”
226: “DRV.ULBUF”
227: “DRV.MPS”
228: “DRV.METRICS”
229: “DRV.MEMFOOT”
230: “DRV.CELL”
cuPHY-CP cuphyl2adapter component:
300: “L2A”
301: “L2A.MAC”
302: “L2A.MACFACT”
303: “L2A.PROXY”
304: “L2A.EPOLL”
305: “L2A.TRANSPORT”
306: “L2A.MODULE”
307: “L2A.TICK”
308: “L2A.UEMD”
cuPHY-CP scfl2adapter component:
330: “SCF”
331: “SCF.MAC”
332: “SCF.DISPATCH”
333: “SCF.PHY”
334: “SCF.SLOTCMD”
335: “SCF.L2SA”
336: “SCF.DUMMYMAC”
cuPHY-CP testMAC component:
400: “MAC”
401: “MAC.LP”
402: “MAC.FAPI”
403: “MAC.UTILS”
404: “MAC.SCF”
405: “MAC.ALTRAN”
406: “MAC.CFG”
407: “MAC.PROC”
cuPHY-CP ru-emulator component:
500: “RU”
501: “RU.EMULATOR”
502: “RU.PARSER”
cuPHY-CP aerial-fh-driver component:
600: “FH”
601: “FH.FLOW”
602: “FH.FH”
603: “FH.GPU_MP”
604: “FH.LIB”
605: “FH.MEMREG”
606: “FH.METRICS”
607: “FH.NIC”
608: “FH.PDUMP”
609: “FH.PEER”
610: “FH.QUEUE”
611: “FH.RING”
612: “FH.TIME”
cuPHY-CP compression_decompression component:
700: “COMP”
cuPHY-CP cuphyoam component:
800: “OAM”
cuPHY component:
900: “CUPHY”
Note that these strings may be changed by the Aerial SDK user via the nvlog_config.yaml.
Following is the list of event codes (see aerial_event_code.h). The event strings match the event code names, minus the AERIAL_.
| AERIAL_SUCCESS = 0,
| AERIAL_INVALID_PARAM_EVENT = 1,
| AERIAL_INTERNAL_EVENT = 2,
| AERIAL_CUDA_API_EVENT = 3,
| AERIAL_DPDK_API_EVENT = 4,
| AERIAL_THREAD_API_EVENT = 5,
| AERIAL_CLOCK_API_EVENT = 6,
| AERIAL_NVIPC_API_EVENT = 7,
| AERIAL_ORAN_FH_EVENT = 8,
| AERIAL_CUPHYDRV_API_EVENT = 9,
| AERIAL_INPUT_OUTPUT_EVENT = 10,
| AERIAL_MEMORY_EVENT = 11,
| AERIAL_YAML_PARSER_EVENT = 12,
| AERIAL_NVLOG_EVENT = 13,
| AERIAL_CONFIG_EVENT = 14,
| AERIAL_FAPI_EVENT = 15,
| AERIAL_NO_SUPPORT_EVENT = 16,
| AERIAL_SYSTEM_API_EVENT = 17,
| AERIAL_L2ADAPTER_EVENT = 18,
| AERIAL_RU_EMULATOR_EVENT = 19,
