rna_gatk¶
Run GATK best practices for RNAseq short variant discovery (SNPs + Indels).

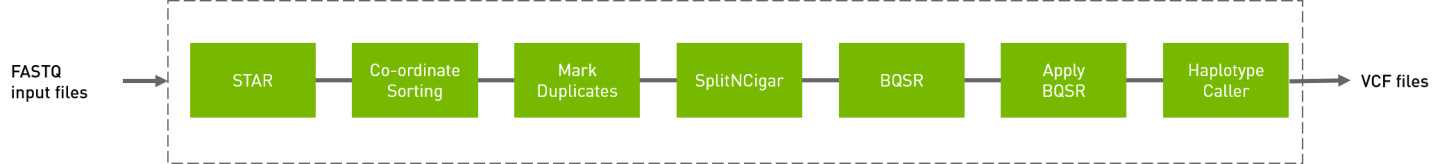

The RNA GATK pipeline processes the input FASTQ files, performing the steps show below. The output is in VCF format.

Quick Start¶
# The command line below will run the RNA GATK pipeline.
$ pbrun rna_gatk \
--ref Ref/Homo_sapiens_assembly38.fasta \
--in-fq Data/sample_1.fq.gz Data/sample_2.fq.gz \
--read-files-command zcat \
--genome-lib-dir Ref/ \
--out-variants output.vcf \
--out-bam tumor.bam \
--output-dir output
rna_gatk Reference¶
Run the GATK Best Practices pipeline for RNA-seq data from FASTQ to VCF.
Input/Output file options¶
- --ref REF
Path to the reference file. (default: None)
Option is required.
- --in-fq [IN_FQ [IN_FQ ...]]
Path to the pair-ended FASTQ files followed by optional read groups with quotes (Example: "@RGtID:footLB:lib1tPL:bartSM:sampletPU:foo"). The files must be in fastq or fastq.gz format. All sets of inputs should have a read group; otherwise, none should have a read group, and it will be automatically added by the pipeline. This option can be repeated multiple times. Example 1: --in-fq sampleX_1_1.fastq.gz sampleX_1_2.fastq.gz --in-fq sampleX_2_1.fastq.gz sampleX_2_2.fastq.gz. Example 2: --in-fq sampleX_1_1.fastq.gz sampleX_1_2.fastq.gz "@RGtID:footLB:lib1tPL:bartSM:sampletPU:unit1" --in-fq sampleX_2_1.fastq.gz sampleX_2_2.fastq.gz "@RGtID:foo2tLB:lib1tPL:bartSM:sampletPU:unit2". For the same sample, Read Groups should have the same sample name (SM) and a different ID and PU. (default: None)
- --in-se-fq [IN_SE_FQ [IN_SE_FQ ...]]
Path to the single-ended FASTQ file followed by optional read group with quotes (Example: "@RGtID:footLB:lib1tPL:bartSM:sampletPU:foo"). The file must be in fastq or fastq.gz format. Either all sets of inputs have read group or none should have it and will be automatically added by the pipeline. This option can be repeated multiple times. Example 1: --in-se-fq sampleX_1.fastq.gz --in-se-fq sampleX_2.fastq.gz . Example 2: --in-se-fq sampleX_1.fastq.gz "@RGtID:footLB:lib1tPL:bartSM:sampletPU:unit1" --in-se-fq sampleX_2.fastq.gz "@RGtID:foo2tLB:lib1tPL:bartSM:sampletPU:unit2" . For the same sample, Read Groups should have the same sample name (SM) and a different ID and PU (default: None)
- --genome-lib-dir GENOME_LIB_DIR
Path to a genome resource library directory. The indexing required to run STAR should be completed by the user beforehand. (default: None)
Option is required.
- --knownSites KNOWNSITES
Path to a known indels file. The file must be in vcf.gz format. This option can be used multiple times. (default: None)
- --interval-file INTERVAL_FILE
Path to an interval file in one of these formats: Picard-style (.interval_list or .picard), GATK-style (.list or .intervals), or BED file (.bed). This option can be used multiple times. (default: None)
- --output-dir OUTPUT_DIR
Path to the directory that will contain all of the generated files. (default: None)
Option is required.
- --out-recal-file OUT_RECAL_FILE
Path of the report file after Base Quality Score Recalibration. (default: None)
- --out-bam OUT_BAM
Path of the output BAM file. (default: None)
Option is required.
- --out-variants OUT_VARIANTS
Path of the vcf/g.vcf/gvcf.gz file after variant calling. The argument can also be a local folder in batch mode. (default: None)
Option is required.
Tool Options:¶
- --num-cpu-threads NUM_CPU_THREADS
Number of CPU threads to traverse separate chromosomes in splitncigar. (default: 6)
- --no-ignore-mark
Do not ignore marked reads in sorted output. (default: None)
- --num-threads NUM_THREADS
Number of running worker threads per GPU. (default: 4)
- --out-prefix OUT_PREFIX
Prefix filename for output data. (default: None)
- --read-files-command READ_FILES_COMMAND
Command line to execute for each of the input files. This command should generate FASTA or FASTQ text and send it to stdout: For example: zcat to uncompress .gz files, bzcat to uncompress .bz2 files, etc. (default: None)
- --read-group-sm READ_GROUP_SM
SM tag for read groups in this run. (default: None)
- --read-group-lb READ_GROUP_LB
LB tag for read groups in this run. (default: None)
- --read-group-pl READ_GROUP_PL
PL tag for read groups in this run. (default: None)
- --read-group-id-prefix READ_GROUP_ID_PREFIX
Prefix for the ID and PU tags for read groups in this run. This prefix will be used for all pairs of FASTQ files in this run. The ID and PU tags will consist of this prefix, and an identifier that will be unique for a pair of FASTQ files. (default: None)
- --two-pass-mode TWO_PASS_MODE
Two-pass mapping mode. The string can be "None" for one-pass mapping or "Basic" for basic two-pass mapping with all 1st pass junctions inserted into the genome indices on the fly. (default: Basic)
- --read-length READ_LENGTH
Input read length used to determine sjdbOverhang. (default: None)
- --haplotypecaller-options HAPLOTYPECALLER_OPTIONS
Pass supported haplotype caller options as one string. Currently supported original haplotypecaller options: -min-pruning <int>, -standard-min-confidence-threshold-for-calling <int>, -max-reads-per-alignment-start <int>, -min-dangling-branch-length <int>, -pcr-indel-model <NONE, HOSTILE, AGGRESSIVE, CONSERVATIVE>, --output-mode <EMIT_VARIANTS_ONLY, EMIT_ALL_CONFIDENT_SITES, EMIT_ALL_ACTIVE_SITES> (e.g. --haplotypecaller-options="-min-pruning 4 -standard-min-confidence-threshold-for-calling 30"). (default: None)
- --static-quantized-quals STATIC_QUANTIZED_QUALS
Use static quantized quality scores to a given number of levels. Repeat this option multiple times for multiple bins. (default: None)
- --gvcf
Generate variant calls in .gvcf Format. (default: None)
- --batch
Given an input list of BAMs, run the variant calling of each BAM using one GPU, and process BAMs in parallel based on how many GPUs the system has. (default: None)
- --disable-read-filter DISABLE_READ_FILTER
Disable the read filters for BAM entries. Currently, the supported read filters that can be disabled are MappingQualityAvailableReadFilter, MappingQualityReadFilter, NotSecondaryAlignmentReadFilter, and WellformedReadFilter. (default: None)
- --max-alternate-alleles MAX_ALTERNATE_ALLELES
Maximum number of alternate alleles to genotype. (default: None)
- -G ANNOTATION_GROUP, --annotation-group ANNOTATION_GROUP
The groups of annotations to add to the output variant calls. Currently supported annotation groups are: StandardAnnotation, StandardHCAnnotation, and AS_StandardAnnotation. (default: None)
- -GQB GVCF_GQ_BANDS, --gvcf-gq-bands GVCF_GQ_BANDS
Exclusive upper bounds for reference confidence GQ bands. Must be in the range [1, 100] and specified in increasing order. (default: None)
- --rna
Run haplotypecaller optimized for RNA data. (default: None)
- --dont-use-soft-clipped-bases
Don't use soft clipped bases for variant calling. (default: None)
- --run-partition
Divide the whole genome into multiple partition and run multiple processes at the same time, each on 1 partition. (default: None)
- --no-alt-contigs
Get rid of output records for alternate contigs. (default: None)
- --ploidy PLOIDY
Ploidy assumed for the BAM file. Currently only haploid (ploidy 1) and diploid (ploidy 2) are supported. (default: 2)
- -L INTERVAL, --interval INTERVAL
Interval within which to call the variants from the BAM/CRAM file. All intervals will have a padding of 100 to get read records, and overlapping intervals will be combined. Interval files should be passed using the --interval-file option. This option can be used multiple times (e.g. "-L chr1 -L chr2:10000 -L chr3:20000+ -L chr4:10000-20000"). (default: None)
- -ip INTERVAL_PADDING, --interval-padding INTERVAL_PADDING
Amount of padding (in base pairs) to add to each interval you are including. (default: None)
Common options:¶
- --logfile LOGFILE
Path to the log file. If not specified, messages will only be written to the standard error output. (default: None)
- --tmp-dir TMP_DIR
Full path to the directory where temporary files will be stored.
- --with-petagene-dir WITH_PETAGENE_DIR
Full path to the PetaGene installation directory. By default, this should have been installed at /opt/petagene. Use of this option also requires that the PetaLink library has been preloaded by setting the LD_PRELOAD environment variable. Optionally set the PETASUITE_REFPATH and PGCLOUD_CREDPATH environment variables that are used for data and credentials (default: None)
- --keep-tmp
Do not delete the directory storing temporary files after completion.
- --license-file LICENSE_FILE
Path to license file license.bin if not in the installation directory.
- --no-seccomp-override
Do not override seccomp options for docker (default: None).
- --version
View compatible software versions.
GPU options:¶
- --num-gpus NUM_GPUS
Number of GPUs to use for a run. GPUs 0..(NUM_GPUS-1) will be used.
- --gpu-devices GPU_DEVICES
GPU devices to use for a run. By default, all GPU devices will be used. To use specific GPU devices, enter a comma-separated list of GPU device numbers. Possible device numbers can be found by examining the output of the
nvidia-smi
command. For example, using --gpu-devices 0,1 would only use the first two GPUs.
Note
The --in-fq option takes the names of two FASTQ files, optionally followed by a quoted read group. The FASTQ filenames must not start with a hyphen.
Note
In the values provided to --haplotypecaller-options --output-mode requires two leading hyphens, while all other values take a single hyphen.
