Slurm Updates#

Please refer to the DGX SuperPOD Release Notes for the latest validated Slurm version supported on DGX BasePOD and SuperPOD.

On the headnode, check the current version of Slurm using sinfo. If the headnode does not recognize the sinfo command, try running the module load slurm command and then run sinfo.
root@demeter-headnode-01:~# sinfo --version slurm 23.02.6

If there are Slurm jobs running, either wait till they complete or stop them, confirming no running jobs on the DGX nodes.

root@demeter-headnode-01:~# cmsh
[demeter-headnode-01]% device
[demeter-headnode-01->device]% drain -l slurmclient
[demeter-headnode-01->device]% quit
root@demeter-headnode-01:~# squeue -t R,CG
        JOBID PARTITION     NAME     USER ST       TIME  NODES NODELIST(REASON)

Stop the Slurm controller and accounting server services on the headnodes. Confirm the Slurm services are stopped on both headnodes.

root@demeter-headnode-01:~# cmsh
[demeter-headnode-01]% device
[demeter-headnode-01->device]% foreach -l slurmserver ( services; stop slurmctld )
[demeter-headnode-01->device]% foreach -l slurmaccounting ( services; stop slurmdbd )
[demeter-headnode-01->device]% foreach -l slurmclient ( services; stop slurmd )
[demeter-headnode-01->device]% quit

root@demeter-headnode-01:~# systemctl status slurmctld.service
root@demeter-headnode-01:~# systemctl status slurmdbd.service

root@Demeter-headnode-02:~# systemctl status slurmctld.service
root@Demeter-headnode-02:~# systemctl status slurmdbd.service

Update Slurm packages. First update the local database of available software packages and their versions, then identify currently installed Slurm packages and their versions, followed by identifying the updated Slurm packages to install.

root@demeter-headnode-01:~# apt update
root@demeter-headnode-01:~# apt list --installed | grep slurm

WARNING: apt does not have a stable CLI interface. Use with caution in scripts.

slurm23.02-client/BCM 10.0,now 23.02.6-100806-cm10.0-9c8dc03511 amd64 [installed,upgradable to: 23.02.8-100881-cm10.0-48e305b89c]
slurm23.02-contribs/BCM 10.0,now 23.02.6-100806-cm10.0-9c8dc03511 amd64 [installed,upgradable to: 23.02.8-100881-cm10.0-48e305b89c]
slurm23.02-devel/BCM 10.0,now 23.02.6-100806-cm10.0-9c8dc03511 amd64 [installed,upgradable to: 23.02.8-100881-cm10.0-48e305b89c]
slurm23.02-perlapi/BCM 10.0,now 23.02.6-100806-cm10.0-9c8dc03511 amd64 [installed,upgradable to: 23.02.8-100881-cm10.0-48e305b89c]
slurm23.02-slurmdbd/BCM 10.0,now 23.02.6-100806-cm10.0-9c8dc03511 amd64 [installed,upgradable to: 23.02.8-100881-cm10.0-48e305b89c]
slurm23.02/BCM 10.0,now 23.02.6-100806-cm10.0-9c8dc03511 amd64 [installed,upgradable to: 23.02.8-100881-cm10.0-48e305b89c]

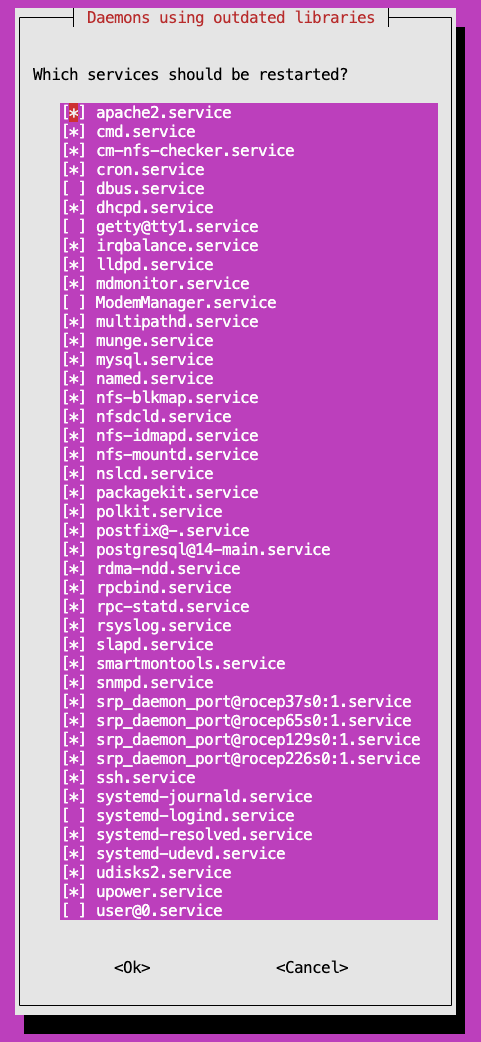

Update the Slurm packages. Select <OK> if prompted to select which services to restart.

root@demeter-headnode-01:~# apt install slurm23.02-client slurm23.02-contribs slurm23.02-devel slurm23.02-perlapi slurm23.02-slurmdbd slurm23.02

Verify the updated packages are installed.

root@demeter-headnode-01:~# apt list --installed | grep slurm

WARNING: apt does not have a stable CLI interface. Use with caution in scripts.

slurm23.02-client/BCM 10.0,now 23.02.8-100881-cm10.0-48e305b89c amd64 [installed]
slurm23.02-contribs/BCM 10.0,now 23.02.8-100881-cm10.0-48e305b89c amd64 [installed]
slurm23.02-devel/BCM 10.0,now 23.02.8-100881-cm10.0-48e305b89c amd64 [installed]
slurm23.02-perlapi/BCM 10.0,now 23.02.8-100881-cm10.0-48e305b89c amd64 [installed]
slurm23.02-slurmdbd/BCM 10.0,now 23.02.8-100881-cm10.0-48e305b89c amd64 [installed]
slurm23.02/BCM 10.0,now 23.02.8-100881-cm10.0-48e305b89c amd64 [installed]

On the active headnode, perform a systemctl daemon-reload to re-read the updated Slurm systemd unit files that point to the new Slurm version directory. After this, start the Slurm services on the headnodes and verify they are ‘active’.

root@demeter-headnode-01:~# systemctl daemon-reload
root@demeter-headnode-01:~# systemctl restart slurmdbd
root@demeter-headnode-01:~# systemctl restart slurmctld

Note

If the slurmdbd.service does not start (i.e., become active) on the active headnode, review the slurmdbd.service file located at /lib/systemd/system/ and check the Type setting and the -D option in the ExecStart line.

If the Type setting is set to forking, set it to simple.
If the -D option is missing in the ExecStart line, then add the -D option to the ExecStart line as shown below.

Then run systemctl daemon-reload and restart the slurmdbd.service and slurmctld.service on the active headnode.

root@demeter-headnode-01:~# vi /lib/systemd/system/slurmdbd.service
[Unit]
Description=Slurm DBD accounting daemon
After=network-online.target munge.service mysql.service mysqld.service mariadb.service
Wants=network-online.target
ConditionPathExists=/etc/slurm/slurmdbd.conf

[Service]
Type=simple
EnvironmentFile=-/etc/sysconfig/slurmdbd
EnvironmentFile=-/etc/default/slurmdbd
ExecStart=cm/shared/apps/slurm/23.02.8/sbin/slurmdbd -D -s $SLURMDBD_OPTIONS
ExecReload=/bin/kill -HUP $MAINPID
LimitNOFILE=65536
TasksMax=infinity

# Uncomment the following lines to disable logging through journald.
# NOTE: It may be preferable to set these through an override file instead.
#StandardOutput=null
#StandardError=null

[Install]
WantedBy=multi-user.target

root@demeter-headnode-01:~# systemctl daemon-reload
root@demeter-headnode-01:~# systemctl restart slurmdbd
root@demeter-headnode-01:~# systemctl restart slurmctld

Repeat steps 4 to 7 on the passive headnode. Only need to restart the slurmctld.service on the passive headnode. Make sure Type is set to simple and the -D option is in the ExecStart line in the slurmdbd.service file.

root@Demeter-headnode-02:~# apt update
root@Demeter-headnode-02:~# apt list --installed | grep slurm
root@Demeter-headnode-02:~# apt install slurm23.02-client slurm23.02-contribs slurm23.02-devel slurm23.02-perlapi slurm23.02-slurmdbd slurm23.02
root@Demeter-headnode-02:~# apt list --installed | grep slurm
root@Demeter-headnode-02:~# systemctl daemon-reload
root@Demeter-headnode-02:~# systemctl restart slurmctld

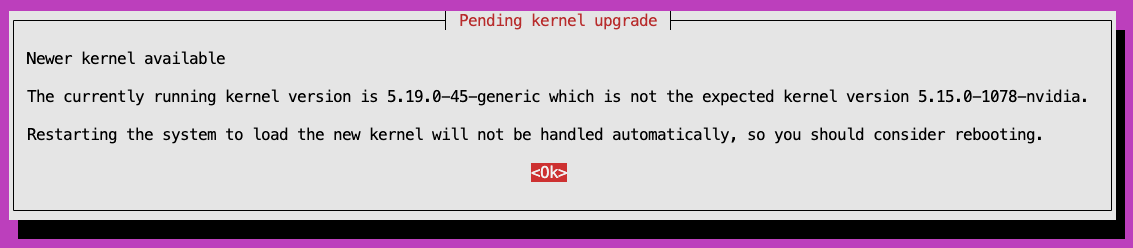

Next update the Slurm client on the software image for the DGX nodes and then apply the updated image to the DGX nodes. Use cm-chroot-sw-img to update the DGX nodes image. Press <OK> if prompted for newer kernel is available. When all done, exit chroot.

root@demeter-headnode-01:~# cm-chroot-sw-img /cm/images/dgx-os-6.3.2-h100-image/
root@dgx-os-6:/# apt update
root@dgx-os-6:/# apt list --installed | grep slurm

WARNING: apt does not have a stable CLI interface. Use with caution in scripts.

slurm23.02-client/BCM 10.0,now 23.02.6-100806-cm10.0-9c8dc03511 amd64 [installed,upgradable to: 23.02.8-100881-cm10.0-48e305b89c]
root@dgx-os-6:/# apt install slurm23.02-client
root@dgx-os-6:/# apt list --installed | grep slurm

WARNING: apt does not have a stable CLI interface. Use with caution in scripts.

slurm23.02-client/BCM 10.0,now 23.02.8-100881-cm10.0-48e305b89c amd64 [installed]
root@dgx-os-6:/# exit

Apply the updated DGX image to the DGX nodes. Exit cmsh until you see the imageupdate is completed notification.

root@demeter-headnode-01:~# cmsh
[demeter-headnode-01]% device
[demeter-headnode-01->device]% imageupdate -w -c dgx-h100
[demeter-headnode-01->device]%
Fri May 30 00:41:38 2025 [notice] demeter-headnode-01: Provisioning started: sending demeter-headnode-01:/cm/images/dgx-os-6.3.2-h100-image-MOFED to dgx-07:/, mode UPDATE, dry run = no
….
#output truncated
….
imageupdate -c dgx-h100 -w [ COMPLETED ]

Since the Slurm client package is updated, so systemctl daemon-reload is needed on the DGX nodes to re-read the updated Slurm systemd unit files, then restart the slurmd.service on the DGX nodes to ensure the updated Slurm client version is active. You can verify Slurm is loaded properly on the DGX nodes by using sinfo to check the Slurm nodes are in Idle state.
root@demeter-headnode-01:~# pdsh -w dgx-[01-31] systemctl daemon-reload && systemctl restart slurmd root@demeter-headnode-01:~# sinfo

Start the Slurm services from cmsh to retain the settings between cm daemon restarts.

root@demeter-headnode-01:~# cmsh
[demeter-headnode-01]% device
[demeter-headnode-01->device]% foreach -l slurmserver ( services; start slurmctld )
[demeter-headnode-01->device]% foreach -l slurmaccounting ( services; start slurmdbd )
[demeter-headnode-01->device]% foreach -l slurmclient ( services; start slurmd )
[demeter-headnode-01->device]% quit

root@demeter-headnode-01:~# systemctl status slurmctld.service
root@demeter-headnode-01:~# systemctl status slurmdbd.service

root@Demeter-headnode-02:~# systemctl status slurmctld.service
root@Demeter-headnode-02:~# systemctl status slurmdbd.service
