File Scan

NVIDIA DOCA File Scan Application Guide

This document provides a file scan implementation on top of NVIDIA® BlueField® DPU.

1. Introduction

BlueField DPU supports high-speed hardware RegEx acceleration using the RegEx engine. This allows accelerating different security and networking applications which require RegEx processing.

The file scan application uses the hardware RegEx engine to scan a file and returns whether there is a match or not. This application can be a base for many security verifications for sensitive data and personal information. File scan logic includes:

Compiling RegEx rules using Regex compiler
Loading a compiled set of RegEx rules to the BlueField RegEx engine
Sending file to the RegEx for scanning
HW scanning file and returning a list of matches (e.g., matching rule, offset, length)

2. System Design

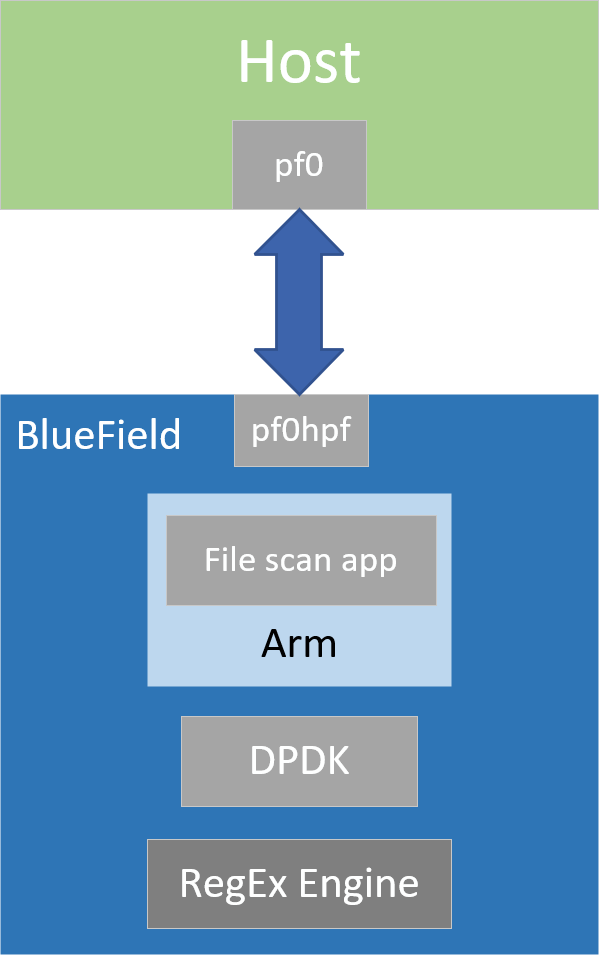

File scan utilizes the RegEx engine which is a hardware accelerator on the BlueField.

3. Application Architecture

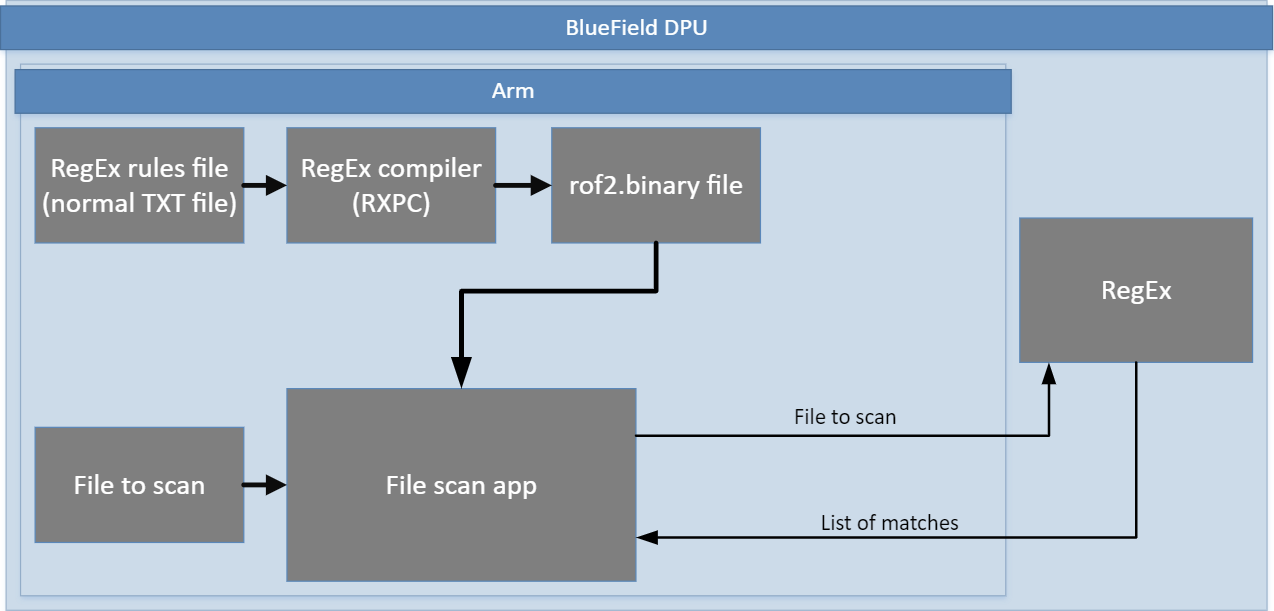

The file scan application runs on top of DOCA RegEx API to configure, send, and receive scans to and from the BlueField RegEx engine.

RegEx rules file is compiled into a rof2.binary file by the user.
The RegEx binary rules file is loaded into the RegEx engine.
The file to scan is sent to the RegEx triggering the engine to start matching
The results are sent back to the application.

Note:

It is the application's responsibility to check for finished jobs. In this example, you Busy-Wait until the RegEx finishes scanning.
The matches are printed on the screen, and optionally to a CSV file (which should input to the application, see Running Application).

4. DOCA Libraries

This application leverages the DOCA RegEx Library.

5. Configuration Flow

Parse application argument.

Copy
Copied!


            doca_arg_init();

Initialize Arg Parser resources.

Register DOCA general flags.

Copy
Copied!


            register_file_scan_params();

Register file scan application flags.

Copy
Copied!


            doca_arg_start();

Parsing APP flags.

Initialize file scan resources.
Copy

Copied!
```

            file_scan_init();

```
1. Initialize DOCA RegEx.
2. Allocate memory pool and QP.
3. Start the RegEx engine.

Initialize job request.

Copy
Copied!


            init_job_request();

Set the job buffer and job length.

Allocate mbuf pool.

Copy
Copied!


            allocate_mbuf_pool();

Allocate mbuf memory pool to hold the file buffer.

Enqueue RegEx job.

Copy
Copied!


            File_scan_enqueue_job();

Send job to the RegEx engine.

Dequeue RegEx scan task.

Copy
Copied!


            file_scan_dequeue_job();

Dequeue from the RegEx queue.
Report results if found.

Clean up the File Scan app.
Copy

Copied!
```

            file_scan_cleanup();

```
1. Stop and free RegEx resources.
2. Free application resources.

6. Running Application

Refer to the following documents:
- NVIDIA DOCA Installation Guide for details on how to install BlueField-related software.
- NVIDIA DOCA Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA applications.
The application binary is located under /opt/mellanox/doca/applications/file_scan/bin/doca_file_scan. To build all the applications together, run:
Copy

Copied!
```

            cd /opt/mellanox/doca/applications/
meson build
ninja -C build

```

To build the file scan application only:

Edit the following flags in /opt/mellanox/doca/applications/meson_option.txt:
- Set enable_all_applications to false
- Set enable_file_scan to true
Run the commands in step 2.

Note:

doca_file_scan is created under ./build/file_scan/src/.

Application usage:

Copy
Copied!


            Usage: doca_file_scan [DOCA Flags] [Program Flags]
DOCA Flags:
  -h, --help                    Print a help synopsis
  -v, --version                 Print program version information
  -l, --log-level               Set the log level for the program <CRITICAL=0, DEBUG=4>
Program Flags:
  -r, --rules <path>            Path to compiled rules file (rof2.binary)
  -d, --data <path>             Path to data file
  -p, --pci_addr <PCI-ADDRESS>  RegEx device PCI address
  -o, --output-csv <path>       Path to the output of the CSV file
  -c, --chunk-size <Number of Bytes> Chunk size of each job sent to the regex,  use 0 to send the file as 1 chunk.
  -s, --overlap-size <Number of Bytes> Number of bytes of overlap to use for huge jobs

Note:

The RegEx accelerator must explicitly be initialized on p0.

Note:

For additional information on the application, use the -h option:

Copy
Copied!


            /opt/mellanox/doca/applications/file_scan/bin/doca_file_scan -h

Running application on BlueField:
- To run the application, the RegEx-compiled rule files must be supplied to the app. These files usually end with *.rof2.binary. To compile the example rules file, run:
  Copy

  Copied!
```

            cd /opt/mellanox/doca/applications/file_scan/bin/
rxpc -f regex_rules.txt -p 0.01 -o /tmp/regex_rules

```
  The results of the rxpc are written to /tmp/ directory, each file with the prefix regex_rules.

  Note:

  For more information, refer to NVIDIA RXP Compiler.
- Pre-run setup.
  Make sure the RegEx engine is active:
  Copy

  Copied!
```

            systemctl status mlx-regex

```
  If the status is inactive (Active: failed), run:
  Copy

  Copied!
```

            systemctl start mlx-regex

```
- CLI example for running the application on BlueField assuming the PCIe address of the DPI is 03:00:
  Copy

  Copied!
```

            cd /opt/mellanox/doca/applications/file_scan/bin/
./doca_file_scan --pci-addr 03:00.0 --rules /tmp/regex_rules.rof2.binary -–data data_to_scan.txt

```

Running the application on the host, CLI example:

Copy
Copied!


            cd /opt/mellanox/doca/applications/file_scan/
./doca_file_scan –-pci-addr 21:00.0 –-rules /tmp/regex_rules.rof2.binary –-data data_to_scan.txt

Note:

Sub-functions must be enabled according to the Scalable Function Setup Guide.

To run doca_file_scan using a JSON file:

Copy
Copied!


            doca_file_scan --json [json_file]

For example:

Copy
Copied!


            cd /opt/mellanox/doca/applications/file_scan/bin
./doca_file_scan --json file_scan_params.json

Note:

The file scan application prints the results to the standard output.

7. Arg Parser DOCA Flags

For more information, refer to NVIDIA DOCA Arg Parser User Guide.

Flag Type	Short Flag	Long Flag/JSON Key	Description	JSON Content
General Flags	l	log-level	Set the log level for the application: CRITICAL=0 ERROR=1 WARNING=2 INFO=3 DEBUG=4	Copy Copied! `"log-level": 4`
	v	version	Print program version information	N/A
	h	help	Print a help synopsis	N/A
Program Flags	r	rules	Path to precompiled rules file (`rof2.binary`) Note: `rules` is mandatory flag.	Copy Copied! `"rules": "/tmp/regex_rules.rof2.binary"`
	d	data	Path to data file Note: `data` is mandatory flag.	Copy Copied! `"data": "/tmp/data_to_scan.txt"`
	p	pci-addr	RegEx device PCIe address	Copy Copied! `"pci-addr": "03:00.0"`
	o	output-csv	Path to the output CSV file	Copy Copied! `"output-csv": "/tmp/results.csv"`
	s	overlap	Number of bytes of overlap to use for huge jobs	Copy Copied! `"overlap-size": 0`
	c	chunk-size	Chunk size of each job sent to the RegEx	Copy Copied! `"chunk-size": 0`

8. References

/opt/mellanox/doca/applications/file_scan/src/file_scan.c
/opt/mellanox/doca/applications/file_scan/src/regex_rules.txt
/opt/mellanox/doca/applications/file_scan/src/data_to_scan.txt
