Switch
NVIDIA DOCA Switch Application Guide
This document provides a switch implementation on top of NVIDIA® BlueField® DPU.

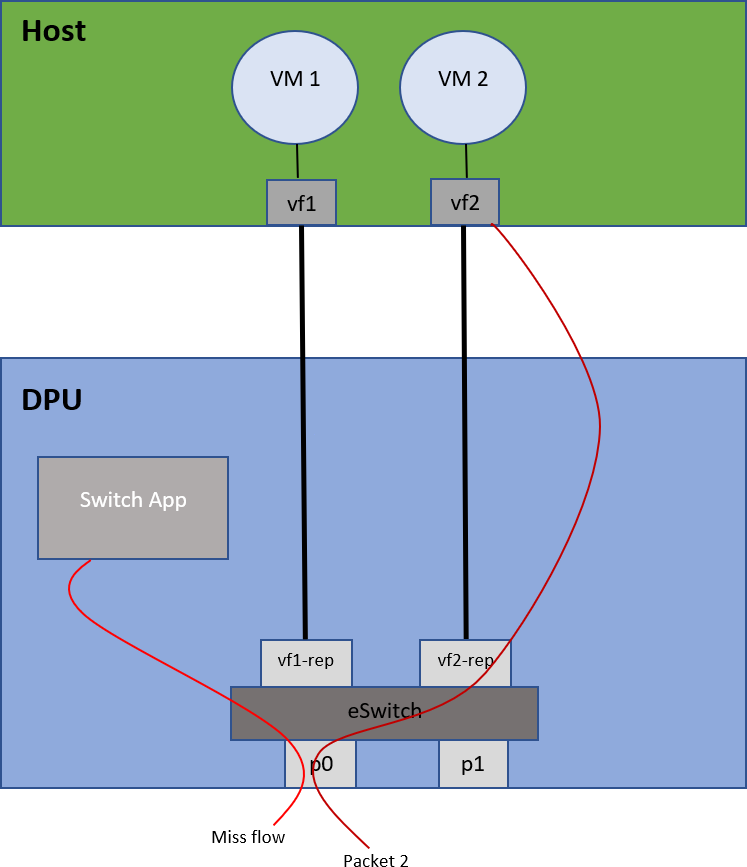

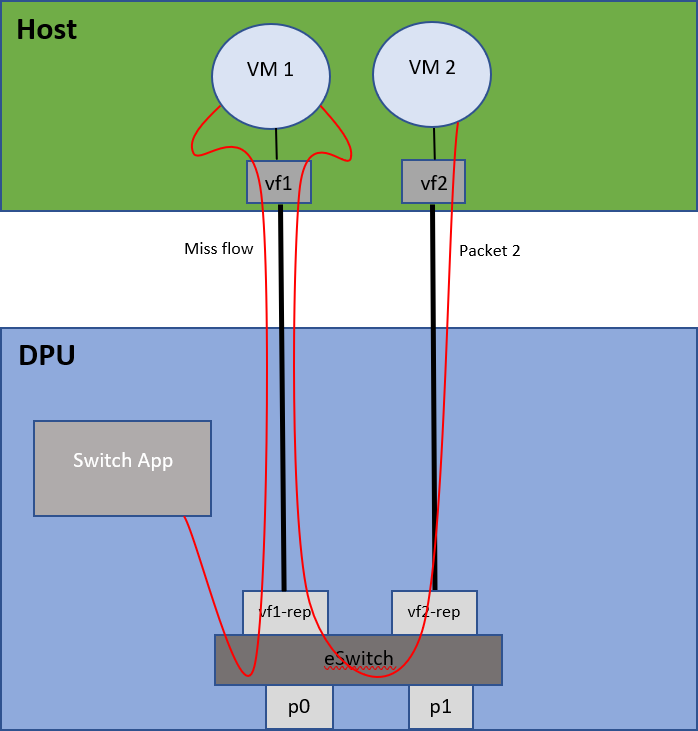

DOCA Switch is a network application that leverages the DPU's hardware capability for internal switching between representor ports on the DPU.
DOCA Switch is based on the DOCA Flow library. As such, it exposes a command line interface which receives DOCA Flow like commands to allow adding rules in real time.
DOCA Switch is based on 3 modules:
- Command line interface – receives pre-defined DOCA Flow-like commands and parses them
- Flow pipes manger – generates a unique identification number for each DOCA Flow structure created
- Switch core – combines all modules together and calls necessary DOCA Flow API
Port initialization cannot be made dynamically. All ports must be defined when running the application with standard DPDK flags.
- When adding a pipe or an entry, the user must run commands to create the relevant structs beforehand
- Optional parameters must be specified by the user in the command line; otherwise,
NULLis used - After a pipe or an entry is created successfully, the relevant ID is printed for future use
Available commands:
- create pipe port_id=[port_id][,<optional_parameters>]
Available optional parameters:
- name=<pipe-name>
- root_enable=[1|0]
- monitor=[1|0]
- match_mask=[1|0]
- fwd=[1|0]
- fwd_miss=[1|0]
- type=[basic|control]
- add entry pipe_id=<pipe_id>,pipe_queue=<pipe_queue>[,<optional_parameters>]
Available optional parameters:
- monitor=[1|0]
- fwd=[1|0]
- add control_pipe entry priority=<priority>,pipe_id=<pipe_id>,pipe_queue=<pipe_queue>[,<optional_parameters>]
Available optional parameters:
- match_mask=[1|0]
- fwd=[1|0]
- destroy pipe port_id=[port_id],pipe_id=<pipe_id>
- rm entry pipe_queue=<pipe_queue>,entry_id=[entry_id]
- port pipes flush port_id=[port_id]
- port pipes dump port_id=[port_id],file=[file_name]
- query entry_id=[entry_id]
- create [struct] [field=value,…]
- Struct options: pipe_match, entry_match, match_mask, actions, monitor, fwd, fwd_miss
- Match struct fields:
Fields Field Options flags port_meta (source port) According to the number of physical ports out_src_mac out_dst_mac out_eth_type out_vlan_id out_src_ip_type ipv4, ipv6 out_src_ip_addr out_dst_ip_type ipv4, ipv6 out_dst_ip_addr out_l4_type tcp, udp, gre out_tcp_flags FIN, SYN, RST, PSH, ACK, URG, ECE, CWR out_src_port out_dst_port tun_type vxlan-tun_id gre_key gtp_teid in_src_mac in_dst_mac in_eth_type in_vlan_id in_src_ip_type ipv4, ipv6 in_src_ip_addr in_dst_ip_type ipv4, ipv6 in_dst_ip_addr in_l4_type tcp, udp in_tcp_flags FIN, SYN, RST, PSH, ACK, URG, ECE, CWR in_src_port in_dst_port - Actions struct fields:
Fields Field Options decap true, false mod_src_mac mod_dst_mac mod_src_ip_type ipv4, ipv6 mod_src_ip_addr mod_dst_ip_type ipv4, ipv6 mod_dst_ip_addr mod_src_port mod_dst_port dec_ttl true, false has_encap true, false encap_src_mac encap_dst_mac encap_src_ip_type ipv4, ipv6 encap_src_ip_addr encap_dst_ip_type ipv4, ipv6 encap_dst_ip_addr encap_tup_type vxlan, gtpu, greencap_vxlan-tun_id encap_gre_key encap_gtp_teid - FWD struct fields:
Fields Field Options type rss, port, pipe, drop rss_flags rss_queues num_of_queues rss_mark port_id next_pipe_id - Monitor struct fields:
- flags
- id
- cir
- cbs
- aging
- Match struct fields:
- Struct options: pipe_match, entry_match, match_mask, actions, monitor, fwd, fwd_miss
Consider that the physical port number (only one physical port is supported) will always be 0 and all representor ports are numbered from 1 to N where N is the number of representors being used. For example:
- Physical port ID: 0
- VF0 representor port ID: 1
- VF1 representor port ID: 2
- VF2 representor port ID: 3
The following is an example for creating a pipe and adding two entries:
- The first entry matches UDP packets with destination port 54223 and forwards it to VF1 representor (port ID 2)
- The second entry matches UDP packets with destination port 54222 and forwards it to VF0 representor (port ID 1)
In the final stage, both entries are deleted, each according to the unique random ID it was given:
create pipe_match out_l4_type=udp,out_src_ip_type=ipv4,out_dst_port=0xffff,port_meta=0xffffffff
create fwd type=port,port_id=0xffff
create pipe port_id=0,name=vf0_to_vf1,root_enable=1,fwd=1
create entry_match port_meta=1,out_dst_port=54223
create fwd type=port,port_id=2
add entry pipe_queue=0,fwd=1,pipe_id=1012
create entry_match port_meta=2,out_dst_port=54222
create fwd type=port,port_id=1
add entry pipe_queue=0,fwd=1,pipe_id=1012
rm entry pipe_queue=0,entry_id=345
rm entry pipe_queue=0,entry_id=447
This application leverages the DOCA Flow library.
- Parse application argument.
- Initialize the arg parser resources and register DOCA general parameters.
doca_argp_init();
- Register application parameters.
register_switch_params();
- Parse application flags.
doca_argp_start();
- Initialize the arg parser resources and register DOCA general parameters.
- Count total number of ports.
switch_ports_count();
- Check how many ports are entered when running the application.
- Initialize DPDK ports and queues.
dpdk_queues_and_ports_init();
- Initialize DOCA Switch.
switch_init();
- Initialize DOCA Flow.
- Create port pairs.
- Create Flow Pipes Manger module
- Register an action for each relevant CLI command.
- Initialize Flow Parser.
flow_parser_init();
- Reset all internal Flow Parser structures.
- Start the command line interface.
- Receive user commands, parse them, and call the required DOCA Flow API command.
- Close the interactive shell once a "quit" command is entered.
- Clean Flow Parser resources.
flow_parser_cleanup();
- Destroy DOCA Switch resources.
switch_destroy();
- Destroy Flow Pipes Manager resources.
- Destroy DOCA Flow.
switch_destroy();
- Destroy DPDK ports and queues.
dpdk_queues_and_ports_fini();
- DPDK finish.
dpdk_fini();
- Call
rte_eal_destroy()to destroy initialized EAL resources.
- Call
- Arg parser destroy.
doca_argp_destroy();
- Refer to the following documents:
- NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software.
- NVIDIA DOCA Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA applications.
- NVIDIA DOCA Applications Overview for additional compilation instructions and development tips for the DOCA applications.
- The DOCA Switch example binary is located under
/opt/mellanox/doca/applications/switch/bin/doca_switch. To build all the applications together, run:cd /opt/mellanox/doca/applications/ meson build ninja -C build
- To build only the Switch application:
- Edit the following flags in
/opt/mellanox/doca/applications/meson_options.txt:- Set
enable_all_applicationstofalse - Set
enable_switchtotrue
- Set
- Run the commands in step 2.
Note:
doca_switchwill be created under./build/switch/src/.
Application usage:
Usage: doca_switch [DOCA Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60>
Note:For additional information on the app, use
-h:/opt/mellanox/doca/applications/switch/bin/doca_switch -h
- Edit the following flags in
- CLI example for running the app on BlueField with 3 VF representors:
/opt/mellanox/doca/applications/switch/bin/doca_switch -a 03:00.0,representor=[0-2] -- -l 30
Refer to NVIDIA DOCA Arg Parser User Guide for more information.
| Flag Type | Short Flag | Long Flag/JSON Key | Description | JSON Content |
|---|---|---|---|---|
| General flags | l | log-level | Sets the log level for the application:
|
|
| v | version | Print program version information | N/A | |
| h | help | Print a help synopsis | N/A |
