App Shield Agent

NVIDIA DOCA App Shield Agent Application Guide

This document provides a process introspection system implementation on top of NVIDIA® BlueField® DPU.

App Shield Agent monitors a process in the host system using the DOCA App Shield library.

This security capability helps identify corruption of core processes in the system from an independent and trusted DPU. This is a major and innovate intrusion detection system (IDS) ability since it cannot be provided from inside the host.

The DOCA App Shield library gives the capability to read, analyze, and authenticate the host (bare metal/VM) memory directly from the DPU.

Using the library, this application hashes the un-writeable memory pages (also unloaded pages) of a specific process and its libraries. Then, at regularly occurring intervals the app authenticates the loaded pages.

The app reports pass/fail after every iteration until the first attestation failure. The reports are both printed to the console and exported to the DOCA telemetry service (DTS) using inter-process communication (IPC).

This document describes how to build secure process monitoring using the DOCA App Shield library, which leverages the DPU's advantages such as hardware-based DMA, integrity, and more.

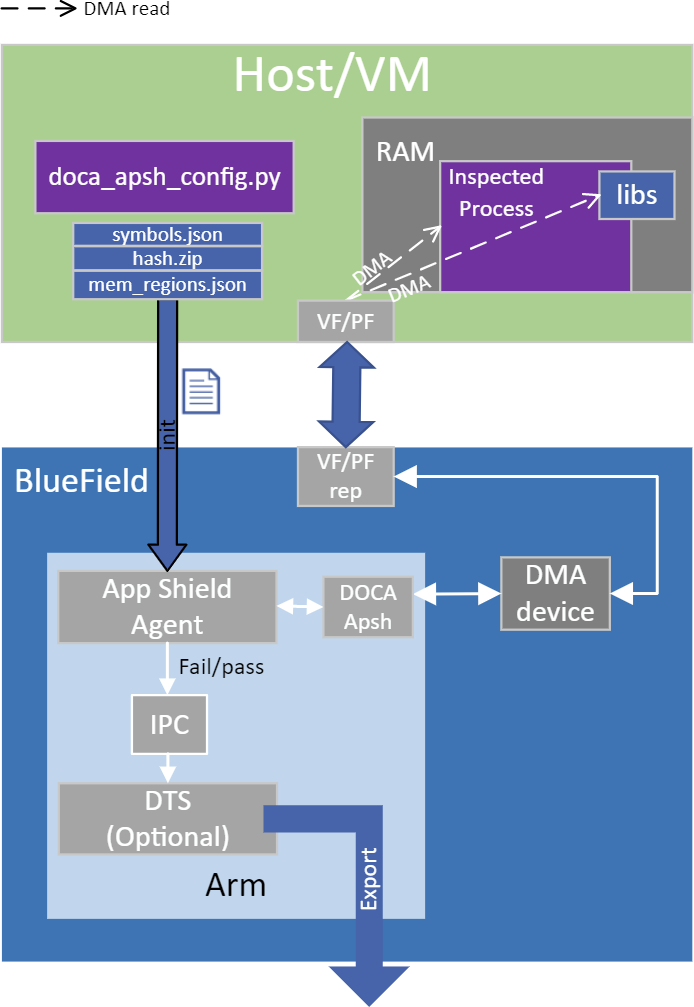

The App Shield agent is designed to run independently on the DPU's Arm without hindering the host.

The host's involvement is limited to configuring monitoring of a new process when there is a need to generate the needed ZIP and JSON files to pass to the DPU. This is done at inception ("time 0") which is when the host is still in a "safe" state.

Generating the needed files can be done by running DOCA App Shield's doca_apsh_config.py tool on the host. See NVIDIA DOCA App Shield Programming Guide for more info.


The user creates three mandatory files using the DOCA tool doca_apsh_config.py and copies them to the DPU. The application can report attestation results to the:

  • File
  • Terminal
  • DTS

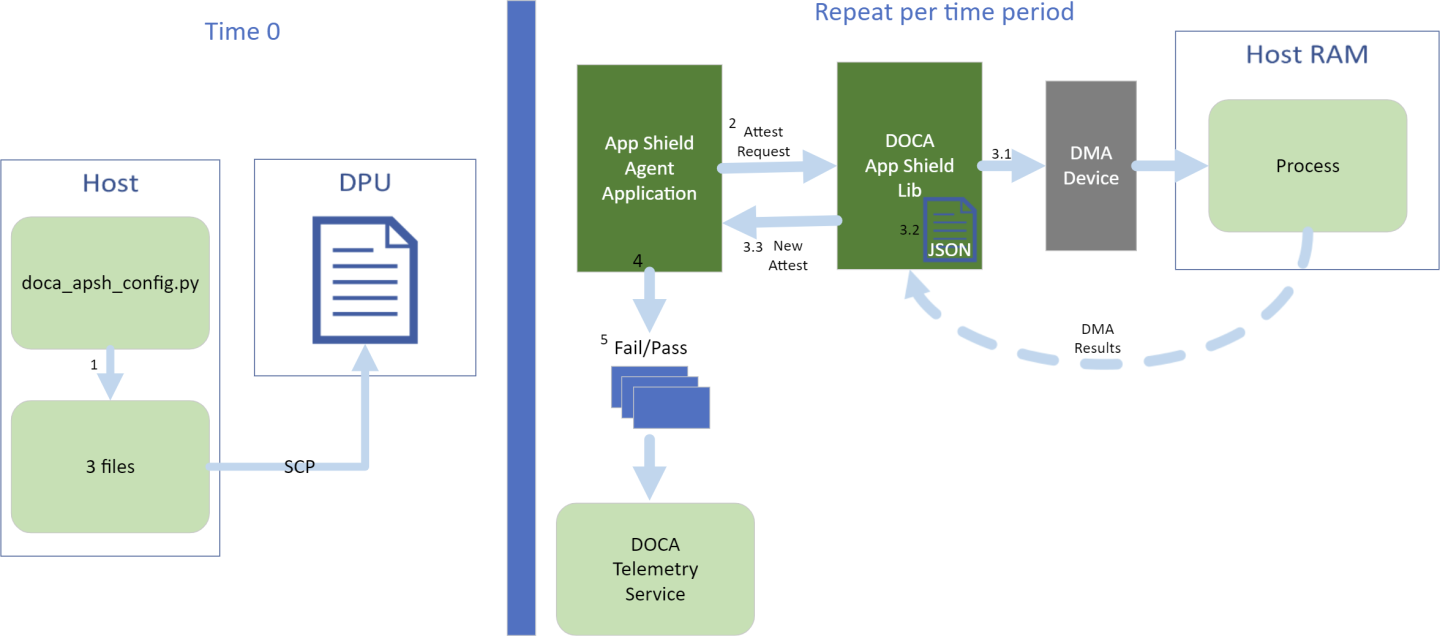

  1. The files are generated by running doca_apsh_config.py on the host against the process at time zero.
    Note:

    The actions 2-5 recur at regular time intervals.

  2. The App Shield agent requests new attestation from DOCA App Shield library.
  3. The DOCA App Shield library creates a new attestation:
    1. Scans and hashes process memory pages (that are currently in use).
    2. Compares the hash to the original hash.
    3. Creates attestation for each lib/exe involved in the process. Each of attestation includes the number of valid pages and the number of pages.
  4. The App Shield agent searches each attestation for inconsistency between number of used pages and number of valid pages.
  5. The App Shield agent reports results with a timestamp and scan count to:
    1. Local telemetry files – a folder and files representing the data a real DTS would have received. These files are used for the purposes of this example only as normally this data is not exported into user-readable files.
    2. DOCA log (without scan count).
    3. DTS IPC interface (even if no DTS is active).
  6. The App Shield agent exits on first attestation failure.

This application leverages following DOCA libraries:

  1. Parse application argument.
    1. Initialize arg parser resources and register DOCA general parameters.
      Copy
      Copied!


      doca_argp_init();

    2. Register application parameters.
      Copy
      Copied!


      register_apsh_params();

    3. Parse app flags.
      Copy
      Copied!


      doca_argp_start();

  2. Initialize DOCA App Shield lib context.
    1. Create lib context.
      Copy
      Copied!


      doca_apsh_create();

    2. Set DMA device for lib.
      Copy
      Copied!


      doca_devinfo_list_create(); doca_dev_open(); doca_devinfo_list_destroy(); doca_apsh_dma_dev_set();

    3. Start the context.
      Copy
      Copied!


      doca_apsh_start(); apsh_system_init();

  3. Initialize DOCA App Shield lib system context handler.
    1. Get the representor of the remote PCIe function exposed to the system.
      Copy
      Copied!


      doca_devinfo_remote_list_create(); doca_dev_remote_open(); doca_devinfo_remote_list_destroy();

    2. Create and start the system context handler.
      Copy
      Copied!


      doca_apsh_system_create(); doca_apsh_sys_os_symbol_map_set(); doca_apsh_sys_mem_region_set(); doca_apsh_sys_dev_set(); doca_apsh_sys_os_type_set(); doca_apsh_system_start();

  4. Find target process by PID.
    Copy
    Copied!


    doca_apsh_processes_get();

  5. Telemetry initialization.
    Copy
    Copied!


    telemetry_start();

    1. Initialize a new telemetry schema.
    2. Register attestation type event.
    3. Set up output to file (in addition to default IPC).
    4. Start the telemetry schema.
    5. Initialize and start a new DTS source with the gethostname() name as source ID.
  6. Get initial attestation of the process.
    Copy
    Copied!


    doca_apsh_attestation_get();

  7. Loop until attestation validation fail.
    Copy
    Copied!


    doca_apsh_attst_refresh(); /* validation logic */ doca_telemetry_source_report(); DOCA_LOG_INFO(); sleep();

  8. DOCA App Shield Agent destroy.
    Copy
    Copied!


    doca_apsh_attestation_free(); doca_apsh_processes_free(); doca_apsh_system_destroy(); doca_apsh_destroy(); doca_dev_close(); doca_dev_remote_close();

  9. Telemetry destroy.
    Copy
    Copied!


    telemetry_destroy();

  10. Arg parser destroy.
    Copy
    Copied!


    doca_argp_destroy();

The minimum required firmware version is 24.32.1010.

  1. Refer to the following documents:
  2. The App Shield Agent binary is located under /opt/mellanox/doca/applications/app_shield_agent/bin/doca_app_shield_agent. To build the applications together, run:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson build ninja -C build

  3. To build only the App Shield Agent application:
    1. Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
      • Set enable_all_applications to false
      • Set enable_app_shield_agent to true
    2. Run the commands in step 2.
      Note:

      doca_app_shield_agent is created under ./build/app_shield_agent/src/.

    Application usage:

    Copy
    Copied!


    Usage: doca_app_shield_agent [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60> Program Flags: -p, --pid Process ID of process to be attested -e, --ehm <path> Exec hash map path -m, --memr <path> System memory regions map -f, --vuid VUID of the System device -d, --dma DMA device name -o, --osym <path> System OS symbol map path -s, --osty <windows|linux> System OS type - windows/linux -t, --time <seconds> Scan time interval in seconds

    Note:

    For additional information on the application, use the -h flag:

    Copy
    Copied!


    /opt/mellanox/doca/applications/app_shield_agent/bin/doca_app_shield_agent -h


  4. The following steps must be done only once.
    1. Configure the BlueField's firmware.
      1. On the BlueField system, configure the PF base address register and NVME emulation. Run:
        Copy
        Copied!


        dpu> mlxconfig -d /dev/mst/mt41686_pciconf0 s PF_BAR2_SIZE=2 PF_BAR2_ENABLE=1 NVME_EMULATION_ENABLE=1

      2. Perform a cold boot from the host. Run:
        Copy
        Copied!


        host> ipmitool power cycle

      Note:

      These configurations can be checked using the following command:

      Copy
      Copied!


      dpu> mlxconfig -d /dev/mst/mt41686_pciconf0 q | grep -E "NVME|BAR"

    2. Download target system (host/VM) symbols.
      • For Ubuntu:
        Copy
        Copied!


        host> sudo tee /etc/apt/sources.list.d/ddebs.list << EOF deb http://ddebs.ubuntu.com/ $(lsb_release -cs) main restricted universe multiverse deb http://ddebs.ubuntu.com/ $(lsb_release -cs)-updates main restricted universe multiverse deb http://ddebs.ubuntu.com/ $(lsb_release -cs)-proposed main restricted universe multiverse EOF host> sudo apt install ubuntu-dbgsym-keyring host> sudo apt-get update host> sudo apt-get install linux-image-$(uname -r)-dbgsym

      • For CentOS:
        Copy
        Copied!


        host> yum install --enablerepo=base-debuginfo kernel-devel-$(uname -r) kernel-debuginfo-$(uname -r) kernel-debuginfo-common-$(uname -m)-$(uname -r)


      • No action is needed for Windows
    3. Perform IOMMU passthrough. This stage is only needed on some of the cases where IOMMU is not enabled by default (e.g., when the host is using an AMD CPU).
      Note:

      Skip this step if you are not sure whether you need it. Return to it only if DMA fails with a message in dmesg similar to the following:

      Copy
      Copied!


      host> dmesg [ 3839.822897] mlx5_core 0000:81:00.0: AMD-Vi: Event logged [IO_PAGE_FAULT domain=0x0047 address=0x2a0aff8 flags=0x0000]

      1. Locate your OS's grub file (most likely /boot/grub/grub.conf, /boot/grub2/grub.cfg, or /etc/default/grub) and open it for editing. Run:
        Copy
        Copied!


        host> vim /etc/default/grub

      2. Search for the line defining GRUB_CMDLINE_LINUX_DEFAULT and add the argument iommu=pt. For example:
        Copy
        Copied!


        GRUB_CMDLINE_LINUX_DEFAULT="iommu=pt <intel/amd>_iommu=on"

      3. Run:
        • For Ubuntu:
          Copy
          Copied!


          host> sudo update-grub host> ipmitool power cycle

        • For CentOS:
          Copy
          Copied!


          host> grub2-mkconfig -o /boot/grub2/grub.cfg host> ipmitool power cycle

    4. For Windows targets only: Turn off Hyper-V capability.
  5. Running the application on BlueField:
    • Pre-run setup:
      1. The DOCA App Shield library uses huge pages for DMA buffers. Therefore, the user must allocate 42 huge pages. Run:
        Copy
        Copied!


        dpu> nr_huge=$(cat /sys/devices/system/node/node0/hugepages/hugepages-2048kB/nr_hugepages) nr_huge=$((42+$nr_huge)) sudo echo $nr_huge > /sys/devices/system/node/node0/hugepages/hugepages-2048kB/nr_hugepages

      2. Create the ZIP and JSON files. Run:
        Note:

        If the kernel and process .exe have not changed, there no need to redo this step.

        Copy
        Copied!


        target-system> cd /opt/mellanox/doca/tools/ target-system> python3 doca_apsh_config.py <pid-of-process-to-monitor> --os <windows/linux> --path <path to dwarf2json executable or pdbparse-to-json.py> target-system> cp /opt/mellanox/doca/tools/*.* <shared-folder-with-baremetal> dpu> scp <shared-folder-with-baremetal>/* <path-to-app-shield-binary>


        If the target system does not have DOCA installed, the script can be copied from the BlueField.

        The required dwaf2json and pdbparse-to-json.py are not provided with DOCA. Follow the NVIDIA DOCA App Shield Programming Guide for more information.

    • CLI example for running the app:
      Copy
      Copied!


      dpu> /opt/mellanox/doca/applications/app_shield_agent/bin/doca_app_shield_agent -p 13577 -e hash.zip -m mem_regions.json -o symbols.json -f MT2125X03335MLNXS0D0F0VF1 -d mlx5_0 -t 3 -s linux

Refer to NVIDIA DOCA Arg Parser Programming Guide for more information.
Flag Type Short Flag Long Flag/JSON Key Description
General flags l log-level Set the log level for the application:
  • CRITICAL=20
  • ERROR=30
  • WARNING=40
  • INFO=50
  • DEBUG=60
v version Print program version information
h help Print a help synopsis
Program flags p pid PID of the process to be attested
e ehm Path to the pre-generated hash.zip file transferred from the host
m memr Path to the pre-generated mem_regions.json file transfered from the host
f pcif System PCIe function vendor unique identifier (VUID) of the VF/PF exposed to the target system. Used for DMA operations. To obtain this argument, run:
Copy
Copied!


target-system> lspci -vv | grep "\[VU\] Vendor specific:"

Example output:
Copy
Copied!


[VU] Vendor specific: MT2125X03335MLNXS0D0F0 [VU] Vendor specific: MT2125X03335MLNXS0D0F1


Two VUIDs are printed for each DPU connected to the target system. The first is of the DPU on pf0 and the second is of the DPU on port pf1.
Note:

Running this command on the DPU outputs VUIDs with an additional "EC" string in the middle. You must remove the "EC" to arrive at the correct VUID.


The VUID of a VF allocated on PF0/1 is the VUID of the PF with an additional suffix, VF<vf-number>, where vf-number is the VF index +1.

For example, for the output in the example above:

  • PF0 VUID = MT2125X03335MLNXS0D0F0
  • PF1 VUID = MT2125X03335MLNXS0D0F1
  • VUID of VF0 on PF0 = MT2125X03335MLNXS0D0F0VF1

VUIDs are persistent even on reset.

d dma DMA device name to use
o osym Path to the pre-generated symbols.json file transferred from the host
s osty OS type (windows or linux) of the system where the process is running
t time Number of seconds to sleep between scans

  • /opt/mellanox/doca/applications/app_shield_agent/src/
