DOCA AES-GCM

This guide provides instructions on building and developing applications that require data encryption and decryption using the AES-GCM algorithm.

Introduction

Note

The DOCA AES-GCM library is supported at alpha level.

The library provides an API for executing AES-GCM operations on DOCA buffers, where the buffers reside in either local memory (i.e., within the same host) or host memory accessible by the DPU (remote memory). Using DOCA AES-GCM, complex encrypt/decrypt operations can be easily executed in an optimized, hardware-accelerated manner.

This document is intended for software developers wishing to accelerate their application's encrypt/decrypt operations.

Prerequisites

This library follows the architecture of a DOCA Core context, it is recommended to read the following sections before:

Environment

DOCA AES-GCM-based applications can run either on the host machine or on the NVIDIA® BlueField® DPU target.

Encrypting/decrypting from the host to DPU and vice versa can only be run when the DPU is configured in DPU mode.

Architecture

DOCA AES-GCM is a DOCA Core Context. This library leverages the DOCA Core architecture to expose asynchronous tasks/events that are offloaded to hardware.

AES-GCM can be used to encrypt/decrypt data as illustrated in the following diagrams:

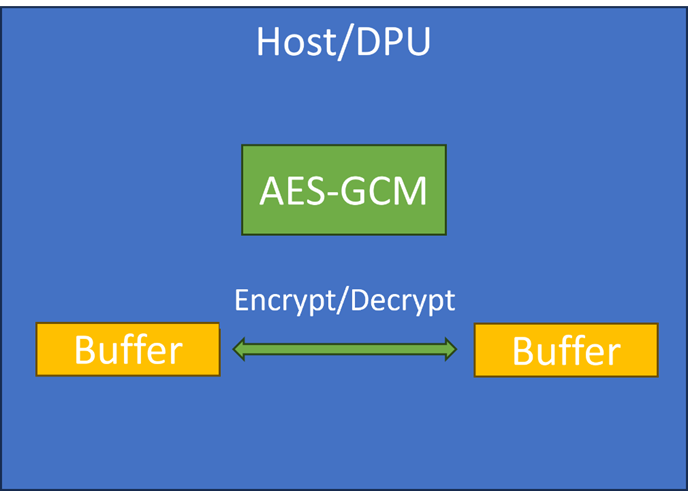

Encrypt/decrypt from local memory to local memory:

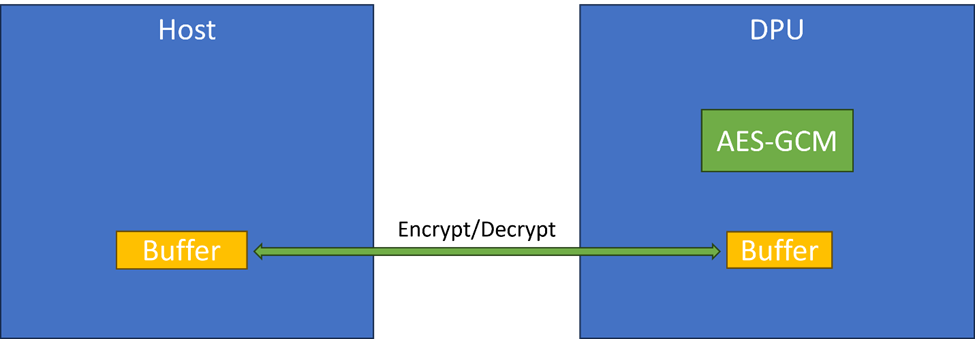

Using the DPU to copy memory between the host and the DPU:

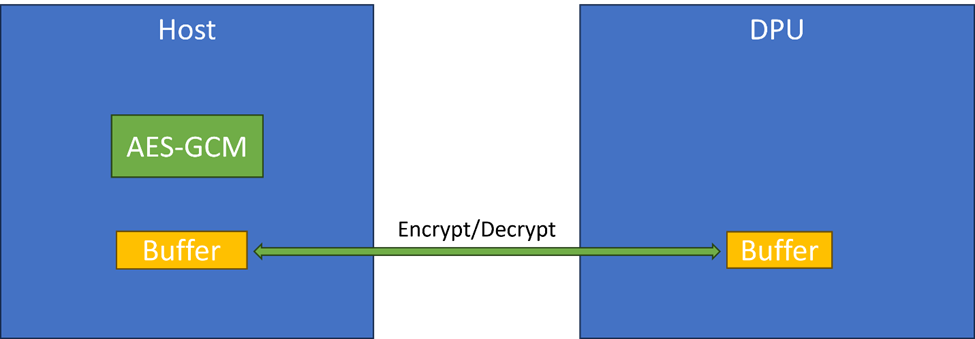

Using the host to copy memory between the host and the DPU:

Objects

Device and Representor

The library requires a DOCA device to operate. The device is used to access memory and perform the actual encrypt/decrypt. See DOCA Core Device Discovery.

For the same BlueField DPU, it does not matter which device is used (i.e., PF/VF/SF) as all these devices utilize the same hardware component. If there are multiple DPUs, then it is possible to create a AES-GCM instance per DPU, providing each instance with a device from a different DPU.

To access memory that is not local (i.e., from the host to DPU or vice versa), the DPU side of the application must pick a device with an appropriate representor (see DOCA Core Device Representor Discovery). The device must stay valid as long as AES-GCM instance is not destroyed.

Memory Buffers

The encrypt/decrypt task, requires two DOCA buffers containing the destination and the source.

Depending on the allocation pattern of the buffers, consider the DOCA Core Inventory Types table.

To find what kind of memory is supported, refer to the following table.

Buffers must not be modified or read during the encrypt/decrypt operation.

Configuration Phase

To start using the library users must go through a configuration phase as described in DOCA Core Context Configuration Phase.

This section describes how to configure and start the context to allow execution of tasks and retrieval of events.

Configurations

The context can be configured to match the application use case.

To find if a configuration is supported or its min/max value, refer to Device Support.

Mandatory Configurations

These configurations must be set by the application before attempting to start the context:

At least one task/event type must be configured. See configuration of Tasks and/or Events.
A device with appropriate support must be provided upon creation

Device Support

DOCA AES-GCM requires a device to operate. For picking a device, see DOCA Core Device Discovery.

As device capabilities may change in the future (see DOCA Core Device Support) it is recommended to select your device using the following method:

doca_aes_gcm_cap_task_encrypt_is_supported
doca_aes_gcm_cap_task_decrypt_is_supported

Some devices can allow different capabilities as follows:

The maximum number of tasks
The maximum buffer size
The maximum supported number of elements in DOCA linked-list buffer
The maximum initialization vector length
Check if authentication tag of size 96-bit is supported
Check if authentication tag of size 128-bit is supported
Check if a given AES-GCM key type is supported

Buffer Support

Tasks support buffers with the following features:

Buffer Type	Source Buffer	Destination Buffer
Local mmap buffer	Yes	Yes
Mmap from PCIe export buffer	Yes	Yes
Mmap from RDMA export buffer	No	No
Linked list buffer	Yes	No

Description	API to Set Configuration	API to Query Support
Enable the task	`doca_aes_gcm_task_encrypt_set_conf`	`doca_aes_gcm_cap_task_encrypt_is_supported`
Number of tasks	`doca_aes_gcm_task_encrypt_set_conf`	`doca_aes_gcm_cap_get_max_num_tasks`
Maximal buffer size	–	`doca_aes_gcm_cap_task_encrypt_get_max_buf_size`
Maximum buffer list size	–	`doca_aes_gcm_cap_task_encrypt_get_max_list_buf_num_elem`
Maximum initialization vector length	–	`doca_aes_gcm_cap_task_encrypt_get_max_iv_length`
Enable authentication tag size	–	`doca_aes_gcm_cap_task_encrypt_is_tag_96_supported` `doca_aes_gcm_cap_task_encrypt_is_tag_128_supported`
Enable key type	–	`doca_aes_gcm_cap_task_encrypt_is_key_type_supported`

Input

Common input as described in DOCA Core Task

Name	Description	Notes
source buffer	Buffer pointing to the memory to be encrypted	Only the data residing in the data segment is encrypted
destination buffer	Buffer pointing to where memory is encrypted to	The encrypted data is appended to the tail segment
key	Key to encrypt the data	Created by the function `doca_aes_gcm_key_create` Users should use the same key to encrypt and decrypt the data
initialization vector (IV)	Initialization vector to be used by the AES-GCM algorithm	Users should use the same IV to encrypt and decrypt the data
initialization vector length	Initialization vector length that must be supplied for the AES-GCM algorithm	Represented in bytes, 0B-12B values are supported
authentication tag size	Authentication tag size to be supplied for the AES-GCM algorithm. The tag is automatically calculated and appended to the result buffer.	Represented in bytes, only 12B and 16B values are supported
additional authenticated data size	Additional authenticated data size to be supplied for the AES-GCM algorithm. This data, which should be present at the beginning of the source buffer, is will not encrypted but is authenticated.	Represented in bytes

Output

Common output as described in DOCA Core Task.

Task Successful Completion

After the task completes successfully, the following happens:

The data from the source buffer is encrypted and written to the destination buffer
The destination buffer data segment is extended to include the encrypted data

Task Failed Completion

If the task fails midway:

The context may enter stopping state if a fatal error occurs
The source and destination doca_buf objects are not modified
The destination buffer contents may be modified

Limitations

The operation is not atomic
Once the task is submitted, the source and destination should not be read/written to
Other limitations are described in DOCA Core Task

Decrypt Task

The decrypt task allows data decryption. Using buffers as described in Buffer Support.

Configuration

Description	API to Set Configuration	API to Query Support
Enable the task	`doca_aes_gcm_task_decrypt_set_conf`	`doca_aes_gcm_cap_task_decrypt_is_supported`
Number of tasks	`doca_aes_gcm_task_decrypt_set_conf`	`doca_aes_gcm_cap_get_max_num_tasks`
Maximal buffer size	–	`doca_aes_gcm_cap_task_decrypt_get_max_buf_size`
Maximum buffer list size	–	`doca_aes_gcm_cap_task_decrypt_get_max_list_buf_num_elem`
Maximum initialization vector length	–	`doca_aes_gcm_cap_task_decrypt_get_max_iv_length`
Enable authentication tag size	–	`doca_aes_gcm_cap_task_decrypt_is_tag_96_supported` `doca_aes_gcm_cap_task_decrypt_is_tag_128_supported`
Enable key type	–	`doca_aes_gcm_cap_task_decrypt_is_key_type_supported`

Input

Common input as described in DOCA Core Task.

Name	Description	Notes
Source buffer	Buffer pointing to the memory to be decrypted	Only the data residing in the data segment is decrypted
Destination buffer	Buffer pointing to where memory is decrypted to	The decrypted data is appended to the tail segment extending the data segment
Key	Key to decrypt the data	Created by the function `doca_aes_gcm_key_create` The user should use the same key to encrypt and decrypt the data
Initialization vector (IV)	Initialization vector to be used by the AES-GCM algorithm	The user should use the same IV to encrypt and decrypt the data
Initialization vector length	Initialization vector length that must be supplied for the AES-GCM algorithm	Represented in bytes, 0B-12B values are supported
Authentication tag size	Authentication tag size to be supplied for the AES-GCM algorithm. The tag, present at the end of the source buffer, is verified and is not present in the destination buffer.	Represented in bytes, only 12B and 16B values are supported
Additional authenticated data size	Additional authenticated data size to be supplied for the AES-GCM algorithm. This data, present at the beginning of the source buffer, is not encrypted but is authenticated.	Represented in bytes

Output

Common output as described in DOCA Core Task.

Task Successful Completion

After the task completes successfully, the following happens:

The data from the source buffer is decrypted and written to the destination buffer
The destination buffer data segment is extended to include the decrypted data

Task Failed Completion

If the task fails midway:

The context may enter stopping state if a fatal error occurs
The source and destination doca_buf objects is not modified
The destination buffer contents may be modified

Limitations

The operation is not atomic
Once the task is submitted, the source and destination should not be read/written to
Other limitations are described in DOCA Core Task

Destroys the context
Starts the context

Allowed operations:

Configuring the context according to Configurations
Starting the context

It is possible to reach this state as follows:

Previous State	Transition Action
None	Create the context
Running	Call stop after making sure all tasks have been freed
Stopping	Call progress until all tasks are completed and freed

Starting

This state cannot be reached.

Running

In this state, it is expected that the application:

Allocates and submits tasks
Calls progress to complete tasks and/or receive events

Allowed operations:

Allocating previously configured task
Submitting a task
Calling stop

It is possible to reach this state as follows:

Previous State	Transition Action
Idle	Call start after configuration

Stopping

In this state, it is expected that the application:

Calls progress to complete all inflight tasks (tasks complete with failure)
Frees any completed tasks

Allowed operations:

Calling progress

It is possible to reach this state as follows:

Previous State	Transition Action
Running	Call progress and fatal error occurs
Running	Call stop without freeing all tasks

Alternative Datapath Options

DOCA AES-GCM only supports datapath on the CPU. See Execution Phase.

DOCA AES-GCM Samples

This section describes DOCA AES-GCM samples based on the DOCA AES-GCM library.

The samples in this section illustrate how to use the DOCA AES-GCM API to do the following:

Encrypt contents of a buffer to another buffer
Decrypt contents of a buffer to another buffer

Running the Samples

Refer to the following documents:
- NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software.
- NVIDIA DOCA Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA samples.

To build a given sample:

Copy
Copied!


            cd /opt/mellanox/doca/samples/doca_aes_gcm/<sample_name>
meson/tmp/build
ninja -C/tmp/build

Note

The binary doca_<sample_name> is created under /tmp/build/.

Sample (e.g., doca_aes_gcm_encrypt) usage:

Copy
Copied!


            Usage: doca_aes_gcm_encrypt [DOCA Flags] [Program Flags]

DOCA Flags:
  -h, --help                        Print a help synopsis
  -v, --version                     Print program version information
  -l, --log-level                   Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  --sdk-log-level                   Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
  -j, --json <path>                 Parse all command flags from an input json file

Program Flags:
  -p, --pci-addr                    DOCA device PCI device address - default: 03:00.0
  -f, --file                        Input file to encrypt/decrypt
  -o, --output                      Output file - default: /tmp/out.txt
  -k, --key                         Raw key to encrypt/decrypt with, represented in hex format (32 characters for 128-bit key, and 64 for 256-bit key) - default: 256-bit key, equals to zero
  -i, --iv                          Initialization vector, represented in hex format (0-24 characters for 0-96-bit IV) - default: 96-bit IV, equals to zero
  -t, --tag size                    Authentication tag size. Tag size is in bytes and can be 12B or 16B - default: 12
  -a, --aad size                    Additional authenticated data size - default: 0

For additional information per sample, use the -h option:

Copy
Copied!


            /tmp/build/doca_<sample_name>-h

Samples

AES-GCM Encrypt

This sample illustrates how to encrypt data with AES-GCM.

The sample logic includes:

Locating DOCA device.
Initializing required DOCA Core structures.
Setting the AES-GCM encrypt tasks configuration.
Populating DOCA memory map with two relevant buffers.
Allocating element in DOCA buffer inventory for each buffer.
Creating DOCA AES-GCM key.
Allocating and initializing AES-GCM encrypt task.
Submitting AES-GCM encrypt task.
Retrieving AES-GCM encrypt task once it is done.
Checking task result.
Destroying all AES-GCM and DOCA Core structures.

Reference:

/opt/mellanox/doca/samples/doca_aes_gcm/aes_gcm_encrypt/aes_gcm_encrypt_sample.c
/opt/mellanox/doca/samples/doca_aes_gcm/aes_gcm_encrypt/aes_gcm_encrypt_main.c
/opt/mellanox/doca/samples/doca_aes_gcm/aes_gcm_encrypt/meson.build

AES-GCM Decrypt

This sample illustrates how to decrypt data with AES-GCM.

The sample logic includes:

Locating DOCA device.
Initializing needed DOCA Core structures.
Setting the AES-GCM decrypt tasks configuration.
Populating DOCA memory map with two relevant buffers.
Allocating element in DOCA buffer inventory for each buffer.
Creating DOCA AES-GCM key.
Allocating and initializing AES-GCM decrypt task.
Submitting AES-GCM decrypt task.
Retrieving AES-GCM decrypt task once it is done.
Checking task result.
Destroying all AES-GCM and DOCA Core structures.

Reference:

/opt/mellanox/doca/samples/doca_aes_gcm/aes_gcm_decrypt/aes_gcm_decrypt_sample.c
/opt/mellanox/doca/samples/doca_aes_gcm/aes_gcm_decrypt/aes_gcm_decrypt_main.c
/opt/mellanox/doca/samples/doca_aes_gcm/aes_gcm_decrypt/meson.build
