Architecture#

System architecture for SIL testing environment.

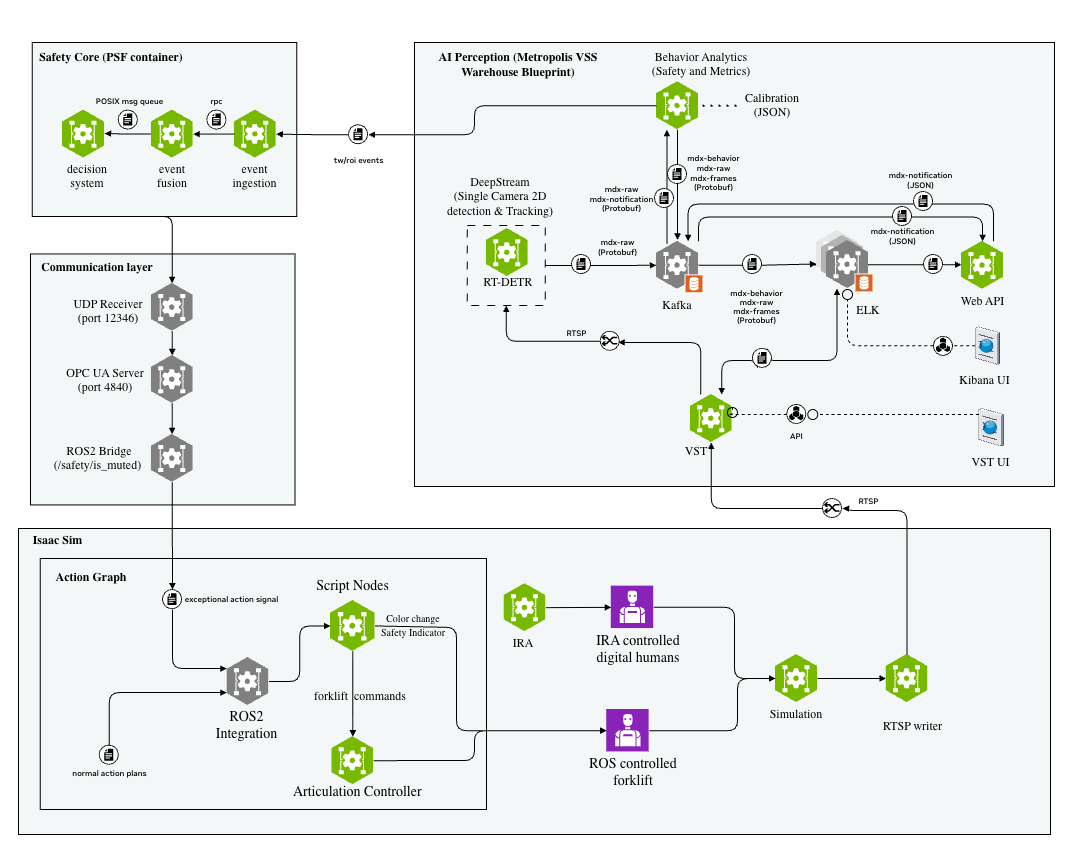

System Diagram#

SIL System Architecture

SIL Warehouse Architecture#

Components#

1. Isaac Sim#

Isaac Sim provides the simulation environment for SIL testing: 20×20m warehouse with loading dock, trailer, racking, and pallet storage. Materials and lighting match real-world conditions for camera feeds.

Forklift: Swivel-wheel kinematics — back_wheel_drive (velocity), back_wheel_swivel (steering). Safety indicator mesh at /World/forklift_b/body/body/safety_indicator changes color by safety state. Physics handles steering, friction, weight distribution, and collision detection.

Digital humans: IRA (Isaac Replicator Agent) for autonomous navigation. Path planning, obstacle avoidance, and animation blending. Agent count and behavior configurable in default_config_ros.yaml.

Cameras: 3 cameras (overhead, side, loading dock). 1920×1080 RGB, RTSP to MediaMTX (port 8553). With --enable-vst, cameras auto-register via cameras.yaml.

  • 2D mode: 30 FPS CFR (constant frame rate, frame duplication)

  • 3D mode: ~12-14 FPS VFR (variable frame rate, unique timestamps required for Sparse4D fusion)

ROS2: Action Graph subscribes to /safety/is_muted from Communication Layer; publishes to /clock for ROS2 time synchronization. Uses jazzy, rmw_cyclonedds_cpp, domain ID 0.

2. VSS Warehouse Blueprint#

Perception pipeline consuming camera streams and generating safety events.

2D profile: DeepStream with RT-DETR model for object detection and NvDCF for per-camera tracking. Publishes events to Kafka mdx-events topic.

3D profile: DeepStream with Sparse4D model for 3D multi-view BEV detection and MTMC (Multi-Target Multi-Camera) tracking. Publishes to Kafka mdx-bev topic. See 3D Vision AI Profile and Sparse4D documentation for details.

The pipeline monitors ROI and Tripwire zones, publishing events to Kafka.

Event format:

{
  "event": {
    "type": "EXIT",
    "id": "roi-id-1",
    "info": {
      "class": "roi"
    }
  },
  "object": {
    "type": "Forklift",
    "id": "125",
    "confidence": 0.826,
    "speed": 15.409
  },
  "sensor": {
    "id": "Camera_01"
  },
  "timestamp": "2026-01-26T20:27:20.366Z"
}

Event types:

Event type

Class

Meaning

ENTRY

roi

Object enters ROI

EXIT

roi

Object exits ROI

IN

tripwire

Object crosses tripwire (entering)

OUT

tripwire

Object crosses tripwire (exiting)

3. Safety Core (PSF)#

Safety event processing:

Safety Event Integrator (SEI):

  • Consumes Kafka events (mdx-events topic for 2D, mdx-bev for 3D)

  • Multi-camera fusion with timeWindowSize=900ms (tuned for SIL)

  • Event validation

  • Forwards validated events to Decision Maker

Safety Decision Maker (SDM):

  • ATL (Automated Trailer Loading) decision logic

  • Tracks forklift and human presence in ROI

  • Generates commands: MUTE (0x02) or UNMUTE (0x07)

  • Sends UDP packets (64 bytes) to Communication Layer on port 12346

4. Communication Layer#

Protocol bridge between Safety Core and Isaac Sim:

  • UDP Receiver (port 12346): Receives Safety Core commands

  • OPC UA Server (port 4840): Industrial protocol interface

  • ROS2 Bridge: Publishes to /safety/is_muted (Bool)

ROS2 configuration:

  • ROS_DISTRO: jazzy

  • RMW_IMPLEMENTATION: rmw_cyclonedds_cpp

  • ROS_DOMAIN_ID: 0

Logs commands to: ${MDX_DATA_DIR}/comm-layer/opc_server.log

Data Flow#

2D mode:

Isaac Sim Cameras (3 cams, 30 FPS CFR)
     ↓ RTSP streams
AI Perception (VSS Warehouse Blueprint)
     ├─ RT-DETR detection
     ├─ NvDCF tracking
     └─ ROI/Tripwire analytics
     ↓ Kafka events (mdx-events topic)
Safety Core (PSF)
     ├─ SEI: Multi-camera fusion + event validation
     └─ SDM: ATL decision logic (MUTE/UNMUTE)
     ↓ UDP packet (64 bytes, port 12346)
Communication Layer
     ├─ OPC UA update
     └─ ROS2 publish (/safety/is_muted)
     ↓ ROS2 topic
Isaac Sim Action Graph
     └─ Update safety indicator (GREEN/ORANGE)

3D mode:

Isaac Sim Cameras (3 cams, ~12-14 FPS VFR)
     ↓ RTSP streams (unique timestamps)
AI Perception (VSS Warehouse Blueprint)
     ├─ Sparse4D 3D multi-view BEV detection + tracking
     └─ BEV ROI/Tripwire analytics
     ↓ Kafka events (mdx-bev topic)
Safety Core (PSF)
     ├─ SEI: Event validation + passthrough (fusion done at perception)
     └─ SDM: ATL decision logic (MUTE/UNMUTE)
     ↓ UDP packet (64 bytes, port 12346)
Communication Layer
     ├─ OPC UA update
     └─ ROS2 publish (/safety/is_muted)
     ↓ ROS2 topic
Isaac Sim Action Graph
     └─ Update safety indicator (GREEN/ORANGE)

Differences from Production#

SIL runs on x86 with Docker Compose. Key differences from production (IGX Thor):

Component

SIL (x86)

Production (IGX Thor)

Platform

x86 workstation

IGX Thor (ARM)

Cameras

Isaac Sim (simulated)

Real IP cameras

Environment

Virtual warehouse

Physical facility

Decision Maker OS

Linux (Docker)

FreeRTOS (FSI)

Event Integrator

Docker on Linux

Docker on CCPLEX

Communication Layer

Simple UDP + OPC UA (non-safe)

ESL/FSoE/Profisafe (safety-certified)

Deployment

Docker Compose

Flash binary + Docker Compose

Shared between SIL and production: AI Perception (VSS Warehouse Blueprint) pipeline, Safety Core fusion algorithms, ATL decision logic, and event formats — ensuring SIL validation reflects production behavior.
