VSS Warehouse Blueprint - 3D Vision AI Profile#

Overview#

Introduction#

The VSS Warehouse Blueprint’s 3D Vision AI Profile is a comprehensive guide to building a 3D intelligent video analytics system. It provides a detailed overview of the system architecture, data flow, and key components.

Deployment Architecture#

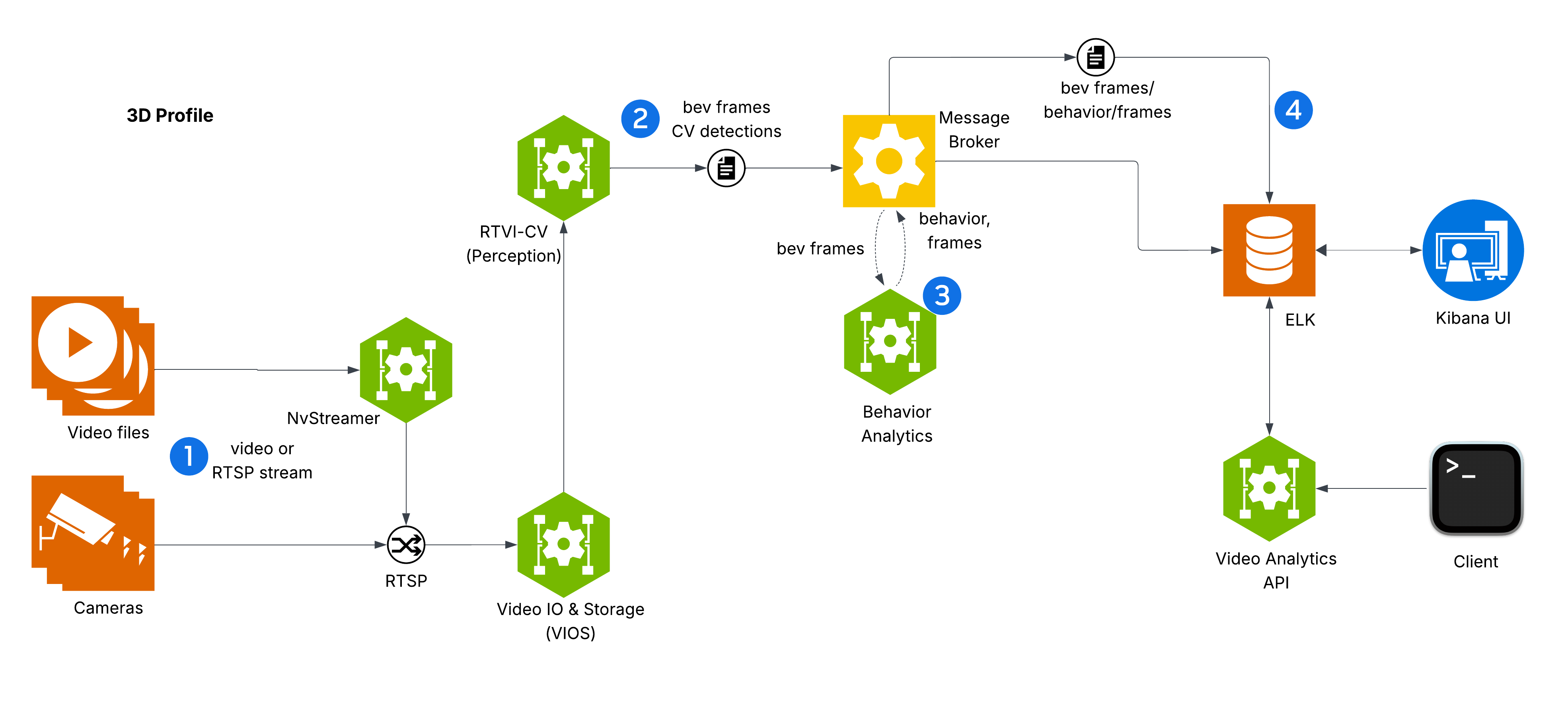

VSS Warehouse Blueprint's 3D Vision AI Profile

Components and Interactions#

The diagram depicts VSS Warehouse 3D Blueprint, emphasizing 3D multi-camera detection, tracking, and behavior analytics for safety events and metrics. Below is a breakdown of the components and their interactions.

  1. Input Source

    • Videos: Raw video data stored in a filesystem, serving as input for processing.

    • NvStreamer (link): A microservice that streams videos via RTSP (Real-Time Streaming Protocol) to the VIOS (Video IO & Storage). NvStreamer can be swapped with real-world cameras.

  2. Video IO & Storage (VIOS) (link)

    • VIOS ingests video streams from NvStreamer via RTSP.

    • It records the streams and forwards them (via RTSP) to the DeepStream microservice for further processing.

  3. DeepStream (link)

    • DeepStream processes RTSP streams for 3D multi-camera detection and tracking, utilizing the Sparse4D model (link) to generate BEV (Bird’s Eye View) outputs.

    • It sends frame data, including detected and tracked object IDs, in Protobuf format to the message broker via the mdx-bev topic.

  4. Message Broker (Kafka or Redis)

    • The message broker serves as the central hub for data distribution, using Protobuf for all data exchanges.

    • Kafka (Kafka): High-throughput message broker optimized for datacenter deployments with robust persistence and scalability.

    • Redis Streams: Lightweight message broker ideal for edge deployments with minimal memory footprint and low-latency requirements.

    • It also functions as a control bus, managing notifications (in JSON, via mdx-notification) for calibration updates, such as new ROI or tripwire definitions.

  5. Behavior Analytics (link)

    • This microservice consumes mdx-bev data (Protobuf) from the message broker.

    • It processes the data to generate behavior analytics, safety insights, and metrics.

    • The resulting data, in Protobuf format, is sent back to the message broker for indexing into Elasticsearch.

  6. Storage

    • ELK (Elasticsearch, Logstash, Kibana) (ELK): Logstash retrieves BEV outputs and safety violation frames from the message broker, converts Protobuf to JSON, stores the data in Elasticsearch, and supports querying and visualization.

  7. Visualization

    • Kibana UI (Kibana UI): A user interface for visualizing analytics data stored in Elasticsearch.

    • VIOS UI (VIOS UI): A separate interface for interacting with the VIOS system, receiving JSON notifications from the message broker.

  8. External Interfaces

    • API Gateway and MCP (API Gateway/MCP): Enables external systems to interact with the events data through API calls.

Key Technologies#

  • Microservices: Components like NvStreamer, VIOS, DeepStream, and Behavior Analytics are modular microservices.

  • RTSP: Facilitates real-time video streaming.

  • Protobuf: Ensures efficient, compact data exchange.

  • Message Broker: Manages data distribution and control messaging.

  • ELK Stack: Supports storage, logging, and visualization.

  • JSON: Used for notifications and calibration data.

Setup and Configuration#

see Quickstart Guide.

Testing and Validation#

Kibana UI#

Note

In the new Kibana UI (versions 8.0 and later), “Index Patterns” have been renamed to “Data Views”.

Check for BEV, Frames and Behavior Data Views in Kibana:

  1. Launch Chrome browser

  2. In the address bar enter http://<IP_address>:7777/kibana

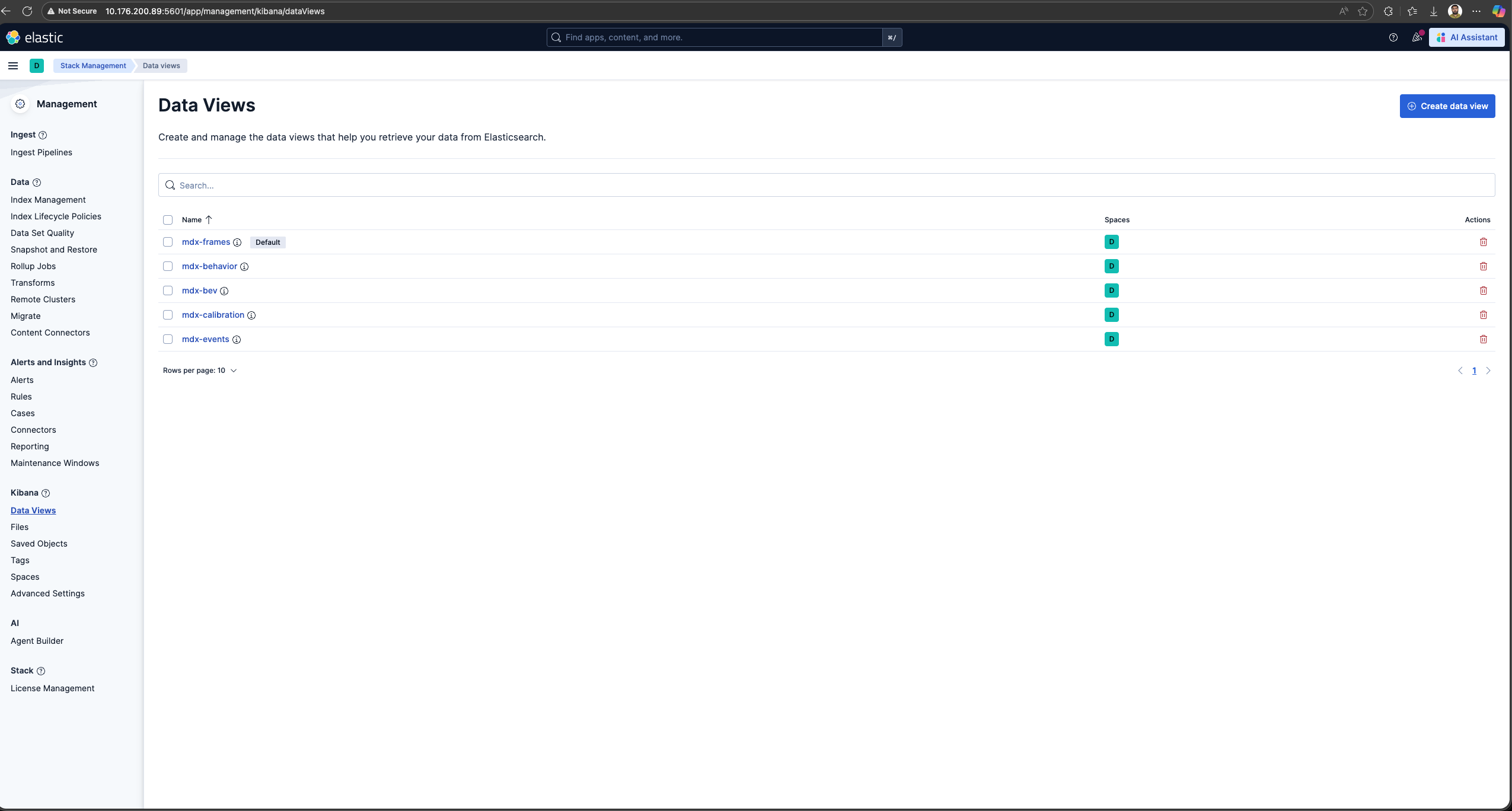

In the user interface, navigate to the Management -> Stack Management section and select Data Views under Kibana. If the data views are not visible, create new data view (via “Create data view” button on the top right corner) for mdx-bev, mdx-frames and mdx-behavior.

Kibana UI

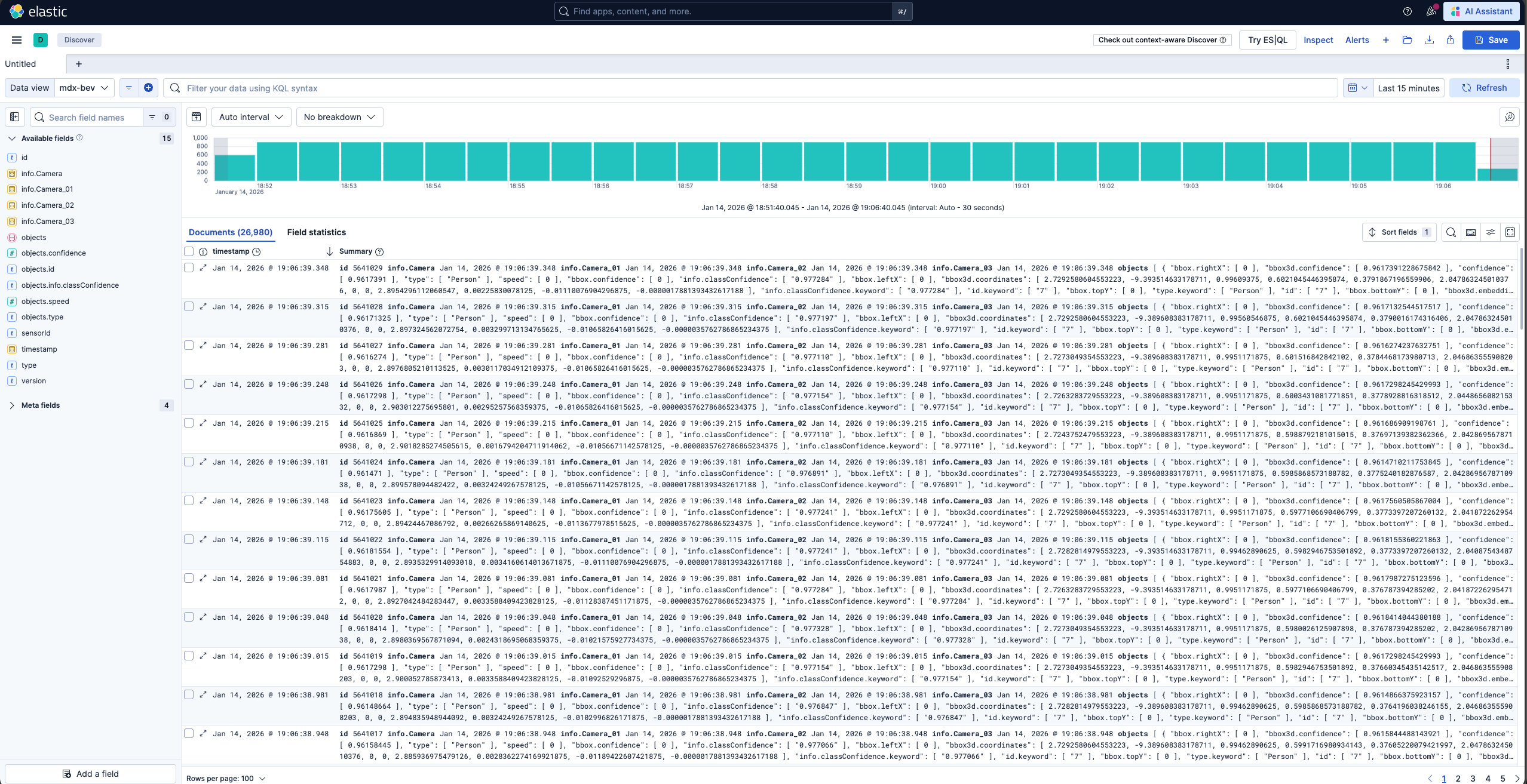

Browse the Kibana UI, discover the data views and visualize the data.

Kibana UI

Note

  • BEV frames are created by combining frames from individual cameras.

  • For better accuracy, the timestamps of the frames across the cameras should be synchronized. These timestamps can be found under the info attribute of the frame; see the example below.

{
  "id": "0",
  "timestamp": "2026-03-14T22:28:58.200Z",
  "sensorId": "bev-sensor-1",
  ...
  "info": {"Camera": "2026-03-14T22:28:58.200Z", "Camera_01": "2026-03-14T22:28:58.200Z", "Camera_02": "2026-03-14T22:28:58.200Z"}
}

VIOS UI#

Note

At this point the web-based application is only available for Chrome browser running on Linux, Windows or MacOS, details can be found in VST docs.

  1. Launch Chrome browser.

  2. In the address bar enter http://<IP_address>:30888/vst/.

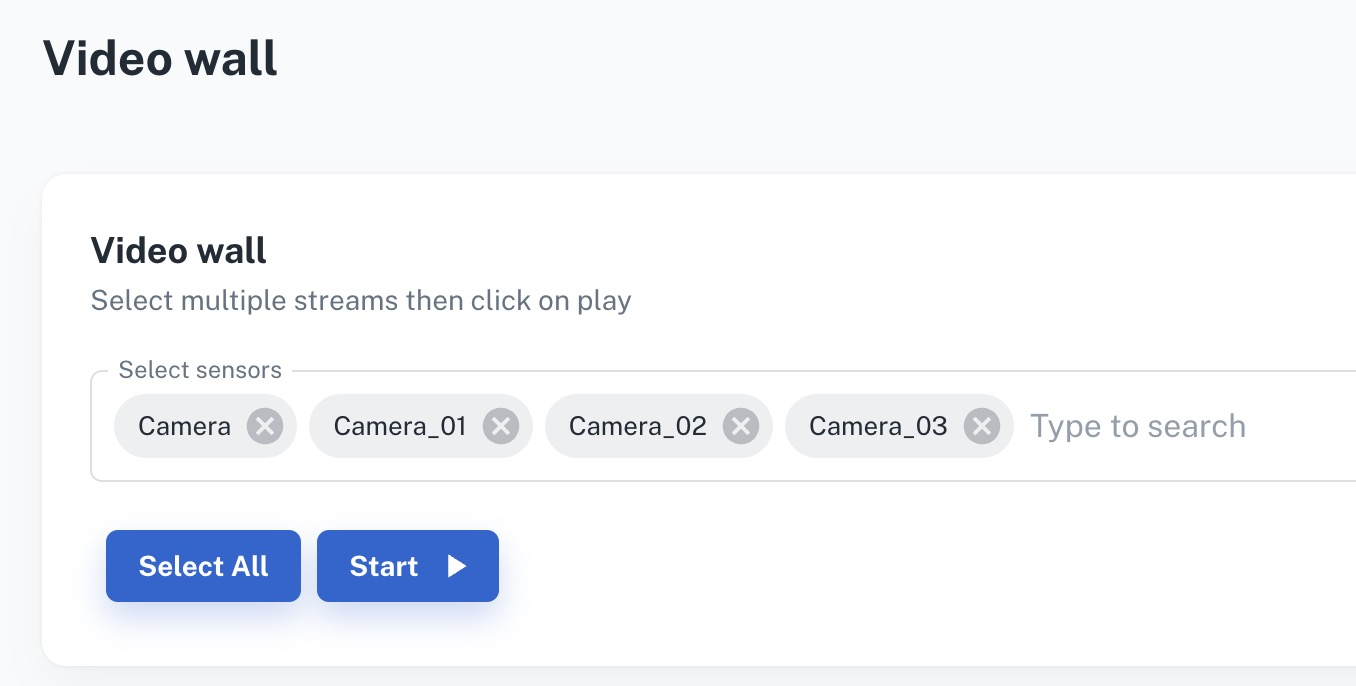

Configure

VIOS Configuration

View VIOS Video Wall

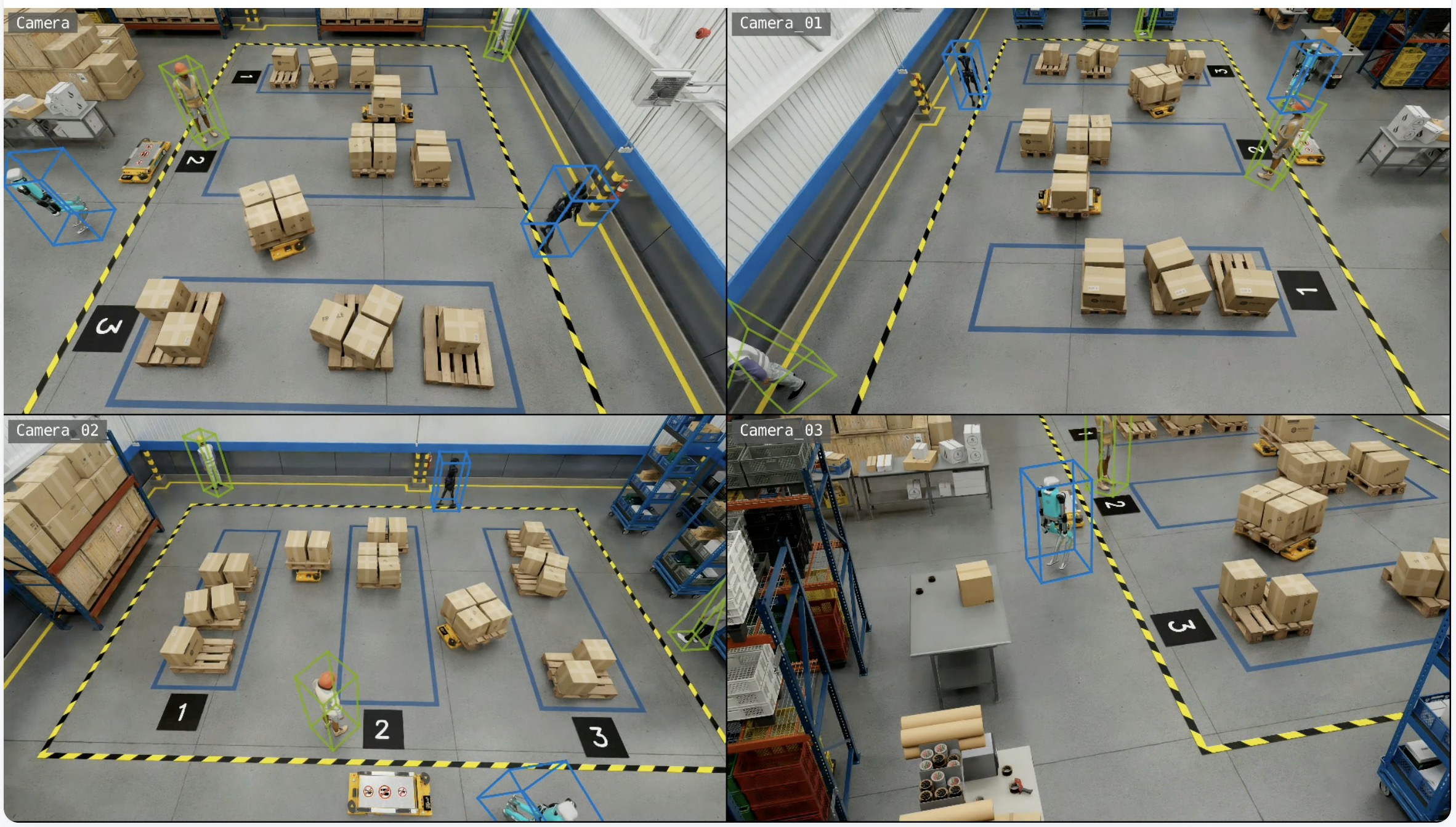

Enable Overlay settings (instructions here), to view 3D object detection and tracking results.

VIOS Video Wall View

Events and Incidents#

Events#

The VSS Warehouse 3D Blueprint processes calibrated multi-camera feeds, detects and tracks objects in 3D world coordinates, and generates events based on configurable logic.

One type of event is supported:

  • ROI Events: Triggered when objects enter or exit a predefined region of interest (ROI).

For more details, see Event Detection. All event data is stored in Elasticsearch, and can be queried and visualized in Kibana and the VIOS UI.

Incidents#

The 3D profile does not generate confirmed incidents. The per-frame violation data (such as proximity and zone analytics) is still computed and written to the enhanced frames, so downstream consumers can read it directly from the message stream or Elasticsearch—but it is not promoted to tracked incidents. For the enhanced-frame violation fields, see Enhanced Frame Data.

Use Cases#

ROI events provide the foundation for occupancy monitoring and safe-zone enforcement across calibrated multi-camera 3D scenes—continuously tracking whether designated zones remain clear and maintaining accurate enter/exit occupancy counts for spatial analytics and capacity management.

Latency Measurements#

Latency Measurements (p50)#

Platform

Profile

#Streams

FPS

Interval

(NvStreamer + VIOS + DeepStream) latency

Behavior-analytics latency

E2E latency

RTX 6000 PRO SE

Kafka

4

30

0

48 ms

22 ms

70 ms

RTX 6000 PRO SE

Redis

4

30

0

48 ms

11 ms

59 ms

IGX THOR

Kafka

4

15

1

103 ms

21 ms

124 ms

IGX THOR

Redis

4

15

1

127 ms

11 ms

138 ms

DGX SPARK

Kafka

4

15

1

98 ms

18 ms

116 ms

DGX SPARK

Redis

4

15

1

90 ms

11 ms

101 ms

Note

The latency may vary based on the hardware, the number of objects in a scene, the number of ROIs and tripwires, and the machine’s load.

Customization#

The Blueprint supports several levels of customization:

  • Data Level: Add, remove, or replace cameras while maintaining the existing workflow.

  • Model Level: Fine-tune perception models to better suit your use cases.

  • Application Level: Build new microservices or applications using the provided APIs and components.

  • Microservice Level: Modify existing microservices from source code to extend functionality.

Adding New Cameras or Custom Datasets#

Step 1: Prepare video sources#

Choose one of the following options to provide video sources for the 3D profile:

  1. Using recorded videos

    Use this option to run the VSS with local video files instead of live camera feeds. Place your videos in the videos directory under the path configured by VSS_DATA_DIR in $VSS_APPS_DIR/industry-profiles/warehouse-operations/.env.

  2. Using live RTSP streams

    Use this option when you want to use live RTSP endpoints. Define each camera in $VSS_APPS_DIR/industry-profiles/warehouse-operations/camera_configs/camera_info.json so the VSS Configurator can read the camera list and generate the required configuration. The following steps apply when using live RTSP streams.

    1. Create a Sensor Info File (camera_info.json):

    {
  "sensors": [
    {
      "camera_name": "camera-01",
      "rtsp_url": "rtsp://<IP_address:port>/stream1",
      "group_id": "<group_id_1>",
      "region": "<region_1>"
    },
    {
      "camera_name": "camera-02",
      "rtsp_url": "rtsp://<IP_address:port>/stream1",
      "group_id": "<group_id_1>",
      "region": "<region_1>"
    }
  ]
}

    The camera_name value should be unique for each camera, and rtsp_url should point to the camera stream. The group_id field defines camera groups with overlapping fields of view, which is required for multi-camera 3D tracking and BEV fusion. The region field identifies the camera location or area and is required for 3D profile camera configuration.

    Required fields: camera_name, rtsp_url, group_id, region

    Tip

    You do not have to assign group_id by hand. The spatialai_data_utils (SDU) camera grouping tools derive the camera-to-BEV-group partition directly from your camera calibration. Run create_camera_clusters.py to partition cameras into non-overlapping BEV groups; cameras placed in the same cluster share a group_id (the generated group name, such as bev-sensor-1). These tools also populate the matching per-sensor group and region blocks (origin, dimensions, place level) in calibration.json that must be filled in before deployment (see the note under Step 3). For installation and the full command reference, see Camera Grouping Utilities.

    1. Configure VSS Configurator environment variables: Set the following in $VSS_APPS_DIR/industry-profiles/warehouse-operations/.env:

    SENSOR_INFO_SOURCE=file
SENSOR_FILE_PATH=<path_to_camera_info.json>

Step 2: Configure number of streams#

Configuring Number of Streams

Number of streams to be processed can be configured in two ways:

  1. Static Configuration: Set the NUM_STREAMS environment variable to specify the desired number of streams for video dataset or RTSP streams.

    NUM_STREAMS=4

    The configured number of streams should be less than or equal to the maximum streams supported by your hardware profile and deployment mode. VSS Configurator can be used to automatically cap the stream count using the formula: final_stream_count = min(NUM_STREAMS, max_streams_supported). For more details, refer to the How to Count Files Dynamically (Prerequisites) section in VSS Configurator Documentation.

  2. Dynamic Configuration: Use the VSS Configurator’s prerequisite operations to automatically count the number of video files in the recorded videos directory and use that count for configuration updates.

    Note

    Dynamic Configuration cannot be used for live RTSP streams.

    Example: Automatically determine stream count from video files in the dataset directory:

    # In blueprint_config.yml
commons:
  # Step 1: Count video files BEFORE variable processing
  prerequisites:
    3d:
      - operation_type: "file_management"
        target_directories:
          - "${VSS_DATA_DIR}/videos/warehouse-3d-app"
        file_management:
          action: "file_count"
          parameters:
            pattern: "*.mp4"
          output_variable: "available_video_count"  # Stores count (e.g., 6)

  # Step 2: Use the count to compute final stream count
  variables:
    3d:
      # Cap to minimum of: available videos, GPU limit
      - final_stream_count: "min(${available_video_count}, ${max_streams_supported})"

  # Step 3: Use computed variable in config file updates
  file_operations:
    3d:
      - operation_type: "yaml_update"
        target_file: "${DS_CONFIG_DIR}/config.yaml"
        updates:
          num_sensors: ${final_stream_count}

    How it works: If your dataset directory has 6 video files and the GPU supports a maximum of 4 streams, the configurator computes: final_stream_count = min(6, 4) = 4. For more details, refer to the How to Count Files Dynamically (Prerequisites) section in VSS Configurator Documentation.

When using a custom recorded-video dataset, NUM_STREAMS depends on the number of video files available in that dataset. Make sure NUM_STREAMS is less than or equal to the number of videos you want to process.

To use a custom dataset:

  • Set SAMPLE_VIDEO_DATASET in $VSS_APPS_DIR/industry-profiles/warehouse-operations/.env to the name of your dataset.

  • Place the video files in $VSS_DATA_DIR/videos/$SAMPLE_VIDEO_DATASET/.

  • Add the image metadata, calibration, and floor map files under $VSS_APPS_DIR/industry-profiles/warehouse-operations/warehouse-3d-app/calibration/sample-data/${SAMPLE_VIDEO_DATASET}. You can refer to sample datasets provided in the repository for the expected file structure and sample contents.

Note

Refer to Sparse4D Real-Time Performance for more details on the max streams supported for a particular GPU. If GPU is not found in list, then increase the streams gradually to find the optimal number of streams that can be used

Step 3: Deploy and generate new calibration#

Deploy the auto-calibration profile (bp_wh_auto_calib_3d) to generate a new calibration against live RTSP streams served by nvstreamer, using the warehouse dataset and VST stack. For steps to generate calibration, see VSS Auto Calibration quickstart. Once the calibration is generated, store it, bring the Docker Compose stack down, and update the calibration file at $VSS_APPS_DIR/industry-profiles/warehouse-operations/warehouse-3d-app/calibration/sample-data/${SAMPLE_VIDEO_DATASET}/calibration.json.

Note

  • Maintain a single calibration.json file per deployment.

  • The AMC UI exports the group and region blocks under each entry in sensors[] with empty values. The 3D profile uses these fields for multi-camera grouping and BEV fusion, so populate them with valid values for each sensor before deploying the blueprint.

  • Add new camera information following the schema defined in Calibration Schema.

  • The imageMetadata file needs to be generated manually.

  • Manually add any other attributes that are missing from the generated calibration file but are required for your use case.

  • Auto Calibration requires time-synchronized videos as input. For RTSP cameras, record videos from the RTSP source (e.g. using ffmpeg or similar tools), manually trim the videos to time-synchronize them if needed, then provide them to Auto Calibration.

Step 4: Camera Clustering#

Use create_camera_clusters.py to partition cameras into non-overlapping groups for separate 3D model instances. Use --n_clusters 1 for a single group. For command examples and available options, see Camera Clustering.

Step 5: Redeploy the stack to apply the new calibration#

To redeploy the stack to apply the new calibration, follow the Quickstart Guide.

Camera Grouping Utilities#

The 3D Blueprint uses multi-camera BEV (Bird’s Eye View) perception systems that require cameras to be organized into groups. Each camera group defines a set of cameras with overlapping fields of view that work together for 3D detection and tracking.

The spatialai_data_utils library provides the following functionality:

  • Calculate BEV origin and dimensions for each camera group.

  • Partition cameras into clusters using spatial clustering algorithms for distributed 3D model deployment.

  • Filter and select specific cameras for processing.

  • Generate FOV polygons from camera intrinsic/extrinsic matrices.

  • Visualize camera coverage and group assignments.

To install the library:

pip install spatialai-data-utils==2.0.0 --extra-index-url=https://edge.urm.nvidia.com/artifactory/api/pypi/sw-metropolis-pypi/simple

The camera grouping tools are shipped with the full spatialai-data-utils package in the VSS repository. The examples below run the scripts from the package’s tools/camera_grouping directory.

BEV Group Origin Calculation#

Use calculate_origin.py to calculate BEV origin and dimensions for camera groups, filter cameras, and generate FOV visualizations.

The algorithm works as follows:

  1. FOV Calculation: By default, the tool uses frustum-based FOV generation. It projects camera view frustums onto the ground plane using camera intrinsic (focal length, principal point) and extrinsic (rotation, translation) matrices. The frustum is intersected with a configurable height range to create a polygon representing the camera’s ground coverage.

  2. Group Bounds: For each camera group, the tool computes the union of all camera FOV polygons and calculates the bounding box with optional dilation.

  3. Origin Calculation: The BEV origin is computed as the centroid of the union FOV polygon, and dimensions are derived from the bounding box of the union, providing the coordinate reference for multi-camera tracking.

Origin calculation is required when setting up a new multi-camera deployment or when camera configurations change. This functionality is already integrated into the VSS Configurator, so manual execution is typically not necessary. However, if you need to run it as a standalone script for debugging, custom workflows, or batch processing, the example commands below demonstrate the available options.

Navigate to the spatialai-data-utils camera grouping tools#
export VSS_REPO_DIR=/path/to/video-search-and-summarization
cd $VSS_REPO_DIR/libs/analytics/spatialai-data-utils/tools/camera_grouping/

# Using dataset folder (auto-detects calibration.json)
python calculate_origin.py data/scene

# Using direct path to calibration file
python calculate_origin.py data/scene/calibration.json

# Custom height range for ground plane intersection
python calculate_origin.py data/scene/calibration.json --height-range 0.5 2.5

# Process only specific sensors
python calculate_origin.py data/scene/calibration.json --sensor-names Camera1,Camera2,Camera3

# Specify output file
python calculate_origin.py data/scene/calibration.json -o calibration_with_origins.json

# Overwrite the original calibration file
python calculate_origin.py data/scene/calibration.json --overwrite

# Include visualization (uses black background if map file not provided)
python calculate_origin.py data/scene/calibration.json --visualize

# Include visualization with map file
python calculate_origin.py data/scene/calibration.json --map_file data/scene/Top.png --visualize

# Use existing FOV polygons from calibration instead of frustum calculation
python calculate_origin.py data/scene/calibration.json --prefer-existing-fov

# Constrain FOV with scene bounds
python calculate_origin.py data/scene/calibration.json \
    --scene-bounds -30 -40 30 40 --max-camera-distance 25.0

Use --help to list all available arguments.

Key options:

  • --output, -o: Output calibration file path (default: input_with_origins.json).

  • --overwrite: Overwrite the input calibration file (mutually exclusive with --output).

  • --map_file: Path to map image for visualization (uses black background if not provided).

  • --sensor-names: Filter to process only specified sensor names (comma-separated).

  • --n-sensor-groups: Number of sensor groups to create when group field is missing (default: 1).

  • --dilation: Dilation distance in meters for group bounds calculation (default: 1.0).

  • --height-range: Height range (min, max) in meters for ground plane intersection (default: 1.0 3.0).

  • --max-camera-distance: Maximum distance in meters to constrain frustum polygons (default: 30.0).

  • --scene-bounds: Scene bounds (min_x, min_y, max_x, max_y) in meters to clip frustum polygons.

  • --prefer-existing-fov: Use existing FOV from calibration file, fall back to frustum if not available.

  • --visualize: Generate visualization of groups.

  • --vis_separate_images: Generate separate visualization images per group instead of combined.

Camera Clustering#

For 3D model inference and deployment, cameras need to be partitioned into non-overlapping groups where each group is handled by a separate 3D model instance. Use create_camera_clusters.py to partition cameras into spatially compact clusters based on FOV coverage and spatial proximity. This tool assigns ALL cameras to exactly N clusters, ensuring efficient distribution of camera workloads across multiple model instances.

Note

The clustering algorithm may not always produce optimal results depending on camera layout and configuration. Always use visualization (enabled by default) to verify the clustering results and manually adjust using reassign_camera_groups.py if needed.

Note

By default, the tool auto-tunes clustering parameters (start camera index, overlap threshold, distance threshold) using a grid search to find optimal settings. Use --disable_param_tuning to skip auto-tuning and use the provided parameters directly.

Running Camera Clustering#
Navigate to the spatialai-data-utils camera grouping tools#
export VSS_REPO_DIR=/path/to/video-search-and-summarization
cd $VSS_REPO_DIR/libs/analytics/spatialai-data-utils/tools/camera_grouping/

# Basic usage with densify mode (default, visualization on by default)
python create_camera_clusters.py data/scene --max_camera_per_group 10

# Use balanced mode for evenly distributed clusters
python create_camera_clusters.py data/scene --max_camera_per_group 10 --mode balanced

# Densify mode with custom thresholds (disabling auto-tuning)
python create_camera_clusters.py data/scene --max_camera_per_group 10 --mode densify \
    --min_overlap_threshold 0.3 --max_distance_threshold 10.0 --disable_param_tuning

# Balanced mode with specific number of clusters
python create_camera_clusters.py data/scene --max_camera_per_group 8 --mode balanced \
    --n_clusters 5

# Specify output path and overwrite input file
python create_camera_clusters.py data/scene --max_camera_per_group 10 \
    --output data/scene/calibration_clustered.json --overwrite

# Use existing FOV polygons from calibration instead of frustum calculation
python create_camera_clusters.py data/scene --max_camera_per_group 10 --prefer_existing_fov

# Custom auto-tuning search grids
python create_camera_clusters.py data/scene --max_camera_per_group 10 \
    --tuning_overlap_grid 0.1 0.2 0.3 --tuning_distance_grid 5.0 8.0 10.0

Use --help to list all available arguments.

Key options:

  • --max_camera_per_group: Maximum cameras per cluster (required). Has higher priority than --n_clusters.

  • --n_clusters: Override auto-calculated number of clusters.

  • --mode: Clustering mode - “balanced” or “densify” (default: densify).

  • --output: Output path for the clustered calibration file.

  • --overwrite: Overwrite the input calibration file.

  • --output_suffix: Suffix for output files (default: “clustered”).

  • --start_camera_index: Starting camera index for seeding (default: 0).

  • --min_overlap_threshold: Minimum required FOV overlap (default: 0.2).

  • --max_distance_threshold: Maximum allowed centroid distance in meters (default: 8.0).

  • --max_cascade_depth: Maximum recursion depth for densify-mode cascade reassignment (default: 3).

  • --prefer_existing_fov: Use existing FOV polygons in calibration instead of calculating from frustum.

  • --height_range: Height range (min, max) in meters for ground plane intersection (default: 1.0 3.0).

  • --image_size: Image dimensions (width, height) in pixels for frustum calculation (default: 1920 1080).

  • --max_camera_distance: Maximum distance in meters for frustum calculation (default: 30.0).

  • --dilation: Buffer distance in meters for cluster bounding boxes (default: 8.0).

  • --disable_param_tuning: Disable auto-tuning of clustering parameters.

  • --tuning_overlap_grid: Custom overlap thresholds (0-1) to search when auto-tuning.

  • --tuning_distance_grid: Custom centroid distance thresholds (meters) to search when auto-tuning.

  • --tuning_start_index_grid: Seed camera indices to try when auto-tuning.

  • --tuning_workers: Number of parallel workers for auto-tuning (0=auto, 1=disable parallelism).

  • --vis_no_camera_id_labels: Disable drawing camera IDs on the visualization.

  • --vis_separate_images: Generate separate visualization images per cluster instead of combined.

Clustering Modes

  • densify (default): Prioritizes creating full, densely-packed clusters. Uses cascade reassignment to handle unassigned cameras by recursively attempting to place them in nearby clusters.

  • balanced: Enforces strict thresholds for overlap and distance. Splits oversized clusters to maintain balance across all groups.

Cluster Count Calculation

The number of clusters is determined by the following logic:

  1. If --n_clusters is not provided, it is auto-calculated as ceil(total_cameras / max_camera_per_group).

  2. If --n_clusters is explicitly set but would violate the --max_camera_per_group constraint (i.e., requires more clusters than specified), the tool overrides --n_clusters with the minimum required value and logs a warning.

  3. If --n_clusters=1 is set but total_cameras > max_camera_per_group, an error is raised.

This ensures --max_camera_per_group always takes priority to guarantee each cluster stays within the specified camera limit.

Finding Optimal Clustering Parameters#

Use find_suggested_cluster_params.py to search for optimal clustering parameters. This tool performs a grid search over overlap thresholds, distance thresholds, and seed camera indices to find settings that produce compact, capacity-respecting clusters:

# Basic usage - find best parameters for clustering
python find_suggested_cluster_params.py data/scene --max_camera_per_group 10

# Custom search grids
python find_suggested_cluster_params.py data/scene --max_camera_per_group 10 \
    --overlap_grid 0.1 0.2 0.3 --distance_grid 5.0 8.0 10.0

# Specify seed camera indices to try
python find_suggested_cluster_params.py data/scene --max_camera_per_group 10 \
    --start_index_grid 0 5 10

# Use random sampling for start indices
python find_suggested_cluster_params.py data/scene --max_camera_per_group 10 \
    --start_index_seed 42

# Show more candidates with verbose output
python find_suggested_cluster_params.py data/scene --max_camera_per_group 10 \
    --top_k 10 --verbose

Key options:

  • --max_camera_per_group: Maximum cameras per cluster (required).

  • --mode: Clustering mode to evaluate - “balanced” or “densify” (default: densify).

  • --prefer_existing_fov: Use existing FOV polygons instead of calculating from frustum.

  • --max_camera_distance: Maximum distance in meters for frustum calculation (default: 30.0).

  • --height_range: Height range (min, max) in meters for ground plane intersection (default: 1.0 3.0).

  • --image_size: Image dimensions (width, height) in pixels for frustum calculation (default: 1920 1080).

  • --max_cascade_depth: Maximum recursion depth for densify-mode cascade (default: 3).

  • --overlap_grid: List of overlap thresholds (0-1) to search.

  • --distance_grid: List of centroid distance thresholds (meters) to search.

  • --start_index_grid: Seed camera indices to try.

  • --start_index_seed: Random seed for auto-generated start camera indices.

  • --top_k: Number of top candidates to display (default: 5).

  • --workers: Number of parallel workers for the sweep (0=auto, 1=disable parallelism).

  • --verbose: Enable verbose logging.

The output ranks candidates by score (lower is better), showing unassigned camera count, overflow, and scatter metrics for each parameter combination.

Camera Group Reassigning#

Use reassign_camera_groups.py to manually reassign cameras to different existing BEV groups. Common use cases include:

  • Fixing suboptimal clustering: Move cameras that were incorrectly assigned by the automatic clustering algorithm.

  • Balancing cluster sizes: Redistribute cameras between groups to achieve more even workload distribution.

  • Iterative refinement: Fine-tune cluster assignments after reviewing visualization results.

Navigate to the spatialai-data-utils camera grouping tools#
export VSS_REPO_DIR=/path/to/video-search-and-summarization
cd $VSS_REPO_DIR/libs/analytics/spatialai-data-utils/tools/camera_grouping/

# Move cameras to different groups
python reassign_camera_groups.py data/calibration.json \
    --move cam-01:bev-sensor-2 cam-05:bev-sensor-3

# Specify output path
python reassign_camera_groups.py data/calibration.json \
    --move cam-01:bev-sensor-2 --output data/calibration_updated.json

# Overwrite the original file
python reassign_camera_groups.py data/calibration.json \
    --move cam-01:bev-sensor-2 --overwrite

# Strict mode - fail if camera or group is missing
python reassign_camera_groups.py data/calibration.json \
    --move cam-01:bev-sensor-2 --strict

# Use existing FOV polygons instead of frustum calculation
python reassign_camera_groups.py data/calibration.json \
    --move cam-01:bev-sensor-2 --prefer_existing_fov

Key options:

  • --move: Mappings of camera_id:group_name (space separated) to reassign (required).

  • --output: Output path for updated calibration (default: <input>_reassigned.json).

  • --overwrite: Overwrite the input calibration file in-place.

  • --output_suffix: Suffix for output files (default: “reassigned”).

  • --strict: Fail if a camera or target group is missing; otherwise skip with warning.

  • --prefer_existing_fov: Use existing FOV from calibration, fall back to frustum if not available.

  • --map_file: Path to map image for visualization (auto-detects Top.png if omitted).

  • --dilation: Dilation distance in meters when recomputing group bounds (default: 1.0).

  • --height_range: Height range (min, max) in meters for ground plane intersection (default: 1.0 3.0).

  • --image_size: Image dimensions (width, height) in pixels for frustum calculation (default: 1920 1080).

  • --max_camera_distance: Maximum distance in meters for frustum calculation (default: 30.0).

  • --vis_no_camera_id_labels: Disable drawing camera IDs on the visualization.

Model Customization#

Perception Model Fine-tuning#

The Blueprint uses Sparse4D as its primary perception model. To customize:

  1. Fine-tune Sparse4D using TAO (Sparse4D model page)

  2. Configure DeepStream to use your custom model (model configuration guide)

Application Customization#

The Blueprint uses a modular microservices architecture with the following communication channels:

  • Message Broker (Kafka or Redis)

  • Elasticsearch database

  • REST APIs

Users can build their own microservices by consuming data from the above channels.

For complete API documentation, see API Reference Page.

Available Service Ports#

The following ports are used during deployment, and users can leverage them for any potential integration:

Available Service Ports#

Service Component

Port Number

Kafka

9092

Elasticsearch

9200

Kibana

7777/kibana

NvStreamer

31000

VIOS

30888/vst

VSS Video Analytics API

8081

Analytics Microservices Customization (Advanced)#

For detailed information about customizing specific analytics microservices, refer to:

Hardware Config Customization#

The 3D Warehouse Blueprint requires several configuration files to be properly tuned based on your GPU hardware and deployment requirements. When changing hardware (e.g., switching from H100 to L4 GPU) or adjusting the number of video streams, multiple configuration files must be updated to ensure optimal performance and prevent GPU overload.

Configuration Files Requiring Hardware-Based Updates#

The following table lists the configuration files that typically require updates when hardware changes:

Configuration File

Parameters to Update

Why Update is Needed

ds-main-config.txt

max-batch-size, batch-size, batched-push-timeout, msg-broker-config, msg-broker-conn-str, msg-broker-proto-lib

Batch sizes must match stream count; timeout values vary by GPU processing speed; message broker entries select between Kafka and Redis

ds-kafka-config.txt / ds-redis-config.txt

Broker connection settings

DeepStream message broker config selected based on deployment mode (Kafka or Redis)

config.yaml

num_sensors

Sensor count must match the number of active streams

ds-mtmc-preprocess-config.txt

network-input-shape

Input shape dimensions depend on stream count (e.g., 4;3;540;960 for 4 streams)

vst-config.json (NvStreamer)

nv_streamer_sync_file_count, max_devices_supported

Must align with GPU capacity and stream count

vst_config.json (VIOS)

onvif.max_devices_supported, data.always_recording, notifications.use_message_broker_consumer, overlay.enable_overlay_skip_frame

Device limits must match GPU capacity; message broker consumer and overlay settings vary by GPU capability

Certain GPUs require additional optimizations. For example, IGX-THOR and DGX-SPARK get:

  • Extended batched-push-timeout (67000ms) for DeepStream configs

  • enable_overlay_skip_frame enabled in VST configs for better performance

There are two approaches to customize these configuration files:

Approach 1: Manual Configuration#

Manually update all required configuration files before deploying the blueprint. This is time consuming, error prone and often not suitable for production deployments.

# Update DeepStream main config
vi <PATH_TO_DS_CONFIG_DIR>/ds-main-config.txt
# Set: max-batch-size=<stream_count>, batch-size=<stream_count>
# Set msg-broker-config to ds-kafka-config.txt or ds-redis-config.txt depending on deployment mode

# Update DeepStream YAML config
vi <PATH_TO_DS_CONFIG_DIR>/config.yaml
# Set: num_sensors: <stream_count>

# Update DeepStream preprocess config
vi <PATH_TO_DS_CONFIG_DIR>/ds-mtmc-preprocess-config.txt
# Set: network-input-shape=<stream_count>;3;540;960

# Update NvStreamer config
vi <PATH_TO_NVSTREAMER_CONFIG_DIR>/vst-config.json
# Set: "nv_streamer_sync_file_count": <stream_count>, "max_devices_supported": <max_streams>

# Update VIOS (VST) config
vi <PATH_TO_VST_CONFIG_DIR>/vst_config.json
# Set: "onvif.max_devices_supported": <max_streams>, "data.always_recording": true,
#      "notifications.use_message_broker_consumer": "<deployment_mode>"

Approach 2: Automatic Config Management using VSS Configurator#

The VSS Configurator provides a declarative approach to automatically update all required configuration files based on your hardware profile and deployment mode. This is the recommended approach for production deployments and simplifies the configuration management process.

To enable the VSS Configurator, in VSS Configurator’s environment variables you must set:

ENABLE_PROFILE_CONFIGURATOR=true

By default, the VSS Configurator is disabled (ENABLE_PROFILE_CONFIGURATOR=false). When enabled, it runs before the Blueprint Deployment starts and adjusts configuration files based on the hardware profile and deployment mode as defined in the HARDWARE_PROFILE and MODE environment variables.

The VSS Configurator provides a comprehensive set of features for automated profile configuration management:

Feature

Description

Configuration File Updates

Automatically update configuration files in multiple formats:

  • yaml_update - Updates .yaml/.yml files while preserving structure. Supports nested keys via dot notation (e.g., nested.config.value)

  • json_update - Updates .json files with nested object support via dot notation (e.g., data.stream_count)

  • text_config_update - Updates .txt/.conf/.cfg files. Supports key=value, key: value, and key value formats

  • file_management - Manage files in directories (keep N files, remove extras)

Environment Variable Validation

Validate environment variables before deployment to catch configuration errors early:

  • allowed_values - Restrict to specific values (e.g., ["none", "local", "remote"])

  • allowed_patterns - Wildcard matching (e.g., bp_wh_kafka*)

  • disallowed_values - Block specific values

  • regex - Regular expression validation

  • Conditional validation based on other variables

Prerequisite Operations

Run operations before variable processing to dynamically determine values:

  • file_count - Count files in a directory matching a pattern (e.g., count *.mp4 files to determine available streams)

  • Results stored as variables for use in subsequent calculations

  • Useful for adapting configuration to actual data availability

Variable Computations

Create computed variables for intermediate calculations and condition checking. Use case: Automatically cap stream count to GPU limits using final_stream_count: "min(${NUM_STREAMS}, ${max_streams_supported})", then reuse this value across all config files.

  • Mathematical expressions: min(), max(), +, -, *, /

  • Conditional expressions: "4 if ${count} > 10 else 2"

  • Environment variable substitution: ${VAR_NAME}

  • Value: Define once, use everywhere - ensures consistency across multiple config files

Execution Order: Prerequisite Operations → Environment Variable Validation → Variable Computations → Configuration File Updates

For detailed information on how to create custom hardware profiles and advanced configuration options, refer to the Profile Configuration Manager section in VSS Configurator Documentation.
