Overview

The DeepStream Configurator (ds-configurator) is a lightweight Flask-based init-style service that runs before the DeepStream perception pipeline starts. It starts, waits for a configuration event (e.g. from SDR), updates the necessary DeepStream configuration files, then shuts down so that DeepStream can start with the updated settings.

Key Features:

  • Receives configuration events via HTTP POST
  • Extracts region, group, and topic-prefix metadata
  • Updates DeepStream configuration files with calibration and BEV group settings
  • Writes configuration data for downstream consumption by DeepStream pipelines

Architecture

The DeepStream Configurator operates as an init-style service that:

  1. Starts and listens for a configuration event
  2. Processes the event and updates configuration files
  3. Gracefully shuts down after completing the configuration

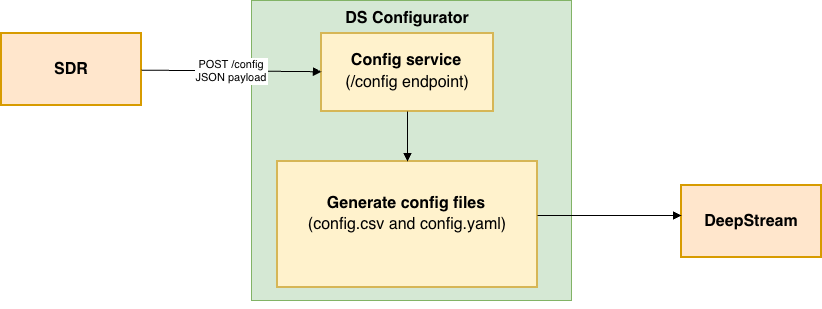

DS Configurator Architecture
DS Configurator Architecture

Configuration

Environment Variables

The following environment variables control the DS Configurator’s behavior:

VariableDefaultDescription
PORT9002HTTP port the service listens on
DS_CONFIG_PATH/tmp/data/ds-configurator/config.csvPath where the CSV configuration file is written (contains region, group, topic-prefix)
DS_CONFIG_YAML_SOURCE_PATH/ds-config/config.yamlSource YAML configuration file to read and update
DS_CONFIG_YAML_TARGET_PATH/tmp/data/ds-configurator/config.yamlTarget path where the updated YAML configuration is written
CALIB_FILE_PATH/tmp/data/ds-configurator/calibration_grouped.jsonPath to the calibration file (set in the output config.yaml)
EVENT_OBJECT_FIELDeventJSON field name containing the event data in the incoming payload
METADATA_OBJECT_FIELDmetadataJSON field name containing metadata within the event object

API Reference

POST /config

Receives a configuration event and updates DeepStream configuration files.

Request:

  • Content-Type: application/json
  • Method: POST

Request Body Schema:

{
  "event": {
    "metadata": {
      "region": "string",
      "group": "string",
      "topic-prefix": "string"
    }
  }
}

Example Request:

curl -X POST http://localhost:9002/config \
  -H "Content-Type: application/json" \
  -d '{
    "event": {
      "metadata": {
        "region": "warehouse-zone-1",
        "group": "bev-sensor-group-1",
        "topic-prefix": "mdx"
      }
    }
  }'

Response:

Returns the original JSON payload on success.

Behavior:

  1. Extracts region, group, and topic-prefix from the event metadata
  2. Writes a CSV file with format: region,group,topic-prefix
  3. Updates the target YAML config with:
    • calib_file_path: Set to the configured calibration file path
    • bev_group_name: Set to the group from the event metadata
  4. Gracefully shuts down after sending the response

Output Files

config.csv

A comma-separated file containing the sensor assignment information:

warehouse-zone-1,bev-sensor-group-1,mdx

This file can be consumed by DeepStream pipelines or other services that need to know the current sensor group assignment.

config.yaml

The updated YAML configuration file includes calibration and BEV settings. Key fields updated:

# Calibration file path (set by DS Configurator)
calib_file_path: /tmp/data/ds-configurator/calibration_grouped.json
# BEV group name (set from event metadata)
bev_group_name: bev-sensor-group-1
# Other DeepStream pipeline settings (preserved from source)
onnx_model_path: /root/sparse4d/sparse4d_model.onnx
batch_size: 1
# ... additional settings
