RT-DETR#

TAO RT-DETR fine-tuning and deployment guidance for 2D warehouse object detection.

Note

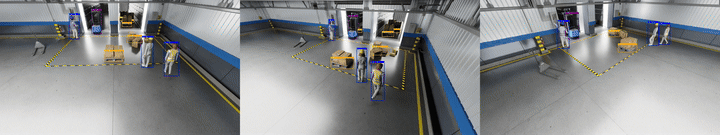

This page combines the RT-DETR Warehouse 2D Model overview, sample output, model-card reference, runtime performance, evaluation KPI, and TAO workflow for dataset preparation, training, evaluation, inference, export, optional FP16 optimization, and Perception microservice integration.

TAO RT-DETR is an advanced 2D Single-Camera Real-Time Detection Transformer tailored for warehouse environments and industrial automation settings. It generates precise 2D bounding boxes for a diverse set of objects including people, humanoid robots, autonomous vehicles, and warehouse equipment. The RT-DETR Warehouse 2D Model v1.0.2 is part of NVIDIA’s RT-DETR family and is pretrained on warehouse scene datasets for precise 2D object detection in industrial environments. This release uses a lighter-weight ResNet-50 backbone to reduce model size and inference cost while retaining competitive accuracy.

Release Information#

The RT-DETR Warehouse 2D Model v1.0.2 release is scheduled for NGC on June 2, 2026.

Model version#
Version	Backbone	Input shape	Notes
v1.0.2	ResNet-50	batch size x 3 x 640 x 640	Lightweight deployable model for warehouse 2D object detection.

The model was trained and evaluated on seven warehouse-centric classes: Person, Fourier GR1_T2 Humanoid, Agility Digit Humanoid, Nova Carter, Transporter, Forklift, and Pallet.

Key NGC artifacts include:

rtdetr_warehouse_v1.0.2.onnx and FP16 ONNX for ResNet-50 deployment.

Model Card#

The TAO RT-DETR model card on NGC describes architecture, datasets, and accuracy methodology.

Inference using Perception Microservice#

Detailed information can be found in the Warehouse 2D single-camera detection and tracking page.

Real-Time Inference Throughput & Latency#

Inference runs through the DeepStream pipeline on TensorRT. The table below summarizes how many camera streams each GPU supports at 30 FPS and 15 FPS with interval=1. The stream counts are computed from GPU compute/latency measurements as batch_size * 1000 / latency_ms, then divided by the target FPS.

Tested deployable model: v1.0.2 FP16, ResNet-50 backbone.

RT-DETR + ResNet-50 v1.0.2 real-time throughput#
GPU	@30 FPS	@15 FPS (interval=1)
1x GB200	158	316
1x B200	141	282
1x H200	85	170
1x H100	76	153
1x H100 NVL	59	118
1x A100	36	72
1x RTX PRO 6000 (Workstation)	49	99
1x RTX PRO 6000 (Server)	45	90
1x RTX 6000 Ada	28	56
1x L40S	29	59
1x L40	25	51
1x L4	9	18
1x DGX Spark	7	15
1x IGX Thor T7000 (iGPU)	9	18
1x IGX Thor Mini (T234 Orin iGPU)	10	21
1x IGX Thor T7000 + RTX PRO 6000	37	75
1x Jetson AGX Thor - T5000	9	18

KPI#

The key performance indicators are Average Precision (AP) per-class evaluated on the Warehouse Synthetic Test dataset. AP quantifies a detector’s ability to trade off precision and recall for a single object category by computing the normalized area under its precision-recall curve.

The model supports 7 object categories: Person, Agility Digit (humanoid robot), Fourier GR1_T2 (humanoid robot), Nova Carter, Transporter, Forklift, and Pallet.

Evaluation Settings

The reported metrics use the following evaluation configuration:

AP Variant: COCO AP@0.50
IoU Thresholds: 0.50
Max Detections: 100 detections per image
Matching Policy: Greedy matching based on IoU with ground truth boxes, highest confidence predictions matched first

The Warehouse Synthetic Test evaluation uses the MTMC Tracking 2025 subset from the NVIDIA PhysicalAI-SmartSpaces dataset. This is a comprehensive, annotated dataset for multi-camera tracking and 2D/3D object detection, synthetically generated with NVIDIA Omniverse. The dataset consists of time-synchronized video from indoor warehouse scenes with annotations for 2D & 3D bounding boxes and multi-camera tracking IDs. The Warehouse Synthetic Test dataset used for evaluation is the Warehouse_019 scene from the test split.

v1.0.2 ResNet-50 AP@0.50#
Dataset	Person	Agility Digit	GR1_T2	Nova Carter	Transporter	Forklift	Pallet
Building K	0.936	N/A	N/A	0.833	N/A	N/A	N/A
Warehouse Videos Test	0.740	0.823	0.877	0.984	N/A	0.988	0.508
Warehouse Synthetic Test	0.949	0.950	0.888	0.970	0.950	0.723	0.866

Please refer to the Model Card for more details on benchmark datasets and evaluation methodology.

Model versions#

The VSS 3.2.0 model card identifies RT-DETR 2D Warehouse Perception Model v1.0 as the warehouse detector family and lists deployable updates through v1.0.2:

NGC version	Backbone	Input resolution	Artifact and purpose
`trainable_efficientvit_l2_v1.0`	EfficientViT-L2	training spec dependent	`rtdetr_warehouse_v1.0.pth` for TAO fine-tuning and transfer learning
`deployable_efficientvit_l2_v1.0`	EfficientViT-L2	544x960	`rtdetr_warehouse_v1.0.onnx` and `rtdetr_warehouse_v1.0.fp16.onnx`
`deployable_efficientvit_l2_v1.0.1`	EfficientViT-L2	640x640	Updated ONNX exports with optimized inference resolution
`deployable_rn50_v1.0.2`	ResNet-50	640x640	Lightweight ONNX exports distilled from the v1.0.1 EfficientViT-L2 model

Use backbone: efficientvit_l2 for the v1.0/v1.0.1 EfficientViT-L2 path, or backbone: resnet50 for the v1.0.2 lightweight path.

Hardware & Software Requirements#

Please refer to the Requirements section of the TAO Toolkit Quick Start Guide for more details.

Runtime integration for the deployable warehouse model uses DeepStream 8.0 and TAO 6.25.10 or later. The reported inference measurements use TensorRT 10.13.3.9 or later, depending on the target platform.

Dataset Requirements#

The RT-DETR model can be fine-tuned on your own dataset for warehouse object detection tasks. The model is pre-trained on large-scale warehouse datasets including synthetic and real-world data.

For fine-tuning on your custom dataset, the data requirements are as follows:

Minimum Requirements:

Image Format
- RGB images in standard formats (JPEG, PNG)
- Recommended resolution: 640x640 or higher
Number of Training Images
- Minimum: 1,000 annotated images per class
- Recommended: 5,000+ images for robust performance
Annotations
- Ground Truth 2D bounding boxes in COCO format or compatible format
- Class labels for all objects
Data Split
- Training set: 70-80% of total data
- Validation set: 10-15% of total data
- Test set: 10-15% of total data

The model supports 7 object categories: Person, Agility Digit (humanoid robot), Fourier GR1_T2 (humanoid robot), Nova Carter, Transporter, Forklift, and Pallet.

Fine-tuning using NVIDIA TAO Toolkit#

RT-DETR can be fine-tuned via the TAO containers and the TAO CLI Notebook.

The documentation provided below accompanies the cells in the TAO fine-tuning notebook and offers guidance on how to execute them. TAO RT-DETR supports the following tasks via the Jupyter notebook:

dataset convert
model train
model evaluate
model inference
model export

An experiment specification file (also known as a configuration file) is used for fine-tuning the model. It consists of several main components:

dataset
model
train
evaluate
inference
export

For more information on experiment spec file, please refer to the Train Adapt Optimize (TAO) Toolkit User Guide - RT-DETR.

Backbone Configuration#

Use ResNet-50 for v1.0.2:

model:
  backbone: resnet50
  dec_layers: 6
  enc_layers: 1
  num_queries: 300
  return_interm_indices:
  - 1
  - 2
  - 3
  train_backbone: true

The following is a ResNet-50 example spec file for training an RT-DETR model on warehouse datasets.

Notice that the example fine-tunes, evaluates, and exports at 640x640 resolution for optimized inference.

results_dir: /results

dataset:
  augmentation:
      eval_spatial_size:
      - 640
      - 640
      multi_scales:
      - - 640
        - 640
      train_spatial_size:
      - 640
      - 640
  batch_size: 16
  dataset_type: serialized
  num_classes: 7
  remap_mscoco_category: false
  train_data_sources:
  - image_dir: ??
    json_file: ??
  val_data_sources:
    image_dir: ??
    json_file: ??
  workers: 8

model:
  backbone: resnet50
  dec_layers: 6
  enc_layers: 1
  num_queries: 300
  return_interm_indices:
  - 1
  - 2
  - 3
  train_backbone: true

train:
  checkpoint_interval: 1
  ema:
      decay: 0.999
  enable_ema: false
  num_epochs: 30
  num_gpus: 8
  num_nodes: 1
  optim:
      lr: 1e-4
      lr_backbone: 1e-5
      lr_steps:
      - 1000
      momentum: 0.9
  precision: bf16
  pretrained_model_path: ??
  validation_interval: 1

inference:
  checkpoint: ??
  conf_threshold: 0.5
  input_width: 640
  input_height: 640
  color_map:
      person: green
      nova_carter: red
      transporter: blue
      forklift: yellow
      pallet: purple
      gr1_t2: orange
      agility_digit: pink

evaluate:
  checkpoint: ??
  input_width: 640
  input_height: 640

export:
  checkpoint: ??
  gpu_id: ??
  input_height: 640
  input_width: 640
  onnx_file: ??
  opset_version: 17
  serialize_nvdsinfer: true

Dataset Preparation#

The RT-DETR model supports two data input formats for training. You can prepare your dataset in either format depending on your data source.

Option 1: COCO Format

The standard format for RT-DETR training is the COCO (Common Objects in Context) format. This format uses JSON annotation files with the following structure:

{
  "images": [
    {
      "id": 1,
      "file_name": "image_001.jpg",
      "width": 640,
      "height": 640
    }
  ],
  "annotations": [
    {
      "id": 1,
      "image_id": 1,
      "category_id": 1,
      "bbox": [x, y, width, height],
      "area": 1234.5,
      "iscrowd": 0
    }
  ],
  "categories": [
    {"id": 1, "name": "person"},
    {"id": 2, "name": "agility_digit"},
    {"id": 3, "name": "gr1_t2"},
    {"id": 4, "name": "nova_carter"},
    {"id": 5, "name": "transporter"},
    {"id": 6, "name": "forklift"},
    {"id": 7, "name": "pallet"}
  ]
}

For detailed information on the COCO format specification, please refer to the TAO Toolkit Data Annotation Format - Object Detection COCO Format documentation.

The directory structure for COCO format should be:

dataset/
├── images/
│   ├── train/
│   │   ├── image_001.jpg
│   │   ├── image_002.jpg
│   │   └── ...
│   ├── val/
│   │   ├── image_001.jpg
│   │   └── ...
│   └── test/
│       ├── image_001.jpg
│       └── ...
└── annotations/
    ├── train.json
    ├── val.json
    └── test.json

Option 2: H5 Files Format

For synthetic data generation pipelines or large-scale datasets, RT-DETR also supports data stored in HDF5 (H5) format. In this format, RGB images are stored within H5 files organized by camera.

The directory structure for H5 format is as follows:

dataset/
├── Camera_01.h5
├── Camera_02.h5
├── Camera_03.h5
├── ...
└── annotations/
    ├── train.json
    └── val.json

Each H5 file contains an rgb group with RGB image frames (e.g., rgb_00000.jpg, rgb_00001.jpg, …).

The ground truth annotations use the same COCO JSON format as Option 1, but the file_name field in the images array uses a special H5 URI format:

h5://<h5_file_name_without_extension>:<rgb_file_key in rgb group>

For example:

{
  "images": [
    {
      "id": 1,
      "file_name": "h5://Camera_01:rgb_00000.jpg",
      "width": 1920,
      "height": 1080
    },
    {
      "id": 2,
      "file_name": "h5://Camera_01:rgb_00001.jpg",
      "width": 1920,
      "height": 1080
    },
    {
      "id": 3,
      "file_name": "h5://Camera_02:rgb_00000.jpg",
      "width": 1920,
      "height": 1080
    }
  ],
  "annotations": [...],
  "categories": [...]
}

Launch Model Fine-tuning#

Below are the important configurations that need to be updated to launch training:

dataset:
  augmentation:
    eval_spatial_size:
    - 640
    - 640
    multi_scales:
    - - 640
      - 640
    train_spatial_size:
    - 640
    - 640
  batch_size: 16 # Depending on your GPU memory
  dataset_type: serialized
  num_classes: 7 # Update based on your dataset
  remap_mscoco_category: false
  train_data_sources:
  - image_dir: ?? # Update this based on your training image directory
    json_file: ?? # Update this based on your training annotations file
    sample_size: '10000' # Update based on your dataset size
  val_data_sources:
    image_dir: ?? # Update this based on your validation image directory
    json_file: ?? # Update this based on your validation annotations file
  workers: 8 # Depending on your CPU memory

model:
  backbone: resnet50
  dec_layers: 6
  enc_layers: 1
  num_queries: 300
  return_interm_indices:
  - 1
  - 2
  - 3
  train_backbone: true

train:
  checkpoint_interval: 1 # Update this based on your dataset size
  ema:
    decay: 0.999
  enable_ema: false
  num_epochs: 30 # Update this based on your dataset size
  num_gpus: 8 # Update this based on your GPU count
  num_nodes: 1 # Update this based on your GPU count
  optim:
    lr: 1e-4
    lr_backbone: 1e-5
    lr_steps:
    - 1000
    momentum: 0.9
  precision: bf16 # Use bf16 for faster training on supported GPUs
  pretrained_model_path: ?? # Update this to the pretrained model path
  validation_interval: 1 # Update this based on your dataset size

Once the configurations are modified, launch training by running the following command:

tao model rtdetr train \
    -e=<spec configuration YAML file> \
    dataset.train_data_sources.image_dir=<training image directory> \
    dataset.train_data_sources.json_file=<training annotations file> \
    dataset.val_data_sources.image_dir=<validation image directory> \
    dataset.val_data_sources.json_file=<validation annotations file> \
    results_dir=<results directory>

The pretrained RT-DETR warehouse checkpoints and deployable ONNX artifacts are available in the NGC Catalog. Select the NGC version that matches the backbone and input resolution summarized above.

Evaluate the fine-tuned model#

The fine-tuned model’s accuracy can be evaluated using the Average Precision (AP) metrics.

Below are the important configurations that need to be updated to launch evaluation:

dataset:
  batch_size: 4
  num_classes: 7
  remap_mscoco_category: false
  test_data_sources:
    image_dir: ?? # Update this based on your test image directory
    json_file: ?? # Update this based on your test annotations file
  augmentation:
    eval_spatial_size:
    - 640
    - 640

evaluate:
  checkpoint: ?? # Update this based on your fine-tuned model path
  input_width: 640
  input_height: 640

Once the configurations are modified, launch evaluation by running the following command:

tao model rtdetr evaluate \
    -e=<spec configuration YAML file> \
    evaluate.checkpoint=<fine-tuned model path> \
    dataset.test_data_sources.image_dir=<test image directory> \
    dataset.test_data_sources.json_file=<test annotations file>
    results_dir=<results directory>

Run Inference on the fine-tuned model#

The fine-tuned model’s output can be inspected by running inference and visualizing the 2D bounding boxes. Below are the important configurations that need to be updated to launch inference:

inference:
  checkpoint: ?? # Update this based on your fine-tuned model path
  conf_threshold: 0.5 # Update this based on your confidence threshold
  input_width: 640 # Update this based on your input width
  input_height: 640 # Update this based on your input height
  color_map: # Update this based on your color map
    person: blue
    agility_digit: green
    gr1_t2: red
    nova_carter: yellow
    forklift: purple
    pallet: orange
    transporter: pink
dataset:
  ...
  augmentation:
    eval_spatial_size:
    - 640 # Update this based on your input height
    - 640 # Update this based on your input width

dataset:
  infer_data_sources:
    image_dir: ?? # Update this based on your test image directory
    classmap: ?? # Update this based on your classmap file
  num_classes: 7 # Update this based on your number of classes
  batch_size: 4 # Update this based on your batch size
  workers: 8 # Update this based on your workers
  remap_mscoco_category: false

Once the configurations are modified, launch inference by running the following command:

tao model rtdetr inference \
    -e=<spec configuration YAML file> \
    inference.checkpoint=<fine-tuned model path> \
    dataset.infer_data_sources.image_dir=<test image directory> \
    dataset.infer_data_sources.classmap=<classmap file> \
    results_dir=<results directory>

Export the fine-tuned model#

Below are the important configurations that need to be updated to launch export:

export:
  checkpoint: ?? # Update this based on your fine-tuned model path
  gpu_id: ?? # Update this based on your GPU id
  input_height: 640
  input_width: 640
  onnx_file: ?? # Update this based on your desired model name
  opset_version: 17
  serialize_nvdsinfer: true # Set to true for DeepStream integration

Once the configurations are modified, launch export by running the following command:

tao model rtdetr export \
    -e=<spec configuration YAML file> \
    export.checkpoint=<fine-tuned model path> \
    export.onnx_file=<onnx file> \
    results_dir=<results directory>

By default, the exported model is in ONNX format, FP32 precision. To further optimize the model for deployment, you can convert the model to FP16 precision using the NVIDIA Model Optimizer

Step 1: Install NVIDIA Model Optimizer and set up your environment by following the official instructions here: https://nvidia.github.io/Model-Optimizer/getting_started/_installation_for_Linux.html

Step 2: Convert the model to FP16 precision using the following command:
python -m modelopt.onnx.autocast --onnx_path <ONNX file path> \
  --output_path <OUTPUT FP16 ONNX file path> \
  --low_precision_type fp16 --keep_io_types

Using the fine-tuned model in the Perception Microservice#

Once the model is fine-tuned and exported to ONNX format, it can be used in the Perception Microservice. Refer to the Integrating a New RT-DETR Model section for more details.
