Optimize for Tokens/GPU Throughput

Learn how to use the NeMo Microservices Customizer to create a LoRA (Low-Rank Adaptation) customization job optimized for higher tokens/GPU throughput and lower runtime. In this tutorial, we’ll use LoRA to fine-tune a model and leverage sequence packing feature to improve GPU utilization and decrease fine-tuning runtime.

Note

The time to complete this tutorial is approximately 30 minutes. In this tutorial, you run a customization job. Job duration increases with the number of model parameters and the dataset size.

Prerequisites

• SQuAD dataset uploaded to NeMo MS Datastore and registered in NeMo MS Entity Store. Refer to the LoRA model customization tutorial for details how to upload and register the dataset.

• (Optional) Weights & Biases account and API key for enhanced visualization.

---

Create LoRA Customization Jobs

For this tutorial, you must create two LoRA customization jobs: one with sequence_packing_enabled set to true and another with the same field set to false.

Tip

For enhanced visualization, it’s recommended to provide a WandB API key in the wandb-api-header HTTP header. Remove wandb-api-header from the request if the WANDB_API_KEY is not set.

1. Create the customziation job with sequence packing enabled:

   export WANDB_API_KEY=<YOUR_WANDB_API_KEY>

   curl --location \
   "https://${CUST_HOSTNAME}/v1/customization/jobs" \
   --header "wandb-api-key: ${WANDB_API_KEY}" \
   --header 'Accept: application/json' \
   --header 'Content-Type: application/json' \
   --data '{
       "config": "meta/llama-3.1-8b-instruct",
       "dataset": {
           "name": "test-dataset"
       },
       "hyperparameters": {
           "sequence_packing_enabled": true,
           "training_type": "sft",
           "finetuning_type": "lora",
           "epochs": 10,
           "batch_size": 32,
           "learning_rate": 0.00001,
           "lora": {
               "adapter_dim": 16
           }
       }
   }' | jq


2. Note the customization_id. It will be needed later.

3. Create another customization job with sequence packing disabled:

   export WANDB_API_KEY=<YOUR_WANDB_API_KEY>

   curl --location \
   "https://${CUST_HOSTNAME}/v1/customization/jobs" \
   --header "wandb-api-key: ${WANDB_API_KEY}"
   --header 'Accept: application/json' \
   --header 'Content-Type: application/json' \
   --data '{
       "config": "meta/llama-3.1-8b-instruct",
       "dataset": {
           "name": "test-dataset"
       },
       "hyperparameters": {
           "sequence_packing_enabled": false,
           "training_type": "sft",
           "finetuning_type": "lora",
           "epochs": 10,
           "batch_size": 32,
           "learning_rate": 0.00001,
           "lora": {
               "adapter_dim": 16
           }
       }
   }' | jq


4. Note the customization_id. It will be needed later.

Monitor LoRA Customization Jobs

Use the customization_id from each job to make a GET request for status details.

curl ${CUST_HOSTNAME}/v1/customization/jobs/${customizationID}/status | jq

The response includes timestamped training and validation loss values. The expected validation loss for both jobs should be similar.

View Jobs in Weights & Biases

To enable W&B integration, include your WandB API key when creating a customization job in the call header. Then view your results at wandb.ai under the nvidia-nemo-customizer project.

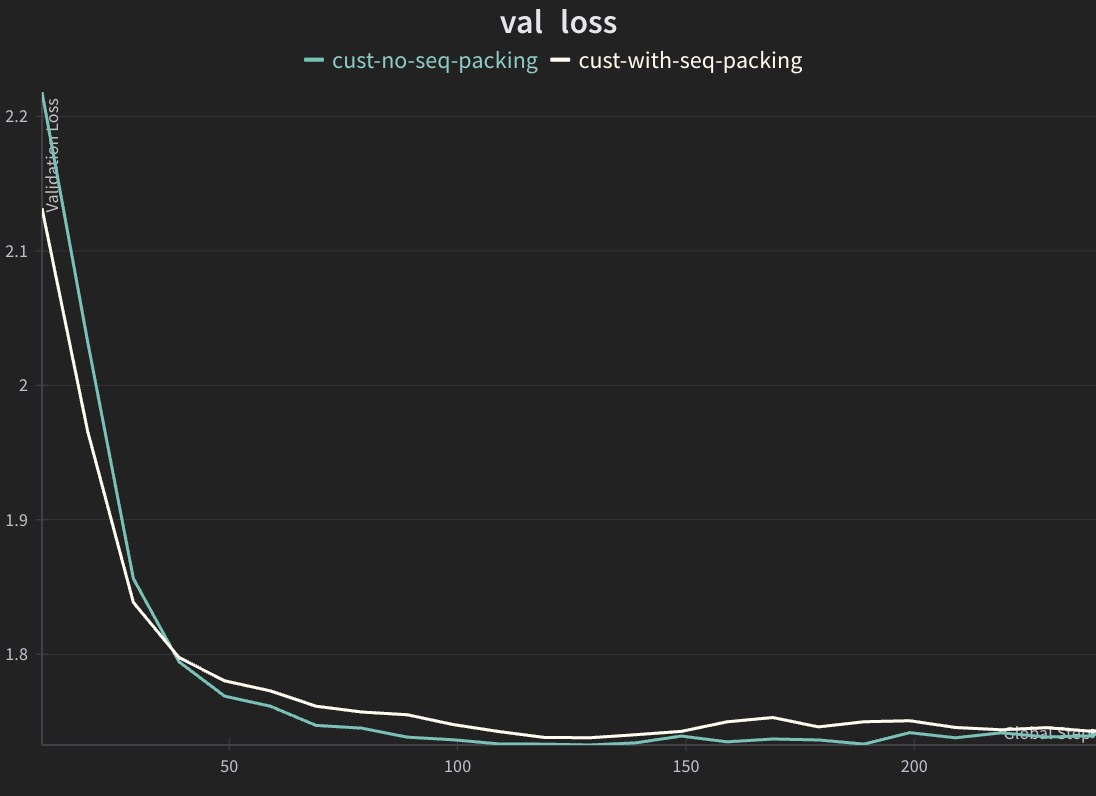

Validation Loss Curves

The expected validation loss curves should match closely for both jobs.

Sequence packed version should complete significantly faster.

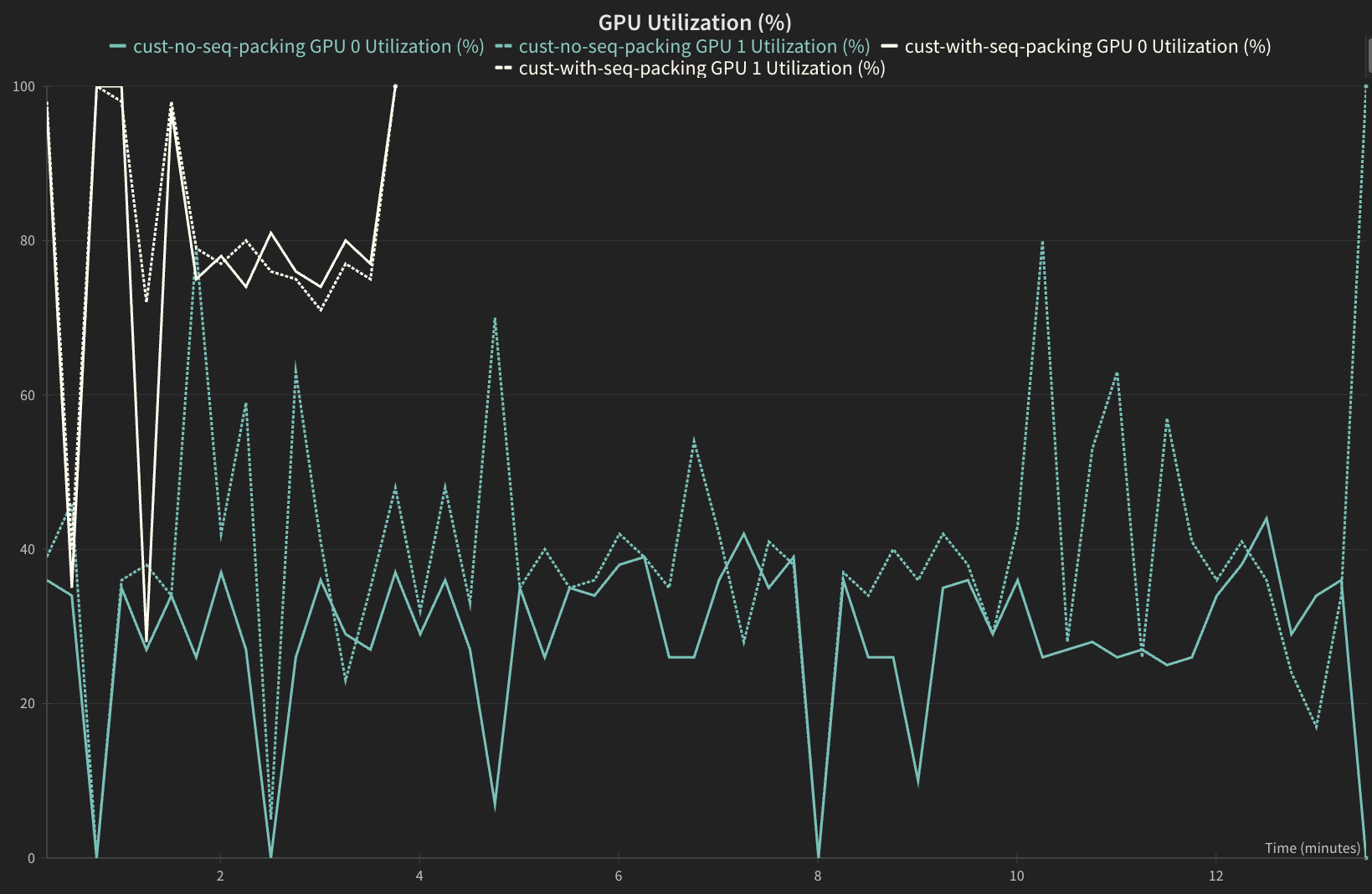

GPU Utilization

Sequence packed version should have a higher GPU utilization.

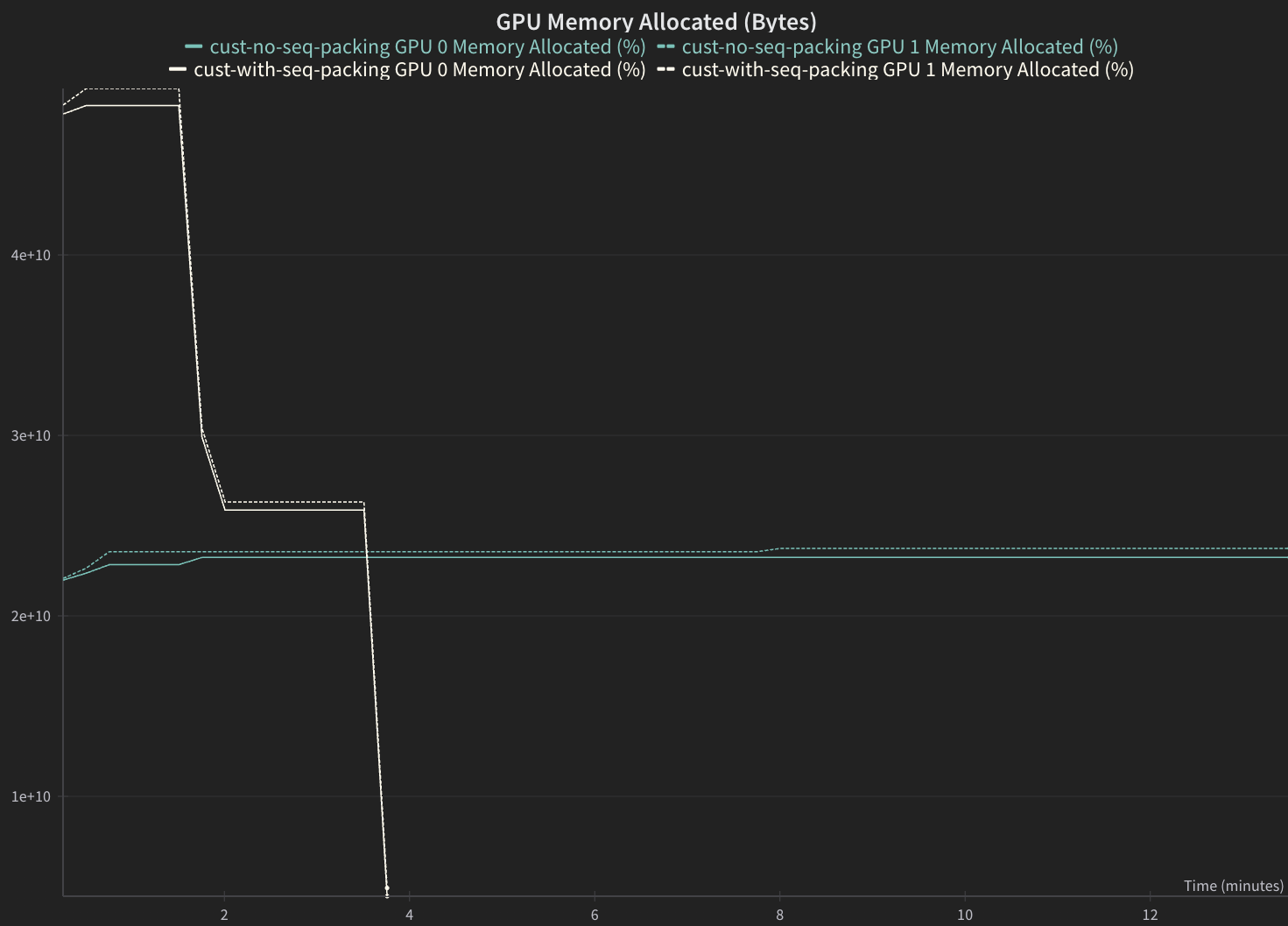

GPU Memory Allocation

Sequence packed version should have a higher GPU Memory Allocation.

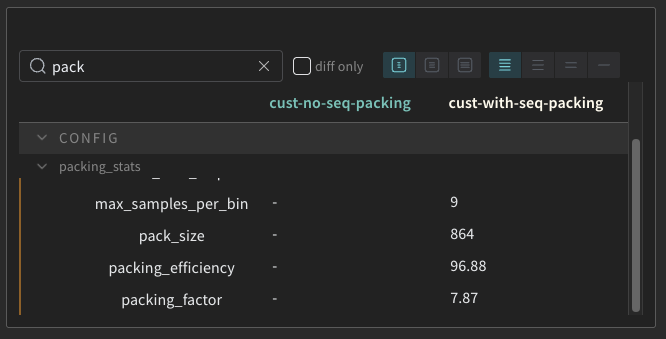

Sequence Packing Statistics

Sequence packing statistics can be found under run config.

Note

The W&B integration is optional. When enabled, we’ll send training metrics to W&B using your API key. While we encrypt your API key and don’t log it internally, please review W&B’s terms of service before use.

Next Steps

Now that you have created an optimized customization job, you can evaluate the output using NeMo Microservices Evaluator.
