Guardrail Concepts#

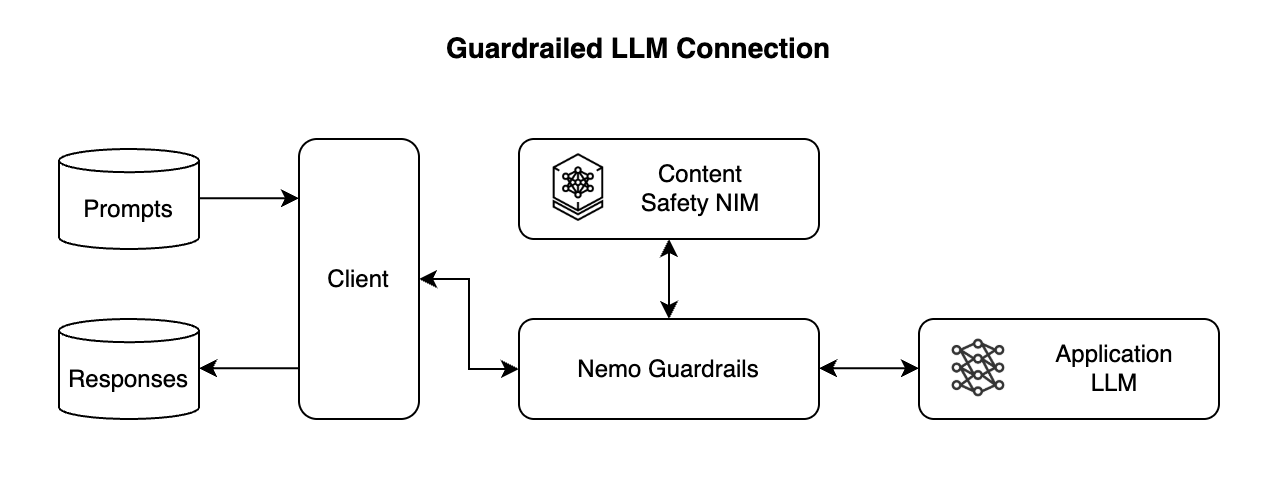

The NeMo Guardrails microservice is a high-performance, flexible way to improve the safety, security, and trustworthiness of any LLM-based application. While today’s LLMs incorporate rigorous safety alignment into their pre and post-training phases, there are still instances in which they return unsafe or inappropriate answers. Deploying NeMo Guardrails augments an LLM’s safety-alignment while maintaining the same interface for clients. The following diagram shows an example NeMo Guardrails deployment using the NVIDIA Content Safety NIM to protect an existing application.

../../_images/guardrail_llm.png

Prompt and Response Checking#

You can configure the NeMo Guardrails microservice to perform both prompt and LLM response-checking using the application LLM, NVIDIA NIM microservices, or third-party models.

Using the Application LLM#

Self-checking guardrails use the same LLM as the end-application. These guardrails can be applied on the user input, LLM response, or both. To configure these checks, you provide a text prompt and Python parser function. The prompt asks the application LLM to determine whether the user input and/or LLM response are safe. The parser function processes the response from this prompt, mapping the free-text output of the LLM to a boolean safety assessment.

Using NVIDIA NIM Microservices#

The NeMo Guardrails microservice is closely integrated with several NIM microservices, with pre-configured prompts and parser functions. Rather than using the application LLM, these NIM microservices use smaller models fine-tuned to the task to reduce latency. These microservices provide a low-friction option to deploy protections against the most common threats to safety and security.

  • Content Safety: This model checks user input and LLM response against 23 categories of unsafe content, and overrides unsafe LLM responses with a safe refusal to answer.

  • Topic Control: This model prevents multi-turn conversations from veering off-topic over a number of turns.

  • Jailbreak Detection: This model detects prompt injection and jailbreak attacks against an LLM, which can result in unwanted responses and behavior.

Using Third-Party Models and APIs#

NeMo Guardrails also supports third-party models and APIs. Supported models include AlignScore-based Fact-Checking, Llama Guard Content Moderation, and Sensitive Data Detection using Presidio. Support for third-party APIs also includes AutoAlign, Cleanlab, GCP Text Moderation, Private AI PII Detection, and many others.

Guiding Conversational Flows using Colang#

Colang is a Domain-Specific Language to model conversational flows between a user and chatbot application. You can define a conversational flow using one or more example text-strings. The Colang runtime then uses a three-step workflow.

  1. Determine user intent. Determine the most likely user intent, given the pre-defined list of user intents with example user input.

  2. Determine the next step. If the user-intent matches a dialog flow, this is selected for use in the next step.

  3. Generate LLM response. If a dialog-flow is matched, return one of the corresponding response. If not, use an LLM to generate the response.

Additional Features#

The NeMo Guardrails microservice supports streaming responses, reducing the time-to-first-token for a low-latency user experience.
