Ensure your system can support 75W or greater system power supply through the PCIe x16 interface and an additional 75W through the supplementary 6-pin ATX power supply connector
MBF2H516B-CEEOT / MBF2H516B-CENOT Specifications
| BlueField-2 DPU | BlueField-2 P-Series - 8 Cores - 550MHz/2750MHz | |||
|---|---|---|---|---|
| Physical | Card Dimensions (FHHL): 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) | |||
| Connector: Dual QSFP56 (copper and optical) | ||||
| Protocol Support | Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | |||
| Data Rate: 1/10/25/40/50/100 Gb/s Ethernet | ||||
PCI Express Gen 4.0: SERDES @16.0GT/s, 16 lanes (3.0, 2.0 and 1.1 compatible) | ||||
| On-board Memory | Single-channel with 8 DDR4 8 bit + ECC (64bit + 8bit ECC) 16GB @ 3200MT/s 64GB eMMC memory | |||
| DPU Power Supply | Voltage: 12V | |||
| Power Consumption and Air Flow | Power and airflow specifications are provided in NVIDIA BlueField-2 DPUs Power and Airflow Specifications document, which is available at NVOnline following login. | |||
Environmental | Temperature | Operational | 0°C to 55°C | |
Non-operational | -40°C to 70°Ca | |||
Humidity | Operational | 10% to 85% relative humidity | ||
| Non-operational | 10% to 90% relative humidity | |||
Regulatory | Safety | CB / cTUVus / CE | ||
| EMC | CE / FCC / VCCI / ICES / RCM | |||
| RoHS | RoHS compliant | |||
a. The non-operational storage temperature specifications apply to the product without its package.

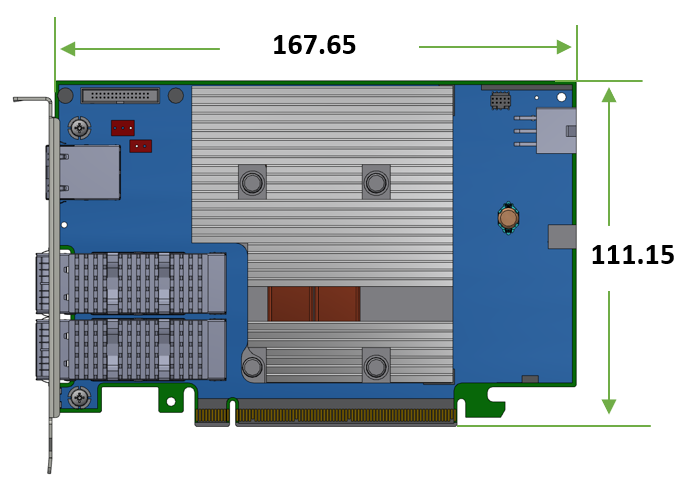

BlueField-2 BF2500 Mechanical Drawing and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.

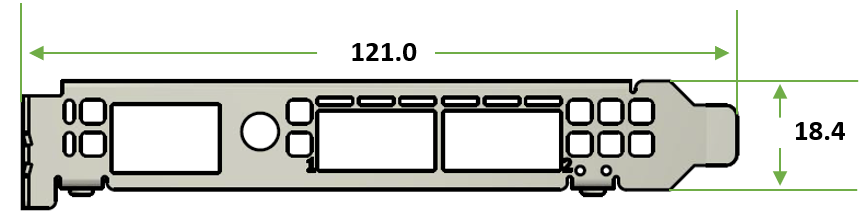

Bracket Mechanical Drawing and Dimensions
