The mlx_fwsfx_gen tool is used for OEMs that wish to create their own UPMFs that contain their own customized firmware images.
To install the mlx_fwsfx_gen tool, the installation script should be run with the "--oem" command line option.
This tool packs the firmware images provided in the input directory and the mlxfwmanager update tool into a single standalone self-extracting executable.
The UPMF generation is supported on Linux and Windows. Being an executable file, the UPMF should be prepared for Linux and Windows separately.
|--source-dir||Directory containing NVIDIA firmware images to be included in the package. This option may be used more than once to specify more than one source directory.|
|--out-dir||Specifies the output directory.|
|--phy-support||Generate extractor with mlxphyburn support.|
PHY firmware image.
|--sfx-name||The self-extracting executable filename. The default name is mlxfwmanager-YYYYMMDD-<build number>, where build number is the previous maximum build number existing in the output directory incremented by one.|
|--extra-args||Extra args passed to mlxfwmanager default arguments. In the case of multiple args, the args are separated by commas. For example: [--extra-args --ret-lvim,--online]|

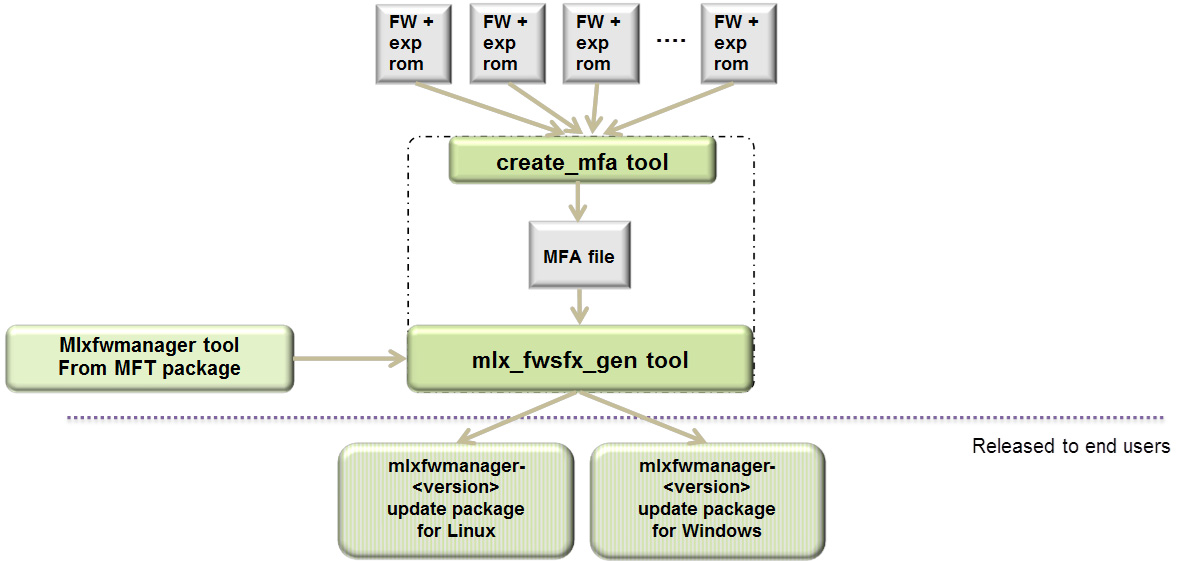

UPMF Package Generation Flow
UPMF Generation Example
The below example packs 3 firmware binaries (named fw-ConnectX-3-1.bin, fw-ConnectX-3-2.bin, fw-ConnectX-3-3.bin) located in the directory '/tmp/fw-ConnectX-3-dir/' into a Linux UPMF package named /tmp/mlxfwmanager-20171004-1.
UPMF Generation with PHY Binary Example
The below example packs 3 firmware binaries (named fw-ConnectX-3-1.bin, fw-ConnectX-3-2.bin, fw-ConnectX-3-3.bin) located in the directory '/tmp/fw-ConnectX-3-dir/' and a PHY image '/tmp/Firmware_1.37.10_N32722.cld' into a Linux UPMF package named /tmp/mlxfwmanager-20141126-2.
