Appendix A: Optical Connector and Fiber Cable
The MPO connectors are the angle-polished (APC) type which provide minimal reflection of the optical signal for optimal signal integrity.

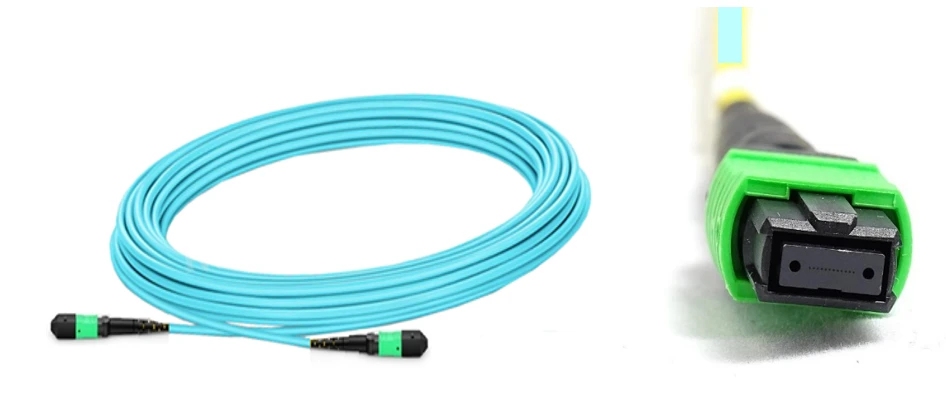

Multimode Fiber Cable with MPO/APC Connectors
![image-2024-8-1_14-24-54-version-1-modificationdate-1722515094414-api-v2.png](https://docscontent.nvidia.com/dims4/default/d974d66/2147483647/strip/true/crop/946x417+0+0/resize/946x417!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000191-0dfb-d3b1-a9df-adffdf9c0000%2Fimages%2Fdownload%2Fattachments%2F2539089612%2Fimage-2024-8-1_14-24-54-version-1-modificationdate-1722515094414-api-v2.png)

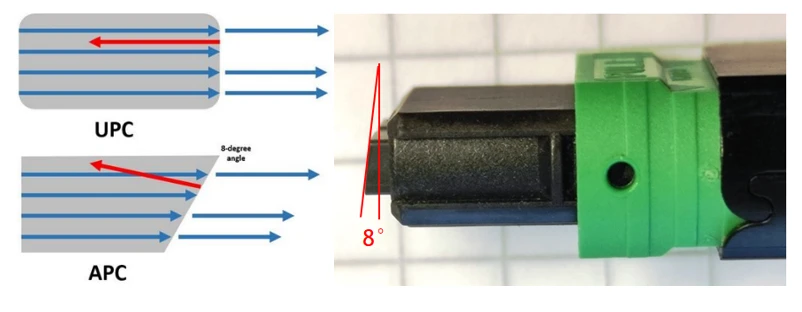

Detail of the MPO/APC Connector
![image-2024-8-1_14-25-4-version-1-modificationdate-1722515104133-api-v2.png](https://docscontent.nvidia.com/dims4/default/3bf15de/2147483647/strip/true/crop/802x312+0+0/resize/802x312!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000191-0dfb-d3b1-a9df-adffdf9c0000%2Fimages%2Fdownload%2Fattachments%2F2539089612%2Fimage-2024-8-1_14-25-4-version-1-modificationdate-1722515104133-api-v2.png)
Transceivers have alignment pins for precise positioning of the cable connector against the optical beams. The fiber cable has alignment holes matching the transceiver’s pins.

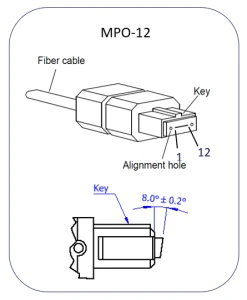

MPO Connector with Alignment Holes and Positioning Key
![image-2024-8-1_14-25-13-version-1-modificationdate-1722515113848-api-v2.png](https://docscontent.nvidia.com/dims4/default/f18bec4/2147483647/strip/true/crop/247x300+0+0/resize/247x300!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000191-0dfb-d3b1-a9df-adffdf9c0000%2Fimages%2Fdownload%2Fthumbnails%2F2539089612%2Fimage-2024-8-1_14-25-13-version-1-modificationdate-1722515113848-api-v2.png)

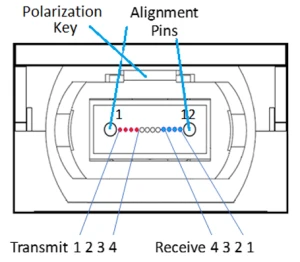

Optical Receptacle and Lane Assignment (transceiver, front view)
![image-2024-8-1_14-25-26-version-1-modificationdate-1722515125929-api-v2.png](https://docscontent.nvidia.com/dims4/default/8892c4b/2147483647/strip/true/crop/300x262+0+0/resize/300x262!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000191-0dfb-d3b1-a9df-adffdf9c0000%2Fimages%2Fdownload%2Fthumbnails%2F2539089612%2Fimage-2024-8-1_14-25-26-version-1-modificationdate-1722515125929-api-v2.png)
Reference: IEC specification IEC 61754-7.
