Preface

The goal of this page is to troubleshoot OP-TEE and/or fTPM should they be malfunctioning.

Note

OP-TEE/fTPM functionality is available on the NVIDIA® BlueField®-3 networking platform only.

Issues in OP-TEE/fTPM typically occur at boot time. There are a variety of interrelated pieces which must be available to allow OP-TEE and fTPM to function properly. As fTPM is a trusted application (TA) which requires the OP-TEE transport, the entities are entirely dependent on one another. If fTPM is not working, then typically the reason is because OP-TEE is malfunctioning.

Command Cheat Sheet

The following commands assume you are logged in and have access to BlueField.

Command	Description	Example Output
`obmc-console-client`	A DPU BMC program to access the BlueField console	No output
`echo "DISPLAY_LEVEL 2" > /dev/rshim0/misc`	Set the RShim log debug level to 2	No output
`cat /dev/rhim0/misc`	Dump the RShim log	Please see section 3.2 for example output
`dmesg \| grep optee`	Verifies the OP-TEE driver has been loaded at boot time	Copy Copied! `[ 5.646578] optee: probing for conduit method. [ 5.653282] optee: revision 3.10 (450b24ac) [ 5.653991] optee: initialized driver`
`lsmod \| grep tee`	Verifies the 3 Kernel Load Modules required for OP-TEE/fTPM functionality are loaded	Copy Copied! `tpm_ftpm_tee 16384 0 optee 49060 1 tee 45056 3 optee,tpm_ftpm_tee`
`ls -l /dev/tee*`	Displays whether the 2 required TEE devices have been created	Copy Copied! `crw------- 1 root root 234, 0 Sep 8 18:24 /dev/tee0 crw------- 1 root root 234, 16 Sep 8 18:24 /dev/teepriv0`
`ls -l /dev/tpm*`	Displays whether the 2 required TPM devices have been created	Copy Copied! `crw-rw---- 1 tss root 10, 224 Sep 8 18:24 /dev/tpm0 crw-rw---- 1 tss tss 252, 65536 Sep 8 18:24 /dev/tpmrm0`
`ps axu \| grep tee`	Verifies the required TEE-supplicant process is running and the process which enumerates OP-TEE devices is running	Copy Copied! `root 707 0.0 0.0 76208 1372 ? Ssl 14:42 0:00 /usr/sbin/tee-supplicant root 715 0.0 0.0 0 0 ? I< 14:42 0:00 [optee_bus_scan]`
`ps axu \| grep tpm`	Verifies the TPM work queue thread is up and running	Copy Copied! `root 124 0.0 0.0 0 0 ? I< 18:24 0:00 [tpm_dev_wq]`
`ls -l /dev/mmc* \| grep rpmb`	Shows the replay-protected memory block device on the system. The RPMB is a dedicated partition available on the eMMC-flash-based storage device which stores and retrieves the TPM data with integrity and authenticity.	Copy Copied! `crw------- 1 root root 238, 0 Jun 7 14:25 /dev/mmcblk0rpmb`
`mmc rpmb read-counter /dev/mmcblk0rpmb`	Verifies the RPMB device is present and functioning. This command outputs a number indicating the number of times the RPMB has been written to in a secure manner. A negative value here indicates the RPMB device has not been programmed.	Counter value: `0x0004fb3f`

Logging and Counters

Note there are NO counters involved for debugging the OP-TEE/fTPM feature.

However, OP-TEE/fTPM depends on the RPMB (Replay Protected Memory Block) device being programmed. Please refer to Verifying RPMB Device is Functioning , which is used to verify the RPMB device is programmed.

Console Output

Note

The following messages are only available on the BlueField DPU console during boot.

Early in the boot-up process, the following message should be printed to the console, indicating that the BFB image you are running supports OP-TEE:

Copy
Copied!


            I/TC: OP-TEE version: 4.1.0-25-ga07c623 (gcc version 8.3.0 (GCC)) #1 Fri Apr 26 22:04:42 UTC 2024 aarch64

On bootup, the following message is printed to the console, indicating the RPMB device (crucial for OP-TEE/fTPM functionality) is functional:
Copy

Copied!
```

            I/TC: RPMB: Using generated key

```
If the following message is printed, contact an NVIDIA FAE to help program the RPMB device:
Copy

Copied!
```

            NOTICE:  RPMB Key NOT programmed

```

RShim Log Messages

Upon booting, the RPMB is checked if it has been programmed. An RShim Log message will only appear if an issue arises during this verification.

If you see the following RPMB message, it could indicate a problem with the board. Please reach out to an NVIDIA Field Application Engineer for assistance.

Copy
Copied!


            # cat /dev/rshim0/misc
DISPLAY_LEVEL   2 (0:basic, 1:advanced, 2:log)
BOOT_MODE       1 (0:rshim, 1:emmc, 2:emmc-boot-swap)
BOOT_TIMEOUT    150 (seconds)
DROP_MODE       0 (0:normal, 1:drop)
SW_RESET        0 (1: reset)
DEV_NAME        pcie-0000:ca:00.2
DEV_INFO        BlueField-3(Rev 1)
OPN_STR         N/A
UP_TIME         110(s)
SECURE_NIC_MODE 0 (0:no, 1:yes)
FORCE_CMD       0 (1: send Force command)
---------------------------------------
             Log Messages
---------------------------------------
INFO[PSC]: PSC BL1 START
INFO[BL2]: start
INFO[BL2]: boot mode (emmc)
INFO[BL2]: VDD_CPU: 851 mV
INFO[BL2]: VDDQ: 1120 mV
INFO[BL2]: DDR POST passed
INFO[BL2]: UEFI loaded
INFO[BL31]: start
INFO[BL31]: lifecycle GA Secured
INFO[BL31]: RPMB: Cannot read feature fuses    <<==== Indicates a potential Bluefield board issue
INFO[BL31]: runtime
INFO[BL31]: MB ping success
INFO[UEFI]: eMMC init
INFO[UEFI]: eMMC probed
INFO[UEFI]: UPVS valid
INFO[UEFI]: PCIe enum start
INFO[UEFI]: PCIe enum end
INFO[UEFI]: UEFI Secure Boot (disabled)
INFO[UEFI]: PK configured
INFO[UEFI]: Redfish enabled
INFO[UEFI]: DPU-BMC RF credentials found
INFO[UEFI]: exit Boot Service
INFO[MISC]: Linux up
INFO[MISC]: DPU is ready

If you see this RPMB message, please contact an NVIDIA Field Application Engineer for help programming the RPMB device:

Copy
Copied!


            # cat /dev/rshim0/misc
DISPLAY_LEVEL   2 (0:basic, 1:advanced, 2:log)
BOOT_MODE       1 (0:rshim, 1:emmc, 2:emmc-boot-swap)
BOOT_TIMEOUT    150 (seconds)
DROP_MODE       0 (0:normal, 1:drop)
SW_RESET        0 (1: reset)
DEV_NAME        pcie-0000:ca:00.2
DEV_INFO        BlueField-3(Rev 1)
OPN_STR         N/A
UP_TIME         110(s)
SECURE_NIC_MODE 0 (0:no, 1:yes)
FORCE_CMD       0 (1: send Force command)
---------------------------------------
             Log Messages
---------------------------------------
INFO[PSC]: PSC BL1 START
INFO[BL2]: start
INFO[BL2]: boot mode (emmc)
INFO[BL2]: VDD_CPU: 851 mV
INFO[BL2]: VDDQ: 1120 mV
INFO[BL2]: DDR POST passed
INFO[BL2]: UEFI loaded
INFO[BL31]: start
INFO[BL31]: lifecycle GA Secured
INFO[BL31]: RPMB Key NOT programmed            <<==== Please contact Nvidia to have your RPMB device programmed
INFO[BL31]: runtime
INFO[BL31]: MB ping success
INFO[UEFI]: eMMC init
INFO[UEFI]: eMMC probed
INFO[UEFI]: UPVS valid
INFO[UEFI]: PCIe enum start
INFO[UEFI]: PCIe enum end
INFO[UEFI]: UEFI Secure Boot (disabled)
INFO[UEFI]: PK configured
INFO[UEFI]: Redfish enabled
INFO[UEFI]: DPU-BMC RF credentials found
INFO[UEFI]: exit Boot Service
INFO[MISC]: Linux up
INFO[MISC]: DPU is ready

Debug Info Package

To effectively test and utilize the OP-TEE/fTPM functionality, it is recommended to install the TPM2 Tools, which are thoroughly documented here. This toolset enables users to verify the specific TPM features they need. If the TPM2 Tools function correctly, it confirms that your OP-TEE/fTPM setup is operational.

Installing TPM2 Tools on Ubuntu 22.04

Assuming you are logged in as root, run:

Copy
Copied!


            apt-get update
apt-get install tpm2-tools

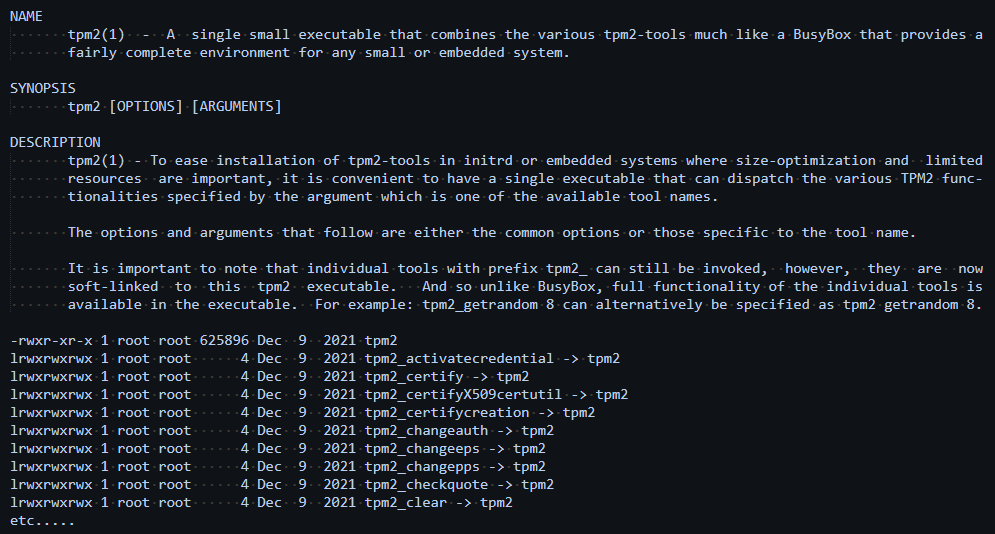

For the TPM2 tools on Ubuntu, you get a single executable, with links to all of the TPM 2 commands. Example:


Installing TPM2 Tools on OCI

Assuming you are logged in as root, run:

Copy
Copied!


            yum update
yum install tpm2-tools.aarch64

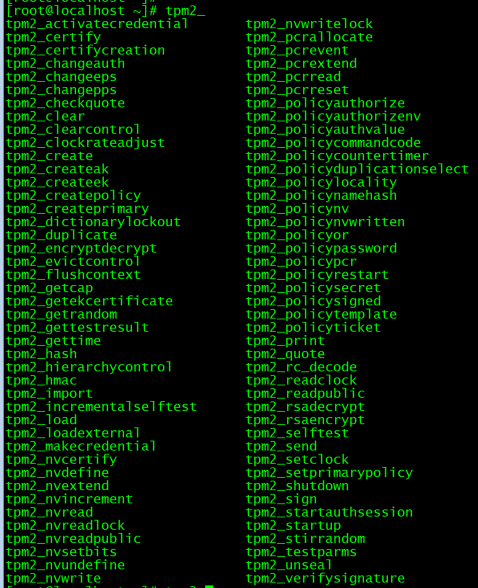

After installing TPM2 tools, to see a list of all the tool commands installed, run:

Copy
Copied!


            tpm2_ <TAB>

Example output:


Scenarios

OP-TEE/fTPM Not Functioning

Enabling OP-TEE on BlueField-3

OP-TEE must be configured in the UEFI menu.

ESC into the UEFI on boot.

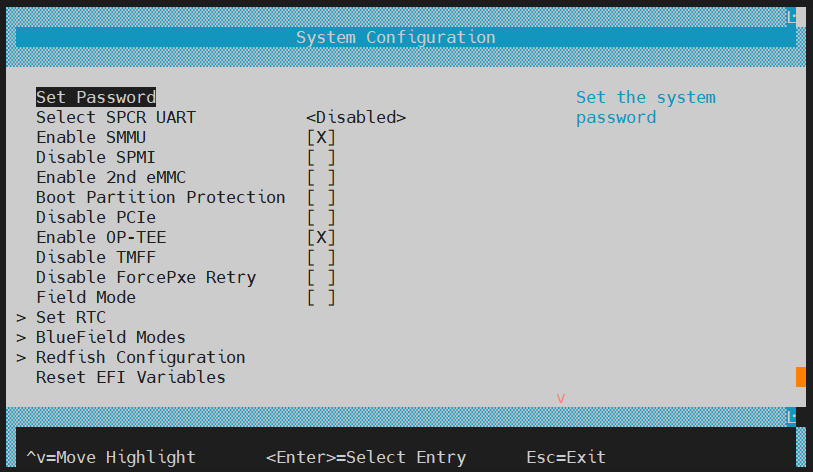

Navigate to Device Manager > System Configuration > Enable OP-TEE (make sure this item is checked).
Save the change and reset/reboot.
Upon reboot, OP-TEE is enable.

Info

OP-TEE is essentially dormant (does not have an OS scheduler) and reacts to external inputs.

Verifying Required Elements for OP-TEE/fTPM are Running

The following indicators must all be present to have a functioning OP-TEE/fTPM setup.

Check dmesg for the OP-TEE driver initializing:

Copy
Copied!


            root@localhost ~]# dmesg | grep optee
[    5.646578] optee: probing for conduit method.
[    5.653282] optee: revision 3.10 (450b24ac)
[    5.653991] optee: initialized driver

Verify the 3 Kernel modules tee, optee, and tpm_ftpm_tee are loaded:

Copy
Copied!


            [root@localhost ~]# lsmod | grep tee
tpm_ftpm_tee           16384  0
optee                  49152  1
tee                    49152  3 optee,tpm_ftpm_tee

Verify the required devices are created/available (there should be 4 in total):

Copy
Copied!


            [root@localhost ~]# ls -l /dev/tee*
crw------- 1 root root 234,  0 Sep  8 18:24 /dev/tee0
crw------- 1 root root 234, 16 Sep  8 18:24 /dev/teepriv0

[root@localhost ~]# ls -l /dev/tpm*
crw-rw---- 1 tss root  10,   224 Sep  8 18:24 /dev/tpm0
crw-rw---- 1 tss tss  252, 65536 Sep  8 18:24 /dev/tpmrm0

Verify the required processes are running (there should be 3 in total):

Copy
Copied!


            [root@localhost ~]# ps axu | grep tee
root         707  0.0  0.0  76208  1372 ?        Ssl  14:42   0:00 /usr/sbin/tee-supplicant
root         715  0.0  0.0      0     0 ?        I<   14:42   0:00 [optee_bus_scan]

[root@localhost ~]# ps axu | grep tpm
root         124  0.0  0.0      0     0 ?        I<   18:24   0:00 [tpm_dev_wq]

Verifying RPMB Device is Functioning

Identify your RPMB device:

RPMB Device Verification

Copy
Copied!


            [root@localhost ~]# ls -l /dev/mmc* | grep rpmb
crw------- 1 root root 238, 0 Jun 7 14:25 /dev/mmcblk0rpmb

Verify your RPMB is functional:
RPMB Device Verification

Copy

Copied!
```

            [root@localhost ~]# mmc rpmb read-counter /dev/mmcblk0rpmb
Counter value: 0x0004fb3f

```
Info

A positive number indicates the RPMB is functional, a negative number indicates the RPMB has not been programmed.

RPMB is Not Functioning

If you execute the command mmc rpmb read-counter /dev/mmcblk0rpmb and it returns error code 0x0007, this means that the RPMB on your BlueField-3 device has never been programmed. Refer to your NVIDIA FAE contact to solve this for you via a BFB which would program the authentication key required to make the RPMB functional.

Note

If the first 3 scenarios above are verified/functional, then you should have a 100% functioning OP-TEE/fTPM setup.

Verifying OP-TEE/fTPM Functionality Using TPM2 Tool

Install the TPM2 tools (mentioned earlier) and execute the following simple TPM2 command. This command goes through the fTPM TA, TEE-supplicant, and OP-TEE which verifies the entire data path for OP-TEE/fTPM.

Example of successful operation:

Copy
Copied!


            [root@localhost ~]# tpm2_getrandom 41 | xxd -p10d0a24d0128bc2e80f01fddca83a2714895e099de3d455c31d72203a140
2199a9e230ad532e8abb76

Example of failed operation:

Copy
Copied!


            [root@localhost ~]# tpm2_getrandom 41 | xxd -p

E/TC:?? 0 get_rpc_alloc_res:646 RPC allocation failed. Non-secure world result: ret=0xffff000c ret_origin=0x2
E/TC:?? 0 get_rpc_alloc_res:646 RPC allocation failed. Non-secure world result: ret=0xffff000c ret_origin=0x2
E/TC:?? 0
E/TC:?? 0 TA panicked with code 0xffff000c
E/LD:  Status of TA bc50d971-d4c9-42c4-82cb-343fb7f37896
E/LD:   arch: aarch64
E/LD:  region  0: va 0xc0005000 pa 0x81601000 size 0x002000 flags rw-s (ldelf)
E/LD:  region  1: va 0xc0007000 pa 0x81603000 size 0x008000 flags r-xs (ldelf)
E/LD:  region  2: va 0xc000f000 pa 0x8160b000 size 0x001000 flags rw-s (ldelf)
E/LD:  region  3: va 0xc0010000 pa 0x8160c000 size 0x004000 flags rw-s (ldelf)
E/LD:  region  4: va 0xc0014000 pa 0x81610000 size 0x001000 flags r--s
E/LD:  region  5: va 0xc0015000 pa 0x81697000 size 0x011000 flags rw-s (stack)
E/LD:  region  6: va 0xc0026000 pa 0x81e00000 size 0x003000 flags rw-- (param)
E/LD:  region  7: va 0xc0078000 pa 0x00001000 size 0x067000 flags r-xs [0]
E/LD:  region  8: va 0xc00df000 pa 0x00068000 size 0x01f000 flags rw-s [0]
E/LD:   [0] bc50d971-d4c9-42c4-82cb-343fb7f37896 @ 0xc0078000
E/LD:  Call stack:
E/LD:   0xc00b5a24
E/LD:   0xc0078ba4
E/LD:   0xc0079228
E/LD:   0xc0097a18
E/LD:   0xc00b0ce4
E/LD:   0xc0079ad8
E/LD:   0xc00bba6c
E/LD:   0xc00b0e80
[ 7802.822441] tpm tpm0: ftpm_tee_tpm_op_send: SUBMIT_COMMAND invoke error: 0xffff3024
[ 7802.830122] tpm tpm0: tpm_try_transmit: send(): error -53212
ERROR:tcti:src/tss2-tcti/tcti-dev[ 7802.836246] tpm tpm0: ftpm_tee_tpm_op_send: SUBMIT_COMMAND invoke error: 0xffff3024
ice.c:486:Tss2_Tcti_Device_Init([ 7802.846418] tpm tpm0: tpm_try_transmit: send(): error -53212
) Failed to read response header fd 3, got errno 2: No such file or directory
ERROR:tcti:src/tss2-tcti/tctildr-dl.c:154:tcti_from_file() Could not initialize TCTI file: libtss2-tcti-device.so.0
ERROR:tcti:src/tss2-tcti/tcti-device.c:486:Tss2_Tcti_Device_Init() Failed to read response header fd 3, got errno 2: No such file or directory
ERROR:tcti:src/tss2-tcti/tctildr-dl.c:154:tcti_from_file() Could not initialize TCTI file: libtss2-tcti-device.so.0
WARNING:tcti:src/util/io.c:262:socket_connect() Failed to connect to host 127.0.0.1, port 2321: errno 111: Connection refused
ERROR:tcti:src/tss2-tcti/tcti-swtpm.c:614:Tss2_Tcti_Swtpm_Init() Cannot connect to swtpm TPM socket
ERROR:tcti:src/tss2-tcti/tctildr-dl.c:154:tcti_from_file() Could not initialize TCTI file: libtss2-tcti-swtpm.so.0
WARNING:tcti:src/util/io.c:262:socket_connect() Failed to connect to host 127.0.0.1, port 2321: errno 111: Connection refused
ERROR:tcti:src/tss2-tcti/tctildr-dl.c:154:tcti_from_file() Could not initialize TCTI file: libtss2-tcti-mssim.so.0
ERROR:tcti:src/tss2-tcti/tctildr-dl.c:254:tctildr_get_default() No standard TCTI could be loaded
ERROR:tcti:src/tss2-tcti/tctildr.c:428:Tss2_TctiLdr_Initialize_Ex() Failed to instantiate TCTI
ERROR: Could not load tcti, got: "(null)"

Debugging TPM2 Failure

Executing TPM2 commands (or any commands interfacing to fTPM, whether they be user written TA applications or otherwise) must go between the Unsecure World (i.e., TEE-supplicant) and the Secure World (OP-TEE/fTPM).

The first thing to check here is whether something happened to the TEE-supplicant as that acts as a proxy between the Secure/Unsecure worlds:

Copy
Copied!


            [root@localhost ~]# ps axu | grep tee
root       51380  0.0  0.0   6416  1860 ttyAMA0  S+   16:51   0:00 grep --color=auto tee

As you can see the tee-supplicant is no longer running.

Now lets take a look at the tee-supplicant itself, as it's a service started at boot time.

[root@localhost ~]#journalctl -xefu tee-supplicant -b
Jun 07 14:25:54 localhost systemd[1]: Starting TEE Supplicant...
░░ Subject: A start job for unit tee-supplicant.service has begun execution
░░ Defined-By: systemd
░░ Support: http://www.ubuntu.com/support
░░
░░ A start job for unit tee-supplicant.service has begun execution.
░░
░░ The job identifier is 231.
Jun 07 14:25:54 localhost systemd[1]: Started TEE Supplicant.
░░ Subject: A start job for unit tee-supplicant.service has finished successfully
░░ Defined-By: systemd
░░ Support: http://www.ubuntu.com/support
░░
░░ A start job for unit tee-supplicant.service has finished successfully.
░░
░░ The job identifier is 231.
Jun 07 16:35:44 bu-lab106-oob systemd[1]: tee-supplicant.service: Main process exited, code=killed, status=9/KILL
░░ Subject: Unit process exited
░░ Defined-By: systemd
░░ Support: http://www.ubuntu.com/support
░░
░░ An ExecStart= process belonging to unit tee-supplicant.service has exited.

OP-TEE/fTPM Not Functioning Recommendations

Verify OP-TEE is enabled in your UEFI Menu as described in section "Enabling OP-TEE on BlueField-3".
Gather the output as described in sections "Verifying Required Elements for OP-TEE/fTPM are Running" and "Verifying RPMB Device is Functioning".
Provide the above information to an NVIDIA Support Engineer.
Reboot (if possible).

Note

Regardless of whether step 4 fixes the issue, an NVIDIA SE should be notified with the information from steps 1 and 2.

On This Page

RPMB Device Verification

RPMB Device Verification
