Cables and Cabling Configurations
Debugging or bringing up the card required the use of a USB-to-UART cable that is included in the package contents. Upon inspection, there is a USB connector with USB 2.0 full speed compatibility and 3 single pole 0.1m pitch header that connects to a serial port on the Controller Card. The following figure shows an example of a USB-to-UART Cable, and the table provides the cable signal description.
![image2019-12-18_12-43-4.png](https://docscontent.nvidia.com/dims4/default/a97e737/2147483647/strip/true/crop/251x247+0+0/resize/251x247!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000187-94ca-d3c2-a7af-9fde55960000%2Fimages%2Fnetworking%2Fdownload%2Fthumbnails%2F19814150%2Fimage2019-12-18_12-43-4.png)
UART Cable Color Legend and Description
Color | Signal | Description |
Black | GND | Device ground supply pin. Connects to the Controller Card ground pin |
Yellow | RXD | Receive Asynchronous Data input. Connects to TXD output on Controller Card |
Orange | TXD | Transmit Asynchronous Data output. Connects to RXD input on Controller Card |

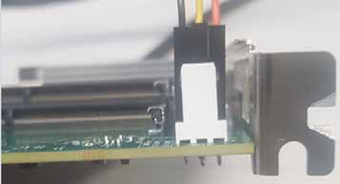

UART Cable Connected to BF1600 Card
![image2019-12-18_12-43-39.png](https://docscontent.nvidia.com/dims4/default/7328bae/2147483647/strip/true/crop/340x184+0+0/resize/340x184!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000187-94ca-d3c2-a7af-9fde55960000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F19814150%2Fimage2019-12-18_12-43-39.png)
Debugging and loading new versions of the operating systems and firmware requires the use of Type A to Type B USB 2.0 Cable. The following figure shows an example of Type A to Type V USB Cable.
![image2019-12-18_12-44-12.png](https://docscontent.nvidia.com/dims4/default/71a57a3/2147483647/strip/true/crop/234x284+0+0/resize/234x284!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000187-94ca-d3c2-a7af-9fde55960000%2Fimages%2Fnetworking%2Fdownload%2Fthumbnails%2F19814150%2Fimage2019-12-18_12-44-12.png)
